AIA XP120 Manual

Dry cooler Type XP120
1
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Directions for use
61358

Dry cooler Type XP120
2
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Declaration by the Manufacturer, Annex II B
As defined by the EC Machinery Directive (MD) 98/37/EC, the Low Voltage Directive (LVD)
2006/95/EC and the EMC Directive 2004/108/EC.
Type of machinery Heat Exchangers supplied with direct cranking fans
Productdescription Unit Coolers Antarctic, EVFI, EVDL, DDX
Air cooled Condensers CPS, CPM, DCP
Air Coolers Antarctic, CBFI, CBDL, DDB
Dry Coolers XPS, XPM, XP, DXP
developed and designed in accordance with the MD 98/37/EC, LVD 2006/95/EC and
EMC Directive 2004/108/EC on the own responsibility of:
Company Asarums Industri AB
S. Industrivägen 2-4
SE 374 50 ASARUM
Sweden
Harmonized Standards:
EN ISO 12100-1:2003 EN 61000-6-1
EN ISO 12100-2:2003 EN 61000-6-2
EN ISO 13857:2008 EN 61000-6-3
EN 60204-1:2006 EN 61000-6-4
EN ISO 4871
The product is not allowed to put in operation until the machine or system, which it is to be
incorporated or which it is to be a part of, is in accordance with the Machinery Directive 98/37/EC.
The compliance with EMC Directive 2004/95/EC is valid if the product is connected directly to
the main supply. If the product is integrated in a system or combined with other products (e.g. other
controllers) the system manufacturer is responsible for compliance with EMC Directive 2004/95/EC
for the complete system.
Date : 2008-12-04
Signed by : Tord Engberg
Title: R&D Manager

Dry cooler Type XP120
3
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
INDEX P
General description 4
System of designations 5
Receiving and fitting 6
Installation 7
Preventivemaintenance 8

Dry cooler Type XP120
4
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
General description
General
This dry cooler is designed for outdoor location and is intended for
refrigerants that are not aggressive in contact with copper.
The cooler conforms to environment class 3.
The cooler is provided with axial fans and the casing is
made of aluminium sheeting as standard.
Important
Do not allow the product to be covered by foreign objects when in operation.
Unobstructed circulation of air is necessary to achieve the highest cooling efficiency.
The laminar surfaces of the battery must be free of deposits.
2
4
8
1
3
56
7
9
Pos Benämning Pos Benämning Pos Benämning
1 Cooler element 4 Connecting tube 7 Fan blade
2 Leg 5 Air vent 8 Protective grille
3 Drain 6 Motor 9 Safety switch

Dry cooler Type XP120
5
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Installation
The following instructions for installation should be read together with the technical
leaflet.
Location
Place the cooler so that air can pass freely over the entire battery surface and if
possible so that the wind direction does not affect the evacuation air because
re-circulation could otherwise occur. This applies particularly to models
that have low revs.
The cooler is to be mounted on a firm base and secured with foundation bolts.
The cooler frame is provided with pre-drilled holes.
System of designations
XP120 6 A 258 X
Number of loops
A = 960 rpm 3/400 V
B = 705 rpm 3/400 V
C = 460 rpm 3/400 V
D = 345 rpm 3/400 V
B/C= 2-speed 3/400 V
C/D= 2-speed 3/400 V
Size
Dry cooler
Additional
options

Dry cooler Type XP120
6
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Receiving and fitting
The product is subjected to thorough inspection of quality and function before leaving
the factory. If faults or damage due to transportation are detected on the product, the
point of sale is to be contacted without delay.
Assembly
1. Move the product to the place of
installation before removing the packing.
2. The cooler is provided with eyebolts
and shall only be lifted using these
according to instructions on the cooler.
3. The legs for XP120 are not fitted on
delivery. In the installation they are to be
fitted to the two uppermost pairs of holes
in the outermost part.
4. Bolt the product direct onto a firm
base, or with vibration dampers, through
the pre-drilled mounting holes.

Dry cooler Type XP120
7
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Installation
Installations may only be made by
authorised persons and in conformance
with national standards.
The cooler may not be connected to
other voltage or frequency than its
rated data.
The wiring diagram is attached to the fan
grille together with these instructions. The
safety switch may not be used for starting
and stopping. Do not fit cable supports
where they could damage the battery and
thus cause leakage.

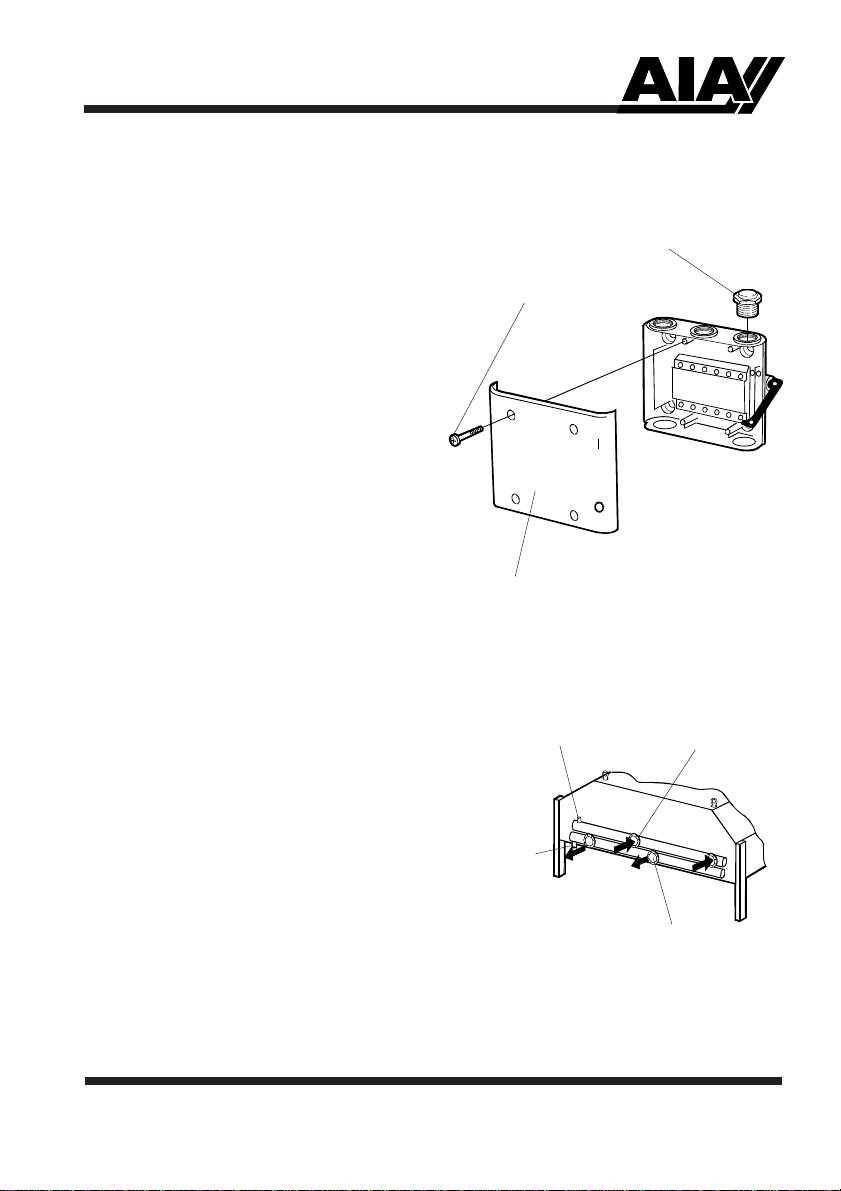

Tubing installation for XP120
The product is to be filled with the amount
and type of heat transfer medium stated by
the installation engineer. The connecting
tubes are located on one end of the unit.
The air vent is at the highest point of the
manifold tube (1).
The incoming lead is connected to tube (2).
The return lead is connected to tube (3).
The drain (4) is located at the bottom of the
manifold tube.
XP120 is to be connected to the safety
switch as follows:
Unscrew the screws (1) with a
screwdriver and remove the cover (2).
Connect the cable through the screw
fitting (3) on the side of the cover.
N.B. Ensure that the fan rotates in the
direction indicated by the arrow. 12
3
4
1
2
3

Dry cooler Type XP120
8
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Preventive maintenance
Warning. Make certain that the
power supply is disconnected
Changing the fan / motor
1. Switch OFF the safety switch
and lock it.
2. Unscrew the fastening screws of the
protective cover (1) and remove it.
3. Loosen the screw (2) and washer in the
fan hub and pull off the fan blade (3).A
puller must be used to do this.
4. Fit an eyebolt (4) in the top of the
motor axle.
5. Disconnect the electric cable from the
motor terminal box (5). The motor weighs
50 to 120 kg. Lifting tackle is
recommended.
6. Unscrew the screws (6) that hold the
motor (7) to the motor shelf (8). Lift out
the motor.
Standstill
During long periods when the unit is not
in operation the fans should be run at least
four times a month. They are to be run
until the motor reaches normal working
temperature, i.e., for about 15 minutes.
2
3
1
4
5
6
7
8

Dry cooler Type XP120
9
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Assembling the fan / motor
1. Lift the motor (7) back into place on
the motor shelf (8) and fit the screws (6),
centre the motor in relation to the fan
taper and tighten the screws.
2. Release the lifting gear and screw off
the eyebolt (4) from the motor axle.
3. Connect the electric cable to the motor
terminal box (5).
4. Fit the fan blade (3) on the motor axle
and tighten the fastening screw (2) and
washer.
N.B. Check centring of the fan in the fan
taper and adjust as required.
5. Put the protective cover (1) in position
and screw fast.
6. Switch the safety switch ON.
Preventive maintenance
3
1
2
4
5
6
7
8

Dry cooler Type XP120
10
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Preventive maintenance
Warning. Make certain that the power supply is disconnected
Cleaning the cooling battery
1. Remove the plate (1).
2. Cooling batteries that are lightly soiled
can be cleaned by brushing and blowing
with compressed air.
3. Then wash the cooling battery with
water and environment-friendly detergent
that does not corrode aluminium or
copper. Ammoniac may not be used.
4. Rinse and allow to dry.
Caution
Always wear protective gloves when
cleaning or when in contact with the
batteries.

Dry cooler Type XP120
11
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden

Dry cooler Type XP120
12
Asarums IndustriAB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
2009-02-10
