AIA XPS User manual

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden 1
1
CPS/XPS - Condensor / Dry cooler
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Directions for use
61221
XPS-Dry cooler
User´s Guide
30264228

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden
2
CPS/XPS - Condensor / Dry cooler
2
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden 3
CPS/XPS - Condensor / Dry cooler
2
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
3
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Declaration by the Manufacturer, Annex II B
As defined by the EC Machinery Directive (MD) 98/37/EC, the Low Voltage Directive (LVD)
2006/95/EC and the EMC Directive 2004/108/EC.
Type of machinery Heat Exchangers supplied with direct cranking fans
Productdescription Unit Coolers Antarctic, EVFI, EVDL, DDX
Air cooled Condensers CPS, CPM, DCP
Air Coolers Antarctic, CBFI, CBDL, DDB
Dry Coolers XPS, XPM, XP, DXP
developed and designed in accordance with the MD 98/37/EC, LVD 2006/95/EC and
EMC Directive 2004/108/EC on the own responsibility of:
Company Asarums Industri AB
S. Industrivägen 2-4
SE 374 50 ASARUM
Sweden
Harmonized Standards:
EN ISO 12100-1:2003 EN 61000-6-1
EN ISO 12100-2:2003 EN 61000-6-2
EN ISO 13857:2008 EN 61000-6-3
EN 60204-1:2006 EN 61000-6-4
EN ISO 4871
The product is not allowed to put in operation until the machine or system, which it is to be
incorporated or which it is to be a part of, is in accordance with the Machinery Directive 98/37/EC.
The compliance with EMC Directive 2004/95/EC is valid if the product is connected directly to
the main supply. If the product is integrated in a system or combined with other products (e.g. other
controllers) the system manufacturer is responsible for compliance with EMC Directive 2004/95/EC
for the complete system.
Date : 2008-12-04
Signed by : Tord Engberg
Title: R&D Manager
LU-VE Sweden AB
Södra Industrivägen 2 – 4
SE – 374 50 Asarum
Sweden
LU-VE Sweden AB Södra Industrivägen 2-4 SE-374 50 Asarum, Sweden
Tel. [phone] Fax: [phone]
Declaration of Conformity
Directives 2006/42/EC, 2006/95/EC (LVD), 2004/108/EC (EMC)
Manufacturer LU-VE Sweden AB
S. Industrivägen 2-4
S-374 50 ASARUM
Sweden
Technical file Tord Engberg
Type of machinery Heat-exchangers supplied with direct cranking fans and in certain types
of machinery control equipment is included.
Product range Dry Coolers XPS, XPM, XP, DXP, X2-D, VX2-D,
X3-D, VX3-D, VXX3-D
We declare that our Dry Coolers and Air Cooled Condensers comply with all applicable provisions of
the Directive 2006/42/EC.
We declare that our Dry Coolers and Air Cooled Condensers conform to the requirements of the
following Directives 2006/95/EC (LVD), 2004/108/EC (EMC)
Harmonised standards EN ISO 12100-1:2003 EN 61000-6-1
EN ISO 12100-2:2003 EN 61000-6-2
EN ISO 13857:2008 EN 61000-6-3
EN 60204-1:2006 EN 61000-6-4
EN ISO 4871:2009
2014-01-20
LU-VE Sweden AB
Technical Department
Tord Engberg
R & D Manager
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden
4
4
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
INDEX Page
General description 5
System of designations 6
Receiving and fitting 7
Installation 8-11
Motor winding diagram 12
Preventive maintenance 13-14
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden 5
4
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
INDEX Page
General description 5
System of designations 6
Receiving and fitting 7
Installation 8-11
Motor winding diagram 12
Preventive maintenance 13-14
5
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden

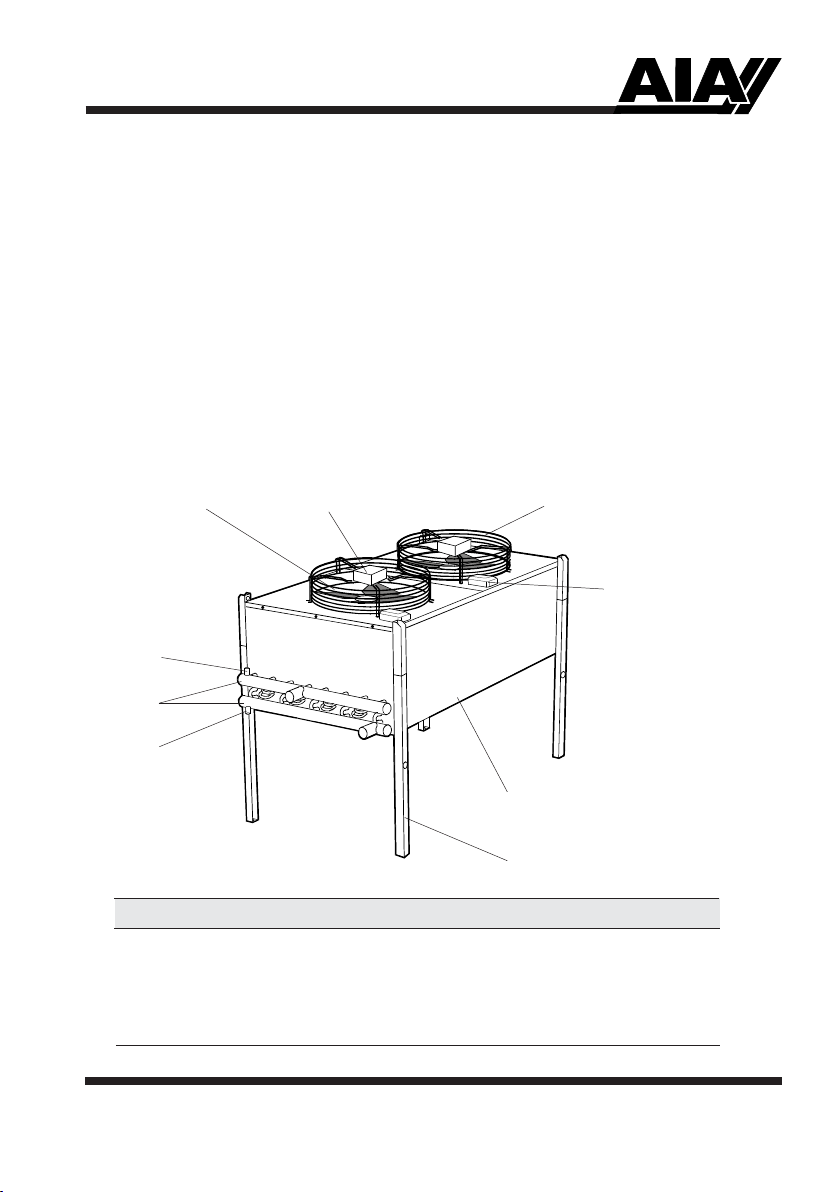

General description
General
This product is designed for outdoor location and is intended for brines that are not
aggressive in contact with copper.The product is provided with axial fans and the
casing is made of aluminium sheeting as standard.
Important
Do not allow the product to be covered by foreign objects when in operation.
Unobstructed circulation of air is necessary to achieve the highest cooling efficiency.
The laminar surfaces of the coil must be free of deposits.
1
3
4
5
2
678
9
Item Designation Item Designation Item Designation
1 Cooling coil 4 Connecting pipe 7 Junction box
2 Leg 5 Air vent. 8 Fan guard grill
6 Axial fan 9 Safety switch3 Drain
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden
6
CPS/XPS - Condensor / Dry cooler
6
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
C E 45 – 1 1 3 C– DF – 4 D 3 400 50 – 2 –X
Serie
Tube size code
Fan size in cm
Lines of fans
Fans per line
Coil rows deep
Fin pitch code
Product application
D = Dry cooler
Product orientation
F = Flat model
U = Upright model
(poles) Motor speed
4 = 1400 rpm
6 = 900 rpm
Motor winding connection
D = delta
Y = Star
YD = 2 speed
S = Singel phase
Number of phases
Voltage
400 = 400 V
230 = 230 V
Frequency
50 = 50 Hz
Number of circuits
Option above standard
System of designations
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden 7
CPS/XPS - Condensor / Dry cooler
6
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
C E 45 – 1 1 3 C– DF – 4 D 3 400 50 – 2 –X
Serie
Tube size code
Fan size in cm
Lines of fans
Fans per line
Coil rows deep
Fin pitch code
Product application
D = Dry cooler
Product orientation
F = Flat model
U = Upright model
(poles) Motor speed
4 = 1400 rpm
6 = 900 rpm
Motor winding connection
D = delta
Y = Star
YD = 2 speed
S = Singel phase
Number of phases
Voltage
400 = 400 V
230 = 230 V
Frequency
50 = 50 Hz
Number of circuits
Option above standard
System of designations
7
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Receiving and fitting
The product is subjected to thorough inspection of quality and function before leaving
the factory. If faults or damage due to transportation are detected on the product, the
transporter and point of sale is to be contacted without delay.
Assembly
1. Move the product to the place of
installation before removing the packing.
The cooler is provided with eyebolts (A)
and shall only be lifted using these
according to instructions on the cooler
and the directions for use.
2. The legs on are mounted in the trans-
port mode during transportation. These
are to be fitted for installation in the two
upper pairs of holes on the outermost
part.
3. Bolt the product through the pre-drilled
mounting holes to a firm base.
A
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden
8
8
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
YY
>2xY
>2xY
Y
>Y
>Y
Installation
The following instructions should be read together with the technical leaflet.
Location
Place the product so that air can pass freely over the entire coil surface and if possible
so that the wind direction does not affect the evacuation air because re-circulation
could otherwise occur. This applies particularly to models
that have low revs.
The product is to be mounted on a firm base and secured with foundation bolts.
The frame of the product is provided with pre-drilled holes.
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden 9
8
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
YY
>2xY
>2xY
Y
>Y
>Y
Installation
The following instructions should be read together with the technical leaflet.
Location
Place the product so that air can pass freely over the entire coil surface and if possible
so that the wind direction does not affect the evacuation air because re-circulation
could otherwise occur. This applies particularly to models
that have low revs.
The product is to be mounted on a firm base and secured with foundation bolts.
The frame of the product is provided with pre-drilled holes.
9
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden

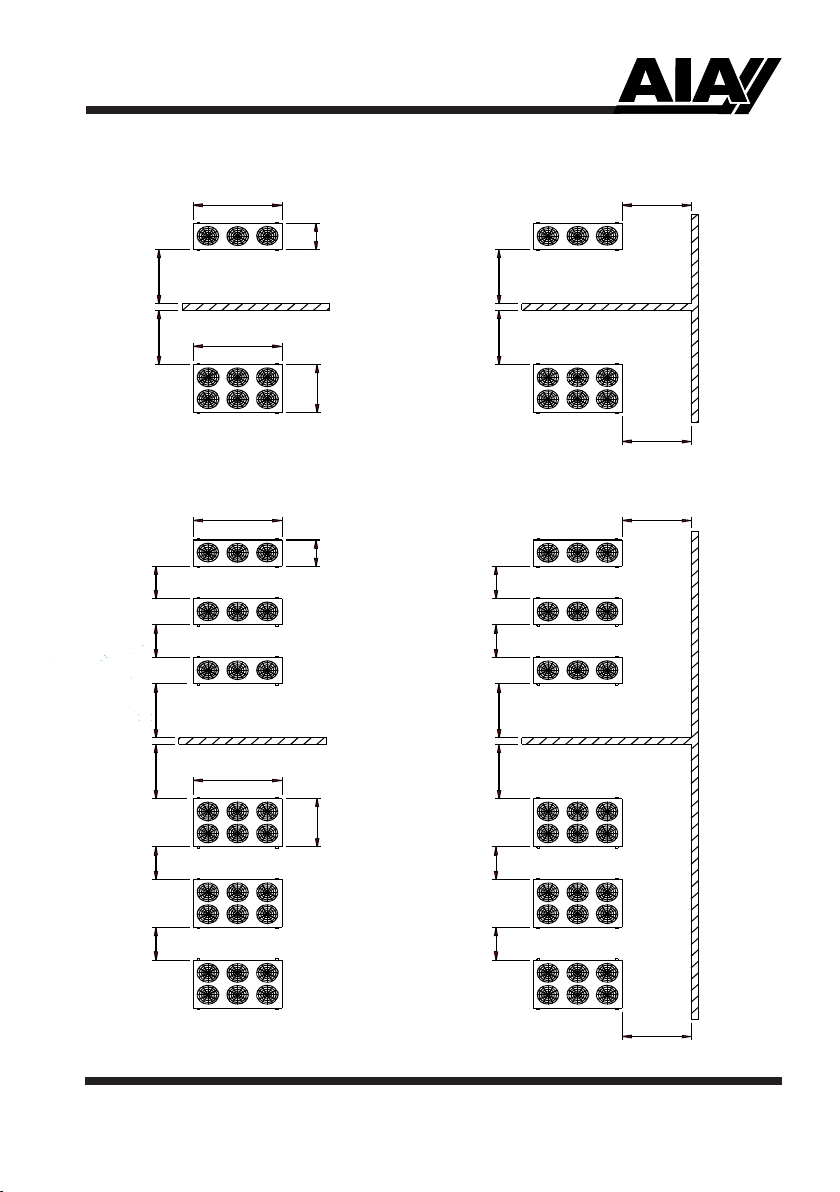

0,7 x B
0,6 x Y
A
X
Y
B
B
A
0,8 x B
0,8 x B
0,7 x Y
0,7 x Y
0,8 x B
0,8 x B
>A / 4
>B / 2
0,7 x Y
>x / 4
>Y / 2
>x / 4
>Y / 2
0,7 x Y
>x / 4
>Y / 2
>x / 4
>Y / 2
0,7 x B
0,6 x Y
>A / 4
>B / 2
>A / 4
>B / 2
>A / 4
>B / 2
X
Y
Installation
XPS-Dry cooler

LU-VE Sweden AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax: [phone]
SE – 374 50 Asarum
Sweden
10
10
Asarums Industri AB Tel: [phone]
Södra Industrivägen 2 – 4 Fax:[phone]
SE – 374 50 Asarum
Sweden
Tube installation for Dry Cooler
The product is to be filled with the amount
and type of heat transfer medium stated by
the installation engineer. The connecting
tubes are located on one end of the unit.
The air vent is at the highest point of the
header (1).
The incoming lead is connected to tube (2).
The return lead is connected to tube (3).
The drain (4) is located at the bottom of the
header.
1
2
4
3
Installation
