AIC RSC-2ETS User manual

UM_RSC-2ETS_v1.3_030921
RSC-2ETS
Rackmount Chassis
User's Manual

Table of Contents
Contents
Preface ������������������������������������������������������������������������������������������������ i
Safety Instructions ������������������������������������������������������������������������������ ii
About This Manual ����������������������������������������������������������������������������� iv
Chapter 1� Product Features �������������������������������������������������������������� 1
1.1 Components .............................................................................................. 1
1.2 Specifications............................................................................................ 2
1.3 Feature ....................................................................................................... 2
Chapter 2� Hardware Setup���������������������������������������������������������������� 6
2.1 Top Cover................................................................................................... 6
2.2 Power Supply Unit Module ....................................................................... 7
2.3 Fan Module ................................................................................................ 8
2.3.1 Removing the Fan ................................................................................................ 8
2.3.2 Installing the Fan ................................................................................................. 9
2.4 Hard Disk Drive ........................................................................................ 10
2.5 HDD Backplane........................................................................................ 12
2.5.1 Removing the HDD Backplane ..........................................................................12
2.5.2 Installing the HDD Backplane............................................................................14
2.6 Slide Rail .................................................................................................. 15
Chapter 3� Hardware Specification��������������������������������������������������� 19
3.1 HDD Backplane........................................................................................ 19
3.1.1 Placement...........................................................................................................19
3.1.2 Connector Location............................................................................................20
3.1.3 Connector ...........................................................................................................21
3.1.4 LED Indicator ......................................................................................................25
3.1.5 Jumper................................................................................................................26
3.1.6 Drive Slot Map ....................................................................................................27
Chapter 4� Technical Support����������������������������������������������������������� 28

Document Release History
Release Date Version Update Content
October, 2017 1 User's Manual release to public.
April, 2019 1.1 Content update.
August, 2020 1.2 logo update.
March, 2021 1.3 Manual cover update.
Technical Support update

Copyright © 2017 AIC®, Inc� All Rights Reserved�
This document contains proprietary information about
AIC® products and is not to be disclosed or used except in
accordance with applicable agreements.

Copyright
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photo-static, recording
or otherwise, without the prior written consent of the manufacturer.
Trademarks
All products and trade names used in this document are trademarks or registered
trademarks of their respective holders.
Changes
The material in this document is for information purposes only and is subject to change
without notice.
Warning
1. A shielded-type power cord is required in order to meet FCC emission limits and also
to prevent interference to the nearby radio and television reception. It is essential
that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
Disclaimer
AIC® shall not be liable for technical or editorial errors or omissions contained herein.
The information provided is provided "as is" without warranty of any kind. To the extent
permitted by law, neither AIC® or its aliates, subcontractors or suppliers will be liable
for incidental, special or consequential damages including downtime cost; lost prots;
damages relating to the procurement of substitute products or services; or damages
for loss of data, or software restoration. The information in this document is subject to
change without notice.
Instruction Symbols
Special attention should be given to the instruction symbols below.
NOTE This symbol indicates that there is an explanatory or
supplementary instruction.
CAUTION
This symbol denotes possible hardware impairment. Upmost
precaution must be taken to prevent serious harware damage.
WARNING
This symbol serves as a warning alert for potential body
injury. The user may suffer possible injury from disregard or
lack of attention.
Preface

Safety Instructions
Before you commence, please attentively read the following important discretions below. All
cautions and warnings on the equipment or in the manuals should be circumspectly noted
and reviewed.
Always ground yourself to prevent static electricity.Always ground yourself to prevent static electricity.
請請全程接地，以防止靜電。全程接地，以防止靜電。
请请全程接地，以防止静电。全程接地，以防止静电。
Всегда заземляйте себя, чтобы избежать статического электричества.Всегда заземляйте себя, чтобы избежать статического электричества.
Aard jezelf altijd om statische elektriciteit te voorkomen.Aard jezelf altijd om statische elektriciteit te voorkomen.
• Firmly ground yourself at all times when installing or assembling the
internal components of the server. Most of electronic components in the server
are highly sensitive to electrical static discharge.
• Use a solid grounding wrist strap and distintively place all electronic components in
static-shielded devices to prevent static. Grounding wrist straps can be purchased in
any electronic supply store.
• Confirm that the power source is turned off and then disconnect the power cords from
your system before performing any type of installation or manual servicing. A sudden
surge of power could serverly damage the sensitive electronic components.
• Do not precipitously open the system’s top cover. If you must open the cover for
maintenance purposes, only a trained technician should be allowed to proceed this
action. Integrated circuits on computer boards are highly sensitive to static electricity.
Before operating a board or integrated circuit, touch an unpainted portion of the system
unit chassis for a couple of seconds to discharge any static electricity on your body.
Place the server in a stable environment.Place the server in a stable environment.
請請將伺服器放置在穩定的環境中。將伺服器放置在穩定的環境中。
请请将伺服器放置在稳定的环境中。将伺服器放置在稳定的环境中。
Поместите сервер в стабильную среду.Поместите сервер в стабильную среду.
Plaats de server in een stabiele omgeving.Plaats de server in een stabiele omgeving.
• Place this equipment on a stable surface when installing. A small mild drop or fall could
cause fatal injury to both the equipment and the person handling the equipment.
• Please keep this equipment away from humidity to prevent vast rust and disintergration.
• Carefully and accurately mount the equipment into the rack. Uneven mechanical
loading may lead to hazadous consequences.
• This equipment is to be installed for operation in an environment with maximum
ambient temperature below 35°C.
• Review the environment before performing any installation or servicing. Keep the
equipment away from hazardous and uneven grounds.
• This server must be installed only in Restricted Acess Locations.
Handle equipment with care.Handle equipment with care.
請謹慎操作設備。請謹慎操作設備。
请谨慎操作设备。请谨慎操作设备。
Обращайтесь с оборудованием осторожно.Обращайтесь с оборудованием осторожно.
Behandel de apparatuur voorzichtig.Behandel de apparatuur voorzichtig.
• Do not cover the openings of the system. The openings on the system are for air
convection, which intentionally protect the equipment from overheating.
• Never pour any liquid into ventilation openings of the system. This could cause
catastrophic fire or electrical shock.
ii

• Ensure that the voltage of the power source is within the specification on the label
when connecting the equipment to the power outlet. The current load and output power
of loads must be within the specification.
• This equipment must be firmly connected to reliable grounding before usage. Pay
special attention to power supplied other than direct connections, e.g. using of power
strips.
• Place the power cord out of the way of foot traffic. Do not place anything over the
power cord. The power cord must be rated for the product, voltage and current marked
on the product’s electrical ratings label. The voltage and current rating of the cord
should be greater than the voltage and current rating marked on the product.
Pay attention to hardware maintenance.Pay attention to hardware maintenance.
注意硬體維護注意硬體維護。。
注意硬体维护注意硬体维护。。
Обратите внимание на обслуживание оборудования.Обратите внимание на обслуживание оборудования.
Besteed aandacht aan hardware-onderhoud.Besteed aandacht aan hardware-onderhoud.
• If the equipment is not used for a long time, disconnect the equipment from mains to
avoid being damaged by transient over-voltage.
• Module and drive bays must not be empty. They must have a dummy cover.
• Never open the equipment without professional assistence. For safety reasons, only
qualified service personnel should open the equipment.
• If one of the following situations arise, the equipment should be checked and tested by
service personnel:
1. The power cord or plug is damaged.
2. Liquid has penetrated the equipment.
3. The equipment has been exposed to moisture.
4. The equipment does not work well or will not work according to its user manual.
5. The equipment has been dropped and/or damaged.
6. The equipment has obvious signs of breakage.
7. Please disconnect this equipment from the AC outlet before cleaning. Do not
use liquid or detergent for cleaning. The use of a moisture sheet or cloth is
recommended for cleaning.
CAUTION
The equipment intended for installation should be placed in Restricted Access Location.
CAUTION
There will be a risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions. After performing any installation or
servicing, make sure the enclosure is correct in position before turning on the power.
CAUTION
This unit may have more than one power supply. Disconnect all power sources before
maintenance to avoid electric shock.
iii

About This Manual
Thank you for selecting and purchasing RSC-2ETS.
This user's manual is provided for professional technicians to perform easy hardware
setup, basic system configurations and quick software startup. This document pellucidly
presents a brief overview of the product design, device installation and firmware settings
for 2ETS Rackmount Chassis. For the latest version of this user's manual, please refer to
the AIC® website: https://www.aicipc.com/en/productdetail/447.
Chapter 1 Product Features
This chapter delivers the overall layout of the product, including the fundamental
components of the rackmount chassis, design specifications and noteworthy features.
Chapter 2 Hardware Setup
This chapter displays an easy installation guide for assembling the chassis. Utmost
caution for proceeding to set up the hardware is highly advised.
Chapter 3 Hardware Specifications
This chapter elaborates the overall layout of the hardware design, including multifarious
connectors, jumpers and LED descriptions.
Chapter 4 Technical Support
For more information or suggestion, please contact the nearest AIC® corporation
representative in your district or visit the AIC® website: https://www.aicipc.com/en/index.
It is our greatest honor to provide the best service for our customers.

1
Chapter 1� Product Features
RSC-2ETS is a flexible rackmount storage chassis with tool-less design. This product
supports hot swappable HDDs and easy swap fans. For more information about our
product, please visit our website at https://www.aicipc.com/en/index.
Before removing the subsystem from the shipping carton, visually inspect the physical
condition of the shipping carton. Exterior damage to the shipping carton may indicate
that the contents of the carton are damaged. If any damage is found, do not remove
the components; contact the dealer where the subsystem was purchased for further
instructions. Before continuing, rst unpack the subsystem and verify that the number of
components in the shipping carton is accurate and in good condition.
1�1 Components
This product contains the components listed below.
Please conrm the number and the condition of the components before installation.
• Chassis (includes power supply, fan & hard disk drive tray)
• Power cord (vary per region)
• Slide rail x 1 set (optional)
Product specifications and features are subject to change without prior notice�

2
Chapter 1. Product Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational
vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• One front access USB 3.0 port
• Comes with a redundant PSU 80+ Platinum
1�3 Feature
1�2 Specifications
Dimensions
(W x D x H)
mm : 430 x 560 x 88
inches : 17 x 22 x 3.5
Industry Standard EIA-RS310D
Material Heavy-duty preplated SPGC cold-rolled steel
Color Front Panel : Black
Cooling 3 x 80x38mm PWM & low-power consumption
hot swap fans
Power Supply 550W 1+1 redundant power supply PMBus 1.2
80+ Platinum
Expansion Slots
FrontPanel System power on/off, System reset and 1 x USB 3.0 port
LEDIndicators Power, LAN, Drive and Alert
System Board 12”(W) x 9.6”(D) ATX
Drive Bays
External
3.5” hot swap 12
2.5” hot swapOptions:
• 2 x 2.5” (7mm) hot swap
• 2 x 2.5” (15mm) internal
Internal 2.5”
Backplane Options
1 x 12-port 12Gb SATA/SAS backplane
with 28-PHY expander chip and 3
SFF-8643 connectors
1 x 12-port SATA/SAS backplane with
3 x SFF-8643 connectors
Storage
Temperature 0ºC(32ºF) ~ 50ºC(122ºF)
Humidity 5%~95% non-condensing
Gross Weight (w/ PSU& Rail)
kgs : 23.5
lbs : 51.8
Packaging
Dimensions(W x D x H)
mm : 645 x 835 x 224
inches : 25.4 x 32.9 x 8.8
CubicFeet 5.38
Container Load
Quantity
20’200
40’420
40’ H 450
Mounting Standard 28” tool-less slide rail

3
Chapter 1. Product Features
Front Panel
12 x 3.5" hotswap drive tray
1 x USB 3.0 port
Power Button
System Power LED
System HDD Activity LED
LAN LED
System Alert LED
ID LED
ID button
System Reset button

4
Chapter 1. Product Features

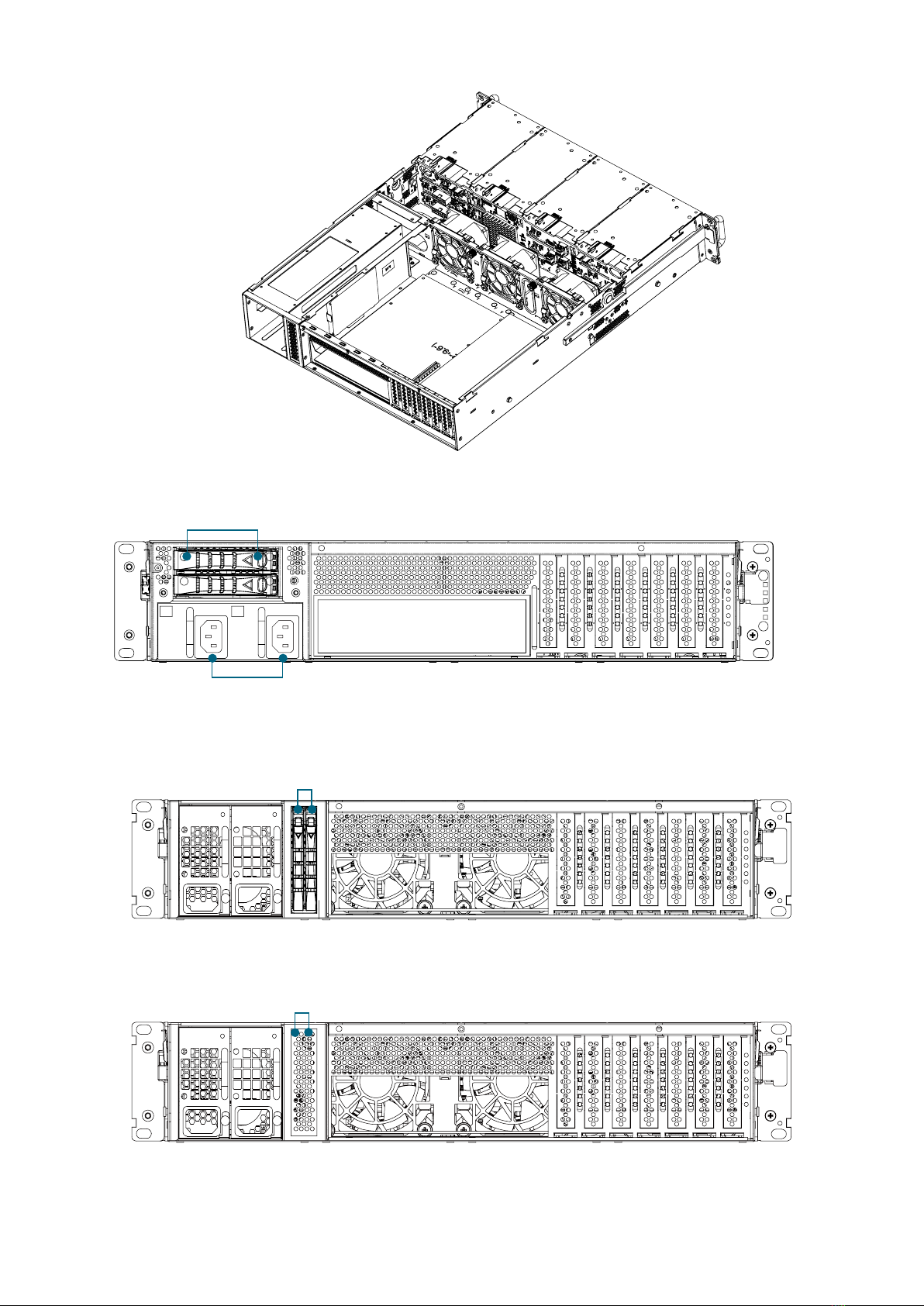

Rear Panel
Option 1
2 x 2.5'' External hot swap drive bays
700W 1+1 redundant PSU PMBus 1.2 80+ Platinum 7 x PCIe 3.0 slots(low-profile)
Option 2
2 x 2.5'' (7mm) SSD OS
Option 3
2 x 2.5'' (15mm) internal SSD OS

5
Chapter 1. Product Features
Major Components
3 x 80 x 38mm PWM & low-power consumption hot swap fans3 x 80 x 38mm PWM & low-power consumption hot swap fans
12" (W) x 9.6" (D) ATX compliant system board

6
6
This chapter provides detailed instructions on hardware installation.
1Push the button on both sides 2Push the top cover backward.
3Lift up the top cover from the enclosure.
Chapter 2� Hardware Setup
2�1 Top Cover

7
Chapter 2. Hardware Setup
Push the latch towards the handle on the module.
Pull the handle to remove it from the enclosure.
2�2 Power Supply Unit Module
1
2

8
Chapter 2. Hardware Setup

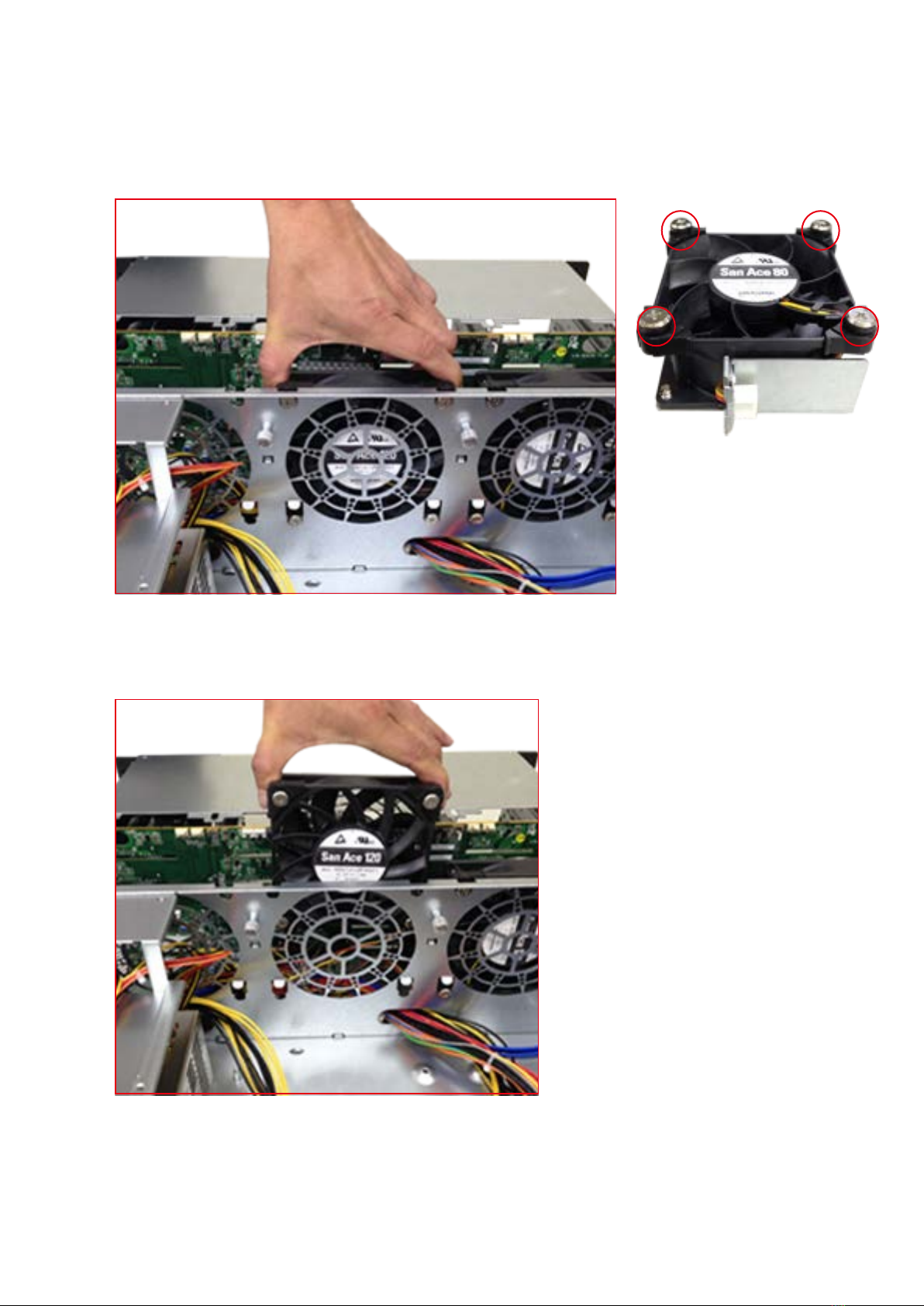

2�3�1 Removing the Fan
Grab and remove the fan module from the fan slot.
1
2Pull the fan module up gently and take out the fan module by removing the rubbers out
from the fan bar.
2�3 Fan Module
RUBBER

9
Chapter 2. Hardware Setup

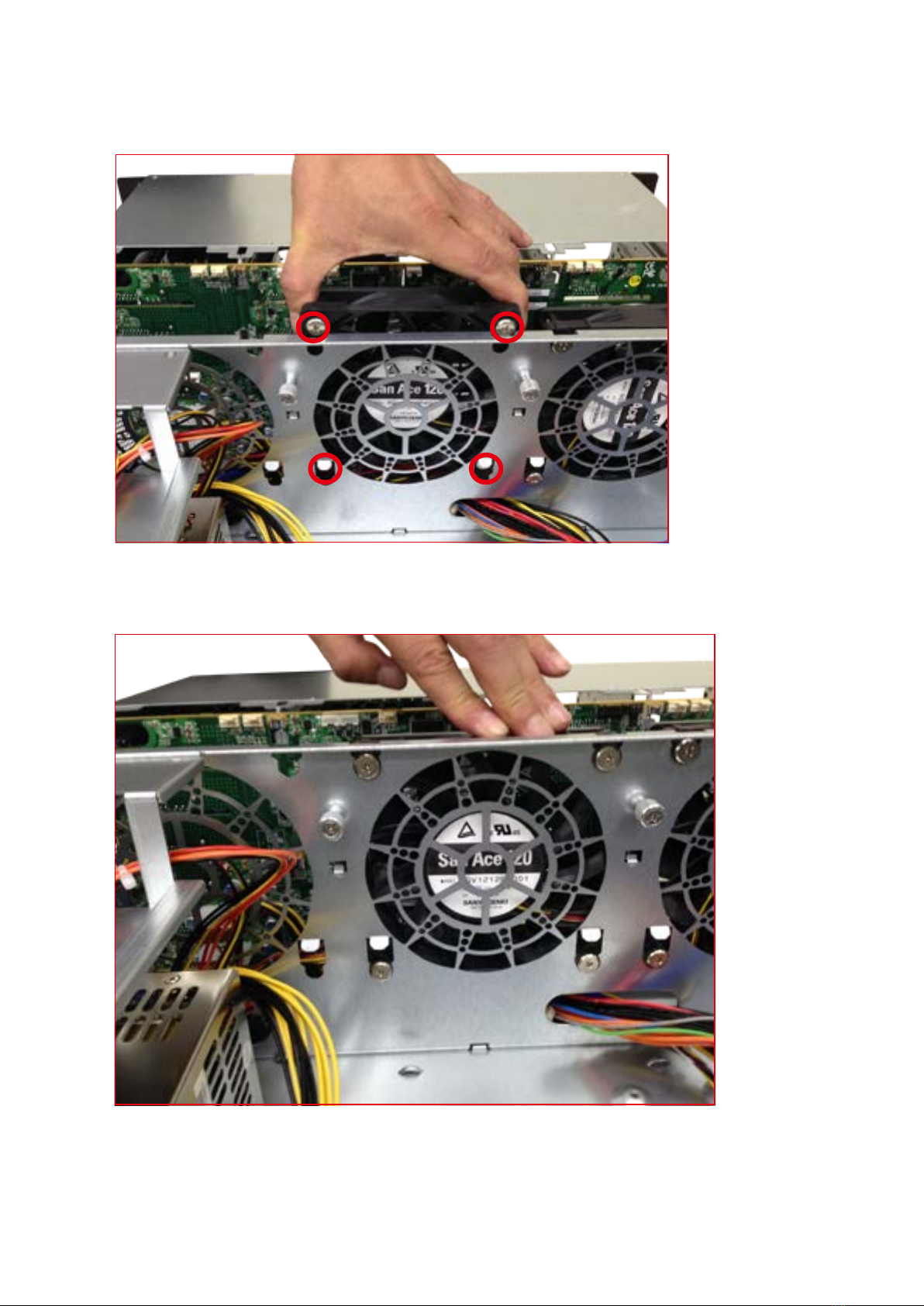

2�3�2 Installing the Fan
Align the fan module and make sure insert 4 screws with the opening in the enclosure.
2Make sure the 4 rubbers and connector insert firmly while fan module is inserted.
1

10
Chapter 2. Hardware Setup

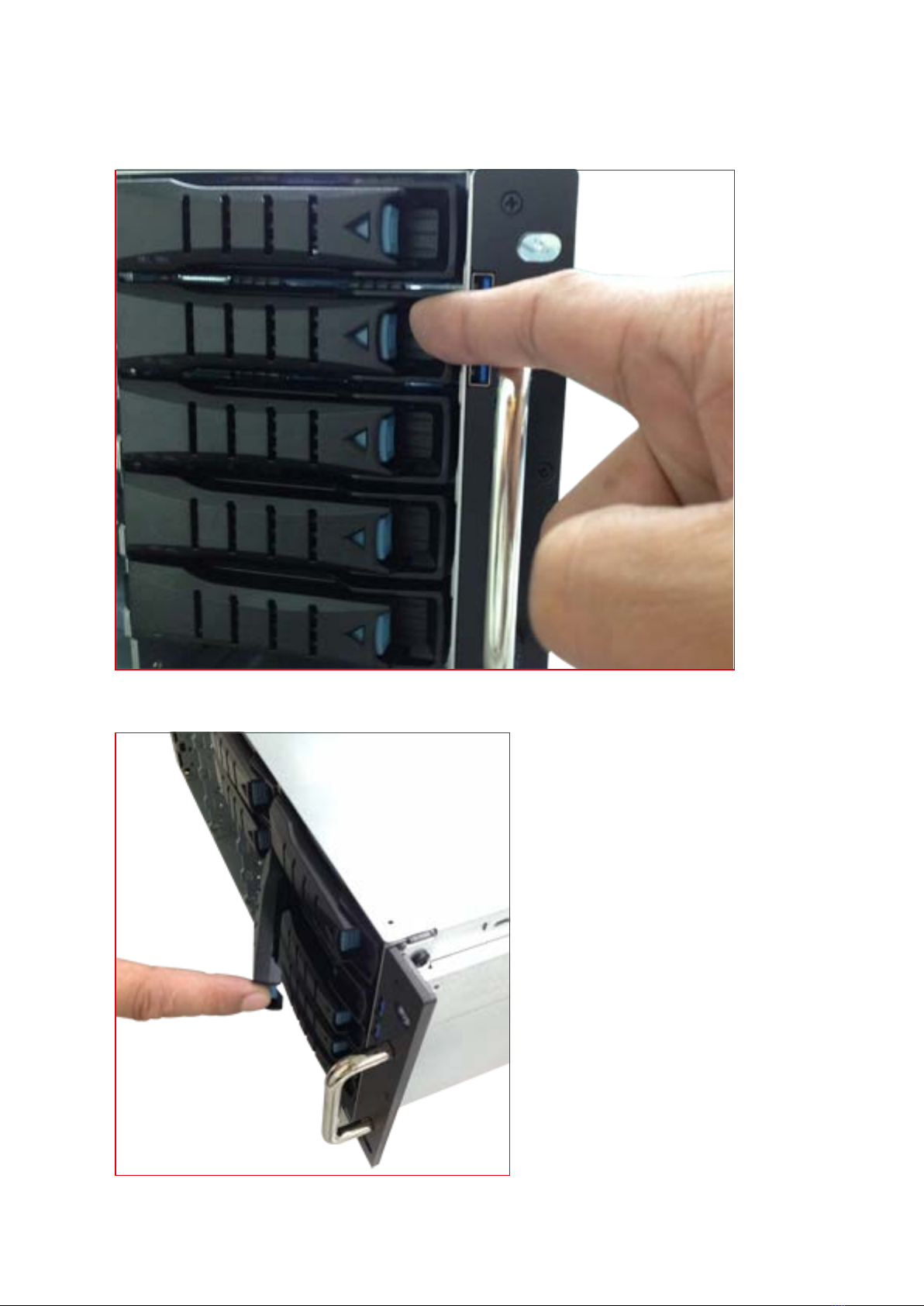

1Release a drive tray by pressing the unlock button.
2Pull out the HDD tray handle and slide out the HDD tray.
2�4 Hard Disk Drive

11
Chapter 2. Hardware Setup
4Insert the HDD into the tray. Directly place HDD into tool-less HDD tray untli it snaps. Please
check if the screw holes on HDD match the dimples on HDD tray.
5HDD can also be screwed on HDD tray by
reserve 2 screw holes at the bottom for
optional screw mounting.
6Insert the drive tray into chassis HDD
cage. Make sure the drive tray is correctly
secured in place when its front edge aligns
with the bay edge. Push the tray lever until it
reaches the end and clicks.

12
Chapter 2. Hardware Setup

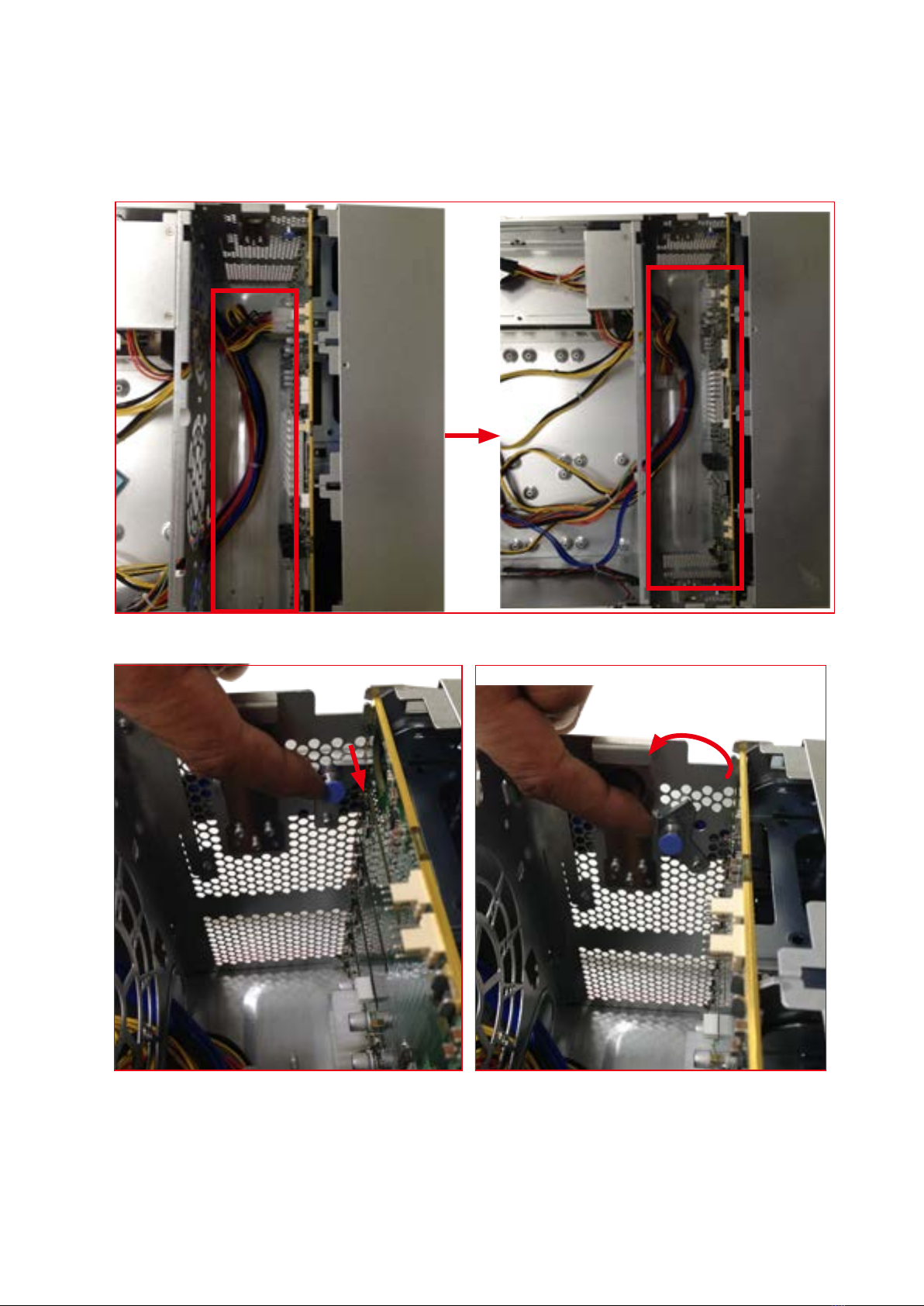

2�5�1 Removing the HDD Backplane
Unplug all connectors & HDDs from HDD backplane.
1
2Release the lock pin.
2�5 HDD Backplane
