aidapt VG798 Manual

INSTRUCTION LEAFLET
VG798 - STROLLEY TROLLEY
lease read this manual before operation for maintenance
instructions and safe usage of this trolley
AIDAP BA HROOMS L D. Lancots Lane, Sutton Oak, St. Helens WA9 3EX
el: 01744 745020 Fax: [phone] E-mail: [email protected] Web: www.aidapt.co.uk

N.B. This equipment must be installed by a competent installer/technician.
1. ASSEMBLY
Your trolley is supplied to you packed in cube
form. lease examine all components for any
damage before use. If you see any damage or
suspect a fault, please contact your supplier
immediately.
In this case, please do not use your product as it
may compromise the safety of the user.
The package contains the following components;
Main trolley body
4 x height adjustable legs with pin clips
2 x detachable arms
2 x clip on moulded table tops
Please read and follow the instructions carefully
1.1 Remove all the contents from the box
1.2 Ensure that you protect the paintwork of the trolley during assembly by placing the trolley on a
carpet or a large sheet of cardboard.
1.3 Take the trolley frame and place it upside down and carefully insert the tapered section of the
brown painted leg assembly into the body of the trolley frame.
1.4 Insert the leg retention clip. Ensure that the retention clip passes all the way through.
1.5 Ensure that all four extension legs are adjusted to the same height and then turn the fram upright.
1.6 Test the trolley for stability thoroughly and visually check that all four leg retention clips are in
place.
Do not use the leg retention clips to adjust the trolley height.
1.7 lace the two detachable arms into the locating holes with the higher part of the arms towards
the front of the trolley.
N.B Ensure both arms are fully located in place and the four
brass buttons are passed completely through the frame: they
should protrude approximately 5mm out from the main frame
1.8 Clip on both trolley trays with the flared edge towards the
front of the trolley.

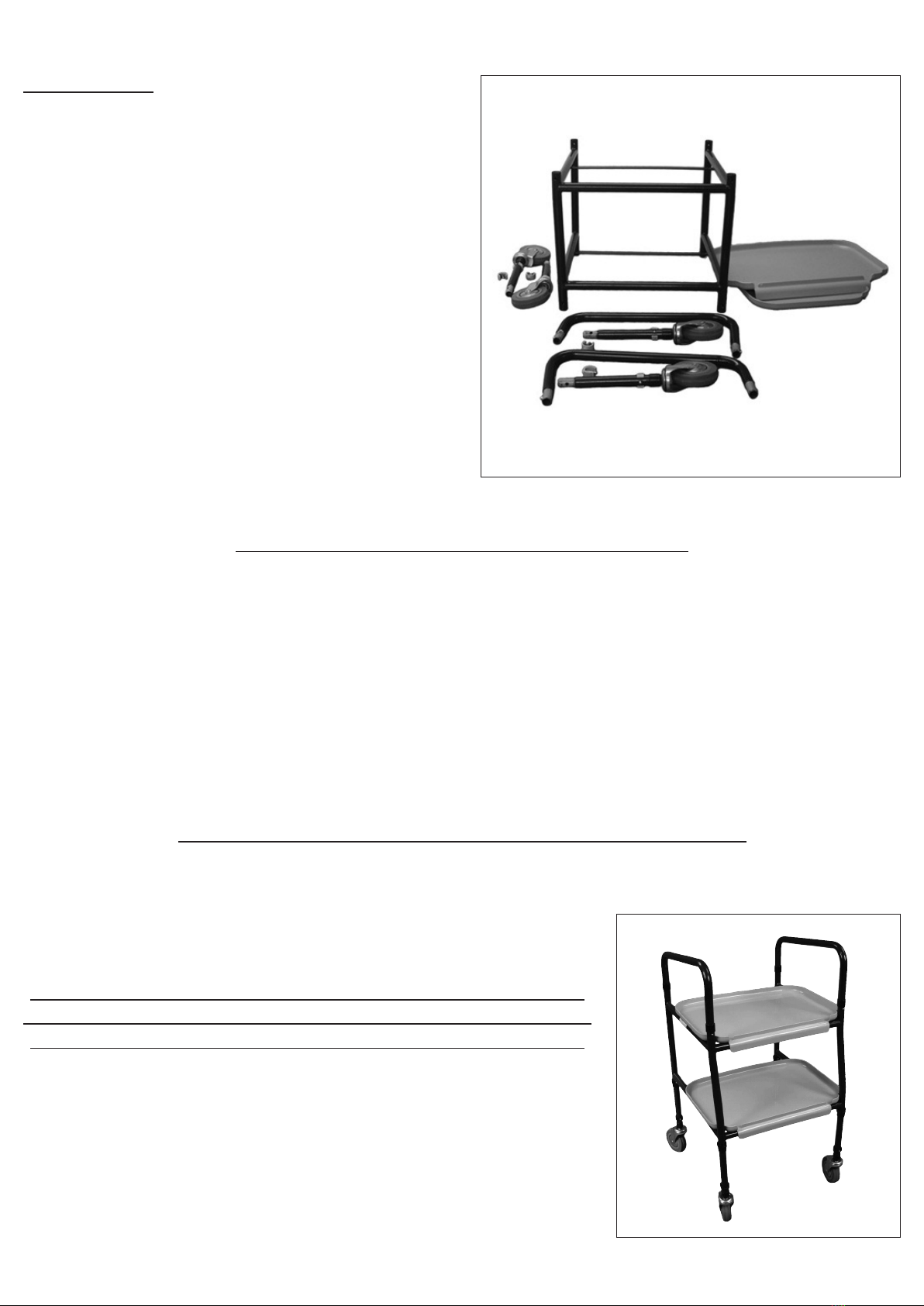

Your completed trolley should now look like the image on the
right.
AIDAP BA HROOMS L D. Lancots Lane, Sutton Oak, St. Helens WA9 3EX
el: 01744 745020 Fax: [phone] E-mail: [email protected] Web: www.aidapt.co.uk

2. HEIGH ADJUS MEN
Your trolley can be adjusted in height if required.
Re-insert all ‘E’ clips facing the line of travel also ensuring that the ‘E’ clips have passed
through the product frame and extension leg and are secure. See fig. 2 below
To adjust the height remove the LOWER ‘E’ clips from the extension legs and pull each leg to the
desired height. See fig. 1 below
Check that the trolley is sitting evenly on the floor and there is no excessive rocking or the trolley is
tilting to one side. If this is the case, please do not use the trolley, but repeat the above steps to correct
the problem or contact your supplier for service support.
3. CLEANING
The polypropylene clip in trays can be removed for cleaning. To remove, place your finger and
thumb on the underside of the ‘U’ clip over inverted ‘U’ section, push upwards and remove.
The trays can be cleaned with either a mild detergent or disinfectant, or alternatively pressure
washed or autoclaved at a temperature of up to 100˚C.
To refit the tray, simply push down on the inverted U’ sections ensuring that the tray is in line with the
trolley frame. Check that all the engaging edges are sitting neatly, evenly and securely to the frame.
AIDAP BA HROOMS L D. Lancots Lane, Sutton Oak, St. Helens WA9 3EX
el: 01744 745020 Fax: [phone] E-mail: [email protected] Web: www.aidapt.co.uk
Never adjust the legs unevenly: this is dangerous and can seriously compromise the
safety of the user.
fig. 1 fig. 2

DEALER STAM
AIDAP BA HROOMS L D. Lancots Lane, Sutton Oak, St. Helens WA9 3EX
el: 01744 745020 Fax: [phone] E-mail: [email protected] Web: www.aidapt.co.uk
4. CLEANING HE CAS ORS
Your trolley is supplied with high quality metal castors with an integral wheel guard.
The castors can be removed from the frame by removing the upper ‘E’ clip retaining the extension
leg. Once done, wash the castor in a bucket of mild detergent or disinfectant.
After cleaning ensure that you thoroughly dry the castor and the extension leg prior to reassembly
and finish by applying a water-dispersing agent such as WD40 over the castor wheel and body prior
to reassembly.
5. IMPOR AN
Aidapt trolleys are not designed to be used as a walking aid (unless specified separately)
They are only designed to be used in the home and under no circumstances must they be used outside,
as rippled or uneven surfaces may cause the castors to come loose and compromise the safety of
the user.
6. MAXIMUM WEIGH
The maximum permissable weight on each tray is 15kg.
Height (mm) ..............................................................................................................................850 - 950
Width (mm).........................................................................................................................................440
Depth (mm) ........................................................................................................................................480
Tray Dimensions (W x D) (mm)................................................................................................463 x 345
If in any doubt, please do not issue or use, but immediately contact your supplier for service support.
If you re-issue or are about to re-issue the product, please thoroughly check all components
for their safety. This includes: tightness of all nuts/bolts/castors and other screw in/bolt
in/push in components.
