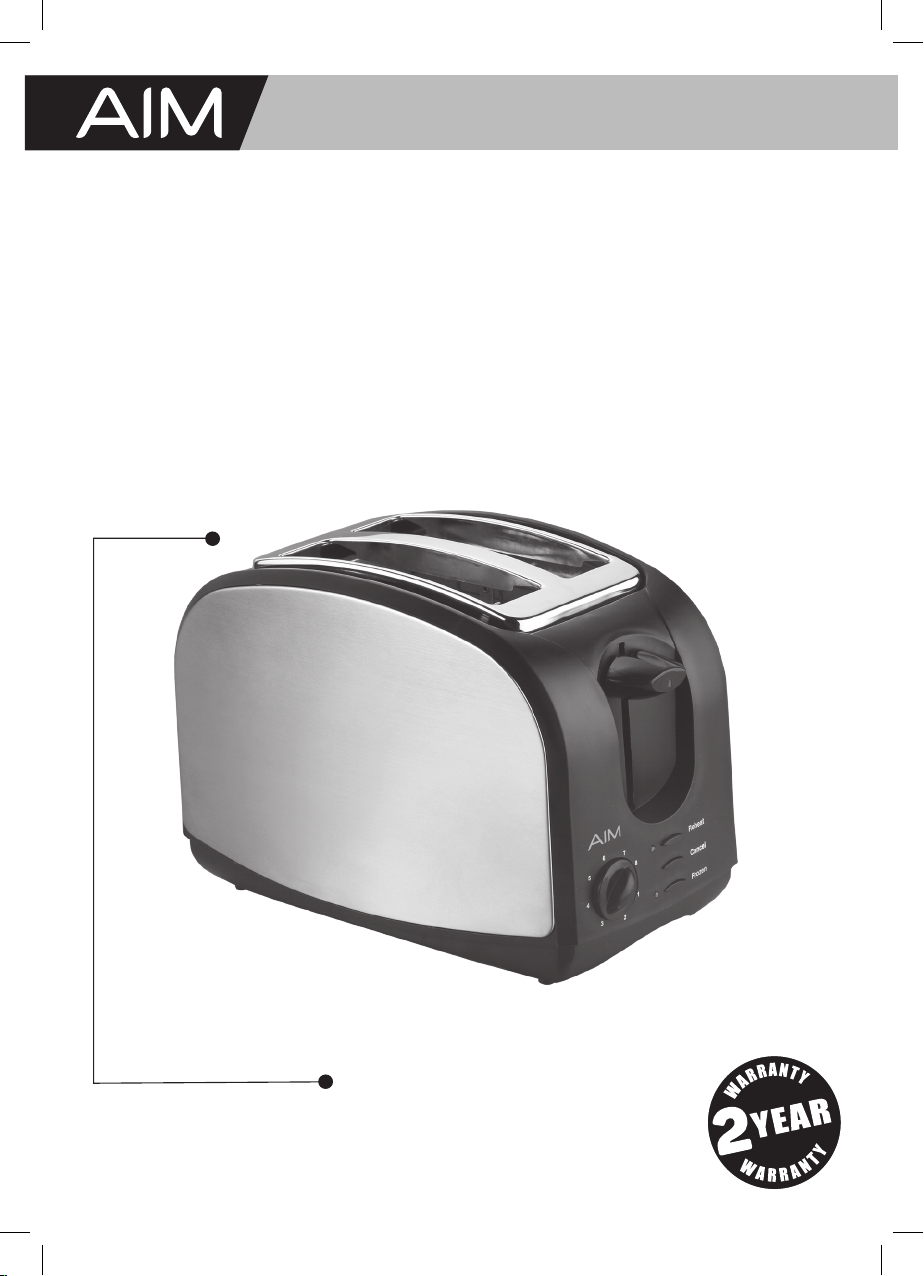

Aim AST20 User manual
2 Slice
STAINleSS STeel
toaster
900 W
• ADJUSTABLE BROWNING
• DEFROST FUNCTION
• REHEAT FUNCTION
• CANCEL FUNCTION
• AUTO POP UP
• REMOVABLE CRUMB TRAY
USER MANUAL
INDEX
• IMPORTANT SAFEGUARDS
• PARTS DESCRIPTION
• USAGE INSTRUCTIONS
• CARE AND MAINTENANCE
• 2 YEAR LIMITED WARRANTY
• REPAIRS PROCEDURE
3
5
5
7
8
9
3 |
IMPORTANT SAFEGUARDS
When using the Toaster, basic safety precautions should always
be followed including the following:
1. Read all instructions before using.
2. Before connecting the Toaster to the electrical power supply, check
that the voltage indicated corresponds with the voltage in your
home. If this is not the case, do not use the Toaster.
3. Never use the Toaster when it is damaged in any way.
4. WARNING: If the surface is cracked, switch off the Toaster to
avoid the possibility of electric shock.
5. Keepatanadequatesafetydistancefrominammableobjectssuch
as furniture, curtains, etc.
6. To protect against electrical shock, do not immerse power cable,
plugs or the Toaster in water or any other liquids.
7. If the power cable is damaged, it must be replaced by the
manufactureroritsserviceagentorasimilarqualiedpersonin
order to avoid a hazard. See Returns Policy.
8. The user must not leave when the Toaster is being used. Do not
allow children to use or be close to the Toaster.
9. Do not let power cable hang over the edge of the table or kitchen
worktop or close to hot surfaces.
10. Placetheproductonaat,stable,heat-resistantsurface,inanopen
area with at least four to six inches of air space on all sides of the
product for air circulation.
11. Always ensure that you have disconnected the plug from the
electrical supply socket on the wall before proceeding to clean the
Toaster or after using every time.
12. Do not place the product on or near gas or electric burners, inside
or on top of a heated conventional oven, microwave oven, or other
heat source.
13. Neverdroporinsertmetalobjects,includingmetalutensilsorfoil
packages, into any opening of the product. Remove all protective
food wrappings before inserting them into this product.
14. Donotheatpastrieswithdrippyfrostingsoropenllingsin
the product.
15. Clean the Crumb Tray after each use.
| 4
IMPORTANT SAFEGUARDS - CONTINUED
16. Make sure that the power cable does not come into contact with the
heated parts of the Toaster.
17. The temperature of accessible surfaces may be high when the
Toaster is in operation. Do not touch hot surfaces. Please
use handles or knobs.
18. The use of attachments that are not recommended by the Toaster
manufacturermaycauseinjury.
19. The Toaster is to be connected to a electric power supply having an
earthing contact.
20. Toasters are not intended to be operated by means of an external
timerorseparateremote-controlsystem.
21. This Toaster is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the Toaster by a person responsible
for their safety.
22. Children should be supervised to ensure that they do not play with
the Toaster.
23. If the power cable is damaged, it must be replaced by the
manufacturer,itsserviceagentorsimilarlyqualiedpersonsinorder
to avoid a hazard. See Warranty Information.
24. The Toaster is not intend for outdoor use.
25. This Toaster is intended to be used in household environments.
26. Allow the Toaster to cool down before cleaning or storing.
5 |
PARTS DESCRIPTION
USAGE INSTRUCTIONS
1. Toaster Slots
2. Crumb Tray
3. Bread Carriage Lever
4. Reheat Button
5. Defrost Button
6. Cancel Button
7.Light/DarkSelector(1-8)
8. Power Cord
WARNING:Toreducetheriskofre,electricshock,orseriouspersonal
injury,beforerstuse,makecertainthatallpackagingmaterialshavebeen
removed from the Toaster. Check both Toaster Slots for packing materials.
Note: HeatuptheToasterthersttimewithnothingintheToaster
Slots to allow the heating elements to burn off any dust which may have
accumulated during factory assembly and shipping.
1. Ensure the Crumb Tray is in place and that the Bread Carriage Lever
is in the “bread up” position.
2. SettheToasteronaat,heat-resistantsurfaceawayfromtheedge
of the counter and at least four to six inches away from the wall or
rear of the counter.
3. Plug the Power Cord electrical power supply.
4. Insert one or two slices of bread into the Toaster Slots.
5. Turn the Light/Dark Selector to the desired position.
Note: The higher the number the darker the toast will be.
Until familiar with the settings, start with a lower number.
6. Press the Bread Carriage Lever down until it locks into position.
7. When the toasting cycle is completed, the toast will pop up.
To interrupt the toasting cycle, press the Cancel Button.
8. WhennishedusingtheToaster,unplugitfromtheelectrical
power supply.
1
2
8
3
4
6
5
7
| 6
Toasting Notes:
Toasting is a combination of cooking and drying the bread. Moisture levels
differ from one bread to another, resulting in varying toasting times.
• For slightly dry bread, set the Light/Dark Selector to a low number.
• For fresh bread or whole wheat bread, set the Light/Dark Selector
to a higher number.
• Breadswithunevensurfaces(e.g.,Englishmufns)requirea
higher setting.
• Thickly cut pieces of bread (e.g., Bagels) will require longer
toastingtimes,sometimessignicantlylonger,sincemoremoisture
must be evaporated from the bread before toasting occurs.
• Very thick pieces may require two toasting cycles.
• When toasting raisin or other fruit breads, remove any loose raisins
or fruit pieces from the surface of the bread before placing it into
the Toaster. This will help prevent pieces from falling into the Toaster
or sticking to the Guard Wire in the Toaster Slot.
• To toast a single slice of bread, set the Light/Dark Selector to a
low number.
Reheat Button:
1. Insert one or two slices of bread.
2. Press the Bread Carriage Lever down until it locks into position.
3. Press the Reheat Button and the red LED will illuminate next to the
Reheat Button.
4. When the cycle is complete, the Bread Carriage Lever will raise the
toasted item.
5. Tostopthereheatcyclebeforeitisnished,presstheCancelButton.
7 |
CARE AND MAINTENANCE
WARNING: Always unplug the Toaster from the electrical power supply
and allow the Toaster to completely cool before cleaning it.
• Toavoidarehazard,cleantheCrumbTrayaftereachuse.
1. Slide out the Crumb Tray from the bottom of the product and
remove any crumbs.
2. Replace the Crumb Tray into the product after cleaning it.
• Wipe the exterior surface of the product with a clean, damp cloth.
• Do not use abrasive cleaners or pads to clean the product.
• Toremovejammedbread:
WARNING: The bread will be hot, remove carefully to avoid a
possible burn hazard.
CAUTION:Donotinsertmetallicobjectsinsideoftheproduct,as
an electrical shock hazard may result.
1. Unplug the Toaster from the electrical power supply.
2. Lower the Bread Carriage Lever and keep it in a lowered position.
3. RemovethejammedbreadslicefromtheToastertakingcarenotto
touch any of the Heating Elements.
4. Raise the Bread Carriage Lever before using the Toaster.
| 8
TheManufacturerherebyprovidesawarrantytotheoriginalpurchaserofthisproduct(‘the
consumer’)thatthisproductwillbefreeofmanufacturingdefectsinmaterialsandworkmanship
which under normal, personal, family or household use (commercial use expressly excluded)
manifest themselves within the 2 year from the date of purchase.
EXCLUSIONS
• The warranty does not include and will not be construed to cover products damaged as a
result of disaster, misuse, commercial use, not in accordance within the written instructions
includedwiththeproduct,abuseand/oranynon-authorisedmodicationoftheproduct,
incorrect installation of the product or normal wear and tear.
• Remote Controls do not fall under warranty.
• Insect infestation of the electrical or motor makes the claim invalid.
• Broken Glass or Customer abuse do not fall under the warranty.
WAIVER
The warranty and the obligations of the Manufacturer provided herein are in lieu of, and the
consumer, waives all other warranties, guarantees, conditions or liabilities, express or implied,
arising by law or otherwise, including without limitation, any obligation of the manufacturer in
respectofanyinjury,lossordamage(direct,indirectorconsequential)arisingoutoftheuseof,
orinabilitytousethisproductandwhetherornotoccasionedbythemanufacturer’snegligence
or any act or omission on its part.
PROOF OF PURCHASE
Any claim in terms of the warranty must be supported by a proof of purchase. If such proof
isnotavailable,thennotwithstandinganythingtothecontraryherein,theserviceagent’s
prevailing charges for services/repairs and/or spares will be payable by the Consumer upon
collection of the repaired product. The Consumer should call the Pick n Pay CUSTOMER
CARE number on 0860 30 30 30 (only in South Africa). Customers residing outside South
Africa can return the product back to a Pick n Pay store. During the warranty period the
productmayonlybeservicedand/orrepairedbytheManufacturer’sdulyauthorisedagent(s).
2 YEAR LIMITED WARRANTY
If this product proves to
be faulty during normal
use due to defective
materials or workmanship.
Refer to our website for
terms and conditions.
9 |
REPAIRS PROCEDURE
Should you experience any faults on your Aim product, please adhere to the following
proceduretohavethefaultrectiedspeedilyandprofessionally.
You can return the product to the store.
Call the Pick n Pay CUSTOMER CARE number on 0860 30 30 30 (only in South Africa) to
report the fault and make arrangements for the next steps.
Note: Should you live in an outlying area or outside South Africa, it may be necessary to
return the product to the store nearest to you.
COST OF REPAIRS
UNDER WARRANTY
Any items still under warranty will be repaired free of charge, as long as it complies with the
terms and conditions of the warranty (refer to “warranties” section in this manual). Any items
thatneedtoberepairedthatareNOTcoveredinthewarrantywillbefortheconsumer’s
expense. A quote for the repair/replacement of these items will be provided to the consumer
for approval prior to repairs being conducted.
OUT OF WARRANTY
Anyitemsthatneedtoberepairedoncethewarrantyhasexpiredwillbefortheconsumer’s
expense including call out fees. A quote for the repair/replacement of these items will be
provided to the consumer for approval prior to repairs being conducted.
Raymond Ackerman
Founder of Pick nPay
Product of China
CUSTOMER CARE
Sharecall: 0860 30 30 30
ONLY IN SOUTH AFRICA
