Order Number PTW1301502CE
TOASTER
Model No. NT-ZP1-V
Model No. NT-DP1-B
Model No. NT-DP1-W
Chassis
Product Color V:Violet, B:Black, W:White
Destination CHINA
TABLE OF CONTENTS PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Installation Instructions---------------------------------------- 4
3.1. Partts Names and Handling Instructions ------------ 4
4 Operating Instructions------------------------------------------ 5
4.1. How to Use-------------------------------------------------- 5
4.2. How to Clean ----------------------------------------------- 7
4.3. Troublesshooting ------------------------------------------ 7
5 Troubleshooting Guide----------------------------------------- 8
5.1. Operation check test for the P.C. board (Do
not turn on the power of the heater during the
check test.)-------------------------------------------------- 8
6 Schematic Diagram---------------------------------------------10
6.1. Model NT-ZP1---------------------------------------------10
6.2. Model NT-DP1---------------------------------------------11
7 Exploded View and Replacement Parts List -----------12
7.1. Model NT-ZP1---------------------------------------------12
7.2. Model NT-DP1---------------------------------------------14
7.3. Model NT-ZP1/NT-DP1---------------------------------16

2
1 Safety Precautions

3
2 Specifications

4
3 Installation Instructions
3.1. Partts Names and Handling Instructions

5
4 Operating Instructions
4.1. How to Use

6

7
4.2. How to Clean
4.3. Troublesshooting

8

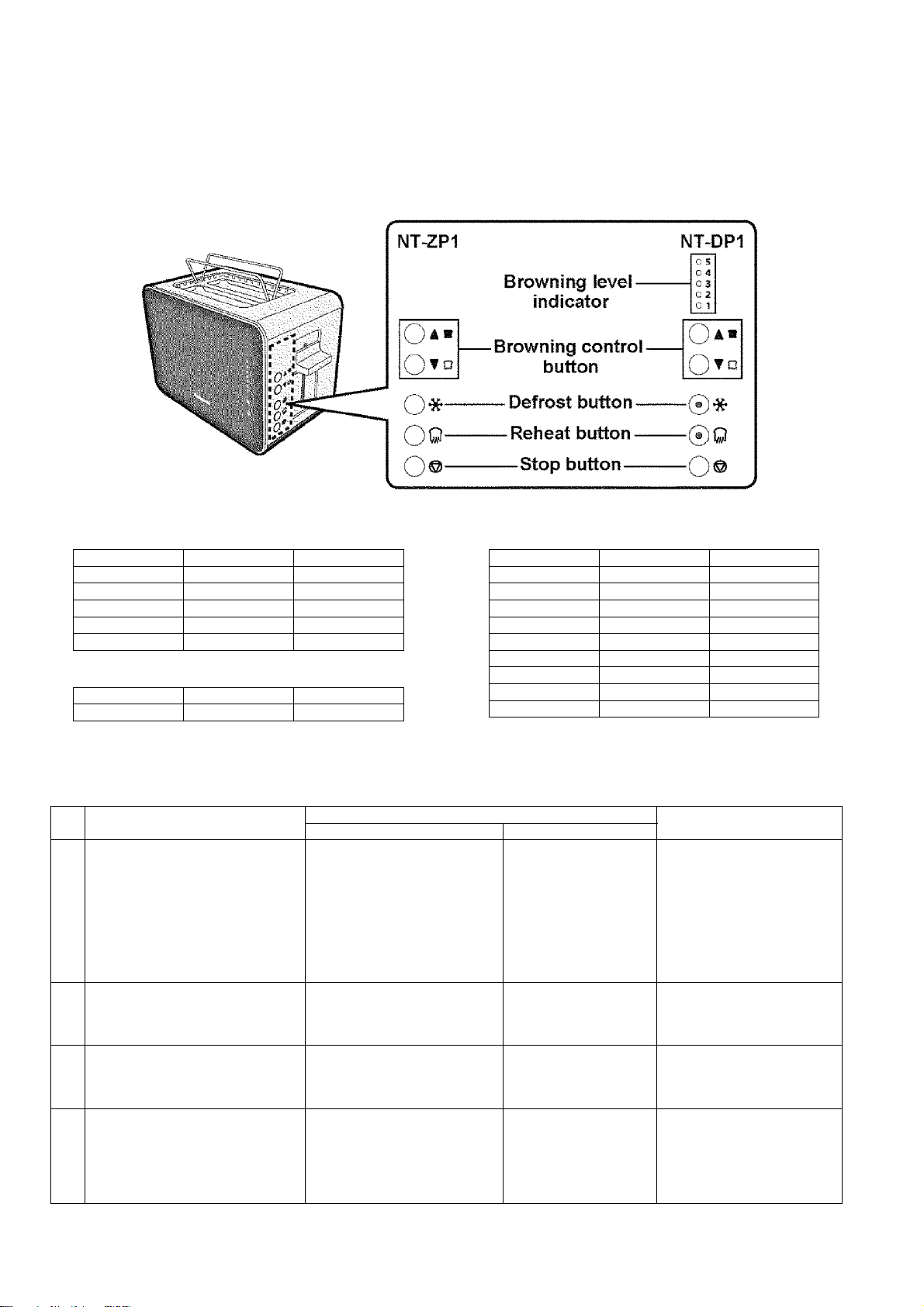

5 Troubleshooting Guide
Before starting the troubleshooting, check the action of the oven according to the operation check test is below.
5.1. Operation check test for the P.C. board (Do not turn on the power of the
heater during the check test.)
< Mounting / Un mounting >
< Operation check test for the P.C. board >
The DP1 type is not equipped with a buzzer.
ZP1 DP1
SW1 Reheat Reheat
SW2 Defrost Defrost
SW3 Up Up
SW4 Down Down
SW5 Stop Stop
ZP1 DP1
Buzzer Mounting Un mounting
ZP1 DP1
LED1 Level 1 Level 1
LED2 Level 2 Level 2
LED3 Level 3 Level 3
LED4 Level 4 Level 4
LED5 Level 5 Level 5
LED6 Level 6 Un mounting
LED7 Level 7 Un mounting
LED8 Reheat Reheat
LED9 Defrost Defrost
No. Operation Working description Items to be checked
Display and buzzer information Action
1 • Insert power supply cord in an out-
let.
• Push the "stop" button and reset a
toaster.
• Push "Defrost" button, "Reheat" but-
ton, the "up" button at the same
time.
• A lever is lowered downward, push-
ing three buttons.
•Any LED turns on in LED1-4 for
browming level indicator.
• A buzzer sounds in succession.
Because it is not equipped with
a buzzer, the DP1 type does not
sound.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
No power is supplied to the
heater.
The power supply sole-
noid output becomes ON.
Check if the mode changes to
the test one.
* The mode change was ended
in failure.
(Perform the operation of No.1
again.)
2 • Press the "Reheart" button.(SW1) • LED lighting of browning level 1.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
3 • Press the "Defrost" button.(SW2) • LED lighting of browning level 2.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
4 • Press the "Up" button.(SW3) • LED lighting or lights out of
browning level 3.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
• Lights up or non-lighting by
AD input value.
• Turn on or level 3 of the LED
for browming level indicator
turns off the light depending
on terms of use when tests it.

9
5 • Press the "Down" button.(SW4) • LED lighting or lights out of
browning level 4.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
• Lights up or non-lighting by
AD input value.
• Turn on or level 4 of the LED
for browming level indicator
turns off the light depending
on terms of use when tests it.
6 • Press the "Reheart" button.(SW1) • LED lighting of browning level 5.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
7 • Press the "Reheart" button.(SW1) • LED lighting of browning level 6.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
Only ZP1 type.
8 • Press the "Reheart" button.(SW1) • LED lighting of browning level 7.
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
Only ZP1 type.
9 • Press the "Reheart" button.(SW1) • LED lighting of "Reheat"(ZP1),
"Defrost"(DP1).
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
10 • Press the "Reheart" button.(SW1) • LED lighting of "Defrost"(ZP1),
"Reheat"(DP1).
• After having passed for 60 sec-
onds or when push the "stop"
button, reset it.
After checking, press the “Stop” button to finish the test.
No. Operation Working description Items to be checked
Display and buzzer information Action

10
6 Schematic Diagram
6.1. Model NT-ZP1

11
6.2. Model NT-DP1

12
7 Exploded View and Replacement Parts List
7.1. Model NT-ZP1
7.1.1. Part Location

13
7.1.2. REPLACEMENT PARTS LIST
Notes:Important safety notice
• Components identified by mark have special characteristics important for safety.
• " When replacing any of these components use only manufacturer's specified parts."
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
ZP1-V
<PARTS LIST>
1 ATA61P108H0S Main body unit 1 GRAY.220V.A-3 plug
2 ATA86-108-K0 Crumb tray 1
<PACKING SPECIFICATIONS>
ATZ51P108-V0 Individual box 1 VIOLET
ATZ50P108 Operating instructions 1

14
7.2. Model NT-DP1
7.2.1. Part Location

15
7.2.2. REPLACEMENT PARTS LIST
Notes:Important safety notice
• Components identified by mark have special characteristics important for safety.
• " When replacing any of these components use only manufacturer's specified parts."
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
DP1-B DP1-W
<PARTS LIST>
1 ATA61P109K0S Main body unit 1 BLACK.220V.A-3 plug
1 ATA61P109W0S Main body unit 1 WHITE.220V.A-3 plug
2 ATA86-108-K0 Crumb tray 1 1
<PACKING SPECIFICATIONS>
ATZ51P109-K0 Individual box 1
ATZ51P109-W0 Individual box 1
ATZ50P108 Operating instructions 1 1

16
7.3. Model NT-ZP1/NT-DP1
7.3.1. PACKING INSTRUCTION
