AIMDROIX EVO ONE User manual

INSTRUCTION MANUAL
1

Frame configurations:
The frame was designed to be as customizable as
possible so that it could be built in many different
multirotor configurations. The default frame
configuration is a Y6 but it can be built as a quad,
quad X8, Y4, V- tail quad and tricopter. This is
possible by just installing the optional
configuration kits sold separately.
Main Frame and landing gear:
The top and bottom plate are stiffened with an
innovative aluminum beam stiffeners, that allowed
to increase the stiffness of the frame plates without
the need of standoffs or sandwiched plates. This
maximizes the space between the top and bottom
plates for a better placement of the ESC and
batteries. The integrated landing gear increases the
stiffness of the bottom plate and allows two high
capacity batteries to be mounted on the sides of the
frame. This combined with the battery stopper,
allows to adjust the CG position, and consistently
place the battery in the same location for a constant
performance. The height of the landing gear can be
easily changed by replacing the 8mm carbon fiber
leg tubes.
Camera mounting system:
The innovative camera mounting system was
designed to provide vibration isolation for the
camera and video transmitter electronics. The
camera plate is mounted on 6 AIMDROIX
exclusive soft dampers that the takes away the
vibration from the props and motors. The rear
support dampening balls are mounted on the top
plate brackets so that they are in compression load
allowing vibrations to be isolated in an efficient
way. This allowed mounting the camera
INTRODUCTION
2
The AIMDROIX EVO ONE is the ultimate airframe for endurance FPV and aerial videography.
The goal of this frame design was to provide a large battery load capacity, vibration isolated plates
for the cameras, camera location out of the props view while positioning the CG as close to the
center as possible, and in a low profile package. With this in mind, a high stiffness frame was
developed by using the exclusive aluminum beam stiffeners and an integrated aluminum landing
gear frame. As an AIMDROIX signature, CNC aluminum parts are all around the frame giving the
frame its distinctive look and performance of AIMDROIX.
gimbal and FPV camera on front of the
plate, away from the top and bottom props
view and maintain the plate parallel with
respect to the frame plates. The plate was
designed to fit the Feiyu Tech FY-G3
brushless gimbal without modifications.
Designed for the Aimdroix Aluminum
Arms:
The frame was designed to fit the
AIMDROIX aluminum arms that have
been well proven for many customers
around the world. With the optional
AIMDROIX arms accessories, it possible
to build the most versatile multirotor frame
in the market.
Key Features:
-Innovative vibration isolated camera
system.
-CNC machined aluminum parts
-Extruded carbon fiber and aluminum
landing gear
-Configurations; Y6, Quad X4, Quad X8,
Y4, V- tail Quad, and Tricopter
in a quad configuration.
-Smart battery stopper.
-No standoffs or sandwiched plates design.
-Low profile design for pancake type
motors

3
SPECS
Y6 Specs:
- Frame size: 610mm (with extended length arms)
-Max props size:16in on top motor / 15in props on lower motor.
-1.5mm and 2mm G10 plates. (Optional 1.5mm Carbon fiber plates)
-Aprox frame weight: 670g
- Battery space between plates: 160 x 50mm x 40xmm (LxWxH)
- Large battery capacity under the bottom plate, up to 180mm x105mmx 60mm (LxWxH).
Enough for 6s high capacity batteries for extreme endurance flights.
QUAD Specs;
- Frame Size: 615mm (with extended length arms)
-Max props size: 14in
-Can be configured as an X8 quad for extreme power. (if not using pancake type motors, lower
prop size must be 13in or less.
-Aprox Frame weigth: 724g (with V1.5 extended aluminum arms)
-1.5mm and 2mm G10 plates. (Optional 1.5mm Carbon fiber plates)
- Battery space between plates: 220mm x 53mm x 37 mm (LxWxH)
- Large battery capacity under the bottom plate, up to 180mm x105mmx 60mm (LxWxH).
Enough for 6s high capacity batteries for extreme endurance flights.

X1 X1
1
X2
3
2
4
X1
5
X2
6
X2
7
X2
8
X3
9
X4
X1
7
10
X3

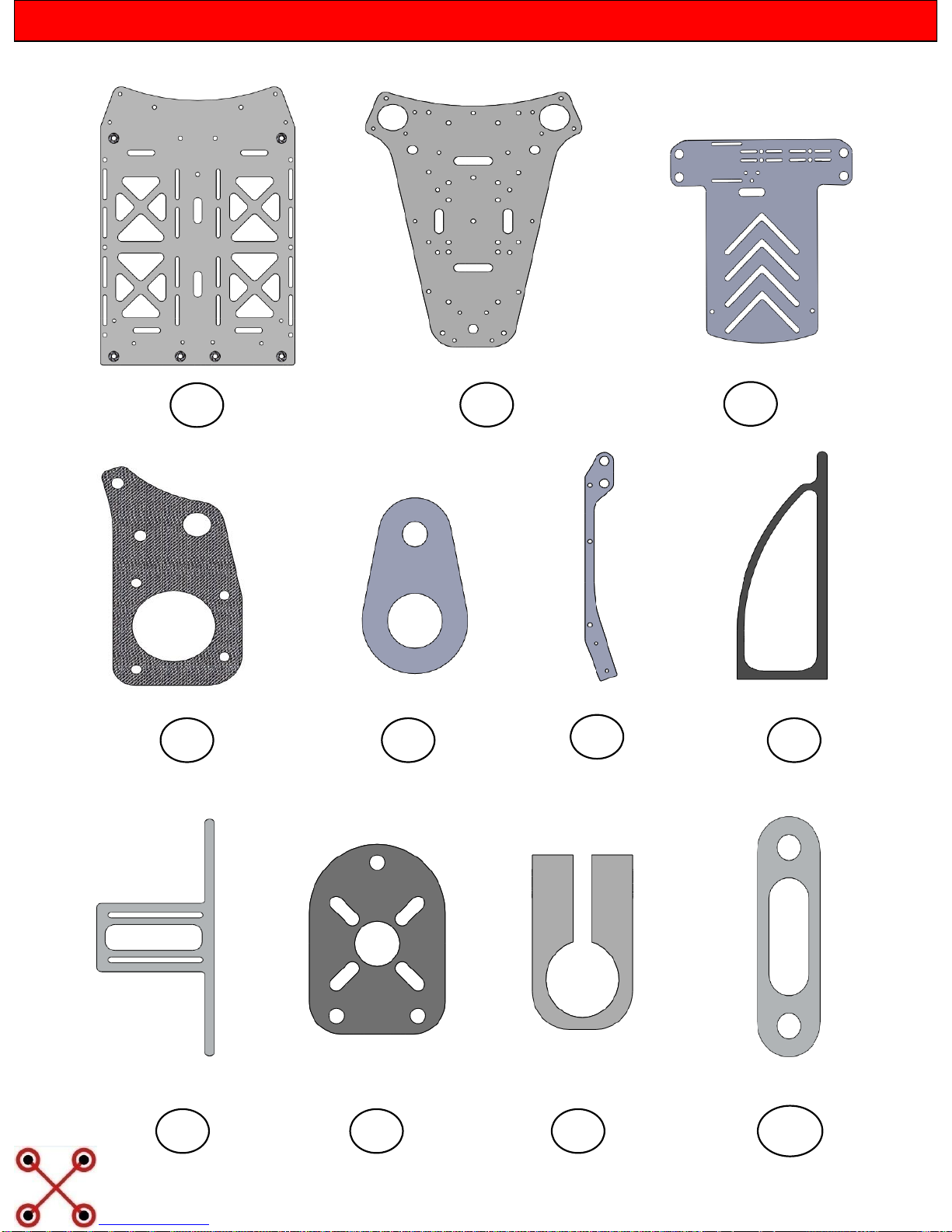

REQUIRED PARTS
*Images are not at real scale*
*Not included in base kit*
*Not included in base kit*

11 12 13
14
15 16
17
X2 X2 X3 X4X4
X9
X2
X6
X2
19
X2 18
2221
X2X2
20
REQUIRED PARTS II
5
*Not included in base kit* *Not included in base kit*
*Images are not at real scale*

6
M3 x 25mm M3 x 16mm M3 x 12mm M3 x 6mm
M2 x 8mm
M2 x 14mm M3 x NUT
M3 NYLON
LOCK NUT
M3 x 7mm HEX
6
FASTENERS
M3 x WASHER
M3 x 4mm
TL
Threadlock
Recommended
(TL)

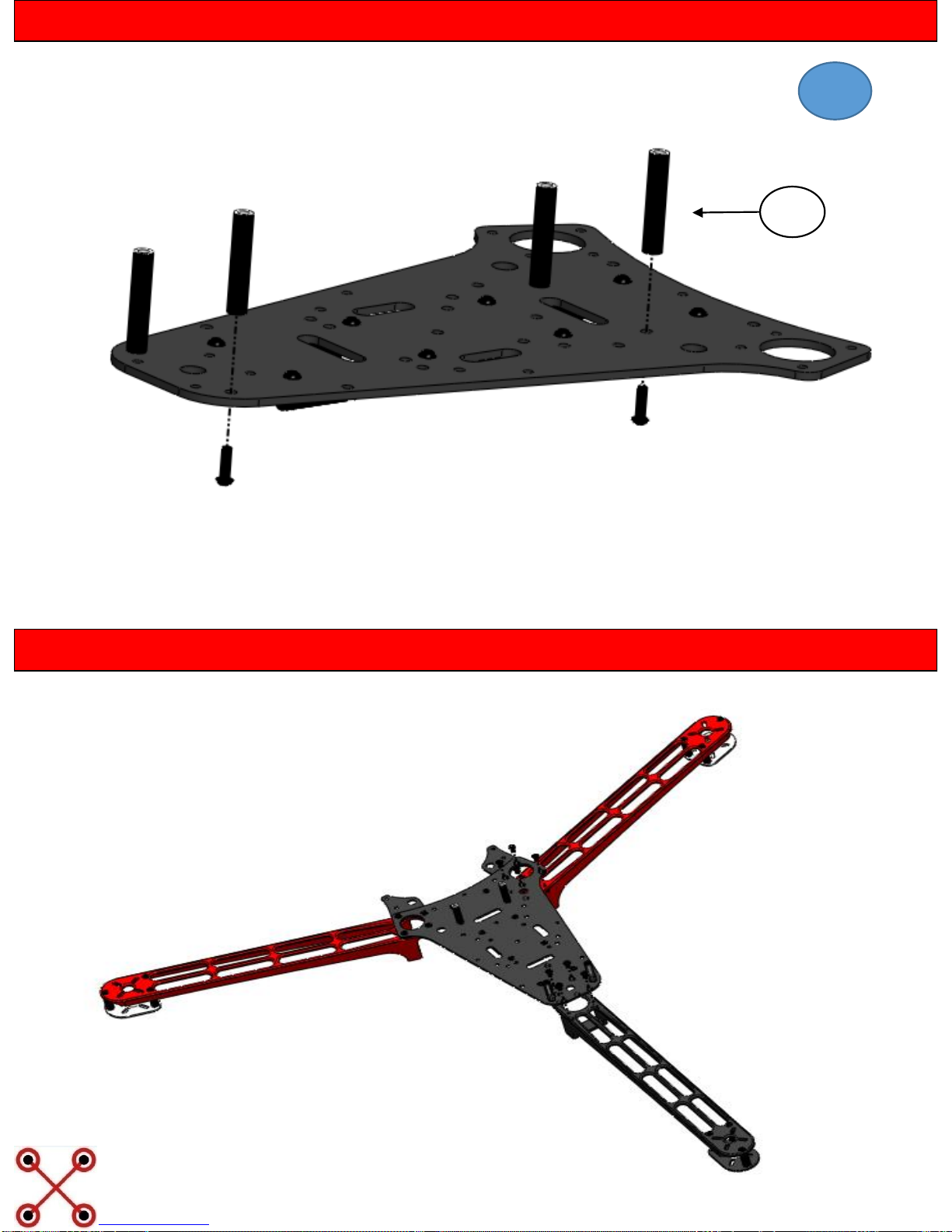

ARM ASSEMBLY
TOP PLATE
13
15
8
M3X6
M3x6 FLAT
M3x6
18
2
7
TL
TL
X 3

TOP PLATE
ARMS AND TOP PLATE ASSEMBLY
M3x6
14
8
TL

FRONT ARMS ASSEMBLY
REAR ARM ASSEMBLY
M2.5x8
4
9
M2.5x8
TL
TL

VIBRATION ISOLATION
CAMERA SUPPORT
20
5
6
M3x6
7
10
M3x4
M3x6
TL

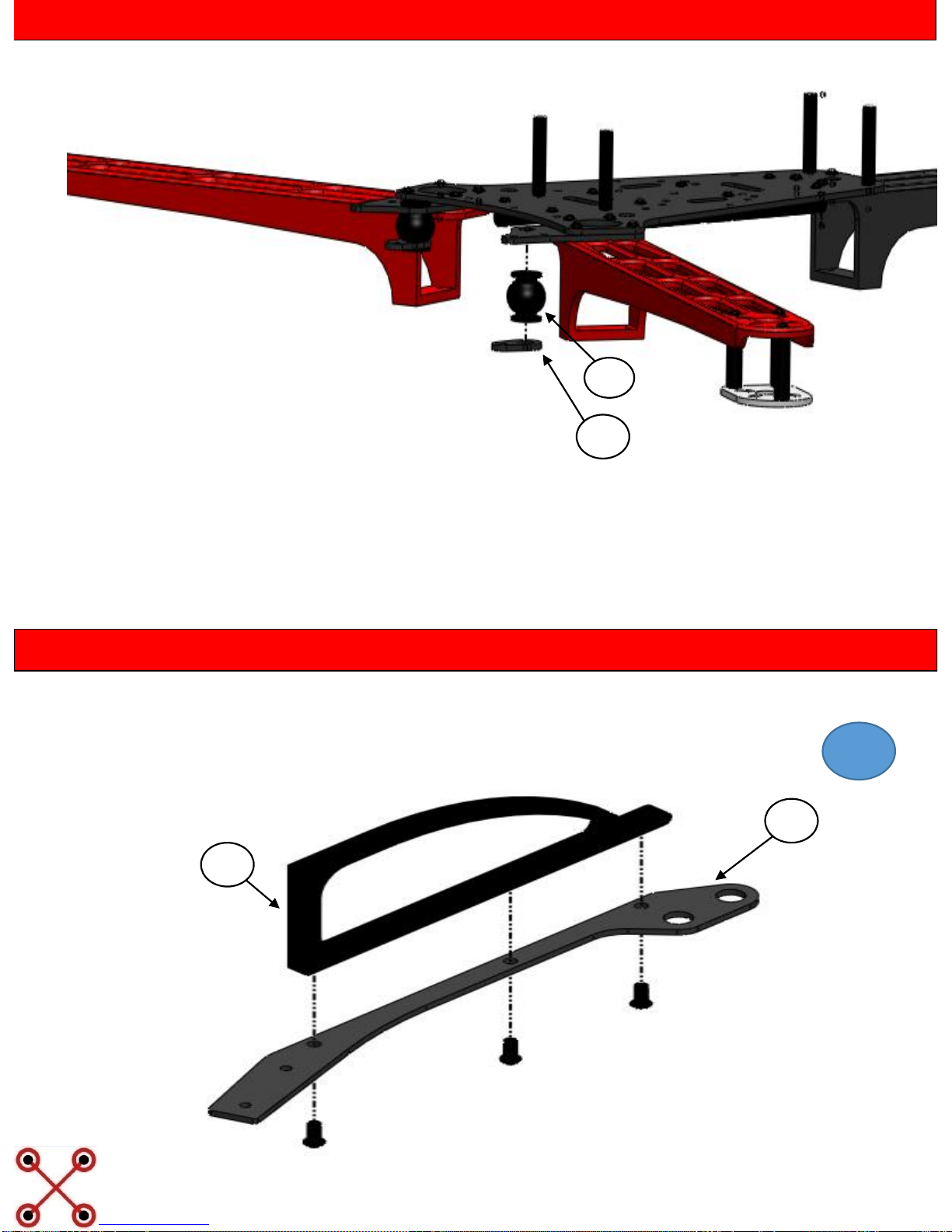

VIBRATION ISOLATION BALLS
CAMERA SUPPORT TO TOP ASSEMBLY
20
M3x6
11
M3x4
TL
X2

CAMERA PLATE HARDWARE
12
COMPLETE TOP ASSEMBLY
M3x25
Camera Plate
Hardware
M3 Nylon lock

LANDING GEAR FRAME
LANDING GEAR FRAME
12
1
M3x6
12
M3x12
13
TL
TL

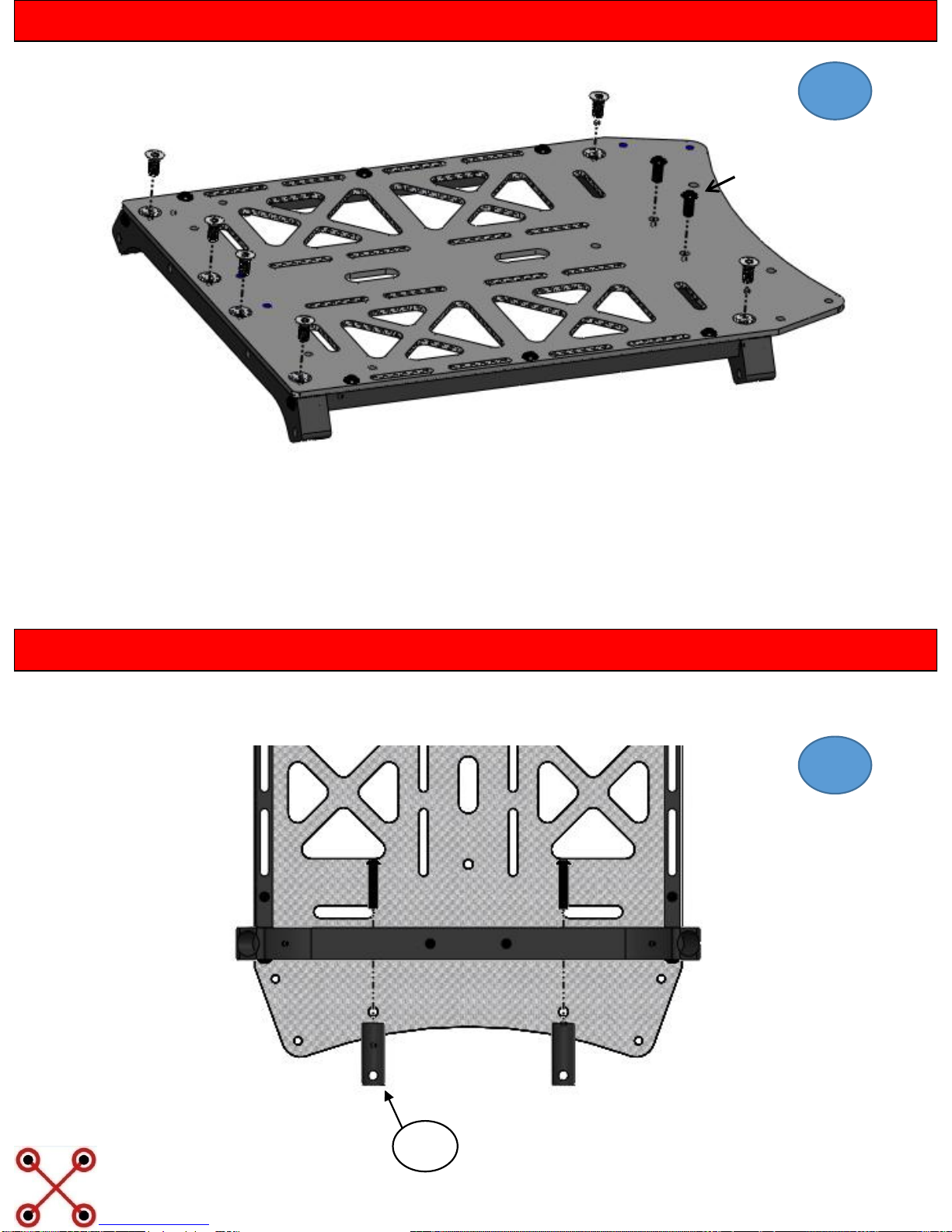

BOTTOM PLATE TO LANDING GEAR FRAME
BOTTOM PLATE SUPPORTS
M3x5 FLAT
M3x6
M3x12
19
14
TL
TL

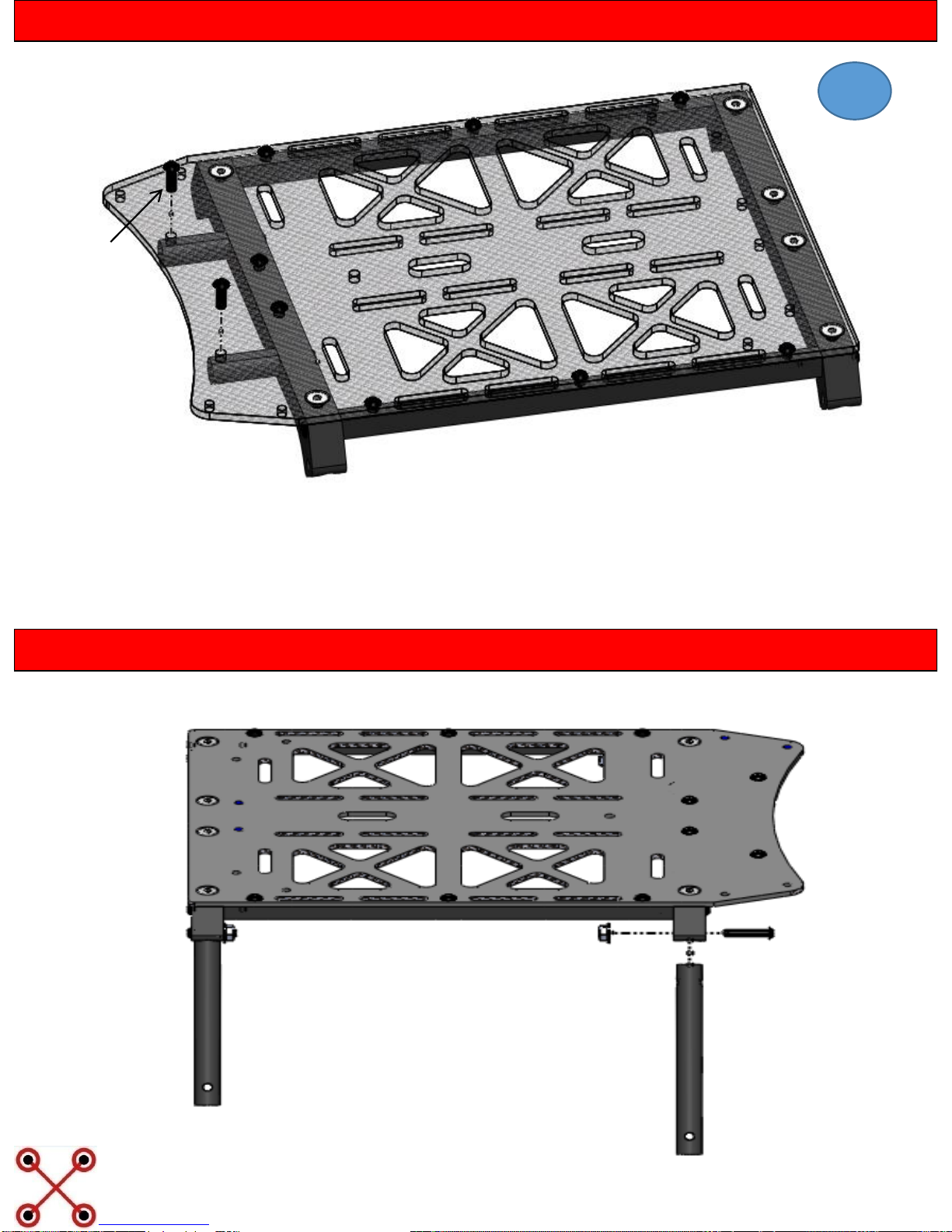

BOTTOM PLATE SUPPORTS
LANDING LEG
M3x6
M3x16
M3 Nylon Lock
15
*Optional:
Use M3 Washers between
fastener to part
TL

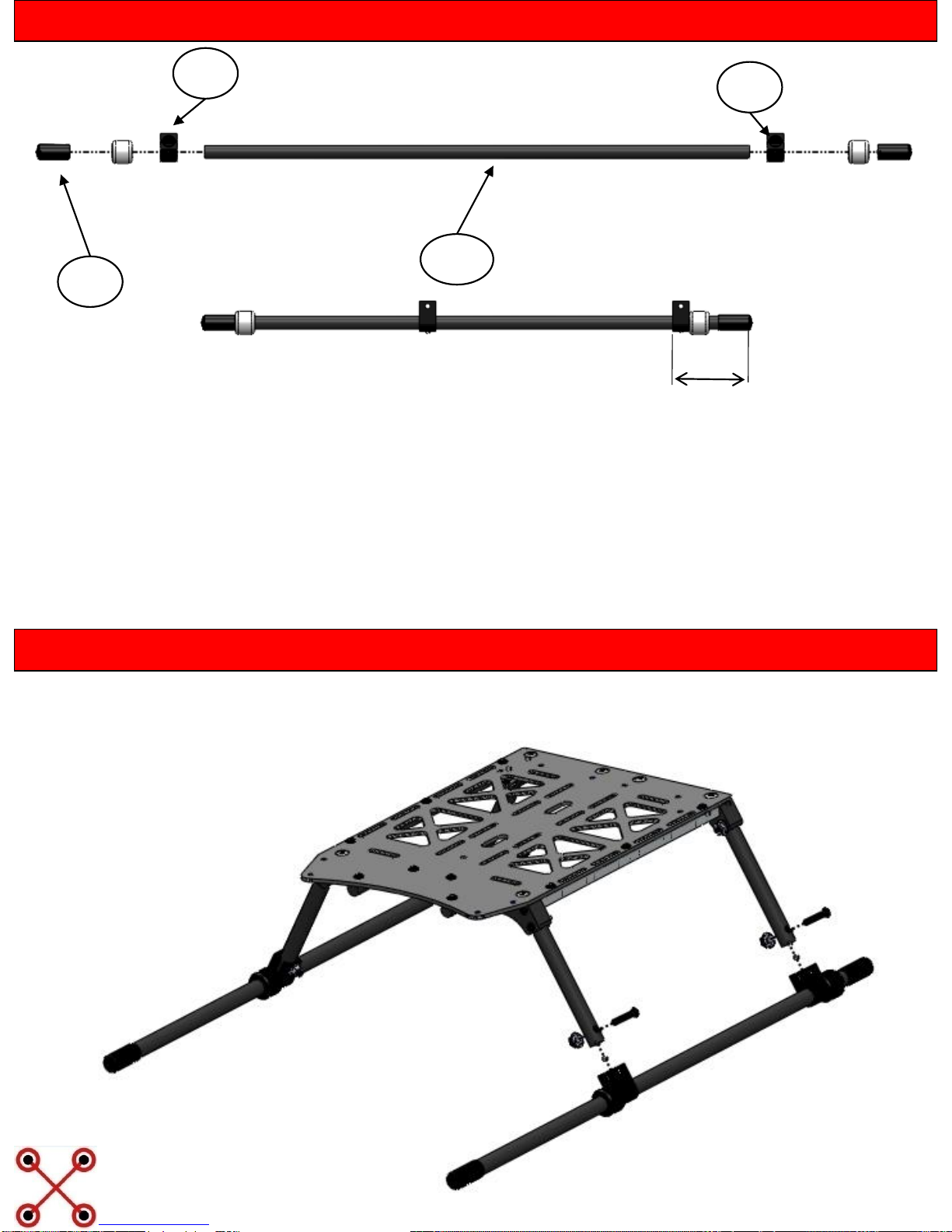

LANDING SKID
LANDING SKID -LEG
M3x16
16
*Optional:
Use M3 Washers between
fastener to part
M3 NYLON
LOCK NUT
21
22
17
65mm
9

TOP AND BOTTOM ASSEMBLY
17

RAER ARM –LEANDING GEAR
FOREARMS –LANDING GEAR
7
10
M2.5x14
M2.5x14
10
18
TL
TL

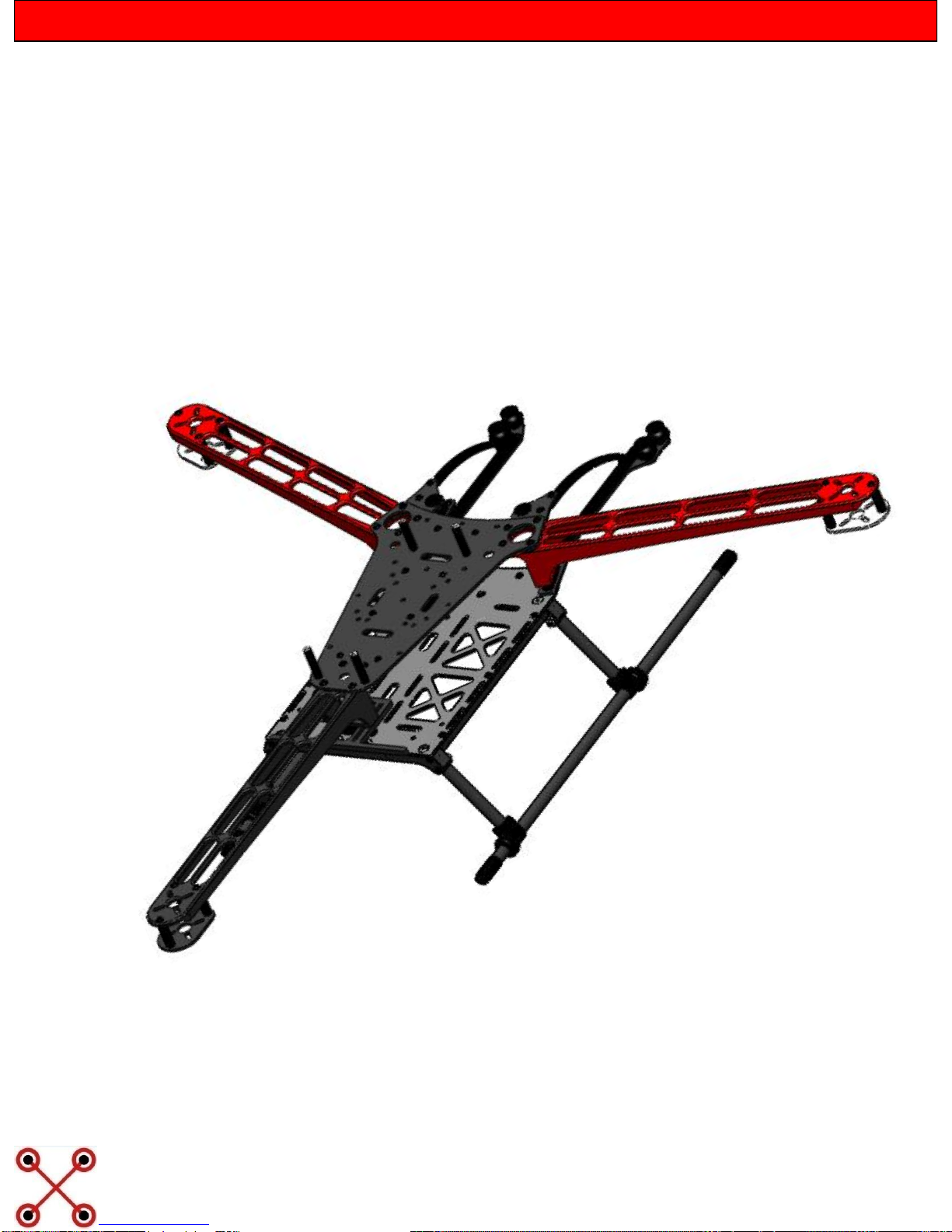

COMPLETE TOP AND BOTTOM ASSEMBLY
19

CAMERA PLATE –FRAME
CAMERA PLATE –FRAME
20
M3 NUT
M3 NYLON
LOCK NUT
