Air Techniques AirStar AS12INT User manual

Installation and Operation Manual
International
DENTAL AIR SYSTEM

Air Techniques, Inc. Page 2
AS12, AS22, AS50, AS70,
International
FIGURE TITLE PAGE
1 AirStar Parts Location ....................................... 4
2 Overall Site Requirements .................................... 7
3 AirStar Electrical Connections ................................. 9
4 Moisture Monitor and 5 Micron Filter Location .....................14
5 AirStar Filter Location........................................15
TABLE OF CONTENTS
LIST OF ILLUSTRATIONS
SAFETY INSTRUCTIONS
SECTION PAGE SECTION PAGE
Safety Instructions ............ 2Installation Information ......... 8
Congratulations .............. 3Operating Information.......... 11
Key Parts Identification ........ 3 Troubleshooting .............. 12
Sizing Guide ................. 3 Maintenance................. 14
Supplied Components ...........4Replacement Parts............ 16
Site Requirements ..............5Optional Accessories .......... 16
Supplied Components ...........5 Product Specifications ......... 17
Site Requirements ..............6 Warranty .................... 18
Use of AIRSTAR not in conformance with the instructions of this manual may result in permanent failure of the unit.
AirStar systems are to be used by certified trained dealer technicians or qualified Air Techniques personnel.
WARNING: To prevent fire or electrical shock, do not expose this appliance to rain in or moisture.
All user serviceable items are described in the maintenance section.
Manufacturing date code on serial number label is in the format Month YYYY.
ATTENTION USERS:
Alerts users to important Operating
and Maintenance instructions. Read
carefully to avoid any problems.
Warns users that uninsulated voltage
within the unit may be of sufficient
magnitude to cause electric shock.
MEDICAL ELECTRICAL EQUIPMENT
WITH RESPECT TO ELECTRICAL SHOCK, FIRE, MECHANICAL AND OTHER SPECIFIED HAZARDS ONLY
IN ACCORDANCE WITH UL-60601-1, CAN/CSA C22.2 NO.601.1
66CA
Indicates the ON and OFF position for
the Equipment power switch.
I ON
O OFF
Indicates protective Earth Ground for the
Equipment power switch.
Warns users of hot surfaces. There is a danger
of burns. Work near these surfaces only after
they have cooled down.
Air Techniques, Inc.
1295 Walt Whitman Road
Melville, New York, USA 11747- 3062

Page 3Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
Your AIRSTAR generates 100% oil-less, ultra-dry dental air which protects valuable hand-
pieces from premature failure due to the effects of moist air and the build-up of oil residue.
Because no oil is used for mechanical lubrication, there is no chance of introducing an oily film
to a prepared surface which could compromise resin retention and restorations, wasting chair
time. Most important, your patients’s health is protected with ultra-dry air that provides an envi-
ronment that is not conducive to bacterial growth.
The AIRSTAR utilizes a long stroke, small bore piston to compress the air. This piston is bonded
with an anti-friction polymer to eliminate the need for oil. The air is forced through the Membrane
Dryer System consisting of the cooler and the membrane. This system removes moisture and
air impurities providing the driest possible compressed air while maximizing performance. This
100% ultra-dry air is reserved in the main storage tank for use by the operatory air system.
The AIRSTAR features include:
Maximum Dryness with Quadruple Filtered Air
Compact size for space-saving installation
Uninterrupted Compressor Availability
Virtually Maintenance Free
Low Pressure Dew Point
Since 1971, when Air Techniques pioneered the manufacture of oil-less air for dentistry,
thousands of dentists have depended on their AIRSTAR. Now that your practice has an
AIRSTAR , you, too, can depend on the delivery of 100% oil-less, ultra-dry air and efficient,
trouble-free operation.
CONGRATULATIONS

Air Techniques, Inc. Page 4
AS12, AS22, AS50, AS70,
International
Figure 1. AirStar Parts Location
KEY PARTS IDENTIFICATION
View B. Right -Side View
View C. Tank Outlet Assembly Detail View
Cooler
Membrane
Dryer
Pressure
Gauge
Supplied
Air Outlet
Hose
Tank Outlet
Valve
5 Micron
Filter
Moisture
Monitor
Pressure
Relief
Valve
Drain
Valve
Pressure
Switch
View A. Front View
Control
Box
Power
Cable
Motor
Circuit
Breaker
24V Circuit
Breaker
Main Tank
Check Valve
Sound Reducing
Intake Filters Membrane
Dryer
Motor
Power
Switches
Membrane Dryer
Drain Valve

Page 5Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
Choosing the correct size AIRSTAR for your practice depends on the number of air users and
the anticipated air demand. To assure optimum compressor operation, the air demands should
not exceed the number of air handpiece users shown in the chart below:
SIZING GUIDE
Model Recommended
Number of Users
Number of
Heads
Number of
Motors
AS12INT 1 to 2 1 1
AS22INT 2 to 3 2 1
AS50INT 5 to 7 4 2
AS70INT 7 to 10 6 3
AIRSTAR models AS12INT, AS22INT, AS50INT and AS70INT do not include a sound cover, which may be
purchased as an optional accessory. (See page 16.)
AS12CINT, AS22CINT and AS50CINT models do include a sound cover as part of the system.
Each Airstar is shipped in a single carton containing the fully assembled unit and associated
accessory kit. See Figure 1. Unpack and inspect for physical damage such as scratched
panels, damaged components, etc. If any damage is found, notify Air Techniques so cor-
rective action can be taken. Verify that all items were received.
The accessory kits, P/N 87235 and P/N 87234, shown below, contain identical components ex-
cept for the length of the 10mm Polyurethane Tube (items 7 & 14, P/N 54509). Kit P/N 87235,
provides a tube 6 feet long (item 7) for use with three models, AS12INT through AS50INT. Kit
P/N 87234, provides a tube 12 feet long (item 14) for use with model AS70INT only.
Airstar Accessory Kits, Part Numbers 87235 and 87234
Item Part No. Description Qty Item Part No. Description Qty
1 87109INT Installation and Operation Manual 1 8 87169 6-Foot Hose, 3/8" ID, 3/8" MNPT
x 3/8 1
2 9922-189 Web Warranty Registration 1 9 87186 Close Nipple PCONN, 3/8" MPT 1
3 58017R-1 Bushing PCONN, 1/2 MNPT X 3/8
FNPT 1 10 86394 Instructions for Airstar Filter Kit 1
4 87168 5 Micron Filter, 3/8" NPT 1 11 85471 Leveling Foot Kit 1
5 87107 Instructions for Drain Tube 1 12 57662 Cleanstream Business Reply Card 1
6 31931 Plastic Bucket, 3 x 5 x 3 1 13 31929 Reducing Coupling PCONN, 1/2
FNPT x 3/8 FNPT 1
7 54509
6-Foot, 10mm Polyurethane Tube
(Included in kit, P/N 87235, for use with
models AS12INT through AS50INT.)
6ft 14 54509
(See Note)
12-Foot, 10mm Polyurethane Tube
(Included in kit, P/N 87234, for use with
model AS70INT only.)
12ft
SUPPLIED COMPONENTS
Note: The additional 6-foot length (12 feet total) of the 10mm Polyurethane Tube is necessary to
provide a drain tube for the second Dryer Membrane required on AS70INT models.

Air Techniques, Inc. Page 6
AS12, AS22, AS50, AS70,
International
SITE REQUIREMENTS
Service Clearance:
Allow 12" on all sides for all models.
Ambient Temperature:
Must not exceed 105°F (40°C)
Air System Plumbing Connection:
3/8" F.N.P.T. Shut-off valve and a 6 ft. pressure hose (supplied)
Air distribution piping for all models - 1/2", type "L" or type "K" copper
If pipe volume is too great, more than 235 in3(3.85L) or more than 100 ft. (30.5m)of
1/2" diameter pipe, a pressure regulator should be installed between the main tank
and the distribution piping. Set pressure to pressure switch cut in value (factory set
at 85 PSI).
Environmental:
Operating
Indoor use at altitudes up to 6562 ft (2000m). Temperature 41 to 105°F (5 to 40°C).
Supply voltage fluctuation of +/- 10% of nominal voltage.
Storage and Transport:
Temperature, 0 to 150°F (-18 to 65°C).
Relative Humidity, 0 to 90%.
IEC 60601-1 Classification:
Protection against electric shock (6.2): Class I
Applied Parts (5.9.1, 8.3): There are no Applied Parts.
Protection against harmful ingress of water (6.3): Ordinary, IPXO
Degree of safety in the presence of flammable
anesthetics mixture with air or with oxygen or with
nitrous oxide (11.4, 11.5):
Not suitable.
Mode of operation (6.6):
- All Modes Except AS100: Continuous
- AS100 Only: 50% Duty Cycle; Maximum
Continuous ON Time of 20 Min

Page 7Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
SITE REQUIREMENTS
Site Electrical Requirements
AS12INT AS22INT AS50INT AS70INT
Nominal Supply Voltage (VAC, see note) 220 220 220 220
Frequency (Hz) 60 50/60 50/60 50/60
Maximum Current (Amps) 4 8 16 24
Minimum Panel Breaker Rating (Amps) 10 20 30 40
Minimum Wire Size (AWG) 16 12 10 8
Description
Model
Note: Install a buck or boost transformer if actual facility service is above or below the
supply voltage fluctuation of ±10% of nominal voltage ratings listed.
Figure 2. Overall Site Requirements
Equipment Room Layout
3/8” FNPT End fitting
1/2” Copper Main Air Line
Building Power
Supply Panel
Buck/Boost
Transformer
(optional)
Rear Clearance
12 inches minimum
from wall
Maximum 24
inches from
main air line
Membrane Dryer
Drain Valve
See Note 4
Notes:
1. Remote Air Intake Kit Manifold - Refer to the table below
listing the kit part number corresponding to the AirStar
model.
2. Remote Air Intake Drip Leg & Valve - A drip leg with drain
valve must be installed at lower end of the remote air intake
pipe to collect condensation during operation. Attach a drain
tube to the drip leg valve to allow drainage into oor drain/sink.
3. Air Pipe - Pipe can draw air from Inside or Outside. Drawing
air from cooler and drier environments is benecial to system
performance. If drawing from Inside, the pipe end should still
be protected from ingress of water and animals as appropriate.
Be aware that noise can emit from the pipe during compressor
operation; place end accordingly.
4. Membrane Dryer Drain Valve - Install the Drain Tube found
in either accessory kit P/N 87235 or P/N 87234 used to drain
moisture collected in the Membrane Dryer.
Remote 24 Volt
Switch with Pilot Light
(sold separately)
Control Cable 18
Gauge 4 Conductor
Connect to Pressure
Switch. See 24 Volt
Circuit Connections.
Side
Clearance
12 inches
36” max
2” Pipe & flexible
hose for Air Intake
supplied with Remote
Air Intake Manifold Kit.
13” max
Remote Air
Intake Manifold
(See Note 1 & Detail)
Air
Intake
Drip Leg
See Note 2
1
4
3
2
Air Intake Manifold Detail
Apply Teflon Tape to
Threads and Screw
Fitting Into Filter
Kit includes 70” of clear PVC
Tubing per Number of Cylinders
AIR PIPE
2-Inch Pipe for Air Intake.
Must be protected from rain
and animals See note 3.
Shroud &
Screen
Screen Shroud &
Screen
Type Style
AS12INT IEC
Female*
AS22INT
Hard
Wired*
See Figure 3
for Connection
Details.
AS50INT
AS70INT
36” max distance
between intake
pipe & compressor

Air Techniques, Inc. Page 8
AS12, AS22, AS50, AS70,
International
INSTALLATION INFORMATION
Important: Each system should have a dedicated circuit panel.
Remove all power to the system prior to working
with electrical circuits. Contacting high voltage
can cause serious injury or even death.
All systems must be wired directly
from an electrical box that complies
with local electrical codes.
Note: If voltage is higher than 242V, install a bucking transformer.
MINIMUM VOLTAGE: The minimum voltage for an AS12INT, AS22INT, AS50INT or
AS70INT is 198 Volts. Install a boost transformer if the service is below this rating.
WIRING REQUIREMENTS: To help prevent re, electric shock, injury, or death, the
wiring and grounding must conform to the latest edition of the National Electrical Code,
ANSI/NFPA 70 and all applicable local regulations. Please contact a qualied electri-
cian to check your wiring and breakers/fuses to ensure that there is adequate electrical
power to operate the AIRSTAR.
EQUIPMENT GROUNDING: All AIRSTARs must be connected to a grounded metal,
permanent wiring system, or an equipment grounding conductor must be run with the
circuit conductors and connected to the equipment grounding lead in the AIRSTAR's
exible metal conduit power supply. Failure to do so can result in re, electric shock,
injury, or death. See Figure 2, Overall Site Requirements, page 7.
ELECTRICAL POWER CONNECTION: AS12INT is supplied with an installed line
cord with an IEC female connector that requires a 220V male IEC, minimum 16AWG,
connector. AS22INT, AS50INT and AS70INT systems are shipped with open electrical
connections, which are directly connected to the branch supply circuit as shown by
Figure 3. See Site Electrical Requirements, page 7, for required branch circuit size for
each system.
AIRSTARs are installed by authorized Air Techniques dealer technicians. Please review these
installation guidelines to make sure that your AIRSTAR works to capacity for your office. (See
Site Requirements, pages 6 & 7.)
Your AIRSTAR should be installed in a well ventilated area, with at least 12 inch
clearance on each side for service access and to prevent overheating during high
demand periods. If other equipment is located in the vicinity, the ambient temperature
of the area must not exceed 105°F.
The installation site should be clean and dry to prevent the air intake filters from
clogging. If there is a concern about the quality of air where the AIRSTAR is placed,
we recommend an optional Remote Air Intake (See Optional Accessories, page 16)
which allows the compressor to intake clean air from a remote location.
Air distribution piping for all models should be 1/2", type "L" or type "K" copper.
PLUMBING CONNECTION: The Tank Outlet Assembly (See Figure 1, View C), (the
storage tank outlet for the dry air) is connected to the operatory air system via a 3/8"
F.N.P.T. shut-off valve and 6 foot length of pressure hose (supplied).

Page 9Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
220VAC Electrical Connections
L1
L2
GND
WHITE
GREEN
BLACK
WHITE
BLACK
GREEN
24V Connections: 24V connections are used when installing a 24V remote switch.
They are made at the pressure switch as shown by Figure 3. When not using the
remote switch, insulate the BRN wire and tie the ORG and YEL wires together.
24V Connections
Figure 3. AirStar Electrical Connections
INSTALLATION INFORMATION
Notes:
1. Use 18 Gauge, 4 conductor, interconnect cable between the
AirStar unit and Remote Switch Panel.
When any 24V circuit exceeds 150 feet, use #16 AWG.
2. As shown, 3 conductors of the 24V circuit cable from each compressor
connect via the user-supplied interconnect cable.
3. The fourth conductor of interconnect cable to be used for future
equipment options/enhancements.
4. Leave with factory connection, without a 24V Switch, or connect
the associated interconnect cable directly to remote switch.
Please note that one switch is used for each compressor.
Interconnect
Cable
Yellow 2
Brown 4
Orange 3
See Note 3
Future Use
Remote Panel
Yellow 2
Brown 4
Orange 3
White
White
See
Note 4
Connection
without
24V Switch
4 BRN
3 ORG
2 YEL
From
Electrical Box
2
4
3ORN
YEL
BRN
BLU
BLK
BRN
YEL
BLK
BRN
BLU
ORN
Pressure Switch
To Remote
Panel

Air Techniques, Inc. Page 10
AS12, AS22, AS50, AS70,
International
POST INSTALLATION CHECK
Make Sure Everything Is Running Properly
After your AIRSTAR has been installed and before it is put into operation, be sure to follow
the check-out procedure detailed below:
Check that Intake Filter(s) are fully seated into the compressor head(s) and that the Tank
Outlet Valve is closed.
Turn on the electricity. Check the incoming line voltage. It should be at least 198 Volts
for the AS12INT, AS12CINT AS22INT, AS22CINT, AS50INT, AS50CINT and AS70INT.
This voltage should remain at or above this level while the AIRSTAR is running. If
not, install the appropriate boost transformer and check that the correct main circuit
breaker and wire size are being used.
Check pump-up and recovery times.
Turn on the AIRSTAR’s power and determine the pump-up time from 0 to 115 PSI.
Drain the storage tank to 80 PSI and determine the recovery time from 85 to 115 PSI.
If the pump-up or recovery time exceeds the duration listed by the table below, call an
authorized dealer for service.
INSTALLATION INFORMATION
Model Number of
Motors/Heads
Maximum
Pump-up Time
0-115 PSI (M:SS)
Maximum
Recovery Time
85-115 PSI (M:SS)
AS12INT 1/1 2:55 0:48
AS22INT 1/2 3:10 0:47
AS50INT 2/4 2:50 0:42
AS70INT 3/6 2:40 0:40

Page 11Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
Must be operated at a maximum of 50% duty cycle with the maximum on time of 5
minutes.
If a Remote Control Panel is being used, ALL switches on the face of the compressor
Control Box must be in the ON position.
If a Remote Control Panel is not being used, be sure that the yellow and the orange
wires are connected to one another. These wires are located on the pressure switch.
The power switches located on the face of the compressor Control Box are the power
control for each motor.
Note: Compressor motors are designed to run together. Do not run one head at a time unless one
head has failed and you are waiting for service.
The motor circuit breaker must be kept in the ON position and should not be used as a
switch.
OPERATING INFORMATION

Air Techniques, Inc. Page 12
AS12, AS22, AS50, AS70,
International
TROUBLESHOOTING
Problem Possible Cause Possible Solutions
1. Motor does not start. a. No electric power. a. Check circuit breaker at main power
panel.
b. Power not connected. b. Check 24 Volt remote connections.
c. Defective circuit breaker. c. Circuit breaker needs to be replaced.
Call your authorized Air Techniques
dealer for service.
2. Motor tries to start, cir-
cuit breaker trips off.
(* See bottom page 13)
a. Voltage too low. If each
compressor head runs
separately,but will not run
together, the voltage is too low.
a. AS12INT, AS22INT, AS50INT and
AS70INT require a minimum of 198
Volts. If the voltage is below the required
minimum, a boost transformer must be
installed. Call your authorized dealer.
b. Power supply cable too small. b. See SITE REQUIREMENTS Table.
c. Loose electrical connection. c. Call your authorized dealer for service.
3. Unusual noise. a. Intake filter(s) not seated cor-
rectly.
a. Remove filter(s). Replace if clogged or
dirty. When installing, make sure filter
chamber is clean and rubber flange on
top of filter is pushed all the way down
into the metal cylinder
b. Intake filter(s) clogged or dirty. b. Replace filter(s). ( PN 89831)
c. Motor noise. c. Call your authorized dealer for service.
d. Air leaks d. Call your authorized dealer for service.
e. Check cooling fans e. If fan is loose or broken, call your
authorized dealer for service.
4 Compressor cycles but
no pressure buildup to
115 psi.
a. Motor noise. a. Replace filter(s). ( PN 89831)
b. Leak in compressor. b. Close the storage tank outlet valve.
Check all fittings for leaks. If a leak is
found, call your authorized dealer for
service.
c. Pressure switch needs to be
adjusted.
c. Disconnect the main power supply.
Drain the storage tank slowly until a
“click” is heard. Storage tank pressure
should read 85 PSI on the pressure
gauge.
Close the tank outlet valve, turn on the
power switch and verify the pump-up
time for your model AirStar. Call your
authorized dealer if the pump-uptime is
incorrect. (See Post Installation Check
for pump-up times.)

Page 13Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
*DIAGNOSTIC PROCEDURE FOR DEFECTIVE COMPRESSOR HEAD(S)
1. Put power switches in the OFF position.
2. Reset the circuit breaker if it was previously tripped.
3. Test heads by turning ONE on at a time. If the motor fails to start, or the circuit breaker trips, the problem may be in that compressor
head. Leave the power switch for the effective head in the OFF position. Call your Authorized Air Techniques dealer for service.
NOTE: One head may be run TEMPORARILY while waiting for service.
4. If all heads run independently, but will not run together, check the line voltage. If the voltage is within the min./max. voltage required
in PRODUCT SPECIFICATIONS, call your Authorized Air Techniques dealer for service.
TROUBLESHOOTING
Problem Possible Cause Possible Solutions
5. Compressor cycles
even when there is no
air demand from the
operatory.
a. Leak in the compressor. a. Disconnect the main power supply. Drain the
storage tank slowly until a “click” is heard.
Storage tank pressure should read 85 PSI on
the pressure gauge.
Close the tank outlet valve, turn on the
power switch and verify the pump-up time
for your model AirStar. Call your authorized
Air Techniques dealer if the pump-uptime is
incorrect. (See Post Installation Check for
pump-up times.)
b. Leak in the office air
system.
b. Look at the moisture monitor
(see KEY PARTS to locate).
If it is blue, perform the following:
1. With the AirStar’s power switch ON,
drain the storage tank to 85 PSI to start
the compression cycle.
2. When the cycle shuts off at 115 PSI,
close the storage tank outlet valve.
3. Wait 5 minutes and open the storage tank
outlet valve.
4. If the pressure drops, the air leak is in
the office air system or delivery units and
not in the AirStar. Call your dealer or
plumber for service.
If it is pink, see #6 below
6. Moisture monitor is not
blue (pink or white).
a. Leak in the office air
system.
a. If the moisture monitor is pink, there is too
much moisture in the system. Call your
authorized Air Techniques dealer for service.
b. Compressor keeps
cycling.
b. Check the SIZING GUIDE. There may be
excessive air demands placed on the AirStar.
A larger capacity model may be required.
7. Cut-In / Cut-Out pres-
sures are not 85 / 115PSI.
Pressure switch needs
adjustment.
a. Adjust Cut-In pressure setting by turning
down nut on larger spring (center) for higher
pressure, or up for lower pressure.
b. Adjust Cut-Out pressure setting by turning
down nut on smaller spring (left) for higher
pressure, or up for lower pressure.
Cycle system after each adjustment to check
settings.

Air Techniques, Inc. Page 14
AS12, AS22, AS50, AS70,
International
Like all precision products, your AIRSTAR requires a certain amount of care on a regularly
scheduled basis. A well-organized maintenance program aids dependable equipment operation
and reduces problems to a minimum. Routine checks help to detect general overall wear, and
replacement of parts can often be made before a problem occurs.
Understanding this, we have established minimum maintenance requirements listed below
that include routine inspections and the replacement of filters using preventive maintenance
kits available for the specific AIRSTAR model. Adherence to this recommended maintenance
schedule will ensure that the equipment will continue performing at its best with uninterrupted
service.
Routine Inspection - Monthly
Clean exterior surfaces.
Check for abnormal noises and air leaks.
Make sure that no ammable, corrosive, or combustible materials are stored in
the equipment room (especially in the area around the equipment).
Check operational range of pressure switch is between 85-115 psi.
Inspect the Moisture Monitor (Figure 4) for a color change:
Blue indicates that the air in the storage tank is dry.
Pink indicates a high level of humidity is in the storage tank. See TROUBLESHOOTING
page 13 to correct this situation.
Routine Inspection - Yearly
Refer to Figure 4 and check the Service Indicator on the 5-micron Outlet Filter.
Red indicates that the lter must be replaced P/N 87168.
Green indicates No service is required.
Figure 4.
Moisture Monitor and 5-Micron Filter Location
MAINTENANCE
Moisture
Monitor
5 Micron
Filter
Service
Indicator

Page 15Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
MAINTENANCE
Important: In dusty environments, the Intake Filter, PN 89831, may need to be changed more often than
once a year.
Always dispose of the removed filter in accordance with local codes.
Filter Replacement - Yearly
Refer to Figure 5 for the location of filters to be replaced using the preventive maintenance
kit for the specific AIRSTAR mode listed below. Replace the filters and associated O-rings
in accordance with the instructions provided with the kit.
Figure 5.
AirStar Filter Location
Membrane Dryer
Top Membrane Filter
P/N 87171
Note: Top Cover O-ring, P/N 87368, is replaced
with the Top Membrane Filter.
See instructions provided with the kit.
Note: Bottom Cover O-ring, P/N 85529, is replaced
with the Bottom Membrane Filter & Bowl.
See instructions provided with the kit.
Compressor
Air Intake Filters
P/N 89938R
(1 each cylinder head)
Preventive Maintenance Kits Supplied Components
AirStar Model AS12INT AS22INT AS50INT AS70INT
Kit Part No 87351 87352 87353 87354
Component Part No. Qty Qty Qty Qty
Compressor Air Intake Filter 89938R 1 2 4 6
Top Membrane Filter 87171 1 1 1 2
Bottom Membrane Filter 87367 1 1 1 2
Bottom Membrane Filter Bowl 87362 1 1 1 2
Top Cover O-ring 87368 1 1 1 2
Filter Bowl O-ring 85529 1 1 1 2
Bottom Membrane
Filter, P/N 87367 &
Filter Bowl, P/N 87362
85529
87171
87368
89938R - See Table
for Kit Quantities
87362
87367

Air Techniques, Inc. Page 16
AS12, AS22, AS50, AS70,
International
OPTIONAL ACCESSORIES
Description Model Part Number
REMOTE AIR INTAKE KIT
AS12INT
AS22INT
AS50INT
AS70INT
85491
85492
85493
85494
REMOTE CONTROL PANEL
w/24 V switches
1-Switch Plate Kit
2-Switch Plate Kit
3-Switch Plate Kit
4-Switch Plate Kit
For all AirStars 53111
53251
53250
53133
SOUND COVER
AS12INT
AS22INT
AS50INT
AS70INT
85180
85962-2M
89523M
89574M
REPLACEMENT PARTS
Description Part No.
5 Micron Replacement Filter 87168
Preventive Maintenance Kits
AirStar Model Kit Part No.
AS12INT 87351
AS22INT 87352
AS50INT 87353
AS70INT 87354

Page 17Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International
PRODUCT SPECIFICATIONS
AS12INT AS22INT AS50INT AS70INT
System Power
HP
(kW)
0.75
(0.56)
1.5
(1.1)
3.0
(2.2)
4.5
(3.4)
Nominal Supply Voltage VAC 220 220 220 220
Frequency Hz 60 50/60 50/60 50/60
Maximum Simultaneous Air Users 2 3 7 10
Maximum Current Amps 4 8 16 24
System Output Flow Rate at 80 PSI
CFM 2.5 5.0 10.0 15.0
Maximum Pump-up Time 0-115 PSI
(M:SS) 2:55 3:10 2:50 2:40
Maximum Recovery Time 85-115 PSI
(M:SS) 0:48 0:47 0:42 0:40
Tank Size
US Gallon
(ft3)
6
(0.8)
12
(1.6)
20
(2.7)
30
(4.0)
Shipping Weight lbs. (Approximate)
No Sound Cover
With Sound Cover
170
215
200
240
290
335
430
N/A
Dimensions in. (See note)
No Sound Cover
H
W
D
28.50
25.00
19.75
30.50
29.00
20.00
33.50
35.50
20.50
35.00
47.75
21.75
With Sound Cover
H
W
D
30.00
25.00
22.50
32.00
31.00
22.25
33.50
36.50
22.75
36.00
51.00
29.50
Note: Height measured without leveling feet for all units with or without sound cover.
Description
Model

Air Techniques, Inc. Page 18
AS12, AS22, AS50, AS70,
International
On-Line Warranty Registration
Quickly and easily register your new AIRSTAR on-line. Just have your product model and serial
numbers available. Then go to the Air Techniques web site, www.airtechniques.com/dental,
click the warranty registration link and complete the registration form. This on-line registration
ensures a record for the warranty period and helps us keep you informed of product updates
and other valuable information.
WARRANTY
Each AIRSTAR is warranted to be free from defects in material and workmanship from the date
of installation for a period of 2 years (24 months) on complete unit.
All part and component returns and replacement equipment require a Return Materials
Authorization (RMA). Returns must be received within three months of the RMA issue date
and in appropriate packaging to prevent shipping damage. In case of advanced replacement,
products shall be returned in the original packaging. Items returned without an RMA, or included
with other products for which an RMA has been issued, will be returned to the customer at the
discretion of Air Techniques, Inc.; the return shipping is the customer's responsibility.
Any item returned under warranty, will be repaired or replaced at our option at no charge
provided that our inspection conrms it to be defective. Air Techniques, Inc. is not liable for
indirect or consequential damages or loss of any nature in connection with this equipment.
Dealer labor, shipping and handling charges are not covered by this warranty.
Warranty credit will not be applied to product returns that exhibit damage due to shipping,
misuse, careless handling, and improper installation by dealers, or repairs by unauthorized
personnel. Credit, or partial credit, will not be issued until products/parts have been received
and assessed. If, after the evaluation it is determined that there is no-fault found and the
unit is working properly, a credit will not be issued. Warranty is void if product is installed
incorrectly or installed or serviced by anyone other than an authorized Air Techniques'
dealer or service personnel.
This warranty is in lieu of all other warranties expressed or implied. No representative or person
is authorized to assume for us any liability in connection with the sale of our equipment.

Page 19Air Techniques, Inc.
AS12, AS22, AS50, AS70,
International

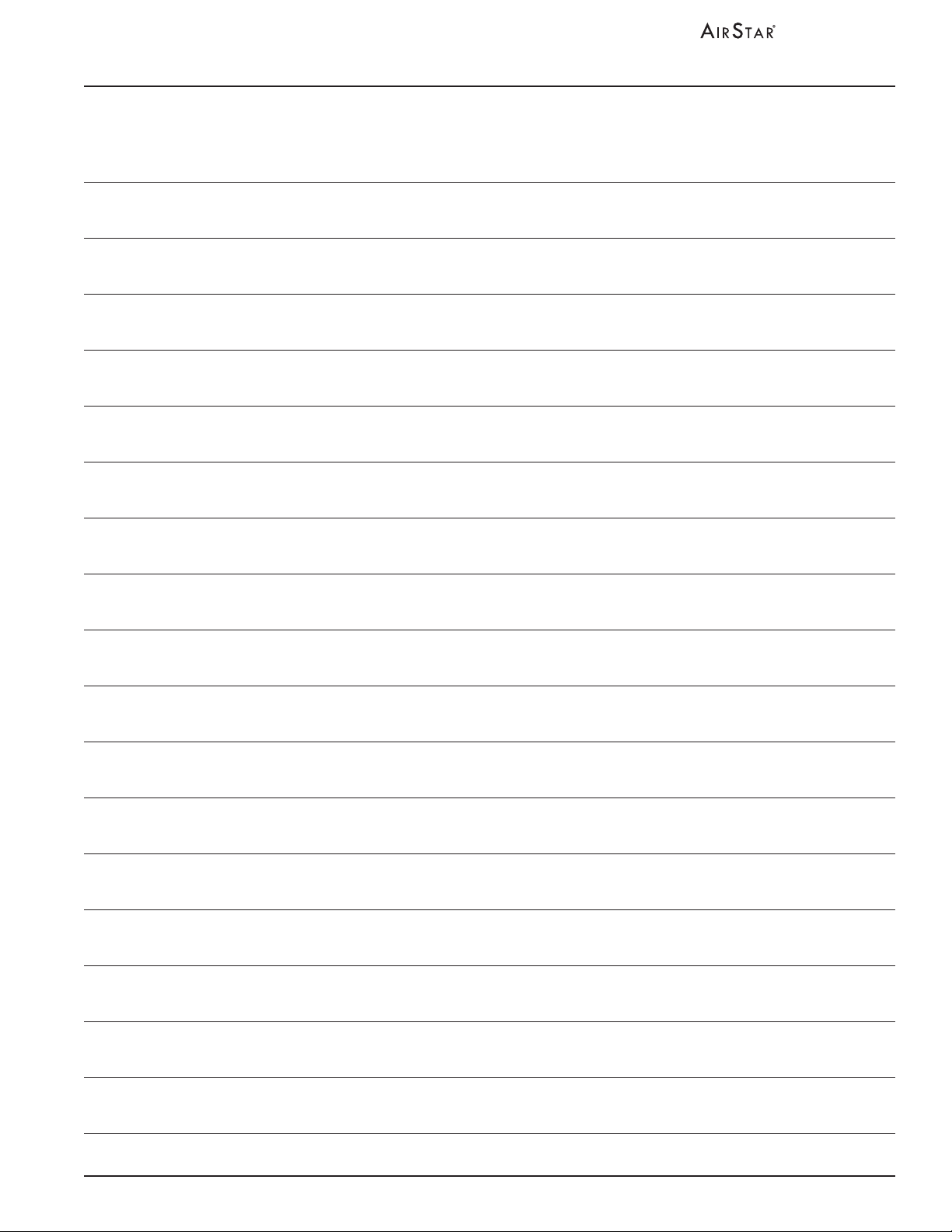

NOTES

AirStar is a registered trademark of Air Techniques, Inc.
© 2009 Air Techniques, Inc.•P/N 87109INT, Rev. N •November 2020
www.airtechniques.com
Australian Sponsor
Emergo Australia
Level 20 Tower II, Darling Park, 201 Sussex Street,
Sydney, NSW 2000. Australia
Digital Imaging
• Digital Radiography
• Intraoral Camera
• Caries Detection Aid
• Intraoral X-ray
• Panoramic X-ray
• Film Processors
Utility Room
• Dry Vacuums
• Wet Vacuums
• Air Compressors
• Amalgam Separator
• Utility Accessories
• Utility Packages
Merchandise
• Surface Disinfectant
• Enzymatic Cleaner
• Hand Sanitizer and Lotion
• Waterline Cleaner
• Evacuation System Cleaner
• Imaging Accessories
• Chemistry
• Processor Accessories
For over 50 years, Air Techniques has been a leading innovator and manufacturer of
dental products. Our priority is ensuring complete satisfaction by manufacturing reliable
products and providing excellent customer and technical support. Whether the need is
digital imaging, utility room equipment or merchandise, Air Techniques can provide the
solution via our network of authorized professional dealers. Proudly designed, tested and
manufactured in the U.S., our products are helping dental professionals take their prac-
tices to the next level.
Air Techniques’ family of quality products for the dental professional include:
Air Techniques, Inc.
1295 Walt Whitman Road
Melville, New York, USA 11747- 3062
