Air Black Ridge BR180D User manual

1
03597 03/18
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457 N.Z. 0800 474 876
Recyclable
Cardboard
Portable compressor for
medium duty DIY task
around the home
MODEL NO.
BR180D
AIR COMPRESSOR MANUAL

2
3
SUGGESTED APPLICATIONS
You may use most air tools with this compressor. Some
examples of tools are:
CLEANING
• Engine cleaning gun
• Sandblaster kit
• Air blow gun
• Abrasion kit
TOOLS
• Air hammer
• Air drill
• Impact wrench
• Sander
• Die grinder
Always check the air requirement of the tool wishing to be
used to ensure that it is within this air compressors air output.
Attaching air tools that draw more than 180 litres per minute,
free air delivery, to this air compressor, may cause them not
to operate to the tools’ full potential. The listed air tools and
accessories above are not included with this air compressor.
FASTENING
• Framing gun
• C-bradder
• T-nailer
PAINTING
• Gravity feed spray gun
• Low pressure spray gun
• Touch up spray gun
• High pressure spray gun
Section Page
Contents 2
Suggested Applications 2
Introduction 3
Guarantee 3 – 4
General Safety Instructions 5 – 7
Electrical Information 8
Specific Safety Instructions 8

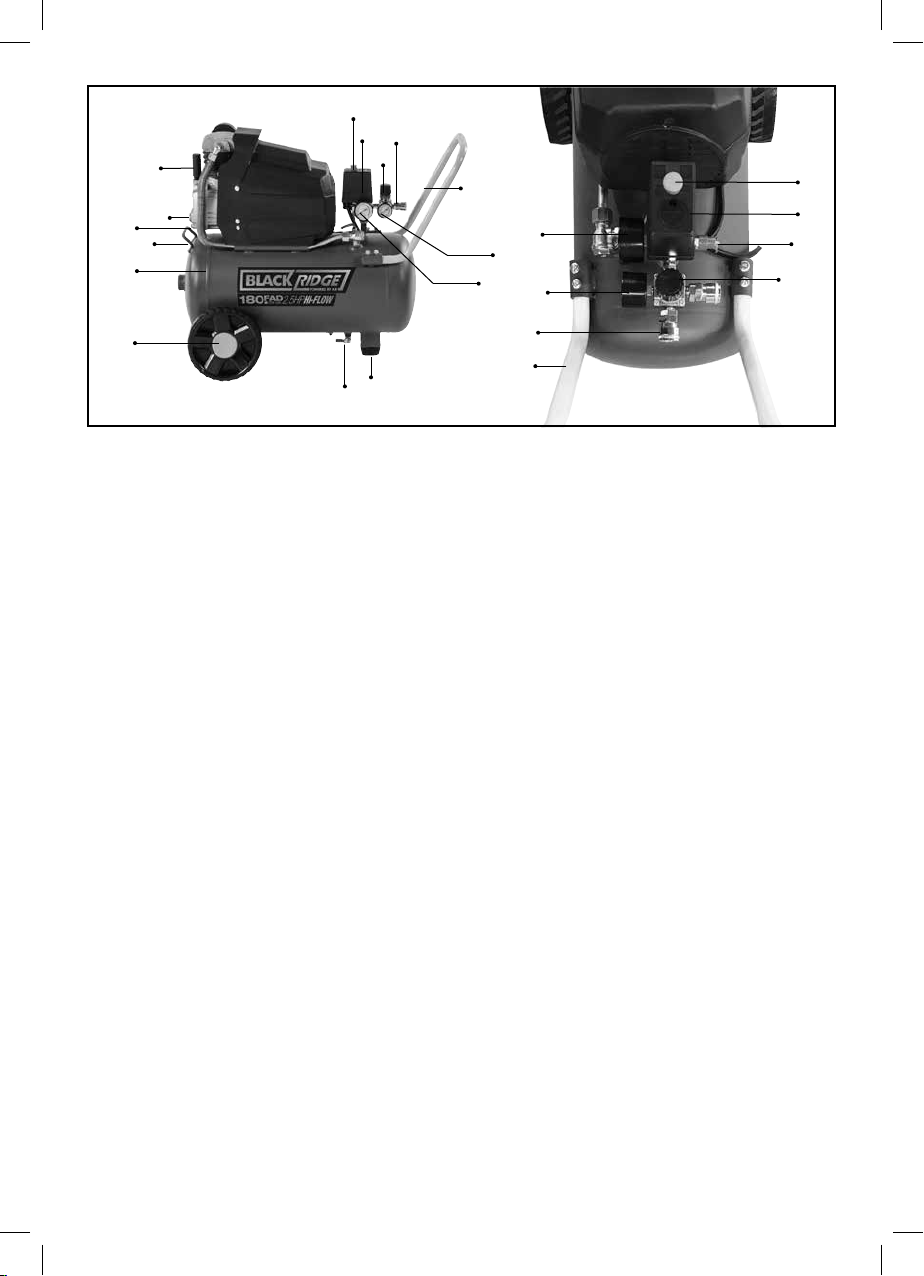

Components and Controls 9
Operating Instructions 10 – 16
Maintenance 17
Trouble Shooting 17
Parts Diagram 18
Notes 19
Contact Information 20
CONTENTS
Specifications
Air Compressor BR180D
Voltage 240V AC ~ 50Hz
Motor Electric 2.5 HP
Wattage 1950W
No Load Speed 2800 RPM
FAD (Free Air Delivery) 180L per minute
Tank Size 30L
Duty Cycle 75%
Max Tank Pressure 115PSI (8BAR)
Outlet Pressure 1PSI - 115PSI Adjustable
Lubrication Oil Splash
Oil Type SAE30
Minimum Generator Size Pure Sine Wave 3500W
Noise Rating 80dB@5m
Motor/Pump Kicks In 85PSI
Pressure Cycle Stops 115PSI
Number Of Outlets 2

2
3
INTRODUCTION
Dear Customer,
Thank you for purchasing this compressor which has passed
through our extensive quality assurance processes. Every
care has been taken to ensure that it reaches you in perfect
condition. However, in the unlikely event that you should
experience a problem, or if you require any assistance
please do not hesitate to contact us;
If you have a problem, call customer service do not return this
compressor to the place of purchase.
Note: For convenience we suggest taking a photocopy of
your purchase receipt as the original may fade.
CUSTOMER SERVICE
Australia: 1300 660 457
New Zealand: 0800 474 876
Operating times: Monday – Friday
8.00am - 5.00 pm
Australian Eastern Standard Time (AEST)
EXPRESS WARRANTY STATEMENT
COMPRESSOR
You are not required to do anything to register your
compressor purchase. Please attach the purchase receipt
to this manual and ensure both are kept safe. We hope you
enjoy your new compressor, and if you have any problems
call customer service on the above phone numbers. Do not
return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants that this
compressor will be free from manufacturing faults or defects
for 12 months from the date of purchase, providing original
purchase receipt is kept and shown when needed and is
subject to the terms and conditions below.
If a warranty fault appears within the warranty period,
SMG reserves the right to replace or repair the product. In
the event that SMG chooses to replace the product, this
original warranty will expire at the original date. If the
product includes various accessories or components, only
the defective accessory or component will be replaced or
repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality, grade
and composition where an identical part or component is not
available.
Products presented for repair may be replaced by
refurbished products of the same type rather than being
repaired. Refurbished parts may be used to repair the
products.
What is covered.
• Manufacturing fault or defect.
How to claim under this warranty.
• Call customer service, phone number to the left.
• Ensure you have the following: Original purchase receipt,
Model of compressor, Serial number of compressor.
• Discuss the issue.
• Customer service will advise which authorised service
agent to take the compressor to provided the issue is a
warranty one.
• Take compressor to authorised service agent for repair.
What is not covered.
• Commercial use of compressor.
• Use of compressor in a commercial premises.
• Damage caused by incorrect fuel or incorrectly mixed 2
stroke fuel.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse or accident
or incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and start up.
• Replacement parts due to general wear and tear.
• Compressors with serial number defacement, modification
or removal.
• Compressors which have been serviced by other than an
authorised SMG service agent.
• Compressors with no original purchase receipt.
• Compressors which have been on sold, not original
purchaser.
• Damage due non-servicing of compressor as is required
by this manual.
• Blockages / damage caused by dust, dirt, spiders webs or
insects.
• Damage caused by the incorrect fitting of accessories.
• Damage caused by overloading, overworking the
compressor.
• Damage to attached equipment or third party accessories.
• Damage caused by attached equipment or third party
accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[email protected]

4
5
As soon as you have purchased the compressor,
we recommend that you check to make sure it is
intact and that you read the operating instructions
carefully before using it. The purchase receipt
for this product is to be retained and must be
presented if making a claim under the terms of
the Smart Marketing Group (SMG) warranty. Bank
account statements are not acceptable for proof of
purchase.
This warranty does not cover compressors
intended for hire or use in commercial applications
or in commercial premises. The warranty will
under no circumstances extend to reimbursement
or payment of damages, whether direct, indirect
or consequential. The warranty is void if there
is evidence the compressors has been modied
or tampered with in any way or used with
unauthorised accessories without our consent.
SMG declines any responsibility or liability
whatsoever arising from misuse or abuse,
negligent handling of the compressors or if the
product has not been installed or failure to comply
with the relevant safety, operating, setting and
maintenance instructions (see further in this
manual).
The warranty does not extend to installation or
disconnection costs.
Any item sent freight forward/collect for repair will
be refused. Warranty repairs are free of charge,
provided the appliance is delivered to our service
department or authorised service agent. The
compressor will need to be returned, adequately
protected in a box. SMG will not be responsible
for any in-transit loss or damage. Assistance
under the warranty will only be made available if
the request is made to our customer service team
on the contact numbers listed below and proof of
purchase is provided.
This is a repair only warranty you will need to take
the compressor to the authorised service agent
after contacting our customer service centre.
If the product includes various accessories or
components, only the defective accessory or
component will be replaced or repaired.
SMG reserves the right to replace defective parts
of the product with parts and components of
similar quality, grade and composition where an
identical part or component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than
being repaired. Refurbished parts may be used to
repair the products.
Damage caused by third party accessories is not
covered under this warranty.
Damage caused to attached equipment or third
party accessories will not be covered under this
warranty.
Rust and corrosion are not covered under this
warranty.
If a warranty fault is found the freight cost will
be credited to the owner. If no fault is found the
product will be returned and any costs associated
with the service will be charged to the owner.
Blockages caused by spider webs, insects, dirt,
accumulated dust, incorrect fuel or incorrectly
mixed 2-stroke fuel are not covered by warranty.
SMG reserves the right to replace or repair the
appliance within the warranty period. Parts found
to be defective due to a manufacturing default will
be replaced free of charge.
In the event of SMG choosing to replace the
appliance, the warranty will expire at the original
date of purchase. If no warranty fault is found
the owner will be advised and the product will be
returned and any costs associated with the service
will be charged to the owner.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for
a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure. The benets of this warranty are
in addition to any rights and remedies imposed
by Australian State and Federal legislation that
cannot be excluded.
In New Zealand, this SMG warranty is in addition
to the conditions and guarantees which are
mandatory as implied by the New Zealand
Consumer Guarantee Act 1993.For service, spare
parts or product information please contact
customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[email protected]
COMPLETE WARRANTY STATEMENT – COMPRESSOR

4
5

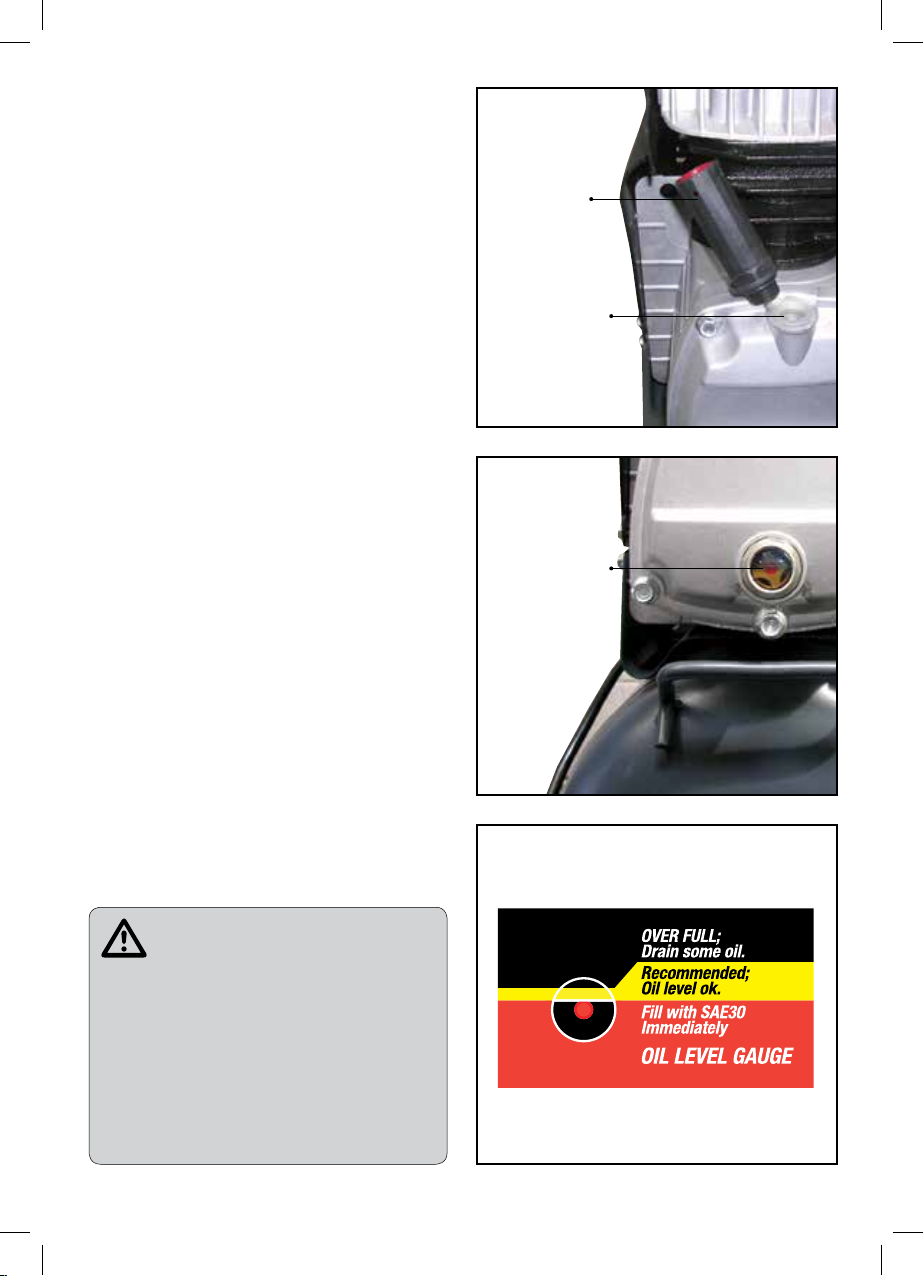

LUBRICATION OF COMPRESSOR
Before attempting to operate this air compressor the
transport plug must be removed, thrown out and replaced
with the oil breather. Check the oil level to ensure the level
is to the top of the red dot on the sight glass; refer to page
10 for complete details and diagram. Failure to do these
may result in damage to the air compressor and / or injury
to the user.
PLEASE follow the instructions noted on page 10 on
changing the transport plug to the oil breather.

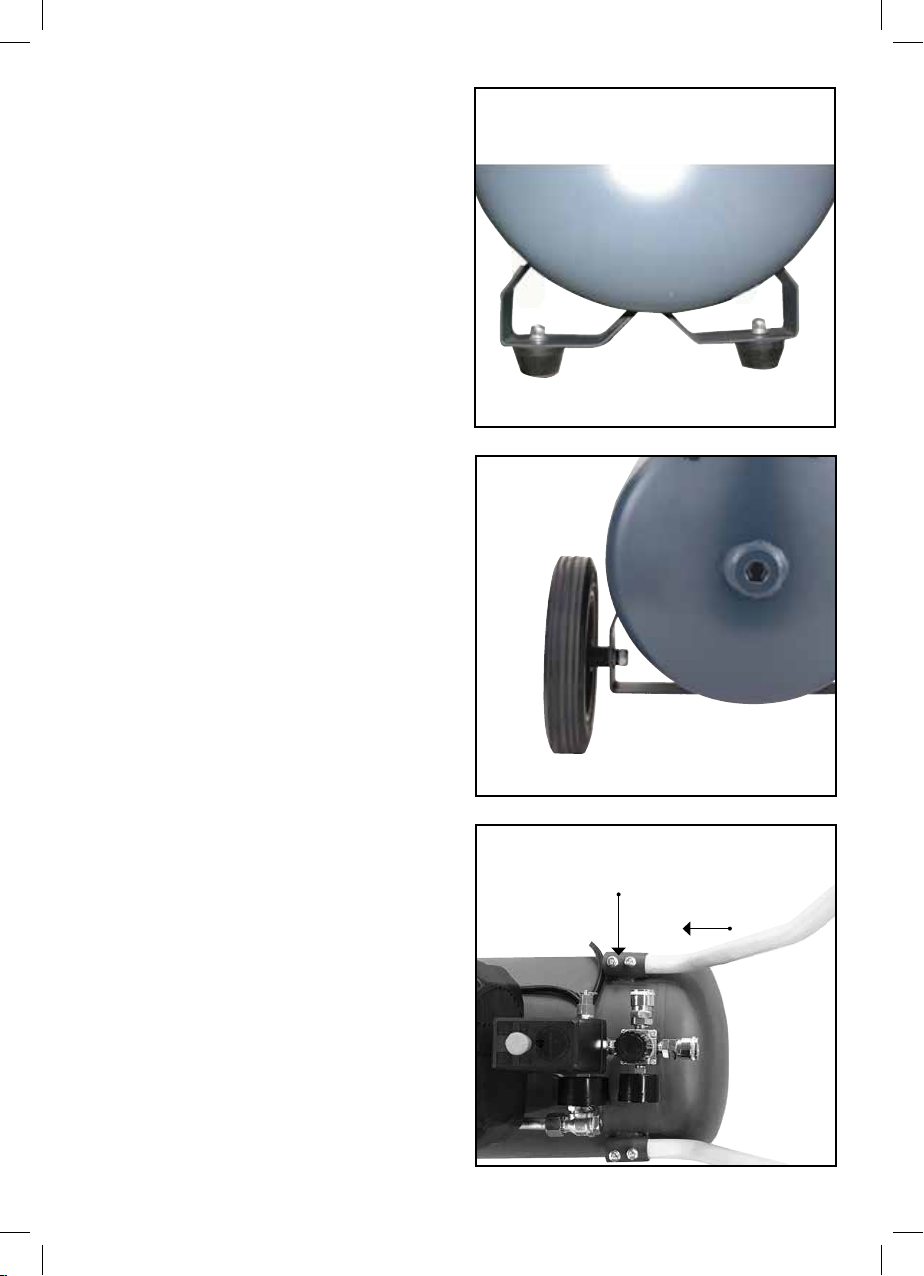

ASSEMBLY
This compressor MUST be fully assembled by you prior to
use. Failure to do so will result in the warranty being VOID.
Failure to fully assemble this compressor may also result in
personal injury.
MANOEUVRING
When moving this air compressor always use the handle to
lift slightly and pull/push using the attached wheels. If you
must lift this air compressor always use a 2 person lift due
to its weight and size. Failure to use 2 person lift may result
in personal injury.
SAFETY
Before attempting to operate this air compressor the
following basic safety precautions should be taken to
reduce the risk of fire, electric shock and personal injury.
It is important to read the instruction manual and to
understand applications, limitations and potential hazards
associated with the air compressor. This air compressor
is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
BEWARE OF CHILDREN AND PETS
Children and pets should be kept out of the work area.
Children should not be allowed to touch or operate
the air compressor, tools or extension cords. This air
compressor is not designed for use by young children or
infirm persons without supervision. The air compressor
and tools should be kept out of reach of children,
preferably stored or locked in a secure cabinet or room
when not in use.
WORK AREA
Work areas and benches should be kept tidy. Cluttered
benches and work areas can cause accidents. Floors should
be kept clean and free from rubbish. Special care should
be taken when the floor is slippery due to sawdust or wax.
Always leave sufficient distance, at least 5 metres between
the air compressor and the work area, especially when using
tools designed for sanding or spraying liquids.
WORK ENVIRONMENT
Do not expose your air compressor to rain or use in damp
or wet conditions. Keep the work area well lit. Always
ensure your compressor is level and stable. Using your
compressor on unlevel or unstable ground may cause a lack
of lubrication and the pump to seize, this damage will not be
covered under warranty.
GUARD AGAINST ELECTRIC SHOCK
Avoid body contact with earthed or grounded surfaces (e.g.
pipes and refrigerators).
DO NOT OVERLOAD AIR COMPRESSORS
The air compressor will do a better, safer job and give you
much better service if it’s used at the duty cycle for which it
was designed. The duty cycle will only take effect after the
initial (1st ) tank fill for the day. This air compressors duty
cycle is 75%. Duty cycle is the proportion of time during
which the air compressor is operating compared with not
operating. For example a 75% duty cycle could mean after
45 seconds of operation, motor pumping, the air compressor
must be left for 15 seconds resting, motor not pumping.
When the motor is pumping the attached air tool can not be
used. Simple way to understand duty cycle is only use the
attached air tool while the compressor is not pumping. Stop
using the attached tool as soon as the air compressor starts
pumping.
USE THE RIGHT TOOL
Select the right tool for the job. Do not use a tool for a job
for which it was not designed. Do not force a small air
compressor to do the job of a heavy–duty air compressor.
Do not use the air compressor for purposes not intended.

6
7
DO NOT ABUSE THE POWER CORD
Never yank or pull on the power cord to disconnect it
from the mains supply socket. Never carry or pull your air
compressor by its power cord. Keep the power cord away
from heat, oil, solvents and sharp edges. Regularly check
the plug and cord and if damaged have it replaced by an
authorised service facility.
EXTENSION CORDS AND REELS
This air compressor MUST be plugged directly into a 240V
AC wall socket.
This air compressor is NOT designed to be run off an extension cord/
lead. If you need extra distance do NOT use an extension cord, USE A
LONGER AIR HOSE.
The use of extension cords may cause power voltage loss
and will result in damage to the motor. This will NOT be
covered under warranty.
SECURE THE WORK PIECE
Whenever possible secure the work piece using clamps or a vice.
It is safer than using your hands or feet and leaves both hands free
to control the tool.
HOT COMPONENTS
Beware many of the components will get hot during use.
Never touch any of the metal pipes, pump or motor as these
may burn.
MAINTAIN YOUR AIR COMPRESSOR WITH
CARE
Follow the instructions for lubricating and changing
accessories. Check the air compressor power cord
periodically and if damaged have it replaced by an
authorised service facility. Keep handles clean, dry and free
from oil and grease. Ensure that ventilation slots are kept
clean and free from dust at all times. Blocked ventilation
slots or air filter can cause overheating and damage to the
motor and this will not be covered under warranty.
DISCONNECT AIR COMPRESSOR
Ensure that the air compressor is disconnected from the
mains supply when not in use, before servicing, lubricating,
making adjustments or when changing any accessories.
REMOVE ADJUSTING KEYS
AND WRENCHES
Form the habit of always checking to see that any adjusting
keys or wrenches have been removed from the air
compressor or attached air tools before operating.
AVOID UNINTENTIONAL STARTING
Ensure that the switch is in the ‘OFF’ position before
plugging the air compressor into the mains supply.
PROTECT FURNISHINGS
If using the air compressor inside your house, protect
furnishings and floors with a suitable dust sheet.
FIRE PRECAUTIONS
When using the air compressor inside your house or
workshop general fire precautions should be observed.
This means never leaving your air compressor turned on
while not in attendance, never cover the air compressor
while being used or while still hot from use, never use in
areas where a spark may cause a fire, always use in clean
areas. As a precaution it is recommended that an expert is
consulted on obtaining and using a suitable fire extinguisher.
CLEANING YOUR AIR COMPRESSOR
NEVER UN-ASSEMBLE your air compressor to clean.
Always disconnect your air compressor from the mains
power supply before you commence cleaning. Always
ensure that your air compressor has cooled, about one (1)
hour, before cleaning and storing. When cleaning your air
compressor use only a damp soft cloth. NEVER use liquid or
solvents of any type.

6
7
CHECK DAMAGED PARTS
Before using the air compressor it should be carefully
checked to determine that it will operate properly and
perform its intended function.
Check for the correct alignment of moving parts ensuring
that they do not bind. Check for broken or missing parts
and have them replaced or repaired at an authorised service
facility. Check any other condition that may affect the
operation of the air compressor. A guard or any other part
of the air compressor that is damaged should be properly
repaired or replaced by an authorised service facility unless
otherwise indicated in this instruction manual.
Any switch that does not operate correctly must be replaced
by an authorised service facility.

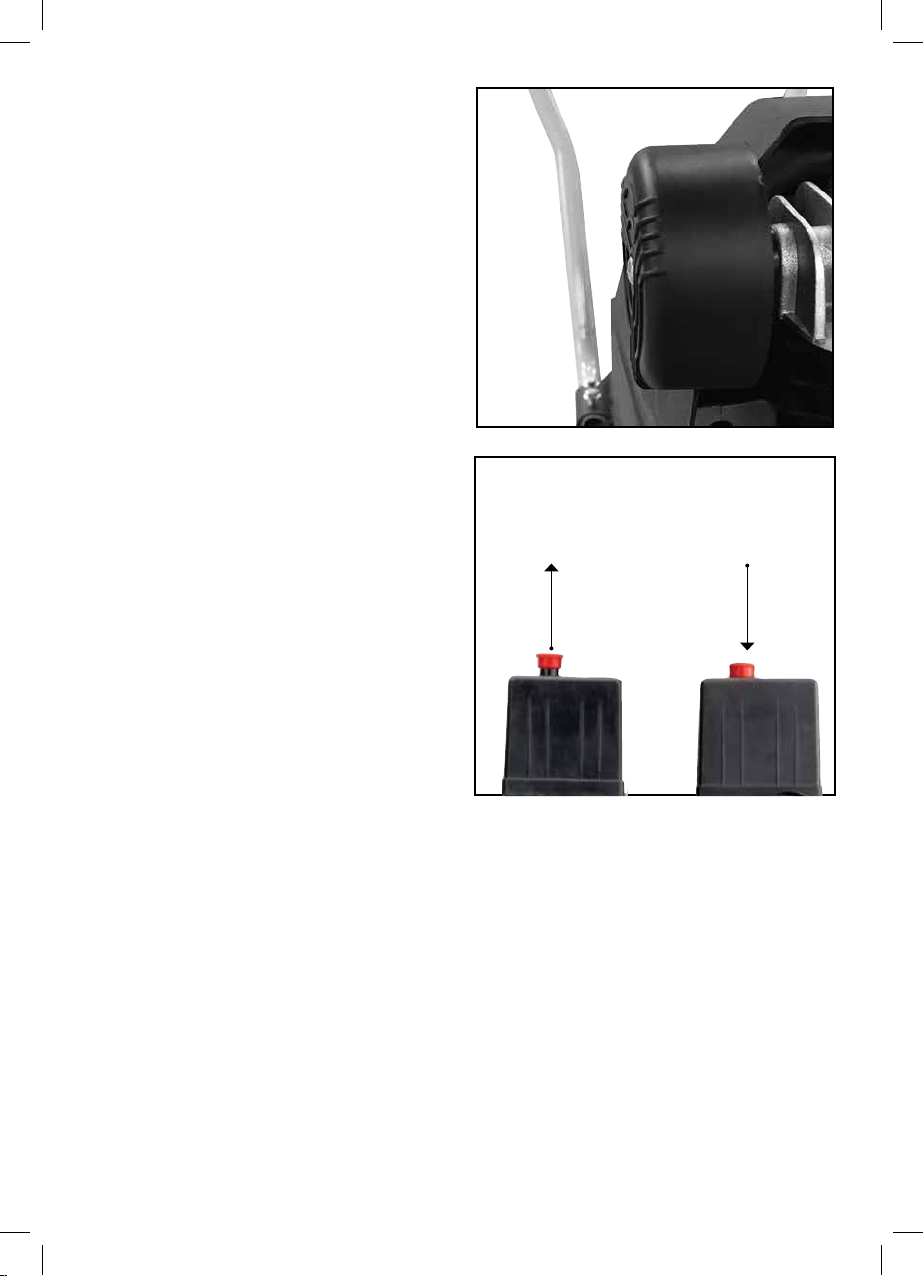

DO NOT use the air compressor if the RED ‘ON / OFF’
button does not turn the air compressor ‘ON’ and ‘OFF’.
DO NOT use the power point switch to operate the air
compressor as this will cause damage and injury may
occur. Any damage will not be covered under warranty.
For assistance, product information, spare parts or
service please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457
N.Z. 0800 474 876
PERSONAL SAFETY
Clothing
Do not wear loose clothing, jewellery or anything that could
get caught in moving machinery.
Hair
Long hair should be tied back or contained in a protective
covering.
Eye Protection
The use of safety goggles is highly recommended (normal
glasses are not sufficient for eye protection) when using
an air compressor. Prescription glasses do not have safety
lenses.
Footwear
Where there is the risk of heavy objects or if there is a risk
of slipping on wet or slippery floors, suitable non–slip safety
footwear should be worn. Protect your feet from dropping
accidents.
Ear Protection
The use of ear protection is highly recommended when
using air compressors. The continual noise may damage
your ears.
Respiratory Protection
When operating any machinery that creates dust or when
spray painting, an approved dust / filter mask must be worn.
When machining concrete, man made fibres, especially
MDF (Medium Density Fibre board), the resin used in these
materials can be hazardous to your health. Use an approved
face mask with replaceable filter.
Do Not Over Reach
Do not over reach. Keep a proper footing and maintain your
balance at all times. Avoid using abnormal stances and
awkward body positions.
Stay Alert
Watch what you are doing, use common sense, and never
operate an air compressor when you are tired, drinking
alcohol, taking drugs or if taking medication that causes
drowsiness.
WARNING
Only use compressor with oil breather fitted.
Only use compressor when fully assembled
Do not attempt to modify the air compressor in any way; this will VOID your warranty.
The use of any attachment or accessory other than those recommended in this instruction manual could result in
damage to the air compressor and could cause injuries to the operator.
This electric air compressor complies with Australian / New Zealand and International standards and safety
requirements. Repairs should only be carried out by qualified persons using original spare parts. Failure to do so may
result in considerable danger to the operator.

8
9
SPECIFIC SAFETY INSTRUCTIONS
Warning! Do not use the air compressor in areas where there
is a risk of explosion or fire from combustible materials.
The sparks generated from certain tools attached to air
compressor can ignite combustible materials as well as
flammable liquids, paint, varnish, petrol, flammable gases
and dust of an explosive nature. As a precaution it is
recommended that you consult an expert on a suitable fire
extinguisher and its use.
• Initially remove the transport plug and replace with the oil
breather BEFORE using the first time, see page 10.
• Do not attempt to modify the air compressor, guards or the
supplied accessories in any way.
• Domestic air compressors are designed for intermittent
operation. Ideally a 75% duty cycle. (Meaning. 45 seconds
ON motor pumping and 15 seconds OFF, motor not pumping).
Simply put when the motor is pumping the attached air tool
can not be used. Only use the attached air tool while the
compressor is not pumping.
• Stop using the attached tool as soon as the air compressor
starts pumping.
• Always check the oil level before use. The oil level should be
above the red dot on the sight glass.
• Fully assemble compressor before use.
• Always ensure your compressor is level and stable. Using your
compressor on unlevel or unstable ground may cause a lack of
lubrication and the pump to seize, this damage will not be covered
under warranty.
• Never run this compressor without the wheels and/or rubber
stopper (s) being correctly fitted.
• Never use an extension cord with this compressor always
use a longer air hose.
• Never connect to a generator which does not produce sufficient
power, at least 3500W and has pure sine wave power output.
• Domestic air compressors are not designed for industrial /
commercial applications.
• Domestic air compressors are not designed for continuous
running. Always follow duty cycle - 75%.
• Avoid touching the pump area as it can become very hot
and may burn.
• Ensure that the air compressor is disconnected from
the mains supply when not in use, before servicing,
lubricating, making changes and when changing
attachments such as air hoses / tools.
• Always use the correct type of tool for the operation to be
carried out.
• Never use the air compressor if any part of the unit is damaged.
Always have the air compressor serviced by an authorised
service agent.
• Always wear safety eye, ear and respiratory protection
when operating the air compressor.
• Allow the tank to completely fill before using the air
compressor.
• If the air compressor makes an unfamiliar sound or
vibrates excessively, switch the air compressor ‘OFF’
immediately and disconnect from the mains power
supply. Investigate the possible cause or consult your
authorised service facility.
• Always move the air compressor using the handle and
wheels.
• Always use the air compressor on stable ground.
• This air compressor is designed to compress normal air.
Never use to compress any other type (s) of gases.
• Never direct the jet of air or other liquids / gases towards
your body, other persons or animals.
• Never direct the jet of air or other liquids / gases towards
this air compressor.
• This air compressor is not suitable for pharmaceutical,
food or sanitary purposes.
• This air compressor is not to be used to for filling scuba or
oxygen air bottles or tanks.
• Always follow the instructions relating to the tools
attached to this air compressor.
ELECTRICAL DATA
IMPORTANT
This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for
Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected
to a supply voltage that is equal to that stated on the rating label. If the mains power connection plug or power cord
becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be
replaced by an authorised service centre. Always follow the Australian / New Zealand requirements for connection to the
mains supply. If in doubt always consult a qualified electrician.

8
9
COMPONENTS AND CONTROLS
Pic. 1
1. Oil fill and breather
2. Oil sight glass
3. Oil drain bolt
4. Rear handle
5. Tank
6. Wheels
7. Tank drain tap
8. Twin rubber stoppers
9. Tank pressure gauge - large
10. Outlet pressure gauge - small
11. Front handle (Large and small)
12. Air outlet - nitto style socket
13. Outlet pressure regulator
14. Pressure switch
15. On / Off button – red colour
16. Safety Valve
17. Air filter (Not shown)
18. Transport Plug (Not shown)
PIC. 1
1
2
78
12
13
14
15
3
9
10
11
9
10 13
15
14
16
12
11
5
6
4

10
11
OPERATING INSTRUCTIONS
Unpacking
Carefully unpack your air compressor. This air compressor is
bulky and heavy, two (2) person lift required. Dispose of all
packing material in an environmentally responsible manner.
Assembly
Your air compressor requires minor assembly before initial
operation. Check that you have all components required for
assembly and initial use.
Your compressor is filled with oil do not tip to assemble.
Oil Breather:
To fit the oil breather:
1. Remove the transport plug and throw away,
see Pic. 2.
2. Screw in the oil breather, see Pic. 2.
Lubrication:
Warning: Your air compressor IS FILLED with OIL!
To check the oil level:
1. Always check the oil level when the air compressor is on
flat and level ground.
2. To confirm the oil level lift the back, wheel end, up
about 20cm, hold for about 1 minute and place back on
ground.
Look at the sight glass and ensure the oil is above the red dot
on the sight glass, as per the “OIL LEVEL GAUGE” label, see Pic.
3 and Pic. 4.
To add oil, if required, additional oil not included:
1. Remove oil breather.
2. Add oil, SAE30 to at least the top of the red dot,
see Pic. 4.
3. Oil level will take about 1 minute to drain down and
settle.
4. Check oil level in sight glass, see Pic. 3. Re-check and
top up if required, until level is correct.
WARNING
Do not attempt to operate this compressor until it is fully
assembled.
Damage caused due to incomplete assembly will not be
covered under warranty.
Ensure the air compressor is disconnected from
the power supply before carrying out any assembly,
maintenance or adjustments on the machine.
Never under fill or over fill with oil.
PIC. 2
Screw in oil
breather
Remove
and discard
transport plug
PIC. 3
Oil level should be to
the top of the red dot
on the sight glass
as per the label
PIC. 4

10
11
PIC. 5
PIC. 6
PIC. 7
RUBBER STOPPER
To attach the rubber stoppers to the bracket located on the
bottom of the tank;
1. Undo the nut and remove the washers.
2. Push through the bracket and replace
the washer.
3. Tighten the nut, Pic. 5.
WHEELS
1. Insert a bolt through the wheel.
2. Push through the tank wheel bracket.
3. Tighten the nut, Pic. 6.
HANDLE
1. Loosen bolts in tubes welded to the tank.
2. Push handle into tubes welded on the tank.
3. Tighten the bolts to hold handle in place, Pic. 7. Slide handle
into tubes
Tighten bolts to hold
handle

12
13
PIC. 8
AIR FILTER
The supplied air filter must be used.
Failure to do so may result in irreparable damage and will
void the warranty, Pic. 8
To install:
1. Carefully screw supplied air filter into the threaded hole
on the top of the pump head. This only needs to be done
up by hand. Do not use tools to tighten air filter.
NOTE: Do not OVER TIGHTEN as this may damage the air
filter or cylinder head which will NOT be covered under
warranty.
STARTING AND STOPPING YOUR AIR
COMPRESSOR
Pic. 9
NOTE: Always ensure that you plug your air compressor into
a standard 240V AC power point. Never use an extension
cord as this can lead to a voltage drop which may cause
power loss and over heating. Use a longer air hose if you
need to get closer to your work area.
Always start and stop the compressor using the ON/
OFF button on the Pressure Switch (Pic. 9). Never use
the power point switch to operate the compressor as
this will cause damage and injury may occur. Damage
caused by not using this button will not be covered by
warranty.
To turn your air compressor ON;
Lift up the red ON / OFF button on top of the pressure switch
To turn your air compressor OFF;
Push down the red ON / OFF button on top of the pressure
switch
PIC. 9
Push button
down for off
Lift button
up for on

12
13
RUNNING IN YOUR NEW AIR COMPRESSOR
Before running in ensure that the following has been
completed:
1. The transport plug has been removed and discarded, see
pic. 2 page 10.
2. The oil breather has been fitted,
see pic 4. page 10.
3. Oil level is correct, see page 10.
4. The air compressor has been fully assembled, see pages
10 – 12.
Your new air compressor requires running in:
1. Plug the power cord into a standard 240V AC power
point
2. Open the tank drain tap
3. Start the air compressor using the
ON / OFF button
4. Run the air compressor for approximately 1 minute
This ensures that the air compressor is fully lubricated under
no load.
After the 1 minute stop the air compressor using the ON
/ OFF button. Allow to cool approximately 10 minutes.
Recheck the oil level and top up if needed, additional oil,
SAE30, not included.
Before starting your air compressor again ensure:
1. Tank drain tap is closed
Positioning your new compressor
Choose a location away from your work area and near to a
mains power point.
NOTE: 1. Never use an extension lead. Always use a
longer air hose
2. Always position compressor on level ground
3. Always position compressor away from work
area so that the inflator does not get
covered in dust or paint - use a longer air hose to
ensure inflator is in clean air
USING THE AIR COMPRESSOR
Before starting run through this simple list:
1. Transport plug removed and discarded, see Pic. 2, page
10.
2. Oil breather fitted, see Pic. 2, page 10.
3. Oil level – CORRECT (top of red dot). Please refer to
diagram, Pic. 4, page 10.
4. Drain tap – open and drain tank
5. Drain tap – close fully
6. Check power lead for any damage. If damaged have
replaced by an authorised service centre.
7. Plug air compressor into a standard 240V 10Amp AC
power point and turn ON.
8. Lift the air compressor button to turn ON, see page 12,
Pic. 9.
9. Allow the air compressor to fill the air tank.
10. Turn the air compressor OFF.
11. Turn the power point OFF and disconnect the power
lead from the power point.
12. Connect your air hose and air tools.
13. Reconnect to the power lead to the power point and
turn ON.
14. Turn your air compressor ON.
15. Once turned and you begin using the connected air
tools the air compressor will start and stop without
warning. This is controlled by the pressure switch.
These pressure settings are factory set and should not
be changed.
Pumping starts at (minimum) 85PSI and stops at (maximum)
115PSI. Once the initial pump up stage has finished you
can adjust the outlet air pressure to the tools recommended
working pressure.

14
15
PIC. 10
When you have finished using your air compressor
follow these simple steps:
1. Turn your air compressor OFF, using the ON/OFF switch.
2. Turn the power point OFF and disconnect the power
lead.
3. Disconnect your air tools and air hose.
4. Clean your air hose and air tools.
5. Store your air hose and air tools in a secure well
ventilated cabinet.
6. Slowly open the tank drain tap, see page 16. This allows
excess air and moisture, water,
to vent.
7. Leave the tank drain tap open. This allows any moisture
to drain while the air compressor
is stored.
NOTE: Use of a water trap may be of benefit to ensure no
water or moisture reaches your air tool.
The configuration of tools and accessories can be varied to
suit your particular requirements. A basic recommended set
up is shown in Pic. 10.
Above accessories and tools Not supplied, purchased separately.

14
15
ADJUSTING THE PRESSURE
To adjust the outlet air pressure, use the outlet pressure
regulator knob and check the pressure on the outlet
pressure gauge, Pic. 11.
If the pressure needs to be lower, turn anti clockwise.
If the pressure needs to be higher, turn clockwise.
Use the gauge to ensure you set the correct working
pressure.
Note: Different air tools require different operating
pressures. Always check with the tool manufacturer if
unsure.
SAFETY VALVE
Pic. 12
NOTE: When checking the safety valve ALWAYS wear safety
glasses.
To check the operation of the safety valve the air tank will
need to be full. Gently pull the ring outwards. This should
release air under pressure. Release the ring and this should
stop the air out flow immediately.
If the safety valve does NOT work in this manner, STOP the
air compressor immediately and have the air compressor
checked / serviced by an authorised service centre.
PIC. 11
PIC. 12
Tank pressure
gauge
Pull to check
operation
Outlet Pressure
Regulator
Outlet nitto
style socket
(female)
Outlet
pressure
gauge
IMPORTANT
NOTE
This compressor has a maximum pressure of 8 bar.
Always regulate the air pressure to match your air
tool. Different air tools require different operating
pressures. Always check with the tool manufacturer
if unsure.

16
17
PIC. 14
DRAIN TAP
Pic. 14
After use open the drain tap to drain excess air and any
moisture. The excess air will also help purge the moisture.
Leave the drain tap open when air compressor is not in use,
so any moisture can continue to drain
To open the drain tap pull the lever down
to vertical.
To seal the drain tap push the lever up
to horizontal.
NOTE: Remember to seal the drain tap before starting the
compressor.
CLEANING
ENSURE the air compressor is NOT running whilst cleaning.
To keep the air compressor clean, always wipe down after
use. Wear eye protection when cleaning. Only clean the air
compressor with a damp soft cloth. NEVER use liquid or
solvents of any type. Ensure ventilation slots are kept clean
and free from dust/dirt build up.
STORAGE
When storing ensure the air tank has been emptied as
per ‘Drain Tap’ above. Always store away from children,
preferable in a locked room.
Drain Tap Sealed
OR
To close and seal push lever up Right or left
To open and drain pull lever down
Drain tap opened un-sealed
AIR OUTLET
Pic. 13
This air compressor is fitted with a ‘Nitto style’ (female)
socket.
1. Slide the outer collar down.
2. Push in the ‘Nitto style’ male plug (not included).
3. Release the collar.
4. Fully and completely push the ‘Nitto style’ male plug
(not included) into the ‘Nitto style’ female socket until it
clicks.
Note: This compressor has a maximum pressure of 8 bar.
Always regulate the air pressure to match your air tool.
Different air tools require different operating pressures.
Always check with the tool manufacturer if unsure.
PIC. 13
Tank pressure
gauge
Outlet nitto
style socket
(Air Outlet)
Outlet
pressure
gauge

16
17
If your compressor does not start
• Check that you have plugged the power lead into a
standard 240V 10Amp power point and turned the
switch ON.
• Check that you have turned the air compressor ON/
OFF switch ON.
• The air tank may be full. Use your air tool and the air
compressor should start when the pressure decreases
to 85PSI.
If your compressor does not build
up pressure
• Check that the tank drain tap is sealed.
If your compressor smells like burnt oil
• Check the oil level as it may be low
If these tips do not work please have your unit checked by
an authorised service centre.
Call BLACKRIDGE for your closest centre,
Aust. 1300 660 457 N.Z. 0800 474 876.
PIC. 15
MAINTENANCE
Daily
Before use
1. Seal the tank drain tap, see page 16, Pic.14.
2. Check the oil level, see page 10, Pic. 4.
3. Check safety valve operation, see page 15, Pic. 12.
After use
1. Open the tank drain tap, see page 16, Pic.14.
2. Wipe down the air compressor.
3. Store safely and securely.
Every 50 Hours
1. Replace the air filter.
2. Drain oil completely and replace with fresh oil
To drain:
a. Loosen and remove the sight glass, Pic.15 and
drain oil into a funnel / bottle and dispose of in an
appropriate manner.
b. Once drained replace and tighten the sight glass.
c. Wipe up any oil spills.
d. Fill up to the top red dot on the sight glass with fresh
clean oil. Refer page 10 for “To Add Oil, if Required”
details. Refer to diagram Pic. 4, page 10.
NOTE: Use oil type SAE30.
Remove oil drain
bolt and drain
used oil into
funnel. Replace
and tighten oil
drain bolt
TROUBLE SHOOTING

18
19
PARTS DIAGRAM
Part Description Qty SMG Part No.
5 Cylinder Head 1 95 BRC95CH
19 Oil Breather 1 95 BRC95OB
21 Sight Glass Seal 1 95 BRC95OLSG
22 Sight Glass 1 95 BRC95OLSG
27 Air Filter 1 95 BRI60AF
28 Exhaust Elbow 1 95 BRC200EE
35 Safety Valve 1 95 BRC95SPV
36 Pressure Switch 1 95 BRC95PS
37 Connector 1 95 BRC95PTC
38 Regulator Dual Tap 195 BRC120OPRD
39
Outlet nitto style socket (female) 2 95 BRI40NSF
40 Unloading Tube Nut 2 95 BRC95UT
41 Unloading Tube 1 95 BRC95UT
42 Pressure Gauge Large 1 95 BRC95TPG
Part Description Qty SMG Part No.
43 Pressure Gauge Small 1 95 BRC95OPG
44 One Way Valve 1 95 BRC200OWV
50 Handle 1 95 BRC200TH
52 Drain Tap 1 95 BRC95DT
53 Cushion Foot 2 95 BRC95RS
54 Nut 2 95 BRC95RS
55 Washer 2 95 BRC95RS
56 Screw 2 95 BRC95RS
57 Bolt 2 95 BRC120WHB
58 Wheel 2 95 BRC200WH
59 Screw Nut 2 95 BRC120WHB
60 Exhaust Tube 1 95 BRC200ET
61 Exhaust Tube Nut 2 95 BRC200ET
User replaceable parts listed above. All other parts must be serviced/replaced by an authorised service agent.

18
19
NOTES:

20
Blackridge® is a registered trademark of Super Cheap Auto Pty Ltd
For any queries or assistance call Customer Service
AUST. 1300 660 457 NZ 0800 474 876
Hours of operation:
Monday to Friday 8.00am - 5.00pm AEST
Do not return to place of purchase. Keep your purchase receipt, this will
be required to make any claims under the 12 month warranty.
Specifications
Air Compressor BR180D
Voltage 240V AC ~ 50Hz
Motor Electric 2.5 HP
Wattage 1950W
No Load Speed 2800 RPM
FAD (Free Air Delivery) 180L per minute
Tank Size 30L
Duty Cycle 75%
Max Tank Pressure 115PSI (8BAR)
Outlet Pressure 1PSI - 115PSI Adjustable
Lubrication Oil Splash
Oil Type SAE30
Minimum Generator Size Pure Sine Wave 3500W
Noise Rating 80dB@5m
Motor/Pump Kicks In 85PSI
Pressure Cycle Stops 115PSI
Number Of Outlets 2
