Airbridge HDCN0010M1 User manual

Airbridge WIFI HD Adapter
Operating Instructions
V1.0
REMARK
Manufacturer does not make any commitment to update the information contained herein.

Airbridge WiFi HD Adapter
2
Table of Contents
DISCLAIMERS/INTRODUCTION………………………………………………………………………………3
FEATURES OF THE INTERFACE……………………………………………………………………………..3
SYSTEM REQUIREMENTS…………………………………………………………………………………….5
CONNECTION……………………………………………………………………………………………………7
OPERATIONS…………………………………………………………………………………………………….8
1. SOFTWAVE INSTALLATION…………………………………………………………………...……………8
2. Main Menu Layout & Function Definition………………………………………………..…………….....13
3. MULTIMEDIA PLAYBACK……………………………………………………………………………………14
STORAGE TYPE……………………………………………………………………………………….……14
PHOTO SHARE……………………………………………………………………………………..………14
VIDEO PLAYBACK……………………………………………………………………………………….…15
MUSIC PLAYBACK……………………………………………………………………………………….…16
OFFICE BROWSE………………………………………………………………………………..…………17
4. EXTENSION DISPLAY……………………………………………………………………………………….18
USB DISPLAY………………………………………………………………………………………….……18
WIFI DISPLAY……………………………………………………………………………………….………19
LAN DISPLAY…………………………………………………………………………………………….…27
DLAN SHARE………………………………………………………………………………….……………29
MIRACAST………………………………………………………………………………………………..…31
5. SETTINGS.…………………………………………………………………………………………..…….….32
SYSTEM SETUP………………………………………………………………………………………...…32
VIDEO SETUP………………………………………………………………………………………………32
PHOTO SETUP……………………………………………………………………………………..………33
AUDIO SETUP………………………………………………………………………………………………34
WIFI MODE SETUP………………………………………………………………………………...………34
LAN SEPUP …………………………………………………………………………………………………37
PRECAUTIONS………………………………………………………………………………………….……….39
FAQ………….……………………………………………………………………………………….…………….39

Airbridge WiFi HD Adapter
3
DISCLAIMERS
Thank you very much for purchasing this product (HDCN0010M1). Please read the use manual carefully
before using the product. Our company is not liable for any direct or indirect losses arising from hardware
damage, program damage, file loss and system breakdown due to improper operations.
INTRODUCTION
This product will let the user experience of transmitting the HD content by wireless, which also can allow
the user to view any PC / Mobile phone information on a compatible TV by the WIFI network. At the same
time also supports the playback and sharing of the local multimedia files. This product is compatible with
IEEE802.11 b/g/n standards, which can be connected with other wireless devices which meet the
standard. The pc only needs to install wireless network card，and then it can work.
FEATURES OF THE INTERFACE

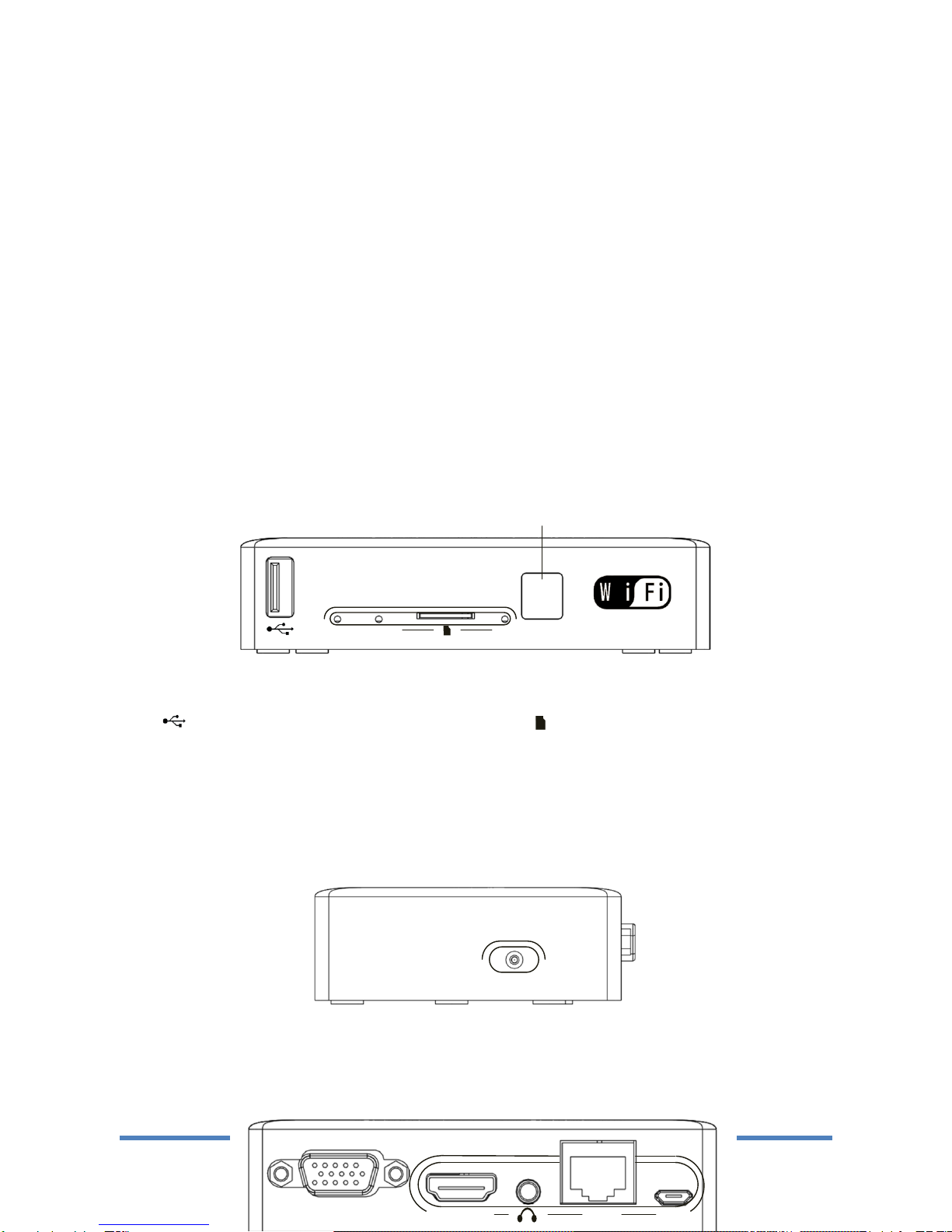

FIG.1.0 Front Panel View
：USB2.0 host interface
HDMI：HDMI output led status light
VGA：VGAoutput led status light
：Micro SD（TF）Card slot
O/I：Power led status light
IR：Infrared window
FIG.1.1 Right Panel View
DC 5V：5V DC in jack
HDMI
VGA
O/I
DC 5V
IR
VGA OUT
HDMI OUT
LAN
USB
DEVICE

Airbridge WiFi HD Adapter
4
FIG.1.2 Rear Panel View
VGA OUT：VGA output port
HDMI OUT：HDMI output port
：Headphone output jack
LAN：Ethernet interface
USB DEVICE：USB2.0 device interface
Note: 1. HDMI and VGA can’t output at the same time. During the reset state, the system
automatically detect the ports connection status, if two ports both connected, the device will choose
HDM port output. 2. Because the hardware is shared, USB device interface and USB host
interface can’t use at the same time.

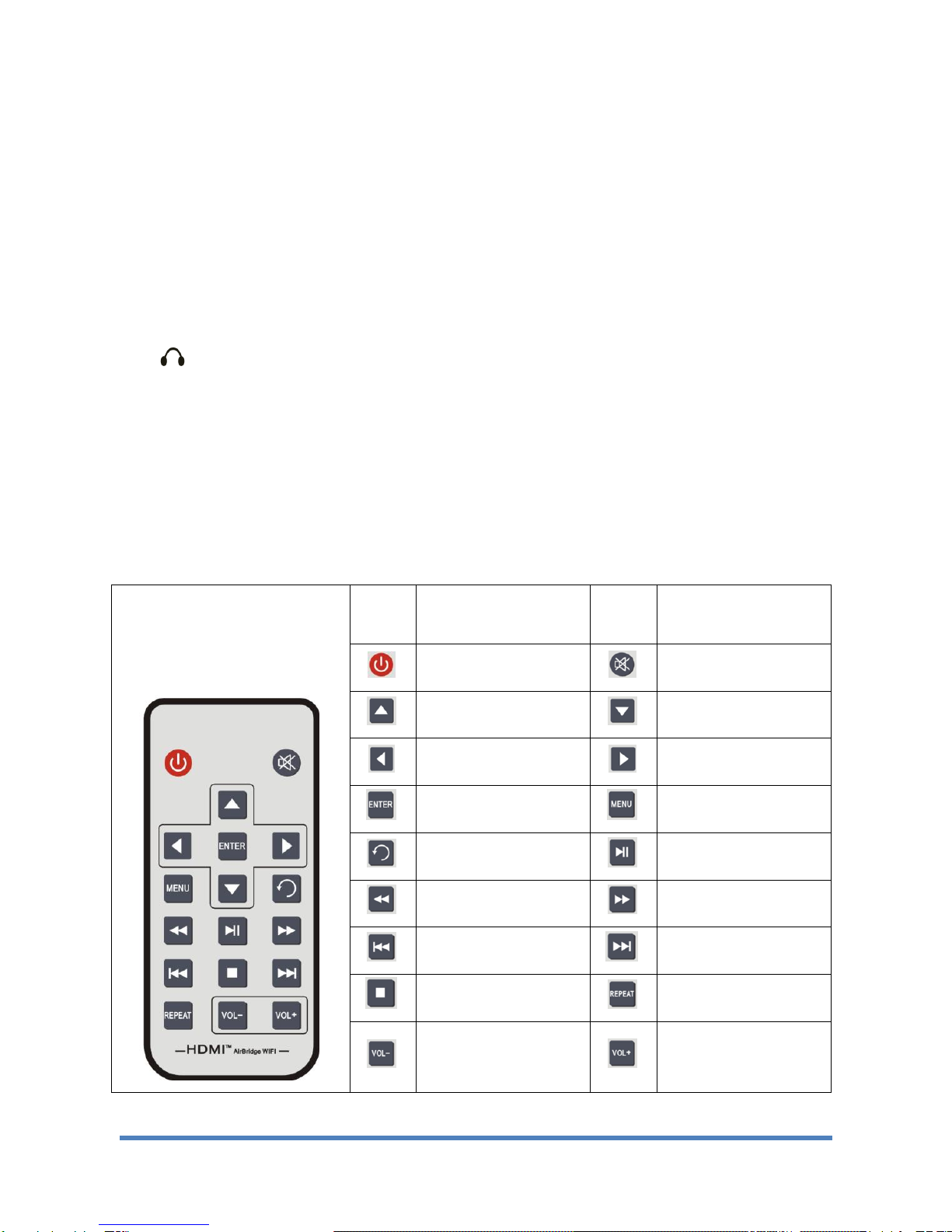

FIG.1.3 Remote Controller Panel View
(Note: Use after the battery
separator film is pulled out)
Keys
Description
Keys
Description
Power on/standby
Mute/Unmute
Move up to select
Move down to select
Move Left to select
Move Right to select
Confirm or Play
Return to main menu
Return/Exit
Play/Pause
Fast back
Fast forward
Previous section
Next section
Stop
Repeat mode
Increase
the earphone volume
Decrease
the earphone volume

Airbridge WiFi HD Adapter
5
SYSTEM REQUIREMENTS
The WIFI adaptor has follow requirement to the pc performance/parameter and the
network speed. Pls refer to below list：
1. Windows OS
Minimum system Settings
CPU: Dual Core Intel Core i 1.6 GHz or higher (ATOM not supported)
Memory: DDR 2GB or more
Graphic card: 64MB VRAM or more
Operating System: Windows XP SP3、Vista SP2、Win7 SP1、Win8
Recommend System Settings
CPU: Dual Core Intel Core i5 2.4GHz
Memory: DDR 4GB
Graphic card: 256MB VRAM or more
Wireless network card: 100Mb bandwidth or more
Operating System: Windows 7 SP1
2. Mac OS
Minimum system Settings
CPU：Dual Core Intel Core i 1.4 GHz or higher (PowerPC not supported)
Graphic card: 64MB VRAM or more
Operating System: Mac OS X 10.7 or later
Wireless network card: 100Mb bandwidth or more
Recommend System Settings
CPU：Dual Core Intel Core i5 2GHz above
Memory: DDR 4GB
Graphic card: 256MB VRAM or more
Operating System: Mac OS X 10.8
Wireless network card: 100Mb bandwidth or more
Recommended Models: Mac Book series and iMac series after E/2011

Airbridge WiFi HD Adapter
6
3. Android OS
CPU: 1GHz above
Memory: 1GB DDR or more
Operating System: Android ICS 4.0 or later (Miracast requiresAndroid 4.2 or later)
Resolution support: WVGA 800*480/ 720P 1280*720
Storage: At least 20MB free space needed
4. APPLE iOS
Operating System: iOS 5.1 or later
Recommended Models: iPhone 4/ iPhone 4S/ iPhone5/ iPad 2/ the New iPad/ iPad4
Resolution support: iPhone 480*320/ iPad 1024*768
Storage: At least 20MB free space needed
5. WORK ENVIRONMENT
Please place the product in a ventilated and dry environment. Don’t put any objects on the product
top or side, especially the metal objects, otherwise it will affect the transmission distance and image
display.

Airbridge WiFi HD Adapter
7
CONNECTION

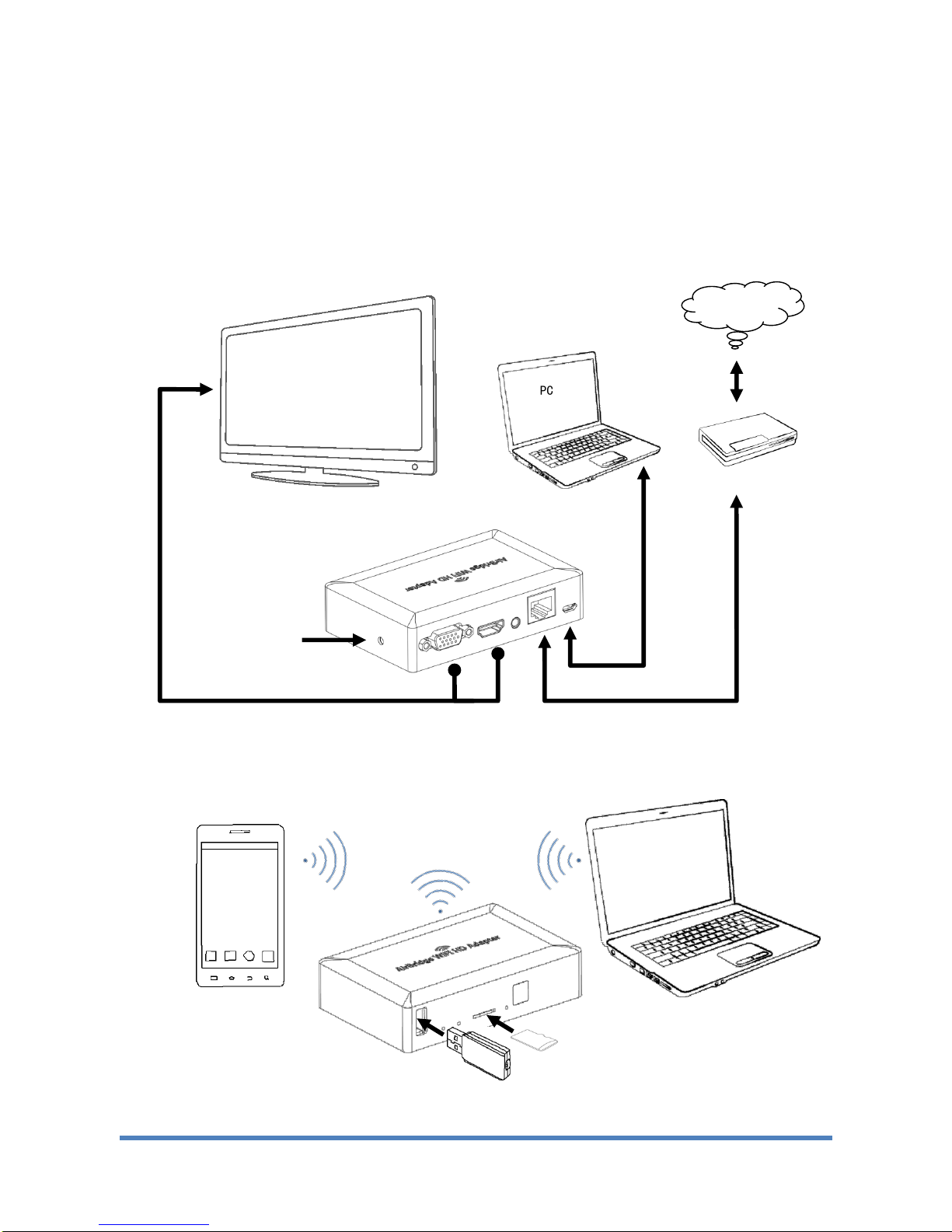

1. Connect one cable from each display (monitor or projector) into the adapter HDMI/VGAoutput.
2. Connect one Ethernet cable from modem / router LAN port into the adapter LAN port.
3. Connect one Micro USB cable from PC USB interface into the adapter USB DEVICE interface.
4. Connect 5V power supply to the adapter and inserted into the power socket.
5、The front panel can be inserted into the storage device; Mobile devices can connect to WiFi.
HDTV /Projector
VGA/HDMI cable
PC
Ethernet cable
Internet
Modem / Router
Micro USB cable
DC5V IN
Mobile
phone
USB drive
Micro SD card
PC

Airbridge WiFi HD Adapter
8
OPERATIONS
1. Software Installation
When you first time using Airbridge WIFI HD Adapter, you need to install the client software on your PC/
mobile phone. Then you don’t need to install again when use later. Before installation, you need to
connect the computer with the Micro USB line (When connecting to the computer must give power to the
power supply). Find and copy the one that you need to install the client software in the internal memory of
the products, or search application name in Google Play Store/App Store, then download it and install.
Different operating system needs to use the client software, refer to the table below:
OS
Client Softwave
Description
Windows
EZ View_Win.exe
Display PC full screen with WiFi/LAN
Split Screen support
EZ USB_Win.exe
Display PC full screen with USB
Split Screen support
Mac OS
EZ View.pkg
Display PC full screen with WiFi/LAN
Split Screen support
EZ USB_Mac.pkg
Display PC full screen with USB
Split Screen support
Android
EZ View.apk
WiFi Display, Streaming Doc, WiFi Photo Share, WiFi
Media Share, Split Screen
EZ Control.apk
Wireless remote control of the product
iOS
EZ View.ipa
WiFi Display, Streaming Doc, WiFi Photo Share, WiFi
Media Share, Split Screen

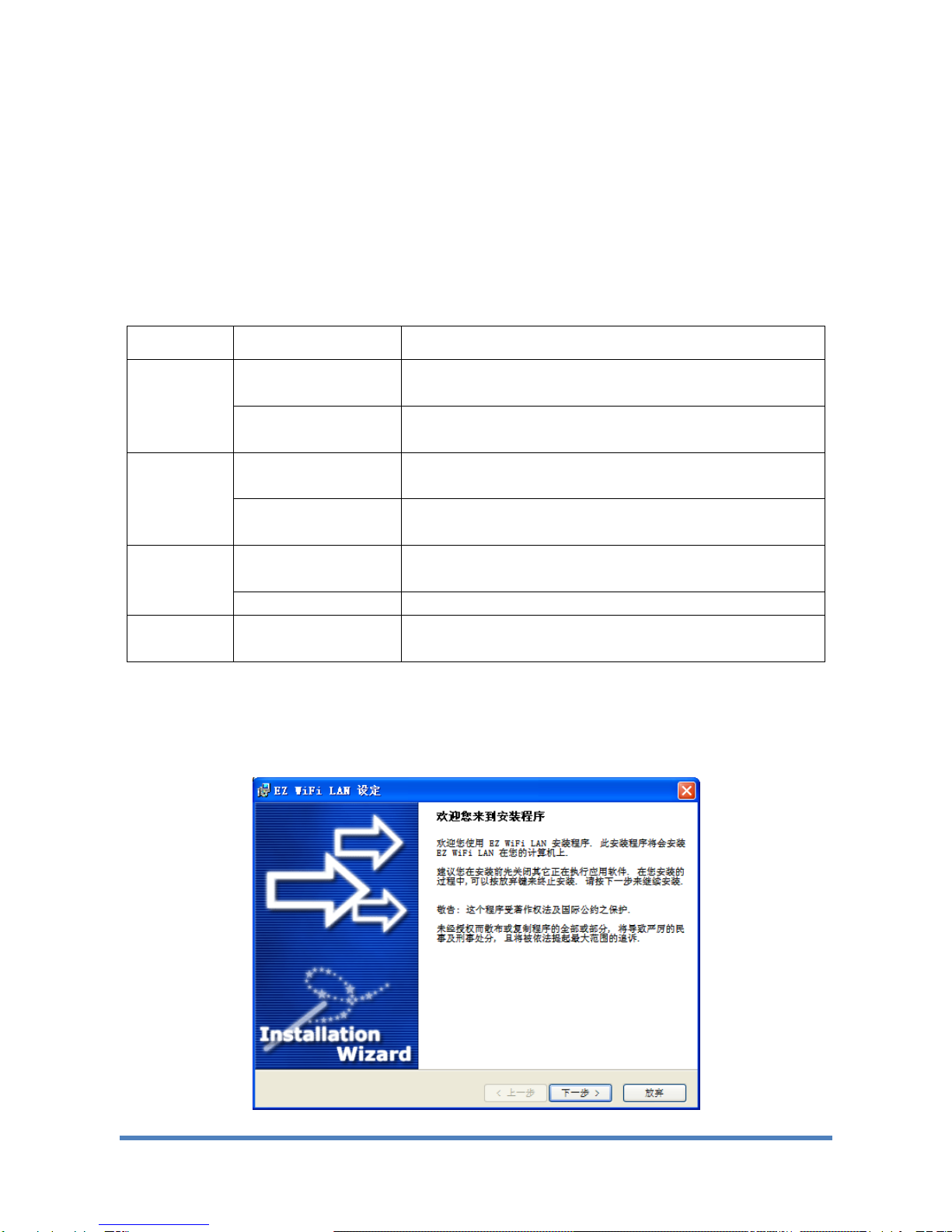

a. EZ View installation steps of windows
The "EZ View_Win.exe" copy or download to your PC，Click to open.

Airbridge WiFi HD Adapter
9

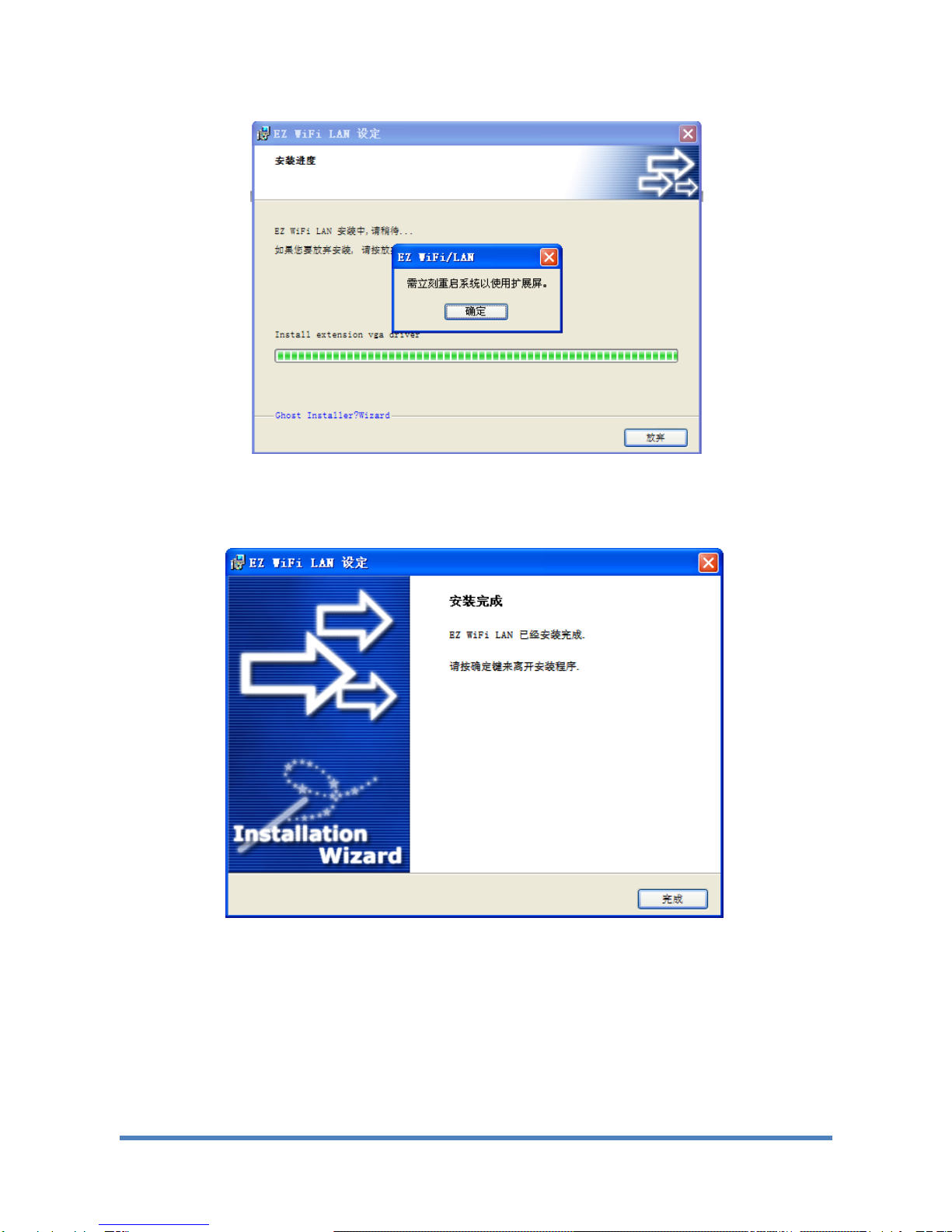

Reference dialog displays information, Click “Next” to start the setup.
Prompted to restart your PC, Click "Next" to continue the set up.
Click “Finish” to complete the installation, restart your PC.

Airbridge WiFi HD Adapter
10
b. The EZ USB Install Steps of WINDOWS

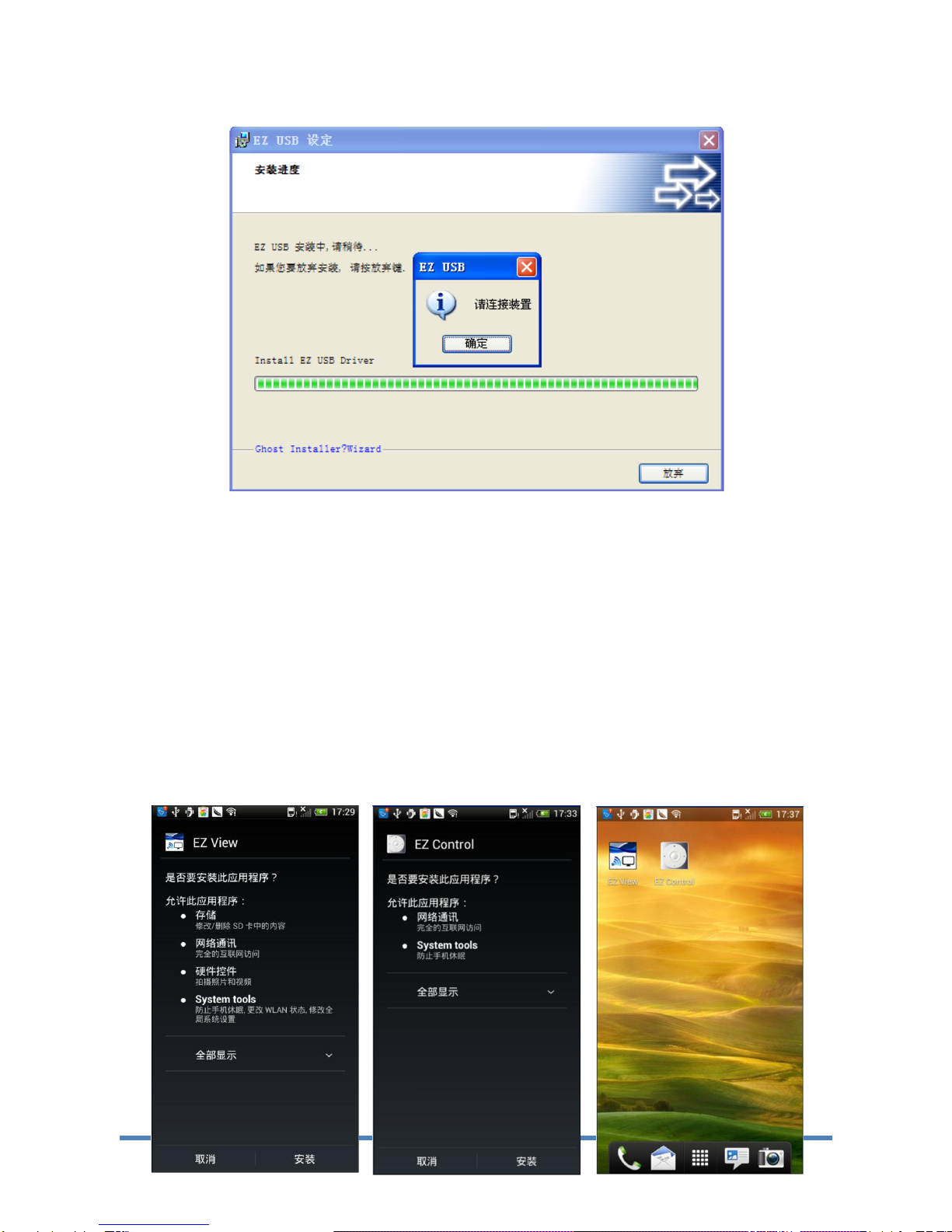

To copy or download the “EZ USB_WIN.exw”to the PC,and click to open it
and do install as the picture below:
To choose the language, and click the “Next”to do the install.
To click the “Yes”and then click the “Next”and choose the position
that you want to install the software or can choose the default. Then click

Airbridge WiFi HD Adapter
11
the “Next”to begin the install.
When find above picture,pls press the”Confirm”and then finish the install.
Then only need to restart the PC to use it.
c. The Install Steps For the Android Device
To copy or download the “EZ View.apk”and “EZ_Control.apk”to the Android
device (like the smart phone or the tablet), then find the two docs at the
file administrator to click it to begin the install.

Airbridge WiFi HD Adapter
12
d. The Install Steps of IOS Device

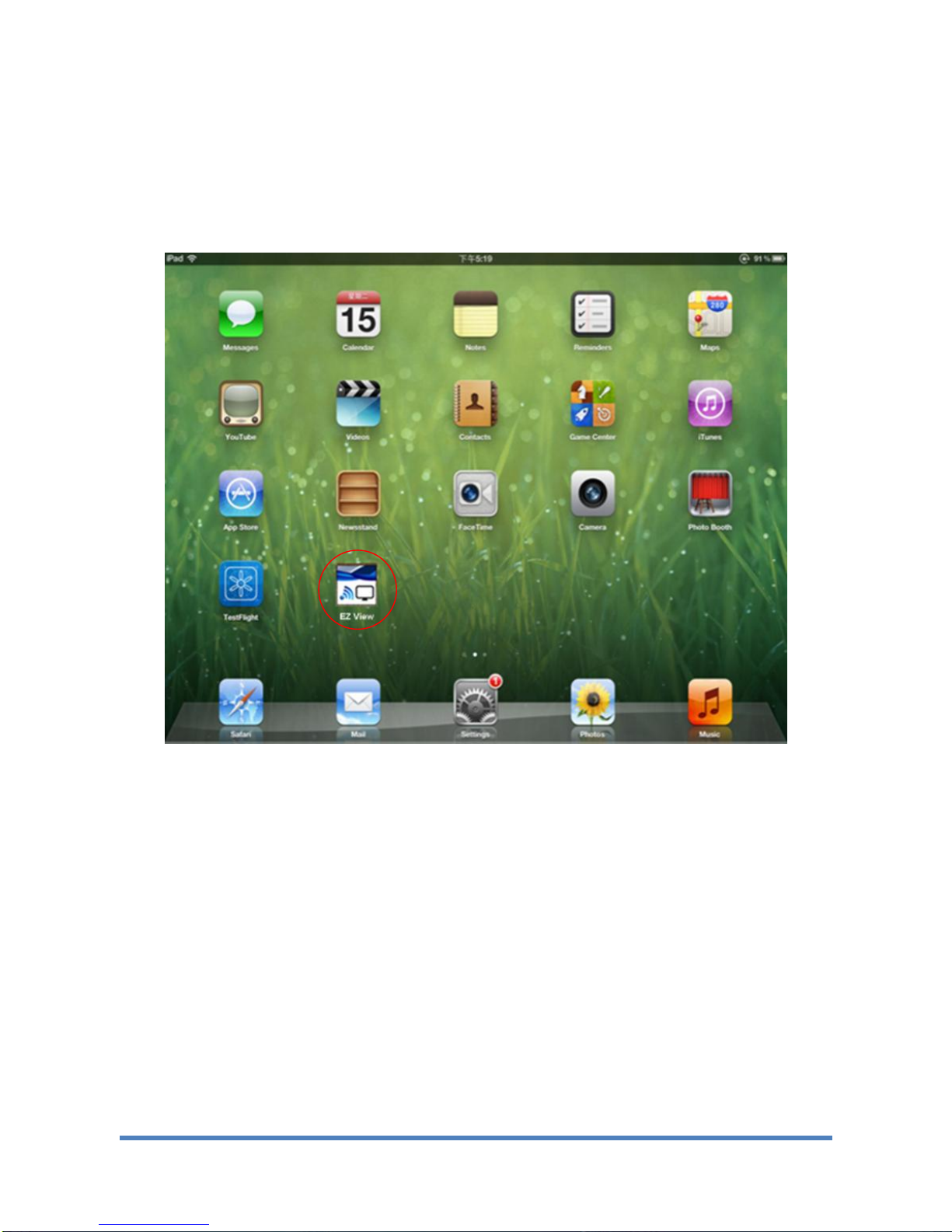

To search the “EZ View”at the APP store and download it and install it
to your IOS Device (like Iphone or Ipad)
e. The Install Steps for the Mac OS Device
To copy the “EZ View.pkg”and “EZ USB_Mac.pkg”to your Mac PC, then click
it to open and do install as the note. When install finished, only do restart the
pc and then you can use it.
Note: The different device and software version will may exist some
mini difference. The above install way is for your reference.

Airbridge WiFi HD Adapter
13
2. Main Menu Layout & Function Definition

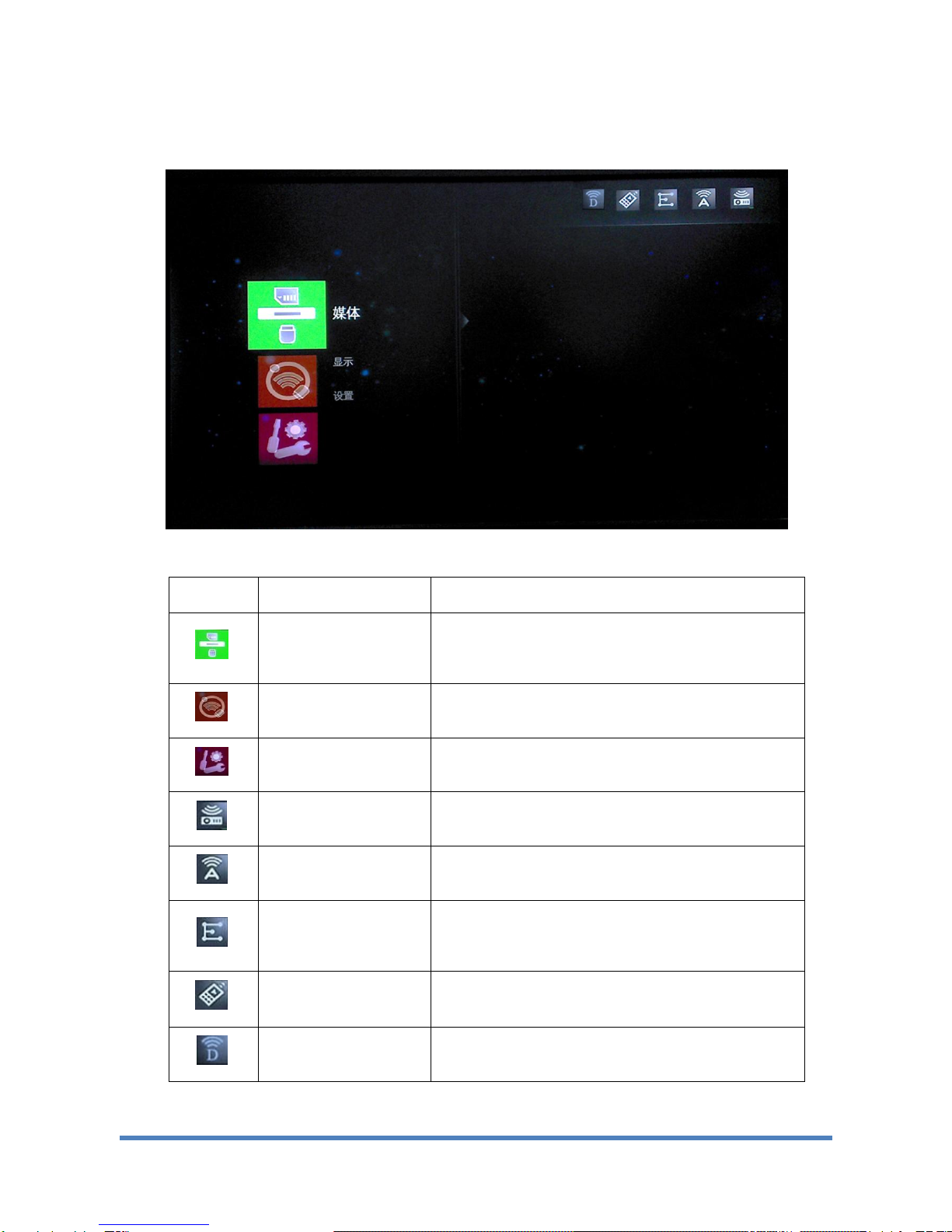

Icon
Function Defined
Description
Media playback
Support Photo, Video, Music, office viewer
Support Internal memory, USB-disk, SD card
Display
Support USB, WiFi, LAN, DLAN, Miracast ect.
Setting
Function Setting, Network Setting
WiFi Client mode
WiFi Client mode is enabled
WiFi AP mode
WiFi AP mode is active (Hotspot)
Ethernet
Ethernet cable has been inserted and network is
active
WiFi control
WiFi Remote control is enabled
WiFi Direct mode
WiFi direct mode is enabled
Menu key is for Manu list, the Direction key is for the move of

Airbridge WiFi HD Adapter
14
一、 Multi-media Play
The WIFI adaptor supports Multi-media function for view the picture, video, music,
and office doc.
1、(Support FAT16, FAT32, NTFS File Format）
Internal Storage：Include 2GB FLASH Storage
USB: Support USB Sticker/Portable Hard-Disk (Up to 64GB)
SD Card: Support Micro SDHC/TF Card (Up to 64GB)
2、（Support jpg 、jpeg、bmp、tif。）

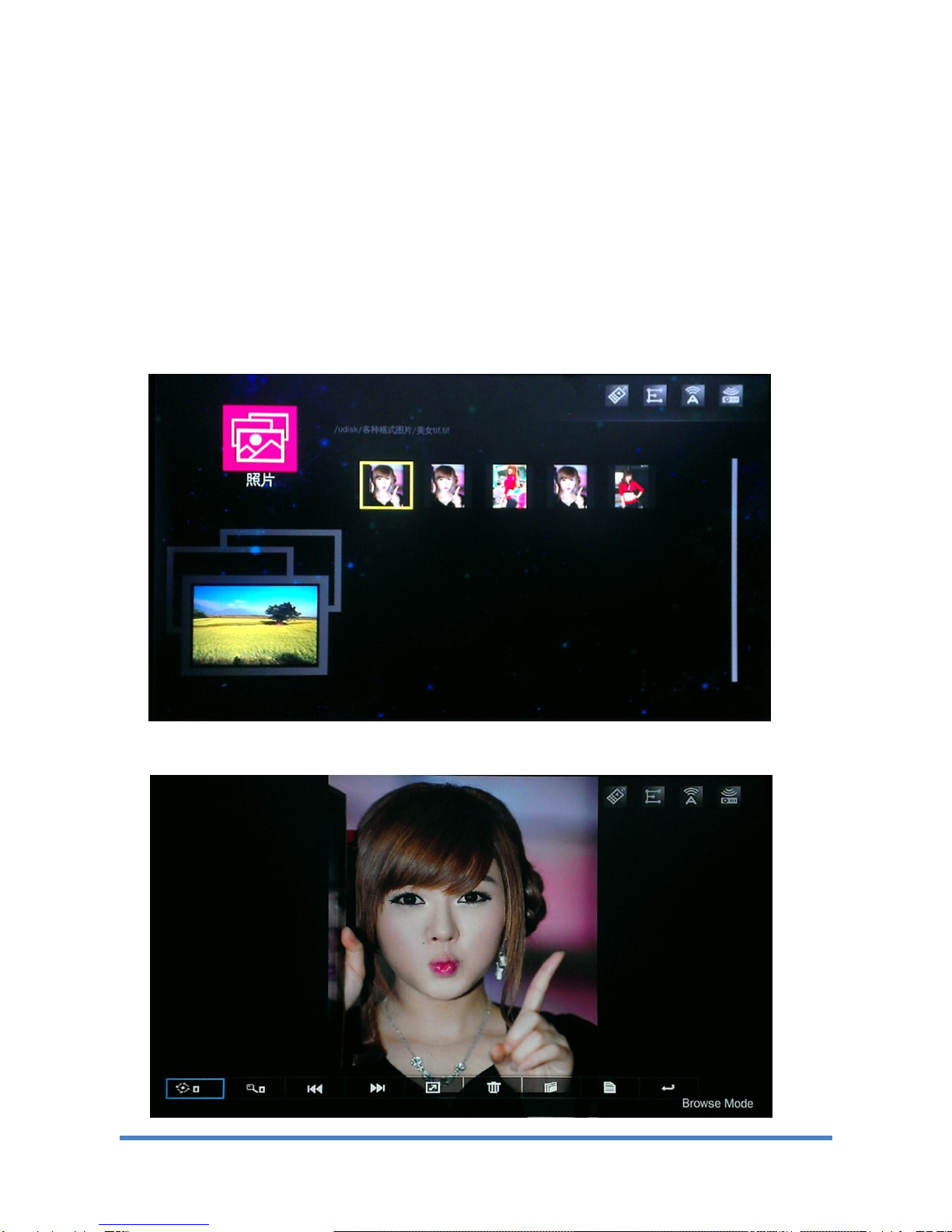

Photo View supports Rotate,Scale,PPT play,Copy and Delete.

Airbridge WiFi HD Adapter
15

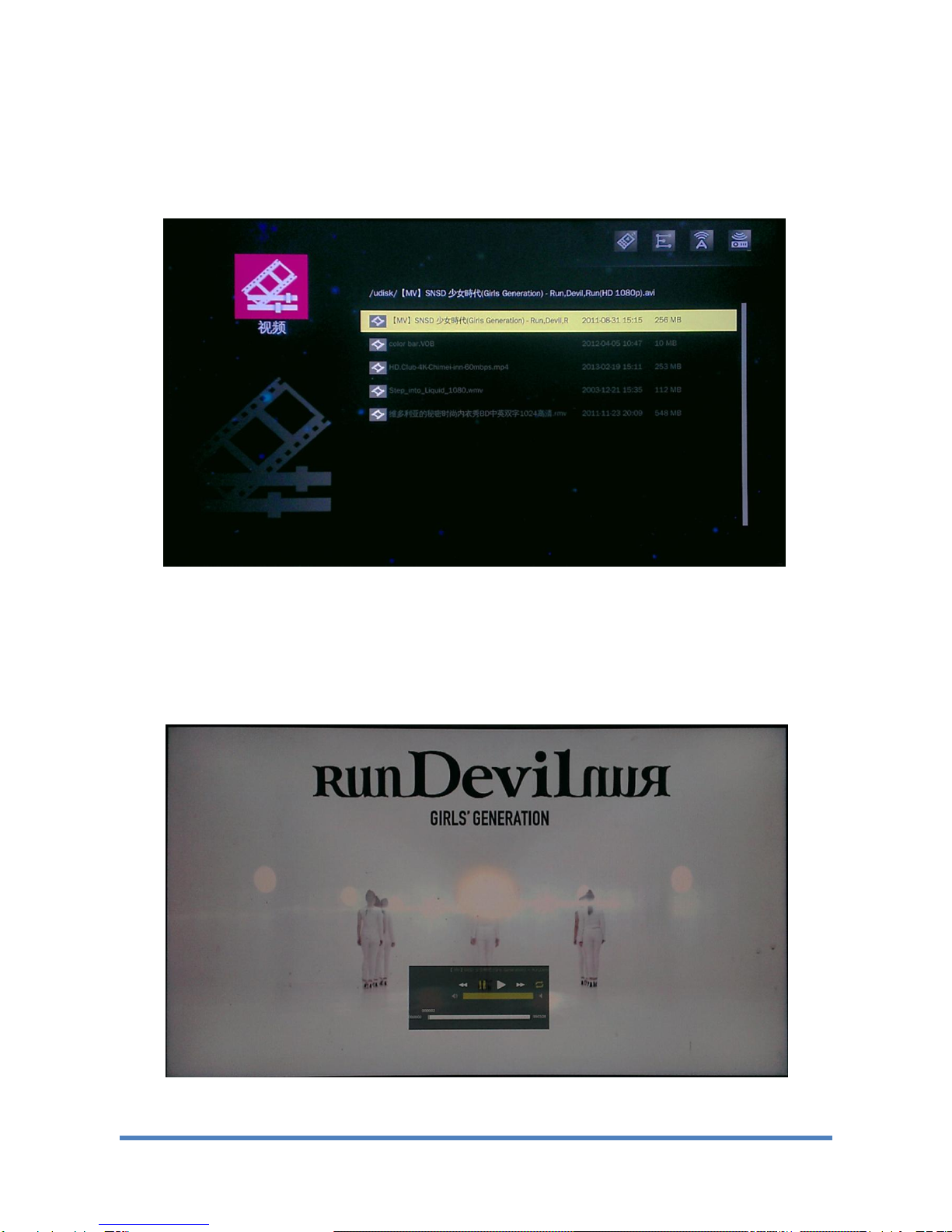

3、Video Play
Support MPEG1/2/4、H264、WMV、RMVB、AVI，resolution up to
1080P。
The Video Play supports Fast Forward/Fast Backward(x1/x2/x4/x8),Suspend, Stop,
UP/Down,Repeat,Play Mode Set-up; it supports to adjust the headphone output audio
volume.It needs only to do the operation by the remote.

Airbridge WiFi HD Adapter
16

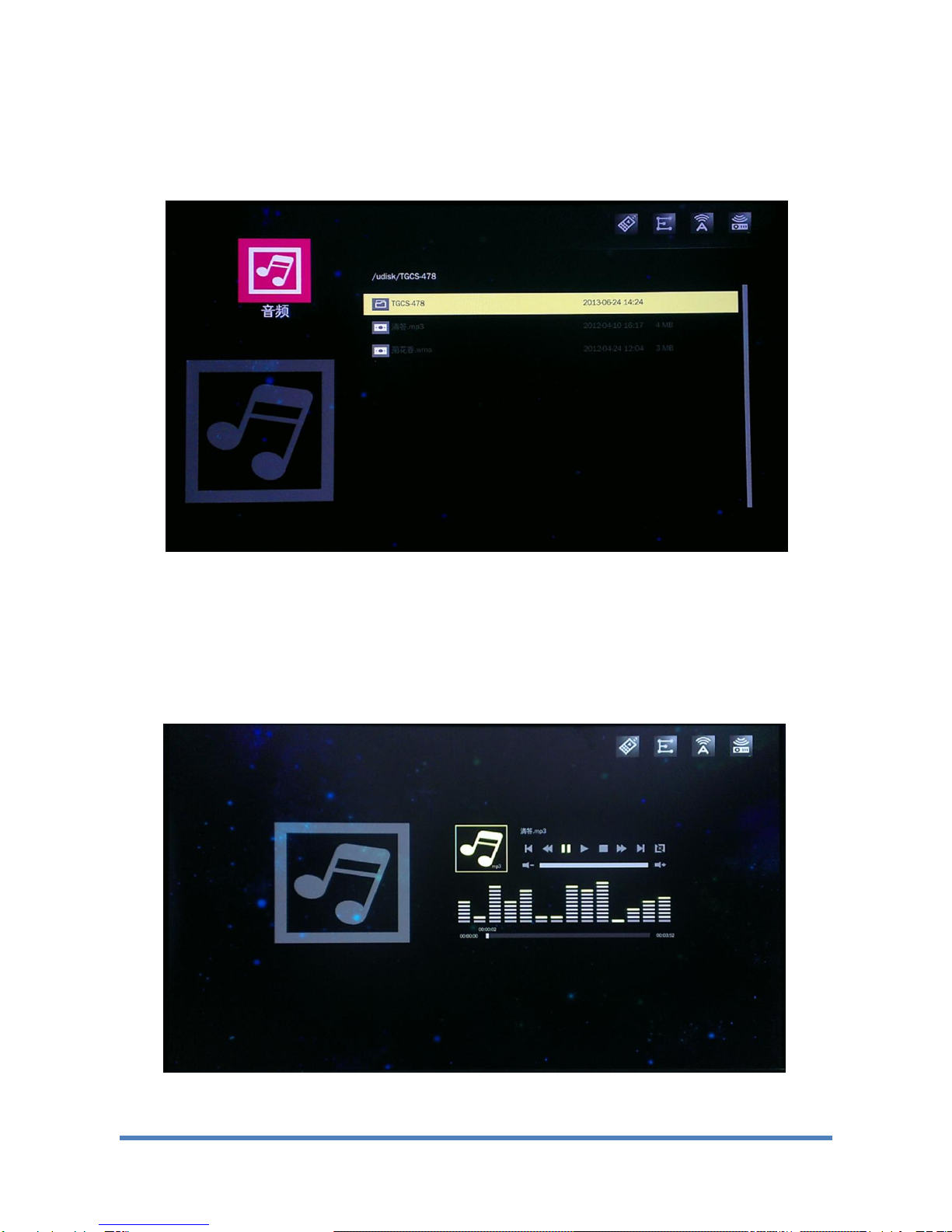

4、Audio Display
Support mp3、wma、ogg、wav audio format
Audio play support Fast forward, Fast backward(x4), Suspend, Stop, Up/Down
option, Repeat; It supports headphone output audio volume; you can do the
operation by the remote.

Airbridge WiFi HD Adapter
17
5、Office Browser
Support Office2000/2010（Word、Excel、PowerPoint）、Adobe PDF、TXT
It supports the text scale, Left/Right/Up/Down four direction move, page up,
page down and rotate.
Left
Move to Left
Fast-Backward
Downsize
Right
Move to Right
Fast-forward
Scale
Up
Move to Up
Page Up
The Previous
Page
Down
Move to Down
Page Down
The Next Page
It also can press the ENTER key to control the menu and do operate as the
direction key.

Airbridge WiFi HD Adapter
18
二、 Display Extend
To enter into the main menu>display menu, you can choose different mode of
display extend.
1. USB Display
To use the Micro USB cable to connect the multi-media adaptor with PC device.
Note: This display is only for Windows, Mac OS PC.

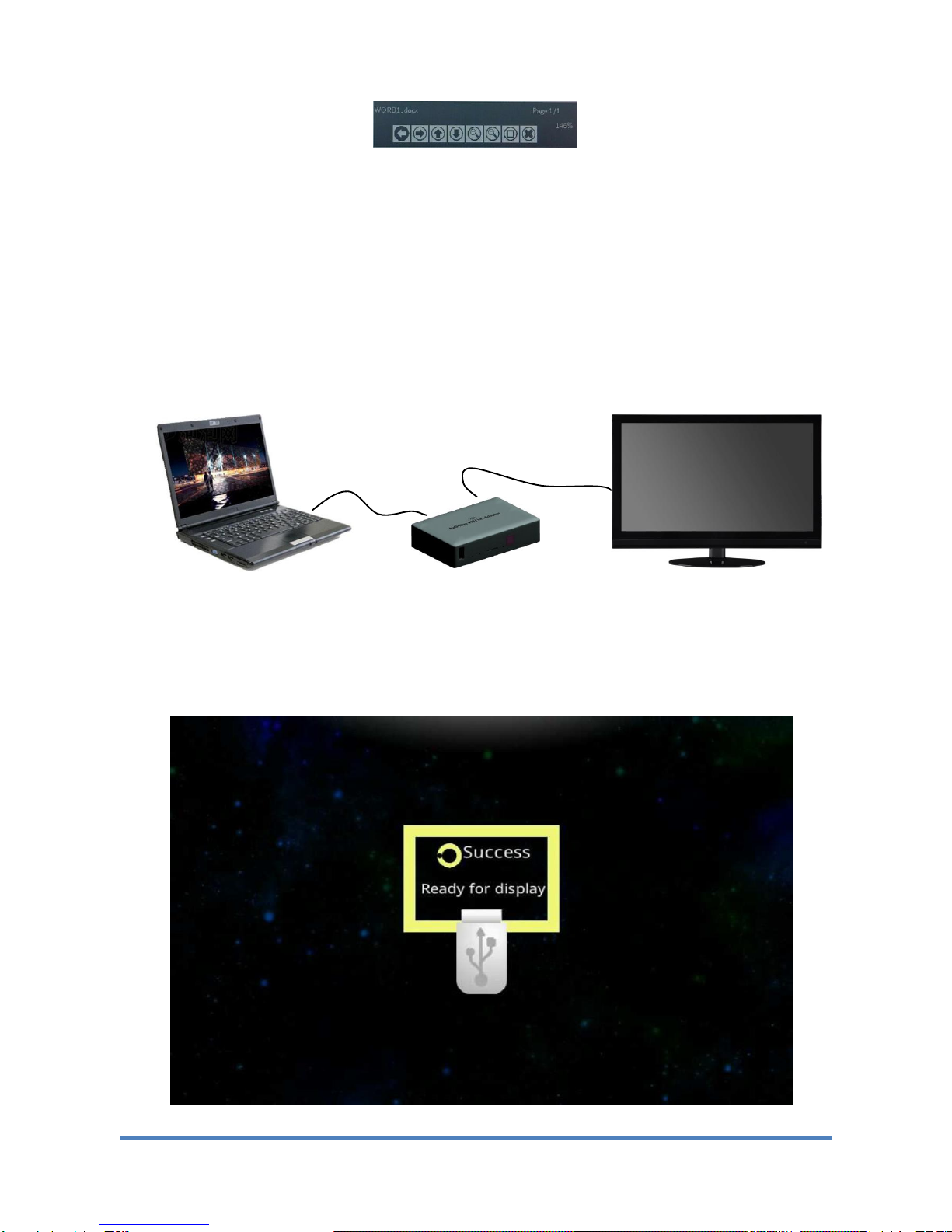

To press the menu key into the main menu>display>USB Display, then it will
show the below picture:
USB Cable
VGA/HDMI Cable

Airbridge WiFi HD Adapter
19
Before using, you need to install the USB Display software at the pc. (You
can refer to the previous software install steps). When software is installed
well, then click the EZ USB to start.
If connection is normal, it will show the PC window picture at the TV. There
are two way for option: Mirror and Extend. Also you can choose the audio output
by set-up the audio streaming. (Windows XP PC currently don’t support this
function)
2. Wi-Fi Display
\You can easily send the smart phone/pc multi-media content to the TV. Before
connection, pls choose the suitable WIFI working mode, which can refer to the
later part of WIFI mode set-up.
a、The Diagram of Working at AP Mode

Airbridge WiFi HD Adapter
20

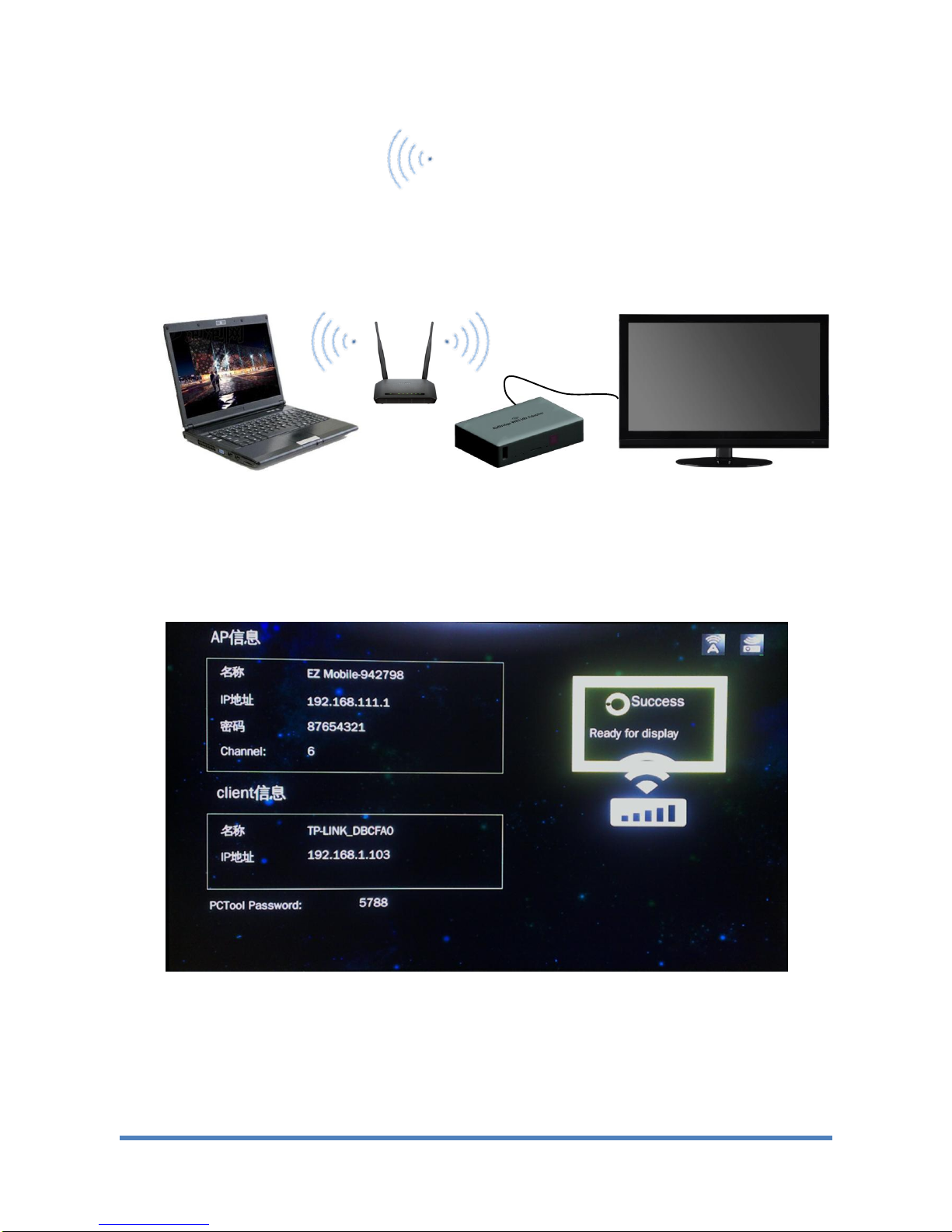

The Diagram of Working at Client mode/ Concurrent Mode.
When connection finished, then press Menu key to enter into the main
menu>Display>Wifi Display. It will find below picture:
Pls activate software at the smart phone or pc,when connection is ok, then
it will show the “Input Password”page and it only need to the dynamic
password of the last 4 number at the PCTool Password. If connection is normal,
VGA/HDMICable
Wi-Fi Router
VGA/HDMI Cable
