Airbutler Steven User manual

Function:
By the combination of three of the world’s most recognized technologies of purification,
AIRBUTLER Steven is able to guarantee a maximum of purification: dust purification,
removal of bacteria and elimination of nasty odors. All that can be achieved by a very
powerful generator of ions. It produces negatively charged ions who are able to remove
particles of suspension from the air and to purify the air. Active oxygen is in the position
to destroy bacteria, viruses and mites. The power consumption for the mechanics of fil-
tration, purification and for the fan is only 80 W.
Bond of dust:
After a few days of use, you will find a considerably deposit of air pollutants on the car-
bon filter and on the „Plasma Dust Collector”. Additionally, a HEPA-filter (high efficiency
particulate air filter) purifies the air in the interior of the AIRBUTLER Steven (eliminates dirt
particles and bacteria even smaller than 0,1 µm).
The ionisation wires ensure an enrichment of ne-
gatively charged ions in the local air.
Well-being effect:
AIRBUTLER Steven removes
dust, odors and bacteria wi-
thin a minimum of time and
supports well feeling in ge-
neral. You can breathe fresh
and pleasant air.
User manual
Electronic ioniser – Indoor air purifier
Attention! Do not touch needle when unit is turned on!

2
Equipment and functions:
- Monitors automatically air quality by particle sensor and odour sensor
- Plasma Dust Collector (PDC)
- Mutilple air inlets for efficient air purification
- Adjustable rate of airflow
- High performance HEPA-filter
- Efficient filtration of particles up to 0,01 µm
- Reduction of dust up to 99,97 %
- UV lamp for elimination of microorganisms
Interior
Backside Handle Air outlet
Particle sensor Odour sensor
UV lamp
HEPA-filter
Carbonfilter
PDC (Plasma Dust Collector)
Front filter
Air inlet
Front cover

3
Low-noise:
AIRBUTLER Steven works with a fan of 4 levels:
QUIET (20dB) - LOW (35 dB) - MEDIUM (45 dB) - HIGH (52 dB)
Choose mode AUTO for an automatic fan regulation by the pollutant sensor!
Maximum of air purification: 3 m3/min = 180 m3/h, that means the air in a room of 70 m2
is completely purified in only 1 hour.
Applicable areas:
AIRBUTLER Steven can be used in all kind of rooms like rooms of daily living, medical
rooms, offices, hospitals, etc. Do not place AIRBUTLER Steven closer than 30 cm to a
wall.
Start up:
Please air the room properly before using AIRBUTLER Steven. The pollutant sen-
sor sets itself automatically on the given air quality. The ioniser recognizes the
given air as standard and keeps this level! However you can also clean the air with
AIRBUTLER Steven approximately 4 hours at full blow power. Thereafter the sensors
have to be activated (see the resetting of the sensors).
Plug AIRBUTLER Steven into the socket with the enclosed mains cable. A red lamp will
light up, when you turn on the unit. You can smell freshness when the ioniser works flaw-
less, just like after a thunderstorm. AIRBUTLER Steven’s different purification programs
are controlled by a micro computer and integrated sensors. In case of malfunction unplug
Steven and plug it again 1 – 2 minutes later. AIRBUTLER Steven should take up his normal
mode.

4
Setting fan:
Choose the suitable fan mode to the right grade of air pollution (QUIET, LOW, MEDIUM,
HIGH or AUTO) by pressing the button FLOW.
Timer:
The timer mode effects that AIRBUTLER Steven turns off automatically after the chosen
time. The running time can be selected from 60 minutes to max. 8 hours.

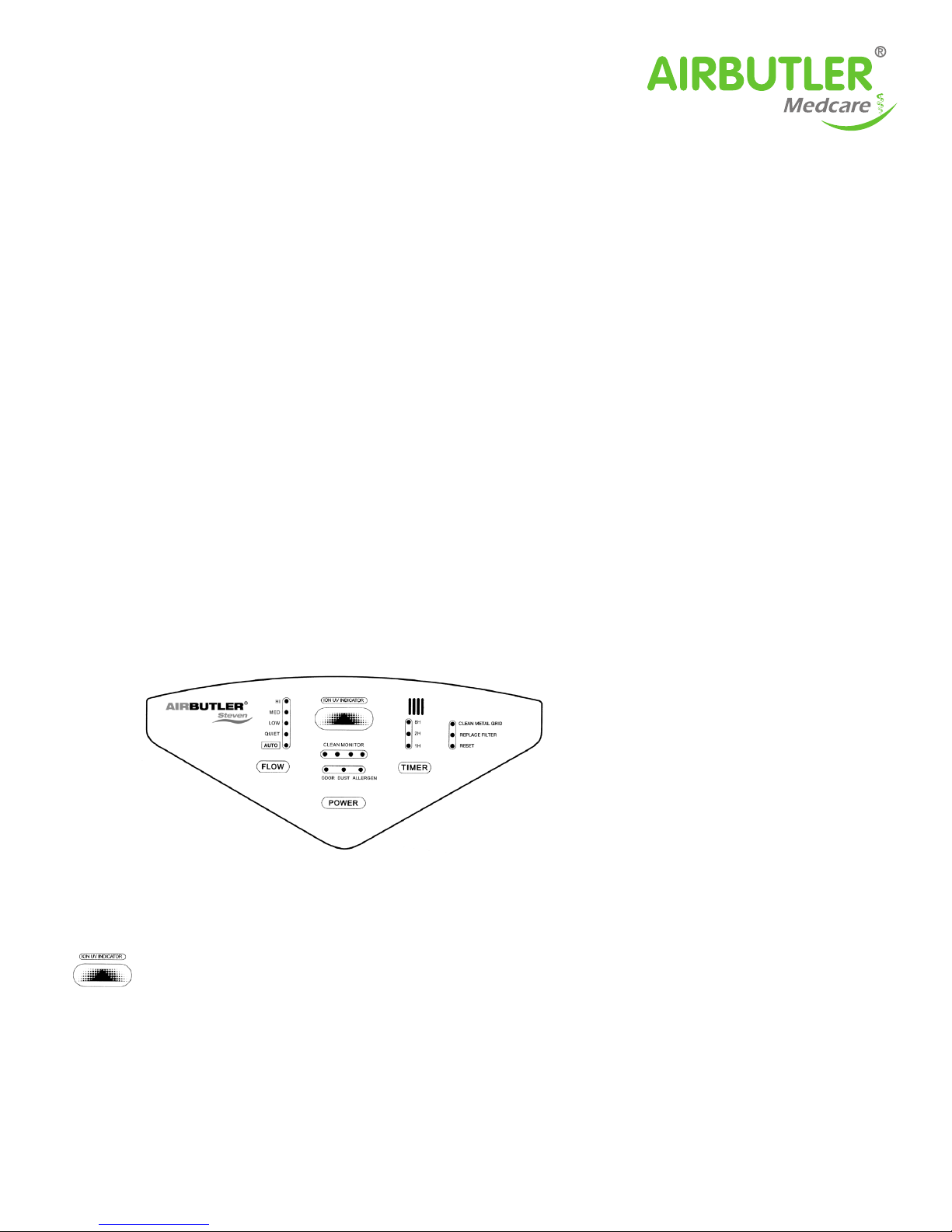

• Push button POWER (1) to activate the unit.
• Push TIMER (2) until the wished running time appears. Every push extends running
time of 1, 2 or 8 hours. As soon as the timer expires, AIRBUTLER Steven turns itself
automatically off.
• Every push on FLOW (3) switches the fan to the next higher level (circle:
AUTOMATIC, QUIET, LOW, MEDIUM, HIGH). You can see it on the display.
Cleaning/Maintenance:
The indicators „Clean Metal Grid“ and „Replace Filter“ show when it is time to clean
Steven – at least every 2 months is recommended. Turn off and unplug Steven. Put
AIRBUTLER Steven on a soft tissue and open it like shown on the following graphics.
1. Take down the front cover of the AIRBUTLER Steven.
2. Take out the Plasma Dust Collector with the front filter. Take off the front filter from
the front side of the Plasma Dust Collector. Take down the Plasma Dust Collector
with the ionisation unit.
3. Take out the HEPA-filter carbon coated.
2
3
1

5
Assembly: Place the front cover on its original position (A). Make sure that the two
locking tabs reattached immovably (B).
2. Take down the PDC (Plasma Dust Collector)
Assembly: Push the PDC towards the bottom again (1). Put the filter back in posi-
tion (A).
1. Take down the front cover
2. Now lift up gently the front cover
1. Press locking tabs on both sides of the unit
2. Lift up the PDC by holding the two tabs
1. Push the PDC towards the bottom of the
unit
A
BB
A

6
3. Take down the HEPA-filter
Take care of front and backside of the filter!
Please pay attention to the front and backside of the filter when you replace it!
Cleaning the individual parts:
1. Front cover and cabinet shall be cleaned inside and outside with a wet tissue
(micro fibre).
2. Front filter shall be cleaned under flowing warm water. If it
is hard to clean all dirt you can pre-soap the filter with a mild
detergent (not containing any kinds of acid or alcohol) and
clean it with a tooth brush.
3. Plasma Dust Collector (PDC) shall be cleaned under flow-
ing warm water with a mild detergent. Use a sponge or a
toothbrush for cleaning. The PDC (A) can also be cleaned in a
dishwasher. Please wear protective gloves to avoid injuries on your fingers!
4. Ionisation unit and ionisation wires shall be cleaned carefully with a wet tissue.
Please beware not to damage any wires while you are cleaning the filter (B).
Otherwise the filter will lose its dust collecting function. Do not use the ioniser
with damaged wires – danger of short-circuit.
1. Pull out the filter at position A.
A
A

7
Remove all broken wires and contact your AIRBUTLER distributor for replace-
ment.
5. HEPA-filter shall be cleaned carefully with a vacuum cleaner.
Please make sure that all parts of AIRBUTLER Steven are dry before the unit is assem-
bled. Otherwise it might causes an electrical shock! Reconnect the filter to the connec-
ting locations on the side (1). Fasten the filter on the front connecting locations (2). Make
sure that all parts are properly connected to receive power supply!
Cleaning and maintenance of the particule sensor:
After a while of use, small particles of dust accumulate and pol-
lute the dust and irritant sensor which can cause a malfunction.
The unit can not switch into quiet-modus when AUTOMATIC
is selected. Please clean the dust and irritant sensor at least
every two months.
Cleaning steps:
1. Take down the front cover and the cover of the dust and irritant sensor.
2. Take out the dust and irritant sensor box and disconnect all cables. (Take notes of
the correct connections) Particle sensor
BB
1
2

8
3. Open the cover of the particule sensor with a small screwdriver and take the
sensor out of its box.
4. Clean the sensor properly – best with a wet (or in alcohol dipped) Q-Tipp
5. Clean box of the sensor. Put back the sensor into its box. Reconnect all cables of the
ioniser to the sensor. Put on back the front cover.
Replacing filter:
The HEPA-filter has to be replaced when the indicator on the display of AIRBUTLER
Steven is glowing.
Resetting the sensors:
The indicators for CLEAN METAL GRID and REPLACE FILTER have to be reactivated
after every cleaning / replacing of the filters. Before you reactivate the pollutant sensor,
please let AIRBUTLER Steven run for 1 hour with high fan, in order to obtain best air
quality.
When unit is turned off:
- Press the buttons RESET and TIMER AT THE SAME TIME.
- Press the buttons RESET and FLOW AT THE SAME TIME.
RESE T can not be reached with finger.
Please use a toothpick to push this button.
Now all sensors are reactivated.
Replacing UV lamp:
The shelf life of a UV lamp is about 5000 hours.
- First take down the front cover, PDC and the filters to exchange the UV lamp.
- Softly twist the UV lamp from its position and replace lamp by a lamp of the same
typ. UV lamps are available at your AIRBUTLER distributor.

9
Important information:
• Please keep a distance of 50 cm to the air outlets while appliance is working.
• Do not insert any metalic objects into the unit to prevent electrical shocks and
damage. Do not place the unit close to inflammable and explosive objects.
• Please unplug AIRBUTLER Steven in case of not using it for a longer period of time.
Please reactivate all sensors when using again! (Refer to last page)
• Do not use AIRBUTLER Steven close to areas of magnetic interferences.
• Do not hit or drop AIRBUTLER Steven.
• Do not set up AIRBUTLER Steven in direct sunlight or steam.
• AIRBUTLER Steven should not be used in kitchens!
• Do not use alcohol or benzene for cleaning the casing to avoid any damage on the
surface.
• Keep appliance out of reach of children and pets!
Further information:
AIRBUTLER Steven purifies air, it is not a subsitution of regular airing of rooms. Do not
modify the appliance in any way. Neither the manufacturer nor the trader can accept any
responibility of any kind damage thus resulting.
Accessories:
3 pieces of ionisation wires for replacement

10
"
Warranty for STEVEN
1. All AIRBUTLER products are subjected to stringent testing before they leave the
factory. Guarantee of function for two years from date of purchase.
2. Damage and malfunctions within the warranty period are only dealt with on pre-
sentation of the completed warranty certificate. Please return the appliance to the
trader so that the cause of malfunction can be identified. If the damage or malfunc-
tion is due to a production fault then the appliance will be repaired immediately or re-
placed with a new appliance. Damage which is not due to a production fault cannot
be taken into account.
3. The warranty does not include any damage due to incorrect handling, faulty re-
assembly, manual conversion in or on the appliance, omission of cleaning, exterior
damage to the appliance or obvious damage to the interior of the casing (such as e.g.
lightning, artificial cause or natural events).
4. The date on the warranty certificate and submission of the bill are imperative for
any warranty claims.
Name:
Address:
Purchase date:
Phone:
Stamp of trader:

11
Type AIRBUTLER Steven
Voltage 230 V
Power consumtion 80 W
Negative ions > 3,8 x 106
Active oxygen < 0,05 ppm
Radiance > 20 µw
Dimension 343 x 255 x 610 mm
Weight 6850 g
Applicable area 70 m2
Air volume application max. 180 m3/ h
Ventilation in db quiet/20 dBA, low/35 dBA,
medium/45 dBA, high/52 dBA
Technical details:
AIRBUTLER reserves the right of any technical modifications of the appliance.
We are at your service for questions or application problems:
offi[e-mail]
