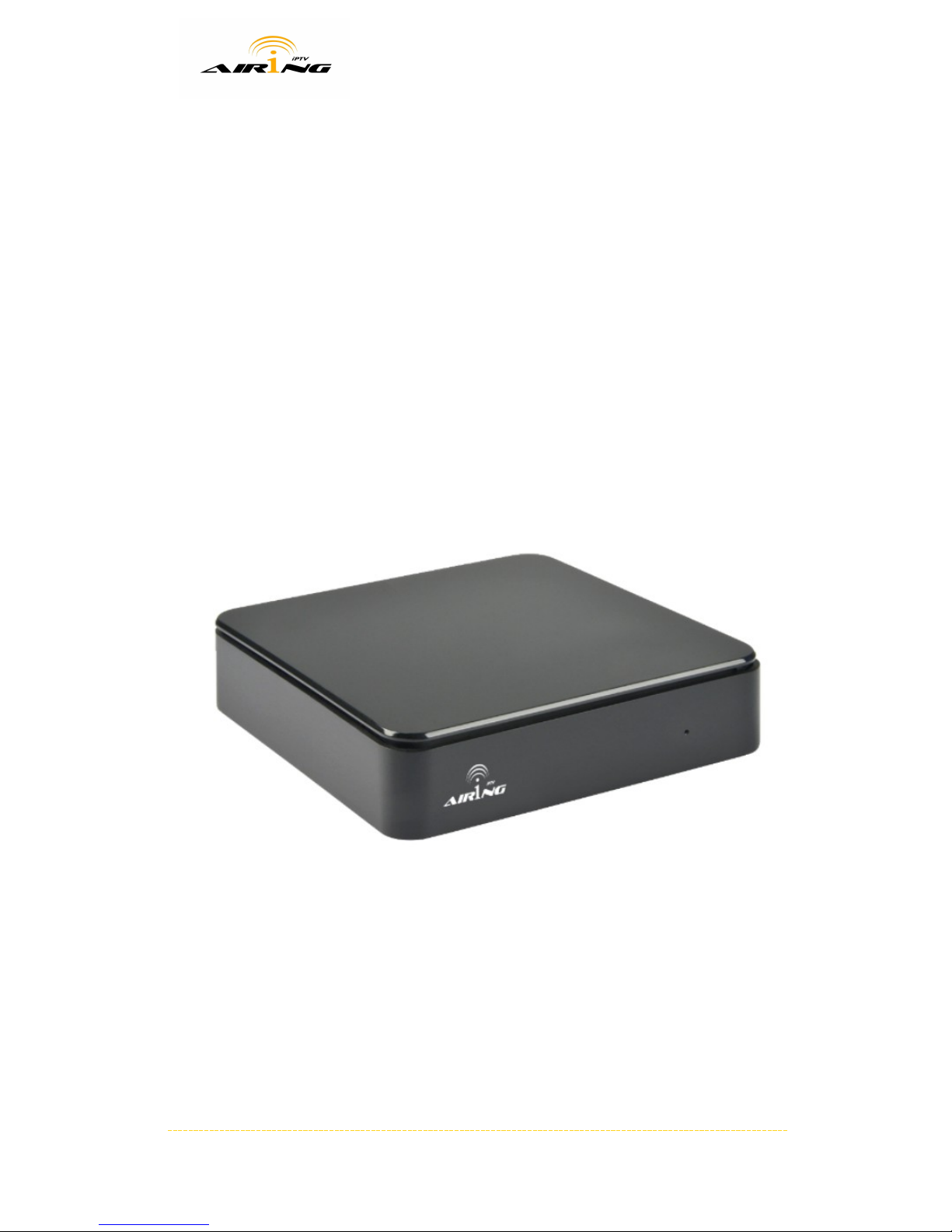

Airing IPTV SET-TOP BOX User manual
Airing IPTV SET-TOP BOX
User Guide
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
Dolby Digital:
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
HDMI:
Transferring uncompressed video data and compressed or uncompressed digital
audio data from a HDMI-compliant source device.
MPEG2:
Audio and video compression and transmission.
Note:
et-top Box's firmware is subject of ongoing software development therefore
not all the functionalities described in the manual respont to the current status.
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
IMPORTANT SAFETY INSTRUCTION AN WARNINGS
WARNING! To reduce the risk of fire or electric shock, do not expose the device to rain or moisture.
- Read these instructions carefully!
- Follow these instructions!
- Mind all the warnings!
•Do not remove device covers as this may result in personal injury or mechanical damage. There are no user
•serviceable parts inside
•Position the cables so that they cannot be walked on or pinched by items placed on or against them
•Use only power cables provided in the box.
•Make sure that the voltage of your electricity supply is the same as that indicated on the rear of your set-top box
•Do not place it on soft or slippery surface.
•Do not place any objects on top of the set-top box or near it.
•Do not block any ventilation openings.
•Put the device in a properly ventilated area, away from direct sunlight or any source of heat.
•Do not install it near any electrical device.
•Do not expose the device to influence of magnetic field
•Protect it from chemicals, dust and humid environment.
•Unplug this set-top box during lightning storms
•Clean only with dry cloth while set-top box is powered off
•Do not use any detergent to clean it.
•Keep it away from the rooms with high humidity.
•Use only certified remote control batteries.
•Under any circumstances do not dispose of this product with your normal household waste.
•Refer all servicing to qualified service personnel only at your provider
•Your provider will not accept liability for any damage caused by not following these safety instructions and
warnings
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
SET-TOP BOX CAN BE CONNECTE IN TWO WAYS:
1. TB can be connected via Wired Ethernet connection
2. TB can be connected using a Wi-Fi connection
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
CONNECTING YOUR SET-TOP BOX USING WIRE CONNECTION
1. Connect one end of the RJ 45 cable at the back of your set-top box and the other end at
the back of your router, which is connected to your I P.
2. Connect one end of the HDMI cable at the back of your set-top box which is labeled as 'HDMI',
and connect the other end to your television's HDMI port.
3. Turn on the television and the set-top box.
4. Using the remote control, click on 'Settings' button(the blue button,as shown on the diagram
below)
Go to Settings / T Outputs / Type of connection – HDMI / HD resolution – 1080i,720p or 576i
(480i for NT C) depending on type of TV .
5. Confirm it by pressing the 'OK' button. et-top box will restart.
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
'Settings' button
'OK'
CONNECTING OF SET-TOP BOX TO YOUR WI-FI NETWORK
1. Place your et-Top Box within the reach of wireless network
2. Connect et-Top Box to wireless network
3. Use the following steps to set the connecti on in the Menu:
Settings > Wifi > Scan AP > Select AP > Insert password > Reboot Set-Top Box
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
CONNECTING YOUR TELEVISION USING AV CABLE
1. Connect AV cables to your television and the other end to your cable adapter.
2. Then connect the other end of the cable adapter at the back of the set-top box, as shown in the diagram
above.
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING

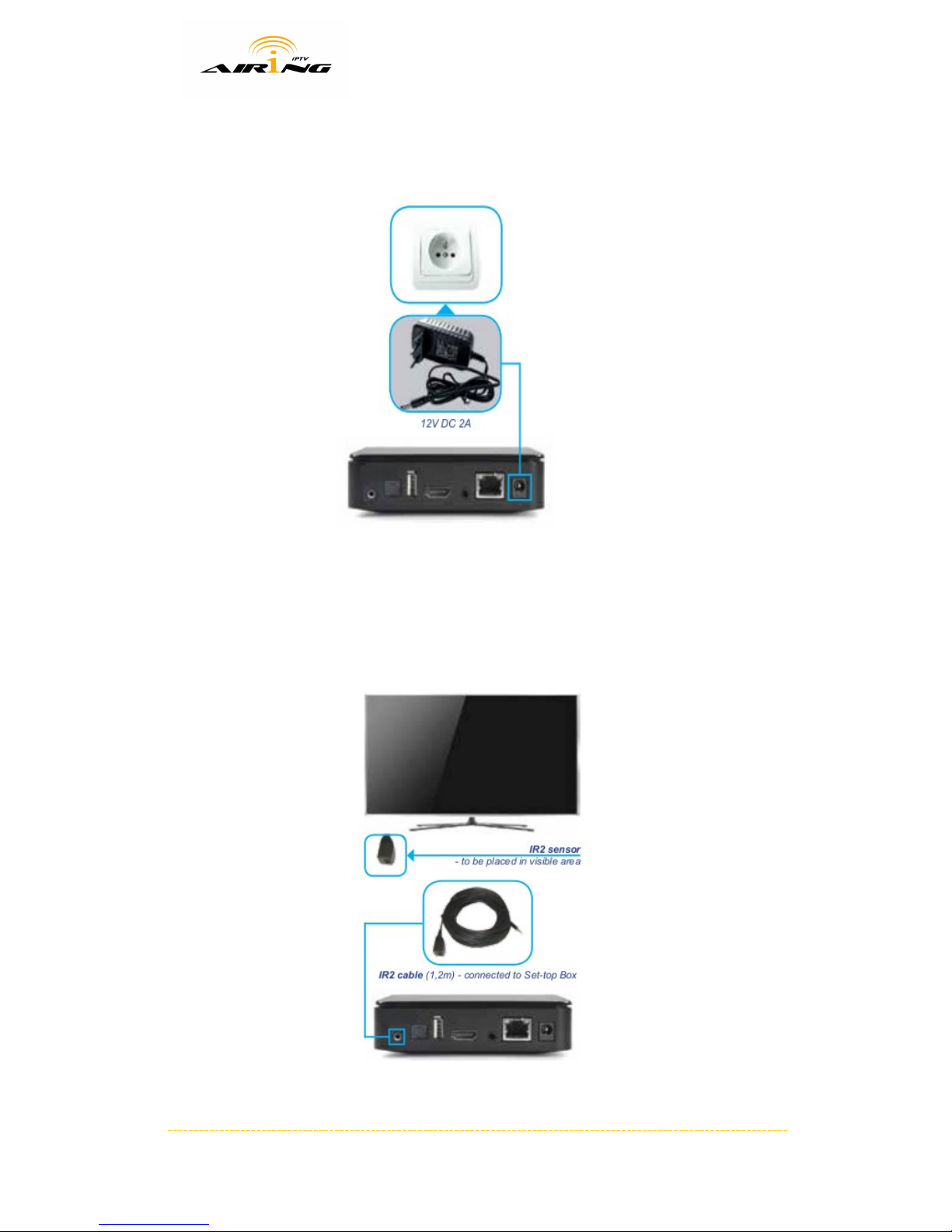

CONNECTING OF SET-TOP BOX TO THE MAIN SUPPLY
1. After connecting of a et-top box to a Television or PC screen by one of the mentioned
options, plug the set-top box into the mains supply.
2. In order to put et-top box into standby mode use standby button on remote control. Do
not unplug the et-top box from the mains supply.
CONTROLLING OF SET-TOP BOX USING IR2
Controling a TB by a IR2 sensor, if TB is hidden ( e.g. in furniture).
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
PARTS OF THE SET-TOP BOX
efinition of the Set-top box parts:
IR sensor detects infrared and will function when when set-top was is using IR2.
LE Standby controller displays a light when the set-top box is powered on.
IR2 where the IR2 cable will be plugged in.
SP IF - A serial interface for transferring digital audio from CD and DVD players to your
television.
USB port for USB devices
H MI port where the HDMI cable should be plugged in.
AV this is where the AV cable will be plugged in.
LAN this is the port which the RJ 45 cable will be plugged in.
C 12V this is where the adaptor was plugged in.
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
THE REMOTE CONTROL
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
1
2
3
10
5
19
23
6
7
9
29**
8
26**
18
25**
30
12
14
15*
20
21
28**
16*
11
24
9
27**
22
4
17
13
REMOTE CONTROL
BUTTON ESCRIPTIONS/FUNCTIONS
1 On/Off - StandBy - to set the device to StandBy mode. To
switch to device on again, press
StandBy once again.
2 Numeric keys 0 – 9 switching the channels, inserting the
signs.
3 Switching the channels for 2 and 3 digits program number
4* TV
5* Radio
6 MENU - to display or exit from the menu
7 Volume - to adjust the sound level
8 Play / Pause - video keys - to control video on demand
movies or recorded sequences
9 Forward / Rewind - video keys - to control video on
demand movies or recorded sequences
10 EPG - electronic program guide - to display program list of
channels
11 Time display
12 MUTE to disable or enable the sound
13 The last watched channel
14 Settings
15 Recording - quick entry to recording menu
16 Channel selection - use this buttons to access the next or
previous channel
17 Information about current program
- information about following programs
- buffer - amount of downloaded audio
and video segments***
18 STOP - video key - to controll video on demand movies or
recorded sequences, Record button
19 Selected option confirmation
20 Navigation keys - for moving within the menu
- for switching the channels in channel list in
one position - Up/Down arrows
- for switching the channel in channel list in
five positions - Left/Right arrows
21 Exit button
22 Timer - sleep functionality
23 One step back
24 Mosaic
25** Video content
26** Internet browser launching
27 Favourites or stream profile selection (***)
28 Channel menu - its content depends on your television
service provider.
For example: - Display mode
- Audio track change
- PIP picture in picture - On/Off
- Teletext (only on supported channels)
- Subtitles (only on supported channels)
29** Searching of media content within stb s Video & EPG
content
30 Smart Home Energy button
* Colour coded buttons - buttons of various functionalities based on chosen menu.
** Buttons of various functionalities - depends on your television service provider.
Office Address: Airing IPTV Unit 14, 3 King Edward Road Osborne Park, Pert , 6017 Call us at 1300-AIRING
