airinspace HEPA3Air User manual

User manual –HEPA³Air–EN_ed01_09_septembre-2020
Mobile air decontamination unit
USER MANUAL
HEPA³Air
European Low Voltage Directive (LVD) 2014/35/EU
European Electromagnetic Compatibility Directive (EMC) 2014/30/EU

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 1 /43
WARNING
We strongly recommend that you fully read these instructions before operating HEPA³Air for the first time (see
section 2 –Use).
To make it easier for the different users to access more detailed information, this manual is divided into 3
sections:
•Section 1: general information.
•Section 2: end user instructions for use.
•section 3: technical information for commissioning, servicing and maintenance personnel.
CONTENT OF THE PACKAGE
•1HEPA³Air unit
•1 HQ filter packaged in sealed protective film.
•4 HEPA filters packaged in sealed protective film.
•1 Remote control unit.
•1 Power supply cable.
•1 Stand with steerable wheels (optional).
NOTA : The user manual is available on the USB key supplied with the administrative
documents or given by airinspace®personnel if they are in charge of putting the device into
service.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 2 /43
TABLE OF CONTENTS
SECTION 1 - GENERAL INFORMATION............................................................................................................4
1.1 Safety instructions ............................................................................................... 4
1.2 Regulatory standard ............................................................................................. 5
1.3 Normative standards ............................................................................................ 5
1.4 Classification ........................................................................................................ 5
1.5 Description of the device ...................................................................................... 6
1.5.1 Overview......................................................................................................... 6
1.5.2 Internal access ................................................................................................. 7
1.5.3 Markings and warnings........................................................................................ 8
1.6 Functional description of the device ..................................................................... 9
1.6.1 Intended use.................................................................................................... 9
1.6.2 Operating principles ........................................................................................... 9
1.6.3 Airflow direction in the HEPA³Air unit ................................................................. 9
1.6.4 Physical characteristics ......................................................................................10
1.7 Installation instructions ..................................................................................... 11
1.8 Instructions for removal and storage ................................................................. 12
1.9 Transport............................................................................................................ 12
1.10 Disposal.............................................................................................................. 12
SECTION 2 - USE...............................................................................................................................................13
2.1 Operating principles ........................................................................................... 13
2.1.1 Users and access levels .....................................................................................13
2.1.2 User interfaces ................................................................................................14
2.2 Start-up .............................................................................................................. 15
2.2.1 First boot........................................................................................................15
2.3 Changing the ventilation SPEED ......................................................................... 17
2.4 Handling warnings and alerts ............................................................................. 18
2.4.1 Definitions ......................................................................................................18
2.4.2 Processing .....................................................................................................18
SECTION 3 - SOFTWARE MANAGEMENT –CLEANING - MAINTENANCE.................................................21
3.1 Menu navigation ................................................................................................. 21
3.2 Language setup .................................................................................................. 22
3.3 Setting procedures for room size and ventilation ............................................... 22
3.4 Password setting procedure ............................................................................... 24

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 3 /43
3.5Pairing procedures of the remote control ........................................................... 24
3.6 Programmer setting procedure........................................................................... 26
3.7 Accessing the parameters................................................................................... 27
3.7.1In display mode (Level 1-User) .............................................................................27
3.7.2 In supervision mode (Level 2-Technician) ................................................................28
3.8 Display of recorded data..................................................................................... 28
3.9 Maintenance - Biocleaning.................................................................................. 29
3.9.1 Maintenance products compatible with airinspace®equipment .................................29
3.9.2 Standard procedure...........................................................................................30
3.10 Maintenance ....................................................................................................... 33
3.10.1 Replacing the filters...........................................................................................33
3.10.2 Replacing a fuse ..............................................................................................35
3.10.3 Resetting the counter.........................................................................................36
3.11 Functional electrical diagram.............................................................................. 38
3.12 DISTRIBUTOR WARRANTY.................................................................................. 40
3.13 Model identification ............................................................................................ 40

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 4 /43
SECTION 1 - GENERAL INFORMATION
1.1 SAFETY INSTRUCTIONS
•READ THESE INSTRUCTIONS THOROUGHLY and strictly follow the chronological order of
installation, start-up and maintenance steps.
•Do not incline the device to an angle of more than 10° from level ground without support. Caution,
risk of tipping over.
•If stored or transported at low temperatures, wait at least 1 hour before turning on the equipment.
•The device must be used at temperatures from +5°C to +35°C, with relative non-condensing
humidity lower than 99%, with dust levels of less than 0.1 mg/m3.
•Do not allow any liquid to penetrate the device.
•Do not place the device near a heat source.
•Never obstruct or cover the device inlet (upper grille) or outlets (side grilles) during operation.
•When replacing the filters, only use airinspace®supplies.
•Disconnect the device’s mains socket before opening it. Do not place your hands near the fan
before it has come to a complete stop.
•Do not twist, stretch or damage the power supply cable.
•Only connect the device to earthed sockets that meet legal requirements and are inspected
periodically.
•Unplug the device when not in use for extended periods.
ATTENTION : BEFORE CARRYING OUT ANY WORK ON AN ELECTRICAL COMPONENT, SWITCH OFF
THE DEVICE BY DISCONNECTING IT FROM THE MAINS.
ATTENTION : WORK ON HEPA³AIR (INCLUDING ELECTRICAL CIRCUIT, ELECTRONIC CARDS, FAN)
MUST ONLY BE CARRIED OUT BY airinspace®MAINTENANCE PERSONNEL OR DULY
TRAINED PERSONNEL.
ANY DAMAGE CAUSED BY THE DEVICE TRIPPING OVER OR FAILURE TO RESPECT
INSTRUCTIONS FOR USE AND SAFETY RULES ARE THE SOLE RESPONSIBILITY OF
THE USER.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 5 /43
1.2 REGULATORY STANDARD
HEPA³Air devices are CE-marked and comply with European regulations:
European Low Voltage Directive (LVD) 2014/35/EU
European Electromagnetic Compatibility Directive (EMC) 2014/30/EU
1.3 NORMATIVE STANDARDS
•NF EN 61010-1 (2011). Safety requirements for electrical equipment for measurement, control
and laboratory use. Part 1: General requirements.
•EN 61326-1 (2013). Electrical equipment for measurement, control and laboratory use - EMC
requirements - Part 1: General requirements
•- NF S 90351 (2013). Healthcare establishments - Clean rooms and associated controlled
environments. Requirements relating to the control of airborne contamination.
1.4 CLASSIFICATION
Type of protection against electric shocks
Class I
Earthing for all accessible metallic elements and internal metallic elements.
Level of protection of applied parts against
electric shocks
No applied parts
Degree of protection against water and solids
IP 40
Operating mode
Continuous service
Operation under normal conditions of an unlimited duration without
exceeding operating temperature limits.
Level of safety when used in the presence of
flammable anaesthetics mixed with air,
oxygen or nitrous oxide
Device not suitable for use withflammable anaesthetics mixed with air,
oxygen, or nitrous oxide.
HEPA³Air is not an AP or APG category medical device. It should always be
kept more than 25 cm away from a source of flammable anaesthetics mixed
with air, oxygen, or nitrous oxide. The user is therefore responsible for
positioning HEPA³Air accordingly in the room to be treated.
Electromagnetic interference
EN 61326-1 class B standard for conducted and radiated
disturbances.
HEPA³Air is suitable for operation in an environment consisting of devices
which respect equivalent criteria.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 6 /43
1.5 DESCRIPTION OF THE DEVICE
1.5.1 OVERVIEW

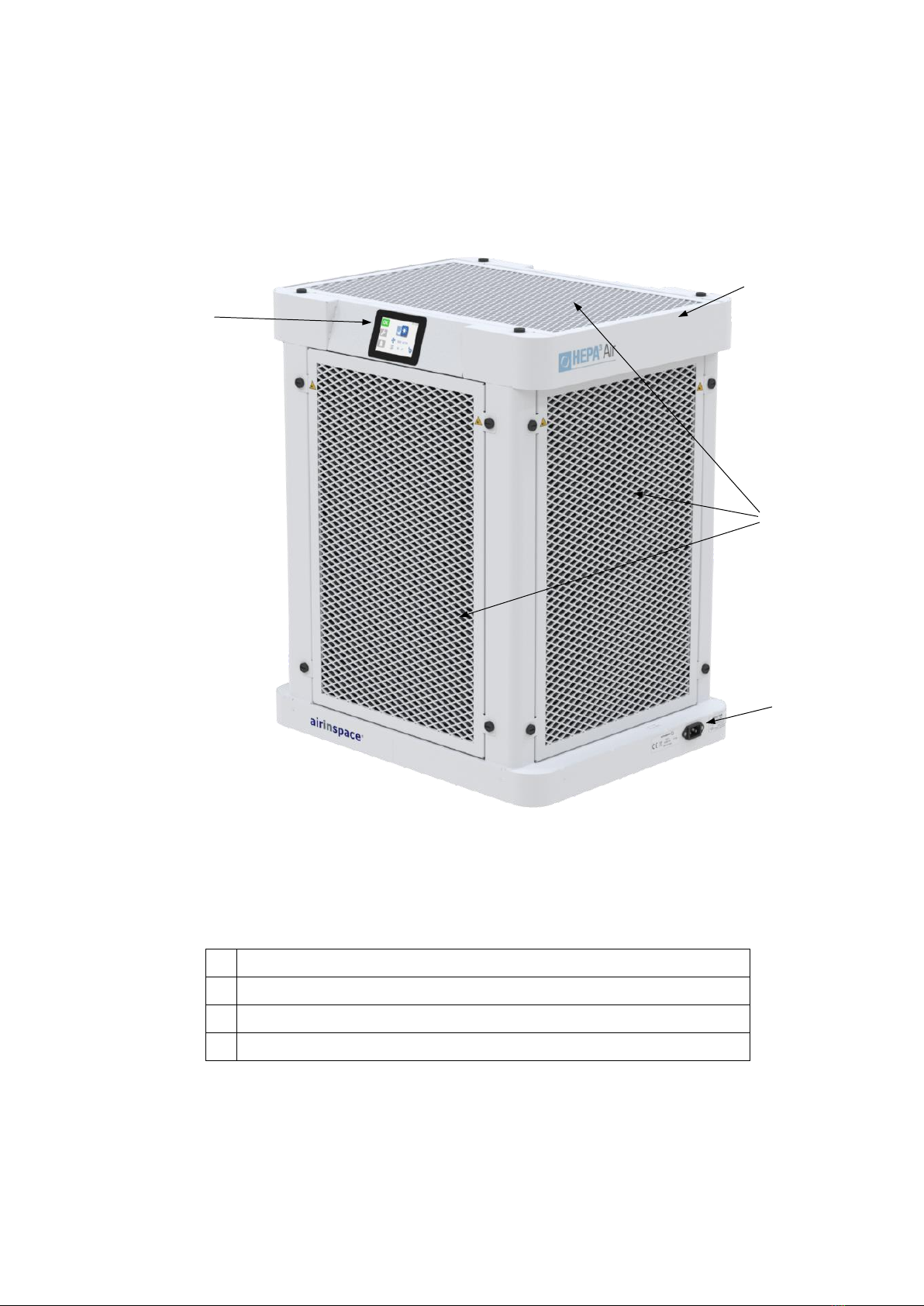

1
Painted aluminium chassis
2
Removable outlet grille
3
Power supply socket
4
Touch screen control
4
2
1
3

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 7 /43
1.5.2 INTERNAL ACCESS
1
Removable outlet grille x 5
2
Prefilter
3
Suction hopper
4
HEPA Filtration modules x 4
5
Fan
6
Electronic components access panel
3
2
4
1
5

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 8 /43
1.5.3 MARKINGS AND WARNINGS

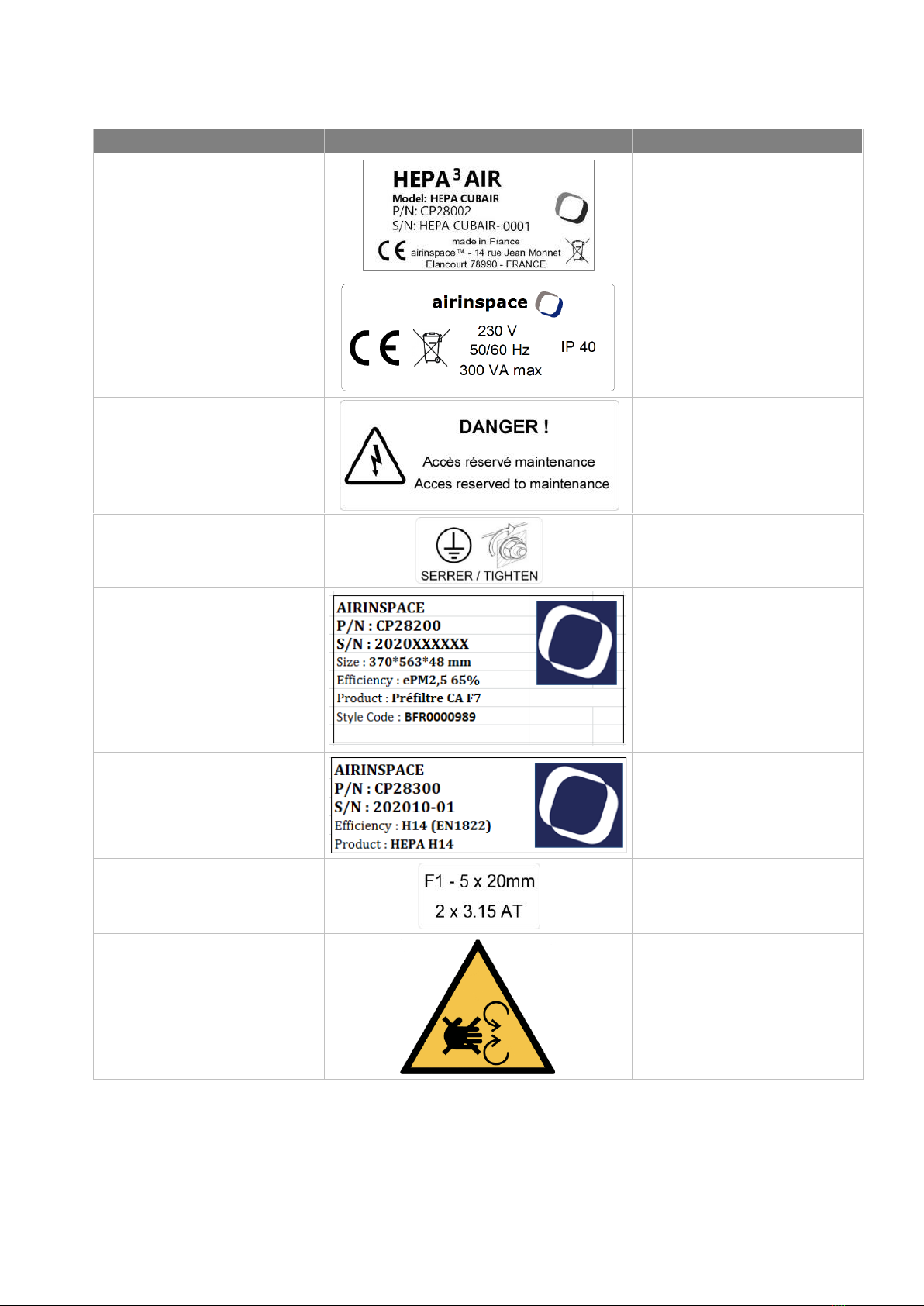

Label
Description
Position
Product
On the base of the machine, near the
mains socket
Electrical characteristics
On the base of the machine, near the
mains socket
Electrical hazard warning
On the electronic components access
panel
Earth connection during assembly
warning
Near the Live Earth Neutral terminal
block
Prefilters
On the prefilter
HEPA filters
On the filters
Fuses
Near the fuses
Risk of crushing hands by moving
parts
Near removable components giving
access to the fan

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 9 /43
1.6 FUNCTIONAL DESCRIPTION OF THE DEVICE
1.6.1 INTENDED USE
The Oxidising Agents HEPA³Air is a highly performant mobile air filtration unit. It is dedicated to the
removal of microorganisms and particles. It is generally positioned in moderate risk areas such as
corridors, airlocks and to protect installations while work is being carried out, for example. It significantly
reduces contamination and may constitute an initial air purification stage before air is directed to a higher
risk area.
1.6.2 OPERATING PRINCIPLES
HEPA³Air sucks in, treats and recirculates the air in the room. It quickly abates ambient contamination
and maintains it at a low level, thus preventing the risk of hospital-acquired infection.
Its important air recycling rate, 10 to 20 folds the room volume per hour, enables a quick abatement of
the average contamination level through dilution process. Typically, a pollution peak generated by a door
opening is reduced by 90% in less than 10 minutes.

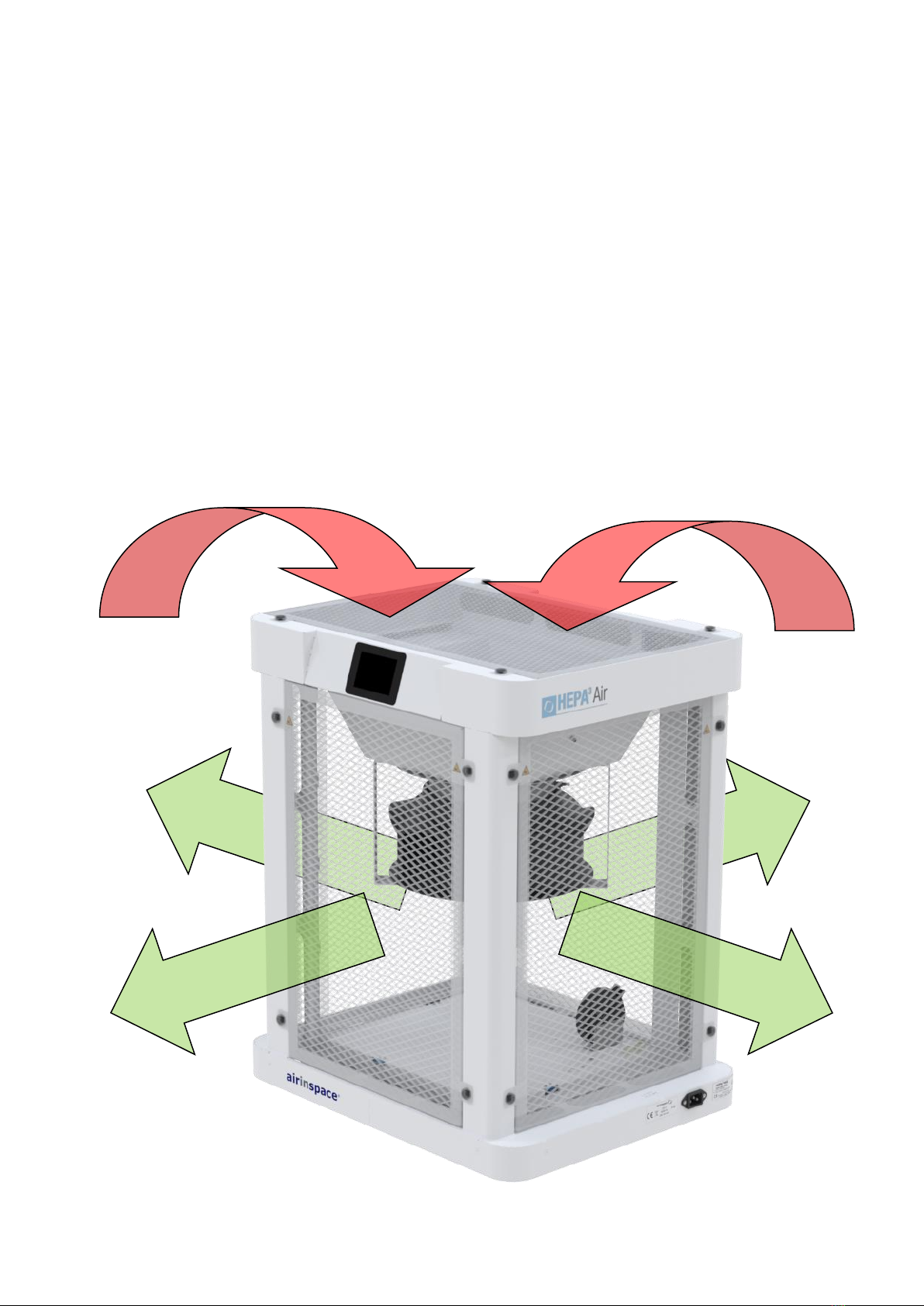

1.6.3 AIRFLOW DIRECTION IN THE HEPA³Air UNIT

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 10
/43
1.6.4 PHYSICAL CHARACTERISTICS
Electrical supply
~ 230 V; 50/60 Hz
Maximum electrical power
300 VA / 165 W
Electrical power at rated speed (1000 m3/h)
56 VA / 34 W
Electrical protection
-Isolated by removable power cable
-Ph + N FUSES (3.15A)
Volume output
ventilation speeds continually adjustable from
400 m3/h to 2,400 m3/h
Device noise level
according to standard NF-EN ISO 3744:2012 at 1 m / 2 m
(new filters)
-500 m3/h 30 dB(A) / 26 dB(A)
-1000 m3/h 44 dB(A) / 40 dB(A)
-1500 m3/h 53 dB(A) / 49 dB(A)
-2,000 m3/h 60 dB(A) / 56 dB(A)
Average velocity of air exiting diffusion grilles
0.70 m/s at 1,000 m3/h
-equivalent outlet surface = 0.39 m2
Air treatment capacity (room volume)
Potentially all volumes according to desired level of efficiency.
120 m3 room for an ARHof 12 vol/h.
Water/solids protection index
Complete device
IP40
Control panel
IP40
Overall dimensions
H 700 x L 590 x D 470 mm
HEPA³Air Weight
kg
Environmental operating range
Temperature
+5 °C to +35 °C
Relative humidity
< 95% non-condensing
Environmental storage range
Temperature
0°C to 45°C
Relative humidity
20% to 90%
Dust level
< 1 mg/m3
NOTA : The information contained in this table is for information only. For any information on
measurements and tolerance intervals, please contact airinspace®at the address given at the
end of this document.
ARH = Air Recycling rate per Hour (e.g. 750 m3/h in a 100 m3room = ARH 7.5 vol/h).

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 11
/43
1.7 INSTALLATION INSTRUCTIONS
Reception
1. Remove the unit from its cardboard packaging.
2. Carefully examine the device delivered and check that the items on the packing list are present.
3. Move the unit to where it will be used by means of the gripping areas (1)
ATTENTION : AS THE UNIT WEIGHS 22KG, TWO PEOPLE ARE NEEDED TO MOVE IT
OVER A LONG DISTANCE. AIRINSPACE ALSO PROPOSES AN OPTION TO
HELP MOVE THE PRODUCT.
4. Extract the filters by dismantling the removable grilles, then unpack them from their plastic bag
5. Reposition the filters in the HEPA³Air unit (see §3.10.1).
6. Connect the unit to a secure electrical socket. (see §1.6.4 –Physical characteristics)
7. Check that the unit starts up correctly (see §2.2 –Start-up).
8. Write down any anomalies and damage on the delivery note and notify the distributor or airinspace®.If
you wish to contact the manufacturer or distributor, please provide the serial number and date of
purchase.
Position in the room
For optimal positioning, the unit must be placed in the centre of the room to be treated.
1
1

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 12
/43
1.8 INSTRUCTIONS FOR REMOVAL AND STORAGE
1. Switch off the device by disconnecting it from the mains.
2. Place the unit in its original box.
3. Arrange the power supply cable.
4. Move the box to its storage area.
5. The unit must be stored in a clean area with an atmosphere not polluted by industrial activities.
The unit must be protected from dust, direct sunlight, heat sources, frequent changes in temperature and
humidity, potentially corrosive chemicals or other products.
Storage temperature : 0°C to +45°C.
Relative humidity level : 20% to 90%.
Dust level : less than 1 mg/m3.
1.9 TRANSPORT
Before transporting, protect the unit from shocks and scratches.
Transport must be carried out by duly trained and qualified personnel.
Equipment used to handle or lift the unit, alone or in its original box, must comply with applicable legislation
(equipment used by the carrier or the user).
During transport, the unit must remain vertical, firmly anchored and kept in an enclosed area (not
transported in the open air on a platform, for example).
Follow the instructions regarding the transport box direction:
1.10 DISPOSAL
This product is covered by European Directive 2012/19/EU of 4 July 2012 on waste electrical and
electronic equipment (WEEE) and falls within category 6. “Electrical and electronic tools” as defined in
annex I to this directive.
Disposal of this product and the recovery of the resultant waste must respect regulations arising from the
application of the European directive by the different member states, as well as any local regulations that
complement it.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 13
/43
SECTION 2 - USE
2.1 OPERATING PRINCIPLES
The HEPA³Air unit has been designed to provide users with a simple and user-friendly interface,
regardless of their clearance level. Based on a single software program, it presents different display
levels, adapted to everyone’s expectations.
2.1.1 USERS AND ACCESS LEVELS
Three levels of intervention are defined for this material:
•N1 level: user.
•N2 level: technician/maintenance.
•N3 level: manufacturer.
NOTA : Access levels N1 to N3 are protected by access codes.
This manual describes the use of the device for N1 level persons, which involves:
•starting up,
•changing the ventilation speed,
•handling warnings and alerts.
and for N2 level persons, which involves:
•reading the initialisation parameters,
•reading the operating parameters,
•reading the time counters,
•programming ventilation speeds,
•changing the filters.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 14
/43
2.1.2 USER INTERFACES

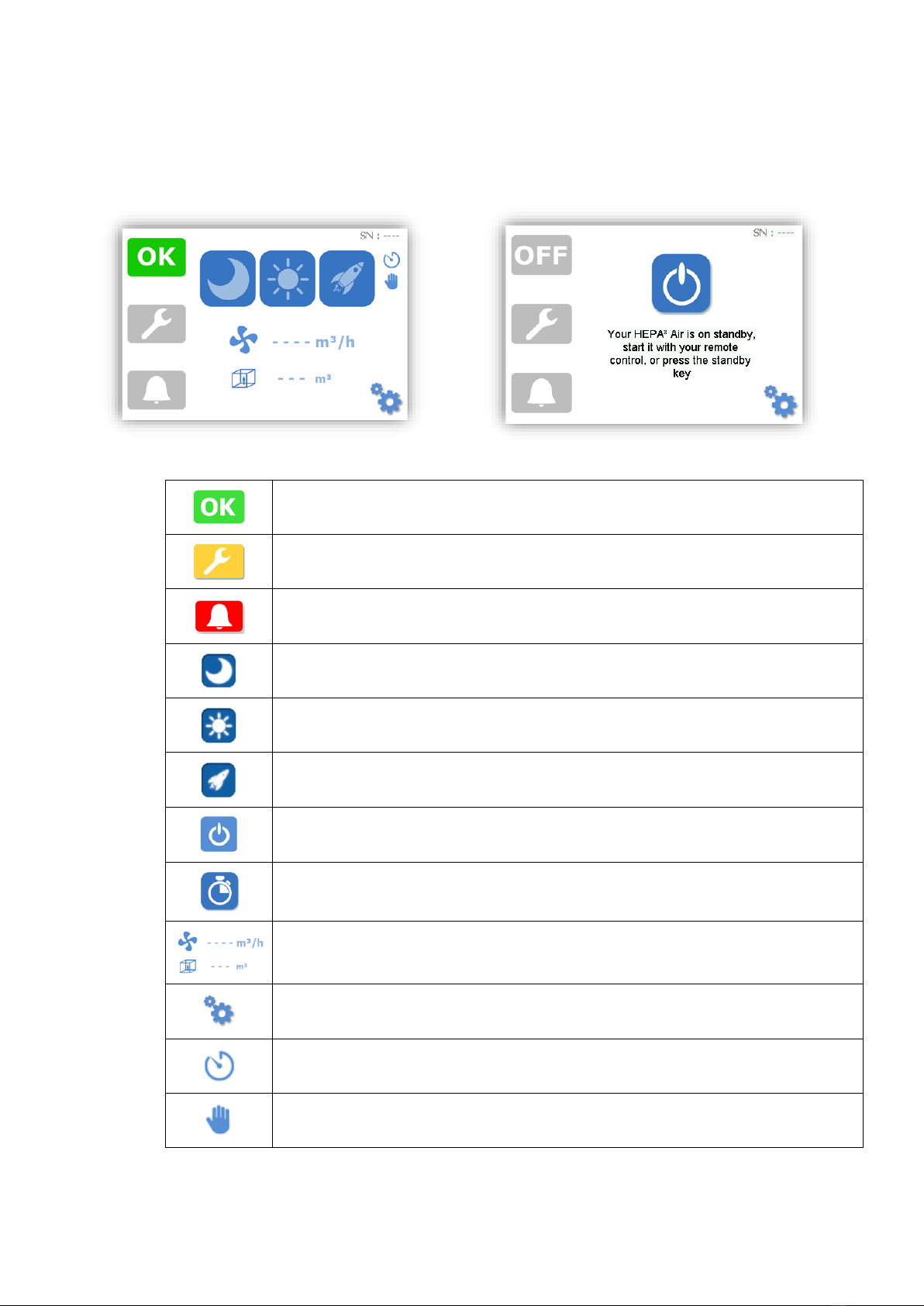

2.1.2.1 main screen
Automatic start activated (see §2.2) Automatic start deactivated (see §2.2)
This icon indicates that the device is working correctly
This icon indicates a warning
This icon indicates an alert
This icon indicates ventilation mode: NIGHT
This icon indicates ventilation mode: DAY
This icon indicates ventilation mode: BOOST
This icon indicates that the unit is on standby. Start button when automatic start-up
is deactivated
Setup Menu Start Delay
These icons indicate the programmed air flow and room volume
Setup Menu Access
Signal that automatic night-time programmer is activated
Signal that manual mode is activated

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 15
/43

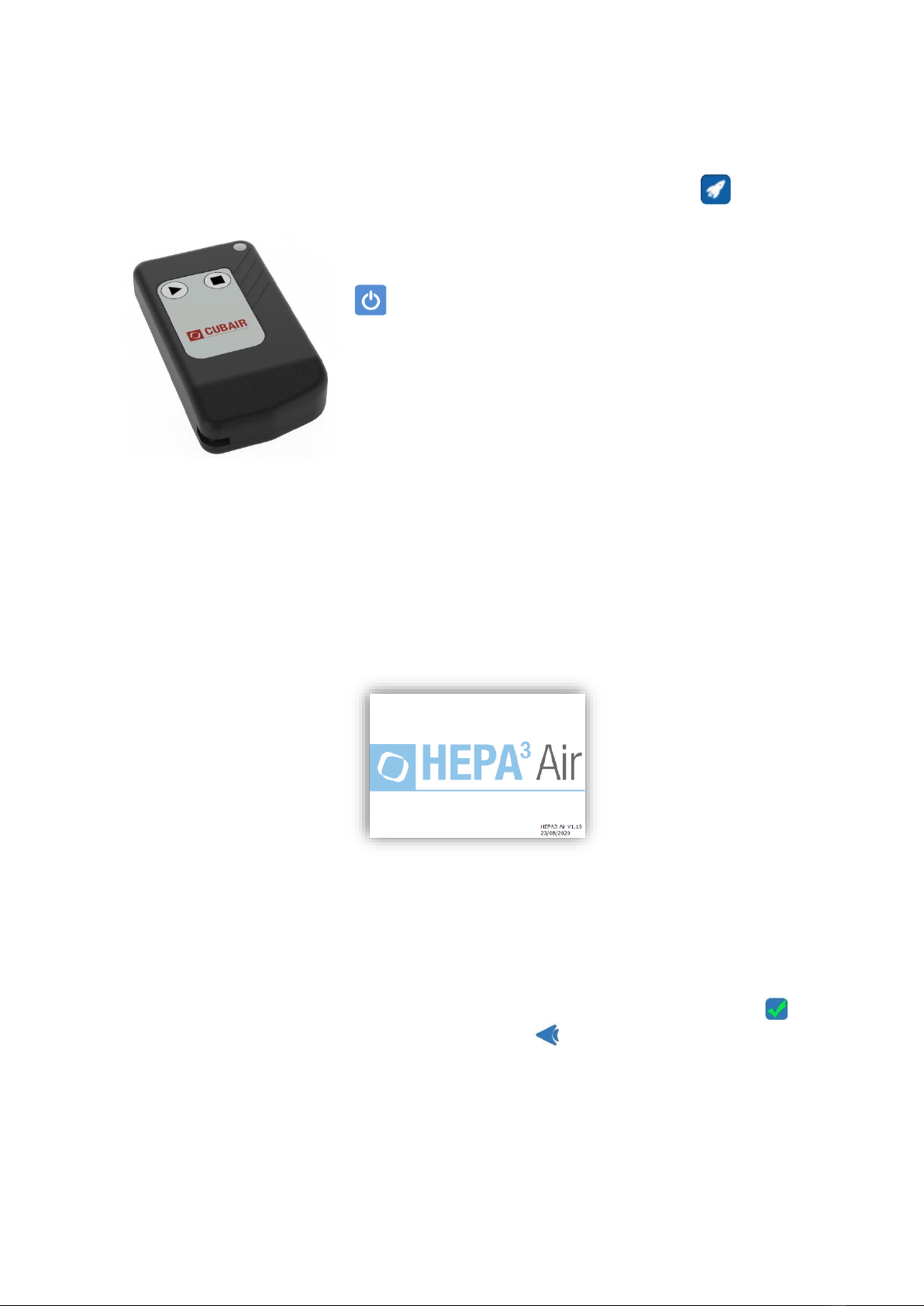

2.1.2.2 Remote control
The HEPA³Air unit comes with a remote control used for starting it and putting it on standby.
Press the ►button to start up the device at maximum ventilation speed (boost mode) .see §2.3 -
Changing the ventilation speed.
Press the ■button to stop ventilation. The device enters standby mode
.
The pairing procedure between a remote control and the HEPA³Air unit is
described in §3.5.1
2.2 START-UP
Connect the HEPA³Air unit to a power outlet ~ 230 V –50/60 Hz using the 2P+T 10 A power supply
cable provided. The screen turns on.
ATTENTION : THE ELECTRICAL SUPPLY PLUG MUST COMPLY WITH REGULATORY
TEXTS AND BE PERIODICALLY CHECKED.
The HEPA³Air unit loads the operating programme. The initialisation screen appears (decontamination
is not active).
2.2.1 FIRST BOOT
When the HEPA³Air unit boots up for the first time, a succession of specific screens appears (called
first boot procedure), where the parameters described hereafter must be adjusted. Otherwise, the main
screen comes up directly (see §2.2.2).
NOTA : Validate the current screen and move to the next screen by pressing the icon. You
can return to the previous screen by pressing the icon.
NOTA : You can reactivate the display of the first boot procedure in the machine parameters
(see §3.7.2). Once this reactivation has been selected, the first boot menu appears when you next
restart the unit.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 16
/43

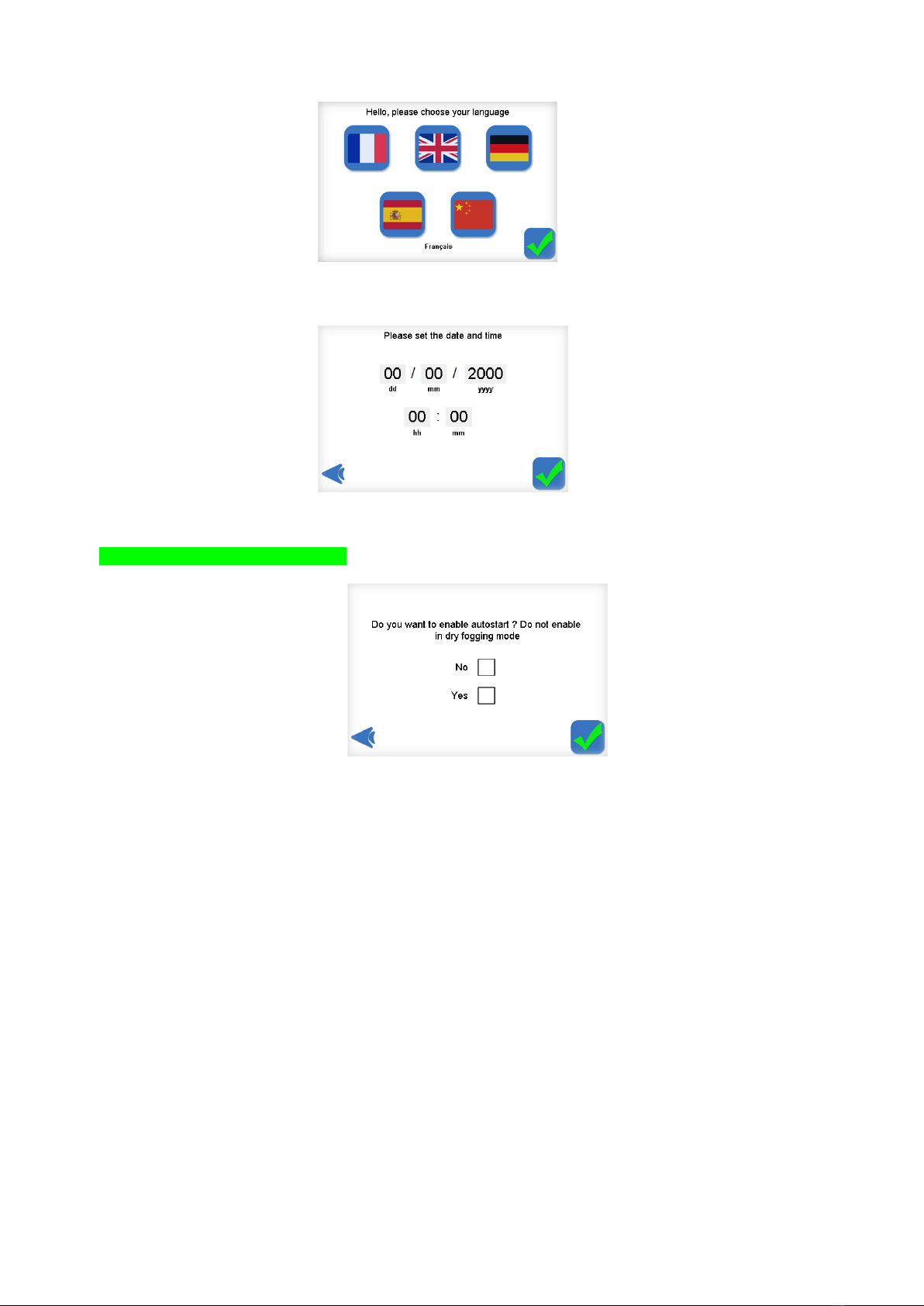

2.2.1.1 Interface language selection
2.2.1.2 Time and date selection
2.2.1.3 Start-up mode selection
NOTA : If the automatic start-up mode is activated, when powering up or after a power cut, the
HEPA³Air unit will (re)start automatically at the last speed used. If the automatic start-up mode is
not activated, the machine will switch to standby mode when powering up, the unit will only start
at the user’s request: by pressing the touch screen or using the remote control.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 17
/43
2.2.2 SUBSEQUENT START-UPS

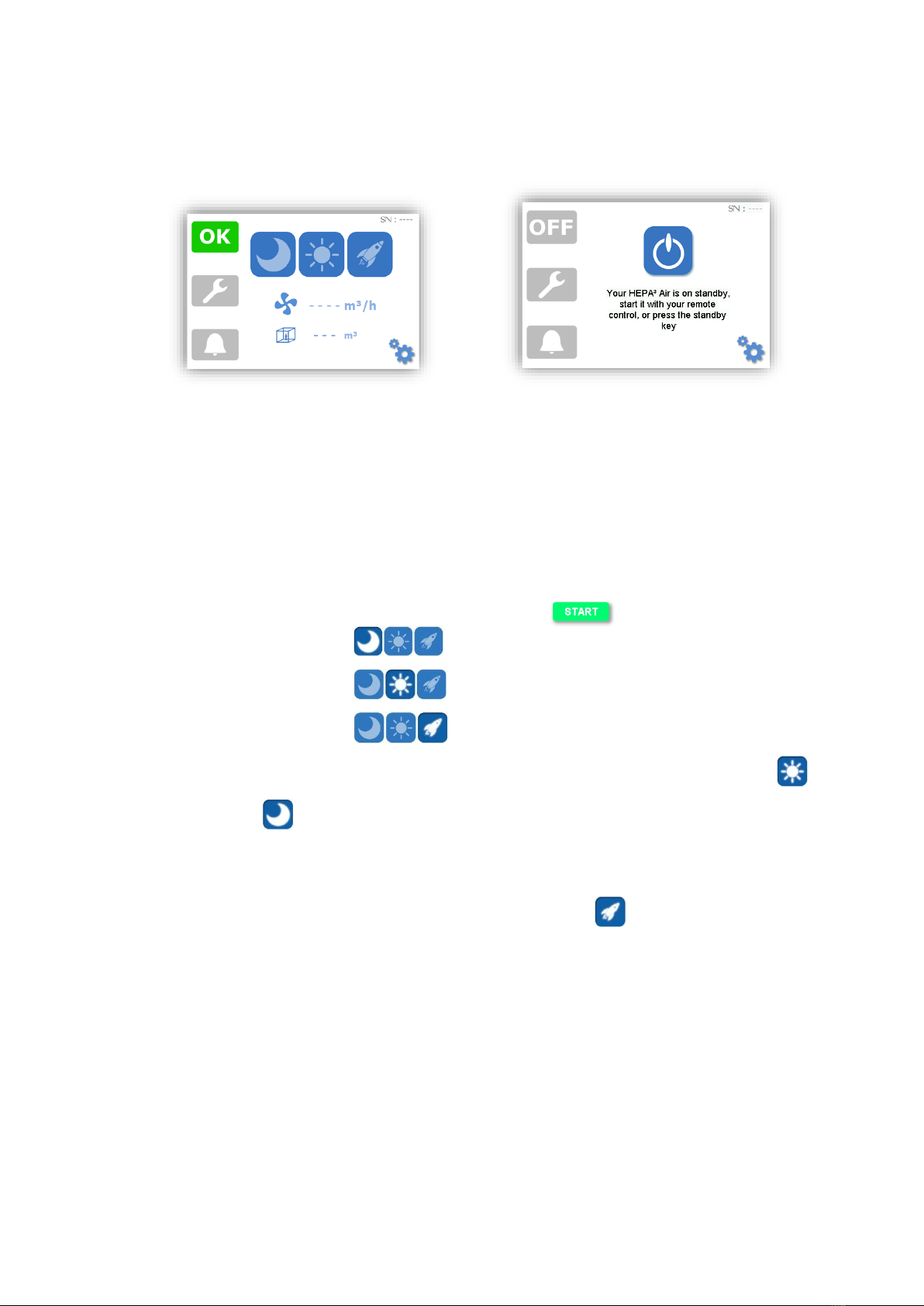

The start-up screen varies depending on the choice made when selecting the start-up mode (see
§2.2.1.4).
Automatic start-up activated Automatic start-up deactivated
NOTA : If no buttons are pressed, the backlighting of the screen will decrease after 3 min. It will
turn off after an additional 30s when in Night mode.
2.3 CHANGING THE VENTILATION SPEED
The HEPA³Air unit is programmed with two ventilation modes (Day/Night) as well as a boost function
to provide maximum flow.
To select a mode, simply press the corresponding icon:
Night mode on:
Day mode on:
Boost mode on:
Generally speaking and/or when personnel are present, the device is used in DAY mode .
NIGHT mode is used to reduce the noise level of the device with a view to improving comfort, or
when no personnel are within the area of use.
You can set the device to automatically switch from Day to Night mode and vice versa (see §3.6)
NOTA : During start-up, let the unit run in BOOST mode for at least one hour in the closed
room.
NOTA : When the Boost mode is on, the fan of the HEPA³Air unit runs at maximum speed. The
flows displayed may therefore vary depending on the level of dust and clogging in the filters.
Maximum flow declines as clogging increases.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 18
/43
2.4 HANDLING WARNINGS AND ALERTS
2.4.1 DEFINITIONS
A warning message is displayed when a malfunction leads to degradation of the device’s performance
(decontamination, pressure drop, sound level) or when a filter needs to be replaced.
NOTA : The warning is indicated by the yellow backlight of the button; ventilation still works
but filtration performance may deteriorate. The green LED is no longer on and is replaced
with the following pictogram: .
Example:
An alert message is displayed in the event of a malfunction likely to affect the safety of people or
property. An alert systematically causes the fan to shut down. No further filtration function is ensured.
The device remains switched on.
NOTA : The alert is indicated by the switching off of the green LED, the lighting of the red LED
and the red backlight of the button.
Example:
2.4.2 PROCESSING
2.4.2.1 Displaying an alert or warning
•Press the button to display the warning.
•Press the button to display the alert.

User manual –HEPA³Air –EN_ ed01_09_septembre-2020 19
/43
Example:
•Press the button to return to the previous screen.
2.4.2.2 Deleting an alert or warning
•Disconnect the device.
•Correct the error.
•Reconnect the device.

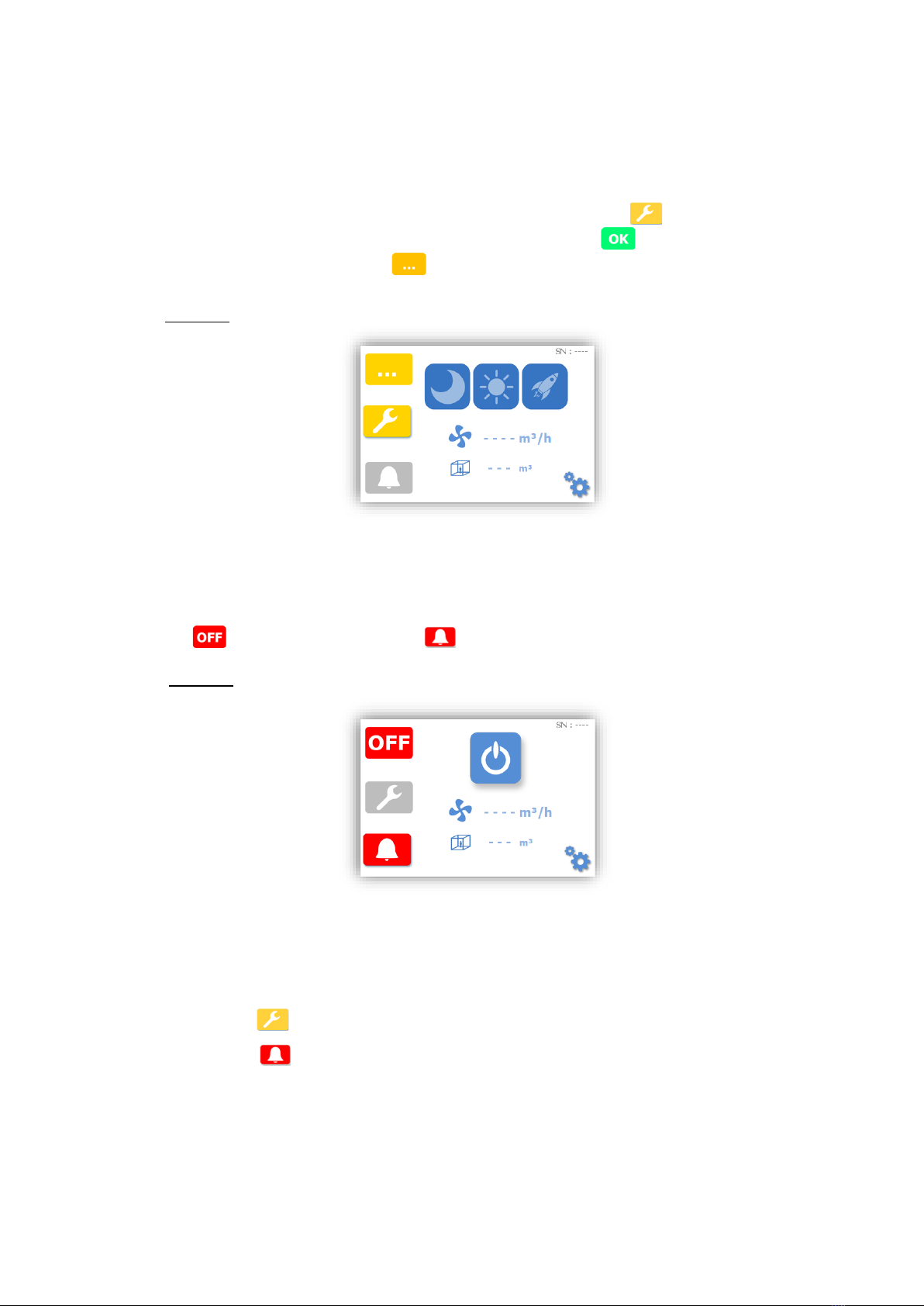

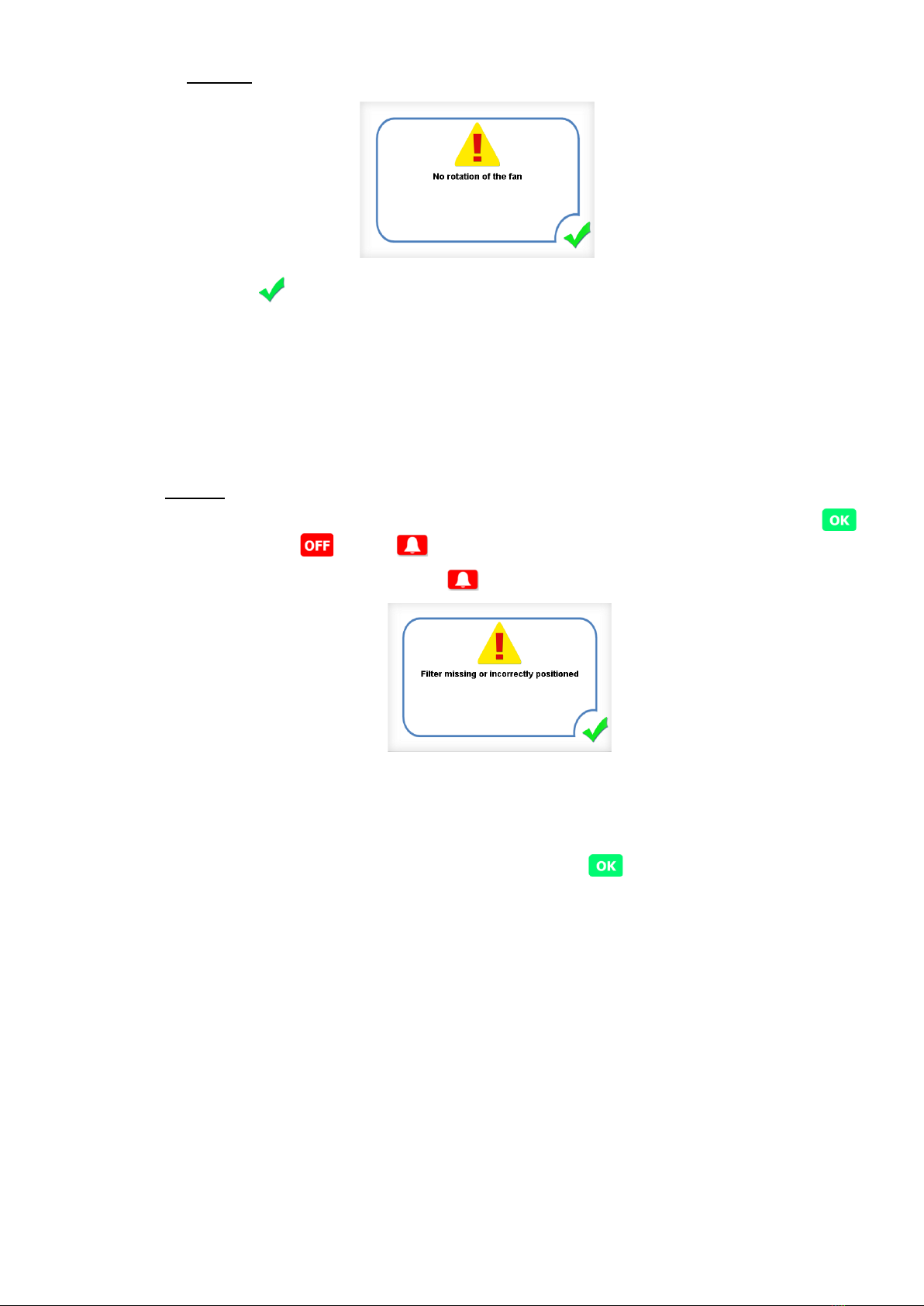

Example - Filter missing alert:
•Filter not present (or filter incorrectly positioned), the system goes on alert. The device stops,
is replaced with and the alert LED lights up.
•Display the message by pressing the icon. The following screen appears:
•Disconnect the device.
•Clear the error, making sure the filter is correctly positioned in its housing.
•Reconnect the device.
•If there are no other faults or alerts, the machine restarts: the LED reappears.
NOTA : It is possible to simultaneously process multiple warnings and alerts.
