AirLive Smart Life SP-101-JP User manual

SmartLife IOT
For Home
Quick Installation Guide
Smart Plug
SP-101-JP
The SP-101 Smart Plug switch
is a security enabled wireless
Smart Plug, based on Z-Wave
Plus technology. It can be
connected by AirLive Z-wave
Gateway or other Z-Wave.
Each SP-101 is designed to
act as a repeater. Repeaters
will re-transmit the RF signal
to ensure that the signal is
received by its intended
destination by routing the
signal around obstacles and
radio dead spots.
Plug the device into the
outlet.
Plug will automatically be in
including mode if you
excluded device, Green light
slowly flashing for 30
seconds.
Include Smart Plug -1
02
Introduction
01
Include Smart Plug -2
03 Include Smart Plug -3 04 Include Smart Plug -4 05
Go to Devices page and
click "+" icon.
Press Include Device
When the device is being
included, APP will configure
the setting into gateway.
Press "START INCLUSION"
Start to include a device.

1. Do not locate the Switch
facing direct sunlight,
humid or dusty place.
2. The suitable ambient
temperature for the Switch
is 0°C~40°C.
3. Do not locate the Switch
where exists combustible
substances or any source
of heat, e.g. fires, radiators,
boiler etc.
4. After putting it into use, the
body of Switch will become
a little bit hot of which
phenomenon is normal.
Choosing a Suitable
Location
06
1. Plug this On/Off Switch
into a wall outlet near the
load to be controlled.
2. Plug the load into the
Switch. Make sure the load
to be controlled cannot
exceed 15A.
3. Press the button or switch
on the load to the ON
position.
4. To manually turn ON the
Switch, press the On/Off
button for 3 secs. The LED
will turn ON, and the load
plugged into the Switch
will also turn ON.
5. To manually turn OFF the
Switch, simply press the
On/Off button for 3 secs.
The LED will turn OFF and
the load plugged into the
Switch will also turn OFF.
Installation Smart
Plug-1
07

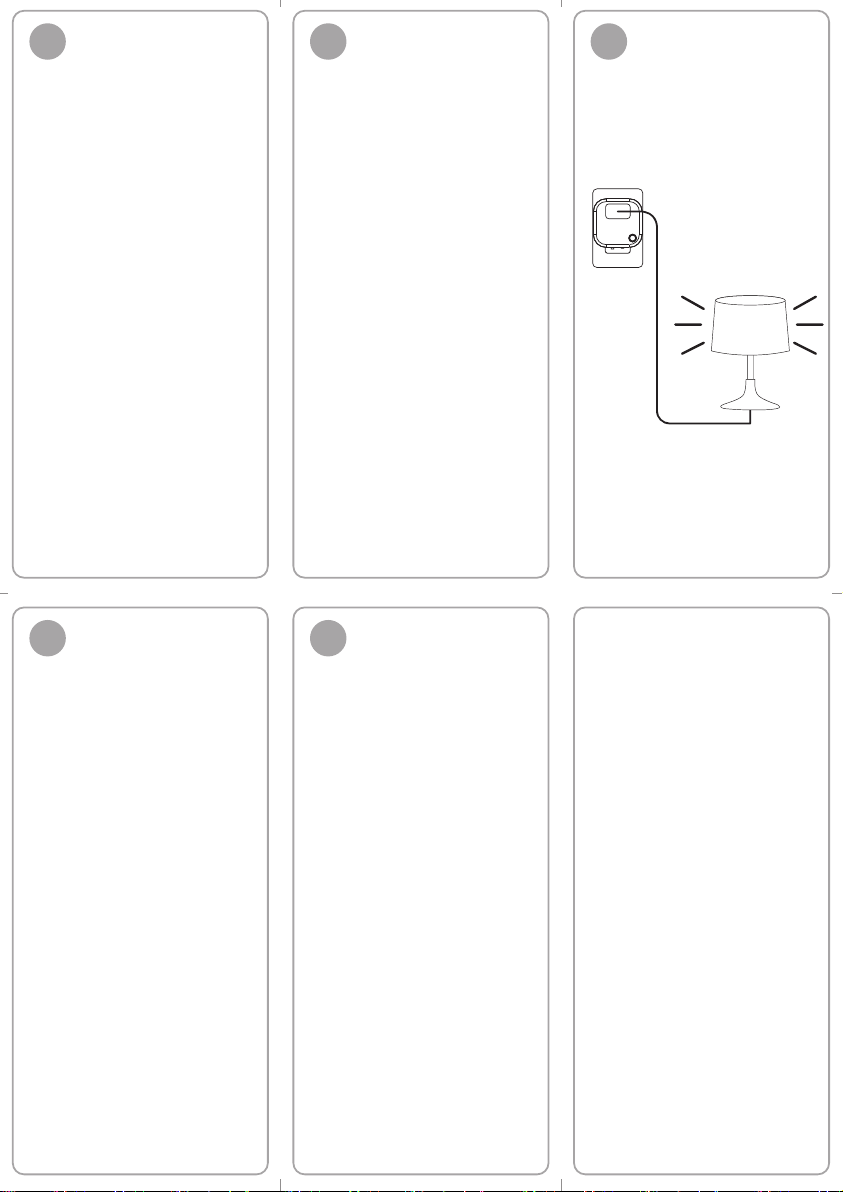

Plug the appliance's power
into the plug.
Ex: table lamp, electric fan
Depening on the load, the
color led on the SP-101 will
change, 500W or less LED
Blue, 501~1000W LED
Orange, Over 1000W LED Red.
Installation Smart
Plug-2
08
LED Indication
09 10
SP-101 not only can be
included and operated in
AirLive Z-Wave Gateway
SG-101 but also any
Z-WaveTM certified controller
and/or other applications.
The SP-101 Smart Energy
Plug is able to detect
instance wattage
(1500W/100Vac) (13Ampere)
and overload current (15A
with resistive load) of
connected lights or
appliances. When detecting
overload state, the Switch
will be disabled and its
On/Off button will be lockout
of which LED will flash Red
quickly. However, unplug and
reconnect the switch will
reset its overload condition
to normal status.
1. Normal: Under normal
operation, toggle On/Off
button between On and Off.
When pressing On, LED lights
up Blue, whereas Off, LED is
off.
2. No node ID: Under normal
operation, when the Switch
has not been allocated a node
ID, the LED flashes Green on
and off alternately at 2-second
intervals. By pressing On/Off
button, it will stop flashing
temporarily.
3. Learning: When Plug is in
learning mode, LED flashes
Green on and off alternately
and repeatedly at 0.5 second
intervals.
4. Overload: When overload state
occurs, the Switch is disabled
a the LED flashes Red on and
off alternately at 0.2 second
intervals. Overload state can
be cleared by unplugging and
reconnecting the Switch to the
wall outlet.
