AirLive POE-260 CAM User manual

Copyright & Disclaimer

AirLive POE-260CAM User’s Manual

POE-260 CAM
POE Pan-Tilt hision IP Camera
Use
r
’s Manual

Copyright & Disclaimer

Copyright & Disclaimer
No part of this publication may be reproduced in any form or by any means, whether
electronic, mechanical, photocopying, or recording without the written consent of OvisLink
Corp.
OvisLink Corp. has made the best effort to ensure the accuracy of the information in this
user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
Please use with caution. All information is subject to change without notice
All Trademarks are properties of their respective holders.







BeforeYouUsethisProduct
This product has been designed with safety in mind. However, if not used properly, electrical products can
cause fires which may lead to serious bodily injury. To avoid such accidents, be sure to heed the following:
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in
your local region before using this product for surveillance purposes.
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
In case of a breakdown
In case of system breakdown, discontinue usage and contact your authorized dealer.
In case of abnormal operation
• If the unit emits smoke or an unusual smell,
• If water or other foreign objects enter the cabinet, or
• If you drop the unit or damage the cabinet:
1 Disconnect the cable and the connecting cables.
2 Contact your authorized dealer or the store where you purchased the product.
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
• Extremely hot or cold places (operating temperature: 0 °C to +50 °C [32 °F to 122°F])
• Exposed to direct sunlight for a long time or close to heating equipment (e.g., near heaters)
• Close to sources of strong magnetism
• Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
• Locations subject to strong vibration or shock
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.
Cleaning
• Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a
soft cloth dampened with a small quantity of detergent solution, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface.

Table of Content

i
AirLive POE-260CAM User’s Manual


Table of Content
1.Introduction 1
1.1 Overview 1
1.2 How to Use This Guide 2
1.3 Firmware Upgrade and Tech Support 3
1.4 Features 4
2. Hardware Installation 5
2.1 Hardware Installation Steps 5
2.2 Package Contents 6
2.3 Overviews 7
2.4 EZ Install CamPro Express 8
3. UsingIPCameraviaMobilePhone 22
3.1 3G Mobile Phone Viewing 22
3.2 2.5G Mobile Phone Viewing 22
4.Using IP Camera via Web Browser 23
5. Initial accessing the IP Camera 24
6.HowtoUse 25
6.1 Accessing the IP Camera 25
6.2 Configuration of Main Menu 26
7. Setting 29
7.1 Basic 29
7.2 Advance 44
8. CamPro Express 58
8.1 Getting Started 58
8.2 Start Service Program 69
8.3 Admin Program 70
8.4 Monitor Program 102
8.5 Web Monitor 112
8.6 Multi Playback 114
9. Technical Specification 145

1.Introduction
1
AirLive POE-260CAM User’s Manual



1 1. Introduction
1.1 Overview

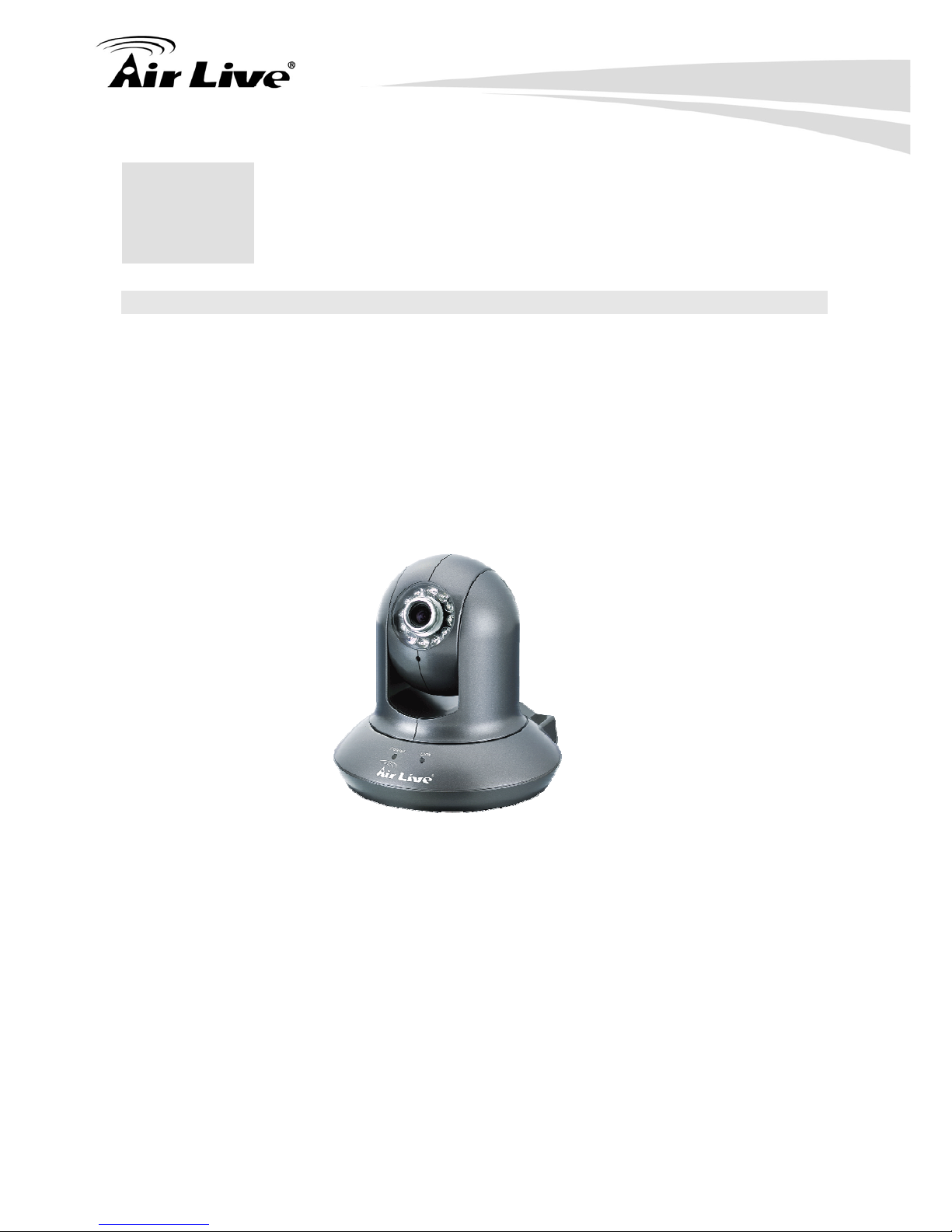

The POE-260CAM is an advanced POE IP camera with Pan and Tilt function. You can set
a particular patrol area; it will then move its lens in both horizontal and vertical direction
continuously to scan the area. Or you can remote control the camera to look in the
desirable direction.





















1.Introduction
2
AirLive POE-260CAM User’s Manual




1.2 How to Use This Guide
The AirLive POE-260CAM is a high performance camera designed for professional indoor
surveillance and security applications. It is recommended that you read through the entire
user’s guide whenever possible. The user guide is divided into different chapters, include
hardware installation and campro express installation.
Recommended Reading
Chapter 2
2.1 Hardware Installation: This section explain the hardware installation and
Package content.
2.4 EZ Install CamPro Express This section inroduces cam pro express
quick installation step and different between instatll server verison and client
verison. This is must read section when you need to setup multiple camera
and recording in the computer.
Chapter 5: This section has default settings information suchs as IP, password,
of the device.
Chapter 6: This chapter is about most of the firmware function in the camera.
This is must of read.
Chapter 7:
7.1 Getting Started: This section inroduces cam pro express quick
installation step and different between instatll server verison and client
verison.
7.3 Admin Program: This section inroduces majoy function in admin
program configurations.
7.4 Monitor Program: This section tells you how to get into the monitor
program and how to using monitor program.
7.5 Web Monitor : This section tells you how to get into the Web UI using
HTTP
7.6 .Multi Playback : This section explain how to using the Multi Play back
function when you need to review your recording file.

1.Introduction
3
AirLive POE-260CAM User’s Manual

APPENDIX –This section tell you most of the case study when you need to Setup
Frame Rate & Bit Rate Table,Storage Requirement Table,DIDO in Motion
detection,DIDO in Cam Pro Express. This is most of read if you need to setup
DIDO.
1.3 Firmware Upgrade and Tech Support
If you encounter a technical issue that can not be resolved by information on this guide, we
recommend that you visit our comprehensive website support at www.airlive.com. The
tech support FAQ are frequently updated with latest information.
In addition, you might find new firmwares that either increase software functions or provide
bug fixes for POE-260CAM. You can reach our on-line support center at the following link:
http://www.airlive.com/support/support_2.jsp
Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.
AirLive Newsletter subscribers receives instant email notifications when there are new
download or tech support FAQ updates for their subscribed airlive models. To become an
AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp
Figure 1.3: AirLive Newsletter Suppport System

1.Introduction
4
AirLive POE-260CAM User’s Manual

1.4 Features
Simultaneous MPEG-4 and Motion JPEG video stream
12 pcs Infrared LEDs for night use up to 10 working distance
IEEE 802.3 af Power over Ethernet Support
2-Way Audio Capability
Support Mac OS Browser
CAMPRO Express- 16 channel recording software.
Support multiple Language firmware and Web Monitor
Support DIDO function.
CAMPRO Express- Support Remote management.

2.HardwareInstallation
5
AirLive POE-260CAM User’s Manual



2 2. Hardware Installation

This section describes the hardware features and the hardware installation procedure for
the POE-260CAM.
For software configuration, please go to chapter 3 for more details.
2.1 Hardware Installation Steps
Follow these steps to install the POE-260CAM on your Ethernet:
1. Check the package contents against the list below.
2. Set the device. See IP Installer User Manual on the available methods.

2.HardwareInstallation
6
AirLive POE-260CAM User’s Manual

2.2 Package Contents
Camera POE-260CAM Dome IP Camera
Quick Installation Guide Brief product information and quick installation
Software CD
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Screw Pack Two screws and plastic wall anchors
Adaptor 12V DC, max 6W
Camera POE-260CAM Dome IP Camera








IP Camera Power Adapter, DC12V, 1.25A
Installation CD
Quick Setup Guide

2.HardwareInstallation
7
AirLive POE-260CAM User’s Manual



2.3 Overviews
Front & Side:












DI / DO Terminal connector diagram
Please refer the following illustration below for connection method.
NOCOMD‐  D+












Note
Hold the Reset Button for 10 seconds to restore the camera to default
Ground
Ground
12V
Alarmoutdevice
12V
Max.30W
Switch

2.HardwareInstallation
8
AirLive POE-260CAM User’s Manual

2.4 EZ Install CamPro Express
All ipcam use the factory default settings
All ipcam and Airlive CamPro Express server in the same subnet
Please see the detail setting in user manual
[ Step 1 ] Install:
1. Select “Install Driver & Utility”
2. Select “CamProExpress” to start install


2.HardwareInstallation
9
AirLive POE-260CAM User’s Manual

For a better understanding, please read this manual before operate the AirLive CamPro
Express system.
System Requirement- SERVER version
CPU P-4 3.0G
RAM 1G or above
Operating System Windows XP Professional Service Pack2
(English/Traditional Chinese/Simplified
Chinese)
Windows Vista Home Basic/Home
Premium/Business/Ultimate
Network 10/100 Mbps Fast Ethernet
Display Card 1024 x 768 (XVGA) or above
System Requirement- CLIENT version
Networking Suggestion
AirLive CamPro Express is optimized for small-scale project, simple LAN or simple WAN
environment. Place the system behind firewall or IP sharing device to efficiently protect this
system from hackers’ attack.
CPU P-4 1.2G
RAM 1G or above
Operating System Windows XP Professional Service Pack2
(English/Traditional Chinese/Simplified
Chinese)
Windows Vista Home Basic/Home
Premium/Business/Ultimate
Network 10/100 Mbps Fast Ethernet
Display Card 1024 x 768 (XVGA) or above

2.HardwareInstallation
AirLive POE-260CAM User’s Manual

10

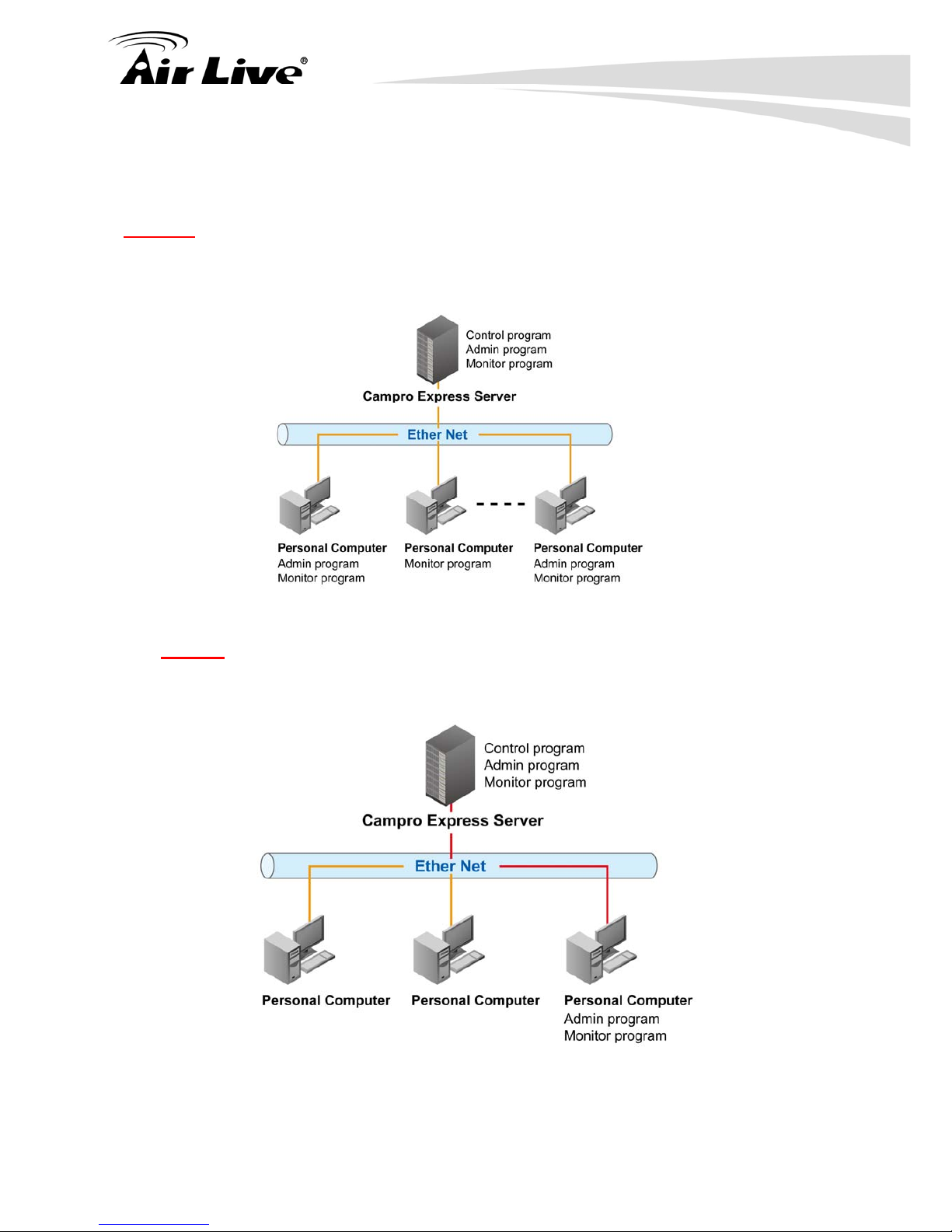

AirLive CamPro Express is consisted of SERVER version and CLIENT version.
SERVER version limits one installation. SERVER version includes Admin, Monitor, Control
and Web Monitor programs.
The CLIENT version is designed for monitoring purpose, and the Admin program is an
option while installation

2.HardwareInstallation
11
AirLive POE-260CAM User’s Manual

[ Step 2 ]Select language
The Installation Wizard will select the language of your operation system intelligently.
AirLive CamPro Express supports three languages：Traditional Chinese, Simplified
Chinese, English
[ Step 3 ]
The Installshield Wizard will check if IIS is installed at your system. If not, you can continue
installing AirLive CamPro Express, but you will not be able to use the WEB monitoring
feature without IIS. To Install IIS, do the following,
1. Click “Start”.
2. Go to Control Panel ÆAdd/Remove Program
3. Click Add/Remove Windows Component
4. Check Internet Information Services (IIS)
5. Click “Next”.
6. Click “Finish”.
During the installation process, you may need Microsoft Windows Operating System CD.

2.HardwareInstallation
12
AirLive POE-260CAM User’s Manual




[ Step 4 ]
Select language. Click “Next” to begin
the installation process.







[ Step 5 ]
Please read the License Statement and
select “Yes” to accept and continue.

[ Step 6 ]
Choose Setup type and click “Next” to
continue.
For first time installation please select server to
install.AirLive CamPro Express is consisted of
SERVER version and CLIENT version.
SERVER version limits one installation.
SERVER version includesAdmin, Monitor,
Control and Web Monitor programs.
The CLIENT version is designed for
monitoring purpose, and theAdmin program is
an option while installation.

2.HardwareInstallation
13
AirLive POE-260CAM User’s Manual





[ Step 7 ]
Choose Destination Location or click
“Next” simply
Specify the Destination Folder; you
may click “Browse…” to select a folder
other than the default one.
Click “Next” to continue.
Note:
The default location is deemed adequate for
most situations, it is recommended that you
use the default location.
[ Step 8 ]
Choose the components to install, then
click “Next” to continue. Main
Component is a required component.
Note:
If you would like to view video image via a
browser from remote locations, select Web
Component.
[ Step 9 ]
Select Program Folder
Specify the Program Folder where
AirLive CamPro Express icons will be
installed to Click “Next” to continue.

2.HardwareInstallation
14
AirLive POE-260CAM User’s Manual





[ Step 10 ]
Start Copying Files page pop out,
review all your configuration that you
have made. Click “Next” to accept
these setting and continue.
Note:
The installation process may take several
minutes to complete, depending on the
handling capability of your computer system
(refer to Section 7.1.2 System Requirement
for system requirement detail)
[ Step 11 ]
Click “Next” to continue
[ Step 12 ]
Installshield Wizard Complete; click
“Finish” to complete the setup. The
system should start AirLive CamPro
Express in 1 to 3 minutes, and the icon
of AirLive CamPro Express ( )
appear in task bar of screen’s
lower-right corner.
Note:
If in real case, this does not happen, please
restart your computer.

2.HardwareInstallation
15
AirLive POE-260CAM User’s Manual

Setting:
1. Run the Airlive CamPro Express-->Admin. 2. Select “E-MAP” then “Add Area”.
3. Enter the Area Name then Create.
4. Select area name then select 5. When search completed select Create”.
“Auto Add Device”.



2.HardwareInstallation
16
AirLive POE-260CAM User’s Manual

6. Selecttheipcamdeviceicon 7. Select the ipcam device icon
then select “Image Setting” . then select “Motion Detcetion”.
8. Setting motion detection area in this page. 9. Select the ipcam device icon then
select “Image Alarm”.
9. Select the ipcam device icon then select “ImageAlarm”.
