IP-200PHD-24(B)
Passive PoE Network Camera
Quick Installation Guide

Support
You can download the
complete guides and
supporting programs from
<http://www.airlivesecurity.c
om/product/ip-200phd-24/do
wnload>, or scan the QR
code here.
Please consult with the FAQs
<http://www.airlivesecurity.c
om/product/ip-200phd-24/fa
q> before writing to OvisLink
Tech Support Team for further
assistance
For any other question, please read the user
manual in the CD or mail to [email protected]
for technical support.

IP-200PHD-24(B) Package Contents
Please check the package contents and contact
your distributor if any part is missing.
IP-200PHD-24(B) 12V/1A
Power Adaptor
POE-1P,
Passive
PoE Injector
User
Manual
CD
Quick
Installation
Guide
Quick
Start
Guide
Stand
with Screws
POE
Power
Over
Ethernet
DC
LAN
Declaration of Conformity
We, Manufacturer/Importer
Declare that the product
2.0 Mega Pixel Passive PoE IPCamera
IP-200PHD-24 / IP-200PHD-24B
is in conformity with
In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive
Clause
Manufacturer/Importer
Description
OvisLink Corp.
5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei C
■
■
■
■CE marking
Signature：
Name：Albert Yeh
Position/ Title : Vice President Date：2011/11/21
Y
eh
EN 55022 :2006 + A1:2007:Class B
EN 55024:1998 + A1:2001+A2:2003
EN 60950-1:2006(2nd edition)+
A11:2009+A1:2010
Limits and methods of measurement of radio disturbance ch
a
information technology equipment
Information Technology equipment-Immunity characteristics-
Methods of measurement
Safety for information technology equipment including electri
c
equipment
Place : Republic of China (Taiwan)
LAN Port
12-24V Passive PoE
DC Injector Included
Passive PoE Installation Guide
This device uses 12-24V passive PoE. It is not compatible with 802.3af or
802.3at PoE switch. Please do not connect this device to PoE switch, or
the device might be damaged.
Please use Cat.5E or better Ethernet cable for the PoE.
The cable distance should not exceed 30 meter
English
EN
Deutsch
DE
Installationsanleitung für passives PoE
Dieses Gerät nutzt passives PoE mit 12-24 Volt. Es ist NICHT kompatibel
mit 802.3af oder 802.3at Switchen! Bitte verbinden sie es niemals mit
einem solchen PoE Switch, andernfalls könnten die Geräte beschädigt
werden.
Bitte nutzen Sie ein Ethernetkabel der Kat.5E oder höherwertig für PoE
Die maximale Kabellänge darf 30 Meter nicht überschreiten
IP-200PHD-24 / IP-200PHD-24B
Note:
This device uses 12-24V passive PoE.
It is not compatible with 802.3af or
802.3at PoE switch. Please do not
connect this device to PoE switch, or
the device might be damaged.

I/O Interface
DC
12V
Passive
PoE
Lens &
Focus Ring
Microphone
Micro-SD Slot
Power/Wireless LED
Audio
Output Jack
Factory Default ResetLAN Socket
LAN LEDDC Power Jack

Before Using the Camera
Important: Please insert an empty Micro SD
card to prevent from any data lost. Capacity of
32GB and Class10 is recommended.
MicroSD
32GB/
Class10
64GB
01
IP-200PHD-24B doesn't support SD card.

Attach the camera with the stand and place the
camera on the table or fix it onto the ceiling or
wall with screws.
Mount the Camera
02

DC
12V
Passive
PoE
DC
12V
Passive
PoE
If you need 2-way audio function, please attach
a speaker to the audio port.
Speaker
3.5mm
Audio Cable
Connect the 12V1A adaptor to power up the
camera.
12V / 1A
Power up the Camera
03

Or you can choose the PoE-1P to supply the
power.
Using the Passive PoE
04
Please use the 12V/24V adaptor and DO
NOT connect the camera to any other
standard PoE switch (48V) to prevent from
any damage caused.
Passive
PoE
Power Adaptor
12V/1A
Router
POE
Power
Over
Ethernet
DC
LAN
PoE Out
POE
Power
Over
Ethernet
DC
LAN
POE-1P
ow
er
.
ass
iv
e
P
oE
PO

Please make sure the UPnP function is
enabled. For most home use routers, UPnP is
enabled already.
Before you viewing the camera, please make
sure IP-200PHD-24(B) and mobile device are at
same WLAN.
Wireless Local LAN
05
AirLive inYour Life!
AirLive in Your Life!
Mobile
Devices

Please visit App Store or Google Play to
download CamPro Mobile. You can use QR
code scanner software directly or simply search
the “AirLive CamPro Mobile"
App Store Google Play
Download the CamPro Mobile
06

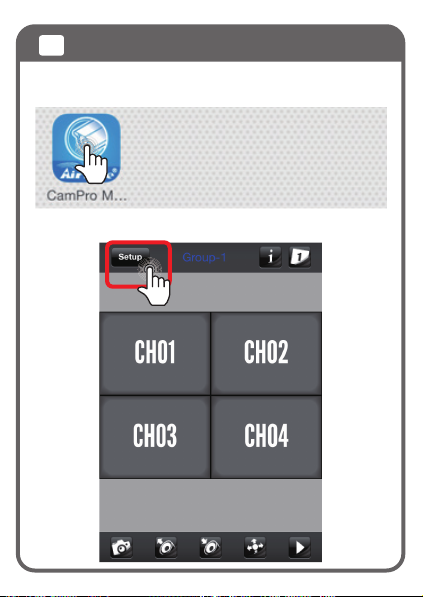

Start the CamPro Mobile
07
Click the “CamPro Mobile” icon on your device.
Press "Setup"

Search and Add the Camera
08

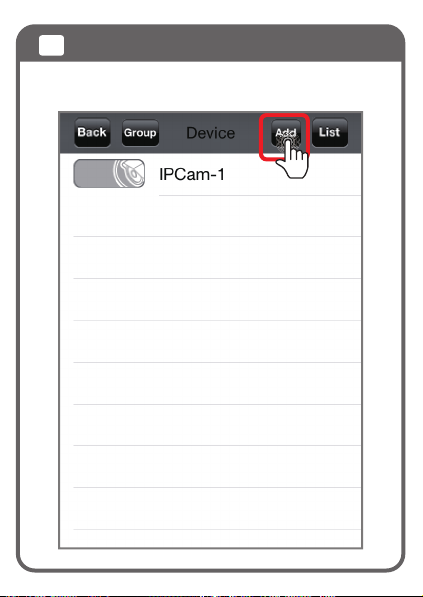

Press "Add" to start to search camera.

Search and Add the Camera
09

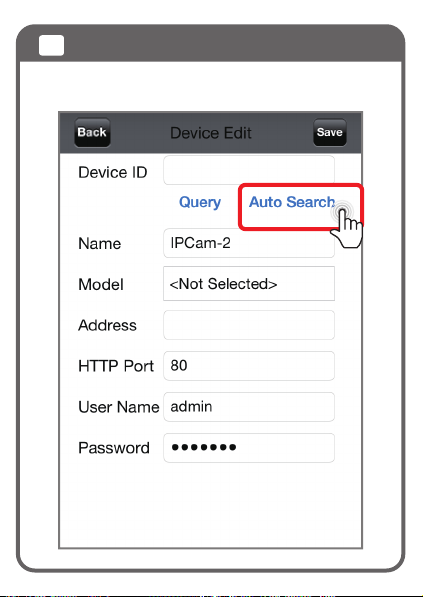

Press "Auto Search"

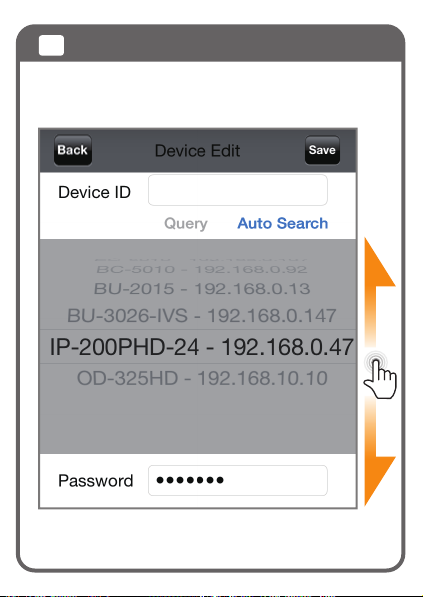

Slide the list and select the camera of which
you want to view
Search and Add the Camera
10
CU-720IR

Search and Add the Camera
11

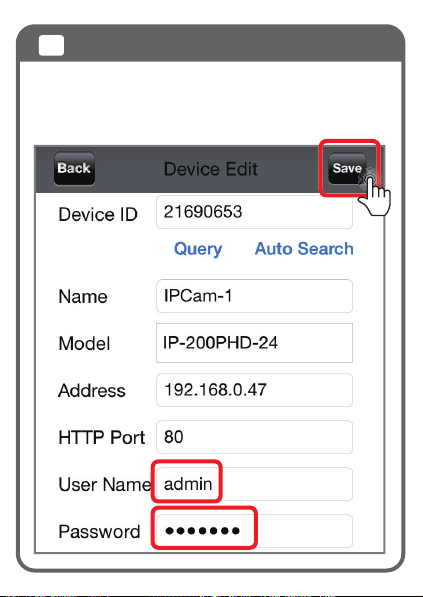

Edit the information and User Name/Password.
And click “Save”. Default User Name/Password
is admin/airlive

Rename the Camera
12
For easy memory, you can rename the camera.
For example, you can name this camera by
"Babys Room".

Camea Live View
13
Press "Back" to 4-channel live viewing.
Baby’s Room

You can select any channel to enlarge the video
or 4-channel view by tapping the screen.
Camera Live View
14

Once you have the camera view, you need to
adjust the camera to the desired viewing angle.
Also you need to adjust the focus ring to have
the clearest view.
Adjust the view angle and focus
15

Now you can do free voice communication.
Please switch to single channel and enable the
audio function.
Transmit Audio from
Device to Camera
Transmit Audio from
Camera to Device
Two-Way Audio
16
