AirLive DS-100 User manual

DS-100
Device Serve
r
Use
r
’s Manual

Copyright and Disclaimer
AirLive DS-100 User’s Manual
Copyright & Disclaimer
No part of this publication may be reproduced in any form or by any means, whether
electronic, mechanical, photocopying, or recording without the written consent of OvisLink
Corp.
OvisLink Corp. has made the best effort to ensure the accuracy of the information in this
user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
Please use with caution. All information is subject to change without notice
All Trademarks are properties of their respective holders.

Copyright and Disclaimer
AirLive DS-100 User’s Manual
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class B computing
device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a commercial
environment.
European Community (CE) Electromagnetic Compatibility Directive
This equipment has been tested and found to comply with the protection requirements of
European Emission Standard EN55022/EN61000-3 and the Generic European Immunity
Standard EN55024.
EMC:
Warning:
zSelf-demolition on Product is strictly prohibited. Damage caused by self-demolition will
be charged for repairing fees.
zDo not place product at outdoor or sandstorm.
zBefore installation, please make sure input power supply and product specifications
are compatible to each other.
EN55022: 2006 + A1: 2007 class B
IEC61000-4-2: 1995 + A1: 1999 + A2: 2000 4K V CD, 8KV, AD
IEC61000-4-3: 2006 3V/m
IEC61000-4-4: 2004 1KV – (power line), 0.5KV – (signal line)

Table of Contents
i
AirLive DS-100 User’s Manual
Table of Contents
1. Introduction ................................................................................................1
1.1 Overview..............................................................................................1
1.2 How to Use This Guide........................................................................3
1.3 Firmware Upgrade and Tech Support ..................................................4
1.4 Features...............................................................................................4
2. Installing the DS-100..................................................................................5
2.1 Before You Start...................................................................................5
2.2 Package Content .................................................................................5
2.3 Knowing your DS-100..........................................................................5
2.4 Hardware Installation ...........................................................................8
2.5 LED Indicator .......................................................................................9
3. Configuring the DS-100 ...........................................................................11
3.1 Important Information.........................................................................11
3.2 Prepare your PC ................................................................................11
3.3 Management Interface.......................................................................12
3.4 Introduction to Web Management......................................................12
3.4.1 Getting into Web Management ..................................................................13
4. Web Management in DS-100 ...................................................................14
4.1 Menu Structure of DS-100 .................................................................14
4.2 System Configuration.........................................................................16
4.2.1 DS-100 Configuration ................................................................................16
4.2.2 Gateway/Controller....................................................................................17
4.2.3 Firmware Upgrade.....................................................................................22
4.3 Operation Instructions........................................................................24
5. Troubleshooting.......................................................................................25
5.1 Diagnosing LED Indicators ................................................................25
5.2 Cabling...............................................................................................25
6. Specifications...........................................................................................26
7. Network Glossary ....................................................................................28

1. Introduction
1
AirLive DS-100 User’s Manual
1 1. Introduction
1.1 Overview
Whether you are “operating a wireless hotspot service for generating revenue” or “providing
free but controlled wireless internet access to guests”, it would be handy to both the
operators and the wireless users if the account information (such as username, password,
SSID and etc.) can be readily output to POS printers and printed out as account tickets.
DS-100 is designed specifically to operate in conjunction with specific
Controllers/Gateways. Typical serial POS printers on the market today may or may not be
IP network ready, and it is not practical to integrate each brand one-by-one with
Controllers/Gateways. Hence, it has specifically designed a smart device server – DS-100,
for two purposes:
1. Attaching before a serial POS printer so that one or more POS printers can be
connected to a Controller/Gateway via IP networks.
2. Pre-integrated with the Controller/Gateway so that account generation becomes quick
and easy to the operator, simply by a push of buttons on the device.
It provides DS-100 and aPOS printer as a combo set called Network Ticket Generator.
The followings are typical application scenarios:
zA small business who wishes to quickly set up a wireless service hotspot for charged
internet service may purchase a Gateway, and a Network Ticket Generators set. The
Gateway alone serves as an AP and a gateway, Network Ticket Generator enables the
registration operator to generate and issue accounts via push buttons on the DS-100
and hand out the account ticket printed out by POS printer.
zA corporate has several sites. Deployed at the reception area of each site are with a
DS-100 and a POS printer. Guests who need wireless connection to the internet
simply need to request the receptionist and obtain a slip with account information. The
guest account will automatically expire after the pre-configured time.
zA hotel has a Controller/Gateway and multiple APs within it’s hospitality areas. Multiple
sets of Network Ticket Generator are distributed at the service desks and lounge
counters. The service clerks are able to create accounts for their guests with charged
or free internet service depending on the hotel’s service model.

1. Introduction
AirLive DS-100 User’s Manual
2
Below are two network diagrams examples using Network Ticket Generator combo set.
(1) One Gateway with one Network Ticket Generator set.
(2) One Gateway with multiple Network Ticket-Generator sets.
Note: The POS printer has an individual manual, therefore, its configuration
details is not covered in this guide.

1. Introduction
3
AirLive DS-100 User’s Manual
Though DS-100 is specifically designed to for on-demand account generation and operate
POS printers, it can also be deployed independently to connect other RS232 devices to an
Ethernet network for remote operation. If you will be deploying DS-100 independently to
manage other serial devices, please carefully set the Serial Settings in DS-100 to match
the operating needs of your serial device.
Note: If you connect other serial device to DS-100 and are unable to
remotely operate your connected serial device, please check that:
zThe settings under Serial Settings of DS-100 are configured to
match your serial device operating requirements.
zIf your serial device application operates on pure serial
communication then you need to setup a COM port redirector.
1.2 How to Use This Guide
DS-100 is a device server. Main function is to play a bridge between RS-232 and RJ-45 It is
recommended that you read through the entire user’s guide whenever possible. The user
guide is divided into different chapters. You should read at least go through the first 2
chapters before attempting to install the device.
Recommended Reading
Chapter 1: This chapter explains the basic information for DS-100. It is a must read.
Chapter 2: This chapter is about hardware installation. You should read through the
entire chapter.
Chapter 3:
3.1 Important Information: This section has information of default setting such as
IP, Username, and Password.
3.3 Management Interface: This section introduces Web management.
3.4 Introduction to Web Management: This section tells you how to get into the
WebUI using HTTP.
Chapter 4: This chapter explains all of the management functions via Web management.
Chapter 6: This chapter shows technical specification of DS-100.
Chapter 7: Explanation on network technical terms from A to Z. Highly recommended for
reference when you encounter an unfamiliar term.

1. Introduction
AirLive DS-100 User’s Manual
4
1.3 Firmware Upgrade and Tech Support
If you encounter a technical issue that can not be resolved by information on this guide, we
recommend that you visit our comprehensive website support at www.airlive.com. The
tech support FAQ are frequently updated with latest information.
In addition, you might find new firmwares that either increase software functions or provide
bug fixes for DS-100. You can reach our on-line support center at the following link:
http://www.airlive.com/support/support_2.jsp
Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.
AirLive Newsletter subscribers receives instant email notifications when there are new
download or tech support FAQ updates for their subscribed AirLive models. To become
an AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp
1.4 Features
1 x 10/100Mbps RJ-45 port + 2 x RS-232 DB9 Serial port
Trigger the Built-in On-Demand Billing Plan inside the M-series Controller
Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Supports Network Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, SNMP,
HTTP
Web Management via web browser

2. Installing the DS-100
5
AirLive DS-100 User’s Manual
2 2. Installing the DS-100
This chapter describes the hardware features and the hardware installation procedure for
the DS-100. For software configuration, please go to chapter 3 for more details.
2.1 Before You Start
It is important to read through this section before you install the DS-100.
The maximum cabling distance is 100 meters.
Make sure that the connection between DS-100 and PC/NB is well established
Always check the LED lights for troubleshooting
2.2 Package Content
Unpack the contents of the DS-100 and verify them against the checklist below.
One unit of DS-100
Power Adapter
User Guide (CD-ROM)
Quick Installation Guide
Compare the contents of your DS-100 package with the standard checklist above. If any
item is missing or damaged, please contact your local dealer for service.
2.3 Knowing your DS-100
Below are descriptions and diagrams of the product:

2. Installing the DS-100
AirLive DS-100 User’s Manual
6
Panel Overview
Top Panel
Adapter Socket
(12V/1A)
The power socket for connecting to an external power
source through the power adapter provided in the
package.
DC Socket
(DC12V)
The power socket for connecting to an external power
source through a DC power supply.
Restart Button Press to restart DS-100.
Ethernet Port Ethernet port for connecting to a Controller/Gateway.

2. Installing the DS-100
7
AirLive DS-100 User’s Manual
Bottom Panel
COM 1 Serial Port for connection with a POS printer.
COM 2 Serial Port for connection with a POS printer. Used for
back up when COM 1 malfunctions.
Main Panel
OPTION For future use.
INC Increase the numeric display for selecting a billing plan
number.
COM For switching the output to COM1 or COM2.
FUNCTION Press this button followed by selecting a number and
press Enter will perform a specific action. The available

2. Installing the DS-100
AirLive DS-100 User’s Manual
8
combinations are as follows:
FUNTION + 1 + ENTER: Print out the IP address of
DS-100.
FUNTION + 8 + ENTER: Enter panel test mode.
FUNTION + 9 + ENTER: Reset DS-100 to factory
default.
FUNTION + 0 + ENTER: Lock the panel of DS-100. To
Unlock, select your lock number and press ENTER
DEC Decrease the numeric display for selecting a billing plan
number.
ENTER Create and print out an account for the chosen billing
plan.
2.4 Hardware Installation

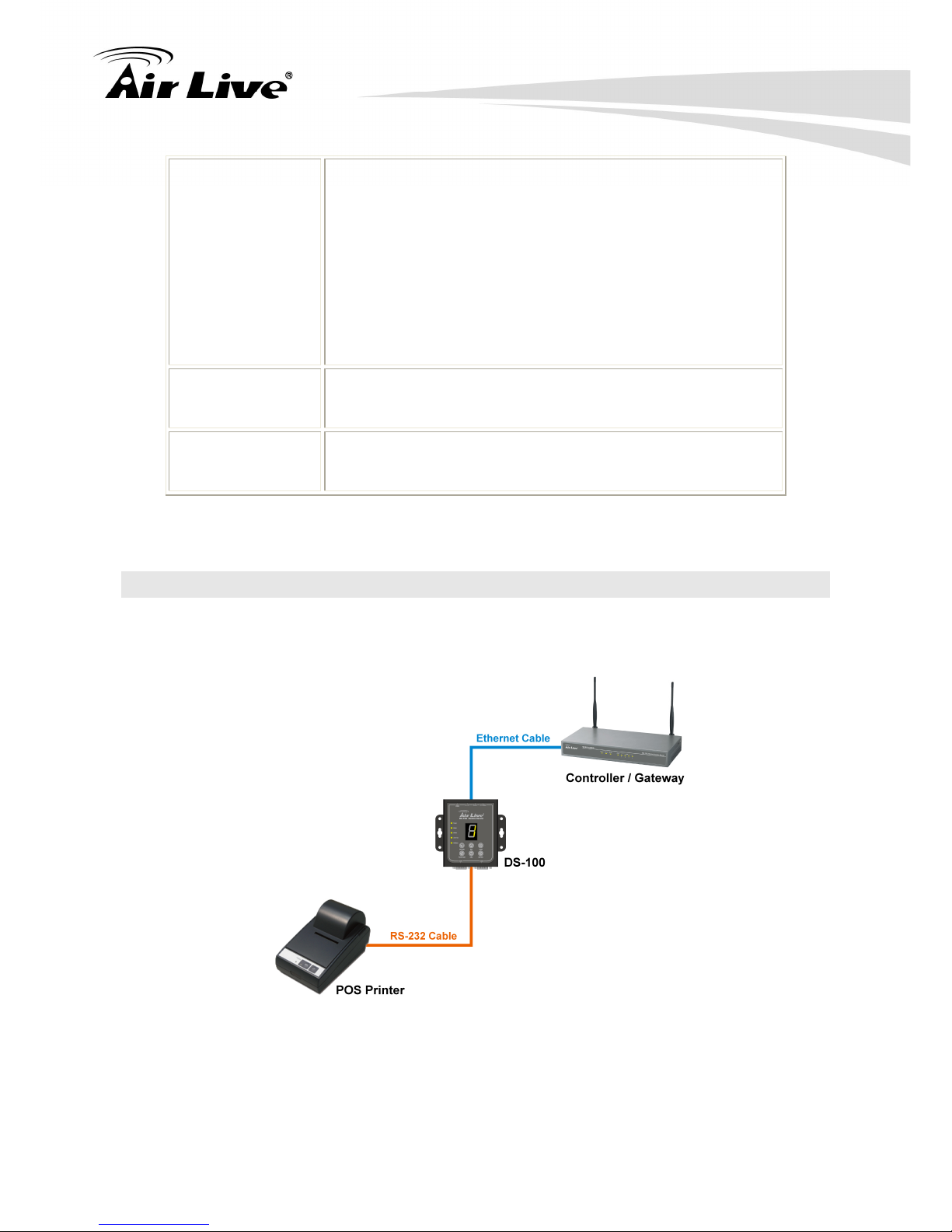

The following diagram illustrates how to connect DS-100 to the POS printer and
Gateways/Controllers. Please follow the steps described below to install hardware:
(1) Attach DS-100 to a power source, either through adaptors provided in the package or
through DC socket with a DC power supply.
(2) Attach POS printer to a power source, through adaptors provided in the package and

2. Installing the DS-100
9
AirLive DS-100 User’s Manual
turn on the power switch situated on the left side of the device.
(3) Connect POS printer to the COM1 port of DS-100 by a RS-232 cable provided within
POS printer package.
(4) Connect DS-100 to the LAN port of your Gateway/Controller by an Ethernet cable.
Note: You need to connect to the correct LAN port if your Gateway/Controller is
operating in Port-based mode.
A. Make sure mounting surface on the bottom of the DS-100 is grease and dust free.
B. Remove adhesive backing from your Rubber Feet.
C. Apply the Rubber Feet to each corner on the bottom of the DS-100. These footpads
can prevent the Switch from shock/vibration.
2.5 LED Indicator
The LED Indicators gives real-time information of systematic operation status. The
following table provides descriptions of LED status and their meaning.
POWER TURNED ON WHEN PROPERLY CONNECT TO POWER
SUPPLY.
COM 1 Turned on when output is switched to COM1.

2. Installing the DS-100
AirLive DS-100 User’s Manual
10
Note:
When COM 1 and COM 2 are blinking simultaneously,
this means that Terminal Server configuration is not set
correctly. Please check the settings in Terminal Server
of your Gateway/Controller.
When COM 1 and COM 2 are turned on simultaneously,
this means that the system is in safe mode.
COM 2 Turned on when output is switched to COM2.
Note:
When COM 1 and COM 2 are blinking simultaneously,
this means that Terminal Server configuration is not set
correctly. Please check the settings in Terminal Server
of your Gateway/Controller.
When COM 1 and COM 2 are turned on simultaneously,
this means that the system is in safe mode.
Link / Act Turned on when LAN port is connected to an upstream
networking device such as a switch or Gateway/Controller.
100 Mbps Turned on when LAN port is connected.
7 Segment Displays an integer between 0 ~ 9 which indicates the billing
plan number selected.

3. Configuring DS-100
11
AirLive DS-100 User’s Manual
DS-100 is designed specifically to operate in conjunction with all Gateways/Controllers. If
you are not using default settings, before connecting DS-100 to your Gateway/Controller,
some configurations steps are required. The configuration instructions for
Gateways/Controllers and DS-100 are covered in the following sections.
3.1 Important Information
The following information will help you to get start quickly. However, we recommend you
to read through the entire manual before you start. Please note the username and
password are case sensitive.
The default IP address is 192.168.1.10
The default Subnet Mask is 255.255.255.0
The default Gateway is 192.168.1.254
3.2 Prepare your PC
The DS-100 can be managed remotely by a PC through RJ-45 cable. The default IP
address of the DS-100 is 192.168.1.10 with a subnet mask of 255.255.255.0. This means
the IP address of the PC should be in the range of 192.168.1.2 to 192.168.1.253 (do not
include 192.168.1.10).
To prepare your PC for management with the DS-100, please do the following:
1. Connect your PC directly to the copper port of DS-100
2. Set your PC’s IP address manually to 192.168.1.100 (or other address in the same
subnet)
3 3. Configuring the DS-100

3. Configuring DS-100
AirLive DS-100 User’s Manual
12
You are ready now to configure the DS-100 by using your PC.
3.3 Management Interface
The DS-100 can be configured using on the Web management interfaces.
Web Management (HTTP): You can manage your DS-100 by simply typing its IP
address in the web browser. Most functions of DS-100 can be accessed by web
management inter face. We recommend using this interface for initial configurations.
To begin, simply enter DS-100’s IP address (default is 192.168.1.10) on the web
browser.
3.4 Introduction to Web Management
The DS-100 offers Web Management interfaces for users. Users can easily access and
control DS-100 via web browsers. The Web-Based Management supports Internet
Explorer 5.0. It is based on Java Applets with an aim to reduce network bandwidth
consumption, enhance access speed and present an easy viewing screen.

3. Configuring DS-100
13
AirLive DS-100 User’s Manual
Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. The
user has to explicitly modify the browser setting to enable Java Applets to use network
ports.
3.4.1 Getting into Web Management
Web Management (HTTP)
1. Launch the Internet Explorer.
2. Type http://192.168.1.10. Press “Enter”.
3. The home screen of the Web-based management appears.

4. Web Management in SNMP-GSH2404L
AirLive DS-100 User’s Manual
14
In this chapter, we will explain all settings in web management interface. Please be sure
to read through Chapter 3’s “Introduction to Web Management” first.
4.1 Menu Structure of DS-100
The web management menu of DS-100 is divided into 4 parts: Serial Settings, Network
Settings, Utilities, Status.
4 4. Web Management in
DS-100

4. Web Management in DS-100
15
AirLive DS-100 User’s Manual
Serial Settings (corresponding to POS printer)
Data Baud Rate Select the desired baud rate. (The number of
characters per second transferred)
Data Bits Select the number of bits in each character.
Data Parity Choose between Even or Odd for error detection,
or select None for no error detection.
Stop Bits Choose the number of stop bits to be sent at the
end of every character. Electronic devices usually
use 1 bit, slower electromechanical devices use
1.5 bit.
Flow Control Choose the method of flow control to pause and
resume the transmission of data to coordinate with
printer speed. Select None if flow control is not
required.
Network Settings
Static IP Address The static IP address assigned to DS-100.
Static Subnet Mask The subnet mask of DS-100.
Static Default Gateway The default gateway of DS-100.
Static DNS Server Set the DNS server used by DS-100.
Transmit Timer TCP transmit timer, set the desired value or use
default value. When the timer expires for a sent
packet, sender will retransmit the packet.
Server Listening Port Set the port number for communication with the
Gateway/Controller.
Lock Password This attribute is the integer between 0 ~ 9 that will
be set as the password for unlocking the main
panel.
Utilities
Firmware Upgrade Firmware of DS-100 can be upgraded by clicking
the Apply button. Note: Upgrade preparations are
required before upgrade, please refer to Appendix
B. Firmware Upgrade

4. Web Management in DS-100
AirLive DS-100 User’s Manual
16
Restart Click Apply to restart DS-100 device.
Reset to Factory Default Click Apply to reset DS-100 to factory default
settings.
Status
Software Version The current software version running on DS-100.
4.2 System Configuration
DS-100 is designed specifically to operate in conjunction with all Gateways/Controllers. If
you are not using default settings, before connecting DS-100 to your Gateway/Controller,
some configurations steps are required. The configuration instructions for
Gateways/Controllers and DS-100 are covered in the following sections.
4.2.1 DS-100 Configuration
DS-100 supports web based configuration. By factory default, DS-100 web interface can be
accessed with
IP address: 192.168.1.10
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254
Step1:
Configure administrator PC’s TCP/IP settings
with a static IP address that is under the same
subnet mask as DS-100. For example:
192.168.1.100
