AirLive WIAS-3200N User manual

Use
r
’s Manual
802.11n Internet Access
Server
W
IAS-3200N

Copyright and Disclaimer
AirLive WIAS-3200N User’s Manual
Copyright & Disclaimer
No part of this publication may be reproduced in any form or by any means, whether
electronic, mechanical, photocopying, or recording without the written consent of OvisLink
Corp.
OvisLink Corp. has made the best effort to ensure the accuracy of the information in this
user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
Please use with caution. All information is subject to change without notice
All Trademarks are properties of their respective holders.

Copyright and Disclaimer
AirLive WIAS-3200N User’s Manual
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. This device complies
with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. For
product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.

Table of Contents
i AirLive WIAS-3200N User’s Manual
Table of Contents
1Before You Start ......................................................................................4
1.1 Preface..........................................................................................4
1.2 Document Conventions.................................................................4
1.3 Package Checklist.........................................................................4
2System Overview and Getting Started ..................................................6
2.1 Introduction of WIAS-3200N .........................................................6
2.2 System Concept............................................................................6
2.3 Hardware Descriptions..................................................................7
2.4 System Requirement.....................................................................9
2.5 Installation Steps .........................................................................10

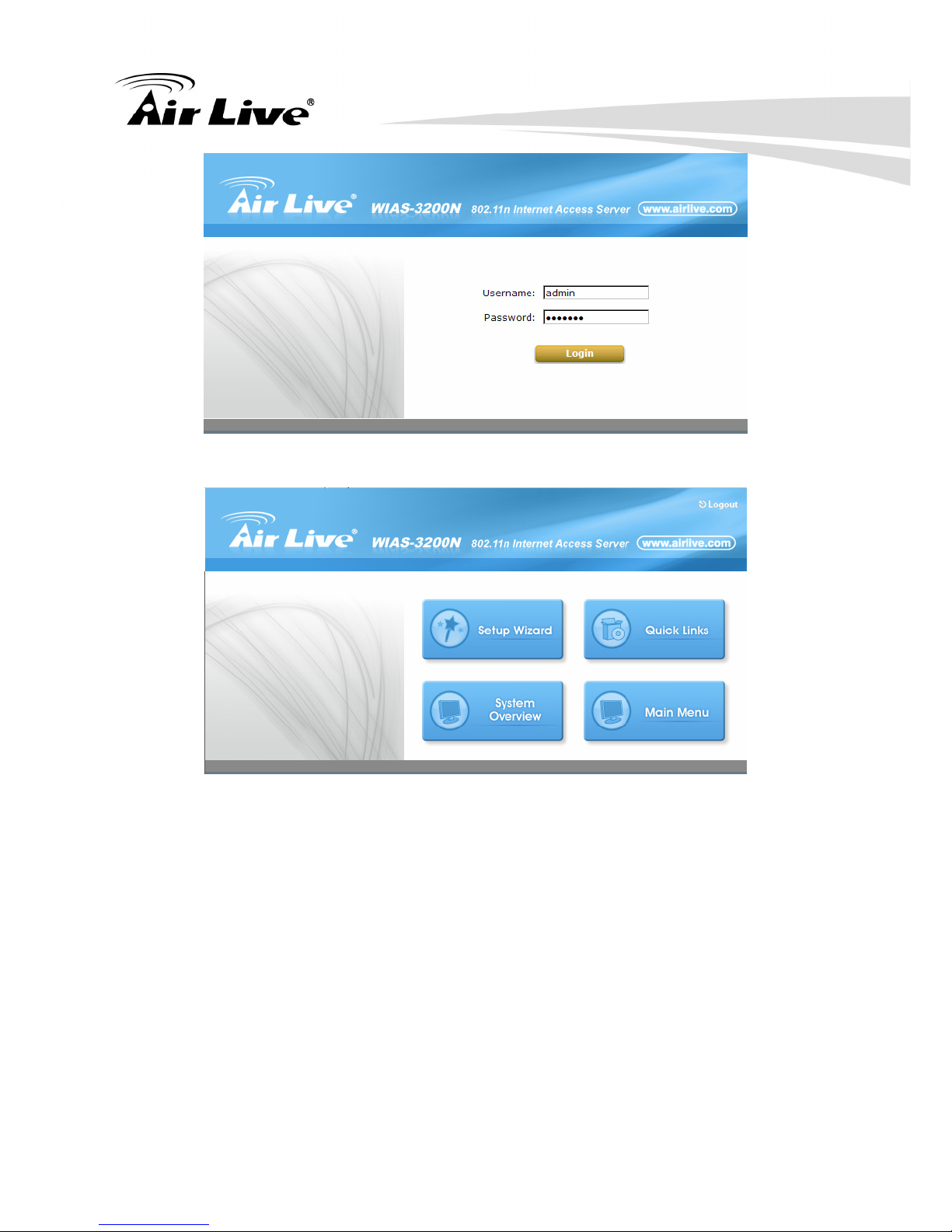

2.6 Access Web Management Interface ........................................... 11
3Combine WIAS-3200N to the Network .................................................13
3.1 Network Requirement .................................................................13
3.2 Configure WAN Port....................................................................13

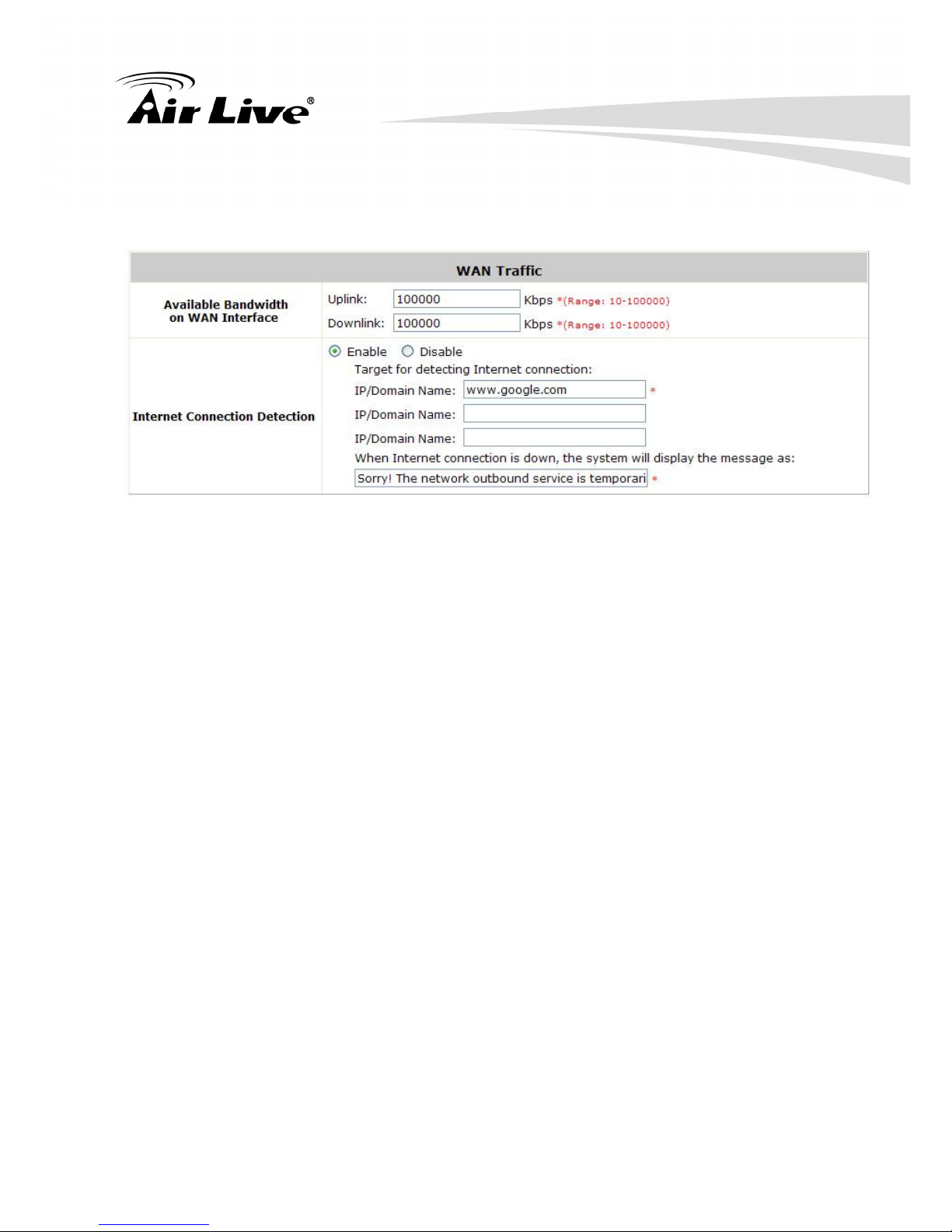

3.3 Internet Connection Detection.....................................................15
3.4 WAN Bandwidth Control..............................................................16

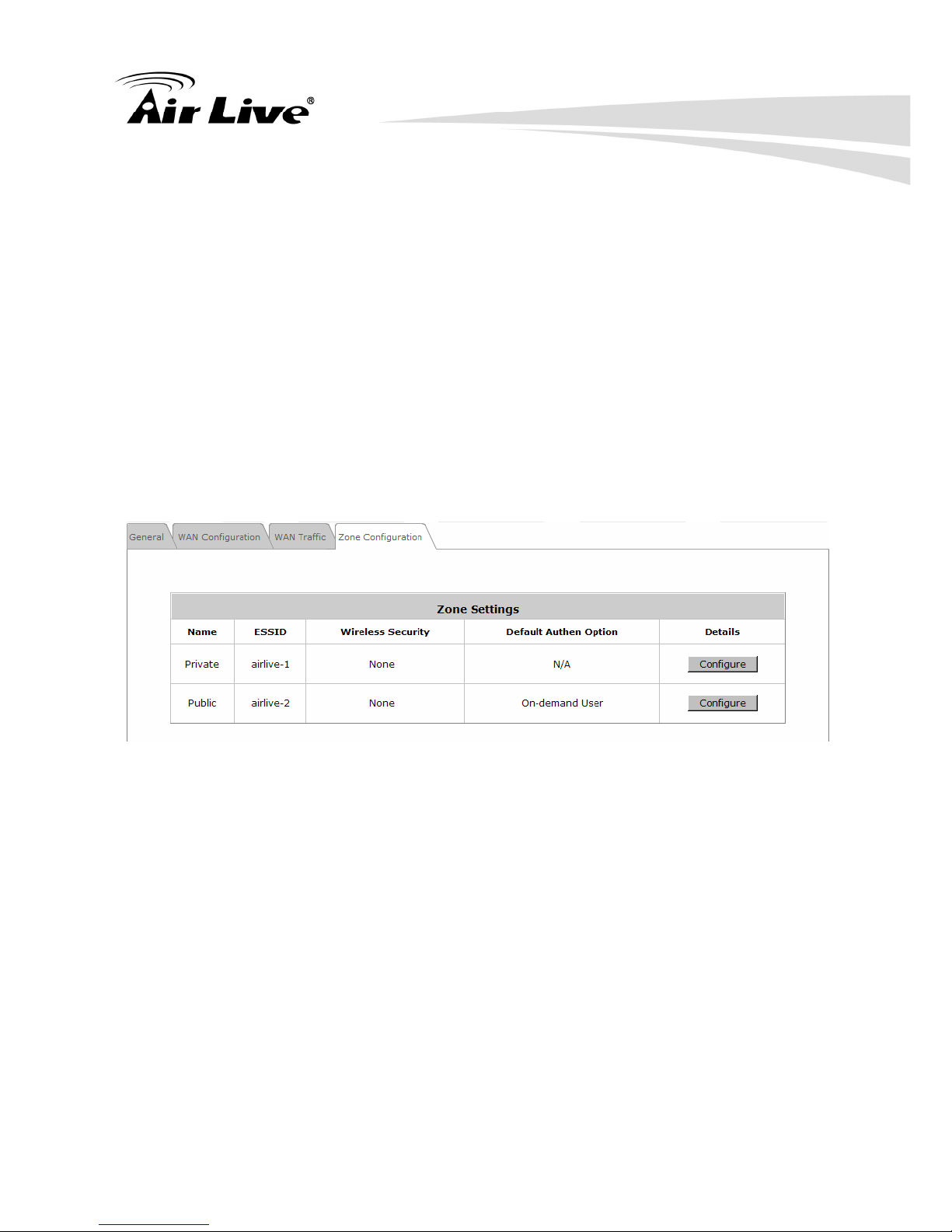

3.5 What is Zone ...............................................................................17
4Let Your Network to Be a Wireless Network.......................................22
4.1 System Wireless General Settings..............................................22
4.2 Zone Wireless Settings ...............................................................23
4.3 Zone Wireless Security ...............................................................26
5Who Can Access the Network..............................................................29
5.1 Type of Users ..............................................................................29
5.2 User Login...................................................................................43

Table of Contents
AirLive WIAS-3200N User’s Manual ii
6Restrain the Users.................................................................................47
6.1 Black List.....................................................................................47
6.2 MAC Address Control..................................................................49
6.3 Policy...........................................................................................50
7Access Network without Authentication.............................................59
7.1 DMZ ............................................................................................59
7.2 Virtual Server ..............................................................................60
7.3 Privilege List................................................................................61
7.4 Disable Authentication in Public Zone.........................................63
8User Login and Logout ......................................................................... 64
8.1. Before User Login .......................................................................64
8.2. After User Login ..........................................................................68
9Networking Features of a Gateway......................................................70
9.1 IP Plug and Play..........................................................................70
9.2 Dynamic Domain Name Service (DDNS)....................................71
9.3 Port and IP Redirect....................................................................72
10 System Management and Utilities ................................................73
10.1 System Time ...............................................................................73
10.2 Management IP...........................................................................73
10.3 User Log Access IP Address .......................................................75
10.4 SNMP..........................................................................................76
10.5 Three-Level Administration .........................................................76
10.6 Change Password.......................................................................78
10.7 Backup / Restore and Reset to Factory ......................................79
10.8 Firmware Upgrade ......................................................................80
10.9 Restart.........................................................................................81

Table of Contents
iii AirLive WIAS-3200N User’s Manual
10.10 Network Utility .............................................................................82
10.11 Monitor IP Link ............................................................................83
10.12 Console Interface ........................................................................84
11 System Status and Reports...........................................................87
11.1 View the Status............................................................................87
11.2 Notification ..................................................................................94
12 Advanced Applications..................................................................98
12.1 Upload/Download Local Users Accounts ....................................98
12.2 RADIUS Advanced Settings........................................................99
12.3 Roaming Out .............................................................................100
12.4 Customizable Pages .................................................................101
Appendix A. Network Configuration on PC & User Login .....................104
Appendix B. Policy Priority.......................................................................117
Appendix C. WDS Management ...............................................................118
Appendix D. On-demand Account Types & Billing Plan........................120
Appendix E. External Payment Gateways ...............................................124

1. Before You Start
AirLive WIAS-3200N User’s Manual 4
1 1 Before You Start
1.1 Preface
This manual is for WLAN service providers or network administrators to set up a network
environment using the WIAS-3200N system. It contains step-by-step procedures and
graphic examples to guide MIS staff or individuals with slight network system knowledge to
complete the installation.
1.2 Document Conventions
Caution: Represents essential steps, actions, or messages that should not be
ignored.
Contains related information that corresponds to a topic.
Note:
Indicates that clicking this button will return to the homepage of this
section.
Indicates that clicking this button will exit the system.
Indicates that clicking this button will apply all of your settings.
Indicates that clicking this button will clear what you have set before
these settings are applied.
1.3 Package Checklist
The standard package of WIAS-3200N includes:
yWIAS-3200N x 1
yCD-ROM (with User’s Manual and QIG) x 1
yQuick Installation Guide (QIG) x 1
yConsole Cable x 1

1. Before You Start
5 AirLive WIAS-3200N User’s Manual
yEthernet Cable x 1
yPower Adapter (DC 12V) x 1
yRubber Antenna x 2
yMounting Kit x 1
yGround Cable x 1
Caution:
It is highly recommended to use all the supplies in the package instead of substituting any
components by other suppliers to guarantee best performance.

2. System Overview and Getting Started
AirLive WIAS-3200N User’s Manual 6
2 2 System Overview and Getting
Started
2.1 Introduction of WIAS-3200N
The WIAS-3200N is the most economical and feature rich Wireless Hotspot Gateway,
targeting mini-size stores that want to provide small, single-point wireless Internet access
service. WIAS-3200N is a perfect choice for beginners to run hotspot businesses. It does
not cost much compared to buying a pile of equipments, nor does it take the skills of an
expert to glue multiple applications out of multiple freeware. Feature-packed for hotspot
operation, WIAS-3200N comes with built-in 802.11 n/b/g MIMO access point, web
server and web pages for clients to login, easy logo-loading for branding a hotspot
store, simple user/visitor account management tool, payment plans, multiple credit
card gateways, traffic logs, IP sharing and etc. WIAS-3200N also brings in an extra
advantage - the wall-mountable, dust-proof (IP50) metal housing.
2.2 System Concept
WIAS-3200N is capable of managing user authentication, authorization and accounting.
The user account information is stored in the local database or a specified external
RADIUS database server. Featured with user authentication and integrated with external
payment gateway, WIAS-3200N allows users to easily pay the fee and enjoy the Internet
service using credit cards through a variety of payment gateways including Authorize.Net,
PayPal, SecurePay, and WorldPay. Furthermore, WIAS-3200N introduces the concept of
Zones – Private Zone and Public Zone, each with its own definable access control profiles.
Private Zone means clients are not required to be authenticated before using the network
service. On the other hand, clients in Public Zone are required to get authentication before
using the network service. This is very useful for hotspot owners seeking to deploy wireless
network service for clients and manage the network as well. The following diagram is an
example of WIAS-3200N set to manage the Internet and network access services at a
hotspot venue.

2. System Overview and Getting Started
7 AirLive WIAS-3200N User’s Manual
2.3 Hardware Descriptions
Front Panel
1 USB For future usage only.
2 WES Press to start running WES (WDS Easy Setup) process.
3 Console Attach the RS-232 console cable here, for management use
only.
4 LAN1/LAN2 Attach Ethernet cables here for connecting to the wired local
network. LAN1 maps to Private Zone and requires no user
authentication, LAN2 maps to Public Zone and by default
requires user authentication.

2. System Overview and Getting Started
AirLive WIAS-3200N User’s Manual 8
WAN (PoE)
5 Attach the wired external network here. This port supports
Power over Ethernet (PoE) for flexible installation.
6 Reset This is hardware reset button. Press once to restart the
system.
7 Power Socket For connecting to external power supply via the power
adapter.
(12VDC/1A)
Rear Panel
Attach antennas here. WIAS-3200N supports 1 RF interface
with 2 SMA connectors.
Antenna Connector
Top LED Panel

2. System Overview and Getting Started
9 AirLive WIAS-3200N User’s Manual
1 LED ON indicates power on; OFF indicates power off.
2 LED ON indicates WAN connection; OFF indicates no connection;
BLINKING indicates transmitting data.
3 LED ON indicates LAN1/LAN2 connection; OFF indicates no connection;
BLINKING indicates transmitting data.
4 LED ON indicates wireless ready.
5 LED ON indicates WAN port is connected to the internet.
6 For indicating WES status during WES setup:
Master Slave
WES Start LED BLINKING
SLOWLY
LED BLINKING
QUICKLY
WES Negotiate LED BLINKING
SLOWLY
LED BLINKING
QUICKLY
WES Fail (Negotiate
Timeout) LED OFF LED OFF
WES Success LED ON for over 5
seconds
LED ON for over 5
seconds (after Master
displays WES
Success)
7 For future usage only.
2.4 System Requirement
yStandard 10/100BaseT including network cables with RJ-45 connectors
yAll PCs need to install the TCP/IP network protocol

2. System Overview and Getting Started
AirLive WIAS-3200N User’s Manual 10
2.5 Installation Steps
Please follow the steps below to install WIAS-3200N:
Please follow the steps mentioned below to install the hardware of WIAS-3200N:
1. Place the WIAS-3200N at a best location.
The best location for WIAS-3200N is usually at the center of your wireless network.
2. Connect WIAS-3200N to your outbound network device.
Connect one end of the Ethernet cable to the WAN port of WIAS-3200N on the front
panel. Depending on the type of internet service provided by your ISP, connect the
other end of the cable to the ATU-Router of an ADSL, a cable modem, a switch or a
hub. The WAN LED indicator should be ON to indicate a proper connection.
3. Connect WIAS-3200N to your network device.
Connect one end of the Ethernet cable to the LAN1 port of WIAS-3200N on the front
panel. Connect the other end of the cable to a PC for configuring the system. The LAN1
LED indicator should be ON to indicate a proper connection.
Note:
WIAS-3200N has two virtual zones Private and Public which are mapped to
LAN1(192.168.1.254) and LAN2(192.168.11.254) respectively.
4. There are two ways to supply power over to WIAS-3200N.
(a) Connect the DC power adapter to the WIAS-3200N power socket on the front
panel.
(b) WIAS-3200N is capable of transmitting DC current via its WAN PoE port. Connect
an IEEE 802.3af-compliant PSE device, e.g. a PoE-switch, to the WAN port of
WIAS-3200N with the Ethernet cable.
5. Now, the hardware installation is completed.
6. Caution:
Please only use the power adapter supplied with the WIAS-3200N package. Using a
different power adapter may damage this system.
7. Caution:
To double verify the wired connection between WIAS-3200N and your
switch/router/hub, please check the LED status indication of these network devices.

2. System Overview and Getting Started
11 AirLive WIAS-3200N User’s Manual
2.6 Access Web Management Interface
WIAS-3200N supports Web Management Interface (WMI) configuration. Upon the
completion of hardware installation, WIAS-3200N can be configured via web browsers with
JavaScript enabled such as Internet Explorer version 6.0 and above or Firefox.
Default LAN interface IP address:
yLAN1 (192.168.1.254) is mapped to Private Zone with no authentication is required for
users.
yLAN2 (192.168.11.254) is mapped to Public Zone, by default authentication is required
for users.
Note: The instructions below are illustrated with the administrator PC connected to
LAN1.
To access the web management interface, connect a PC to the LAN Port, and then launch
a browse. Make sure you have set DHCP in TCP/IP of your PC to get an IP address
dynamically. The default gateway IP address is the default gateway IP address of Private
Zone: “192.168.1.254”.
Next, enter the gateway IP address of WIAS-3200N at the address field. The default
gateway IP address from LAN Port is“https://192.168.1.254” (“https” is used for a secured
connection).
The administrator login page will appear. Enter “admin”, the default username, and “airlive”,
the default password, in the User Name and Password fields. Click LOGIN to log in.

2. System Overview and Getting Started
AirLive WIAS-3200N User’s Manual 12
After a successful login, a “Home” page with four main buttons will appear on the screen.
For the first time, if WIAS-3200N is not using a trusted SSL certificate, there will be a
“Certificate Error”, because the browser treats WIAS-3200N as an illegal website. Please
press “Continue to this website” to continue.
Caution:
If you can’t get the login screen, the reasons may be: (1) The PC is set incorrectly so
that the PC can’t obtain the IP address automatically from the LAN port; (2) The IP
address and the default gateway are not under the same network segment. Please set
your PC with a static IP address such as 192.168.1.xx in your network and then try it
again. For the configuration on PC, please refer to Appendix A. Network Configuration
on PC.

3. Combine WIAS-3200N to the Network
13 AirLive WIAS-3200N User’s Manual
3 3 Combine WIAS-3200N to the
Network
3.1 Network Requirement
In the general network environment, the main role of WIAS-3200N is a gateway that
manages all the network access from internal network to Internet. Thus, the first step is to
prepare an Internet connection from your ISP (Internet Service Provider) and connect it to
the WAN port of WIAS-3200N.
3.2 Configure WAN Port
There are 3 connection types for the WAN Port: Static, Dynamic and PPPoE. These
connection types are enough to support most ISP.
Now, let us discuss how to configure WAN port. Go to: Main Menu >> System >> WAN
Configuration.
The parameters related to each connection method are described in the following section:
3.2.1 Static IP
Static: Manually specifying the IP address of the WAN Port. The fields with red asterisks
are mandatory.
zIP Address: The IP address of the WAN port.
zSubnet Mask: The subnet mask of the WAN port.
zDefault Gateway: The gateway of the WAN port.
zPreferred DNS Server: The primary DNS Server of the system.
zAlternate DNS Server: The substitute DNS Server of the system. This is an
optional field.

3. Combine WIAS-3200N to the Network
AirLive WIAS-3200N User’s Manual 14
3.2.2 Dynamic
Dynamic: It is only applicable for the network environment where the DHCP server is
available upstream of the system. Click the Renew button to get an IP address
automatically.
3.2.3 PPPoE
PPPoE: When selecting PPPoE to connect to the network, please set the “User Name”,
“Password”, “MTU” and “Clamp MSS”. There is a Dial on demand function under
PPPoE. If this function is enabled, a Maximum Idle Time will be available for input a value.
When the idle time is reached, the system will automatically disconnect itself.

3. Combine WIAS-3200N to the Network
15 AirLive WIAS-3200N User’s Manual
3.3 Internet Connection Detection
Configure Internet Connection Detection, go to: Main Menu >> System >> WAN Traffic.
Internet Connection Detection: When enabled, system will try to access these
IP/Domain addresses, if system can reach these IP/Domain address, it means that the
outbound Internet connection is in normal state. On the other hand, there is a text box
available for the administrator to enter a reminding message. This reminding message will
appear on clients’ screens when Internet connection is down.

3. Combine WIAS-3200N to the Network
AirLive WIAS-3200N User’s Manual 16
3.4 WAN Bandwidth Control
Configure WAN Bandwidth Control, go to: System >> WAN Traffic.
The feature gives administrators control over the entire system’s traffic though the WAN
interface. These parameters set here should not exceed the real bandwidth coming from
your ISP. For example, if your xDSL is 8Mbs/640kbs, you may input these two values here.
Available Bandwidth on WAN Interface:
yUplink: It specifies the maximum uplink bandwidth that can be shared by clients of the
system.
yDownlink: It specifies the maximum downlink bandwidth that can be shared by clients
of the system.

3. Combine WIAS-3200N to the Network
17 AirLive WIAS-3200N User’s Manual
3.5 What is Zone
Configure Zone, go to: Main Menu >> System >> Zone Configuration.
A Zone is a logical network area that covers wired or wireless networks, or both of them. By
associating to a unique ESSID of a Zone, wireless network is divided into different logical
zones. Clients attempting to access the resources within a Zone will be controlled based
on the access control profile of that Zone, such as authentication, security feature, wireless
encryption method, traffic control, and etc.
There are two Zones that can be utilized by WIAS-3200N – Private Zone and Public Zone,
as shown in the table below. Private Zone means clients are not required to be
authenticated before using the network service. On the other hand, clients in Public Zone
are required to get authentication before using the network service.
yName: Mnemonic name of the Zone.
yESSID: The SSID that is associated with the Zone.
yWireless Security: Data encryption method for wireless networks within the Zone.
yDefault Authen Option: Default authentication method/server that is used within the
Zone.
yDetails: Configurable, detailed settings for each Zone.
Click Configure button to configure each Zone: Basic Settings, Authentication Settings
(Public Zone only), Wireless Settings, and WDS Settings (Public Zone only).
3.5.1 Port Role Assignment
WIAS-3200N supports two zones, Private and Public. In the Private Zone,
authentication is not required to access the network via wired and wireless. In the
Public Zone, by default, Authentication Required is enabled by default, so clients are
