Airmax Shallow Water Series User manual

Shallow Water Series®
SW20 & SW40

THANK YOU FOR CHOOSING
The Airmax®Aeration System
Shallow Water Series
SW20 & SW40
MAX DEPTH 6’
SECTION
ENGLISH
PAGE
1 System Components 4
2 System Installation 5-8
3 Initial Start-Up &
Seasonal Operation 8
4 Maintenance 9
5 Troubleshooting 9
6 Replacement Parts / Accessories 10
7 Warranty 19
See Other Languages Online
Important Safety Instructions
WARNING – Improper installation of the grounding plug increases risk of electric shock.
When repair or replacement of the cord or plug is required, do not connect the grounding
wire to either flat blade terminal. The wire with insulation having an outer surface that is
green with or without yellow stripes is the grounding wire.
Check with a qualified electrician or serviceman when the grounding instructions are not
completely understood, or when in doubt as to whether the product is properly grounded.
Do not modify the plug provided; if it does not fit the outlet, have the proper outlet
installed by a qualified technician.
For 120 VAC products: This product is for use on a nominal 120v circuit, and has a
grounding plug similar to the plug illustrated in sketch A in Figure below. A temporary
adapter similar to the adapter illustrated in sketches B and C may be used to connect
this plug to a 2-pole receptacle as shown in sketch B when a properly grounded outlet is
not available. The temporary adapter shall be used only until a properly grounded outlet
(sketch A) is installed by a qualified electrician. The green colored rigid ear, lug, or similar
part extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held in
place by a metal screw.
For 230 VAC products: This product is for use on a circuit having a nominal rating
more than 120v and is factory-equipped with a specific electric cord and plug for
connection to a proper electric circuit. Only connect the product to an outlet having
the same configuration as the plug. Do not use an adapter with this product. When
the product must be reconnected for use on a different type of electric circuit, the
reconnection shall be made by qualified service personnel.
• Read all operating instructions carefully.
• To reduce the risk of electric shock, connect only to a properly grounded, grounding-
type receptacle. If in doubt, have the outlet checked by a qualified electrician.
• This unit is to be used in a circuit protected by a ground fault circuit interrupter (GFCI).
• Disconnect unit from power source before handling or conducting maintenance.
• Repair or exchange of cable/power cord must be carried through by the supplier/
manufacturer.
• This unit has not been investigated for use in swimming pool areas.
• Airmax is not responsible for equipment damage or failure, losses, injury or death
resulting from failure to follow safety precautions, misuse or abuse of equipment.
CAUTION
• Never connect to an extension cord, which can result in equipment failure.
• Do not allow anything to rest on the power cord.
• Do not place the cabinet where people may step on the power cord.
• Never override or “cheat” electrical or mechanical interlock devices.
• Never attempt any maintenance function that is not specified in the user manual.
• Never operate the system if unusual noises or odors are detected. Disconnect the power
cord from the outlet and call for service.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is to be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA.
GROUNDING INSTRUCTIONS –This product must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric shock by providing an escape
wire for the electric current. This product is equipped with a cord having a grounding
wire with an appropriate grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
See Video Instructions of
the Airmax Aeration System
Installation Online
OWNER’S MANUAL FOR:
2

• Self-Weighted Airline: 3/8” 100’ Roll (#510118), 5/8” 100’ Roll (#510119):
Lead-free weighted airline is made of durable PVC composite. Fish hook
resistant and kink-free. Use from pond’s edge to diffuser.
• Direct Burial Airline: 5/8” 100’ Roll (#510120) Flexible, yet kink-free. Bury
from cabinet and compressor to pond’s edge when placing the cabinet
and compressor away from the pond.
1. System Components
EasySet™Airline
Airmax Composite Cabinet
*Depending on the type of installation, additional connector kits may be required. See
section 6 for connector kits.
SilentAir™LR Series Linear Diaphragm Compressor
1. High efficiency, linear diaphragm compressor
2. Air Filter maximizes the life of the compressor
3. Rubber compressor mounts reduce noise and vibration
for silent operation
4. Airflow manifold simplifies airflow management to
individual diffusers
5. Heat-resistant 3⁄8” flex tube protects against high temperatures
of the compressor
6. Airline quick disconnects for easy system removal
and storage
1
5
3
Note: These systems are designed for ponds up to 6’ deep. Operating a
shallow water system at depths greater
than 6’ will void warranty and cause premature failures.
6
4
2
ProAir®2 Weighted Diffuser
1. PTFE non-stick 6” membrane
diffuser sticks provides the synergy
of air stones while being virtually
maintenance-free
2. Check valve prevents back
pressure to compressor
3. Weighted design keeps diffuser
submerged while maintaining an
upright position during installation
3
2
1
Diffuser Size: 14.75”L x 8”W x 3.75”H
ENGLISH
1
2
4
Cabinet Security
Bolt Kit
6
5
3
1. Enhanced Cooling System tunnels air flow evenly through the
cabinet with a high flow cooling fan
2. Composite cabinet with removable top protects components
while providing easy access
3. Elevated base protects against damaging flood water
4. Pre-wired electrical box simplifies electrical connections for
easy setup
5. Dual Air Filters – High density cabinet intake pre-filter and
compressor air filter maximize the life of the system
6. Cabinet Security Bolt Kit protects your investment from
unwanted guests
Cabinet Size: 23”L x 17”W x 15”H
4

Running
Amps Volts Max CFM Power Cord Max Pond Size Max Depth # Diffusers
SW20 .43 115v 2.5 6' ¼ Acre 6' 2
SW40 .87 115v 4.9 6' ½ Acre 6' 4
2. System Installation
Tools Required:
• Placement rope • Utility razor knife
• Level • Boat/Raft/Swimsuit
• Small stone or gravel • Shovel
• Rake • Flathead screwdriver
• Coast Guard-approved life jacket
Tech Specs:
ENGLISH
1. Place the cabinet on the ground in the selected location and mark
an area 6” wider than the base of the cabinet on all sides. 2. Move the cabinet and remove the sod from the area, filling in with small stone or gravel. This allows for a firm base for the cabinet and
for drainage. Open the aeration cabinet by unscrewing the 4 lobed
thumb screws. Gently lift the cabinet lid and lay on its side next to
the base.
3. Place the cabinet onto the stone base, and use your level to make sure the
cabinet is sitting secure and level.
See Video Instructions of the
Airmax Aeration System
installation online
Option A
Pond’s Edge
Option B
Away From
Pond’s Edge
If a power source is available near the pond’s
shore, locate the cabinet at the pond’s edge for
quicker installation.
• Locate cabinet on a solid surface with adequate strength for the weight of the unit.
• Locate cabinet away from irrigation sprinklers.
• Cabinet must always remain above the high water mark.
ÝAttention: For airline runs longer than 100’, connector kits are required (sold separately). See Replacement Parts (Page 10).
If a power source is not available near the pond’s
shore or you would prefer to install the cabinet in
another location, install Direct Burial Airline(s) (sold
separately) from the cabinet’s location to
the pond’s edge.
Use a single airline from cabinet to shoreline
with valves at pond’s edge.
STEP ONE: Select a Location for the Aeration Cabinet
STEP TWO: Prepare the Ground Surface and Place the Cabinet
Learn about installing an optional
Remote Manifold Kit online at
airmaxeco.com/RemoteManifold
Option B with Remote Manifold
For units purchased with the
optional Junction Box, scan for
installation procedures
5

2. System Installation - Continued ENGLISH

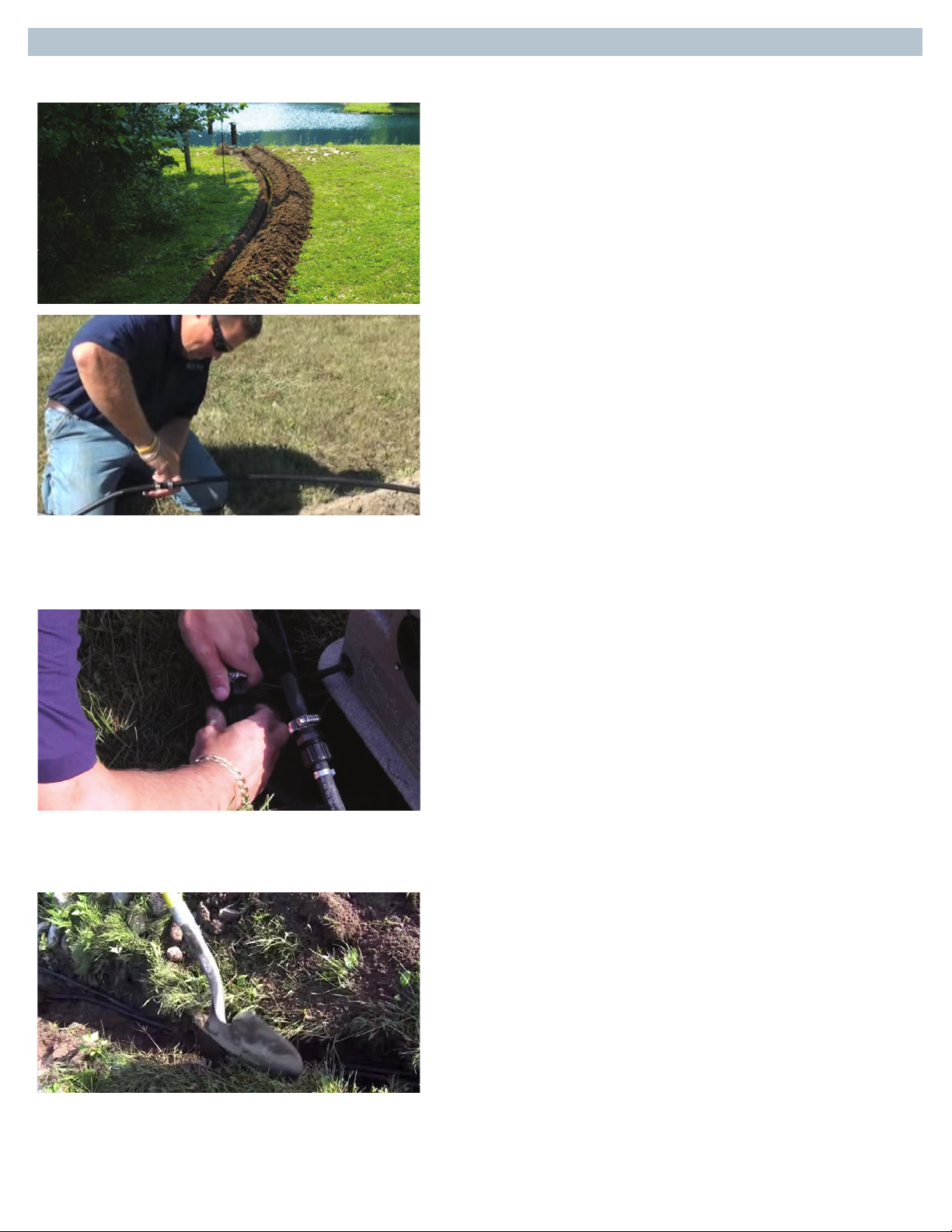

1. Using your shovel, dig a trench from the cabinet to the pond’s edge. This trench
should be a minimum depth of 8” to protect the airline. We recommend having utility
lines marked before you begin digging.
2. Place airline into the trench from the aeration cabinet to the pond’s edge.
Option A: (when distance between cabinet and shore is less than 5’)
Use EasySet weighted airline. There must be a separate run of airline for each diffuser
that will be installed. Leave remaining airline coiled at the pond’s edge.
Option B: (when distance between cabinet and shore is more than 5’)
Use Direct Burial airline. There must be a separate run of airline for each diffuser that
will be installed. Join multiple sections of direct burial airline using 5/8” connector
kits. First, slide two hose clamps onto one section of airline. Next insert the 5/8”
insert adapter half way into one section of airline and then insert into the next section
of airline. Using a flathead screwdriver, secure one of the hose clamps onto each half
of the insert adapter (see image on the left).
Option B with Remote Manifold:
Use 1” Direct Burial Airline or PVC Pipe. Only one run of airline is required from the
cabinet location to the pond’s edge. See Remote Manifold Kit manual or watch the
installation video at airmaxeco.com/RemoteManifold for more information.
STEP THREE: Excavate Trench and Place Airline(s)
Option A & B:
Slide a hose clamp onto the airline and insert a 3/4” MPT to 3/8” Barb reducer OR
3/4” MPT to 5/8” Barb reducer into the airline, securing with a hose clamp. Next,
hand tighten to one of the quick disconnect flex tubes coming from the compressor
manifold. Repeat for each diffuser line.
Option B with Remote Manifold:
Refer to the Remote Manifold Kit manual or watch the installation video at
airmaxeco.com/RemoteManifold for more information.
STEP FOUR: Connect Airline(s) to the Compressor Manifold
Backfill the airline trench in a few areas to temporarily keep the airline in place until
installation is complete.
STEP FIVE: Partially Backfill Airline Trench
6

2. System Installation - Continued ENGLISH
Installing Diffusers From a Boat/Raft: Have one person on shore guiding the
airline as a second person, using a boat or raft, extends the airline out to the area
of the pond where the diffuser will be located. Gently lower the diffuser to the pond
bottom using the weighted airline to ensure that the ProAir 2 diffuser remains in
the upright position. You may also choose to thread nylon rope through the diffuser
manifold and use the nylon rope to gently lower the diffuser until it reaches the pond
floor. Release one side of the nylon rope and remove. Repeat until all diffusers are in
position.
STEP NINE: Install the ProAir Diffusers
Installing Diffusers From Shore: For smaller ponds you may choose to install
the diffusers from shore. Have one person guide the airline while another walks
around the pond with the diffuser. Then thread nylon rope through the diffuser
manifold handle. Use the nylon rope and airline to gently guide the diffuser into
place. Once set, release one side of the nylon rope and pull to shore. Repeat until all
diffusers are in position.
Plug the compressor and cooling fan into the power control outlet inside of the
cabinet. Plug the cabinet power cord into a GFCI power outlet.
STEP EIGHT: Start the Aeration System
STEP SIX: Connect Weighted Airline for Diffusers
Unroll the EasySet weighted airline and remove any twists. Join enough sections of
weighted airline, using 3/8” or 5/8” connector kits, so that the airline can rest on the
bottom of the pond, from the pond’s edge out to the planned location for
each diffuser. For Option B installations, connect the weighted airline to the direct
burial airline or Remote Manifold Kit at the pond’s edge.
Note: Diffusers should be placed equally apart or in areas of low water movement for
optimum performance. If you need help choosing the correct location for your diffusers,
please contact Airmax or your local dealer.
STEP SEVEN: Assemble and Connect ProAir Diffusers
See the ProAir Diffuser manual for assembling and connecting the diffusers.
7

2. System Installation - Continued ENGLISH
The circulation of poor quality, low oxygen, deep water to the pond’s surface can
introduce harmful gases and by-products into the previously healthy upper regions
of the water column. These by-products can make the upper regions unfit for
aquatic life and could result in fish kill.
Initial Start-Up Procedure To Prevent Fish Kill:
Follow this procedure anytime system has been shut off for an extended period of
time.
Day 1: Run system for 30 minutes; turn system off for remainder of day.
Day 2: Run system for 1 hour; turn system off for remainder of day.
Day 3: Run system for 2 hours; turn system off for remainder of day.
Day 4: Run system for 4 hours; turn system off for remainder of day.
Day 5: Run system for 8 hours; turn system off for remainder of day.
Day 6: Run system for 16 hours; turn system off for remainder of day.
Day 7: Begin running system 24 hours/day, 7 days/week.
Summer Operation
To reduce the risk of fish kills in hot summer months and for optimum aeration
benefits, Airmax Aeration Systems should run continuously throughout
the summer.
3. Initial Start-Up & Seasonal Operation
Winter Operation
Owner assumes all responsibility for operating Airmax Aeration Systems
during winter months. Operating in freezing conditions on an ice-covered pond
will cause large open water areas at diffuser sites. Ice thickness around open
areas will be much thinner than the surrounding areas. Airmax strongly recom-
mends that “Danger - Thin Ice” be posted at frequent intervals around pond.
If operating during the winter season, condensation could cause airlines to
freeze. If this occurs:
• Use 1 cup isopropyl alcohol in the airline running out to each plate.
• Turn on compressor to push through line and free any ice blockage.
If you choose to turn your system off for the winter, do the following:
• Unplug your aeration system.
• Disconnect compressor flex tube(s) from airline(s).
• Cover airline ends to prevent debris from entering airline. If Camlock
Connector Kits are used, cover airline ends with winterization caps (sold
separately).
• Move cabinet and compressor inside to keep dry.
Bubbles should be noticeable on the pond’s surface from the diffuser locations. Adjust
the airflow valves on the compressor manifold (For Option B with Remote Manifold, do
this step at the remote manifold). Once an adjustment is made, you may need to wait
several minutes to see the results at the diffuser location(s).
STEP TEN: Adjust Airflow
STEP ELEVEN: Secure Cabinet & Prepare for Start-Up
Note: Deeper placement of diffusers and longer runs of airline will require more flow.
Secure the aeration cabinet lid with the 4 lobed screws. You can also secure the
cabinet with the included Cabinet Security Bolt Kit to prevent unwanted guests. Simply
replace 2 lobed screws with 2 locking bolts and use the locking bolt tool to secure into
place. Complete backfill on airline trenches and level with a rake. Complete installation
by reviewing and following the Initial Start-Up Procedure in Section 3.
8

Airmax Aeration Systems are designed for low-maintenance and require
minimal scheduled maintenance. Cabinet inlets and outlets should be
kept free of debris and weed growth allowing normal ventilation.
• Always unplug system before performing any maintenance
or troubleshooting.
• Always unplug system and refer servicing to a qualified electrician
when cord is damaged or frayed or when compressor, power control,
compressor fan, or other electrical components are producing
unusual noises or odors.
• Always use parts that are supplied or approved by Airmax, Inc. Use
of other parts may result in poor performance and could create a
hazardous situation.
**Local environmental conditions may require more frequent
maintenance.
WARNING: Compressors are equipped with a thermal overload
switch. If temperature becomes high enough to trip the overload, the
compressor will shut down. It will then automatically start up when
temperature decreases as long as power is applied.
4. Maintenance**
EVERY 3-6 MONTHS – Air Filter: Clean/replace air filter.
Cooling Fan: Check to ensure cooling fan is operating. Hot air should be pulled from
the cabinet, not blowing in.
EVERY 6-12 MONTHS – Maintenance Kit: It is recommended to install a
maintenance kit every 6-12 months to ensure optimum performance.
EVERY 24-36 MONTHS – Membrane Sticks: We recommend inspecting and/
or cleaning the membrane diffuser sticks every 24-36 months, or anytime there is a
reduction in bubbles from the diffuser. To clean, use Airmax D-Scale™(#530298) and
a soft cloth.
5. Troubleshooting
IF COMPRESSOR IS NOT OPERATING:
ISSUE CHECK LIKELY CAUSE CORRECTION
Cabinet fan is not running.
Option 1: Check for power. Compressor and fan are not receiving power. Open cabinet and ensure the compressor and fan are
plugged into the power outlet.
Option 2: GFCI circuit tripped. Damage to electrical cord or low voltage from power
supply. Contact Airmax or local dealer for electrical
troubleshooting assistance.
Option 3: GFCI circuit not tripped. GFCI malfunction.
Cabinet fan is running. Check compressor for power.
Compressor is not receiving power.
Open cabinet and ensure the compressor is plugged into the
power outlet.
IF COMPRESSOR IS OPERATING:
ISSUE CHECK LIKELY CAUSE CORRECTION
No bubbles at any diffuser plates.
Option 1: No air leaks are audible in cabinet.
Compressor running louder and
possible excessive vibration.
Compressor air filter is dirty/clogged. Clean or replace air filter. NEVER re-install wet filter.
Option 2: Compressor operating normally or
making unusual noises. Exhibits
reduced pressure and/or air flow.
Compressor needs maintenance kit and possibly
new air filter.
Contact Airmax or local dealer with specifications for
maintenance kit. Clean or replace air filter. NEVER re-
install wet filter.
No bubbles at some diffuser plates.
Option 1: Check for leaks at all connections
in line and in cabinet. If none are
audible, carefully spray SMALL
amount of soapy water onto
connections and look for bubbles.
Vibration loosened connection or cracked fitting. Tighten loose connection or replace cracked fitting
as necessary.
Option 2: Are all flow control valves in
compressor wide open? Improper “balancing” of diffusers.
Adjust air flow valves on manifold in cabinet until all diffusers
operate properly. See Section 2. System Installation for
more information.
Option 3: Valves in cabinet are properly
“balanced” and no leaks
are evident.
Compressor beginning to lose compression and
needs maintenance kit.
Contact Airmax or local dealer with compressor
specifications for maintenance kit.
Large rolling bubbles instead of fine
bubbles at surface above one or more
diffuser plates.
Inspect each diffuser plate for malfunction. Diffuser membrane damaged, diffuser plate fitting
broken or diffuser plate is flipped over. Contact Airmax or local dealer for repair/replacement.
Compressor stops working for periods of
time, then restarts. Inspect cooling fan for proper function. Compressor over-heating due to bad cooling fan.
Contact Airmax or local dealer for fan replacement. If
possible, leave top of cabinet open for cooling. Otherwise,
unplug system until fan is replaced.
Compressor shakes erratically and is
making loud noises.
Option 1: Check for low voltage while
compressor is running.
Gauge of supply wires to circuit possibly undersized or
cabinet is plugged into extension cord.
If gauge of circuit wiring is incorrect, have electrician replace.
NEVER use extension cord to operate system
for continual use.
Option 2: Check for clogged air filter. Air filter in need of replacement. Clean or replace air filter. NEVER re-install wet filter.
ENGLISH
Watch the Maintenance Kit
How-To Video
9

THANK YOU FOR CHOOSING
1. LR Series SilentAir High Efficiency Compressor
#120912 – LR25 Linear Diaphragm Compressor
#120913 – LR50 Linear Diaphragm Compressor
#510147 – LR25 Diaphragm Maintenance Kit
#510148 – LR50 Diaphragm Maintenance Kit
2. Airflow Manifold Assembly
#600177 – SW20
#600178 – SW40
Cabinet & Compressor Replacement Parts
3. #510345 – Cooling Fan for 115v Systems
4. #510395 – Air Intake Pre-Filter
5. #490194 – 3⁄8” Flex-Tube Assembly
6. Air Filter
#510158 – LR25 Air Filter, 2 Pack
#510159 – LR50 Air Filter, 2 Pack
9
Connector Kits
3/8” Connector Kit
#490204 3/8” to 5/8” Connector Kit
#490205
5/8” Connector Kit
#490206
#510118 – 3⁄8” Weighted Airline, 100’ Roll
#510119 – 5⁄8” Weighted Airline, 100’ Roll
#510120 – 5⁄8” Direct Burial Airline, 100’ Roll
EasySet Airline
ProAir 2 Replacement Parts
7. #490333 – Diffuser Sled
8. #490340 – Check Valve
9. #510168 – PTFE 6” Membrane Stick
*#490158 – 1” Marine Stainless Hose Clamp
*#490118 – ½” to ¾” Insert Reducer Adapter
*#490118 – 3⁄8” to ¾” Insert Reducer Adapter
*Not shown in Diagram
7
8
ENGLISH6. Replacement Parts / Accessories
Security Kit
Optional Remote Manifold Kits
10. #510430 – Cabinet Security Stake Kit (Optional)
11. #510424 – Cabinet Security Bolt Kit
12. #600192 – Airmax SW20 2-Port Remote Manifold Kit
#600194 – Airmax SW40 4-Port Remote Manifold Kit
Cabinet Security
Bolt Kit
11 10 12
Optional
Cabinet Security
Stake Kit
Remote Manifold Kit
3
1
2
6
4
5
www.airmaxeco.com
Cleaning Water Naturally
Optional Remote Manifold Kit
(Airmax 4-Port Manifold Kit Shown)
Cabinet & Compressor
10

Consignes de Sécurité Importantes FRANÇAIS
terre avec une fiche de terre. La fiche doit être branchée dans une prise correctement
installée et mise en conformité avec tous les codes et règlements locaux.
AVERTISSEMENT – Une installation incorrecte de la prise de terre est en mesure
d’entraîner un risque de choc électrique. Lorsque la réparation ou le remplacement du
cordon ou de la prise, ne pas connecter le fil de terre à aucune borne à lame plate. Le fil
d’un isolant ayant une surface extérieure verte avec ou sans rayures jaunes, est le fil de
mise à la terre.
Consultez un électricien ou un réparateur qualifié lorsque les instructions de mise à
la terre ne sont pas complètement comprises ou en cas de doute quant à savoir si
le produit est correctement mis à la terre. Ne pas modifier la fiche fournie; si elle ne
correspond pas à la prise, faites installer une prise adéquate par un technicien qualifié.
Pour 120 produits VAC: Ce produit est destiné à être utilisé sur un circuit nominal
de 120v, et a une fiche de mise à la terre semblable à la fiche illustrée par le croquis
A dans la figure ci-dessous. Un adaptateur temporaire semblable à l’adaptateur illustré
dans les esquisses B et C peut être utilisé pour brancher cette fiche à une prise à 2 pôles
comme indiqué dans le croquis B si une prise de terre ne est pas disponible. L’adaptateur
temporaire doit être utilisé que jusqu’au une prise de terre (schéma A) est installé par un
électricien qualifié. Le vert coloré oreille rigide, cosse, ou une partie similaire se étendant
de l’adaptateur doit être connecté à une terre permanente comme un couvercle de la
boîte de prise de terre. Chaque fois que l’adaptateur est utilisé, il doit être maintenu en
place par une vis en métal.
Pour 230 produits VAC: Ce produit est pour une utilisation sur un circuit ayant une
puissance nominale supérieure à 120v et est équipé en usine avec un cordon électrique
spécifique et branchez pour la connexion à un circuit électrique approprié. Seulement
connecter le produit à une prise ayant la même configuration que la fiche. Ne pas
utiliser un adaptateur avec ce produit. Lorsque le produit doit être reconnecté pour une
utilisation sur un type de circuit électrique différente, la reconnexion doit être faite par du
personnel qualifié.
• Lisez toutes les instructions attentivement.
• Pour réduire le risque de choc électrique, connectez uniquement à une mise à la terre,
de terre réceptacle. En cas de doute, faites vérifier la prise par un électricien qualifié.
• Cet appareil doit être utilisé dans un circuit protégé par un disjoncteur de fuite de terre
(GFCI).
• Débrancher l’appareil de la source d’alimentation avant de la manipulation ou de
maintenance.
• Réparation ou l’échange de câble / cordon d’alimentation doivent être menées à bien
par le fournisseur / fabricant.
• Cet appareil n’a pas été étudiée pour une utilisation dans des zones de baignade de la
piscine.
• Airmax n’est pas responsable des dommages ou défaillances de l’équipement, des
pertes, des blessures ou de la mort résultant du non-respect des précautions de
sécurité, de la mauvaise utilisation ou de l’abus de l’équipement.
ATTENTION
• Ne jamais se connecter à une rallonge. Cela peut entraîner une défaillance de
l’équipement.
• Ne laissez rien reposer sur le cordon d’alimentation.
• Ne pas placer l’armoire où les gens peuvent marcher sur le cordon d’alimentation.
• Ne jamais déjouer ou «contourner» les dispositifs de verrouillage électriques ou
mécaniques.
• Ne tentez aucune opération de maintenance qui ne est pas spécifié dans le manuel
utilisateur.
• Ne faites jamais fonctionner le système si des bruits ou des odeurs inhabituelles sont
détectées. Débranchez le cordon d’alimentation de la prise et appelez le service.
• Cet appareil n’est pas destiné à être utilisé par des personnes (y compris des
enfants) ayant des capacités physiques, sensorielles ou mentales réduites, ou
un manque d’expérience et de connaissances, à moins qu’elles n’aient reçu une
supervision ou des instructions concernant l’utilisation de l’appareil par une personne
responsable de leur sécurité.
• Les enfants doivent être surveillés pour s’assurer qu’ils ne jouent pas avec l’appareil.
• L’appareil doit être alimenté par un dispositif à courant résiduel (RCD) ayant un
courant de fonctionnement résiduel nominal ne dépassant pas 30 mA.
INSTRUCTIONS DE MISE – Ce produit doit être mis à la terre. Dans le cas d’un
court-circuit électrique, la terre réduit le risque de choc électrique en fournissant un fil
de fuite pour le courant électrique. Ce produit est équipé d’un cordon muni d’un fil de
MERCI D’AVOIR CHOISI
The Airmax®Système d’aération
Shallow Water Series
SW20 & SW40
PROFONDEUR MAX 6’
SECTION
FRANÇAIS
PAGE
1 Composants du système 11
2 Installation du système 12-15
3 Démarrage initial et
Opération saisonnière 15
4 Entretien 16
5 Dépannage 16
6 Pièces de rechange / accessoires 17
7 Garantie 19
Voir d’autres langues en ligne
Voir vidéo Instructions de la
Installation Airmax Système
d’Aération en ligne à
MANUEL DU PROPRIÉTAIRE POUR:
3
