Airo A Series User manual

PIATTAFORME AEREE SEMOVENTI
SELF-PROPELLED WORK-PLATFORMS
PLATES-FORMES DE TRAVAIL AUTOMOTRICES
SELBSTFAHRENDE HUBARBEITSBÜHNEN
PLATAFORMAS ELEVADORAS AUTOPROPULSADAS
ZELFRIJDENDE HOOGWERKERS
SJÄLVGÅENDE ARBETSPLATTFORMAR
SAMOKRETNE RADNE PLATFORME
"A" SERIES
A21 J A23 J
USE AND MAINTENANCE MANUAL
- ENGLISH - ORIGINAL INSTRUCTIONS
AIRO
is a division of
TIGIEFFE SRL
Via Villasuperiore, 82 - 42045 Luzzara (RE) ITAL -
℡ [phone] -  [phone]
WEB: www airo com
035 20 UEM
-
EN
2018
-
05

Use and Maintenance Manual – A21 J A23 J Series Page 2
Revision date
Description of revision
2010-01
•
Update due to new machine directive 2006/42/EC.
•Model names updated.
2010-11
•
Biodegradable oil instructions introduced.
•Temperatures and oil list updated.
05-2011
•
Amended information on “Commissioning and first inspection, subsequent inspections and title
transfer report”.
•Inserted “Total quantity of battery electrolyte” in Technical Data.
•Corrected "Max. power" diesel engine and inserted "Adjusted Power".
08-2011
•
Changed wiring diagram, inserted in the second part of the manual, after replacing the converter
48V-12V of the installations JE.
11-2012
•
Buttons description and enable selectors of 12Vdc and 380Vac three phase optional electrical pumps
changed.
2013-10
•
Specified instructions for harness anchoring points.
2014-09
•
Inserted information on maximum limits of manual forces.
•Changed Name and Surname of CEO.
2015-01
•
CE Conformity Declaration Updated.
•Hand Position Instruction Added.
2015-10
•
Type of usable hydraulic oil updated.
•Added indication for spare parts. They must be original or approved by the manufacturer of the
machine.
•Added "Leaving at height”.
2016-08
•
Inclinometer in platform deleted from standard equipment, becomes optional.
•Behaviour x M11 and M12 with machine lifted updated.
2018-05
•
Data sheets were added with units of measurement of the international system and US unit of
measurement.
•Changed Name and Surname of CEO.
•Unified First and Second Part.

Use and Maintenance Manual – A21 J A23 J Series Page 3
Tigieffe thanks you for purchasing a product of its range, and invites you to read this manual. Here you can find all the necessary
information for a correct use of the purchased machine; therefore, you are advised to follow the instructions carefully and to read
the manual thoroughly. The manual should be kept in a suitable place where no damage can occur to it. The content of this manual
may be modified without prior notice and further obligations in order to add changes and improvements to the units already
delivered. No reproduction or translation may take place without the written permission of the owner.
Contents:
1 INTRODUCTION 6
1.1. L EGAL ASPECTS ...................................................................................................................................................................... 6
1.1.1. Delivery of the machine .................................................................................................................................................... 6
1.1.2. Declaration of commissioning, first check, further periodical checks and transfers of ownership .................................... 6
1.1.2.1. Declaration of commissioning and first check .......................................................................................................... 6
1.1.2.2. Further periodical checks ......................................................................................................................................... 7
1.1.2.3. Transfers of ownership ............................................................................................................................................. 7
1.1.3. Operator training and information ..................................................................................................................................... 7
1.2. T ESTS PERFORMED BEFORE DELIVER ...................................................................................................................................... 7
1.3. I NTENDED USE ......................................................................................................................................................................... 7
1.3.1. eaving at height .............................................................................................................................................................. 8
1.4. D ESCRIPTION OF THE MACHINE ................................................................................................................................................. 8
1.5. C ONTROL PANELS .................................................................................................................................................................... 9
1.6. D RIVE POWER ......................................................................................................................................................................... 9
1.7. M ACHINE LIFE , DEMOLITION AND DECOMMISSIONING .................................................................................................................. 9

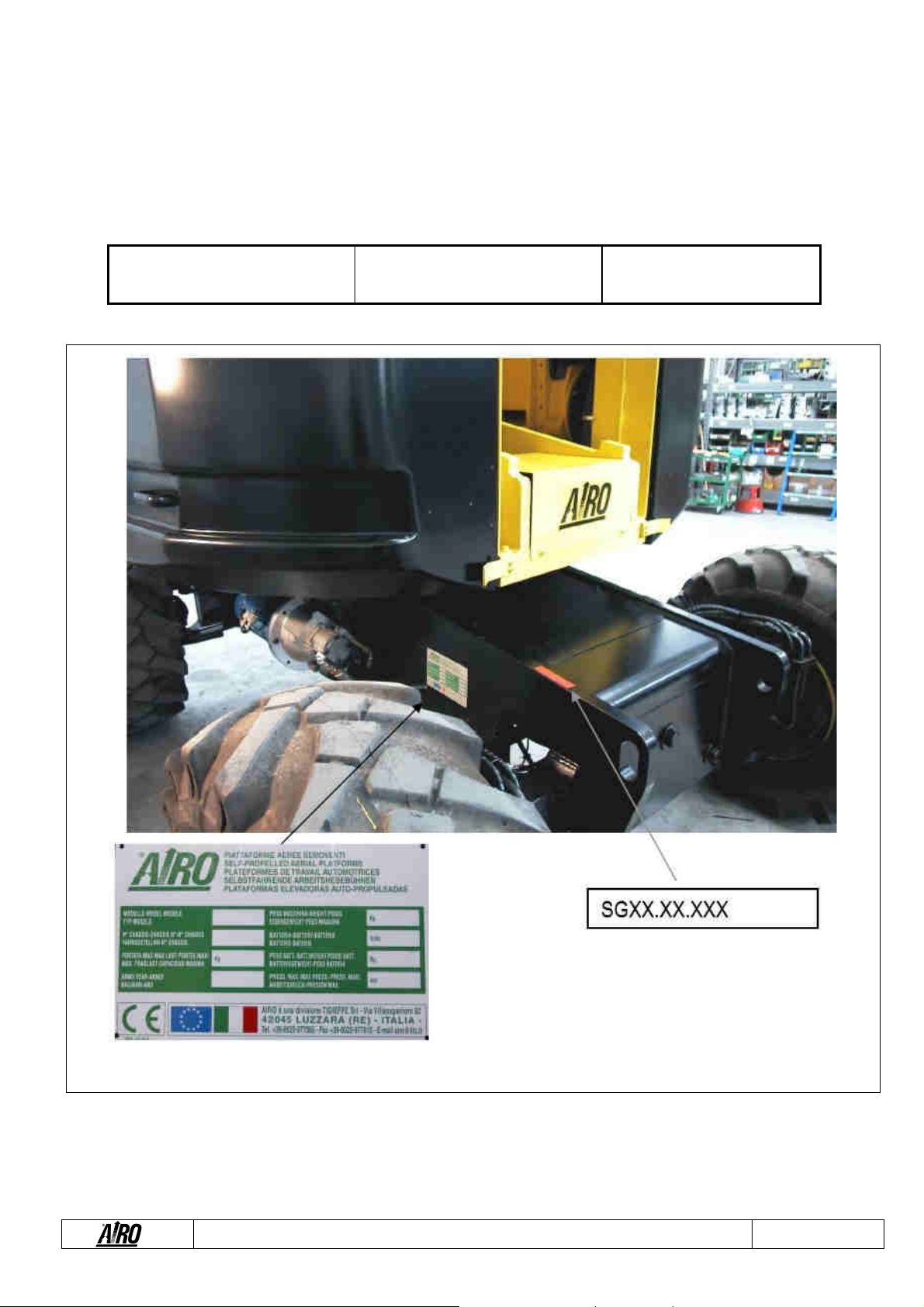

1.8. I DENTIFICATION ..................................................................................................................................................................... 10
1.9. L OCATION OF MAIN COMPONENTS ........................................................................................................................................... 11
2 TECHNICAL FEATURES OF STANDARD MACHINES 12
2.1. M ODEL A21 JRTD ................................................................................................................................................................ 12
2.2. M ODEL A21 JRTE ................................................................................................................................................................ 14
2.3. M ODEL A23 JRTD ................................................................................................................................................................ 17
2.4. M ODEL A23 JRTE ................................................................................................................................................................ 19
2.5. V IBRATIONS AND NOISE .......................................................................................................................................................... 22
3 SAFETY PRECAUTIONS 23
3.1. P ERSONAL PROTECTIVE EQUIPMENT (PPE) ............................................................................................................................. 23
3.2. G ENERAL SAFET NORMS ....................................................................................................................................................... 23
3.3. U SE INSTRUCTIONS ................................................................................................................................................................ 24
3.3.1. General ........................................................................................................................................................................... 24
3.3.2. Handling .......................................................................................................................................................................... 24
3.3.3. Operating procedures ..................................................................................................................................................... 26
3.3.4 Wind speed according to Beaufort scale ........................................................................................................................ 27
3.3.5 Pressure of the machine on ground and load-bearing capacity of ground ..................................................................... 28
3.3.6 High-voltage power lines................................................................................................................................................. 29
3.4. H AZARDOUS SITUATIONS AND / OR ACCIDENTS .......................................................................................................................... 29
4 INSTALLATION AND PRELIMINARY CHECKS 30
4.1. B ECOMING ACQUAINTED WITH THE MACHINE ............................................................................................................................ 30
4.2. P RELIMINAR OPERATION CHECKS .......................................................................................................................................... 30
5 HOW TO USE 31
5.1. P LATFORM CONTROL PANEL ................................................................................................................................................... 31
5.1.1. Drive and steering ........................................................................................................................................................... 33
5.1.2. Platform Positioning Movements .................................................................................................................................... 35
5.1.2.1. Pantograph (lower boom) lifting/lowering ............................................................................................................... 35
5.1.2.2. Upper boom lifting/lowering .................................................................................................................................... 35
5.1.2.3. Jib lifting/lowering ................................................................................................................................................... 35
5.1.2.4. Telescopic boom extension/retraction .................................................................................................................... 36
5.1.2.5. QUICK UP/QUICK DOWN (OPTIONAL) .............................................................................................................. 36
5.1.2.6. Turret orientation (rotation) .................................................................................................................................... 36
5.1.2.7. Jib rotation (OPTIONAL) ........................................................................................................................................ 36
5.1.2.8. Platform rotation ..................................................................................................................................................... 37

Use and Maintenance Manual – A21 J A23 J Series Page 4
5.1.2.9. Platform levelling .................................................................................................................................................... 37
5.1.3. Other functions of the platform control panel .................................................................................................................. 38
5.1.3.1. Electric/thermic power selection, electrical ac/electrical dc .................................................................................... 38
5.1.3.2. Electric power selector 12V (Battery) or 230V/380V three-phase (power mains) - (OPTIONAL) .......................... 38
5.1.3.3. Electrical pump start button 12V (Battery) or 230V/380V three-phase mains (power mains) - (OPTIONAL) ...... 38
5.1.3.4. Three-phase 380V electric pump warning light lit up ............................................................................................. 38
5.1.3.5. Heat engine start switch ( “ED”, “D” models) ......................................................................................................... 38
5.1.3.6. Manual horn ........................................................................................................................................................... 39
5.1.3.7. Emergency stop button ......................................................................................................................................... 39
5.1.3.8. Warning lights ........................................................................................................................................................ 39
5.1.3.8.1. Enabled control panel green warning light (ZA) ............................................................................................... 39
5.1.3.8.2. Flat battery red warning light (ZB) – electric models only ................................................................................ 39
5.1.3.8.3. Diesel engine fault / low fuel red warning light (ZC) ......................................................................................... 39
5.1.3.8.4. Danger red warning light (ZD) .......................................................................................................................... 40
5.1.3.8.5. Overload red warning light (ZE) ....................................................................................................................... 40
5.2. G ROUND CONTROL PANEL ( ELECTRIC CONTROL UNIT ) .............................................................................................................. 41
5.2.1. On-off key and control panel selector (A) ....................................................................................................................... 42
5.2.2. Emergency stop button (B) ............................................................................................................................................. 42
5.2.3. Diesel/electric drive power selector (C) .......................................................................................................................... 42
5.2.4. Heat motor start button (D) ............................................................................................................................................. 42
5.2.5. User interface display (E)................................................................................................................................................ 43
5.2.6. Battery charger warning light (F)..................................................................................................................................... 43
5.2.7. Enabled control panel warning light (G) .......................................................................................................................... 43
5.2.8. Diesel engine warning lights (H M N)........................................................................................................................... 43
5.2.9. Platform control levers .................................................................................................................................................... 43
5.3. P LATFORM ACCESS ................................................................................................................................................................ 44
5.4. M ACHINE START - UP ............................................................................................................................................................... 44
5.4.1. Diesel engine start-up ..................................................................................................................................................... 45
5.4.2. Start-up of 380V work electrical pump (OPTIONA ) ...................................................................................................... 46
5.4.3. Start-up of 12V emergency electric pump (OPTIONA for models “D”) ......................................................................... 47
5.5. M ACHINE STOP ...................................................................................................................................................................... 48
5.5.1. Normal stop..................................................................................................................................................................... 48
5.5.2. Emergency stop button .................................................................................................................................................. 48
5.5.3. Diesel engine stop .......................................................................................................................................................... 48
5.5.4. Stopping the 380V three-phase or 230V single-phase electrical pump (optional) .......................................................... 49
5.6. E MERGENC MANUAL CONTROLS ............................................................................................................................................ 50
5.7. S OCKET FOR ELECTRIC TOOL CONNECTION ( OPTIONAL ) ............................................................................................................ 51
5.8. F UEL LEVEL AND RE - FUELLING ( MODELS “ED”, “D”) ................................................................................................................. 51
5.9. E ND OF WORK ....................................................................................................................................................................... 52
6 HANDLING AND CARRYING 53
6.1. H ANDLING ............................................................................................................................................................................. 53
6.2. C ARR ING ............................................................................................................................................................................. 54
6.3. E MERGENC TOWING OF THE MACHINE ................................................................................................................................... 56
7 MAINTENANCE 57
7.1. M ACHINE CLEANING ............................................................................................................................................................... 57
7.2. G ENERAL MAINTENANCE ........................................................................................................................................................ 58
7.2.1. Various adjustments ....................................................................................................................................................... 59
7.2.2. Greasing ......................................................................................................................................................................... 60
7.2.3. Hydraulic circuit oil level check and change ................................................................................................................... 61
7.2.3.1 Biodegradable hydraulic oil (Optional) ................................................................................................................... 62
7.2.3.2 Emptying .......................................................................................................................................................... 62
7.2.3.3 Filters ............................................................................................................................................................... 62
7.2.3.4 Washing ........................................................................................................................................................... 62
7.2.3.5 Filling ................................................................................................................................................................ 62
7.2.3.6 Commissioning / check .................................................................................................................................... 62
7.2.3.7 Mix .................................................................................................................................................................... 63
7.2.3.8 Micro-filtration ................................................................................................................................................... 63
7.2.3.9 Disposal ........................................................................................................................................................... 63
7.2.3.10 Topping up ....................................................................................................................................................... 63
7.2.4. Hydraulic filter replacement ............................................................................................................................................ 64
7.2.4.1. Suction filters .......................................................................................................................................................... 64
7.2.4.1.1. Main gear pump filter ....................................................................................................................................... 64

Use and Maintenance Manual – A21 J A23 J Series Page 5
7.2.4.1.2. Filter of electrical pumps, 380V (OPTIONAL) and 12V (emergency on Diesel models) .................................. 65
7.2.4.2. Return filter ............................................................................................................................................................. 66
7.2.5. Turret rotation reduction gear oil level check and change .............................................................................................. 67
7.2.5.1 Checks in the use of synthetic biodegradable oil in turret rotation reduction gears ......................................... 67
7.2.6. Drive reduction gear oil level check and change ............................................................................................................ 68
7.2.6.1 Checks in the use of synthetic biodegradable oil in drive reduction gears ....................................................... 68
7.2.7. Air purging from oscillating axle locking cylinders........................................................................................................... 69
7.2.8. Turret rotation clearance adjustment .............................................................................................................................. 70
7.2.9. Telescopic boom sliding blocks clearance adjustment ................................................................................................... 70
7.2.10. Visual check of wear condition of chains of boom extraction (A23 J only) ..................................................................... 71
7.2.11. Check/adjustment of tension of chains of telescopic boom extraction (A23 J only) ...................................................... 72
7.2.12. Circuit movements pressure relief valve operation check.............................................................................................. 73
7.2.13. Operation check of the turret inclinometer ...................................................................................................................... 74
7.2.14. Operation check and adjustment of platform overload controller.................................................................................... 76
7.2.15. Overload controller by-pass – ON Y FOR EMERGENCY OPERATIONS ..................................................................... 78
7.2.16. Operation check of M1 microswitches ............................................................................................................................ 79
7.2.17. Operation check of microswitch M9 (OPTIONA ) .......................................................................................................... 80
7.2.18. Operation check of microswitch and proximity sensor M10 ............................................................................................ 80
7.2.19. Operation check of proximity sensors M11 and M12 (OPTIONA ) ................................................................................ 81
7.2.20. Operation check of proximity sensor M13 (OPTIONA ) ................................................................................................. 81
7.2.21. Operation check of microswitches M14 and M15 (SG2100-J only) ............................................................................... 81
7.2.22. Operation check of dead-man pedal safety system ........................................................................................................ 82
7.3. S TARTING BATTER ............................................................................................................................................................... 83
7.3.1. Starter battery models “D” “ED” ...................................................................................................................................... 83
7.3.2. Starter type battery for models “E” .................................................................................................................................. 83
7.3.3. Starter battery maintenance............................................................................................................................................ 83
7.3.4. Starter battery recharge .................................................................................................................................................. 83
7.4. “DRIVE” BATTER FOR MODELS “E” AND “ED” ........................................................................................................................ 84
7.4.1. General instructions for DRIVE battery ........................................................................................................................... 84
7.4.2. DRIVE battery maintenance ........................................................................................................................................... 84
7.4.3. Battery charger: DRIVE battery recharge ....................................................................................................................... 85
7.4.4. Battery charger: fault report ............................................................................................................................................ 86
7.4.5. Battery replacement ........................................................................................................................................................ 86
8 MARKS AND CERTIFICATIONS 88
9 PLATES AND STICKERS 89
1 0 CHECK REGISTER 91
11 WIRING DIAGRAMS 112
12 HYDRAULIC DIAGRAM 124
13 CONFORMITY DECLARATION 127

Use and Maintenance Manual – A21 J A23 J Series Page 6
1 INTRODUCTION
This Use and Maintenance Manual provides general instructions concerning the complete range of machines indicated on the
cover. Therefore the description of their components, as well as control and safety systems, may include parts not present on our
machine since supplied on request or not available. In order to keep pace with the technical development AIRO-Tigieffe s.r.l.
reserves the right to modify the product and/or the use and maintenance manual at any time without updating the units already
delivered.
1 1 Legal aspects
1 1 1 Delivery of the machine
Within EU (European Union) member countries the machine is delivered complete with:
Use and maintenance manual in your language.
CE mark applied on the machine.
CE declaration of conformity.
Guarantee certificate.
Only for Italy:
Declaration of commissioning to INAIL.
List of local INAIL departments.
Declaration of internal testing.
It is to be noted that the Use and Maintenance Manual is an integral part of the machine and a copy of this, together with copies of
the documents certifying that the periodical checks have been carried out, must be kept on board in its suitable container. In the
event of a transfer of ownership the machine must always be provided with its use and maintenance manual.
1 1 2 Declaration of commissioning, first check, further periodical checks and transfers of ownership
The legal obligations of the owner of the machine vary according to the country of commissioning. It is therefore recommended to
inquiry about the procedures in force in your country from the boards responsible for industrial safety. This manual contains a final
section called "Check register" for a better filing of documents and recording of any modifications.
1 1 2 1 Declaration of commissioning and first check
In ITAL the owner of the Aerial Platform must notify the use of the machine to the local competent INAIL and submit it to
periodical compulsory checks. The first of such checks is performed by the INAIL within sixty days from a request being made. In
the event of such time passing without the inspection being made, the employer can call in the ASL (Local Health Unit) or qualified
public or private services. Subsequent checks are made by the already-mentioned parties within thirty days from a request being
made. In the event of such time passing without these checks being made, the employer can call in qualified public or private
services. The checks are on a payment basis and the employer (machine owner) will be charged for them. For these checks, the
territorial inspection boards (ASL/USL or ARPA) and INAIL can be supported by qualified public or private services. The qualified
private institutes acquire the qualification of responsible for the public service and refer directly to the public structure that controls
this function.
To declare the commissioning of the machine in Italy, send the form that is supplied together with other documents upon machine
delivery, by registered letter with advice of receipt.
The INAIL will assign a serial number when the First Check is performed before completing the “technical identification sheet” on
which it indicates only the details obtained from the already-operating machine or obtainable from the instruction manual. Such
document shall form an integral part of the machine documentation.

Use and Maintenance Manual – A21 J A23 J Series Page 7
1 1 2 2 Further periodical checks
early checks are compulsory. In Italy the owner of the Aerial Platform must apply for a periodical check by sending a registered
letter to the local competent inspection board (ASL/USL or other qualified public or private services) at least twenty days before the
expiry of the year from the last check.
NB: If a machine without a valid control document should be moved in an area outside the competence of the usual inspection
board, the owner of the machine must ask the inspection board, competent for the new territory where the machine is to be used,
for the annual check.
1 1 2 3 Transfers of ownership
In case of transfer of ownership (in Italy) the new owner of the Aerial Platform must notify the ownership of the machine to the local
competent inspection board (ASL/USL or other qualified public or private services) by enclosing a copy of:
Declaration of conformity issued by the manufacturer.
Declaration of commissioning carried out by the first owner.
1 1 3 Operator training and information
The employer must ensure that the workers appointed to use the equipment are adequately and specifically trained so they are
able to use the Mobile Elevating Work Platform in a proper and safe way and also avoid the risks caused by other people.
1 2 Tests performed before delivery
Before being placed on the market, each MEWP undergoes the following tests:
Braking test.
Overload test.
Operating test.
1 3 Intended use
The machine described in this use and maintenance manual is a self-propelled aerial platform intended for lifting persons and
materials (equipment and work materials) in order to carry out maintenance, installation, cleaning, painting, de-painting, sand-
blasting, welding operations, etc.
The max. capacity allowed (which varies according to the model – see paragraph “Technical features”) is divided as follows:
80 Kg for each person on board.
40 Kg for equipment.
Any remaining load is represented by the work materials.
In any case NEVER exceed the maximum capacity allowed as indicated in paragraph "Technical features”. Persons, tools and work
materials can be loaded on the platform only from the access position (platform lowered). It is absolutely forbidden to load persons,
tools and work materials on the platform when it is not in access position.
All loads must be positioned inside the cage. Do not lift loads (even if complying with the maximum capacity allowed) hanging from
the platform or lifting structure.
Do not carry large-sized panels since they increase the resistance to wind force thus causing the machine to overturn.
While the machine is being displaced with lifted platform, no horizontal loads can be loaded onto the platform (operators on board
are not allowed to pull wires or ropes, etc.).
An overload controller stops the operation of the machine if the load on the platform exceeds by 20% approx. the nominal load (see
chapter "General use rules”) and platform is lifted.
The machine cannot be used in areas where road vehicles operate. Always surround the working area by means of suitable signs
when the machine is used in public areas.
Do not use the machine to tow trucks or other vehicles.
All types of machine use other than those for which it was designed must be approved in writing by the machine manufacturer
following a specific request on the part of the user.

Use and Maintenance Manual – A21 J A23 J Series Page 8
Do not use the machine for purposes other than those for which it was designed, except after making a
request and having obtained written permission in this sense from the manufacturer
1 3 1 Leaving at height
The work elevating platforms are not designed by taking into account the risks of the “leaving at height” because the only access
position considered is when the platform is completely lowered. For this reason this activity is formally forbidden.
However, there are exceptional conditions in which the operator needs to access or leave the work platform not in the access
position. This activity is normally defined as “leaving at height”.
The risks connected to the “leaving at height” do not depend exclusively on the PLE (work elevating platform) characteristics; a
specific risk analysis carried out by the employer can authorize this specific use by taking into account:
The working environment characteristics.
The absolute prohibition to consider the work platform as an anchoring point for people working outdoors.
The use of the machine at xx% of its performances to avoid that additional forces created by a specific operation or
bending of the structure move away the access zone from the unloading zone. Provide for some tests in order to define
these limitations.
Provide for a specific evacuation procedure in case of emergency (for example: an operator always on the platform, one at
the ground control panel while a third operator leaves the lifted platform ).
Provide for a specific training of the staff both as operator and transported staff.
Equip the unloading zone with all the devices that are necessary to avoid the risk of fall of the staff that accesses/leaves
the platform.
What said above is not a formal authorization of the manufacturer for the “leaving at height”, but it wants to supply information
to the employer - who is fully responsible for that - which can be useful for the planning of this exceptional activity.
1 4 Description of the machine
The machine described in this use and maintenance manual is a Mobile Elevating Work Platform equipped with:
Motorized chassis equipped with wheels.
Hydraulically driven rotating turret.
Articulated boom operated by hydraulic cylinders (the number of articulations and cylinders varies according to machine
model).
Operator platform (the max. capacity varies according to the model - see chapter "Technical features”).
The chassis is motorized to allow the machine to move even when the platform is lifted (see “Use instructions”).
The machines can be delivered with the following drive and steering features:
Four driving wheels, of which two steering and two fixed.
Four steering and driving wheels.
Furthermore, to all the above combinations, it is possible to associate, optionally, a self-locking oscillating axle.
All driving wheels are equipped with hydraulic parking brakes, positive logic type (when drive controls are released brakes are
automatically activated).
The turret rests on a turntable fixed to the chassis and can be oriented (rotated) by 360° continuously around the central axle of
the machine by means of geared motor with built-in hydraulic brake.
The lifting system, with articulated boom, can be divided into three main structures:
The first, with vertical extension, consists of a “double parallelogram” system named “pantograph”.
The second, consists of a lifting boom with telescopic extension.
The third, consists of the terminal boom named “Jib”.
Such lifting structures are driven by 4 double-acting hydraulic cylinders:
One cylinder for the “pantograph” extension.
One cylinder for the boom extension.
One cylinder for the extension/retraction of the telescopic boom (for A23 J two systems of chains for extraction and
retraction of the last extractable boom are also supplied).
One cylinder for the “jib” extension.

Use and Maintenance Manual – A21 J A23 J Series Page 9
The hydraulic cylinders which move the articulated structure (except for the boom inclination sensor cylinder) are provided with
over-centre valves directly flanged on the same. These devices allow the booms to remain in position even if one of the supply
tubes accidentally breaks.
The platform, hinged to the end of the “jib”, can be rotated by 180° totally (90° on the right and 90° on the left) by means of a
rotary actuator fitted with over-centre valve. It is fitted with guardrails and toe boards of prescribed height (the guardrails height ≥
1100 mm; the toe boards height ≥150 mm). The platform levelling is automatic and is ensured by mechanical ties and two cylinders
in closed circuit. The manual level compensation is possible by acting on the relevant control only with completely lowered booms
(and with “Jib” inclination with respect to the horizontal axle ranging between +10° and –70°).
1 5 Control panels
The machine is equipped with two control panels:
On the platform for normal use of the machine.
On the turret (or on the ground) you can find the emergency controls to lower or stop the machine in emergency situations,
a key-selector to select the control panel and to start the machine.
1 6 Drive power
The machines can be powered by:
An electric-hydraulic system composed of rechargeable accumulators and electrical pump (models “E”).
A heat engine (Diesel engine models are identified by the abbreviation “D”; petrol engine models are identified by the
abbreviation “B”).
A dual-powered electric/thermic system (dual-powered Electric/Diesel models are identified by the abbreviation “ED”; dual-
powered Electric/Petrol models are identified by the abbreviation “EB”).
In any case both the hydraulic and the electric systems are equipped with all necessary protections (see electric and hydraulic
circuit diagrams annexed to this manual).
1 7 Machine life, demolition and decommissioning
The machine has been designed to last for 10 years in normal operating environments, if properly used and serviced. Within this
period, the manufacturer must carry out a complete inspection/overhaul.
If disposal of the unit is necessary, comply with current local regulations.
In Italy, the demolition/decommissioning must be notified to the local ASL / USL or ARPA.
The machine consists mainly of metal parts which are easy to be identified (steel for the most parts, and aluminium for the
hydraulic blocks); thus, we can state that the machine can be recycled at 90%.
European standards and those transposed by the member countries relating to respect for the environment
and the disposal of wastes envisage heavy administrative and penal fines in case of infringement
In case of demolition/decommissioning, carefully keep to the provisions of applicable regulations,
especially as regards materials such as hydraulic oil and batteries

Use and Maintenance Manual – A21 J A23 J Series Page 10
1 8 Identification
In order to identify the machine, when spare parts and service are required, always mention the information given in the serial
number plate. Should this plate (as well as the various stickers applied on the machine) be lost or illegible, it is to be replaced as
soon as possible. In order to identify the machine when no plate is available the serial number is also stamped on the chassis. To
locate the plate and the stamp of the serial number, see the following picture. It is recommended to copy such data in the following
boxes.
MODEL: _________________ CHASSIS: __________________ YEAR: __________________
Fig. 1

Use and Maintenance Manual – A21 J A23 J Series Page 11
1 9 Location of main components
The picture shows the machine and its own components.
1) Control panel
2) Electric control unit
3) Hydraulic oil tank
4) Diesel tank (models "D")
5) Diesel Engine (models "D")
6) Drive pump
7) Movement pump
8) 12V emergency electrical pump
(optional on models “D”)
9) 380V three-phase electrical
pump (optional)
10) Hydraulic drive motors
11) Turret rotation geared motor
12) 230V plug (optional)
13) Spirit level (optional) for visual
check of machine levelling
14) Lifting cylinders
15) Battery
16) Power assisted steering
17) Base inclinometer
18) Inclinometer cage (optional)
19) Heat motor fuel tank
20) Limiting sensors of platform
load
21) Control board of platform load
22) Turntable
Fig. 2
1
-
13
-
18
2
-
3
-
4
-
5
-
6
-
7
8-11-17-19
9
-
12
10
14
14
14
15
16
20
10
22
21

Use and Maintenance Manual – A21 J A23 J Series Page 12
2 TECHNICAL FEATURES OF STANDARD MACHINES
THE TECHNICAL FEATURES OF THE PRODUCTS IN THE FOLLOWING PAGES CAN BE MODIFIED
WITHOUT PRIOR NOTICE
2 1 Model A21 JRTD
A21 JRTD
Dimensions:
Maximum working height
20.55
m
67’ 5”
ft
Max. platform height
18.55
m
60’ 10”
ft
Ground clearance
480
mm
1.6”
in
Max. outreach from turntable centre
11.3
m
37’ 0”
ft
Turret rotation (continuous)
360
°
360
°
Platform rotation
180
°
180
°
Platform height for safety speed activation
< 3
m
<9’ 10”
ft
Internal steering radius
–
2WS
3.2
m
10 “4”
ft
External steering radius
–
2WS
6
m
19 ‘6”
ft
Internal steering radius
–
4WS
1.7
m
5’ 6”
ft
External steering radius
–
4WS
4.1
m
13’ 5”
ft
Maximum capacity (m)
230
Kg
500
lbs
Max. number of people on the platform (n)
–
indoors
2
2
The tool and material weight (me) (**)
–
indoors
70
Kg
154.5
lbs
Max. number of people on the platform (n)
–
outdoors
2
2
Tool and material weight (me) (**)
–
outdoors
70
Kg
154.5
lbs
Maximum drive height
Max
Max
Maximum dimensions of platform (*****)
0.8 x 1.7
m
2’ 7” x 5’ 6”
ft
Max. hydraulic pressure
350
Bar
5076.3
psi
Max. pressure of lifting circuit
230
Bar
3335.8
psi
Tyre dimensions (****)
Ø 1010 x 405
mm
3’ 3” x 1’ 3”
in
Tyre type (****)
15 x 19,5
-
12
15 x 19,5 16PR
Transport dimensions
7.96 x 2.40 x
2.65
m
26’ 1” x 7’ 10” x
8’ 8” ft
Transport dimensions with retracted
jib
N.A.
m
N.A
ft
Machine weight (unloaded) (*)
12250
Kg
27006.6
lbs
Stability limit:
Longitudinal inclination
4
°
4
°
Transversal inclination
4
°
4
°
Maximum wind speed (***)
12.5
m/s
28
mph
Maximum manual force:
400
N
90
lbf
Max. load per
wheel
5200
Kg
11450
lbs
Performance:
Drive wheels
4
N
4
N
Max. drive speed
6.1
km/h
3.7
mph
Safety drive speed
0.6
km/h
0.3
mph
Oil tank capacity
120
Lt.
31.7
gal
Gradeability
50
%
50
%
Max. operating temperature
+50
°C
122
°F
Min.
operating temperature
-
15
°C
5
°F

Use and Maintenance Manual – A21 J A23 J Series Page 13
Battery power:
Battery capacity and voltage
NA
V/Ah
NA
V/Ah
Battery weight
NA
Kg
NA
lbs
Single
-
phase battery charger (HF)
NA
V/A
NA
V/A
Max. current absorbed by the battery charger
NA
A
NA
A
Max. installed
power
NA
kW
NA
hp
Electrical pump power 1
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Power electric pump 2
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Power electric pump 3
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Diesel Power HATZ
Diesel engine type
HATZ 3L41C
HATZ
3 41C
Max. motor power
38.8
kW
52.0
hp
Adjusted Power
35.5
kW
47.6
hp
Starter battery
12 / 180
V/Ah
12 / 180
V/Ah
Total electrolyte quantity
11
Lt.
3.9
gal
Diesel oil tank capacity
70
Lt.
18.4
gal
Diesel Power ISUZU
Diesel engine type
ISUZU 4LE1
Max. motor power
39
kW
52.2
hp
Adjusted Power
35
kW
46.9
hp
Starter battery
12 / 180
V/Ah
12 / 180
V/Ah
Total electrolyte quantity
11
Lt.
3.9
gal
Diesel oil tank capacity
70
Lt.
18.4
gal
380V three-phase electrical pump (optional)
18.5
Motor power
7.5
kW
Max. absorbed current
12
A
12
hp
Max. drive speed
NA
km/h
12
A
230V single-phase electric pump (optional)
NA
Motor power
2.2
kW
2.9
Max. absorbed current
13.9
A
13.9
A
Max. drive speed
NA
km/h
NA
mph
NOTE: These abbreviations 2WS; 4WS are not indicated on the machine plates. They stand for:
•2WS= Four driving wheels, two steering wheels
•4WS= Four driving wheels, four steering wheels
(*) In some cases different limits can be fixed. It is recommended to comply with the data shown on the machine plate. Weight A21 JRTD 2WS = 12250 kg;
Weight A21 JRTD 4WS = 12400 kg.
( ** ) me = m – (n x 80)
(***) Wind speeds higher or equal to 12.5 m/s indicate that the machines can also be used outdoors; Wind speeds equal to 0 m/s indicate that the machines can
be used INDOORS ONL .
(****) Standard rough terrain tyres 15x19.5-16PR (Ø1010x405 mm) ) filled with polyurethane foam; Optional rough terrain tyres 18x19.5-16PR (Ø1080x460 mm)
filled with polyurethane foam.
(*****) 800x1700 mm standard steel platform; Optional larger 900x2400 mm steel platform; Optional larger 1000x2400 mm steel platform.

Use and Maintenance Manual – A21 J A23 J Series Page 14
2 2 Model A21 JRTE
A21 JRTE
Dimensions:
Maximum working height
20.55
m
67’ 5”
ft
Max. platform height
18.55
m
60 ‘10”
ft
Ground clearance
480
mm
1.6”
in
Max. outreach from turntable centre
11.3
m
37”
ft
Turret rotation (continuous)
360
°
360
°
Platform rotation
180
°
180
°
Platform height for safety speed activation
< 3
m
<9’ 10”
ft
Internal steering radius
–
2WS
3.2
m
10’ 5”
ft
External steering radius
–
2WS
6
m
19’ 8”
ft
Internal steering radius
–
4WS
1.7
m
5’ 6”
ft
External steering radius
–
4WS
4.1
m
13’ 5”
ft
Maximum capacity (m)
230
Kg
507.0
lbs
Max. number of people on the platform (n)
–
indoors
2
2
The tool and material weight (me) (**)
–
indoors
70
Kg
154.5
lbs
Max. number of people on the platform (n)
–
outdoors
2
2
Tool and material weight (me) (**)
–
outdoors
70
Kg
154.5
lbs
Maximum drive height
Max
Max
Maximum
dimensions of platform (*****)
0.8 x 1.7
m
2’ 7” X 5’ 6”
ft
Max. hydraulic pressure
350
Bar
5076.3
psi
Max. pressure of lifting circuit
230
Bar
3335.8
psi
Tyre dimensions (****)
Ø 1010 x 405
mm
39 ‘3” x 15 ‘9”
in
Tyre type (****)
15 x 19,5
-
12
15 x 19,5 16PR
Transport dimensions
7.96 x 2.40 x
2.65
m
26’ 1” x 7’ 10” x
8’ 3” ft
Transport dimensions with retracted jib
N.A.
m
N.A
ft
Machine weight (unloaded) (*)
13000
Kg
28660
lbs
Stability limit:
Longitudinal inclination
4
°
4
°
Transversal inclination
4
°
4
°
Maximum wind speed (***)
12.5
m/s
28
mph
Maximum manual force:
400
N
90
lbf
Max. load per wheel
5200
Kg
11450
lbs
Performance:
Drive wheels
4
N
4
N
Max. drive speed
2.9
km/h
3.7
mph
Safety drive speed
0.6
km/h
0.3
mph
Oil tank capacity
120
Lt.
31.5
gal
Gradeability
30
%
50
%
Max. operating temperature
+50
°C
122
°F
Min. operating temperature
-
15
°C
5
°F
Battery power:
Battery capacity and voltage
48 / 750
V/Ah
V/Ah
V/Ah
Total electrolyte quantity
168
Lt.
44.3
gal
Battery weight
1315
Kg
2899.0
lbs
Three
-
phase battery charger 380V (HF)
48 / 80
V/A
V/A
V/A
Max. current absorbed by the battery charger
14
A
14
A
Max. installed power
17
kW
22.7
hp
Power electric pump 1
17
kW
22.7
hp
Max. absorbed current
400
A
400
A
Power
electric pump 2
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Power electric pump 3
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A

Use and Maintenance Manual – A21 J A23 J Series Page 15
Diesel Power HATZ
Diesel engine type
NA
NA
Motor power
NA
kW
NA
hp
Starter battery
NA
V/Ah
NA
V/Ah
Diesel
oil tank capacity
NA
Lt.
NA
gal
Diesel Power ISUZU
Diesel engine type
NA
NA
Motor power
NA
kW
NA
hp
Starter battery
NA
V/Ah
NA
V/Ah
Diesel oil tank capacity
NA
Lt.
NA
gal
380V three-phase electrical pump (optional)
Motor power
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Max. drive speed
NA
km/h
NA
mph
230V single-phase electric pump (optional)
Motor power
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Max. drive speed
NA
km/h
NA
mph
NOTE: These abbreviations 2WS; 4WS are not indicated on the machine plates. They stand for:
•2WS= Four driving wheels, two steering wheels
•4WS= Four driving wheels, four steering wheels
(*) In some cases different limits can be fixed. It is recommended to comply with the data shown on the machine plate. Weight A21 JRTE 2WS = 13000 kg;
Weight A21 JRTE 4WS = 13150 kg.
( ** ) me = m – (n x 80)
(***) Wind speeds higher or equal to 12.5 m/s indicate that the machines can also be used outdoors; Wind speeds equal to 0 m/s indicate that the machines can
be used INDOORS ONL .
(****) Standard rough terrain tyres 15x19.5-16PR (Ø1010x405 mm) ) filled with polyurethane foam; Optional rough terrain tyres 18x19.5-16PR (Ø1080x460 mm)
filled with polyurethane foam.
(*****) 800x1700 mm standard steel platform; Optional larger 900x2400 mm steel platform; Optional larger 1000x2400 mm steel platform.

Use and Maintenance Manual – A21 J A23 J Series Page 16
A 2 1
J R T D
A 2 1 J R T E

Use and Maintenance Manual – A21 J A23 J Series Page 17
2 3 Model A23 JRTD
A23 JRTD
Dimensions:
Maximum working height
23.1
m
75’ 9”
ft
Max. platform height
21.1
m
69‘ 2”
ft
Ground
clearance
480
mm
1’ 6”
in
Max. outreach from turntable centre
13.9
m
45’ 7”
ft
Turret rotation (continuous)
360
°
360
°
Platform rotation
180
°
180
°
Platform height for safety speed activation
< 3
m
<9’ 10”
ft
Internal steering radius
–
2WS
3.2
m
10’ 4”
ft
External steering radius
–
2WS
6
m
19’ 8”
ft
Internal steering radius
–
4WS
1.7
m
5’ 6”
ft
External steering radius
–
4WS
4.1
m
13’ 5”
ft
Maximum capacity (m)
230
Kg
507.0
lbs
Max. number of people on the platform (n)
–
indoors
2
2
The tool and material weight (me) (**)
–
indoors
70
Kg
154.3
lbs
Max. number of people on the platform (n)
–
outdoors
2
2
Tool and material weight (me) (**)
–
outdoors
70
Kg
154.3
lbs
Maximum drive height
Max
Max
Maximum
dimensions of platform (*****)
0.8 x 1.7
m
2’ 7” x 5’ 6”
ft
Max. hydraulic pressure
350
Bar
5076.3
Max. pressure of lifting circuit
230
Bar
3335.8
Tyre dimensions (****)
Ø 1010 x 405
mm
3’ 3” X 1’ 3”
in
Tyre type (****)
15 x 19,5-12
15 x 19,5
16PR
Transport
dimensions
7.9 x 2.40 x 2.65
m
25’ 11” x 7’
10” x 8’ 8” ft
Transport dimensions with retracted jib
N.A.
m
N.A
ft
Machine weight (unloaded) (*)
14300
Kg
31526.1
lbs
Stability limit:
Longitudinal inclination
4
°
4
°
Transversal inclination
4
°
4
°
Maximum wind
speed (***)
12.5
m/s
28
mph
Maximum manual force:
400
N
90
lbf
Max. load per wheel
6000
Kg
13220
lbs
Performance:
Drive wheels
4
N
4
N
Max. drive speed
6.1
km/h
3.7
mph
Safety drive speed
0.6
km/h
0.3
mph
Oil tank capacity
120
Lt.
31.7
gal
Gradeability
50
%
50
%
Max. operating temperature
+50
°C
122
°F
Min. operating temperature
-
15
°C
5
°F
Battery power:
Battery capacity and voltage
NA
V/Ah
NA
V/Ah
Battery weight
NA
Kg
NA
lbs
Single
-
phase battery charger (HF)
NA
V/A
NA
V/A
Max. current absorbed by the battery charger
NA
A
NA
A
Max. installed power
NA
kW
NA
hp
Power electric pump 1
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Power electric pump 2
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Power electric pump 3
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A

Use and Maintenance Manual – A21 J A23 J Series Page 18
Diesel Power HATZ
Diesel engine type
HATZ 3L41C
HATZ
3L41C
Max. motor power
38.8
kW
52.0
hp
Adjusted Power
35.5
kW
47.6
hp
Starter battery
12 / 180
V/Ah
12 /
180 V/Ah
Total electrolyte quantity
11
Lt.
3.9
gal
Diesel oil tank capacity
70
Lt.
18.4
gal
Diesel Power ISUZU
Diesel engine type
ISUZU 4LE1
ISUZU
4 E1
Max. motor power
39
kW
52.2
hp
Adjusted Power
35
kW
46.9
hp
Starter battery
12 / 180
V/Ah
12 /
180 V/Ah
Total electrolyte quantity
11
Lt.
3.9
gal
Diesel oil tank capacity
70
Lt.
18.4
gal
380V three-phase electrical pump (optional)
Motor power
7.5
kW
10.5
hp
Max. absorbed current
12
A
12
A
Max. drive speed
NA
km/h
NA
mph
230V single-phase electric pump (optional)
Motor power
2.2
kW
2.9
hp
Max. absorbed current
13.9
A
13.9
A
Max. drive speed
NA
km/h
NA
mph
NOTE: These abbreviations 2WS; 4WS are not indicated on the machine plates. They stand for:
•2WS= Four driving wheels, two steering wheels
•4WS= Four driving wheels, four steering wheels
(*) In some cases different limits can be fixed. It is recommended to comply with the data shown on the machine plate. Weight A23 JRTD 2WS = 14300 kg;
Weight A23 JRTD 4WS = 14450 kg.
( ** ) me = m – (n x 80)
(***) Wind speeds higher or equal to 12.5 m/s indicate that the machines can also be used outdoors; Wind speeds equal to 0 m/s indicate that the machines can
be used INDOORS ONL .
(****) Standard rough terrain tyres 15x19.5-16PR (Ø1010x405 mm) ) filled with polyurethane foam; Optional rough terrain tyres 18x19.5-16PR (Ø1080x460 mm)
filled with polyurethane foam.
(*****) 800x1700 mm standard steel platform; Optional larger 900x2400 mm steel platform; Optional larger 1000x2400 mm steel platform.

Use and Maintenance Manual – A21 J A23 J Series Page 19
2 4 Model A23 JRTE
A23 JRTE
Dimensions:
Maximum working height
23.1
m
75
’
9
”
ft
Max. platform height
21.1
m
69 ‘2”
ft
Ground clearance
480
mm
18.8”
in
Max. outreach from turntable centre
13.9
m
45 ‘6”
ft
Turret rotation (continuous)
360
°
360
°
Platform rotation
180
°
180
°
Platform height for safety speed activation
< 3
m
9 ‘8”
ft
Internal steering radius
–
2WS
3.2
m
10 “4”
ft
External steering radius
–
2WS
6
m
19 ‘6”
ft
Internal steering radius
–
4WS
1.7
m
5 ‘5”
ft
External steering radius
–
4WS
4.1
m
42 ‘6”
ft
Maximum
capacity (m)
230
Kg
507.0
lbs
Max. number of people on the platform (n)
–
indoors
2
2
The tool and material weight (me) (**)
–
indoors
70
Kg
154.3
lbs
Max. number of people on the platform (n)
–
outdoors
2
2
Tool and material weight (me) (**)
–
outdoors
70
Kg
154.3
lbs
Maximum drive height
Max
Max
Maximum dimensions of platform (*****)
0.8 x 1.7
m
2 ‘6” x 5 ‘5”
ft
Max. hydraulic pressure
350
Bar
5076.3
psi
Max. pressure of lifting circuit
230
Bar
3335.8
psi
Tyre dimensions (****)
Ø 1010 x 405
mm
39
‘3” x 15 ‘9”
in
Tyre type (****)
15 x 19,5-12
15 x 19,5
16PR
Transport dimensions
7.9 x 2.40 x 2.65
m
25 ‘9”x7 ‘8”x
8 ‘5” ft
Transport dimensions with retracted jib
N.A.
m
N.A
ft
Machine weight (unloaded) (*)
15100
Kg
33289.8
lbs
Stability limit:
Longitudinal inclination
4
°
4
°
Transversal inclination
4
°
4
°
Maximum wind speed (***)
12.5
m/s
28
mph
Maximum manual force:
400
N
90
lbf
Max. load per wheel
6000
Kg
13220
lbs
Performance:
Drive wheels
4
N
4
N
Max. drive speed
2.9
km/h
1.8
mph
Safety drive speed
0.6
km/h
0.3
mph
Oil tank capacity
120
Lt.
31.7
gal
Gradeability
30
%
50
%
Max. operating temperature
+50
°C
122
°F
Min. operating temperature
-
15
°C
5
°F
Battery power:
Battery capacity
and voltage
48 / 750
V/Ah
V/Ah
V/Ah
Total electrolyte quantity
168
Lt.
44.3
gal
Battery weight
1315
Kg
2899.0
lbs
Three
-
phase battery charger 380V (HF)
48 / 80
V/A
V/A
V/A
Max. current absorbed by the battery charger
14
A
14
A
Max.
installed power
17
kW
22.7
hp
Power electric pump 1
17
kW
22.7
hp
Max. absorbed current
400
A
400
A
Power electric pump 2
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Power electric pump 3
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A

Use and Maintenance Manual – A21 J A23 J Series Page 20
Diesel Power HATZ
Diesel engine type
NA
NA
Motor power
NA
kW
NA
hp
Starter battery
NA
V/Ah
NA
V/Ah
Diesel oil tank capacity
NA
Lt.
NA
gal
Diesel Power ISUZU
Diesel engine type
NA
NA
Motor power
NA
kW
NA
hp
Starter battery
NA
V/Ah
NA
V/Ah
Diesel oil tank capacity
NA
Lt.
NA
gal
380V three-phase electrical pump (optional)
Motor power
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Max. drive speed
NA
km/h
NA
mph
230V single-phase electric pump (optional)
Motor power
NA
kW
NA
hp
Max. absorbed current
NA
A
NA
A
Max. drive speed
NA
km/h
NA
mph
NOTE: These abbreviations 2WS; 4WS are not indicated on the machine plates. They stand for:
•2WS= Four driving wheels, two steering wheels
•4WS= Four driving wheels, four steering wheels
(*) In some cases different limits can be fixed. It is recommended to comply with the data shown on the machine plate. Weight A23 JRTE 2WS = 15100 kg;
Weight A23 JRTE 4WS = 15250 kg.
( ** ) me = m – (n x 80)
(***) Wind speeds higher or equal to 12.5 m/s indicate that the machines can also be used outdoors; Wind speeds equal to 0 m/s indicate that the machines can
be used INDOORS ONL .
(****) Standard rough terrain tyres 15x19.5-16PR (Ø1010x405 mm) ) filled with polyurethane foam; Optional rough terrain tyres 18x19.5-16PR (Ø1080x460 mm)
filled with polyurethane foam.
(*****) 800x1700 mm standard steel platform; Optional larger 900x2400 mm steel platform; Optional larger 1000x2400 mm steel platform.
