Snorkel SL26RTE Quick start guide

SL26RTE SL30RTE PARTS
MANUAL

GENERAL INFORMATION
INTRODUCTION SLE 1-1
REPAIR PARTS
GENERAL ASSEMBLY SL30RTE 2-1
GENERAL ASSEMBLY SL26RTE 2-2
HYDRAULIC HOSE ASSEMBLY 2-3
CHASSIS ASSY SL26/30SL 2-4
LOWER CONTROL PANEL ASSY ELEC - CE 2-5
STEER, AXLE FLOAT & TILT CYLINDER 2-6
CONTROL MODULE ASSEMBLY 2-7
CONTROL CABINET ASSEMBLY 2-8
FUEL TANK ASSEMBLY - DIESEL 2-9
HYDRAULIC VALVE BLOCK MOVEMENT SLE 2-10
HYDRAULIC VALVE BLOCK DRIVE 2-11
HYDRAULIC OIL TANK ASSEMBLY 2-12
ELEVATING ASSEMBLY SL26SL 2-13
ELEVATING ASSEMBLY SL30SL 2-14
HYDRAULIC CYLINDER ASSEMBLY - MAIN LIFT 2-15
PLATFORM ASSEMBLY - SL30SL 2-16
PLATFORM ASSEMBLY SL26SL 2-17
PLATFORM ASSEMBLY - SLIDE OUT SECTION 2-18
UPPER CONTROL PANEL ASSY ELEC - CE 2-19
UPPER CONTROL PANEL ASSEMBLY SL30- ADDITIONS 2-20
UPPER CONTROL PANEL ASSEMBLY SL26 - ADDITIONS 2-21
DECAL KIT SL26RTE - ENGLISH 2-22
DECAL KIT SL30RTE - ENGLISH 2-23
MAINTENANCE
SERVICE AND REPAIR 3-1
TROUBLESHOOTING 3-2
SCHEMATICS
SCHEMATICS SLE 4-1
OPTIONS
Removable Upper Control Box SL 5-1
TOW HITCH 5-2
A A
B B

PARTS & SERVICES
MANUAL
Part Number 516123-200E
OCT 2019
Serial Number SL26RTE and after
Serial Number SL30RTE and after

SL26/30ERT SERVICE AND PARTS MANUAL
FOREWORD
This manual is divided into six sections namely;
SECTION 1: INTRODUCTION
General description and machine specications.
SECTION 3: SERVICE AND REPAIR
Preventative maintenance and service information.
SECTION 4: TROUBLESHOOTING
Causes and solutions to typical problems.
SECTION 5: SCHEMATICS
Schematics and valve block diagrams with
description and location of components.
SECTION 6: ILLUSTRATED PARTS BREAKDOWN
Complete parts list with illustrations.
SPECIAL INFORMATION
NOTE: Provides helpful information.
!
D A N G E R
!
Indicates an imminently hazardous situation which if not avoided, will result in
death or serious injury.
!
W A R N I N G
!
Indicates a potentially hazardous situation which if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation which if not avoided,
may result in minor or moderate injury.
!
C A U T I O N
!
SECTION 2: OPERATION AND SPECIFICATION
See seperate Operators Manual.

WORKSHOP PROCEDURES
All information contained in this manual is based on the latest product information available at the
time of printing. We reserve the right to make changes at any time without notice.
No part of this publication may be reproduced, stored in retrieval system or transmitted in any
form by any means whether electronic, mechanical, photocopying, recording or otherwise with-
out the prior written permission of the publisher. This also includes text, gures and tables.
Detailed prescriptions of standard workshop procedures, safety
principles and service operations are not included.
Please note that this manual contains warnings and cautions
against some specic service methods which could cause personal
injury or could damage a machine or make it unsafe.
Please understand that these warnings cannot cover all conceivable
ways in which service, whether or not recommended by Snorkel,
might be carried out, or of the possible hazardous consequences of
each conceivable way, nor could snorkel investigate all such ways.
Anyone using service procedures or tools whether or not recom-
mended by Snorkel must satisfy themselves thoroughly that neither
personal saftey nor machine safety will be jeopardized.
!
C A U T I O N
!

Page 1 - 1
INTRODUCTION
INTRODUCTION
PURPOSE
The purpose of this service and parts manual is to provide instructions and illustrations for
the operation and maintenance of this work platform manufactured by Snorkel.
SCOPE
The manual includes procedures for proper operation, maintenance, adjustment and repair
of this product as well as recommended maintenance schedules and troubleshooting.
GENERAL DESCRIPTION
The work platform consists of the platform, controller, elevating assembly, power module,
control module and chassis.
!
W A R N I N G
!
DO NOT use the work platform without guardrails properly assembled and
in place.
PLATFORM
The platform has a reinforced steel oor, 1.1 m (43.5 inches) high guardrails with a mid rail,
152 mm (6 inches) toe boards and an entry gate at the rear of the platform. The guardrails
can be folded down for transportation purposes.

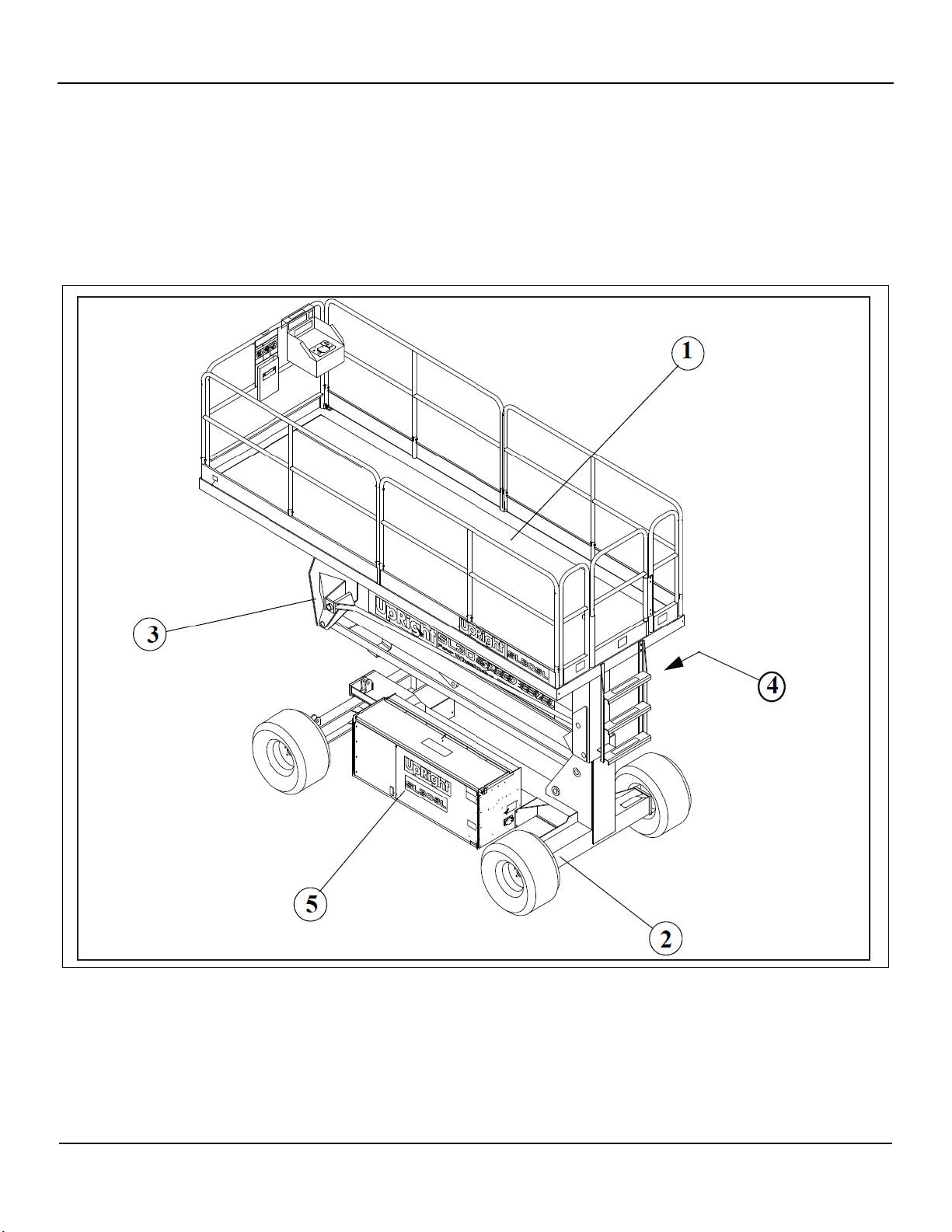

Features of the SL26/SL30ERT is shown in Figure 1-1.
1. Platform
2. Platform controller assembly
3. Elevating assembly
4. Power module
5. Control module
6. Chassis
1
3
4
2
5
6
Figure 1-1: Work platform

Page 1 - 2
PLATFORM CONTROLLER
The platform controller contains the controls to operate the machine. It is located at the front
of the platform. A complete explanations of control functions can be found in section 2.
ELEVATING ASSEMBLY
The platform is raised and lowered by the elevating assembly. The hydraulic pump driven
by the engine, powers the cylinders. Solenoid operated valves control raising and lowering.
CHASSIS
The chassis is a structural frame that supports all the components of the SL26/30SL work
platform.
PURPOSE OF EQUIPMENT
The objective of the work platform is to provide a quickly deployable, self propelled, variable
height work platform to elevate personnel and materials to overhead work areas.
SPECIAL LIMITATIONS
Travel with the platform raised is limited to a creep speed range.
Elevating of the work platform is limited to rm, even surfaces only. The auto level feature is
designed to level the platform in a situation where the ground has no more than a 13 degree
slope side to side and 9 degrees front to back. If the platform is not level to within 2 degrees,
a warning alarm will sound and platform elevation above approximately 1 m will be disabled.
!
D A N G E R
!
The elevating function shall ONLY be used when the work platform is level and on
a rm surface.
The work platform is NOT intended to be driven over uneven, rough or soft terrain
when elevated.
INTRODUCTION

REPAIRPARTS
SL26RTE SL30RTE PARTS MANUAL GENERAL ASSEMBLY SL30RTE
GENERAL ASSEMBLY SL30RTE Tue Feb 16 03:25:45 UTC 2021 2-1

アイテム 部品番号 名前 数量 UOM
Not
Shown 514770-800E-NM GENERALASSEMBLYSL30RTE EA
1 505603-000 PLATFORMASSEMBLYSL26RTE 1 EA
2 505501-000 CHASSISASSYSL26/30RTE 1 EA
3 505602-000 ELEVATINGASSEMBLYSL26RTE 1 EA
4 516059-000 BatteryPowermodule 1 EA
5 505515-000 Controlmodule 1 EA
SL26RTE SL30RTE PARTS MANUAL GENERAL ASSEMBLY SL30RTE
GENERAL ASSEMBLY SL30RTE Tue Feb 16 03:25:45 UTC 2021 2-1
