AiroDoctor WAD-M20 User manual

AiroDoctor Air Purifier
User Manual
Please read this manual completely before using this product
WAD-M20

Dear Customer,
Thank you for purchasing our AiroDoctor.
In order to facilitate the installation and use of this product, we recommend that
you carefully read this manual and keep it stored safely. To ensure that you always
enjoy fresh air, use this manual for qualified and standardized installation, proper
use, and maintenance. This will ensure you always enjoy fresh air.
If any questions arise from use, please consult this manual. If it is in accordance with
the warranty, we kindly welcome you to contact us with the address and phone on
the card. We welcome any comments you have about our product and service.
CONTENTS
INSTALLATION/USE INSTRUCTIONS
01
IMPORTANT SAFETY INSTRUCTIONS
02

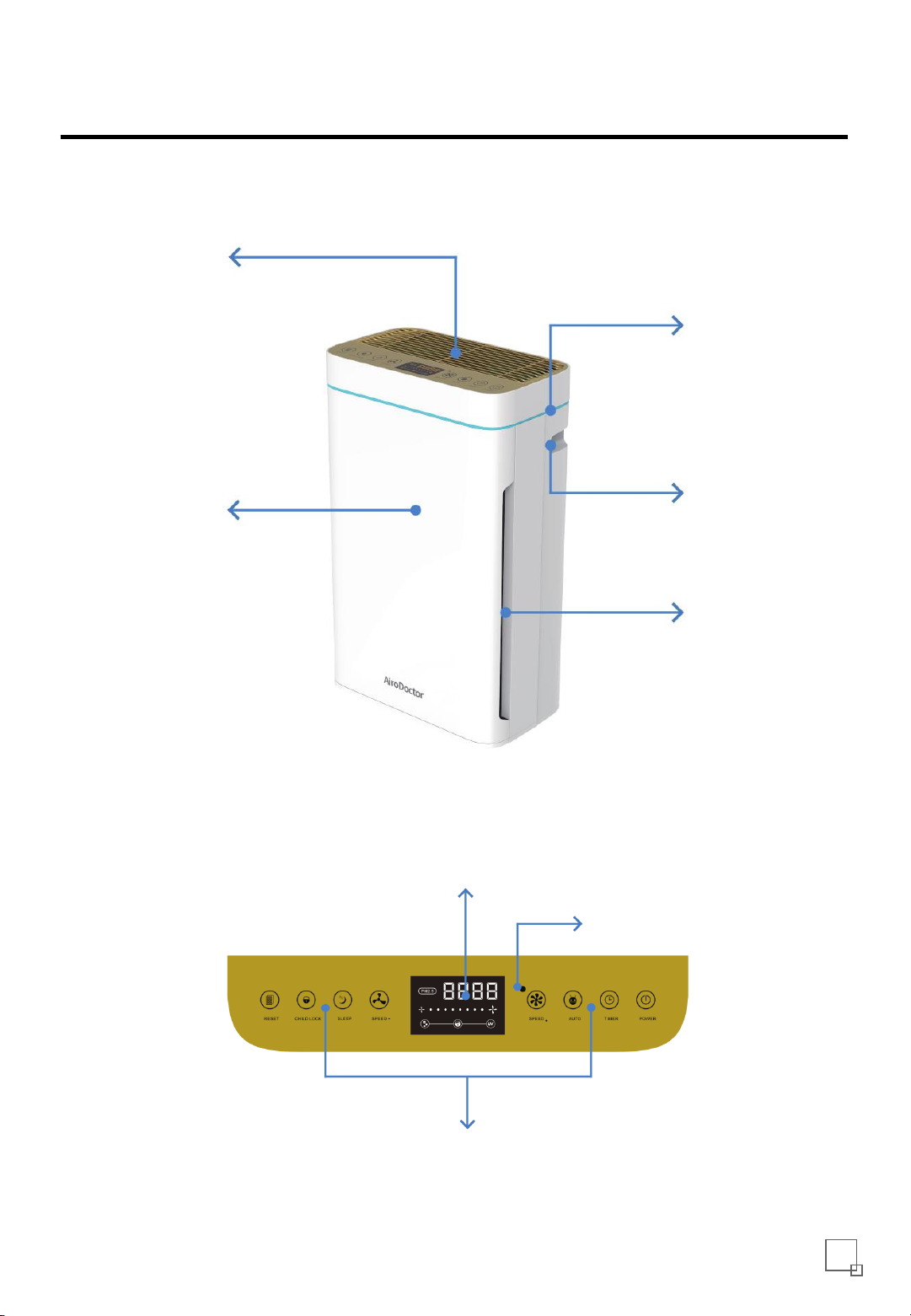

COMPONENTS
05
FEATURES
06
INSTALLING THE PRODUCT
07
CLEANING & MAINTENANCE
10
FILTER
REPLACEMENT
11
TROUBLESHOOTING
12
SPECIFICATIONS
13

INSTALLATION/USE INSTRUCTIONS

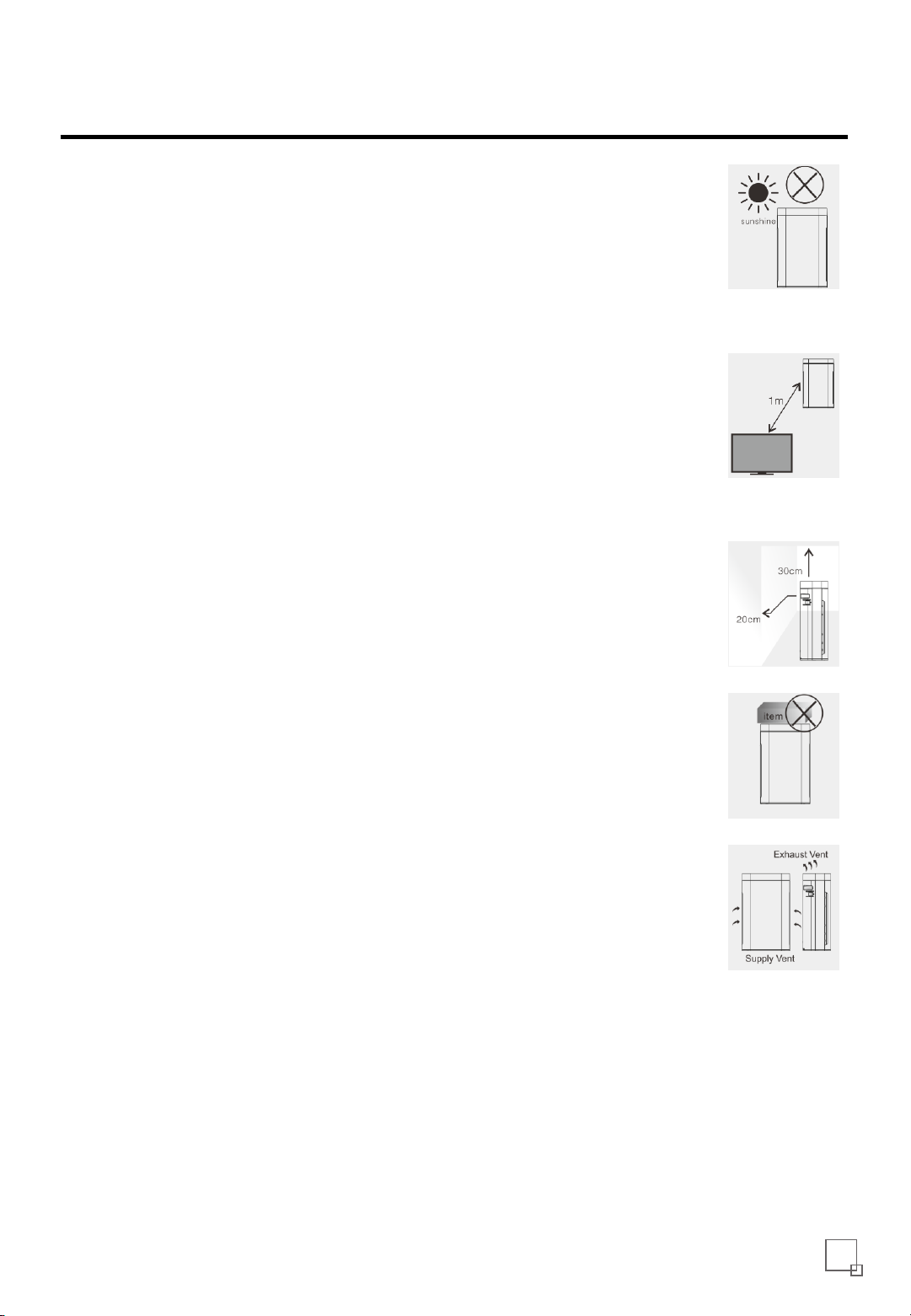

▪Do not place in direct sunlight, facing air conditioner vents, or
heated places. It may cause the unit to warp, deteriorate,
discolor, or malfunction.
▪Do not place near TVs or radios. This may distort images or
produce noise. Using the purifier remote may cause interference
with your TV or radio. Please place at a distance of 1m or more
away from these devices. In addition, if you are sharing outlets
with these devices, plugging in the purifier may distort images
or produce noise. If this happens, please plug the purifier into a
different outlet.
▪For effective room circulation, place the product approximately
30cm or more away from walls or other objects. Please keep the
backside at least 20cm away from the wall to enable it to work
more effectively.
▪Do not place items on the main product or it may lead to
malfunction. Be careful not to place magnets or any other metal
items on here.
▪Do not block the exhaust vent or supply vent. For example, do
not place an object on top of the exhaust vent or in front of the
supply vent.
▪Do not place flammable substances (sprays, gases, etc.) around the product.
▪Do not plug the power plug into one outlet (multitap) with other products.
▪Do not install on narrow or uneven floors.
01

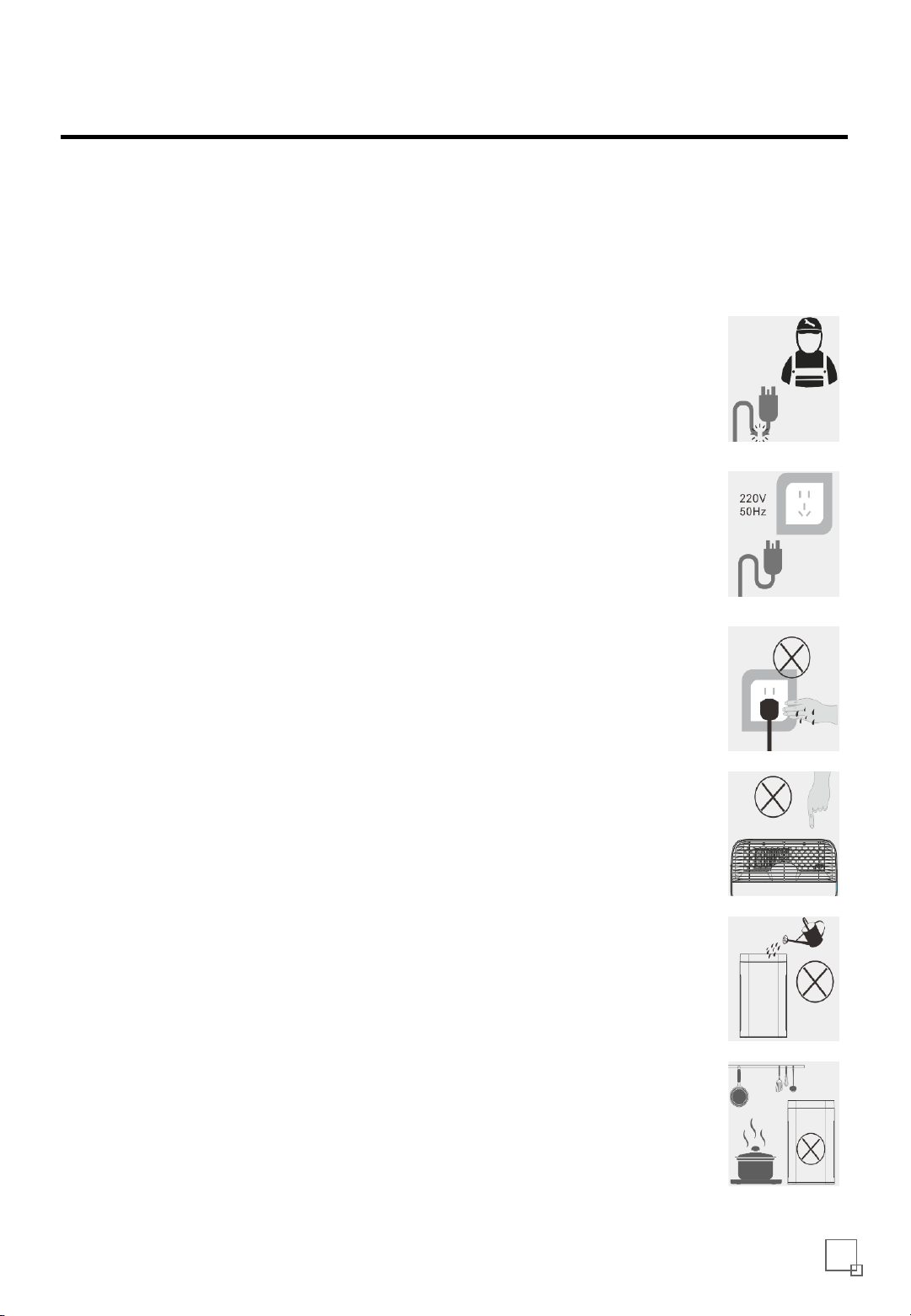

IMPORTANT SAFETY INSTRUCTIONS
▪Do not pick up or move the product while it is running. When moving or storing, do
not pull the power cord. This may cause a short circuit or do internal damage to the
power cord. This may lead to a fire or electric shock.
02
▪Do not damage power cord or outlet. Do not cut, excessively
twist, pull, or bend the power cord. If the power cord is
damaged, for your safety please call the manufacturer, service
department, or a trained professional to replace it.
▪Do not use power supplies, universal sockets, or connective
devices that exceed the recommended power rating. Use only
220V~ 5A AC power. Using a universal socket or connected
power source that exceeds this rating may lead to overheating
and cause a fire.
▪Do not touch the plug with wet hands. This may result in
electrical shock.
▪Do not place your fingers or metal objects into the air vents.
This may cause electrical shock or injury.
▪To avoid electrical shock or fire, do not allow water, flammable
cleaners, or other liquids enter the product.
▪Do not use this product near gas appliances, heating appliances,
or stoves.

IMPORTANT SAFETY INSTRUCTIONS
03
▪Do not use the air purifier in a room that is using an incense-type insect killer.
Chemical residue may accumulate in the product and than be released, causing harm to
physical health. After using insect killer or mosquito coils, allow the room to be fully
ventilated before using the air purifier.
▪Should any of the following conditions occur, turn off the machine immediately
(electrical shock, sparks, or smoke may occur):
- Strange noises or vibrations during operation.
- Product is unusually hot, or has a burnt odor.
▪Make sure the remote is placed somewhere children cannot
reach to avoid unintended damage.
▪Use the handle on the side of the main body when moving the
product. Forcing other parts to pull can cause product damage
and injury.
▪Please clean the plug regularly.
If there is dust or moisture on the plug it could damage it. This may result in a fire.
- Unplug the power cord, and wipe it with a dry cloth.
- Unplug the power cord if the appliance is not used for a long period of time.
▪Before electrical maintenance, make sure to unplug the device.
- The product may suddenly turn on, leading to electrical shock or injury.
▪Please plug the power cord securely into the power outlet. If the plug is not securely
seated, this may cause overheating which may lead to electrical shock and even fire.
-Do not use a damaged plug or loose power outlet.

IMPORTANT SAFETY INSTRUCTIONS
04
▪Please unplug the cord using the plug insulator.
- Pulling the power cord to unplug it may cause damage to the power cord, electrical
cord, electrical shock, short circuit, or fire.
▪Should any of the following circumstances arise, please turn off the machine power
immediately and contact the service department:
- A switch does not work.
- Power cord or plug is unusually hot.
- You detect an abnormal sound or vibration.
- Any other abnormalities or malfunctions.
▪To prevent the hazard of electrical shock, only trained professionals should disassemble
the machine.

COMPONENTS
05
Air Outlet
Front Cover
Indicator Light
of Air Quality
Handle
(On Both sides)
Air Inlet
(On Both sides)
Display Screen
Operation Touch Panel
Light Sensor

FEATURES
06
Key Features
▪Using eco-friendly UV LED photocatalytic technology
▪Excellent Sterilization & Deodorization Effect with LED
▪Secondary product zero due to air pollutant removal
▪No Ozone
▪99.9% Removes odor, harmful gas and bacteria by
decomposition
▪4-steps filtering system for perfect Air Purification
(Pre →Carbon →HEPA →LED Photocatalytic Filter)
▪Excellent effect when installed in children, patient and
elderly facilities
Filtering Systems
Pre
Filter
Carbon
Filter
HEPA
Filter
UV LED
Photocatalytic
Filter
Pre Filter Effectively filter out large particles such as hair, fibers, dust and hair
above 5μm (micrometers).
Carbon Filter
Using high-efficiency cell activated charcoal, tobacco smoke,
chemicals, odors, harmful substances, organic compounds (VOCs)
are purified primarily.
HEPA Filter Up to 99.9% of ultra-fine dust, fungi, bacteria and harmful
substances below 0.3μm (micrometer) are collected and removed.
UV LED
Photocatalytic Filter
Use eco-friendly UV LED photocatalytic technology to fundamentally
decompose and eliminate harmful substances, viruses, germs, odors,
etc.
※ Carbon Filter and HEPA Filter are integrated Filters.

INSTALLING THE PRODUCT
07
Installing the Filter

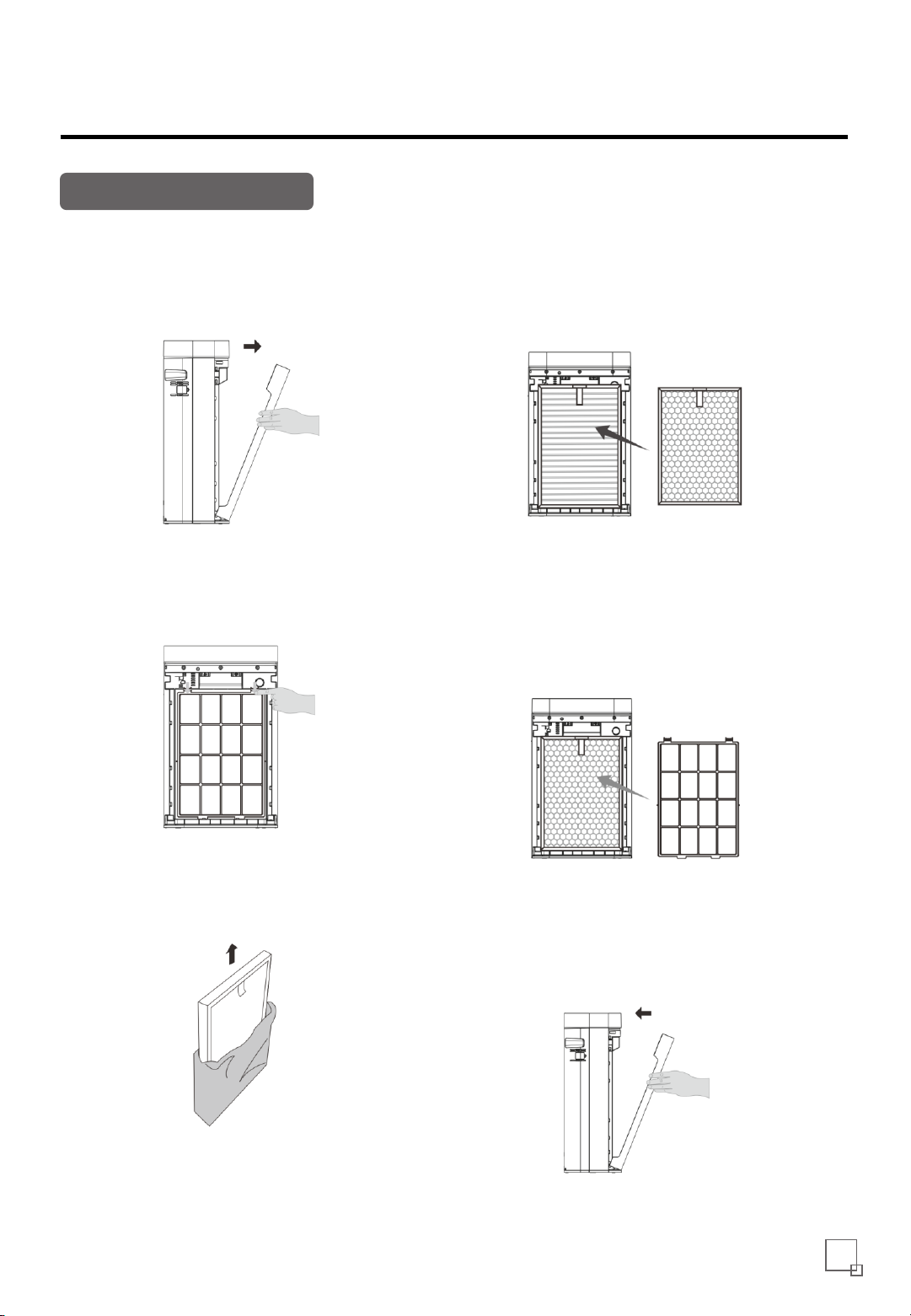

1. Removing the Front Cover
(Use both hands to pull)
2. Removing the Pre Filter
3. Take the filter out of the Packaging.
※ Make sure to remove plastic bag off
the filter before use.
4. There are differences between the inside
and the outside of the absorption filter
(Carbon Filter and HEPA Filter).
※ The side with a handle should be placed
outwards.
5. There are differences between the inside
and the outside of the Pre Filter.
※ The side with a handle should be placed
outwards.
6. Install the Front Cover.
※ The product will not run if the front cover
is uncovered.

INSTALLING THE PRODUCT
08
Functional Description
Icon Name Description
Power ON/OFF
When
the product is plugged in and on standby, “POWER”
button
works
to turn on the product. After this button being touched for
the
second
time, the product turns to standby state. (The icon is red
when
standby
and green when on)
If
you press the power button on the operation panel while
the
product
is running, the product will enter into standby mode. (And
the
icon
will turn red)
TIMER
When
the product is on, every touch of “TIMER” button will add 1
hour
to
the timing. When it accumulates to 12 hours, one more touch
will
turn
it off. (The icon will stay on when the product operates in
timing
mode,
otherwise it will be off)
AUTO
When
the product is on, after “AUTO” button being touched,
negative
ion
generator and germicidal lamp will start to work, and the gear
will
be
changed according to sensor’s data. (The icon will stay on when
the
product
operates in auto mode, otherwise it will be off). If
users
change
“wind speed” under auto mode, the product will quit this
mode
automatically
.
SPEED
When
the product is on, touch “SPEED –” or “SPEED +” to switch
the
gear
and change the operating speed. After gear being changed,
the
motor
will work only at the setting level without being affected by
the
sensor
. (Touch “SPEED” button, and the product will quit auto mode)
SLEEP
When
the product is on, it will turn to sleeping mode 5 seconds
after
the
“SLEEP” button being pressed. In sleeping mode, all the lights
turns
off
and the product works at the first gear. Press any button to wake
it
up
and then press “SLEEP” button to quit sleeping mode, or
press
“SPEED
–” /“SPEED +” /“AUTO” button to quit after waking it up.
CHILD LOCK
When
the product is on, touch “CHILD LOCK” button to lock all
the
buttons
.At that time all the buttons have no reaction to any
touch,
while
the product still works how it is set before. Press “CHILD
LOCK”
button
for 5 seconds and the product will quit this mode. (The
icon
will
stay on when the machine operates in child lock mode,
otherwise
it
will be off)
Gear PM 2.5 Data Light Color Gear PM 2.5 Data Light Color
1 0~50 Green
(Good)
5 121~140 Yellow
(Bad)
2 51~80 6 141~160
3 80~100 Blue
(Average)
7 161~300 Red
(Very Bad)
4 101~120 8 301~500

INSTALLING THE PRODUCT
09
Functional Description
Icon Name Description
RESET
This
product has a regular reminding function of filter
replacement,
which
works every 320 hours and 1500 hours, the indicator light
on
the
panel will flash to inform users to clean the filter after
cleaning,
press
the “RESET” button for 5 seconds, then the light will stop
flashing.
After
every 1500 hours, the indicator light will stay on to inform
users
to
renew the filter. At that time, press the button for 5 seconds so
that
the
timing can be reset.
When
the product is on, press this button and the total working
time
will
be shown in hours on the screen. This equals a check of
working
time
.
Light-sensitive
In
auto mode, the product will turn to sleeping mode 2 minutes
after
the
surrounding light <5x. It will quit sleeping mode 3 minutes
after
the
surrounding light >5x, and then continue to work in auto mode.

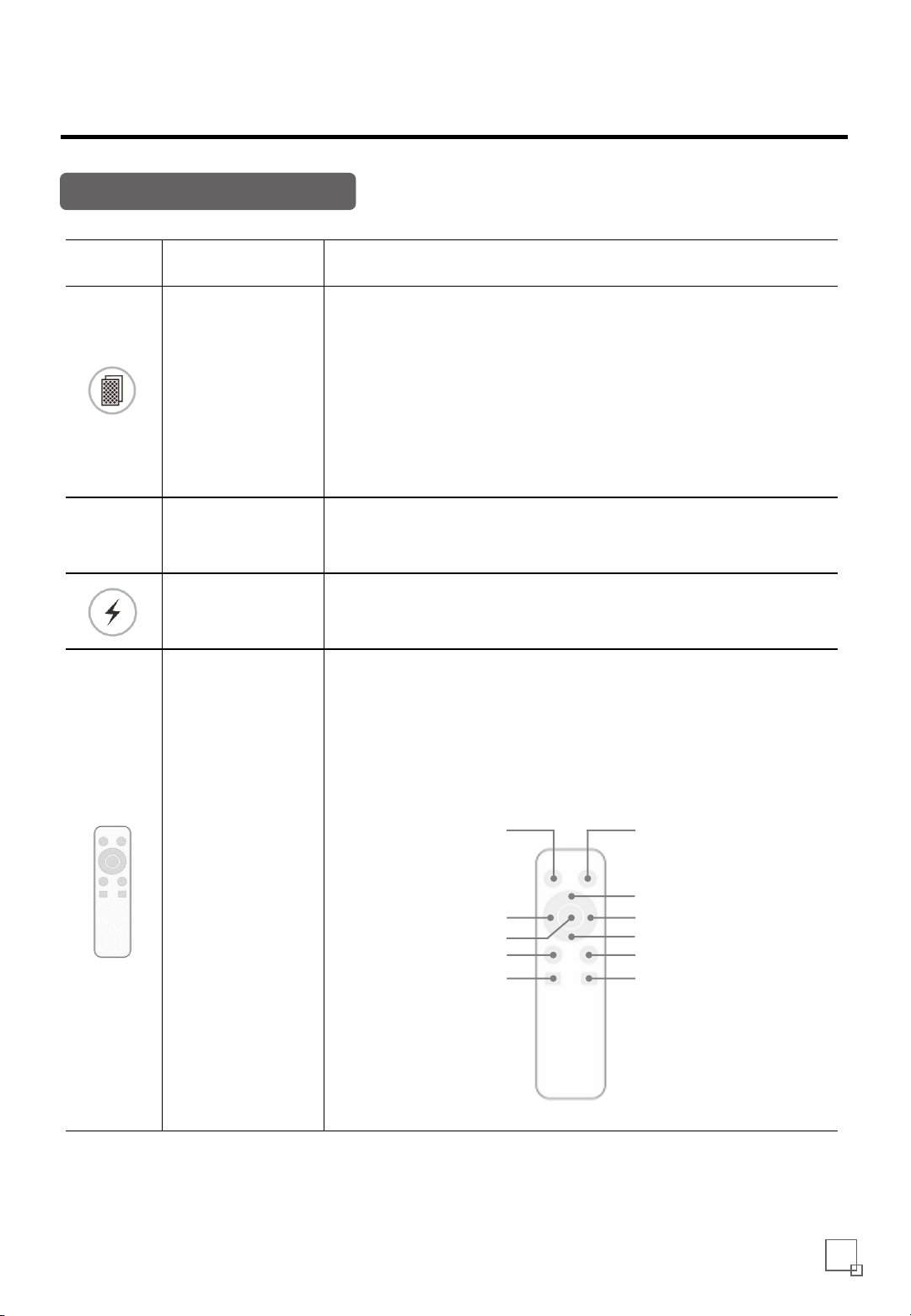

REMOTE
CONTROLLER
This
product is provided with a remote controller powered by
lithium
3
V dry cells. (please take out the dry cell if the remote control will
not
be
used for long periods)
There
is a one-to-one correspondence between the buttons on
the
remote
controller and the operation panel. The functions
and
operation
methods are generally the same.
POWER ON/OFF
AUTO
CHILD UNLOCK
SPEED (-)
CHILD LOCK
NON FUNCTION
IONIZER
SPEED (+)
TIMER
RESET
SLEEP

CLEANING & MAINTENANCE
10
※ Please proceed with the power plug before cleaning & maintenance of the product.
▪Please use a soft cloth to remove stains and dirt from the product body.
For stains that cannot be gently wiped off, apply on an appropriate amount of water
or diluted neutral detergent and wipe off.
▪Pre Filter (approximately twice per month)
- Clean the surface of the filter with a vacuum cleaner or
wash with water. Allow to dry thoroughly.
▪Integrated (Carbon + HEPA) Filter (approximately once every two months)
- Clean the dust from the front of the filter with a vacuum cleaner.
- The filter is delicate. Do not press too hard on the filter while
vacuuming.
- Place the filter in a ventilated area, this will allow harmful gasses
and germs to dissipate. Do not place under too much sun exposure.
- Do not use water to clean this filter.
!"#$% &'% (%)* +#&' ,-./ 01&&1) *+,2 $%.#1-#0,((/ &1
.%314% ,)/ -#.&5 671#*&8.% 1. &12,001 *319%
.%*#-8% 3,/ 0,8*% #& &1 )1 (1):%. +1.9 $.1$%.(/;
!<1 )1& #)*%.& &'% 01&&1) *+,2 #)&1 ,)/ ,.%, 1&'%.
&',) &'% (%)*5
!=% *8.% &1 8)$(8: &'% $1+%. 01.-5
!"#$% &'%()('$* +(,-'$,../
!!"#$%&'("$) *)+*,# -"..#,/%0"$)(1 ,+&) )2)#1 $3, 0,+$4*5
§!"#$#%&$&'($)% *)'$+,
!Us!"#"$%%& $'!"(!)* +",! -%)! (./ /. 0)!-- /.. &%$1
"2"3(-/ /1! 2)3''*

FILTER REPLACEMENT
11
※You may need to replace filters sooner depending on where and how you use the
appliance (such as a household with a large smoking population or areas with
higher air pollution).
Since the filter is a consumable, it needs to be purchased separately and replaced if
it is over its lifetime during the warranty period (such as when the air clean
efficiency is noticeably lower).
Recommended filter cleaning/replacement period
Item Cleaning period Replacement period Remarks
Pre Filter Twice a month Only if damaged
Integrated Filter
(Carbon + HEPA)
Once every
two months 12 months
LED
Photocatalytic
Filter
Once a year -
※ Please refer to page 10 for how to clean the filter.
※ Photocatalytic filters do not require a separate replacement. Do not remove it when cleaning
and replacing. If there is an abnormality in the photocatalytic filter, please contact the retailer
where you purchased the product.

TROUBLESHOOTING
12
※ Before you request a complaint for a breakdown, please check the following
troubleshooting instructions and contact the retailer where you purchased the
product if the issue is not resolved.
Malfunction Inspect / How to fix
Cannot turn on power or pressing
button has no response.
1. Make sure the power plug is fully inserted into the
outlet, then press the power button to use it.
2. Make sure the front cover is inserted correctly.
3. Please make sure that the product is safely installed
on a flat floor.
4. If the screen has a childlock turned on, press the
lock button for 5 seconds to turn it off and use it.
When the air is dirty but the air
condition indicator is good (Green).
1. Please move the product to a position where you
can easily inhale dirty air, dust, etc.
The air condition light is still very bad
(Red) even though the product has
been up for a long time.
1. Please refer to the manual to clean the particulate
sensor. (See page 10)
When a strange sound (knocking,
chirping) flies in the product.
1. Please refer to the manual to clean the ionizer.
(See page 10)
When the product smells strange.
1. Please clean the air intake and the internal filter
(pre filter, integrated filter). (See page 10)
2. If you haven't replaced the filter for a long time,
please purchase and replace it.
When the product feels like it doesn't
improve air quality even after a long
operation.
1. Please make sure that the filter packaging (plastic
bag) inside the product is properly removed.
2. Please make sure that the filter combination order
is correct.
When the product is turned on and
automatically switches to sleep mode
shortly after.
1. Please turn off sleep mode. (See page 10)
※ In addition to the above, if a product abnormally occurs, please contact the store where you
purchased the product and receive and A/S.
We are not responsible for any accidents caused by the arbitrary disassembly and repair of
the product. (A/S impossibility)

SPECIFICATIONS
13
Product Name AiroDoctor Air Purifier
Model Name WAD-M20
CADR
(Clean Air Delivery Rate)
55 dB
Filter Type Pre Filter, Integrated (Carbon+HEPA) Filter,
UV LED Photocatalytic Filter
HEPA Filter Grade H13
Timer 12 hours (max.), Set up in 1 hour increments
Filter Replacement Notice Yes
Indicator Light
of Air Quality
Energy Efficiency
Rated Voltage
Power Consumption 85 W
Weight 11.5 kg
460 (W) x 230 (D) x 640 (H) mm
200 m2
480 m3/h
Noise Level (Max.)
Max. Room Size
1~8Levels
Fan Speed
!"#$#%&
Good (Green), Average (Blue), Bad (Yellow), Very Bad (Red)
Class 4
##$%&'$ () *$+,$ -.
Dimensions

Declaration of Conformity
according to the EC Directive 2004/108/EC (electromagnetic compatibility)
of December 15h, 2004.
We hereby declare that the machine specified below in its design, construction and in the
version marketed by us is conform with the basic safety and health requirements of the EC
Directive 2004/108/EC. When changes to the unit are not coordinatedwith us, this declaration
loses it's validity.
Moreover, the product(s) meet the compliance with another, also applicable EC-
Directives:
•
Low Voltage EC Directive (2006/95/EC) of December 12th, 2006
EN 60950-1:2006 - Information Technology Equipment - Safety
EN 61000-6-1:2007 - Electromagnetic Compatibility (EMC)
EN 61000-6-3:2007 - Electromagnetic Compatibility (EMC)
•
•
•
Authorized person:
Description of items:
Carsten Hermann
•Product type: AiroDoctor UV-LED Photocatalytic Air Sterilizer
•Series: WAD-M20
Date of Declaration: 01/01/2020
Name of Signatory: Carsten Hermann
Title of Signatory: CEO
Signature: ………………………………………………….
Manufacturer: Taeseok Precision Co. Ltd.
#172, Hwanggeum 1-ro 80beon-
gil, Yangchon-eup, Gimpo-si,
Gyeonggi-do, 10048,
KOREA
Importer: ScreenSource GmbH
Köthener Str. 8
06779 Raguhn-Jessnitz
Germany

© COPYRIGHT ScreenSource GmbH. ALLE RECHTE VORBEHALTEN.
ScreenSource GmbH
Köthener Str. 8
06779 Raguhn-Jessnitz
GERMANY
Commercial Register:
District Court Stendal, HRB 24520
VAT Information:
Sales tax identication number
according to § 27 a sales tax law:
DE311493511
For perfect air
AiroDoctor and Airo.Health
are trademarks of:
Telephone: [phone]
E-Mail: [e-mail]
Web: www.airodoctor.com
