Airofog Unique USL User manual

Airofog Unique
Sprayer Manual
USL
604-000-210
USA
604-000-010
USP
604-000-110

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Safety
Notices
• Keep out reach of children
• Before use, check condition and proper function of the sprayer
• Only pump up and down and maintain sprayer in an upright position or a
vertically hanging position
• Do not leave insecticide lled sprayer out in direct sunlight
• Note wind direction when in use to avoid spraying in areas that arent supposed
to be treated and yourself
• Never spray into electrical outlets or cable boxes
• When using metal extension close to electrical equipment, pay attention to avoid
electric shock
• Do not operate a sprayer that has visible wear on parts
• Always wear personal protective equipment (PPE) when handling dangerous
substances
• Application of insecticides should follow manufacturer recommendations and
must be in compliance with local regulations in regards to the application of
pesticides. We are not liable for consequences of improper application
• When unscrewing cap, never point the lance at others or yourself
• Never blow through clogged nozzles or valves with your mouth
• Before repair and maintenance, drain insecticide and release all pressure from
sprayer
• Always replace damaged, or malfunctioning parts
It is the operator’s responsibility to ensure the safe use of the
sprayer and that they’re fully compliant with national or local
regulations governing compression sprayer and applications of
pesticides.
AIROFOG USA is not liable for damages that has ocurred
due to improper use/repair/maintenance, the use of non-
recommended or non OEM parts, and acceptance of damaged/
broken sprayers for any reason.
Airofog Unique 32oz Sprayers referred to in this
document are designed for use by qualied and
experienced personnel. Please read this instruction
thoroughly before usage.
Safety Instruction
Caution

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Care &
Maintenance
• Empty tank
• Drain the hose and lance
• Carefully inspect all gaskets and hoses as well
as the other ttings for wear
• Replace any worn parts as necessary
• DO NOT insert metal objects into tip
• Clean with soft bristle brush to free clogs
• Detergents or solvents can be used to soak tip
for several hours to break up clogging
• DO NOT use ammonia; it can corrode brass
• Run warm water over and into extension straw
• Blow compressed air through the back of the
nozzle and extension straw
• Rinse tank thoroughly with water
• Add water and detergent to the tank
• Attach pump cap and tighten it
• Shake vigorously to clean inside of tank
• Pressurize the tank
• Flush the hose and trigger valve
• Empty the tank and rell with clean water
• Flush the hose and trigger valve once more
• Empty remaining water
• Sprayer should be cleaned thoroughly weekly
• Piston o-ring and trigger valve o-ring should be
oiled every 90 days
• Grease threads on the inside of the ller cap
with marine or automotive grease every 90 days
• Check valve at the bottom of the pump cylinder
prevents liquid from entering pump. If Liquid is
leaking into pump, valve should be inspected
and/or replaced
After every use
Clogged nozzle and
extension straw
Pump & trigger valve
maintenance
Cleaning the sprayer
Airofog USA guarantees the Airofog Unique Sprayers to be free of defects in materials and workmanship to the
original purchaser for a period of one(1) year on labor and parts which are not subject to usual wear
During this period, AIROFOG USA will replace and/or repair the parts and manufacturer faults on the exclusive
judgment of our technical department free of charge
Shipping and dispatch of defect equipment will be at original purchaser’s expense
Guarantee does not cover damages occurred during transport or by incorrect handling, tampering, use, or the
use of non-recommended products and so on.
Under no circumstances will AIROFOG USA be liable for damages due to improper use or application.
Under no circumstances will AIROFOG USA be responsible for damages to any persons or property.
Airofog Guarantee

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Operation &
Repair

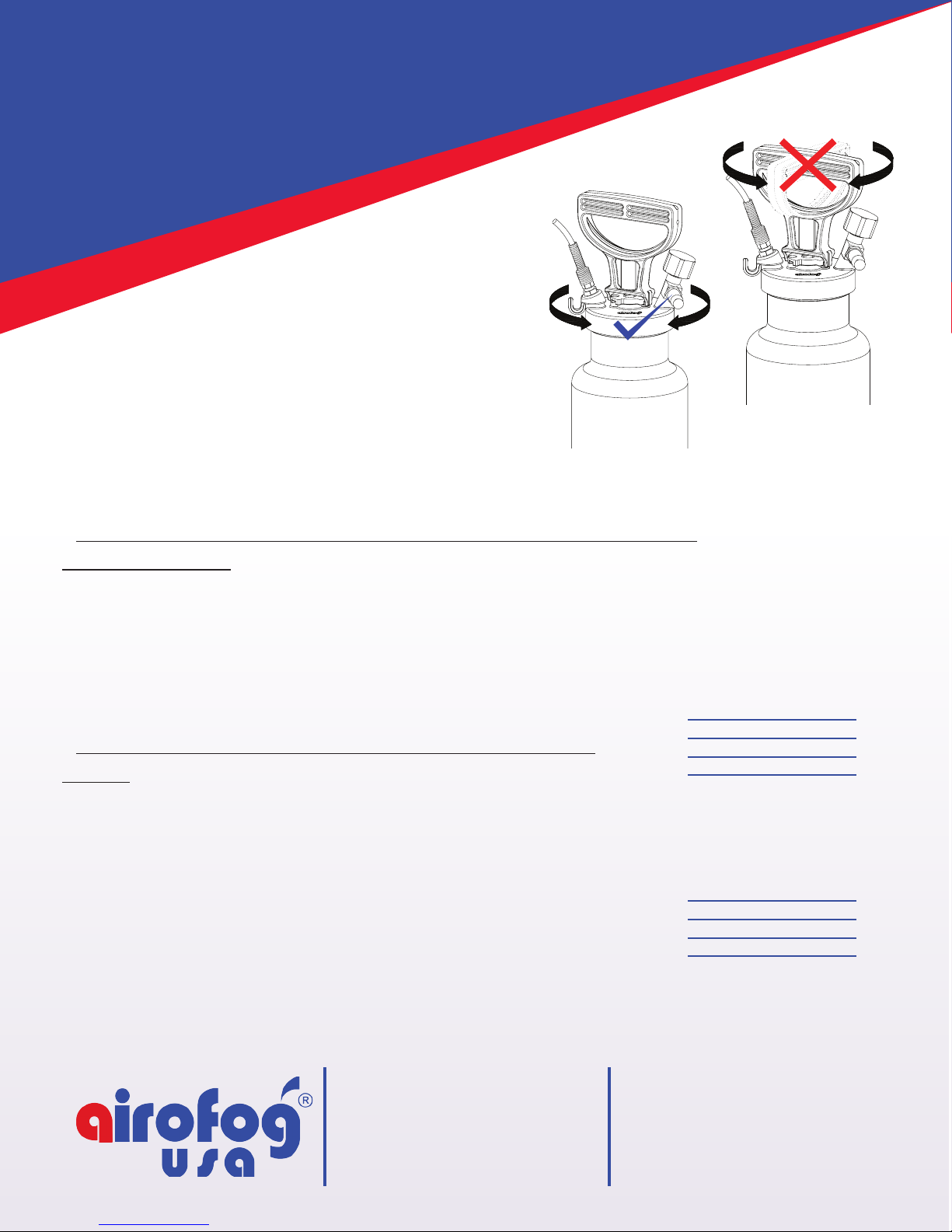

• To open the bottle, hold body and turn cap counter
clockwise
• Follow insecticide’s label instructions and ll the mixed
water or oil based insecticide into the bottle.
• Avoid power based products to prevent the nozzle becoming clogged
• To close, hold body and turn cap clockwise until tight.
• Never open or close bottle by turning the handle as this may severely
damage the handle
• Press down then turn the pump handle 90 degrees to unlock it.
• Pump the plunger up and down until required pressure is reached
• Lock pump handle back in original position my pumping it down
and turning the handle 90 degrees back into its original position
• Never exceed maximum psi ratings when pressurizing the
sprayer
• Modication of sprayer may result in harm or injury to both
sprayer and user
• If any parts so signs of damage or wear, replace immediately
• Always use OEM parts for repair and maintenance
Opening the cap
Pressurizing the sprayer
Repair
Application rates of
multi-nozzle
(water @ 40psi)
Application rates of
aerosol nozzle
(water @ 60psi)
Fine fan
Coarse fan
Pin stream
CC straw
Fine, white
Medium, blue
Coarse, red
CC tip
12oz./min
26oz./min
11oz./min
1.7oz./min
2oz./min
3oz./min
4.4oz./min
3.8oz./min

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Specications
9" lance with multi-nozzl
.
US Lance (USL )U US Aerosol (USA)
Tank
Working Capacity
Max. Working Pressure
Cap
Pump Cylinder
Spray Hose
Pressure Release Valve
Pressure Gauge
Discharge Valve brass, drip-free trigger valve brass, drip-free trigger valve
ew ith multi-nozzlew
and C&C straw and C&C straw
2.8 lbs.3.3 lbs. 3.5 lbs.thgieW teN
Total Height
Specifications are subject to change without notice or obligation.
Trademarks appearing within are the property of Airofog Machinery Co., Ltd.
Other trademarks are the property of their respective owners.
11.6 in.
heavy duty coiled
0-150 psi
stainless steel AISI 304, with VitonTM check-valve
supplied as standard
high quality brass
32oz
stainless steel AISI 304, 40oz/1Liter
US Pistol Grip (USP)
up to 116psi
Brass, wand like trigger
with Flexi-pro blue
extension

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com

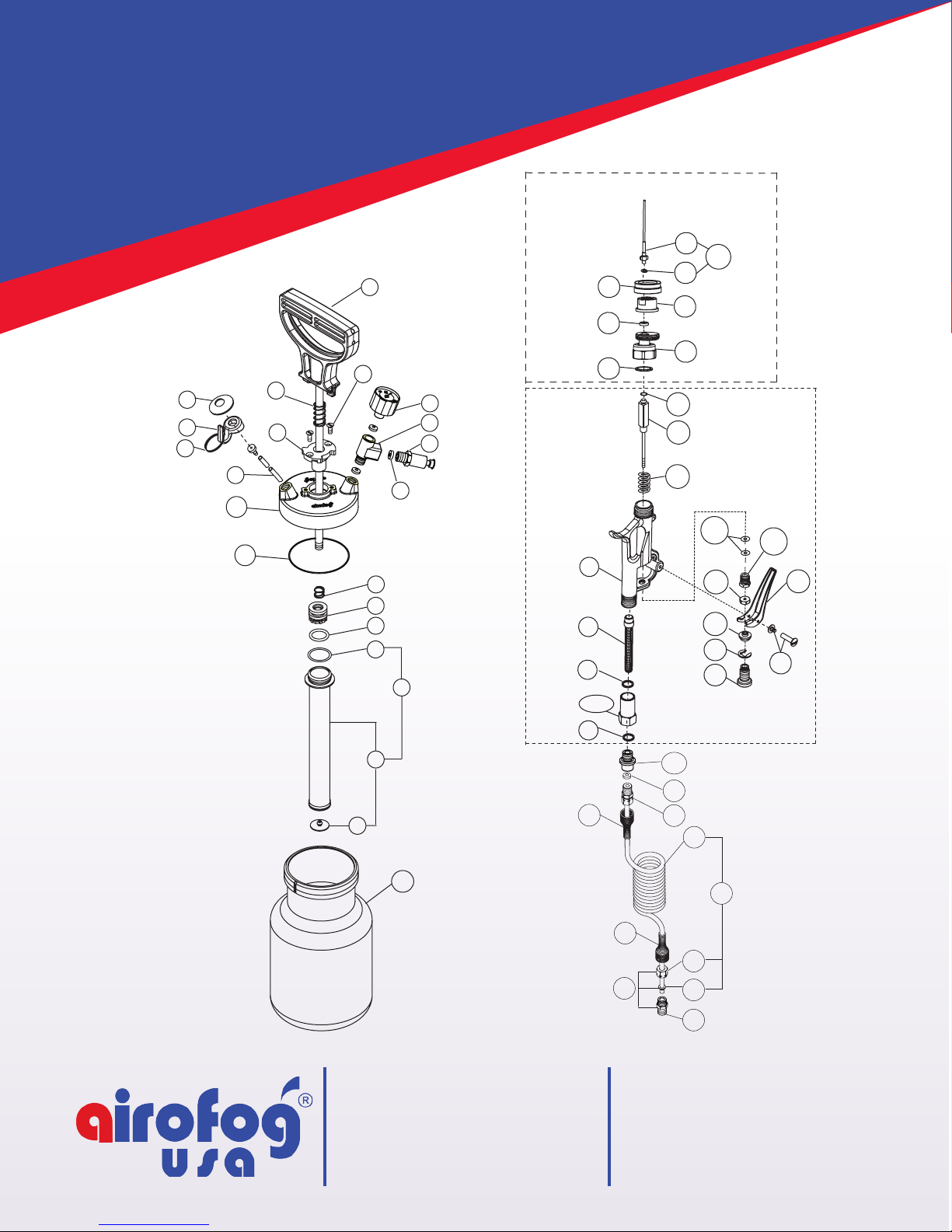

Lance
Assembly (USL)
10
8
6
2
7
3
5
13
20
23
24
14
19
17
18
15/1
1/1
16/1
4
11
9
12
9.7
9.6
9.9
9.13/1
9.5
9 .2/1
9.3
9.3
9.12/1
9.8
9.10
9.11
9
.
4
9. 1 4.8
9
.
1
8
9
.
1
7
9
.
1
6
9
.
1
5
9
.
1
9
1 0.8
12.3
12.8
12.6
9.19
12.4
12.7
12.9
DF12
12.10
26/3
25
29/1
26/2
26/1
26
28
24
27
DFC
28
Pos.

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Lance
Parts List
1/1
2
3
4
5
6
7
8
9
10
11
12
13
14
15/1
16/1
17
18
19
20
23
24
26
26/1
26/2
26/3
27
28
29/1
DFV
9.2/1
9.3
9.4
9.5
9.6
9.7
9.8
9.9
9.10
9.11
9.12/1
9.13/1
9.15
9.18
9.19
9.20
12
9.19
12.3
12.4
12.6
12.7
12.8
12.9
12.10
Bottle
Piston rod; Black
Spring
Countersunk screw
Cylinder cap
Spring
Piston
O-ring
Pump cylinder assembly
O-ring
Cylinder tube
Check valve
Pressure gauge
T-connector
Bottle cap
O-ring
Hook
Hook ring
Pressure release valve
Supply tube
Disc
Gasket
Hose adapter assembly
Adapter
Cutting ring
Retaining nut
Coiled hose; blue
Hose holder spring
Female adapter
DF valve assembly
Strainer housing
Gasket
Strainer
Valve body
Trigger
Trigger screw
Safety lock nut
Snap ring
Adjusting screw
Lock nut
Sealing nut
O-ring x2
Seat spring
Viton o-ring
Gasket
Long seat stem
Multi-nozzle assembly
Gasket
Multi-nozzle holder
Gasket
Multi-nozzle
Retainer
O-ring
C&C straw
Straw with o-ring
603-001-010
605-002-000
604-003-000
604-004-000
604-005-000
505-001-020
604-007-000
604-008-000
604-009-000
935-027-010
604-011-000
604-012-000
604-013-000
510-003-030
604-015-010
604-016-010
604-017-000
601-018-000
604-019-000
604-022-010
604-023-000
505-002-020
601-004-010
601-004-011
601-004-012
601-004-013
25 Hose replacement kits
(Pos: 26/2x2, 26/3x2,27)
Pump service kit
(Pos: 8, 10, 12, 16/1, 24x3)
DF service kit (Pos: 24, 9.1, 9.3,
9.13/1, 9.18, 9.19x2, 12.4, 12.8)
604-025-100
605-035-0
604-036-000
601-004-130
601-004-040
604-029-010
501-009-000
501-009-020
500-009-030
500-009-040
500-009-050
500-009-060
500-009-070
500-009-080
500-009-090
500-009-100
500-009-110
500-009-121
500-009-131
500-009-150
500-009-180
505-009-150
500-009-200
500-012-000
505-009-150
500-012-030
500-012-040
500-012-060
500-012-070
935-018-000
500-012-090
500-012-100
Pos.
Pos.
Part no.
Part no.
Description
Service kits
Description
Hose replacement
kit (604-025-100) not
included with purchase

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Aerosol
Assembly (USA)
10
8
6
2
7
3
5
13
20
23
24
14
19
17
18
15/1
1/1
16/1
4
11
9
12
Pos.
41/4
38
37
36
35
34
33
32
41
39
40
39
41/3 41/1
27
25
28/1
26/2
42/1
31
29
26/3
30
28
26/3
26/2
26/1
26

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Aerosol
Parts List
1/1
2
3
4
5
6
7
8
9
10
11
12
13
14
15/1
16/1
17
18
19
20
23
24
26
26/1
26/2
26/3
27
28
28/1
29
30
31
32
33
34
35
36
37
38
39
40
41
41/1
41/3
41/4
42/1
Bottle
Piston rod; Black
Spring
Countersunk screw
Cylinder cap
Spring
Piston
O-ring
Pump cylinder assembly
O-ring
Cylinder tube
Check valve
Pressure gauge
T-connector
Bottle cap
O-ring
Hook
Hook ring
Pressure release valve
Supply tube
Disc
Gasket
Hose adapter assembly
Adapter
Cutting ring
Retaining nut
Coiled hose; blue
Hose holder spring
Hose holder spring
Flexi valve assembly
Valve handle
Valve body
Spring
Seat
Viton o-ring
Viton o-ring
Seat sleeve
Valve cup
Trigger
Viton o-ring
Spiral want extension
Aerosol nozzle set
Aerosol nozzle; white
Aerosol nozzle; blue
Aerosol nozzle;red
C&C extension
603-001-010
605-002-000
604-003-000
604-004-000
604-005-000
505-001-020
604-007-000
604-008-000
604-009-000
935-027-010
604-011-000
604-012-000
604-013-000
510-003-030
604-015-010
604-016-010
604-017-000
601-018-000
604-019-000
604-022-010
604-023-000
505-002-020
25 Hose replacement kits
(Pos: 26/2x2, 26/3x2,27)
Pump service kit
(Pos: 8, 10, 12, 16/1, 24x3)
Flexi-valve service kit
(Pos: 34,35x2,39x3)
604-025-100
605-035-010
601-023-200
601-004-010
601-004-011
601-004-012
601-004-013
601-004-130
601-004-040
603-004-040
601-007-000
601-007-010
601-007-020
505-003-014
601-007-040
601-007-080
935-041-000
601-007-070
601-007-080
601-007-090
601-007-100
601-008-010
601-009-000
601-009-030
601-009-050
601-009-070
604-010-012
Pos.
Pos.
Part no.
Part no.
Description
Service kits
Description
Hose replacement
kit (604-025-100) not
included with purchase

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Pistol Grip
Assembly (USP)
10
8
6
2
7
3
5
13
20
23
24
14
19
17
18
15/1
1/1
16/1
4
11
9
12
9.15
9.20
9.18
12.3
12.8
12.6
9.19
12.4
12.7
12.9
DF12
12.10
9.7
9.6
9.9
9.13/1
9.5
9.2/1
9.3
9.3
9.12/1
9.8
9.10
9.11
9.4
26/3
25
29/1
26/2
26/1
26
28
24
27
28
DFV
26
Pos.

Airofog USA
15074 Aviation Loop Drive
Brooksville, FL 34604
USA
[phone]
[email protected]
www.airofogusa.com
Pistol Grip
Parts List
1/1
2
3
4
5
6
7
8
9
10
11
12
13
14
15/1
16/1
17
18
19
20
23
24
26
26/1
26/2
26/3
27
28
29/1
DFV
9.2/1
9.3
9.4
9.5
9.6
9.7
9.8
9.9
9.10
9.11
9.12/1
9.13/1
9.15
9.18
9.19
9.20
12
9.19
12.3
12.4
12.6
12.7
12.8
12.9
12.10
Bottle
Piston rod; Black
Spring
Countersunk screw
Cylinder cap
Spring
Piston
O-ring
Pump cylinder assembly
O-ring
Cylinder tube
Check valve
Pressure gauge
T-connector
Bottle cap
O-ring
Hook
Hook ring
Pressure release valve
Supply tube
Disc
Gasket
Hose adapter assembly
Adapter
Cutting ring
Retaining nut
Coiled hose; blue
Hose holder spring
Female adapter
DF valve assembly
Strainer housing
Gasket
Strainer
Valve body
Trigger
Trigger screw
Safety lock nut
Snap ring
Adjusting screw
Lock nut
Sealing nut
O-ring x2
Seat spring
Viton o-ring
Gasket
Long seat stem
Multi-nozzle assembly
Gasket
Multi-nozzle holder
Gasket
Multi-nozzle
Retainer
O-ring
C&C straw
Straw with o-ring
603-001-010
605-002-000
604-003-000
604-004-000
604-005-000
505-001-020
604-007-000
604-008-000
604-009-000
935-027-010
604-011-000
604-012-000
604-013-000
510-003-030
604-015-010
604-016-010
604-017-000
601-018-000
604-019-000
604-022-010
604-023-000
505-002-020
601-004-010
601-004-011
601-004-012
601-004-013
25 Hose replacement kits
(Pos: 26/2x2, 26/3x2,27)
Pump service kit
(Pos: 8, 10, 12, 16/1, 24x3)
DF service kit (Pos: 24, 9.1, 9.3,
9.13/1, 9.18, 9.19x2, 12.4, 12.8)
604-025-100
605-035-010
604-036-000
601-004-130
601-004-040
604-029-010
501-009-000
501-009-020
500-009-030
500-009-040
500-009-050
500-009-060
500-009-070
500-009-080
500-009-090
500-009-100
500-009-110
500-009-121
500-009-131
500-009-150
500-009-180
505-009-150
500-009-200
500-012-000
505-009-150
500-012-030
500-012-040
500-012-060
500-012-070
935-018-000
500-012-090
500-012-100
Pos.
Pos.
Part no.
Part no.
Description
Service kits
Description
Hose replacement
kit (604-025-100) not
included with purchase
