Airofog USL User manual

V. 2021-07
AIROFOG MACHINERY CO., LTD.
Tel: [phone]~5190.5299
www.airofog.com, [email protected]
AIROFOG GERMANY
Tel: [phone]
[email protected]
Unique - Spray
Instruction Manual
model: USL
USP
USA
AIROFOG USA
Tel: [phone]
[email protected]
USL USP USA

1Unique-Spray: V2021-07
2
Airofog 1L / 34 oz Unique-Spray USL, USP, USA referred to in this document are
designed for use by qualified and experienced personnel. Please read this
instruction thoroughly before usage.
Safety Instruction
●Keep out of reach of children.
●Before usage, check condition and proper function of the sprayer.
●Only pumping up and using sprayer in upright or vertically hanging position.
●Do not leave sprayer filled with pesticide in the sun.
●Note the wind direction, do not spray against wind and prevent droplets from
drifting onto areas which must not be treated.
●Never spray into electric outlets or cable boxes.
●When using the metal extension close to electric outlets, pay attention to
avoid the shock hazard.
●Do not spray to person or pet.
●Do not operate the sprayer if there are visible symptoms of a problem.
●Wear personal protective equipment when handling dangerous substances.
●Application of insecticides should follow recommendations of manufacturers
and be in compliance with local regulations controlling the application of
pesticides. We are not liable for consequence of improper applications.
●When unscrewing, never point the lance at others or yourselves.
●Never blow through clogged nozzles or valves with the mouth.
●Before repair and maintenance, drain the sprayer and release all pressure.
●Always replace damaged or malfunctioning parts immediately.
Cautions:
It is the operator’s responsibility to ensure the safe use of sprayer and he is fully
compliant with national or local regulations governing compression sprayer and
application of pesticide.
AIROFOG is not liable for damages or consequences occurred due to improper
use/repair/maintenance, the use of non-recommended/unoriginal parts, and
acceptance of damaged/broken sprayers by any reason.
Operation
A) Opening/Closing bottle and filling insecticides:
●To open the bottle, holding the bottle cap then turning it counter clockwise.
●Follow insecticide’s label instruction and fill the well mixed water or oil based
insecticide into bottle. Avoid powder or any particle in the insecticide to
prevent nozzle clogged.
●To close the bottle, holding and turning the bottle cap clockwise till tightening.
Never open or close the bottle by turning the handle as this may damage
the handle seriously.
B) Pressurizing the sprayer:
●pressing down then ¼ turning the pump handle to unlock the pump handle
●pump plunger up and down until the required pressure is reached
●lock the pump handle
C) Application rates of multi-nozzle (measured with water, at 2.8 bar, 40 psi):
fine fan ---------------------------------------360ml/min., 12.2 oz/min., 80 0
coarse fan -----------------------------------760ml/min., 25.8 oz/min., 80 0
pin stream -----------------------------------330ml/min., 11.2 oz/min., 8m
crack & crevice extension straw -------50ml/min.,1.7 oz/min.
Application rates of aerosol nozzle (measured with water, at 4 bar, 60 psi):
fine, white --------------------------- --------60ml/min., 2 oz/min.
medium, blue------------------------------- 90ml/min., 3 oz/min.
coase, red -----------------------------------130ml/min., 4.4 oz/min.
crack & crevice tip -------------------------115ml/min., 3.9 oz/min.
Repair and Spare Part
●do not modify the sprayer, this may cause a risk of harm and may damage
the sprayer
●if any part shows signs of damage or wear, replace it immediately
●always use original spare parts for repair or maintenance

3Unique-Spray: V2021-07
4
Care and Maintenance
A) After using:
●empty the bottle and drain the hose and lance after each use
●carefully inspect all gaskets and hoses as well as all other fittings
of wear and tear,replace when necessary.
B) Cleaning the sprayer
●rinse the bottle thoroughly with water
●add water and detergent into the bottle
●attach pump cap and tighten it
●shake to clean the bottle
●pressurize the bottle
●flush the hose and nozzle
●empty the bottle and refill with clean water
●flush the hose and trigger valve once more
●empty the remaining water
●the sprayer should be cleaned thoroughly at least once a week
C) Cleaning clogged nozzle and crack & crevice tip
●do not insert metal objects into the tip orifices
●clean with a soft bristle brush such as a tooth-brush to free clogs
●cleaning detergents or solvents can be used to soak the tip
(do not use ammonia – it can corrode brass)
●do not insert metal object into the tip which will be greatly damaged to the
point of not functioning at all
●run warm water over and into the crack & crevice tip
●soak the nozzle and extension straw in warm, soapy water
●blow compressed air through back of nozzle and crack & crevice tip
D) Maintenance of pump and trigger valve
●piston o-ring (8) should be oiled from time to time
●check valve at the bottom of the pump cylinder prevents liquid from entering
the pump, if liquid leaks into the pump, the valve should be inspected or
replaced
●if liquid leaks out of the trigger valve or any connection, the valve seal/gasket
or the connection should be inspected or replaced
Specification
US Lance (USL) US Plus (USP) US Aerosol (USA)
Tank
Working Capacity
Max. Working Pressure
Cap
Pump Cylinder
Spray Hose
Pressure Release Valve
Pressure Gauge
Discharge Valve brass, drip-free trigger valve brass, drip-free trigger valve brass, wand-like trigger
9" lance with multi-nozzle with multi-nozzle with Flexi-pro aerosol
and C&C straw and C&C straw delivery system (FADS)
Net Weight 1.6 kg / 3.52 pound 1.49 kg / 3.3 pound 1.22 kg / 2.86 pound
Total Height
※Specifications are subject to change without notice or obligation.
Trademarks appearing within are the property of Airofog Machinery Co., Ltd. or Airofog Germany.
Other trademarks are the property of their respective owners.
29.5 cm / 11.6 inch
heavy duty coiled
0-10 bar / 0-150 psi
stainless steel AISI 304, 1.33 litre / 45.2 oz
1 litre / 34 oz
8 bar / 120 psi
stainless steel AISI 304, with Viton
TM
check-valve
supplied as standard
high quality brass

65
USA
321918
26 3
26 2
30
41 4
38
37
36
35
34
33
32
31
29
41
39
40
39
41 341 1
43 3
43 2
43 1
28
27
28 1
12
11
10
8
6
4
2
7
3
5
13
22
21
23
24
14
19
9
17
18
/2
16
15/1
1
/2
43
42 124
20
24
serial no. start with T
Pos. Part No. Description Pos. Part No. Description
1/2 604-001-110 Bottle 28/1 603-004-040 Hose Holder Spring
2 604-002-010 Piston Rod, Black 29 601-007-000 Flexi-Valve, Assembly
3 604-003-000 Spring consisting 30-38
4 604-004-000 Countersunk Screw 30 601-007-010 Valve Handle
5 604-005-010 Cylinder Cap, Black 31 601-007-020 Valve Body
6 505-001-020 Spring 32 505-003-014 Spring
7 604-007-000 Piston 33 601-007-040 Seat
8 604-008-000 O-Ring 34 601-007-060 O-Ring, Viton
9 604-009-000 Pump Cylinder, Assembly 35 935-041-000 O-Ring, Viton
10 935-027-010 O-Ring 36 601-007-070 Seat Sleeve
11 604-011-000 Cylinder Tube 37 601-007-080 Valve Cup
12 604-012-000 Check Valve 38 601-007-090 Trigger
13 604-013-000 Pressure Gauge 39 601-007-100 O-Ring, Viton
14 510-003-030 T-Connector 40 601-008-010 Extension , Spiral Wand
15/1 604-015-010 Bottle Cap 41 601-009-000 Aerosol Nozzle Set
16/2 604-016-110 O-Ring consisting 41/1,41/3,41/4
17 604-017-010 Hook, Black 41/1 601-009-030 Aerosol Nozzle, White (optional)
18 601-018-000 Hook Ring 41/3 601-009-050 Aerosol Nozzle, Blue
19 604-019-000 Pressure Release, Valve 41/4 601-009-070 Aerosol Nozzle, Red (optional)
20 601-003-000 Ball Valve 42/1 604-010-012 Extension, Crack-Crevice, 12cm
21 604-019-006 O-Ring 43 601-004-100 Swivel Hose Adapter, Assembly
22 604-022-010 Supply Tube S.S. 43/1 601-004-105 Swivel Hose Adapter
23 604-023-000 Disc 43/2 601-004-103 Cutting Ring
24 505-002-020 Gasket 43/3 601-004-104 Retaining Nut
26/2 601-004-012 Cutting Ring USA 601-023-200 Flexi-Valve Service Kit
26/3 601-004-013 Retaining Nut (34,35x2,39x3)
27 601-004-130 Coiled Hose, Blue 604-035-020 Pump Service Kit, incl.
28 601-004-040 Hose Holder Spring 8, 10, 12, 16/2, 21, 24*5

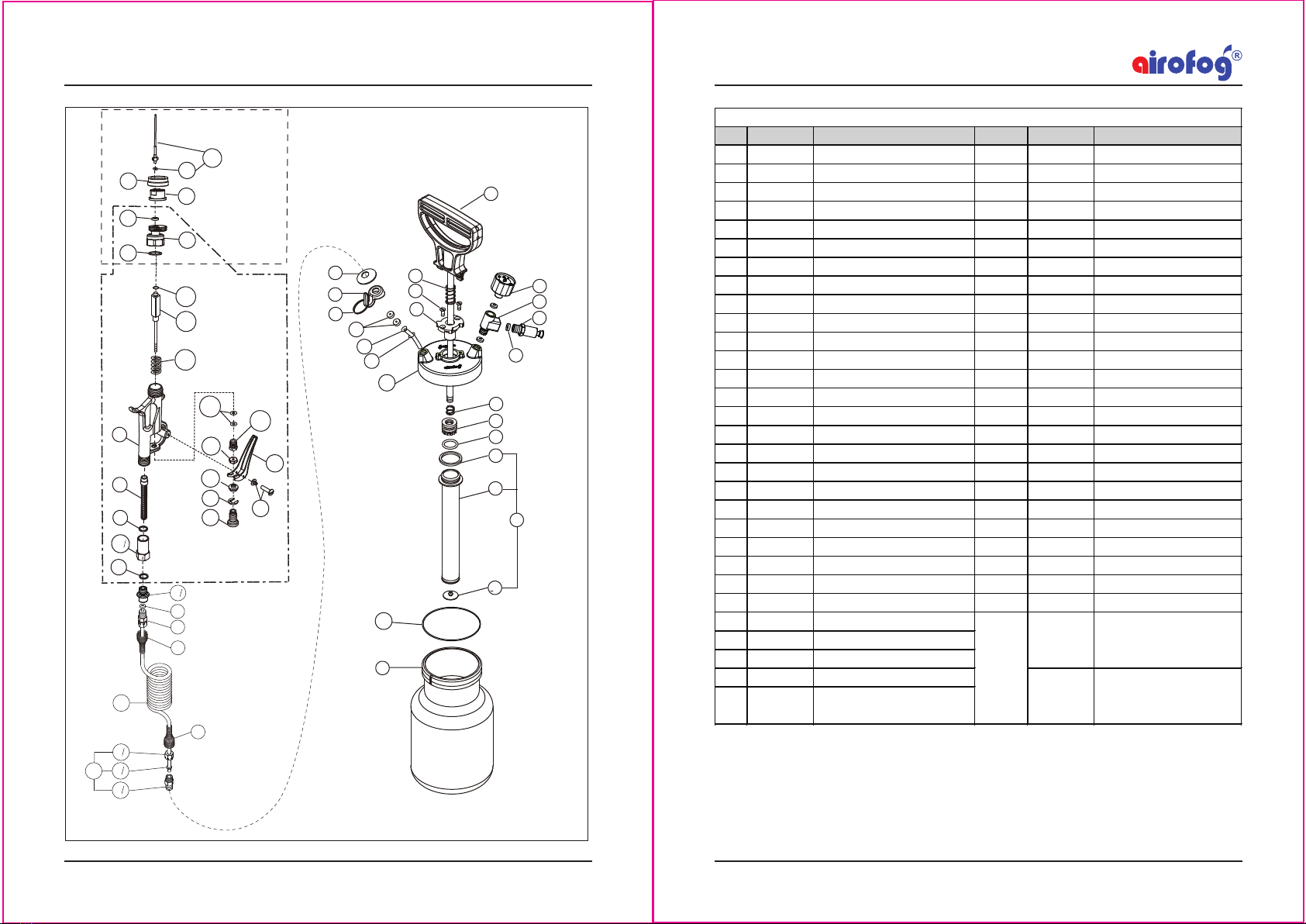

USA Spare Part List
Unique-Spray: V2021-07

87
USP
12.3
12.8
12.6
9.19
12.4
12.7
9.7
9.6
DF12
9.9
9.
9.5
9.2
9.3
9.4
9.3
9.15
9.20
9.18
13/1
9.
12/1
24
12.10
DFV
9.8
9.
9.11
10
12
11
10
8
6
4
2
7
3
5
13
23
24
14
19
9
17
18
15/1
1
/2
28
28
43 3
43 2
43
27
43
321919
/2
16
24
22
21
43 1
1
29
1
serial no. start with T
Unique-Spray: V2021-07
Pos. Part No. Description Pos. Part No. Description
1/2 604-001-110 Bottle DFV 501-009-000 DF Valve, Assembly
2 604-002-010 Piston Rod, Black DF9.2/1 501-009-020 Housing Strainer
3 604-003-000 Spring DF9.3 500-009-030 Gasket x 2
4 604-004-000 Countersunk Screw DF9.4 500-009-040 Strainer
5 604-005-010 Cylinder Cap, Black DF9.5 500-009-050 Valve Body
6 505-001-020 Spring DF9.6 500-009-060 Trigger
7 604-007-000 Piston DF9.7 500-009-070 Trigger Screw
8 604-008-000 O-Ring DF9.8 500-009-080 Safety Lock Nut
9 604-009-000 Pump Cylinder, Assembly DF9.9 500-009-090 Snap Ring
10 935-027-010 O-Ring DF9.10 500-009-100 Adjusting Screw
11 604-011-000 Cylinder Tube DF9.11 500-009-110 Lock Nut
12 604-012-000 Check Valve DF9.12/1 500-009-121 Sealing Nut
13 604-013-000 Pressure Gauge DF9.13/1 500-009-131 O-Ring x2
14 510-003-030 T-Connector DF9.15 500-009-150 Seat Spring
15/1 604-015-010 Bottle Cap DF9.18 500-009-180 O-Ring, Viton
16/2 604-016-110 O-Ring DF9.19 505-009-150 Gasket
17 604-017-010 Hook, Black DF9.20 500-009-200 Long Seat Stem
18 601-018-000 Hook Ring DF12 500-012-000 Multi-Nozzle, Assembly
19 604-019-000 Pressure Release Valve DF9.19 505-009-150 Gasket
21 604-019-006 O-Ring DF12.3 500-012-030 Multi-Nozzle Holder
22 604-022-010 Supply Tube S.S. DF12.4 500-012-040 Gasket
23 604-023-000 Disc DF12.6 500-012-060 Multi-Nozzle
24 505-002-020 Gasket DF12.7 500-012-070 Retainer
27 601-004-130 Coiled Hose, Blue DF12.8 935-018-000 O-Ring
28 601-004-040 Hose Holder Spring DF12.10 500-012-110 Straw with O-Ring
29/1 604-029-010 Female Adapter USP 501-016-030 DF Service Kit, incl.
43 601-004-100 Swivel Hose Adapter, Assembly DF (9.1, 9.3*2, 9.13/1*2
43/1 601-004-105 Swivel Hose Adapter 9.18, 9.19*2, 12.4, 12.8)
43/2 601-004-103 Cutting Ring 604-035-020 Pump Service Kit, incl.
43/3 601-004-104 Retaining Nut 8, 10, 12, 16/2, 21, 24*5
USP Spare Part List

109
USL
12.3
12.8
12.6
9.19
12.4
12.7
9.7
9.6
DF12
9.9
9.5
9.3
9.4
9.3
24
12.10
DFC-8
9.8
28
28
27
43/2
11
10
8
6
4
2
7
3
5
13
23
24
14
19
9
17
18
9.
8”
10
8”
9. 9.18
17
9.
16
9.
15
14.8
.8
43
9.19
9.13/1
9.12/1
9.11
9.10
15/1
321919
24
22
21
serial no. start with T
9.2/1
29/1
43/1
43/3
43
1/2
16/2
12
Unique-Spray: V2021-07
Pos. Part No. Description Pos. Part No. Description
1/2 604-001-110 Bottle DF9.3 500-009-030 Gasket
2 604-002-010 Piston Rod, Black DF9.4 500-009-040 Strainer
3 604-003-000 Spring DF9.5 500-009-050 Valve Body
4 604-004-000 Countersunk Screw DF9.6 500-009-060 Trigger
5 604-005-010 Cylinder Cap, Black DF9.7 500-009-070 Trigger Screw
6 505-001-020 Spring DF9.8 500-009-080 Safety Lock Nut
7 604-007-000 Piston DF9.9 500-009-090 Snap Ring
8 604-008-000 O-Ring DF9.10 500-009-100 Adjusting Screw
9 604-009-000 Pump Cylinder, Assembly DF9.11 500-009-110 Lock Nut
10 935-027-010 O-Ring DF9.12/1 500-009-121 Sealing Nut
11 604-011-000 Cylinder Tube DF9.13/1 500-009-131 O-Ring x2
12 604-012-000 Check Valve DF9.14.8 500-009-141 Valve Cable 8"
13 604-013-000 Pressure Gauge DF9.15 500-009-150 Seat Spring
14 510-003-030 T-Connector DF9.16 500-009-160 Seat Stem nut
15/1 604-015-010 Bottle Cap DF9.17 500-009-170 Seat Stem
16/2 604-016-110 O-Ring DF9.18 500-009-180 O-Ring, Viton
17 604-017-010 Hook, Black DF9.19 505-009-150 Gasket
18 601-018-000 Hook Ring DF10.8 500-010-080 Lance 8"
19 604-019-000 Pressure Release Valve DF12 500-012-000 Multi-Nozzle, Assembly
21 604-019-006 O-Ring DF9.19 505-009-150 Gasket
22 604-022-010 Supply Tube S.S. DF12.3 500-012-030 Multi-Nozzle Holder
23 604-023-000 Disc DF12.4 500-012-040 Gasket
24 505-002-020 Gasket DF12.6 500-012-060 Multi-Nozzle
27 601-004-130 Coiled Hose, Blue DF12.7 500-012-070 Retainer
28 601-004-040 Hose Holder Spring DF12.8 935-018-000 O-Ring
29/1 604-029-010 Female Adapter DF12.10 500-012-110 Straw with O-Ring
43 601-004-100 Swivel Hose Adapter, Assembly USL 501-016-030 DF Service Kit, incl.
43/1 601-004-105 Swivel Hose Adapter DF (9.1, 9.3*2, 9.13/1*2
43/2 601-004-103 Cutting Ring 9.18, 9.19*2, 12.4, 12.8)
43/3 601-004-104 Retaining Nut 604-035-020 Pump Service Kit, incl.
DFC-8 501-000-081 DFC-8" Valve Assembly 8, 10, 12, 16/2, 21, 24*5
DF9.2/1 501-009-020 Housing Strainer
USL Spare Part List
