AirOne mini Wi-Fi
2K Dash Camera
User Guide AE20

Page 3of 11
About this guide
Every effort has been made to ensure the accuracy of the user guide, but
there is no guarantee that the following content will be free of errors. Also,
specifications may be slightly different due to product improvements.
WARNING
1.Failure to comply with safety warnings and regulations can result in
serious injury or death.
2.Please only use original charge cable included to power the device
3.Dash Cam is not intended to be touched, modified, or calibrated while
operating a vehicle.
4.We are not responsible for any damages resulting from the user's
misuse of the camera.
5.Do not use damaged power cords or plugs, or loose electrical sockets.
Faulty connections can cause electric shock or fire.
6.Do not touch the car charger with wet hands or disconnect the charger
by pulling the cord. Doing so may result in electrocution.
7.Do not short-circuit the charger or the device. That may cause electric
shock or fire, or cause the battery to malfunction or explode.
8.[App & Voice Control] Simply Control It via your APP, format your
TF card via APP before use. All functions can be performed via APP,
such as time-lapse, 12/24/72 hours parking, resolution, loop
recording, gravity sensor level, play back videos/images, time,
download and share videos and images with social networks. Basic
features via VOICE CONROL: Open recorder, Close recorder,
Screen on, Screen off, Lock video.
9.Do not use any non-original power supply wires. This may get
equipment burnt out.

Page 4of 11

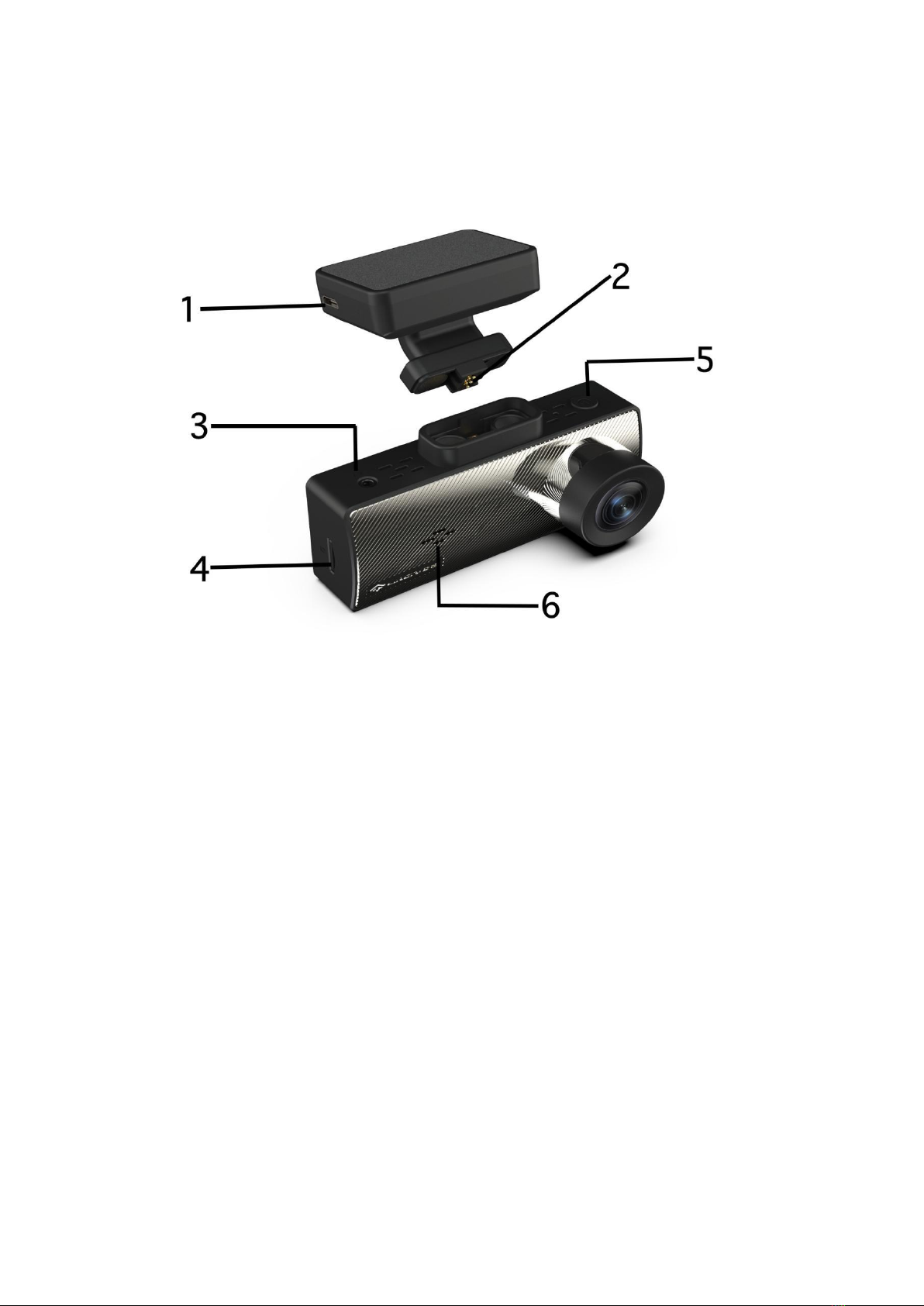

1. Power Slot
2. Matter-Sensing Interface
3. Backup Camera Slot (Optional)
4. TF Card Slot
5. Power Button - Turn Off Screen
6. Speaker

Page 5of 11
What’s In the Box:
A. 1×AIRONE Dash Cam
B. 1×AIRONE Hardware Kit
C. 1×Car Mount
D. 1×User Guide QR Card
SPECIFICATION
CPU
Hi3556V200 (2*ARM Cortex A7@900MHz)
DDR3
Built-in 1Gb DDR3L
Lens
2K（2560×1440P）
Backup camera AHD1080P (optional)
MIC
Support Voice Control
Single Mic.
Microphone
8Ω / 0.5W
Angle
165°
WiFi
Yes
G-Sensor
3-axis Accelerator
Working Current
≤1A
Operating Voltage
MICRO_USB~5V
Operating Temperature
-4℉ to 122℉
Storage
Class 10 Micro SD Card up to 128GB (max)
Display
3 inch IPS Screen 820×320
Dimensions (L×W×H)
8.26 x 5.51 x 2.55 inches
Weight
15.7 Ounces
Working Temperature
-4 Fºto + 158 Fº

Page 6of 11
INSTALLATION OF WIRING
Connect the following three cables to the car fuse box. (The position of the
fuse box differs depending on the model)
A. Yellow cable (BAT/B+) 15A or 20A
The yellow cable should be connected to the fuse of the constant power
supply in the car fuse box. If you are looking for a constant power supply in
the fuse box: Use a voltage tester to check the fuse to ensure it still have
electricity even if the car engine is off.
B. Red cable (ACC) 5A or 10A
Connect the red cable to a fuse that can supply power only when the car
engine starts. Testing method: the tester bulb will light when the engine is on
or no light when the engine is off.

Page 7of 11
C. Black cable (GND)
Connect this black cable(GND) to the metal part of the vehicle. Most cars
have screws or metal parts next to the fuse box. Connect the black cable to
the screw or metal part.(As in the picture below)
FUNCTION DESCRIPTION
1. Video Automatic Recording
AirOne video recording is automatically activated once the vehicle is started.
Charging light is on, and recording light is blinking. When vehicle engine is off,
dash cam automatically save all content and shut down. All saved files are in
TF card. Once full, it will be overwritten. Recording length can be changed at
setting menu, 1 min, 3 min or 5 min.
Attention:
a. If selecting one of 1/3/5 min, videos will be overwritten once TF card
becomes full.
b. All regular videos are saved at ‘front_norm’ in TF card
Note: Time-lapse videos are saved as regular videos, and park monitoring videos are
saved as locked videos.
2. Video Manual Recording
Press power button, AirOne dashcam will turn on and automatically record.
Charging light is on, and recording light is blinking. Press and hold power for 3
seconds to turn it off. All files will be automatically saved.
3. Time-lapse monitoring
Select 1s, 2s, or 3s for time-lapse monitoring. When choosing 1s, your AirOne

Page 8of 11
dash cam take a photo every second to build a video of 1 minute. If no TF
card available, dash cam will automatically shut down instead of time-lapse
monitoring.
Your AirOne dash cam will automatically shut down after 24 hours when using
time-lapse monitoring.
Note: only original hardware kit from you AirOne Dash cam allows time-lapse monitoring.
4. Gravity Sensor
Your AirOne dash cam contains G-sensor, which enable to lock and save
video when serious car crush is detected. Video is locked shown on the
screen. Those videos will not be overwritten.
a. Note: a. all videos are saved at ‘front_EMR
b. Your AirOne dash cam supports sensitivity adjustment. Please
select appropriate value in setting
c. Once video is locked, a yellow line will show up at the bottom of the
screen
5. Park Monitoring
When your AirOne dash cam has park monitoring on, when your car has slight
turbulence or shake, dash cam will automatically start recording and lock the
video. If your dash cam is on during the turbulence, your dash cam will record
for 15 seconds and go back to normal recording mode. If the dash cam is off,
recording will continue for 15 seconds and power off.
6.Date/Time Setting
Once your AirOne dash cam connects to your phone, date and time will be
automatically updated.
Notice:This documentation is only for reference. Please see your device as final model. With
the device, you should drive carefully to avoid traffic accident or violation. The company will
not be responsible for any errors, fines, or accidents occurred when using the device.
7.Voice Control
Voice control command included: Open recorder / Close recorder / Screen
On / Screen Off / Lock Video. Notice: Optional backup camera: Front Video On / Rear
Video On / Check All

Page 9of 11
TROUBLESHOOTING
If you’re having problems with your AirOne dash cam, please check below.
Trouble
Possible Reasons
Solution
Dash cam not on
Cable not well connected
Reconnect cable
Use incompatible cable
Only use original cable from
the package
Dash cam not recording
No TF card
Insert TF card
TF card not formatted during
first use
Format TF card
TF card broken
Change TF card
TF card not usable
Change to U3 or Class 10 TF
card
Note The dash cam supports up to a class 10 micro TF card up to 128GB. Do not remove or
insert the micro TF card when the camera is working. Suggested micro TF card brands:
Samsung, Sandisk, Transcend. Do not use the Car Charger to charge devices with Quick
Charge technology. Install the car mount on windshield that are titled on an angle between
-17°C~68°C (1-155°F).
MOBILE PHONT CONNECTIONS
1. Scan the QR code to download and install RoadCam app.
2. Add the dash cam to the app.
a. Run the RoadCam app.
b. Tap Wi-Fi Connecting.
c. In Wi-Fi list, select the Wi-Fi SSID of the target dash cam and enter Wi-Fi
password to build connection.
*Dash cam Wi-Fi default parameters: Wi-Fi SSID: AE20-XXXX(xxxx refers to
the last four characters of verification code.)
*Wi-Fi password: 12345678 (Please edit password after login for the first time)
3. Edit the dash cam password to active it to avoid abnormal recording after
connecting to Wi-Fi.

Page 10 of 11

Page 11 of 11
ATTENTION:
Our apps and camera firmware will be updated regularly, you can update the firmware via
apps. Do not use cardboard, paper towel, or napkin to clean the lens. Do not attempt to repair,
dismantle, or modify the dash camera hardware by yourself.
