Panasonic CY-VRP110T1 User manual

Driving Recorder
Model:CY
-VRP110T1/T2/T3/T4/T5
Operating Instructions
Please read this instructions carefully before using this product and
keep this manual for future reference.
24240482301-A PTW0813-0 Printed in China

1
Contents
Safety Information ...................................................................3
FCC Statement........................................................................8
WEEE Notice...........................................................................9
CE Regulatory Notice............................................................10
Notes on Installation..............................................................10
Caution...................................................................................11
1Introduction..........................................................................12
1.1 Features................................................................12
1.2 Package Contents ................................................12
1.3 Product Overview .................................................13
2Getting Started.....................................................................14
2.1 Inserting the Memory Card...................................14
2.2 Installing in Vehicles .............................................15

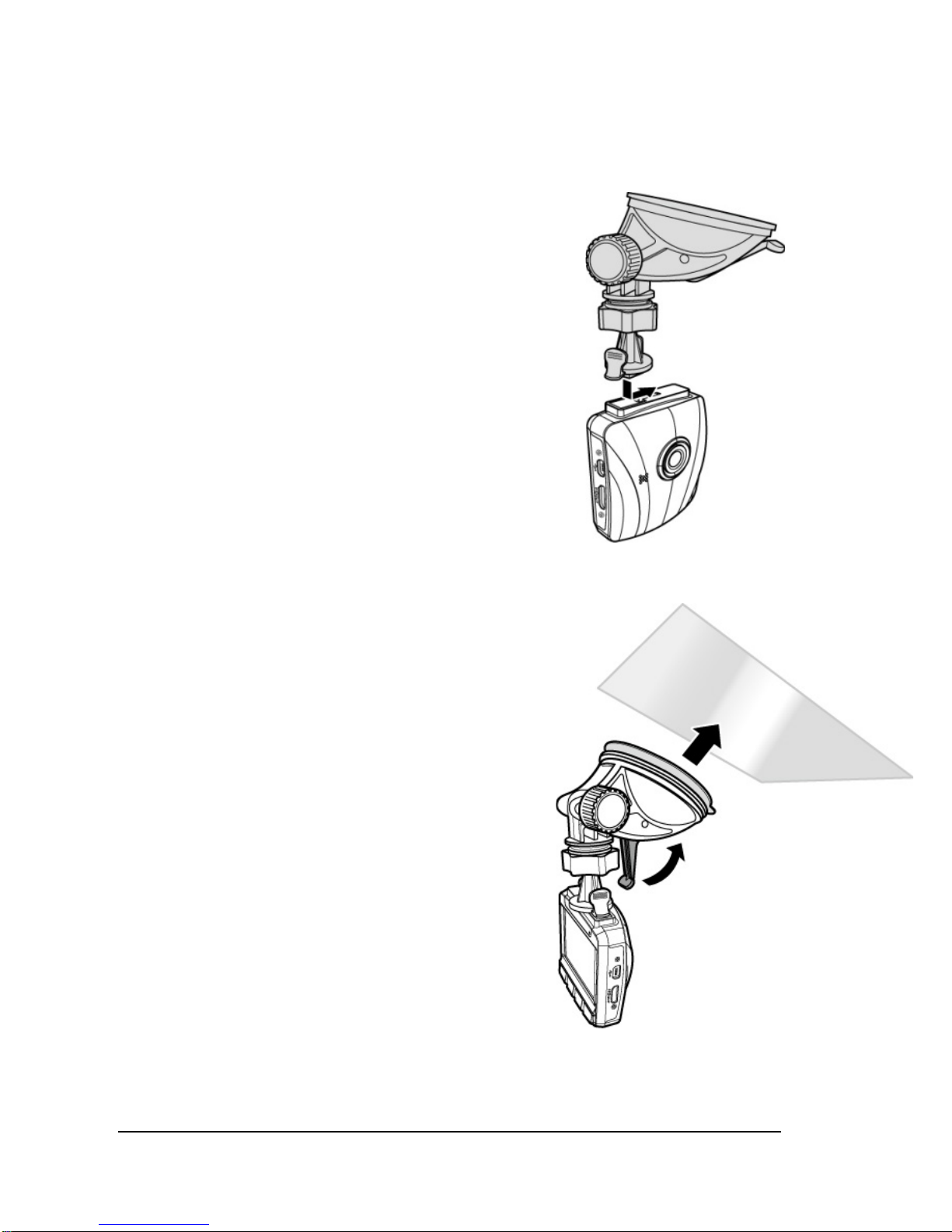

2.2.1 Mount to Windshield.............................................15

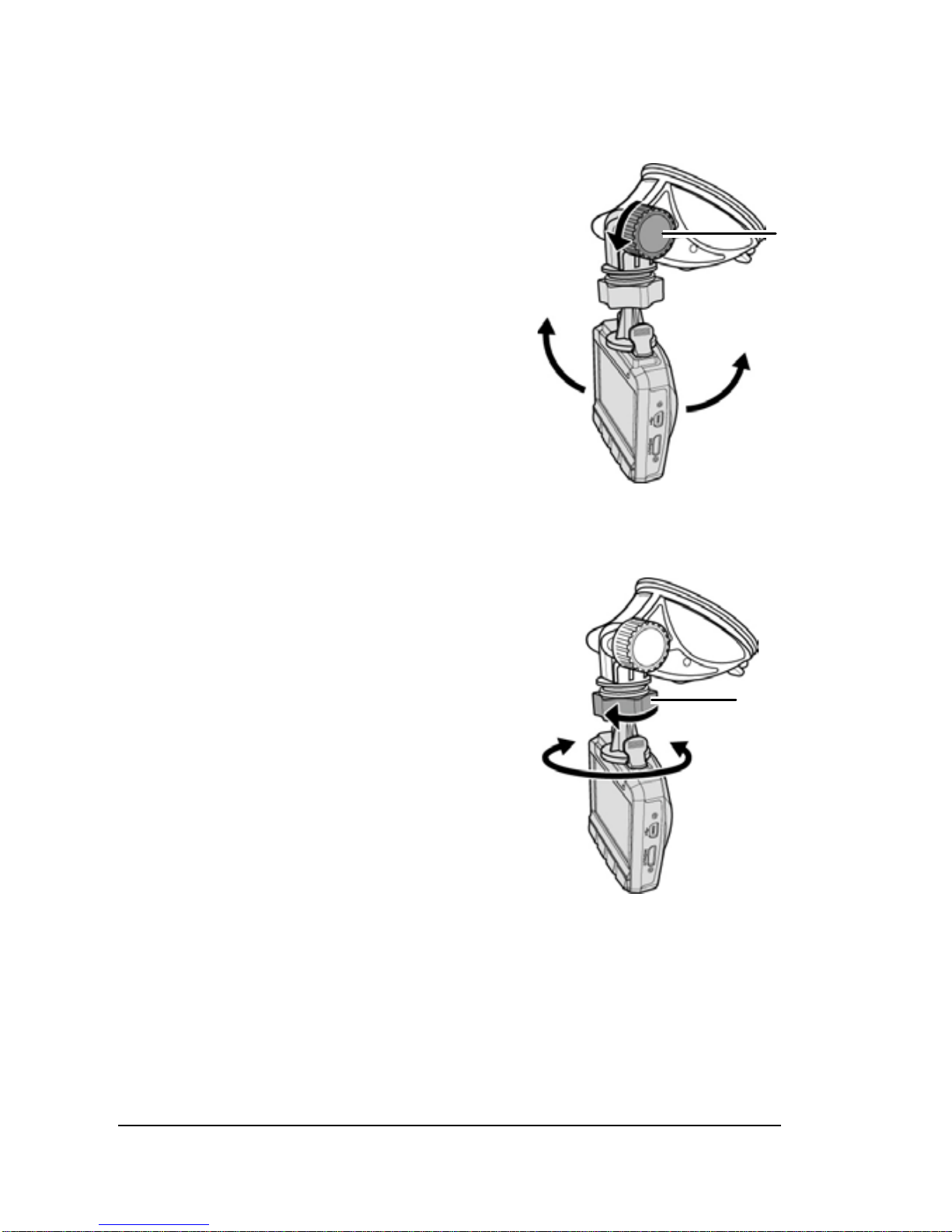

2.2.2 Adjust the device position.....................................16
2.3 Connecting to Power ............................................17
2.4 Powering the Camcorder On / Off........................18
2.4.1 Auto Power On/Off................................................18
2.4.2 Manual Power On/Off...........................................18
2.5 Initial Settings........................................................18
2.5.1 Set Automatic Recording......................................19
2.5.2 Set the Date and Time..........................................19
3Using the Car Recorder......................................................20
3.1 Recording Videos .................................................20
3.1.1 Record videos while driving..................................20
3.1.2 Driver Fatigue Alert...............................................20
3.1.3 Record all other types of videos...........................21
3.1.4 Emergency Recording..........................................21
3.1.5 The Recording Screen..........................................22
3.1.6 Taking Photographs..............................................23
3.2 Playback Videos and Photos................................24
3.2.1 Playing Videos ......................................................25

2
3.2.2 Viewing Photos .....................................................25
3.2.3 The Playback Screen ...........................................26
3.2.4 Deleting Files ........................................................27
4Adjusting the Settings........................................................28
4.1 Using the Menu.....................................................28
4.2 Menu Tree.............................................................29
5Installing the Software........................................................32
6Specifications ......................................................................33
7Trouble Shooting.................................................................35

3
Safety Information
Warning
This pictograph intends to alert you to the presence of
important operating instructions and installation
instructions. Failure to heed the instructions may
result in severe injury or death.
Warning
Observe the following warnings when operating this unit.
■Driver shall not watch the screen of the recorder or operate
the device while driving.
Watching the screen or operating the unit prevents distracts from
focusing on road safety and could result in a traffic accident. Park the
vehicle in a safe location before operating the device.
■Never power the unit via an extension cord directly connected
to the battery, as to do so runs the risk of a short-circuit and
burnt PCB. Please use the cigarette lighter socket as a power
connection point.
■Make sure a correct power supply is used.
This unit is suitable for a vehicle equipped with a negative-ground
12V/24V battery. DO NOT use on any other battery system.
■Never dismantle or modify the unit.
Never dismantle the unit or attempt to modify or repair it on your own,
to do so could damage the unit or result in electrocution. If the product
requires servicing, please consult your dealer or our service station.
■Do not use this unit when it is out of order.
If the unit is out of order (no power, no sound etc.), or operates
abnormally (ingression of foreign objects, soaked by rain or emits
smoke or an odor), immediately switch off the unit and disconnect the
power supply, then consult the dealer or service station for assistance.

4
■Keep optional accessories (SD Card, etc.) away from the reach
of children.
There are risks that children may swallow the accessory. Keep
accessories away from the reach of children. In the event of
swallowing any the accessory, seek medical care immediately.

5
Safety Information
Warning
Observe the following warnings when installing this unit.
■ Install the product so that it does not hinder the view of the
vehicle.
■ Never install the unit within the range of air bag movement
or in a position that obstructs activation of the of air bag.
Please also verify warnings and precautions regarding the
vehicle’s air bag.
■ Make sure the wiring does not hinder passengers from
getting in/out of the vehicle.
Make sure the wiring is properly fixed to ensure safe driving.
Caution
This pictograph intends to alert you to the presence of
important operating instructions and installation
instructions. Failure to heed the instructions may result in
injury or material damage.
Caution
Observe the following cautions when using this unit.
■This unit i dessigned for use exclusively in vehicles.
■Never store the unit in a dusty or dirty place or near the vehicle’s
air-con/heater.
Long-term exposure to said environment may damage the unit.
■Never install/store the unit in a high-temperature environment as it
could result in damage.

6
Safety Information
Caution
Observe the following cautions when using this unit.
■When disposing of the unit, follow statutory regulations to recycle
the built-in lithium battery, so as to prevent environmental pollution.
■For some vehicles, the unit continues recording after the engine has
being shut off. In such a case, the following measures shall be taken:
Manually shut off the cigarette lighter or remove the vehicle power
connector from the cigarette lighter.
■Always keep the lens clean to ensure clear images of driving.
■In the event the ambient temperature reaches 45°C or higher, the
vehicle power connection will still supply power to the unit, but the
lithium polymer battery will not be recharged. This is a typical feature
of lithium batteries and is not a malfunction.
The unit may be affected by RF interference from mobile phones.
If the interference is significant, use mobile phone as far away from
the unit as possible.

7
Safety Information
Caution
Observe the following cautions when installing this unit.
■It is recommended that the unit should be installation by a
professional.
The installation requires specialty and technical experience; to
ensure safety, entrust the dealer to carry out the installation.
■Make sure no wires are damaged.
Avoid damaging any wires while making the connection by keeping
away from screws on the chassis or moving parts of seats. Never
twist the wires or position them near a heat source.
■ Make sure the unit is installed correctly.
Avoid installing the unit at a location subject to vigorous vibrations.
The ideal installation location is near the back mirror where an
optimal view can be obtained.
Make sure the lens is within range of the windshield wiper so that a
clear view is ensured.
DO NOT install the unit on tinted window glass as that could
damage the light-colored film.
Make sure the unit is installed at a location that is free from any
influence of thermal film and away from any device that may
generate electronic interference.
Precautions when using a Micro SD Card
■Never remove the SD card when the unit is in the process of
shutting-down or operating. Failure to comply could corrupt the files or
damage the unit.
■ A Class- 6 Micro SD card with 8GB capacity or more is recommended
(Max. support up to 32GB).
■ Before using this unit, format the Micro SD Card by this unit.Safety
Information

8
FCC Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved
by the party responsible for compliance could void the user's
authority to operate this equipment.

9
WEEE Notice
Information for Users on Collection and Disposal of Old
Equipment
and Used Batteries
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical and
electronic products and batteries should not be mixed
with general household waste.
For proper treatment, recovery and recycling of old
products and used batteries, please take them to
applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC and
2006/66/EC.
By disposing of these products and batteries correctly, you will help
to save valuable resources and prevent any potential negative
effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products
and batteries, please contact your local municipality, your waste
disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the
European Union]
These symbols are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer
and ask for the correct method of disposal.
