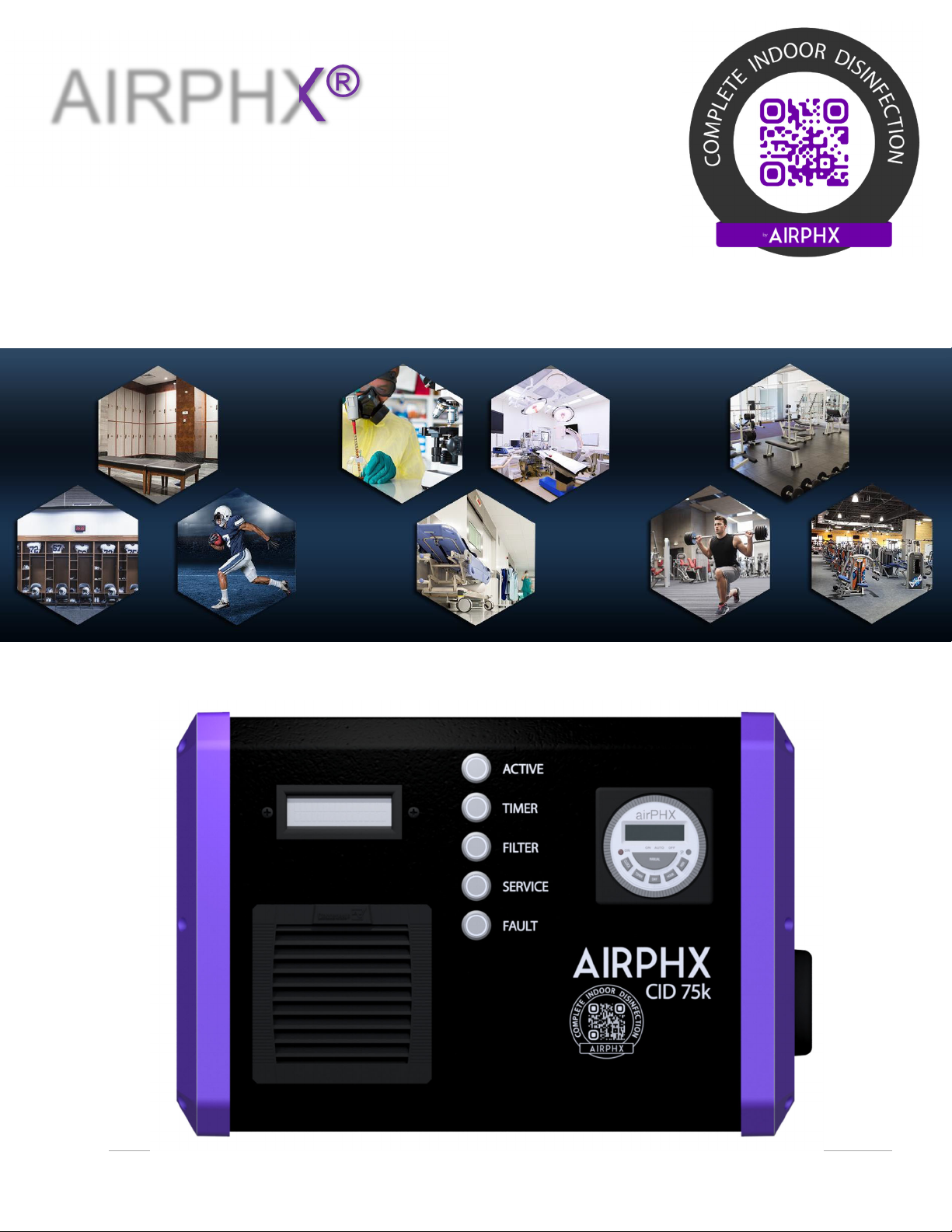

CID 75k Quick Reference Guide
Series 1 Rev 6 ●12 2020


2|Page
1Overview
ThisisaquickrefenceguidefortheCID75k.Thisguideprovidesanoverviewofthe
operationofswitchesandLEDindicatorsfoundonthefrontoftheCID75k.Fora
moredetailedinformationabouttheoperationoftheCID75k,pleasedownload
theOperationandInstallationGuidethatcanbefoundat
www.airphx.com/installation.

PleasechecktheshippingboxthatyourAIRPHXCID75karrivedinfordamage.If
anydamageisfound,pleasecontactyourAIRPHXrepresentativepriorto
installation855‐424‐7749(855‐4AIRPHX).
Includedinthebox
oCID75k
oEasymountwallbracket
oMountinghardware
oACpowercord
oQuickReferenceGuide
oAIRPHX7DayTimerUserGuide
oAnnualsupplyoffilters










3|Page
Contents
1Overview..............................................................................................................2
2FrontCoverOverview.........................................................................................4
Switches:..................................................................................................................4
Button/LEDFunction:..............................................................................................4
Active:..................................................................................................................4
Timer:...................................................................................................................4
Filter:....................................................................................................................4
3FrontCoverOverviewcont.................................................................................5
Service:................................................................................................................5
Fault:....................................................................................................................5
4IndicatorsQuickReferenceOverview.................................................................6
Normaloperation....................................................................................................6
7DayTimerison–scheduleprogramisinanONcycle........................................6
7DayTimerison‐scheduleprogramisinanOFFcycle.......................................6
5IndicatorsQuickReferenceOverviewcont........................................................7
Filterneedstobereplaced.....................................................................................7
Plasmacellneedstobereplaced............................................................................7
Faulthasbeendetected..........................................................................................7
67DayTimerOverview.........................................................................................8
7DayTimerisonandascheduleprogramisinanoncycle..................................8
77DayTimerOverviewcont.................................................................................9
7DayTimerisonandascheduleprogramisinanoffcycle.................................9





4|Page
2FrontCoverOverview

Switches:
TheCID75khasthetotalof5pushbuttonswithLEDringindicators.Active,Timer,Filter,Service
andFault.

Button/LEDFunction:
Active:
TheActiveLEDisnotanactualpushbuttonbutinsteadanLEDindicatorthatfollowsthestateof
theplasmacellsoperation.TheLEDwillilluminategreenwhentheplasmacellisrunningandwill
beoffwhentheplasmacellisnotrunning.Inadditiontoilluminatinggreen,theActiveLEDcan
alsoilluminateredindicatingafaulthasbeendetectedwithintheplasmacell.Ifthisoccurs,a
faultmessagewillbedisplayedontheLCDdisplaylocatedonthefrontoftheunit.

LEDoff–Plasmacellisnotrunning
LEDgreen–Plasmacellisrunning
LEDred–Afaulthasbeendetectedwiththeplasmacell

Timer:
TheTimerbutton/LEDcontrolstheon/offfunctionofthe7DayTimeronthefrontoftheunit.
Whenpressed,theLEDwillilluminategreenindicatingthatthe7DayTimerfunctionisactivated.
Inthismodeofoperation,theon/offfunctionoftheplasmacelliscontrolledbytheschedules
programmedinthe7DayTimer.

Buttonfunction–Turnsthe7DayTimerfunctiononandoffwhenpressed.
LEDoff–7DayTimerfunctionisnotactivated.
LEDgreen–7DayTimerfunctionisactivated.

Filter:
TheFilterbutton/LEDindicateswhenitistimetochecktheintakefilter.TheLEDwillilluminate
greenwhentheunitisfirstturnedonandremaingreenfor30daysofoperation.At30days,the
LEDwillilluminateredasareminderthatitistimetocheckthefilter.Pleasenotethattheunit
willturnoffafter45daysofoperationunlessthefilterhasbeencheckedandthefilterreset
procedurehasbeenperformed.Ifyoucannoteasilyseelightthroughthefilter,itneedstobe
replaced.PleaserefertotheOperationandInstallationGuideformoredetailsonhowtocheck
andreplacethefilterandperformtheresetprocedure.

Buttonfunction–Resetthefiltermonitoringfunctionwhenpressed.
LEDgreen–Thefilterdoesnotneedtobecheckedatthistime.
LEDred–Thefilterneedstobecheckedandreplacedifdirtyandthefilterresetprocedureneeds
tobeperformed.



5|Page
3FrontCoverOverviewcont.

Service:
TheServicebutton/LEDindicateswhenitistimetoreplacetheplasmacell.TheServiceLEDwill
illuminategreenwhentheunitisfirstturnedonandremaingreenfor365daysofoperation.At
365days,theServiceLEDwillilluminateredindicatingitistimetoreplacetheplasmacell.In
addition,theunitwillturnoffandremainoffuntiltheplasmacellisreplaced,andtheservice
resetprocedureisperformed.

PleaserefertotheOperationandInstallationGuidethatcanbefoundatairphx.com/installation
fordetailsonhowtoreplacetheplasmacellandresettheServiceLED.Topurchasea
replacementplasmacell,gotoairphx.com/shoporcontactyourAIRPHXrepresentative.

Buttonfunction–Resettheservicemonitoringfunctionwhenpressed.
LEDgreen–Theplasmacelldoesnotneedtobereplacedatthistime.
LEDred–Theplasmacellneedstobereplacedandtheserviceresetprocedureneedstobe
performed.


Fault:
Thefaultbutton/LEDindicateswhenafaulthasbeendetectedwiththeCID75k.Ifafaulthas
beendetected,theFaultLEDwillilluminateredandafaultmessagewillbedisplayedontheLCD
displaylocatedonthefrontoftheunit.Themessagewillgiveyoudetailsofwhatiswrongwith
theunit.PleasecontactAIRPHXatairphx.com/serviceorcontactyourAIRPHXrepresentative.
Pleaseprovidethefaultmessagedisplayedwhenrequestingservice.

Buttonfunction–Resetthefaultfunctionwhenpressed.
LEDgreen–Serviceisnotrequiredatthistime.
LEDred–Theplasmacellneedstobereplacedandtheservicefunctionneedstobereset.










6|Page

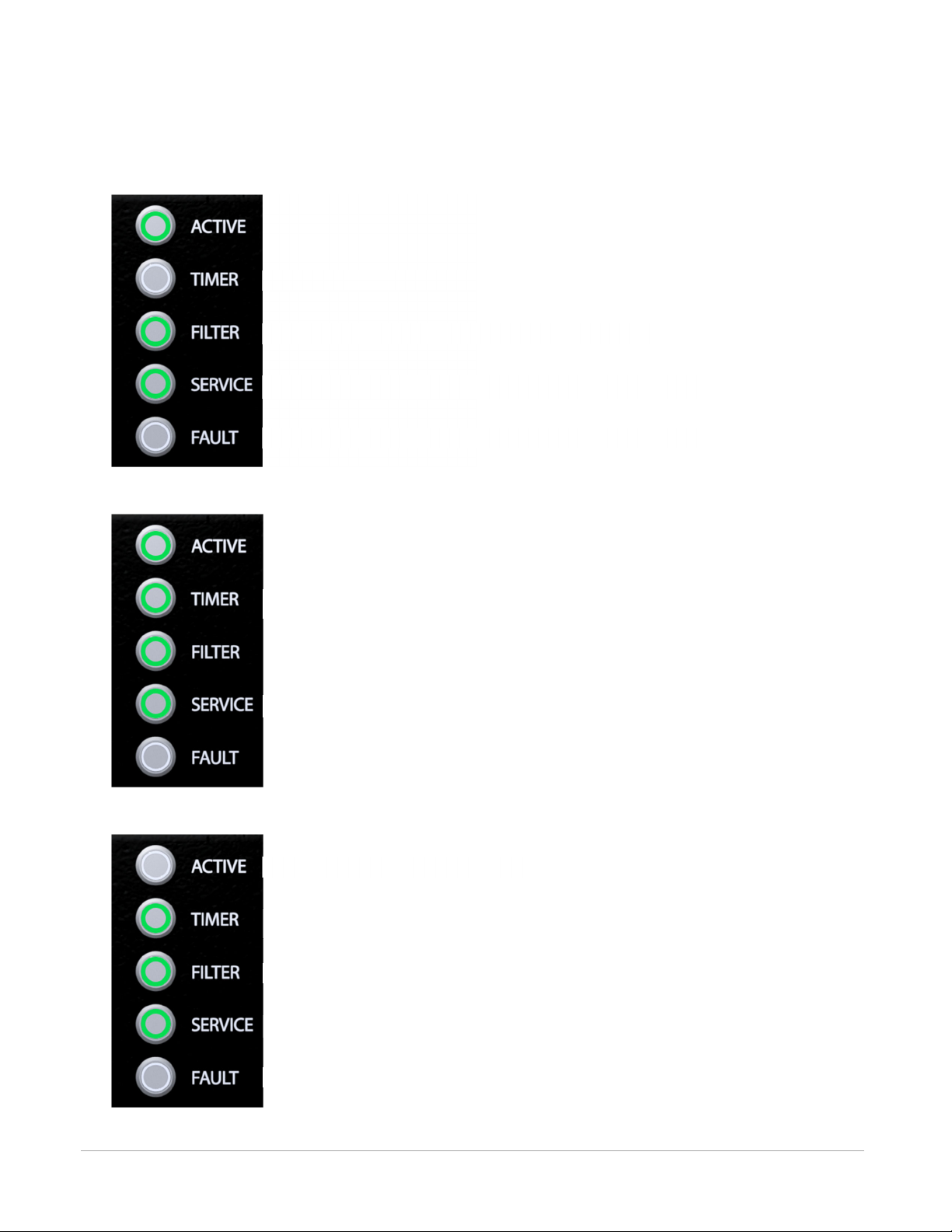

4IndicatorsQuickReferenceOverview

Normaloperation

7DayTimerison–scheduleprogramisinanONcycle

7DayTimerison‐scheduleprogramisinanOFFcycle

Plasmacellison
7Da
y
Timerisof
f

Filterdoesnotneedtobechecked
Plasmacelldoesnotneedtobereplaced
Nofaultsdetected
Plasmacellison
7DayTimerison–programscheduleisinanoncycle
Filterdoesnotneedtobechecked
Plasmacelldoesnotneedtobereplaced
Nofaultsdetected
Plasmacellisof
f

7DayTimerison–programscheduleisinanoffcycle
Filterdoesnotneedtobechecked
Plasmacelldoesnotneedtobereplaced
Nofaultsdetected


7|Page
5IndicatorsQuickReferenceOverview cont. 
Filterneedstobereplaced

Plasmacellneedstobereplaced

Faulthasbeendetected


Plasmacellison
7Da
y
Timerisof
f

Theintakefilterneedstobecheckedandreplacedifdirty
Plasmacelldoesnotneedtobereplaced
Nofaultsdetected
Plasmacellisof
f

7Da
y
Timerisof
f

Filterdoesnotneedtobechecked
Plasmacellneedstobereplaced
Nofaultsdetected
Plasmacellisof
f

7Da
y
Timerisof
f

Filterdoesnotneedtobechecked
Plasmacelldoesnotneedtobereplaced
Afaulthasbeendetected


8|Page
67DayTimerOverview

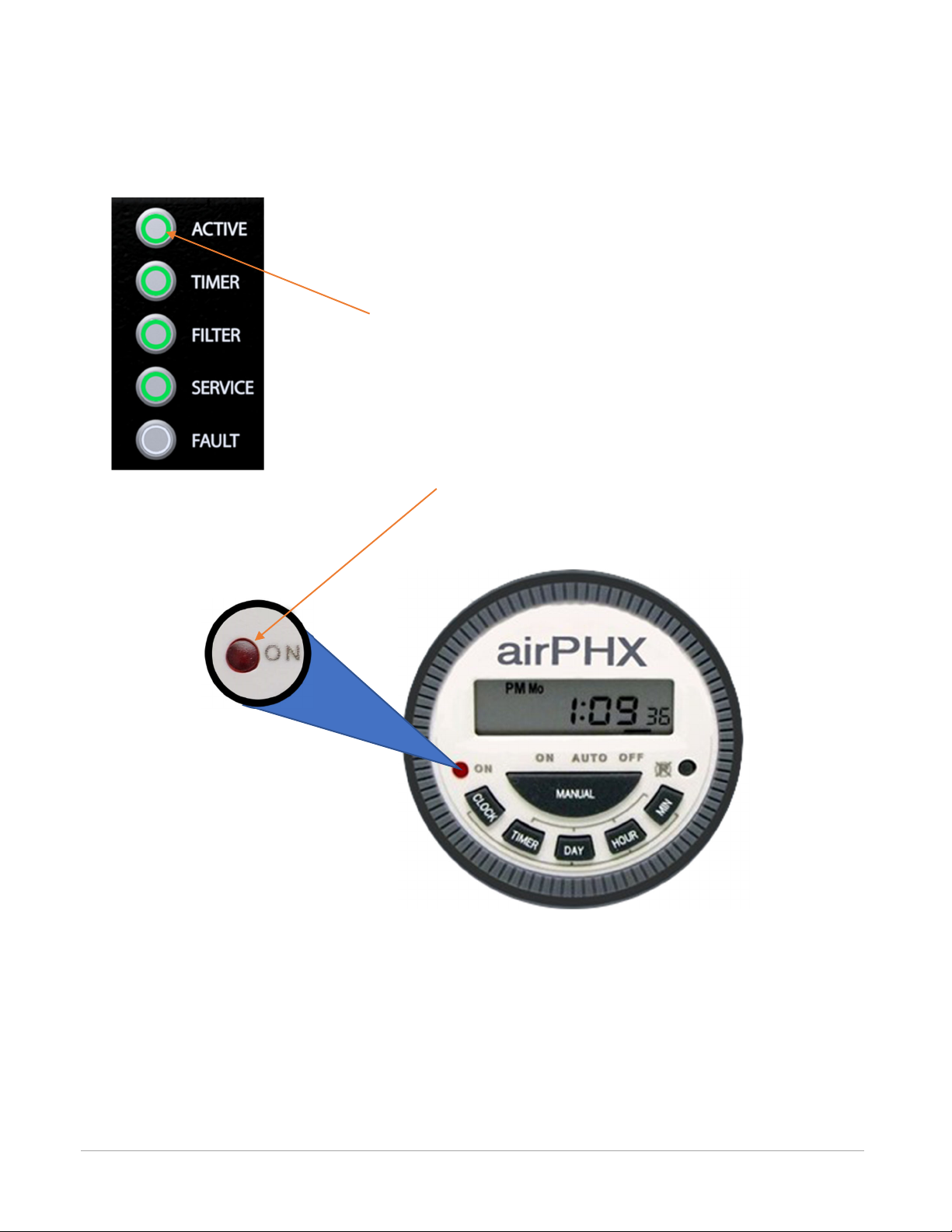

7DayTimerisonandascheduleprogramisinanoncycle.


















ActiveLEDison
TimerONLEDilluminatedred


9|Page
77DayTimerOverview cont.

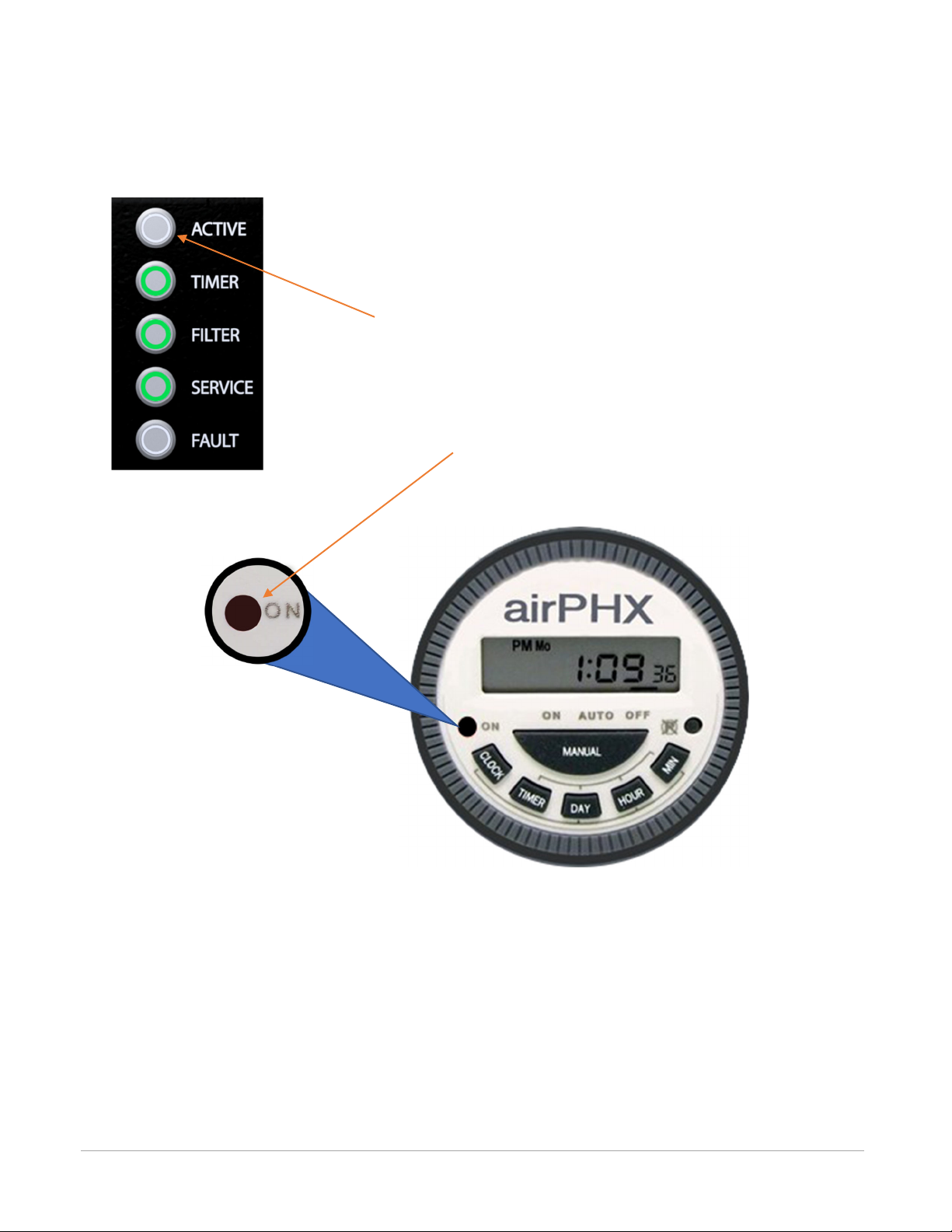

7DayTimerisonandascheduleprogramisinanoffcycle.













PleaserefertotheAIRPHX7DayTimerUserGuideincludedwiththeCID75kformore
informationontheprogrammingandoperationofthe7DayTimerorgoto
airphx.com/installation.

ActiveLEDisoff
TimerONLEDisnotilluminated
