Instructions for Use of the Universal Power Supply
with the
FreeStyle™Portable Oxygen Concentrator
Connections for removable
AC or DC power cord
Connects to FreeStyle unit
AirSep’s new universal power supply for the FreeStyle
Portable Oxygen Concentrator (POC) is an all-in-one
way to keep you fully powered, yet traveling even lighter – wherever you go.
The universal power supply (Part Number PW022), described in this insert,
enables you to operate your unit while charging its internal battery – all from one
component – whether you are driving to the grocery market, taking a vacation
flight, or simply relaxing at a friend’s home. This universal power supply replaces
the two separate AC and DC power supplies that were previously packaged with
the FreeStyle unit and covered in your patient manual.
Your power supply kit is packed complete with three essential accessories, as
follows:
 •universalpowersupply(PW017-1),whichoperatesonACpower 
  from120-240voltsandwithmultipleDCpowersources,including 
automobile and airplane power
 •removableACpowercord
-CD023-2 US-style
-CD017-2 Euro-style,dependingonusagelocation
   -CD025-1 Australian-style,or
   -CD017-4 UK-style
 •removableDCpowercord,whichincorporatesboththeconnector
  forautomobile-typeoutletsandtheD-shaped,4-pinconnectorfor 
  EmPower®-type outlets commonly used on airlines (CD034-1)
Note: FreeStyle’s internal battery will completely recharge from its fully
depleted state in approximately 3½hours, whether the unit is in use on AC or
DC power.
Figure 1

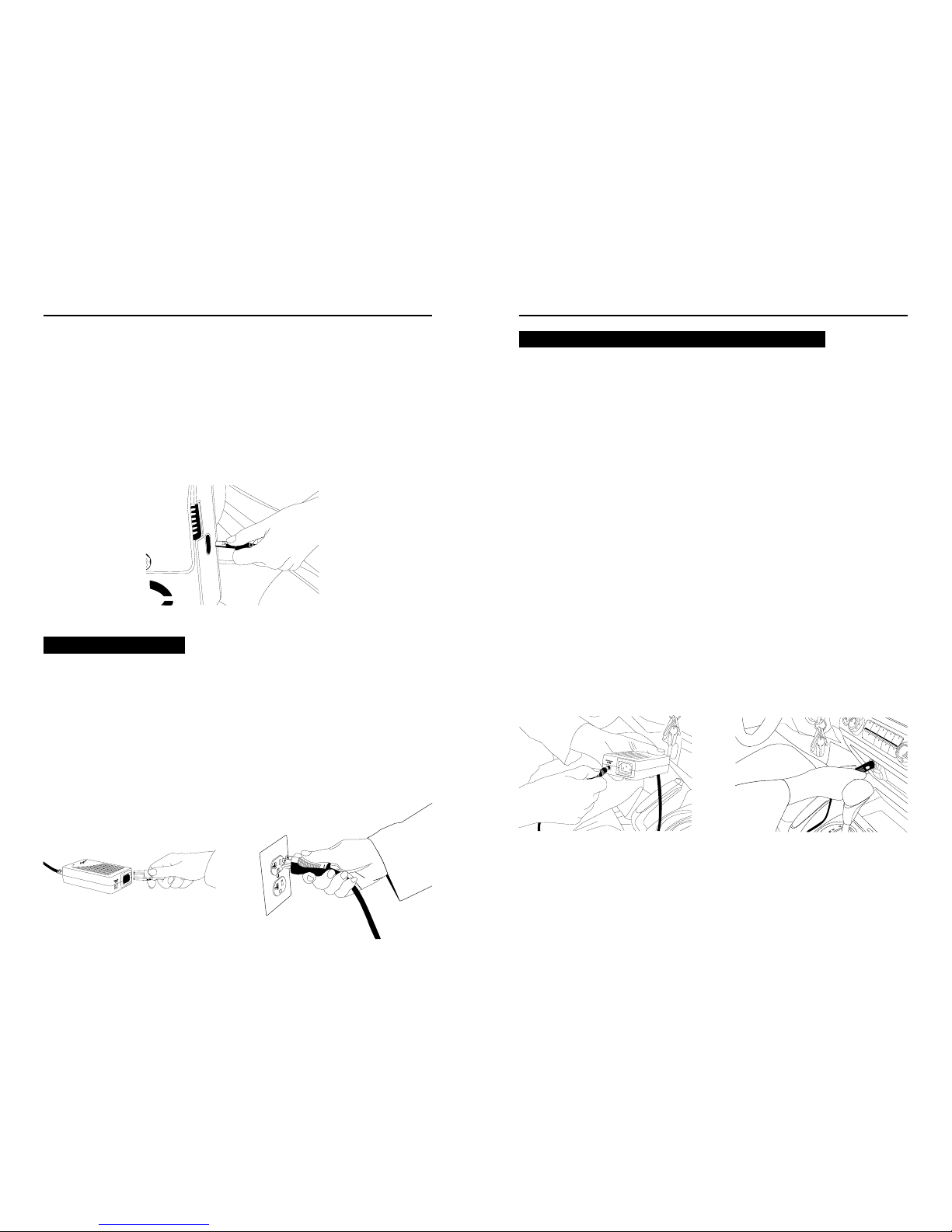

1. MakesureyourpowersupplyissecurelyconnectedtotheFreeStyle
inlet, as shown in Figure 2.
2. Connect the proper end of the AC electrical cord to the unmarked
AC inlet on the power supply, as shown in Figure 3.
3. Connect the opposite end of the AC electrical cord to the wall or
 otherappropriateelectricoutlet,asshowninFigure4.
4. TooperatethePOC,presstheFreeStyle[1],[2],or[3]settingonthe
unit’s top panel, as determined by your prescription. To turn the unit
 off,pressthesettingassociatedwiththeLEDilluminatedaboveit.
Use with AC Electric
Figure 2
Figure 3
Figure 4
Start with the Universal Power Supply and FreeStyle Connection
For all procedures below, it is recommended that you first connect the universal
power supply to the FreeStyle POC inlet, as shown in Figure 2. Be sure to
properly connect to the unit by ensuring that the carrying case alignment with
the FreeStyle unit inlet allows you to obtain a secure connection so that the cord
“locks” in place.
When disconnecting the power supply from the FreeStyle POC, make sure you
press down on the tab near the end of the cord to properly disengage the
connection to the unit and release the cord.
FreeStyle™Universal Power Supply AirSep® Corporation
Instructions for Use www.airsep.com
1. MakesureyourpowersupplyissecurelyconnectedtotheFreeStyle
inlet, as shown in Figure 2.
2. Connect the proper DC power cord end to the inlet marked
 ACCESSORYDCINonthepowersupply,asshowninFigure5.
3. Turn on your motor vehicle.
4. ConnecttheDCpowercordtothemotorvehicle’sDCoutlet,as
shown in Figure 6.
5. TooperatethePOC,presstheFreeStyle[1],[2],or[3]settingonthe
unit’s top panel, as determined by your prescription. To turn the unit
 off,pressthesettingassociatedwiththeLEDilluminatedaboveit.
Use with DC Power (Automobile, Motorboat, etc.)
Figure 5 Figure 6
Caution: When using FreeStyle with the universal power supply in an automobile,
boat, or other motor vehicle, make sure that the vehicle is started and running
beforeturningonandoperatingtheFreeStyleunit.Ifthepowersupplyindicator
light does not illuminate and requires resetting, disconnect the power supply
from the motor vehicle’s DC outlet, restart your vehicle, and then reconnect
your power supply into the DC outlet.
AirSep® Corporation FreeStyle™Universal Power Supply
www.airsep.com Instructions for Use

1. MakesureyourpowersupplyissecurelyconnectedtotheFreeStyle
inlet, as shown in Figure 2.
2. ConnecttheproperDCpowercordendtotheACCESSORY
 DCINinletonthepowersupply,asshowninFigure7.
3. RemovethetipoftheDCconnectorbypressingonthetabtoexpose
 the4-pinconnector,asshowninFigure8.
4. Insertthe4-pinconnectiontotheairlinepassengerDCoutlet
optionally available at your seat.
5. TooperatethePOC,presstheFreeStyle[1],[2],or[3]settingonthe
unit’s top panel, as determined by your prescription. To turn the unit
 off,pressthesettingassociatedwiththeLEDilluminatedaboveit.
AirSep’s FAA-approved FreeStyle enables you to use this POC
in-flight on most commercial airlines around the world. Each
airline establishes its own policy for FAA-approved POC use, as
well as the requirements for, and the availability of, optionally
allowing you to power your unit onboard the aircraft. Aircraft-
equipped passenger power may include one or more of the
following sources: an AC power outlet, a DC power outlet
similar to that typically found in an automobile, or a DC power
outletwitha4-pinconfiguration.
Ifthespecificairlineonwhichyouaretravelingallowsyouto
connect your POC unit at a seat equipped with a 4-pin DC
power configuration, take the following steps:
Figure 8
Figure 7
For more information on the universal power supply for
FreeStyle or any AirSep product accessories, please
contact your local equipment provider.
Rev.-06/10MN168-1
Use with Airline Power at Passenger Seat
(with 4-pin connection configurations)
