AirStage UTY-VLGX User manual

English
VRF SYSTEM
NETWORK CONVERTOR
UTY-VLGX
Contents
1. SAFETY PRECAUTIONS ............................................. 2
2. ACCESSORIES ............................................................ 2
3. ELECTRICAL REQUIREMENT..................................... 3
4. SELECTING AN INSTALLATION LOCATION ............... 3
4.1. Dimensions ............................................................ 3
5. WIRING ......................................................................... 3
5.1. Wiring method........................................................ 4
6. INSTALLING THE NETWORK CONVERTOR .............. 4

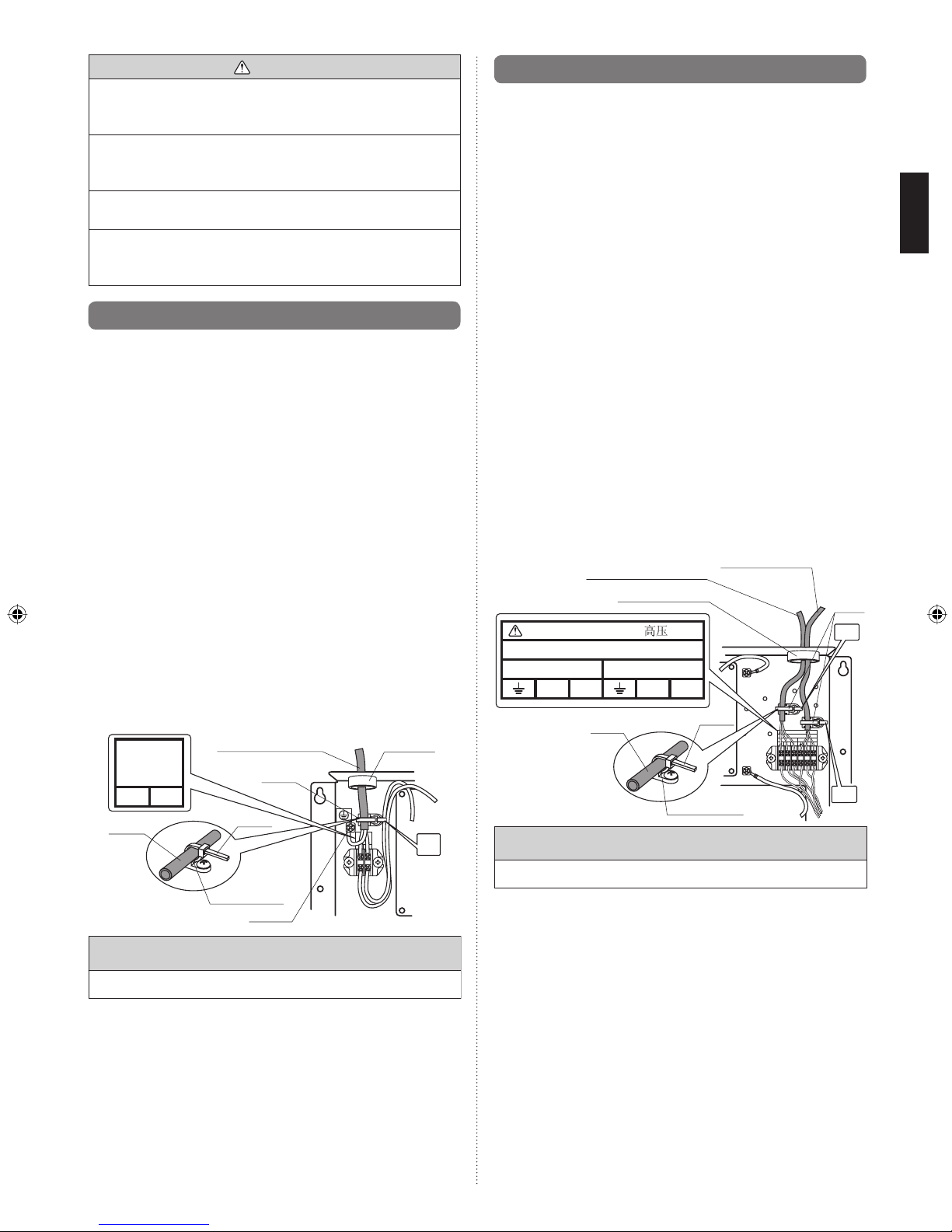

6.1. Connecting the power supply cable ....................... 5
6.2. Connecting the transmission cables ...................... 5
7. TURNING ON THE POWER......................................... 6
8. ADDRESS SETTING .................................................... 6
9. INITIAL SETTING (SOFTWARE) .................................. 7
10.
BINDING & COMMISSIONING (NOTICE)........................... 7

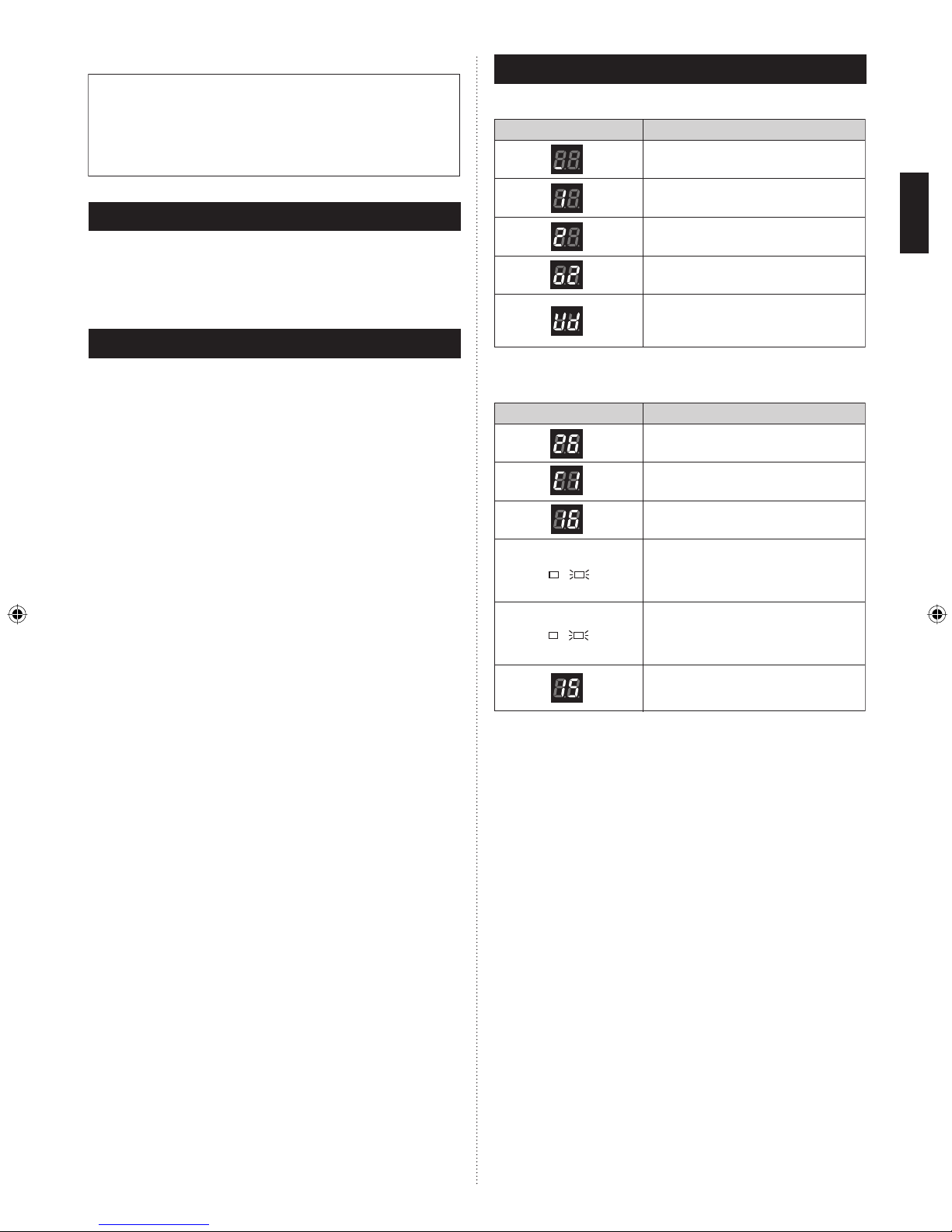

11. LED DISPLAY (D19)...................................................... 7
INSTALLATION MANUAL
For authorized service personnel only.
PART NO. 9708436012-02
9708436012-02_IM_EN.indd 19708436012-02_IM_EN.indd 1 2011-1-20 17:43:132011-1-20 17:43:13

En-2
1. SAFETY PRECAUTIONS
The “SAFETY PRECAUTIONS” indicated in the manual•
contain important information pertaining to your safety. Be
sure to observe them.
Request the user to keep the manual on hand for future•
use, such as for relocating or repairing the unit.
WARNING
This mark indicates procedures which, if
improperly performed, might lead to the
death or serious injury of the user.
Perform electrical work by an authorized service•
personnel in accordance with the installation manual
and the electrical wiring regulations or implementation
regulations of the country. Also do not install this unit by
yourself. Improper electric work will cause electric shock
or a fire.
Perform installation work in accordance with the•
installation manual. Request an authorized service
personnel to perform installation work. Do not install this
unit by yourself. Improper installation will cause injury,
electric shock, fire, etc.
In the event of a malfunction (burning smell, etc.),•
immediately stop operation, turn off the electrical breaker,
and consult authorized service personnel.
Install a leakage circuit breaker to power supply cable•
in accordance with the related laws and regulations and
electric company standards.
Use a power source exclusively for this unit. Never share•
the power source with other electrical equipment. Doing
so will cause fire and electric shock.
Do not install the unit in the following areas:
Do not install the unit near a source of heat, steam, or•
flammable gas.
Area filled with mineral oil or containing a large amount of•
splashed oil or steam, such as a kitchen. It will deteriorate
plastic parts, causing the parts to fall or the unit to leak
water.
Area that generates substances that adversely affect the•
equipment, such as sulfuric gas, chlorine gas, acid, or
alkali. It will cause the copper pipes and brazed joints to
corrode, which can cause refrigerant leakage.
Area containing equipment that generates•
electromagnetic interference. It will cause the control
system to malfunction, preventing the unit from operating
normally.
Area that can cause combustible gas to leak, contains•
suspended carbon fibers or flammable dust, or volatile
inflammables such as paint thinner or gasoline. If gas
leaks and settles around the unit, it can cause a fire.
Do not use the unit for special purposes, such as storing•
food, raising animals, growing plants, or preserving
precision devices or art objects. It can degrade the quality
of the preserved or stored objects.
Install the unit in a well-ventilated place avoiding rains•
and direct sunlight.
Do not operate this unit when your hands are wet.•
Touching the unit with wet hands will cause an electric
shock.
If children may approach the unit, take preventive•
measures so that they cannot reach the unit.
CAUTION
This mark indicates procedures which, if
improperly performed, might possibly result in
personal harm to the user or damage to property.
Pay abundant care when transporting this unit because it is a•
precision device. Improper transportation will cause trouble.
Do not touch the switches with sharp objects. Doing so•
will cause injury, trouble, or electric shock.
Do not expose this unit directly to water. Doing so will•
cause trouble, electric shock, or heating.
Do not set vessels containing a liquid on this unit. Doing•
so will cause heating, fire, or electric shock.
Dispose of the packing materials safely. Tear and dispose•
of the plastic packing bags so that children cannot play
with them. There is the danger of suffocation if children
play with the original plastic bags.
Do not insert articles into the slit parts of this unit. Doing•
so will cause trouble, heating, or electric shock.
2. ACCESSORIES
Important: Please print manual other than the installation manual from
attached CD-ROM before starting the installation work.
The following installation parts are supplied. Use them as required.
Installation manual
1
This manual
Name and Shape Q’ty Application
Binder
3
For mounting the power
supply cable and
transmission cable.
Screw (M4 x 20 mm)
4
For mounting the Network
Convertor.
Connector cable
1
For initial setting tool and
manuals.
For initial setting.CD-ROM
1
9708436012-02_IM_EN.indd 29708436012-02_IM_EN.indd 2 2011-1-20 17:43:482011-1-20 17:43:48

En-3
sd 5. WIRING
WARNING
Before starting installation work, turn off the power of this•
unit and the connection destination. Do not turn on the
power again until installation is completed. Otherwise, it
will cause electric shock or fire.
Please use the accessories or the specified power supply•
cable and connection cables.Using cables other than the
specified one is prohibited.Moreover, using accessories
being processed is also prohibited.When this is done, it
will become the causes of electric shock, and fire disaster.
Install the connection cables securely to the terminal•
block. Confirm that external force is not applied to the
cable. Use connection cables made of the specified
cable. If intermediate connection or insertion fixing are
imperfect, it will cause electric shock, fire, etc.
When connecting the power cable and transmission•
cable, layout the wiring so that the cover of this unit is
securely fixed. If the cover is imperfectly fixed, it may
cause fire or overheating of the terminals.
Perform ground work positively. Do not connect the•
ground cable to a telephone ground cable, water pipe, or
conductor rod.
Always fasten the outside covering of the connection•
cable with the cable clamp. (If the insulator is chafed,
electric leakage may occur.)
When performing cable wiring work, be sure that it does not•
touch the user. Doing so will cause injury or electric shock.
If any cable is damaged, do not repair or modify it•
yourself. Improper work will cause electric shock or fire.
CAUTION
Do not bind the remote controller cable and the•
transmission cable together with or parallel to the power
supply cable of the indoor and outdoor units. It may cause
erroneous operation.
When performing wiring work, be careful not to damage•
the cable or injure yourself. Also, connect the connectors
securely. Loose connectors will cause trouble, heating,
fire, or electric shock.
Install the indoor and outdoor units, power supply cable,•
transmission cable and remote control cable 1 m away from
television and radio to avoid distorted images and noise.
Perform wiring so that water does not enter this unit along•
the external wiring. Always install a trap to the wiring
or take other countermeasures. Otherwise it will cause
trouble or electric shock or fire.
Confirm the name of each unit and name of each terminal•
block of the unit and connect the wiring in accordance
with the directions given in the manual so that there is no
incorrect wiring. Incorrect wiring will damage the electric
parts and cause smoke and fire.
When installing the connection cables near a source of•
electromagnetic waves, use shielded cable.
Otherwise, a breakdown or malfunction could result.
The terminal screws and ground screws have different•
shapes. Be sure to install the screws in the correct
locations. If the screws are installed in the wrong
locations, the screw holes for circuit board, terminal or
ground will be damaged.
sd 3. ELECTRICAL REQUIREMENT
Use Size Wire type Remarks
Power
supply cable
Maximum 1.25 mm
2
245 IEC 57 or
equivalent
1Ø AC220 –240 V
50/60Hz, 2 Cable
+ ground (Always
ground the unit)
Minimum 0.5 mm
2
Transmission
cable
0.33 mm2
22AWG LEVEL4
(NEMA)
nonpolar 2 core,
twisted pair solid
core Shielded
L ON W ORKS
compatible cable
Fuse capacity 3 A
We recommend that you purchase our recommended parts
for the cables. Contact service personnel to purchase this.
L ON W ORKS
*is registered trademark of Echelon Corporation
in the United States and other countries.
4. SELECTING AN INSTALLATION LOCATION
4.1. Dimensions
The Network Convertor is comprised of a main body and
cover.
211
95 (Hole pitch) 95 (Hole pitch)
4 - Ø5
For M4x20mm
screws
241.6
272 (Hole pitch)
288
For M4x20mm screws
2 - Ø5
67
91 89.5
29
Ø24 GROMMET
(Unit: mm)
Ø15 GROMMET
Power supply
1Ø
AC220 – 240V
50/60 Hz
Power consumption (W) 4.5
Temperature (°C) Operating 0 to 46
Packaged -10 to 60
Humidity (%) Packaged 0 to 95 (RH);
No condensation
Dimensions (H × W × D) (mm) 67 × 288 × 211
Weight (g) 1500
9708436012-02_IM_EN.indd 39708436012-02_IM_EN.indd 3 2011-1-20 17:43:482011-1-20 17:43:48

En-4
Note :
● Do not bind the power cable and transmission
cable to avoid an erroneous operation.
● Use shield cable for transmission cable.
The shield metal should be grounded.
● Do not forget to ground the Network Convertor.
Power supply
Transmission cable to
LONWORKS®network
Network Convertor
Transmission cable to
VRF network
NETWORK CONVERTOR
POWER
SUPPLY
LN
⬉⑤
X1 X2 B1 B2
TRANSMISSION
NO HIGH VOLTAGE
VRF
LON
⽕ℶ
ֵো㒓
FUSE (3A)
OUTDOOR UNIT
SWITCH
TRANSMISSION CABLE
TRANSMISSION
CABLE
POWER SUPPLY CABLE
NO HIGH VOLTAGE
NO HIGH VOLTAGE
NO HIGH VOLTAGE
X1 X2 Y1 Y2 Y3
X1 X2 Z1 Z2 H1 H2 X1 X2 Y1 Y2 Y3
MASTER
OR
SLAVE
OUTDOOR
UNIT
Router
(Field supplied)
1Φ 50/60Hz
220-240V
INDOOR UNIT
INDOOR UNIT
ELECTRICAL WIRING
General-purpose building control computer
(LONWORKS®device)
6. INSTALLING THE NETWORK CONVERTOR
WARNING
Always use the accessories and specified installation•
work parts. Check the state of the installation parts. Not
using the specified parts will cause units to fall off, water
leakage, electric shock, fire, etc.
Install at a place that can withstand the weight of the unit•
and install positively so that the unit will not topple or fall.
When installing this unit, make sure that there are no•
children nearby.
Otherwise, injury or electric shock could result.
Install a circuit breaker.•
Otherwise, electric shock or fire could result.
5.1. Wiring method
VRF
Outdoor unit
Indoor unit Transmission cable
(non-polar
2-conductor)
VRF network system 1
VRF network system 2
Lighting
facilities
Security
system
Automatic fire
alarm interface
Ventilation
system
Network
Convertor for
LONWORKS®
(UTY-VLGX)
Network
Convertor for
LONWORKS®
(UTY-VLGX)
LONWORKS®
Network
General-purpose
building control computer
(LONWORKS®device)
Router
(Field supplied)
*1
Note: Router should be needed by the number of
controlling items in the BMS.
*1. Please do not make the connection like this
between VRF systems.
PROPER SYSTEM DIAGRAM
128
Maximum connectable indoor unit
number per 1 Network Convertor
100
Maximum connectable outdoor unit
number per 1 Network Convertor
4
Maximum connectable Network
Convertor number per 1 BMS
1
Maximum connectable Network
Convertor number per 1 VRF System
Indoor unit
Indoor unit
Outdoor unit
Outdoor unit
9708436012-02_IM_EN.indd 49708436012-02_IM_EN.indd 4 2011-1-20 17:43:482011-1-20 17:43:48

En-5
CAUTION
Before opening the case of this unit, completely discharge•
static electricity charged on your body. Otherwise, parts
break-down could result.
Do not touch the circuit board and circuit board parts•
directly with your hands.
Otherwise, injury or electric shock could result.
Tightening the mounting screws too tight will damage the•
case of this unit.
Be careful so that the cover does not fall after the cover•
screws are removed.
Otherwise, injury could result.
6.1. Connecting the power supply cable
(1) Use the 4 screws (M4 × 4 mm) provided to mount the
Network Convertor to the behind ceiling, wall, floor or other
suitable location.
(2) Remove the 4 screws (M4 × 4 mm), and then remove the
cover.
(3) In order to pass the power supply cable through the
Network Convertor, please open a hole on the grommet
(small) with a knife etc..
Please be careful not to hurt hands or damage the•
equipment.
Please make the hole suitable for the wiring diameter.•
Please pay attention that there is a possibility of insects
invade when the hole is too large.
(4) Please lead in the power supply cable in the Network
Convertor through the grommet (small).
(5) Please connect the power supply cable with each terminal
block. Please connect the earth.
Please tighten the screw by the tightening torque in the•
following table.
(6) Please firmly tighten the power supply cable and the
binder clamp on the binder (accessory).
POWER
SUPPLY
LN
⬉⑤
Ground
Binder
Power supply cable
Connecting the power supply cable
Binder
Cable
Binder clamp
POWER
SUPPLY
LN
⬉⑤
Grommet
(Small)
Cut
0.8 to 1.2 N • m (8 to 12 kgf • cm)
Tightening torque for installing cables to terminal block
6.2. Connecting the transmission cables
(1) Turn the power off.
(2) In order to pass the transmission cable through the
Network Convertor, please open a hole on the grommet
(large) with a knife etc
Please be careful not to hurt hands or damage the•
equipment.
Please make the hole suitable for the wiring diameter.•
Please pay attention that there is a possibility of insects
invade when the hole is too large.
(3) Please lead in the transmission cable in the Network
Convertor through the grommet (large).
(4) Please connect the transmission cable with each terminal
block.
Please tighten the screw by the tightening torque in the•
following table.
(5) Please firmly tighten the transmission cable and the binder
clamp on the binder (accessory).
(6) Check if the wirings are connected together completely.
(7) Once the wiring of the cables has been completed, mount
the cover to the Network Convertor. Use the screws
(M4 × 4 mm) to mount the cover.
(8) The procedure for shutting the cover of Network Convertor
should be performed after all setting works are complete.
When continue with setting works, please do not close the cover.
X1 X2B1 B2
TRANSMISSION
NO HIGH VOLTAGE
VRF
LON
⽕ℶ
ֵো㒓
Binder
Connecting the transmission cables
Transmission cable to
LONWORKS®Network
Transmission cable
to VRF Network
Grommet (Large)
Binder
Cable
Binder clamp
X1 X2 B1 B2
TRANSMISSION
NO HIGH VOLTAGE
VRF
LON
⽕ℶ
ֵো㒓
Cut
Cut
0.8 to 1.2 N • m (8 to 12 kgf • cm)
Tightening torque for installing cables to terminal block
9708436012-02_IM_EN.indd 59708436012-02_IM_EN.indd 5 2011-1-20 17:43:492011-1-20 17:43:49
