Instruction manual - Purier K7 770 HEPA
4
TRANSPORT AND STORAGE
OPERATING INSTRUCTIONS
Store in a dry place and protected from the elements. If the packaging is open, cover the purier
to protect it from dust� Do not step on or place heavy loads on it to avoid damage to the material�
Storage temperature between -20⁰C and + 40⁰C.
When transporting the material you must ensure that it is not damaged by the forklift
(possible penetration of the fork in the packaging)� Observe the instructions on the packaging�
To put the device into operation, just connect it to a voltage of 230Vx1 50 / 60Hz, as indicated in the elec-
trical diagram on the next page. This device works with a constant ow rate that the user does not need
to congure. The fan itself regulates itself to maintain a ow rate of 300m³ / h until the lters are dirty.

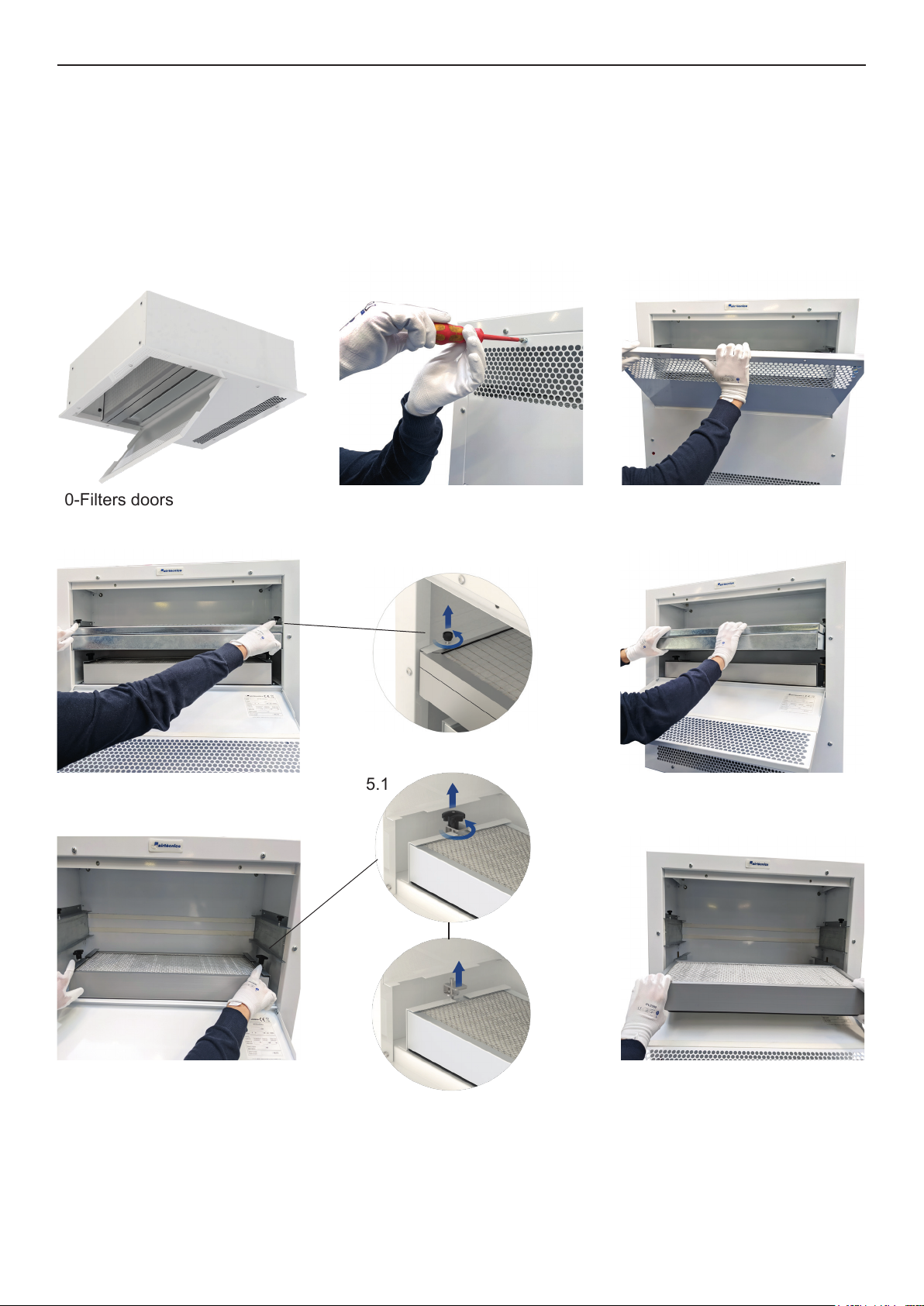

When the lters are no longer able to hold particles, a red light comes on. This indicates that dirty lters
should be replaced with clean ones. Furthermore, the team cannot guarantee that the ow (and consequently
the renewals / hour) will be maintained until clean lters are installed.
ATTENTION! Heavy object.
Do not stand under the suspended load during transport or assembly.
Power supply
Fixings
The K7 770 A HEPA air purier has a 3 meter, 3-way cable (line, neutral and ground) that must be connected
to a 230Vx1 50 / 60Hz power outlet�
A switch can be connected between the equipment and the power outlet. In this way you can
disconnect the equipment in a simple way.
The equipment has several external attachment points. The anchor must be sized according to the device
weights indicated on the technical data page (see pages 6-7)� The installation can be carried out with threa-
ded rods, tensioners or other supports (see section “accessories”)�
Autoregulation
This device provides a constant air ow of 300 m³ / h. As the lters get dirty, the equipment itself regulates
itself to maintain said ow.
The equipment is congured at the factory, it only needs to be powered with 230Vx1 50 / 60Hz current.
