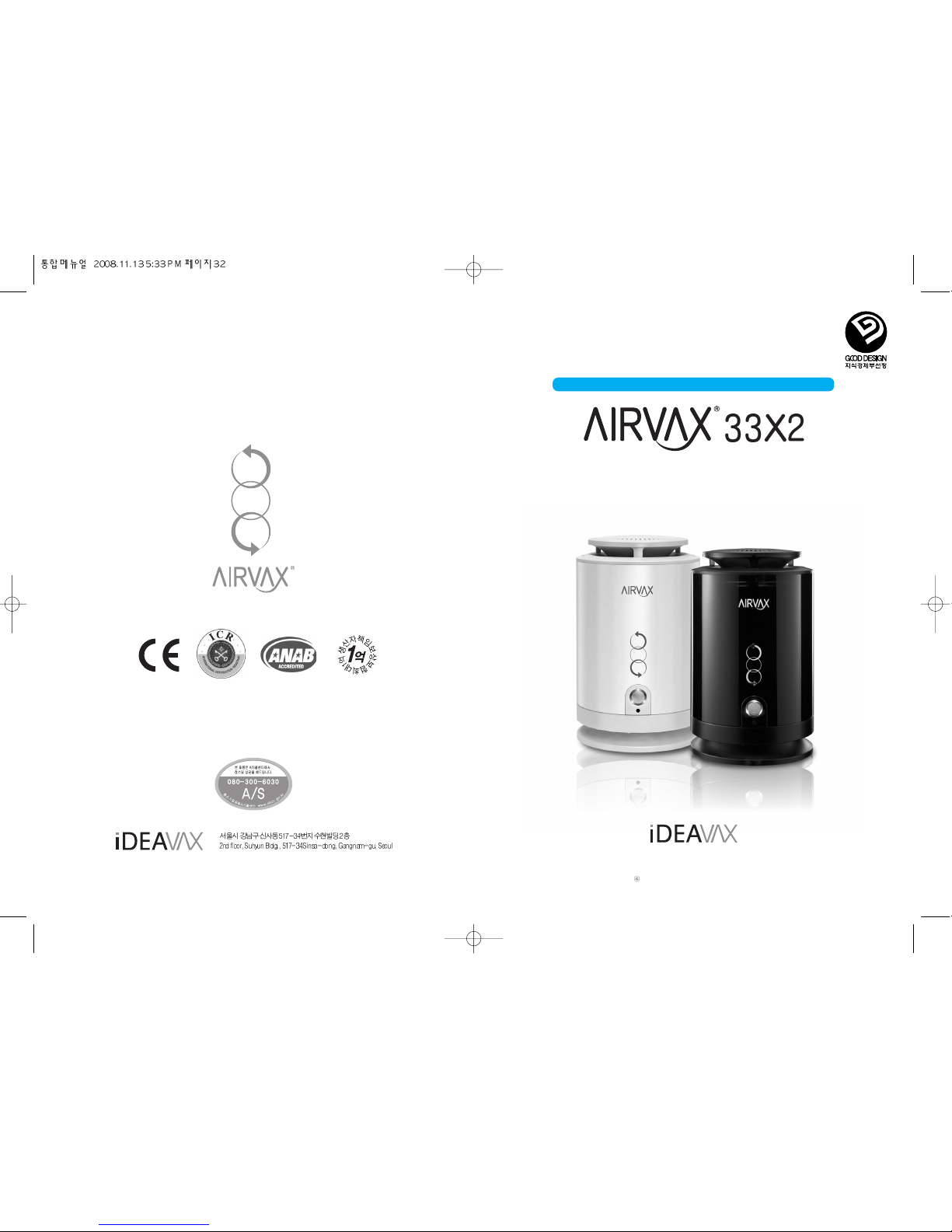

AirVax 33X2 User manual

New Paradigm of next generation Air purifier
www.ideavax.co.kr / www.airvax.co.kr
IDEAVAX CO., LTD.
The world’s first Permanence-Static Electricity-Film-Filter Air Purifier.
Fresh-air is starting of your well-being life
Vienna
Cameo
IDEAVAX CO., LTD.
2007 IDEAVAX CO., LTD. All rights reserved
AIRVAX is a registered trademark or trademark of IDEAVAX CO., LTD. in the Korea and/or other Countries.

32
FEATURES
Design
The product is small and light; it can be used anywhere.
To ensure safety, the product is designed as a simple cylindrical form.
The low-noise structure hardly interferes with sleep.
Function
The filter captures even the ultra-fine dust particles that cannot be caught by the HEPA
filter.
It captures the carbon monoxide (CO) contained in smoke and air generated in day-to-day
living.
It also captures cigarette smoke and other emissions (NOX, SOX).
The filter captures all kinds of viruses, allergen, mildew, fungi, and bacteria.
It also captures toluene, formaldehyde, and other VOCs (substance causing sick car
syndrome and sick house syndrome).
This is the safest air purifier because it does not produce ozone, carbon, or other
secondary toxic substance.
Maintenance
Low electricity charge is incurred, since the maximum power consumption is only 2W.
Filters can be easily cleaned. Maintenance cost is also low, since the equipment’s filter
has a long service life.
CONTENTS
INSTALLATION 4
1. INSTALLING THE MAIN UNIT
2. INSTALLING THE REMOTE
CONTROL
PART NAMES 4
1. MAIN UNIT
2. ACCESSORIES
SAFETY PRECAUTIONS 5
1. RISK OF ELECTRIC SHOCK
2. CAUTIONS RELATED TO THE
OPERATION OF THE PRODUCT
LIMITATIONS ON THE USE OF
THE REMOTE CONTROL 6
INSTALLATION GUIDELINES 6
FILTER GUIDELINES 6
CARE AND MAINTENANCE 6
1. FILTER CLEANING
2. MAIN UNIT
OPERATION 7
1. OPERATING THE MAIN UNIT
2. OPERATING THE REMOTE
CONTROL
SPECIFICATIONS 7
OPERATION 8
27
28
29
30
3~8
9~14
15~20
21~26

54
1. INSTALLING THE MAIN UNIT
Unseal the box and retrieve the
unit from the box carefully.
Place the unit on an appropriate place and
insert the plug into a wall outlet. Check
whether the light blinks on the indicator.
Select the mode by pressing a button or
using the remote control (OPERATING
THE MAIN UNIT for more details).
2. INSTALLING THE REMOTE CONTROL
Open the cover as shown
below.
Mount the battery as shown below
(Lithium Battery CR2025).
Replace the cover.
INSTALLATION
PART NAMES
1. MAIN UNIT
2. ACCESSORIES
Remote control Lithium battery
(CR2025)
Manual
-AIRPURIFIER-
Air intake
Viewfinder
Jack connector
SEFFTM
Indicator / Operator
Remote
control sensor
Air outlet
Top cover
Front Back
Adapter(1.0 A)
AC 110~240V/DC12V AC-DC
SAFETY PRECAUTIONS
1. RISK OF ELECTRIC SHOCK
Do not use the unit if the AC-DC Adapter or plug is damaged or the connection to the wall outlet is loose
(electric shock, short circuit, and/or fire may occur).
Do not damage, break, coat, forcefully bend, pull, twist, bundle, pinch or place heavy objects on the AC-DC
Adapter.
(may damage the power cord, which in turn may cause fire and/or electric shock).
Use AC 120V and DC 12V only (to avoid fire and/or electric shock).
Do not modify. Repair and disassembly of this product should be performed by authorized service personnel
only
(to avoid fire, electric shock, and/or bodily injury). Contact your dealer or IDEAVAX Service Center for repair.
Periodically remove dust from the power plug
(accumulated dust on the power plug may result in poor insulation from humidity, etc., thereby causing fire and/or
electric shock).
When cleaning the unit, be sure to remove the power plug from the wall outlet. Never touch the power plug with
wet hands
(electric shock and/or bodily injury may occur).
Do not use the unit where there are oil ingredients such as cooking oil in the air
(surface of the unit may crack).
Do not apply benzene or paint thinner or spray insecticide on the unit
(cracking, electric shock, and/or fire may occur).
Do not allow the unit to take in flammable gases, sparks from lit cigarettes, incense, etc.
(may cause the unit to ignite).
Do not use the unit in humid areas such as bathrooms or areas near moisture
(electric shock and/or malfunction may occur).
Do not insert your fingers or foreign objects into the intake or air outlet
(electric shock and/or malfunction may occur).
When unplugging the unit, always hold the plug; never pull the cord
(electric shock and/or fire due to short circuit may occur).
Ventilate when using the unit together with a heating appliance
(to avoid carbon monoxide poisoning).
Remove the power plug when the unit is not in use
(to avoid electric shock due to poor insulation and/or fire due to short circuit).
For safety, have the AC-DC Adapter replaced by the manufacturer, its service agent, or other qualified person in
case of damage. The battery must be removed from the remote control before it is disposed. Dispose of used
batteries safely.
2. CAUTIONS RELATED TO THE OPERATION OF THE PRODUCT
Do not block the intake and air outlet. Do not use the unit near or on hot objects such as a stove. Avoid using the
unit in areas where it may come into contact with steam. Do not use the unit on its side
(deformation, malfunction, and/or overheating of the motor may occur).
Do not install in areas where oily residue is generated, e.g., kitchen. Do not use detergent in cleaning the unit
(may damage the unit or cause cracking or malfunction of the sensor).
Do not operate the unit without the filter
(no purification effect will be generated; may also cause trouble).
Do not wash the e-Film filter for nano-dust
(wet e-film filter for nano-dust can cause breakdown or fault in the product).
Do not carry the product by the top cover
(the top cover is made for opening and shutting the product;
breakdown may occur if the product is not completely closed or when shaken due to fall).

76
2. MAIN UNIT
To prevent dirt or stains on the main unit, clean as often as necessary (stains may be difficult to remove later if they are not
cleaned immediately).
Wipe with a soft, dry cloth. For stubborn stains or dirt, use a soft cloth soaked in warm water (squeeze off excess water).
Do not use volatile fluids on the unit (benzene, paint thinner, polishing powder, etc., may damage the surface of the
unit).
Do not use detergents in cleaning the unit (detergent ingredients may damage the surface of the unit).
Keep the unit dry. Keep unit away from moisture.
DO NOT USE THE REMOTE CONTROL IN THE FOLLOWING LOCATIONS:
Any location where inverter lighting equipment or electronic spontaneous lighting equipment are installed
The remote control may become inoperable. In this case, move away from such lighting equipment or change locations.
Location exposed to direct sunlight
The unit may not receive signals from the remote control.
The unit may not respond to the signals of the remote control if the ends of the fluorescent lighting turn black or lights flicker
due to the expiration of the service life; note, however, that this is not a malfunction of the remote control or the main unit. In
this case, replace the lighting with new fluorescent tubes.
LIMITATIONS ON THE USE OF THE REMOTE CONTROL
Allow a distance of at least 7 feet (2m) from equipment generating electric waves such as televisions, radios,
or wave clocks (to avoid electric interference).
Avoid locations where curtains, etc., may come into contact with the intake or air outlet
(curtains, etc., may get dirty, or malfunction may occur).
Do not move the product by holding it by the top cover.
The top cover is used to open/close the equipment
(if the cover is not completely closed, the equipment may fall and mechanical failure may occur).
EFFECTIVE OPERATION
Place on a stable surface with sufficient air circulation
INSTALLATION GUIDELINES
Do not smell the filter by putting your nose close to it. Avoid skin contact with the equipment.
Do not wash a contaminated filter. Instead, remove the dust using a vacuum cleaner or a brush.
Dust may accumulate on the unit even when it is not operating.
Therefore, cover the unit with any vinyl material when the product will not be used for a long time.
FILTER GUIDELINES
CARE AND MAINTENANCE
1. FILTER CLEANING
Take note of the pollution level on
Viewfinder on the reverse side.
Turn off power and unplug the
cord from the wall outlet.
Open the cover by turning the top
cover toward the “OPEN” direction.
Use a brush or a vacuum cleaner to
remove dust from the upper filter.
Turn the top cover to the opposite
direction of “OPEN.”
Place the unit on the ground, plug
the cord, and turn on power again.

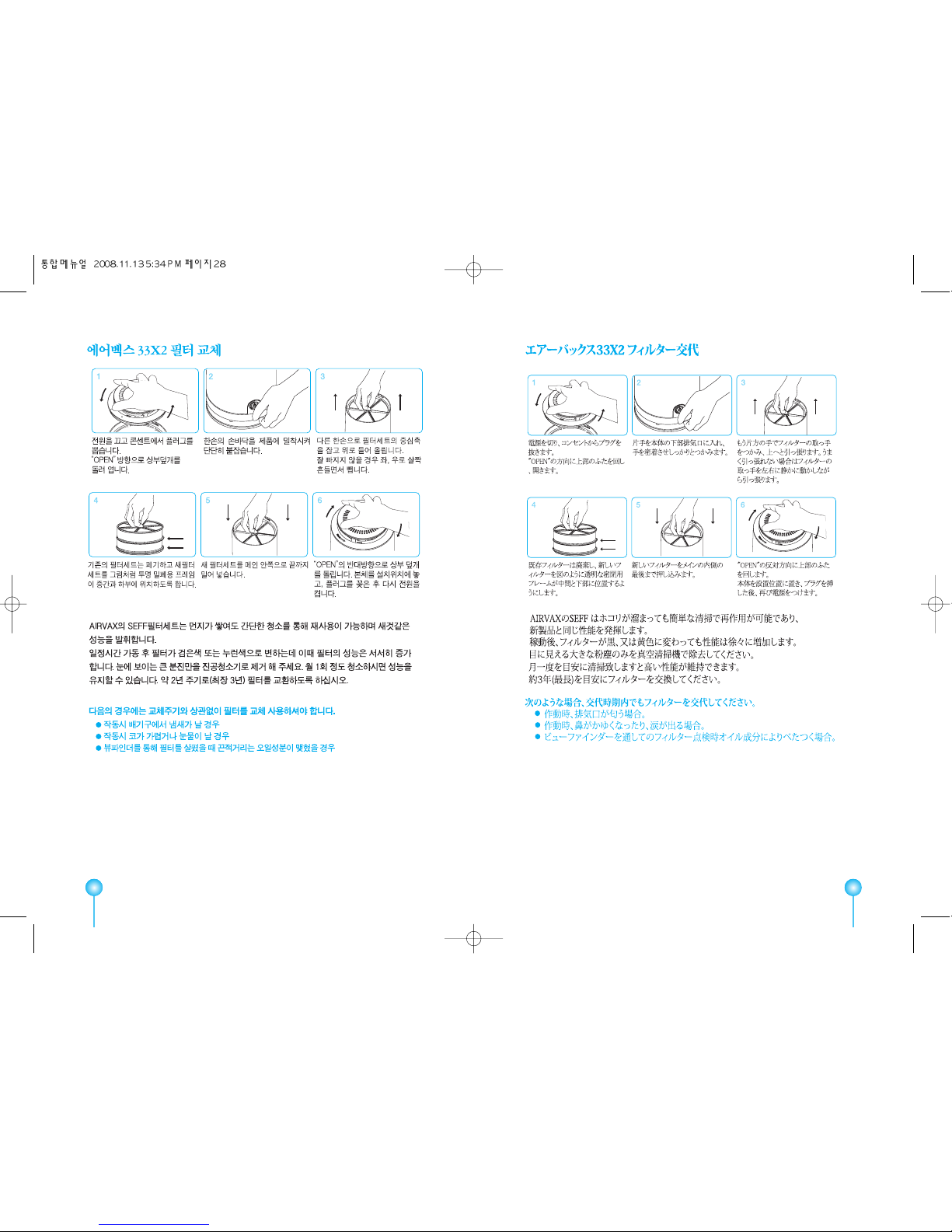

Schedule of Filter Change
The SEFF
TM
(Static Electricity Film Filter) of AIRVAX can be reused
after simple, quick cleaning even when the gap is filled with dust and
the unit does not take in as much dust as the new filter. When used
for a long time, however, the filter may be severely discolored.
Therefore, change the filter at least once every three years. For more
detailed information, contact the head office.
OPERATION
SPECIFICATIONS
Button Click Mode Contents Display
Once (ON) The unit will operate at MEDIUM fan level
Normal mode
The two lights at the bottom of the LED will be turned on.
Twice High mode The unit will operate at HIGH fan leve
The three lights on the LED will be turned on.
Three times Silent mode The unit will operate quietly using minimal air intake.
The light on top of the LED will be turned on.
Four times OFF Power is turned off.
Both lights are turned off.
1. OPERATING THE MAIN UNIT
2. OPERATING THE REMOTE CONTROL
When you start the remote control, the LED will blink rapidly and shift to the appropriate mode.
ON/OFF
The First click will turn on power; the second click will turn off power.
High mode
The unit will operate at HIGH fan leve.
Normal mode
The unit will operate quietly using minimal air intake.
Silent mode
The unit will operate quietly using minimal air intake.
Model AIRVAX-33X2
Power supply Input : AC 100~240V / 50~60Hz Output : DC 12V / 1.0A
Fan level
Fan level adjustment High mode Normal mode Silent mode
operation Rated power 2W 1W 0.5W
Fan level CFM(m
3
/min.) 80(1.4) 62(0.8) 41(0.5)
Applicable floor surface 269 sq.ft.* (25m2)
Cord length 5.9ft (1.8m)
Dimensions(W DH) 6-15/16 in. 6-15/16 in. 11-1/2 in
177mm 177mm 292mm
Weight 3.7 lbs (1.7kg)
* The applicable floor surface area is appropriate for operating the unit at maximum fan level.

98
OPERATION
LIMITED WARRANTY FOR CONSUMERS
LIMITED WARRANTY FOR US USERS
IDEAVAX CO., LTD. warrants to the first consumer purchaser that this AIRVAX product (“Product”) is
free from defective workmanship and materials when shipped in its original container and agrees to
repair the defect or replace the defective product or part thereof with a new or remanufactured
equivalent at no charge to the purchaser in terms of parts or labor for the period(s) set forth below.
This warranty does not apply to the accessories of the product or to the additional excluded item(s)
set forth below or to a unit whose exterior has been damaged or deformed, subjected to improper
voltage or other misuse, abnormal service, or handling, or whose design or assembly has been
altered or modified.
To avail yourself of the benefits of this limited warranty, follow the steps set forth below and present
your proof of purchase to the servicer.
The limited warranty described herein supplements whatever implied warranties may be granted to
purchasers by law.
ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) STARTING FROM THE DATE OF
PURCHASE SET FORTH BELOW. Note, however, that some states do not allow limitations on the
implied warranty period.
Neither the sales personnel of the dealer nor any other person is authorized to make warranties other
than those described herein or to extend the period of any warranty beyond the period described
herein on behalf of AIRVAX.
The warranties described herein shall be the sole and exclusive warranties granted by AIRVAX and
shall be the sole and exclusive remedy available to the purchaser. The correction of defects in the
manner and for the period described herein shall constitute the complete fulfillment of all liabilities and
responsibilities of AIRVAX to the purchaser in relation to the product and imply the full satisfaction of
all claims, be they based on contract, negligence, strict liability, etc.
Under no circumstances shall AIRVAX be liable or in any way responsible for any and all damages or
defects in the product due to repairs or attempted repairs performed by persons other than an
authorized servicer. Neither shall AIRVAX be liable or in any way responsible for any incidental or
consequential economic or property damage. Note, however, that some states do not allow the
exclusion of incidental or consequential damages.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT MAY VARY FROM STATE TO STATE.
Model number and description of your unit:
MODEL AIRVAX Air purifier
MODEL NUMBER AIRVAX 33X2 (Vienna / Cameo)
Serial NO.
DATE OF PRODUCTION The specified date separately
DATE OF PURCHASE . .
WARRANTY PERIOD One (1) year from the date of purchase
ADDRESS City: State: Zip:
TEL.
IDEAVAX CO., LTD. (KOREA)
MANU FACTURING COMPANY 2F Soohyun B/D, 517-34, Shinsa-dong,
Gangnam-gu, Seoul, Korea, 135-888
TEL : [phone] FAX : [phone]
URL. www.ideavax.com / www.airvax.co.kr

1110
-AIRPURIFIER-
http://www.airvax.co.kr

1312
http://www.airvax.co.kr

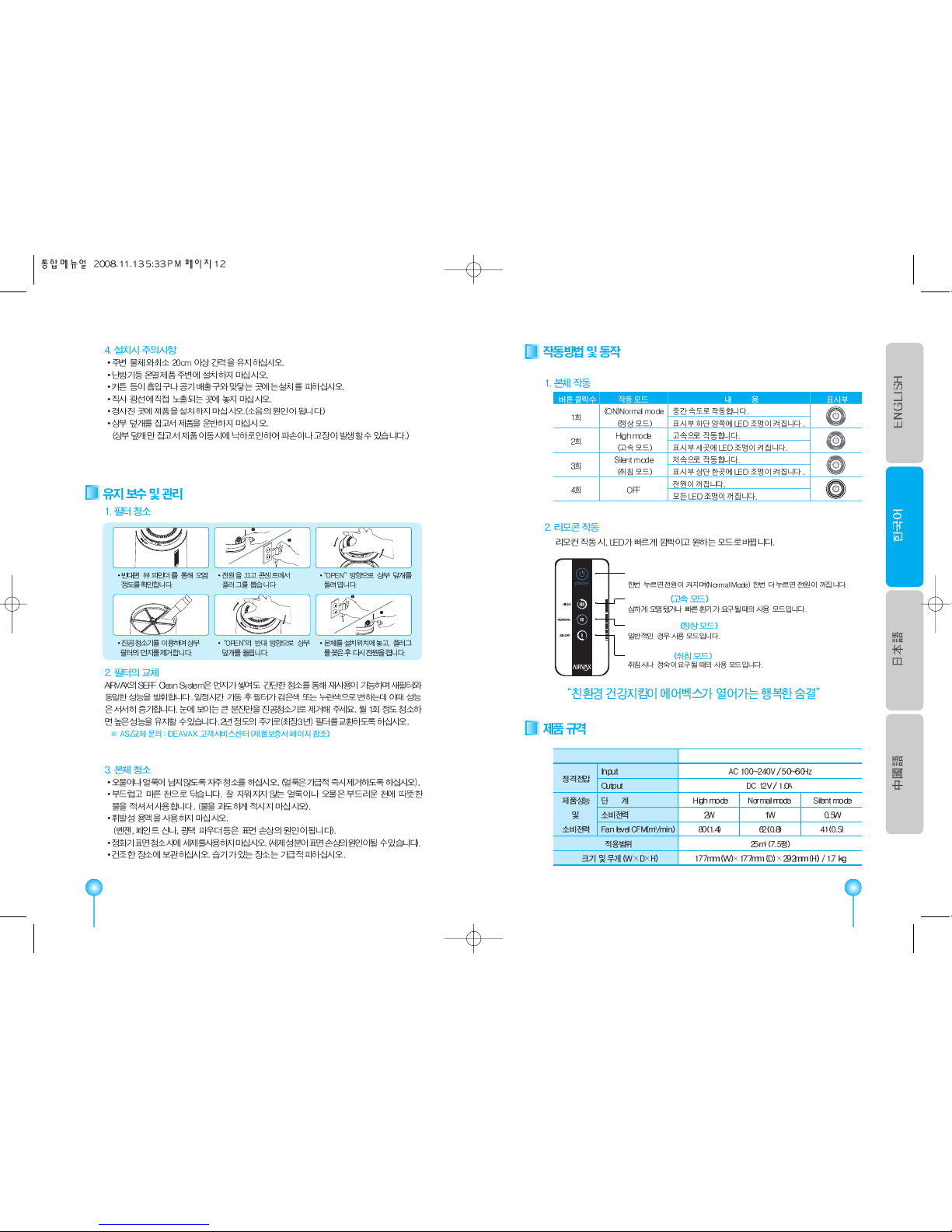

ON/OFF
High mode
Normal mode
Silent mode
Model AIRVAX-33X2

1514
18
19
20
16
16
17

1716
-AIRPURIFIER-

1918

2120
22 24
25
26
22
23

2322

2524
3

2726


2928

30
Memo.
