Airwell AWSI-HGF009-H11 User manual

HGF / HHF Series
Indoor Units Outdoor Units
AWSI-HGF009-H11 AWSI-HHF009-H11 AWAU-YGF009-H11
AWSI-HGF012-H11 AWSI-HHF012-H11 AWAU-YGF012-H11
AWSI-HGF018-H11 AWSI-HHF018-H11 AWAU-YGF018-H11
AWSI-HGF024-H11 AWSI-HHF024-H11 AWAU-YGF024-H11
REFRIGERANT
R410A HEAT PUMP
SM HGFHHF 1-A.1 GB March- 2011
Version:2

LIST OF EFFECTIVE PAGES
A SM HGFHHF 1-A.1 GB
LIST OF EFFECTIVE PAGES
Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page). All pages in the following list represent
effected/ non effected pages divided by chapters.
Dates of issue for original and changed pages are:
Original ....... 01 ........ 27 Dec, 10
Updated...... 02 ........ 04 Mar, 11
Total number of pages in this publication is 75 consisting of the following:
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Title........................... 1
A .............................. 1
i................................. 1
1-1 - 1-4…………….. 1
2-1 - 2-4…………….. 1
3-1…………………… 1
4-1 - 4-2…………….. 1
5-1 - 5-10……………. 1
6-1 - 6-4………………1
7-1 - 7-1………………1
8-1 - 8-4………………1
9-1…………………….1
10-1………………….. 1
11-1 - 11-8…………...1
12-1 - 12-2…………...1
13-1 - 13-18………….1
14-1………………….. 1
* Zero in this column indicates an original page.

TABLE OF CONTENTS
SM HGFHHF 1-A.1 GB i
Table of Contents
1. INTRODUCTION ............................................................................................................................. 1-1
2. PRODUCT DATA SHEET............................................................................................................... 2-1
3. RATING CONDITIONS ................................................................................................................... 3-1
4. OUTLINE DIMENSION ................................................................................................................... 4-1
5. PERFORMANCE DATA ................................................................................................................. 5-1
6. SOUND LEVEL CHARACTERISTICS ........................................................................................... 6-1
7. ELECTRICAL DATA....................................................................................................................... 7-1
8. WIRING DIAGRAM......................................................................................................................... 8-1
9. REFRIGERATION DIAGRAMS ...................................................................................................... 9-1
10. TUBING CONNECTIONS ............................................................................................................... 10-1
11. CONTROL SYSTEM....................................................................................................................... 11-1
12. TROUBLESHOOTING.................................................................................................................... 12-1
13. EXPLODED VIEW & SPARE PART LIST...................................................................................... 13-1
14. APPEDDIX ...................................................................................................................................... 14-1

INTRODUCTION
1. INTRODUCTION
1.1 General
HGF/HHF//YGF series is monosplit fixed speed air conditioner designed for
residential buildings. The IDU HGF/HHF is a high-wall mounted type indoor with
modern appearance. Following models are included:
zAWSI-HGF009-H11 / AWSI-HHF009-H11 // AWAU-YGF009-H11
zAWSI-HGF012-H11 / AWSI-HHF012-H11 // AWAU-YGF012-H11
zAWSI-HGF018-H11 / AWSI-HHF018-H11 // AWAU-YGF018-H11
zAWSI-HGF024-H11 / AWSI-HHF024-H11 // AWAU-YGF024-H11
Different appearance styles are used in HGF and HHF indoors.
1.2 Main Features
The unit benefits from the most advanced technological innovations, namely:
•R410A models
•Microprocessor control and indoor LED display
•Energy efficiency class A in cooling mode for all models
•Max allowing tubing distance of 25m.(For model HGF/HHF018-024)
•Up to 10 m vertical high between indoor and outdoor units
•Cooling operation at outdoor temperature up to 46ºC.
•Easy installation and service.
•Sleep mode from remote control to save energy
•ON/OFF timer and clock display
•Vertical auto swing with motorized flap (any position stop)
•Intelligent Deicing
•Memory from power failure
•Rapid cooling/heating
•I-Feel function
•Cold air prevention in heating
•Clean function (Blow dry)
•Self diagnostic (Error indications) for ease of maintenance
SM HGFHHF 1-A.1 GB 1-1

INTRODUCTION
1-2 SM HGFHHF 1-A.1 GB
1.3 Indoor Unit
The indoor unit is wall mounted, and can be easily fitted to many types of residential
locations. It includes:
•LED display
•Variable speed with PG motor
•Motorized flap
•High efficiency filtration to ensure a best Air Quality : Advanced filtering combine
mechanical, Photo-catalytic + Bi-anti bacterial and observe bad gaseous and
smokes.
1.4 Control
The microprocessor indoor controller, and an infrared remote control, supplied as
standard, provide complete operating function and programming.
Remote control RC 8：
Compact and economically design, it offers excellent user comfort. Combining modern design
with high technology, the RC8 remote control offers powerful functions of real considering of user
comfort and energy saving of air-conditioner .
For detail of functions, please refer to Appendix 1

INTRODUCTION
SM HGFHHF 1-A.1 GB 1-3
1.5 Outdoor Unit
The outdoor units can be installed as floor or wall mounted units by using a wall
supporting bracket. The metal sheets are protected by anti- corrosion paint work
allowing long life resistance. All outdoor units are pre-charged. For further information
please refer to the Product Data Sheet, Chapter 2.
It includes :
•Compressor mounted in a soundproofed compartment :
•Axial fan.
•Outdoor coil with hydrophilic louver fins for RC units.
•Outlet air fan grill.
•Interconnecting wiring terminal block.
1.6 Tubing Connections
Flare type interconnecting tubing to be produced on site.
For further details please refer to the Installation Manual.
1.7 Inbox Documentation
Each unit is supplied with its own installation, operation and remote control manuals.

INTRODUCTION
1.8 Matching Table
INDOOR UNITS
AWSI-HGF009-H11 AWSI-HGF012-H11 AWSI-HGF018-H11 AWSI-HGF024-H11
OUTDOOR
UNITS
AWSI-HHF009-H11 AWSI-HHF012-H11 AWSI-HHF018-H11 AWSI-HHF024-H11
AWAU-YGF009-H11
√
AWAU-YGF012-H11
√
AWAU-YGF018-H11
√
AWAU-YGF022-H11
√
1-4 SM HGFHHF 1-A.1 GB

PRODUCT DATASHEET
2. PRODUCT DATA SHEETSHEET
2.1 HGF009 / HHF009 // YGF0092.1 HGF009 / HHF009 // YGF009
Model Indoor UnitModel Indoor Unit HGF009/HHF009HGF009/HHF009
Model Outdoor Unit YGF009
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Capacity (4) kW 2.64 2.81
Power input (4) kW 0.82 0.78
EER (Cooling) or COP(Heating) (4) W/W 3.21 3.61
Energy efficiency class A A
V 220-240
Ph 1
Power supply
Hz 50
Rated current A 3.8 3.6
Power factor 0.92 0.92
Prated (IDU+ODU) W 1120
Circuit breaker rating A 10A
Fan type & quantity Crossflow x 1
Cooling SH/H/M/L RPM 1390/1280/1180/1080
Fan speeds Heating SH/H/M/L RPM 1350/1250/1140/1040
Air flow (1) SH/H/M/L M3/hr 400/370/340/310
External static pressure Min Pa 0
Sound power level (2) SH/H/M/L dB(A) 50/47/45/42
Sound pressure level(3) SH/H/M/L dB(A) 40/37/35/32
Moisture removal l/hr 1.0
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 730x255x174
Net Weight kg 8
Package dimensions WxHxD mm 790x325x245
INDOOR
Packaged weight kg 10.5
Refrigerant control Capillary
Compressor type, model Rotary, Panasonic-5PS102EAA22
Fan type & quantity Propeller(direct) x 1
Fan speeds H RPM 830
Air flow H M3/hr 1500
Sound power level H dB(A) 60
Sound pressure level(3) H dB(A) 50
Dimensions WxHxD mm 785x540x320
Net Weight kg 31
Package dimensions WxHxD mm 820x580x355
Packaged weight kg 34
Refrigerant type R410A
Standard charge kg(4m) 0.76
Additional charge g/m 30g/m(4m<L<15m)
Liquid line In.(mm) 1/4"(6.35)
Suction line In.(mm) 3/8"(9.53)
Max.tubing length m. Max. 15
OUTDOOR
Connections
between units
Max.height difference m. Max. 10
Operation control type Remote control
(1)Airflow in ducted units; at nominal external static pressure.
(2)Sound power in ducted units is measured at air discharge.
(3)Sound pressure level measured at 1-meter distance from unit.
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).
SM HGFHHF 1-A.1 GB 2-1

PRODUCT DATASHEET
2-2 SM HGFHHF 1-A.1 GB
2.2 HGF012 / HHF012 // YGF012
Model Indoor Unit HGF012/HHF012
Model Outdoor Unit YGF012
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Capacity (4) kW 3.22 3.52
Power input (4) kW 1.00 0.97
EER (Cooling) or COP(Heating) (4) W/W 3.21 3.61
Energy efficiency class A A
V 220-240
Ph 1
Power supply
Hz 50
Rated current A 4.7 4.6
Power factor 0.92 0.92
Prated (IDU+ODU) W 1450
Circuit breaker rating A 16A
Fan type & quantity Crossflow x 1
Cooling SH/H/M/L RPM 1350/1250/1100/950
Fan speeds Heating SH/H/M/L RPM 1350/1250/1100/950
Air flow (1) SH/H/M/L m3/hr 550/500/420/350
External static pressure Min Pa 0
Sound power level (2) SH/H/M/L dB(A) 50/48/45/42
Sound pressure level(3) SH/H/M/L dB(A) 40/38/35/32
Moisture removal l/hr 1.0
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 790x265x177
Net Weight kg 9
Package dimensions WxHxD mm 870x355x248
INDOOR
Packaged weight kg 12
Refrigerant control Capillary
Compressor type, model Rotary, LANDA- QXA-B120C150
Fan type & quantity Propeller(direct) x 1
Fan speeds H RPM 850
Air flow H m3/hr 1800
Sound power level H dB(A) 62
Sound pressure level(3) H dB(A) 52
Dimensions WxHxD mm 798x540x320
Net Weight kg 35
Package dimensions WxHxD mm 825x580x355
Packaged weight kg 40
Refrigerant type R410A
Standard charge kg(4m) 0.76
Additional charge g/m 30g/m(4m<L<20m)
Liquid line In.(mm) 1/4"(6.35)
Suction line In.(mm) 1/2"(12.7)
Max.tubing length m. Max. 20
OUTDOOR
Connections
between units
Max.height difference m. Max. 10
Operation control type Remote control
(1)Airflow in ducted units; at nominal external static pressure.
(2)Sound power in ducted units is measured at air discharge.
(3)Sound pressure level measured at 1-meter distance from unit.
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).

PRODUCT DATASHEET
SM HGFHHF 1-A.1 GB 2-3
2.3 HGF018 / HHF018 // YGF018
Model Indoor Unit HGF018/HHF018
Model Outdoor Unit YGF018
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Capacity (4) kW 5.30 5.70
Power input (4) kW 1.64 1.67
EER (Cooling) or COP(Heating) (4) W/W 3.23 3.41
Energy efficiency class A B
V 220-240
Ph 1
Power supply
Hz 50
Rated current A 7.8 7.9
Power factor 0.92 0.92
Prated (IDU+ODU) W 2550
Circuit breaker rating A 25A
Fan type & quantity Crossflow x 1
Cooling SH/H/M/L RPM 1350/1200/1050/900
Fan speeds Heating SH/H/M/L RPM 1350/1200/1050/900
Air flow (1) SH/H/M/L m3/hr 850/780/650/550
External static pressure Min Pa 0
Sound power level (2) SH/H/M/L dB(A) 58/55/52/48
Sound pressure level(3) SH/H/M/L dB(A) 48/45/42/38
Moisture removal l/hr 3.0
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 940x298x200
Net Weight kg 13
Package dimensions WxHxD mm 1010x380x285
INDOOR
Packaged weight kg 17
Refrigerant control Capillary
Compressor type, model Rotary, HITACHI - ASH210SV-C8LU
Fan type & quantity Propeller(direct) x 1
Fan speeds H RPM 860
Air flow H m3/hr 2790
Sound power level H dB(A) 64
Sound pressure level(3) H dB(A) 54
Dimensions WxHxD mm 913x680x378
Net Weight kg 46
Package dimensions WxHxD mm 994x725x428
Packaged weight kg 50
Refrigerant type R410A
Standard charge kg(4m) 1.5
Additional charge g/m 30g/m(4m<L<25m)
Liquid line In.(mm) 1/4"(6.35)
Suction line In.(mm) 1/2"(12.7)
Max.tubing length m. Max. 25
OUTDOOR
Connections
between units
Max.height difference m. Max. 10
Operation control type Remote control
(1)Airflow in ducted units; at nominal external static pressure.
(2)Sound power in ducted units is measured at air discharge.
(3)Sound pressure level measured at 1-meter distance from unit.
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).

PRODUCT DATASHEET
2-4 SM HGFHHF 1-A.1 GB
2.4 HGF024/ HHF024 // YGF024
Model Indoor Unit HGF024/HHF024
Model Outdoor Unit YGF024
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Capacity (4) kW 6.16 6.50
Power input (4) kW 1.90 1.90
EER (Cooling) or COP(Heating) (4) W/W 3.24 3.42
Energy efficiency class A B
V 220-240
Ph 1
Power supply
Hz 50
Rated current A 8.9 8.9
Power factor 0.92 0.92
Prated (IDU+ODU) W 2700
Circuit breaker rating A 25A
Fan type & quantity Crossflow x 1
Cooling SH/H/M/L RPM 1350/1200/1050/900
Fan speeds Heating SH/H/M/L RPM 1350/1200/1050/900
Air flow (1) SH/H/M/L m3/hr 850/780/650/550
External static pressure Min Pa 0
Sound power level (2) SH/H/M/L dB(A) 57/54/51/48
Sound pressure level(3) SH/H/M/L dB(A) 47/44/41/38
Moisture removal l/hr 3.0
Condensate drain tube I.D mm 16
Dimensions WxHxD mm 940x298x200
Net Weight kg 13
Package dimensions WxHxD mm 1010x380x285
INDOOR
Packaged weight kg 17
Refrigerant control Capillary
Compressor type, model Rotary, HITACHI - ASH232SV-C8LU
Fan type & quantity Propeller(direct) x 1
Fan speeds H RPM 780
Air flow H m3/hr 2790
Sound power level H dB(A) 64
Sound pressure level(3) H dB(A) 54
Dimensions WxHxD mm 913x680x378
Net Weight kg 46
Package dimensions WxHxD mm 994x725x428
Packaged weight kg 50
Refrigerant type R410A
Standard charge kg(4m) 1.45
Additional charge g/m 30g/m(4m<L<15m)
Liquid line In.(mm) 1/4"(6.35)
Suction line In.(mm) 1/2"(12.7)
Max.tubing length m. Max. 25
OUTDOOR
Connections
between units
Max.height difference m. Max. 10
Operation control type Remote control
(1)Airflow in ducted units; at nominal external static pressure.
(2)Sound power in ducted units is measured at air discharge.
(3)Sound pressure level measured at 1-meter distance from unit.
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).

RATING CONDITIONS
3. RATING CONDITIONSTING CONDITIONS
Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
Cooling:Cooling:
Indoor: 27oC DB 19oC WBIndoor: 27oC DB 19oC WB
Outdoor: 35 oC DBOutdoor: 35 oC DB
Heating:Heating:
Indoor: 20oC DBIndoor: 20oC DB
Outdoor: 7oC DB 6oC WBOutdoor: 7oC DB 6oC WB
3.1 Operating Limits3.1 Operating Limits
R410AR410A
Indoor Outdoor
Upper limit 32oC DB 23oC WB 46oC DB
Cooling Lower limit 21oC DB 15oC WB 21oC DB
Upper limit 27oC DB 24oC DB 18oC WB
Heating Lower limit 10oC DB -9oC DB 80%RH
Voltage 1-PH 50Hz 198 – 264 V
SM HGFHHF 1-A.1 GB 3-1

OUTLINE DIMENSION
4. OUTLINE DIMENSIONNE DIMENSION
4.1 Indoor: HGF/HHF009-012-018-0244.1 Indoor: HGF/HHF009-012-018-024
Unit: mm
Model W H D Q R S
09K 730 255 174 27 562 141
12K 790 265 177 35 605 150
18-24K 940 298 200 52 694 194
SM HGFHHF 1-A.1 GB 4-1

OUTLINE DIMENSION
4.2 Outdoor: YGF009-012-018-024
Model 09/12
Model 18/24
4-2 SM HGFHHF 1-A.1 GB

OUTLINE DIMENSION
SM HGFHHF 1-A.1 GB 4-3
Unit: mm
Model W H D W1 W2 D1
09-12K 776 549 320 714 510 286
18-24K 913 680 378 847 549 342

PERFORMANCE DATA & PRESSURE CURVES
5. PERFORMANCE DATARFORMANCE DATA
5.1 HGF009 / HHF009 // YGF0095.1 HGF009 / HHF009 // YGF009
5.1.1 Cooling Capacity (kW)5.1.1 Cooling Capacity (kW)
Entering Air WB/DB ID Coil(oC)Entering Air WB/DB ID Coil(oC)
Entering Air DB
OD Coil(oC) Data
15/21 17/24 19/27 21/29 23/32
TC
2.69 2.84 2.92 2.99 3.06
20 SC 1.77 1.87 1.95 2.00 2.04
PI
0.63 0.63 0.64 0.64 0.64
TC
2.55 2.75 2.89 2.98 3.05
25 SC 1.73 1.83 1.93 1.99 2.02
PI
0.68 0.69 0.69 0.70 0.70
TC
2.38 2.59 2.80 2.90 2.99
30 SC 1.67 1.78 1.89 1.95 1.98
PI
0.74 0.75 0.75 0.76 0.77
TC
2.20 2.39 2.64 2.77 2.90
35 SC 1.59 1.70 1.85 1.90 1.94
PI
0.79 0.81 0.82 0.83 0.83
TC
2.00 2.18 2.38 2.60 2.74
40 SC 1.50 1.61 1.75 1.80 1.84
PI
0.86 0.87 0.89 0.90 0.90
TC
1.74 1.90 2.09 2.31 2.49
46 SC 1.38 1.48 1.59 1.65 1.69
PI
0.94 0.95 0.97 0.99 1.00
LEGEND
TC – Total Cooling Capacity, kW
SC – Sensible Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OU – Outdoor
SM HGFHHF 1-A.1 GB 5-1

PERFORMANCE DATA & PRESSURE CURVES

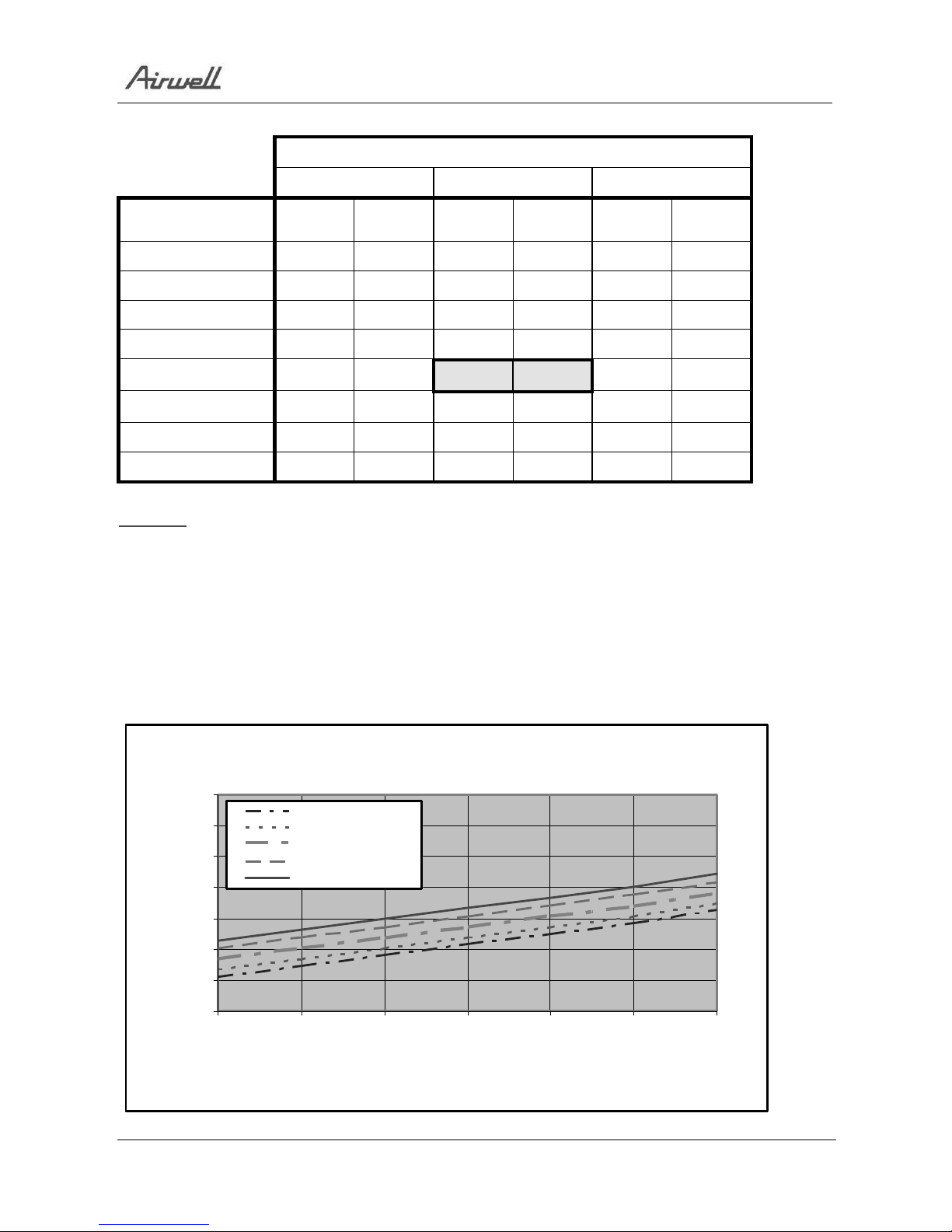

5.1.3 Heating Capacity (kW)
ENTERING AIR DB ID COIL(OC)
15 20 25
ENTERING WB
OD COIL(oC) TH Pl TH Pl TH Pl
-10 1.48 0.62 1.42 0.66 1.36 0.70
-7 1.59 0.64 1.53 0.67 1.48 0.71
-2 1.69 0.65 1.63 0.69 1.58 0.72
2 2.05 0.68 1.97 0.72 1.89 0.76
6 2.90 0.73 2.81 0.78 2.72 0.83
10 3.15 0.77 3.07 0.82 2.98 0.88
15 3.40 0.80 3.32 0.86 3.24 0.92
20 3.59 0.83 3.50 0.90 3.40 0.97
LEGEND
TH – Total Heating Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OU – Outdoor
5.1.4 Curves
5.1.4.1 Cooling
Suction Pressure VS.Outdoor Temp
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
15 20 25 30 35 40 46
Outdoor Temp.(DB
o
C )
Suction Pressure (Bar[g])
15/21(WB/DB ºC)
17/24(WB/DB ºC)
19/27(WB/DB ºC)
21/29(WB/DB ºC)
23/32(WB/DB ºC)
5-2 SM HGFHHF 1-A.1 GB

PERFORMANCE DATA & PRESSURE CURVES

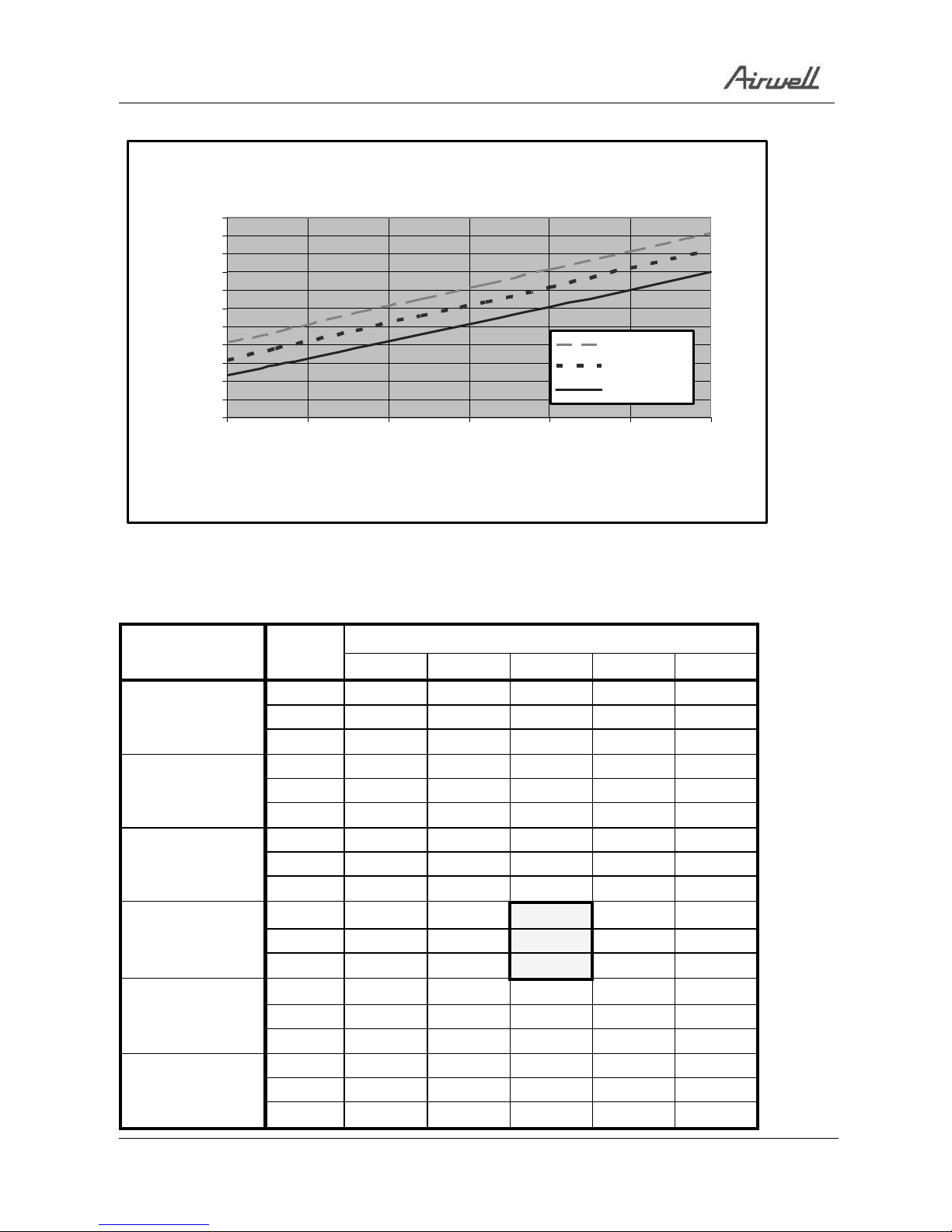

5.1.4.2 Heating
Discharge Pressure VS.Outdoor Temp
16
18
20
22
24
26
28
30
32
34
36
38
-10-5 0 5 101520
Outdoor Temp.( WB
o
C )
Discharge Pressure(Bar[g])
25 DB (ºC)
20 DB (ºC)
15 DB (ºC)
5.2 HGF012 / HHF012 // YGF012
5.2.1 Cooling Capacity (kW)
Entering Air WB/DB ID Coil(oC)
Entering Air DB
OD Coil(oC) Data
15/21 17/24 19/27 21/29 23/32
TC 3.29 3.46 3.57 3.66 3.74
SC 2.17 2.28 2.38 2.45 2.49
20
PI 0.77 0.78 0.78 0.78 0.78
TC 3.11 3.36 3.53 3.64 3.73
SC 2.11 2.24 2.36 2.43 2.47
25
PI 0.84 0.84 0.85 0.85 0.86
TC 2.91 3.17 3.42 3.54 3.65
SC 2.04 2.17 2.31 2.38 2.42
30
PI 0.90 0.91 0.92 0.93 0.94
TC 2.69 2.92 3.22 3.38 3.54
SC 1.94 2.08 2.26 2.32 2.37
35
PI 0.97 0.99 1.00 1.01 1.02
TC 2.45 2.67 2.91 3.18 3.34
SC 1.83 1.97 2.13 2.20 2.25
40
PI 1.05 1.06 1.08 1.10 1.11
TC 2.12 2.32 2.55 2.82 3.04
SC 1.69 1.81 1.95 2.01 2.06
46
PI 1.15 1.16 1.19 1.21 1.22
SM HGFHHF 1-A.1 GB 5-3

PERFORMANCE DATA & PRESSURE CURVES
5-4 SM HGFHHF 1-A.1 GB
LEGEND
TC – Total Cooling Capacity, kW
SC – Sensible Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OU – Outdoor
5.2.2 Heating Capacity (kW)
ENTERING AIR DB ID COIL(OC)
15 20 25
ENTERING WB
OD COIL(oC) TH Pl TH Pl TH Pl
-10 1.85 0.78 1.78 0.83 1.71 0.87
-7 1.99 0.80 1.92 0.84 1.85 0.89
-2 2.11 0.81 2.04 0.86 1.97 0.90
2 2.57 0.85 2.46 0.90 2.36 0.95
6 3.62 0.91 3.52 0.97 3.39 1.03
10 3.94 0.96 3.83 1.03 3.73 1.10
15 4.25 1.00 4.15 1.08 4.04 1.15
20 4.48 1.03 4.38 1.12 4.25 1.21
LEGEND
TH – Total Heating Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OU – Outdoor

PERFORMANCE DATA & PRESSURE CURVES

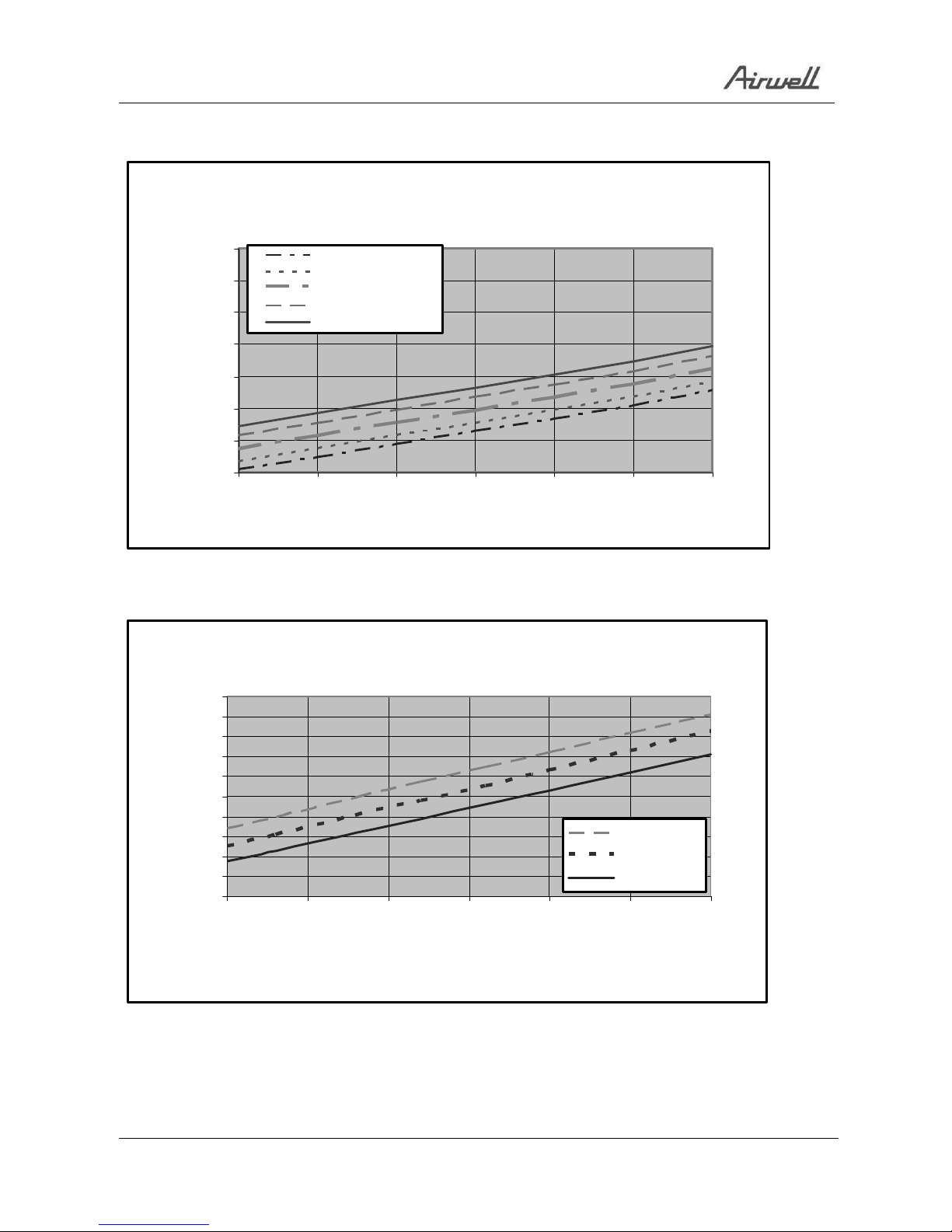

5.1.5 Curves
5.1.5.1 Cooling
Suction Pressure VS.Outdoor Temp
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15 20 25 30 35 40 46
Outdoor Temp.(DB
o
C )
Suction Pressure (Bar[g])
15/21(WB/DB ºC)
17/24(WB/DB ºC)
19/27(WB/DB ºC)
21/29(WB/DB ºC)
23/32(WB/DB ºC)
5.1.5.2 Heating
Discharge Pressure VS.Outdoor Temp
16
18
20
22
24
26
28
30
32
34
36
-10-5 0 5 101520
Outdoor Temp.( WB
o
C )
Discharge Pressure(Bar[g])
25 DB (ºC)
20 DB (ºC)
15 DB (ºC)
SM HGFHHF 1-A.1 GB 5-5
