Airwell AWSI-XAD012-N11 User manual

DCI Light Commercial Series
CBD IndoorUnits
DCD IndoorUnits
FBD IndoorUnits
FWDB indoor Units
XAD IndoorUnits
OutdoorUnits
AWSI-XAD012-N11
AWAU-YLD012-H11
AWSI-XAD018-N11
AWAU-YLD018-H11
REFRIGERANT
R410A
HEATPUMP
REFRIGERANT
SM YLD DCI Ver.6 GB
JUNE 2016

Contents
Contents i
Part 1 General Information .................................................................................................... 1
Part 2 Indoor Units ............................................................................................................... 31
Part 3 Outdoor Units........................................................................................................... 147
Part 4 Installation................................................................................................................ 178
Part 5 Electrical Control System....................................................................................... 211
※The specifications, designs, and information in this book are subject to change without notice for
product improvement.

General Information
General Information 1
Part 1
General Information
1. Model Lists.......................................................................................................................... 2
2. External Appearance.......................................................................................................... 3
2.1 Indoor Units............................................................................................................... 3
2.2 Outdoor Units ............................................................................................................ 4
3. Product specification......................................................................................................... 5
4. Features ............................................................................................................................ 30

Model Lists
2 General Information
1. Model Lists
1.1 Indoor Units
R410A (capacity multiplied by 1000Btu/h)
Type
Function
12
18
24
30
36
48
60
Super slim cassette
Cooling and heating
●
●
●
●
Duct
Cooling and heating
●
●
●
●
●
●
●
Ceiling-floor
Cooling and heating
●
●
●
●
●
Ceiling-floor(Wine Cellar)
Cooling
●
●
Four-way cassette(compact)
Cooling and heating
●
●
Console
Cooling and heating
●
●
1.2 Outdoor Units
Universal Outdoor unit Model
Compressor type
Compressor Brand
Matched indoor units
AWAU-YLD012-H11
Rotary
GMCC
AWSI-CBD012-N11
AWSI-DCD012-N11
AWSI-XAD012-N11
AWAU-YLD018-H11
Rotary
GMCC
AWSI-CBD018-N11
AWSI-DCD018-N11
AWSI-FBD018-N11
AWSI-FWBD018-N11
AWSI-XAD018-N11
AWAU-YLD024-H11
Twin-rotary
GMCC
AWSI-CBD024-N11
AWSI-DCD024-N11
AWSI-FBD024-N11
AWSI-FWBD024-N11
AWAU-YLD030-H11
Twin-rotary
GMCC
AWSI-DCD030-N11
AWSI-CBD030-N11
AWSI-FBD030-N11
AWAU-YLD036-H11
Twin-rotary
Mitsubishi
AWSI-CBD036-N11
AWSI-DCD036-N11
AWSI-FBD036-N11
AWAU-YLD036-H13
Twin-rotary
Mitsubishi
AWAU-YLD048-H13
Twin-rotary
Mitsubishi
AWSI-DCD048-N11
AWSI-FBD048-N11
AWSI-CBD048-N11
AWAU-YLD060-H13
Twin-rotary
Mitsubishi
AWSI-DCD060-N11

External Appearance
General Information 3
2. External Appearance
2.1 Indoor Units
Compact Four-way cassette
Super slim cassette
Ceiling-Floor
Console
Duct(12000-48000Btu/h)
Duct(60000Btu/h)

External Appearance
4 General Information
2.2 Outdoor Units
Single fan outdoor unit
Double fan outdoor unit

Product specification
6 General Information
Model Indoor Unit
AWSI-XAD012-N11
Model Outdoor Unit
AWAU-YLD012-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
3.5
3.6
Pdesign
kW
3.5
3.5
SEER /SCOP (2)
W/W
6.1
3.8
Energy efficiency class
A++
A
Annual energy consumption
kWh
201
1290
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
16
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
810/780/680/530
810/780/680/530
Air flow (3)
H/M/L
m3/hr
700/640/560/440
700/640/560/440
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
58
Sound pressure level(5)
H/M/L
dB(A)
44 / 40 /36
Moisture removal
l/hr
1.5
Condensate drain tube I.D
mm
ODФ16
Dimensions
WxHxD
mm
700x600x210
Weight
kg
15
Package dimensions
LxWxH
mm
810x305x710
Packaged weight
kg
20
Stacking height
units
8 levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
850
Air flow
H/L
m3/hr
2200
Sound power level(4)
H/L
dB(A)
62
Sound pressure level(5)
H/L
dB(A)
52
Dimensions
WxHxD
mm
760x590x285
Weight
kg
35.4
Package dimensions
LxWxH
mm
887x355x645
Packaged weight
kg
37.9
Stacking height
units
4 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.1
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
3/8"(Φ9.52)
Max.tubing length
m.
Max.20
Max.height difference
m.
Max.10
Operation control type
Remote control

Product specification
General Information 9
Model Indoor Unit
AWSI-XAD018-N11
Model Outdoor Unit
AWAU-YLD018-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
4.7
5
Pdesign
kW
4.7
5
SEER /SCOP (2)
W/W
5.6
3.8
Energy efficiency class
A+
A
Annual energy consumption
kWh
294
1842
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+16
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
900/850/780/700
900/850/780/700
Air flow (3)
H/M/L
m3/hr
740/700/640/560
740/700/640/560
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
60
Sound pressure level(5)
H/M/L
dB(A)
45/ 42 /39
Moisture removal
l/hr
2.0
Condensate drain tube I.D
mm
ODФ16
Dimensions
WxHxD
mm
700x600x210
Weight
kg
15
Package dimensions
LxWxH
mm
810x305x710
Packaged weight
kg
20
Stacking height
units
8 levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
2500
Sound power level(4)
H/L
dB(A)
65
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
845x700x320
Weight
kg
46
Package dimensions
LxWxH
mm
965x395x755
Packaged weight
kg
50
Stacking height
units
3levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.8
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
1/2"(Φ12.7)
Max.tubing length
m.
Max.30
Max.height difference
m.
Max.20
Operation control type
Remote control

Features
30 General Information
4. Features
4.1. To meet Europe A level, actual EER/COP of new product with BLDC motors of indoor & outdoor unit and
DC compressor will be higher than 3.4.
4.2. Low ambient kit is standard for outdoor units
4.3. Network control function is standard for the indoor units.
4.4. Standard auto restart function and follow me function.
4.5. Slim cassette with standard remote controller, wire controller and CCM for optional. Med Duct and
HESP duct with standard wired controller, remote controller and CCM for optional.
4.6. Standard anti-cold air function.
4.7. Standard auto defrosting function.
4.8. Standard self-diagnose function.
4.9. Standard timer function and sleep mode function controlled by controller.

Indoor Units
Indoor Units 31
Part 2
Indoor Units
Super Slim Cassette Type.................................................................................................... 32
Duct Type .............................................................................................................................. 52
Ceiling & Floor Type............................................................................................................. 91
Four-way Cassette Type (Compact).................................................................................. 114
Console Type...................................................................................................................... 132

Console Type
132 Console Type
Console Type
1. Features .......................................................................................................................... 133
2. Dimensions..................................................................................................................... 135
3. Service Space ................................................................................................................. 136
4. Wiring Diagrams............................................................................................................. 137
5. Air Velocity and Temperature Distributions(Reference Data)..................................... 138
6. Electric Characteristics.................................................................................................. 139
7. Sound Levels.................................................................................................................. 140
8. Accessories .................................................................................................................... 141
9. The Specification of Power............................................................................................ 141
10. Field Wiring................................................................................................................... 142
11. Exploded View and Spare Part list.............................................................................. 143

Features
Console Type 133
1. Features
1.1. Modern and elegant appearance
 The simple and stylish designs can nicely harmonies with your living space.
1.2. Four panels optional
1.3. Two air-outlet ways
Cooling mode
Quick Cooling To maintain room temp
 Air outlet from top and bottom to make quick cooling ------When the A/C is just switched on, or room
temp. is still high, cold air will be blown out from top and bottom air outlet to cool down the room quickly
 Air outlet from top to maintain room temp. ----When the room has been cooled down, or the A/C has
been opened over 1 hour, cold air only from the top outlet to keep constant room temp
Heating mode
 Anti-cold air ------When the AC is just turn on, temperature of evaporator is very low, in this case, in
order to prevent cold air direct blowing, only the upper louver is opened in a high position, the lower

Features
134 Console Type
louver closed.
1.4. Four air inlets
1.5. Low noise
 DC indoor fan motor, which has five speeds.
 Low noise and energy saving.
 Advanced centrifugal fan technology makes a fast airflow and reduces the indoor noise lower to 28dB.
1.6. Golden fin is optional.
1.7. Active carbon filter is standard

Dimensions
Console Type 135
2. Dimensions
AWSI-XAD012-N11、AWSI-XAD018-N11

Service Space
136 Console Type
3. Service Space

Wiring Diagrams
Console Type 137

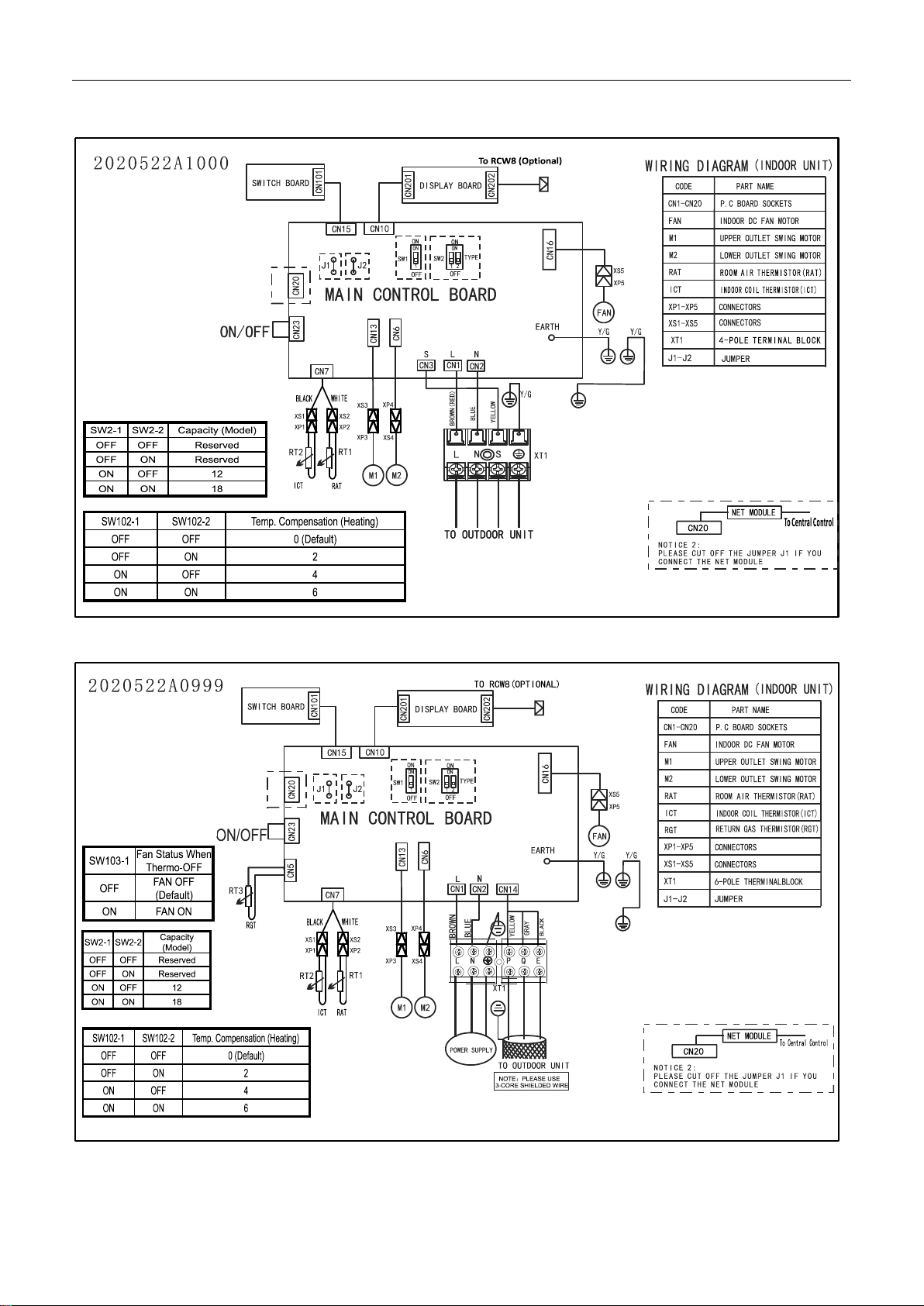

4. Wiring Diagrams
AWSI-XAD012-N11
AWSI-XAD018-N11

Air Velocity and Temperature Distributions(Reference Data)
138 Console Type
5. Air Velocity and Temperature Distributions(Reference Data)
Discharge angle 60
Airflow velocity
Temperature

Electric Characteristics
Console Type 139
6. Electric Characteristics
Model
Indoor Units
Power Supply
Hz
Voltage
Min.
Max.
MFA
AWSI-XAD012-N11
50
220-240
198
254
/
AWSI-XAD018-N11
50
220-240
198
254
10
Note:
MFA: Max. Fuse Amps. (A)

Sound Levels
140 Console Type

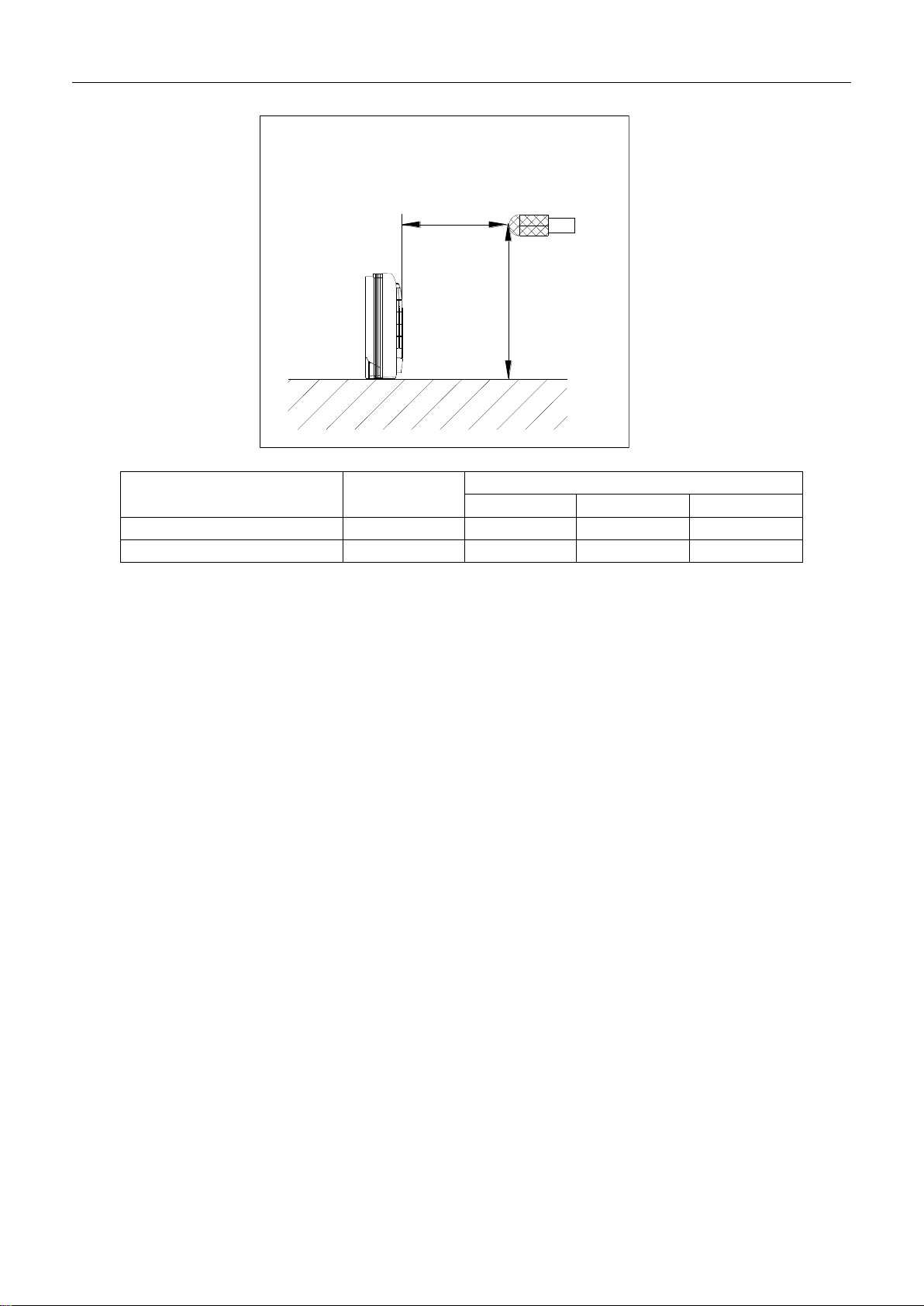

7. Sound Levels
1.5m
1m Microphone
Model
Noise Power
dB(A)
Noise level dB(A)
H
M
L
AWSI-XAD012-N11
58
44
40
36
AWSI-XAD018-N11
60
45
42
39

Accessories
Console Type 141
8. Accessories
Name
Shape
Quantity
Installation fittings
Hook
2
Remote controller & Its Frame
Remote controller
1
Frame
1
Mounting screw(ST2.9×10-C-H)
2
Alkaline dry batteries (AM4)
2
Others
Installation manual
/
1
Owner's manual
/
1
9. The Specification of Power
Capacity(Btu/h)
AWSI-XAD012-N11
AWSI-XAD018-N11
Indoor Unit
Power
Phase
1-phase
Frequency and Voltage
220-240V, 50Hz
Power Wiring(mm2)
3×1.0
Circuit Breaker/Fuse (A)
15/10
Outdoor Unit
Power
Phase
1-phase
1-phase
Frequency and Voltage
220-240V, 50Hz
220-240V, 50Hz
Power Wiring(mm2)
3×1.5
3×2.5
Circuit Breaker/Fuse (A)
20/16
30/20
Indoor/Outdoor Connecting Wiring(Weak Electric Signal) (mm2)
3×0.2
Indoor/Outdoor Connecting Wiring(Strong Electric Signal) (mm2)
4×1.0
