Contents
Contents i
Part 1 General Information .................................................................................................... 1
Part 2 Indoor Units ............................................................................................................... 11
Part 3 Outdoor Units............................................................................................................. 53
Part 4 Installation.................................................................................................................. 74
Part 5 Electrical Control System......................................................................................... 85
※The specifications, designs, and information in this book are subject to change without notice for
product improvement.

General Information
General Information 1
Part 1
General Information
1. Model Lists..........................................................................2
2. External Appearance........................................................3
2.1 Indoor Units................................................................................. 3
2.2 Outdoor Units.............................................................................. 3
3. Product specification .......................................................4

Model Lists
2 General Information
1. Model Lists
1.1 Indoor Units
Cooling & Heating
Indoor units type
Indoor units model
Capacity(Btu/h)
Power supply
HKD indoor
AWSI-HKD009-N11
9000
220-240V 50Hz 1Ph
AWSI-HKD012-N11
12000
220-240V 50Hz 1Ph
AWSI-HKD018-N11
18000
220-240V 50Hz 1Ph
HND indoor
AWSI-HND009-N11
9000
220-240V 50Hz 1Ph
AWSI-HND012-N11
12000
220-240V 50Hz 1Ph
AWSI-HND018-N11
18000
220-240V 50Hz 1Ph
Four-way cassette(compact)
AWSI-CBD012-N11
12000
220-240V 50Hz 1Ph
Duct
AWSI-DCD012-N11
12000
220-240V 50Hz 1Ph
Console
AWSI-XAD012-N11
12000
220-240V 50Hz 1Ph
1.2 Outdoor Units
Universal Outdoor unit Model
Compressor type
Compressor Brand
Power supply
AWAU-YCZ218-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph
AWAU-YCZ327-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph
AWAU-YCZ430-H11
Twin-rotary
GMCC
220-240V 50Hz 1Ph
AWAU-YCZ536-H11
Twin-rotary
MITSUBISHI
220-240V 50Hz 1Ph

External Appearance
General Information 3
2. External Appearance
2.1 Indoor Units
HKD
HND
Four-way cassette(Compact)
Duct
Console
2.2 Outdoor Units

Product specification
4 General Information
3. Product specification
Model Outdoor Unit
AWAU-YCZ218-H11
Installation Method of Pipe
2 x AWSI-HND009-N11
2 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
5.2
6
5.2
6
Pdesign
kW
5.2
5.9
5.2
5.6
SEER / SCOP (2)
W/W
6.1
4.1
5.6
3.8
Energy efficiency class
A++
A+
A+
A
Annual energy consumption
kWh
298
2015
325
2063
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
25
Rated power input (Maximum power input)
kW
3.2
Rated current (Maximum current)
A
14.5
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Twin Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
750
Air flow
H/L
m3/hr
2500
Sound power level(4)
H/L
dB(A)
65
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
845x700x320
Weight
kg
48
Package dimensions
LxWxH
mm
965x395x755
Packaged weight
kg
52
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting
tubing length)
kg(10m)
1.9
Additional charge per 1 meter
gr / 1m
10m<L<20m 15g/m
Connection
s between
units
Liquid line
In.(mm)
2x1/4”(Φ6.35)
Suction line
In.(mm)
2x3/8”(Φ9.52)
Max. length for all rooms
m
30
Max. length for one indoor unit
m
20
Max.
height
difference
between
indoor and
outdoor
unit
OU higher than IU
m
10
OU lower than IU
m
15
Max. height difference between
indoor units
m
10
Operation control type
Remote control

Product specification
General Information 5
Model Outdoor Unit
AWAU-YCZ327-H11
Installation Method of Pipe
3 x AWSI-HND009-N11
3 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
7.8
8.5
7.8
8.5
Pdesign
kW
7.8
8
7.8
8
SEER / SCOP (2)
W/W
6.6
3.9
6.1
3.8
Energy efficiency class
A++
A
A++
A
Annual energy consumption
kWh
414
2872
448
2947
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
25
Rated power input (Maximum power input)
kW
3.6
Rated current (Maximum current)
A
16.5
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Twin Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3500
Sound power level(4)
H/L
dB(A)
68
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
900x860x315
Weight
kg
62
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
67
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(10m)
2.4
Additional charge per 1 meter
gr / 1m
15m<L<25m 15g/m
Connections
between
units
Liquid line
In.(mm)
3x1/4”(Φ6.35)
Suction line
In.(mm)
3x3/8”(Φ9.52)
Max. length for all rooms
m
45
Max. length for one indoor unit
m
25
Max. height
difference
between
indoor and
outdoor unit
OU higher than IU
m
10
OU lower than IU
m
15
Max. height difference between indoor
units
m
10
Operation control type
Remote control

Product specification
6 General Information
Model Outdoor Unit
AWAU-YCZ430-H11
Installation Method of Pipe
4 x AWSI-HND009-N11
4 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
8.5
9
8.5
9
Pdesign
kW
8.5
8.2
8.5
8.2
SEER / SCOP (2)
W/W
6.6
3.9
5.8
3.8
Energy efficiency class
A++
A
A+
A
Annual energy consumption
kWh
451
2944
513
3021
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
25
Rated power input (Maximum power input)
kW
3.7
Rated current (Maximum current)
A
17
OUTDOOR
Refrigerant control
Capillary+EXV
Compressor type. model
Twin Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3800
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
900x860x315
Weight
kg
65
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
69
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(10m)
2.4
Additional charge per 1 meter
gr / 1m
20m<L<30m 15g/m
Connections
between
units
Liquid line
In.(mm)
4x1/4”(Φ6.35)
Suction line
In.(mm)
4x3/8”(Φ9.52)
Max. length for all rooms
m
60
Max. length for one indoor unit
m
30
Max. height
difference
between
indoor and
outdoor unit
OU higher than IU
m
10
OU lower than IU
m
15
Max. height difference between indoor
units
m
10
Operation control type
Remote control

Product specification
General Information 7
Model Outdoor Unit
AWAU-YCZ536-H11
Installation Method of Pipe
5 x AWSI-HND009-N11
5 x AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Average
Average
Capacity (1)
kW
10.5
11.5
10.5
11.5
Pdesign
kW
10.5
10.5
10.5
10.5
SEER / SCOP (2)
W/W
5.6
3.8
5.1
3.8
Energy efficiency class
A+
A
A
A
Annual energy consumption
kWh
656
3868
721
3868
Tbiv
oC
N/A
-7
N/A
-7
Tol
oC
N/A
-15
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
32
Rated power input (Maximum power input)
kW
4.9
Rated current (Maximum current)
A
22
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
850
Air flow
H/L
m3/hr
5500
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
60
Dimensions
WxHxD
mm
990x345x965
Weight
kg
80
Package dimensions
LxWxH
mm
1120x435x1100
Packaged weight
kg
91
Stacking height
units
2 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(10m)
3
Additional charge per 1 meter
gr / 1m
25m<L<30m 15g/m
Connections
between
units
Liquid line
In.(mm)
5x1/4”(Φ6.35)
Suction line
In.(mm)
5x3/8”(Φ9.52)
Max. length for all rooms
m
75
Max. length for one indoor unit
m
30
Max. height
difference
between
indoor and
outdoor unit
OU higher than IU
m
10
OU lower than IU
m
15
Max. height difference between indoor
units
m
10
Operation control type
Remote control

Product specification
8 General Information
Model Indoor Unit
AWSI-HND009-N11
AWSI-HND012-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
2.7
2.8
3.5
3.7
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
SH/H/M/L
RPM
1150 / 1000 / 750
1170 / 1000 / 800
Heating
SH/H/M/L
RPM
1150 / 1000 / 750
1170 / 1000 / 800
Air flow (1)
SH/H/M/L
m3/hr
530/460/350
630/490/380
External static pressure
Min
Pa
0
0
Sound power level (2)
SH/H/M/L
dB(A)
53
57
Sound pressure level(3)
SH/H/M/L
dB(A)
40/37/28
41/37/28
Moisture removal
l/hr
1.0
1.3
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
750x280x198
835x280x198
Net Weight
kg
8
9
Package dimensions
LxWxH
mm
830x270x355
910x270x355
Packaged weight
kg
10.1
14
Operation control type
Remote control
Remote control
Model Indoor Unit
AWSI-HND018-N11
AWSI-HKD009-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
5
5.6
2.7
2.8
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
SH/H/M/L
RPM
1150 / 900 / 750
1150 / 1000 / 800
Heating
SH/H/M/L
RPM
1150 / 900 / 750
1150 / 1000 / 800
Air flow (1)
SH/H/M/L
m3/hr
1000/780/650
620/540/440
External static pressure
Min
Pa
0
0
Sound power level (2)
SH/H/M/L
dB(A)
58
58
Sound pressure level(3)
SH/H/M/L
dB(A)
47/40/34
42/38/30
Moisture removal
l/hr
1.7
1,0
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
990x315x218
800x275x188
Net Weight
kg
12.5
6.5
Package dimensions
LxWxH
mm
1065x300x400
865x265x350
Packaged weight
kg
15.4
9.5
Operation control type
Remote control
Remote control

Product specification
General Information 9
Model Indoor Unit
AWSI-HKD012-N11
AWSI-HKD018-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
3.2
3.5
5
5.1
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Crossflow x 1
Crossflow x 1
Fan speeds
Cooling
SH/H/M/L
RPM
1200 / 1050 / 800
1100 / 800 / 700
Heating
SH/H/M/L
RPM
1200 / 1050 / 800
1100 / 800 / 700
Air flow (1)
SH/H/M/L
m3/hr
630/550/430
730/480/400
External static pressure
Min
Pa
0
0
Sound power level (2)
SH/H/M/L
dB(A)
58
58
Sound pressure level(3)
SH/H/M/L
dB(A)
43/39/31
43/40/33
Moisture removal
l/hr
1,1
1,7
Condensate drain tube I.D
mm
ODΦ17.5
ODΦ17.5
Dimensions
WxHxD
mm
800x275x188
940x275x205
Net Weight
kg
7.5
9.5
Package dimensions
LxWxH
mm
865x265x350
1015x265x350
Packaged weight
kg
9.5
12.5
Operation control type
Remote control
Remote control
Model Indoor Unit
AWSI-XAD012-N11
AWSI-DCD012-N11
Installation Method of Pipe
Flared
Flared
Characteristics
Units
Cooling
Heating
Cooling
Heating
Capacity (4)
kW
3.5
3.6
3.5
3.8
Power supply
V
220-240
220-240
Ph
1
1
Hz
50
50
INDOOR
Fan type & quantity
Centrifugal fan x1
Centrifugal fan x2
Fan speeds
Cooling
SH/H/M/L
RPM
810/780/680/530
1200/1070/1000
Heating
SH/H/M/L
RPM
810/780/680/530
1200/1070/1000
Air flow (1)
SH/H/M/L
m3/hr
700/640/560/440
560/440/410
External static pressure
Min
Pa
0
25(0~40)
Sound power level (2)
SH/H/M/L
dB(A)
58
58
Sound pressure level(3)
SH/H/M/L
dB(A)
44/40/36
41/39/36
Moisture removal
l/hr
1,5
1.5
Condensate drain tube I.D
mm
ODФ16
ODΦ25
Dimensions
WxHxD
mm
700×600×210
700x210x635
Net Weight
kg
15
18
Package dimensions
LxWxH
mm
810×305×710
915x655x290
Packaged weight
kg
20
22.8
Operation control type
Remote control
Wired remote control

Product specification
10 General Information
Model Indoor Unit
AWSI-CBD012-N11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Capacity (4)
kW
3.5
3.5
Power supply
V
220-240
Ph
1
Hz
50
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
Cooling
SH/H/M/L
RPM
830/720/660
Heating
SH/H/M/L
RPM
830/720/660
Air flow (1)
SH/H/M/L
m3/hr
800/710/560
External static pressure
Min
Pa
0
Sound power level (2)
SH/H/M/L
dB(A)
55
Sound pressure level(3)
SH/H/M/L
dB(A)
44/41/38
Moisture removal
l/hr
1.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
570x260x570
Net Weight
kg
16
Package dimensions
LxWxH
mm
655x655x290
Packaged weight
kg
19
Frame dimensions
WxHxD
mm
647x50x647
Frame net weight
kg
2.5
Frame package dimensions
LxWxH
mm
715x715x123
Frame packaged weight
kg
4.5
Operation control type
Remote control

Indoor Units
Indoor Units 11
Part 2
Indoor Units
HKD Type.............................................................................12
HND Type.............................................................................22
Light Commercial................................................................33

HKD Type
12 Indoor Units
HKD Type
1. Function...........................................................................13
2. Dimensions......................................................................14
3. Wiring Diagrams .............................................................15
4. Exploded View and Spare Part list................................16

Function
Indoor Units 13
1. Function
Killer Of Formaldehyde
Silver Ico Filter(O)
Vitamin C Filter(O)
3M HAM Filter(O)
Bio Filter(O)
Golden Fin(O)
Ionizer(O)
1W Standby
Louver Position Memory Function
Refrigerant Leakage Detect
Self-diag. Function
Hydrophilic Aluminum Fin
PTC Heating Belt(O)
Filter 2 ways of drainage
O: optional function

Dimensions
14 Indoor Units

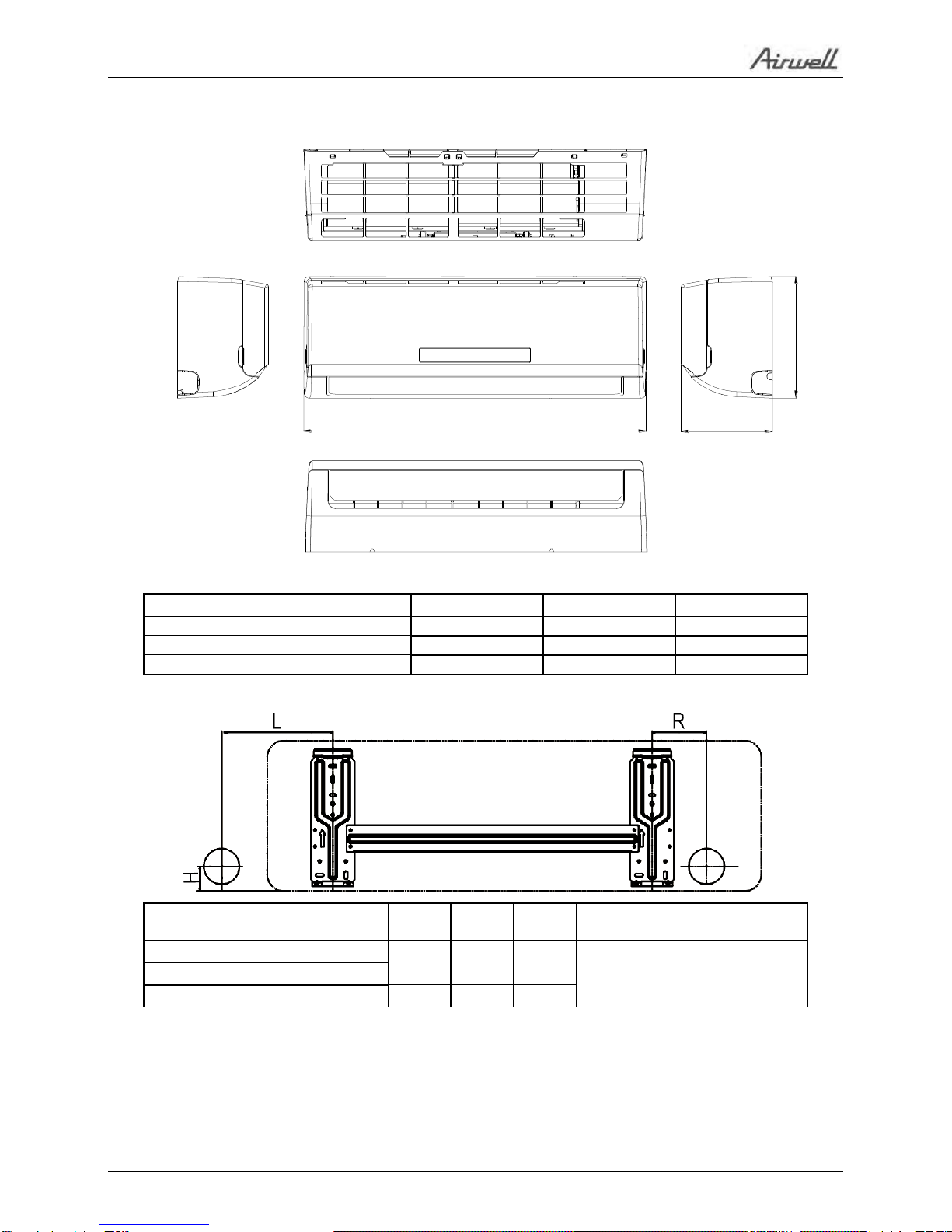

2. Dimensions
WD
H
Model
L(mm)
R(mm)
H(mm)
Dimension of installation
hole(mm)
AWSI-HKD009-N11
100
95
45
￠65
AWSI-HKD012-N11
AWSI-HKD018-N11
110
100
45
Model
W
D
H
AWSI-HKD009-N11
800
188
275
AWSI-HKD012-N11
800
188
275
AWSI-HKD018-N11
940
205
275

Wiring Diagrams
Indoor Units 15
3. Wiring Diagrams
AWSI-HKD009-N11, AWSI-HKD012-N11, AWSI-HKD018-N11

Exploded View and Spare Part list
16 Indoor Units
4. Exploded View and Spare Part list

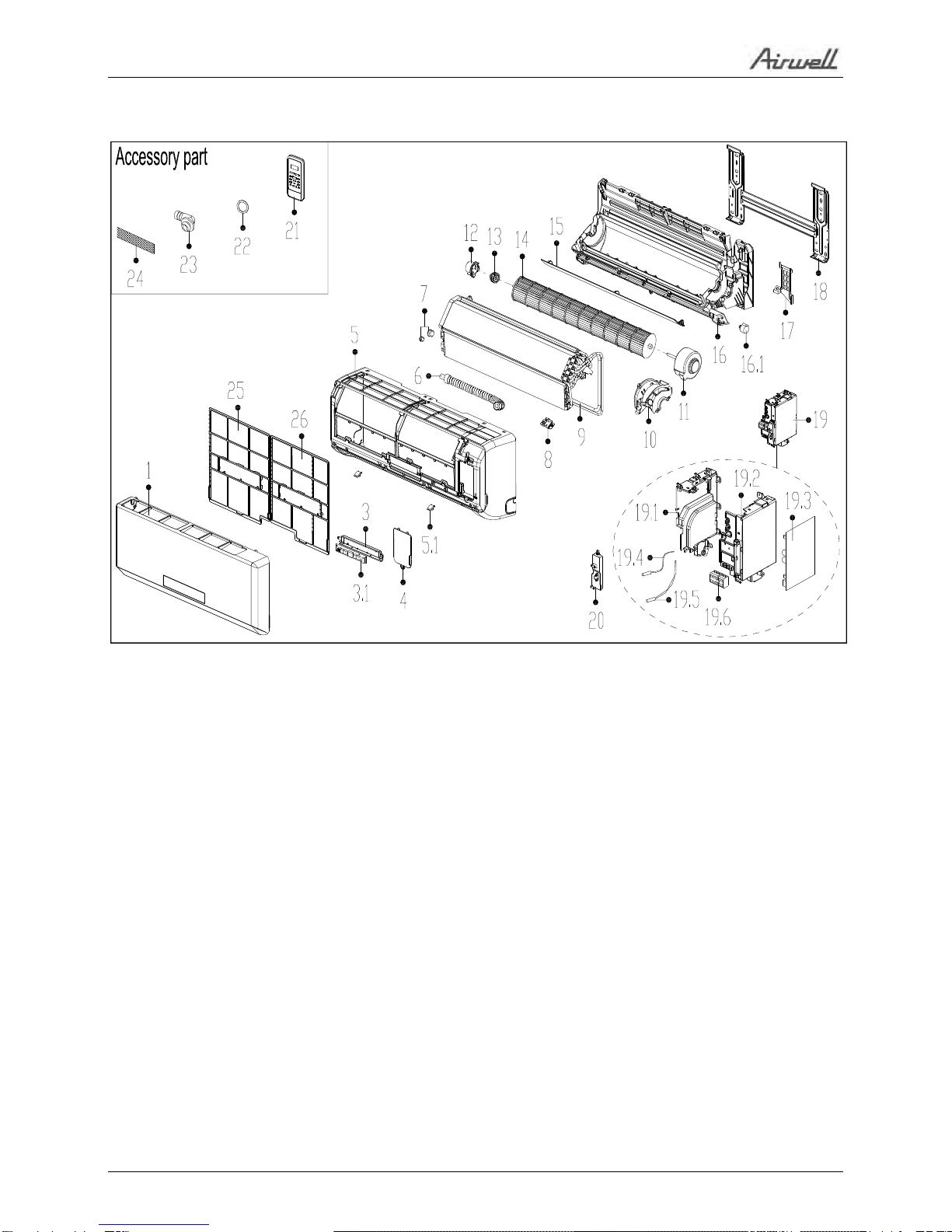

Exploded View of indoor unit: AWSI-HKD009-N11

Exploded View and Spare Part list
Indoor Units 17
Spare part list of indoor unit: AWSI-HKD009-N11
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Panel assembly
1
2011325A5387
16.1
Louver motor
1
202400200031
3
Display box assembly
1
2033325A2367
17
Pipe clamp board
1
201119900949
3.1
Display board
assembly
1
2013330A0831
18
Installation plate
1
201232590037
4
Cover of electrical
equipment
1
201119901024
19
Electronic control box
assembly
1
203332391198
5
Panel frame
assembly
1
201132591041
19.1
Electronic control box
I
1
201132490125
5.1
Screw cap
2
201119900950
19.2
Electronic control box
II
1
201132490150
6
Drain hose
1
201101020038
19.3
Indoor main control
board assembly
1
201332391780
7
Pipe Nut
1
201600320001
19.4
Ambient temperature
sensor assembly
1
202433190000
7
Pipe Nut
1
201600320000
19.5
Pipe temperature
sensor assembly
1
202301300426
8
Fix clamp of
temperature sensor
1
201102000305
19.6
Wire joint
1
202301450119
9
Evaporator assembly
1
201532390220
20
Cover of electronic
control box
1
201132490126
10
Fan motor cover
1
201132490127
21
Remote Controller
1
203355091552
11
Asynchronous motor
1
202400400213
22
Seal ring
1
202720090001
12
Bearing holder
1
201119900952
23
Drain joint
1
201101020011
13
Bearing base
1
202719900606
24
Anti-bacterial filter
1
201131410703
14
Cross flow fan
1
201100200306
25
Air filter(left)
1
201132591042
15
Horizontal louver
1
201132591044
26
Air filter(right)
1
201132591040
16
Chassis assembly
1
201132591057
Nano photocatalysis
filter
1
201130100273

Exploded View and Spare Part list
18 Indoor Units
Exploded View of indoor unit: AWSI-HKD012-N11
