To ensure that the air conditioner to be used correctly and safely, please proceed the installation in accordance
with the installation manual and read through this manual carefully before using the system. Please keep the
manual in a safe place after use.
OO
This is window - type cooling air conditioner. The range of working temperature is between 18 C and 43 C.
This air conditioner employ a compact structure and thus has the advantage of small power consumption.
However, the cooling efficiency of a window - type air conditioner depends on many factors, for example its
orientation, the indoor room temperature, frequency of opening and closing door, insulation of building, height
of ceiling etc...
The common filter installed under the front frame at the factory can be reused after cleaning and drying.
To prevent accidents, make sure to install a fuse for the external power supply of the air conditioner. The fuse
should have a rated capacity of 15A. External power supply of the unit should be wired in accordance with the
related national standards. To prevent fire and accidents, extension cords should not be used.
The maximum input power and electric current specified on the label are values under the following extreme
O
circumstances: outdoor temperature of 43 C and voltage of 230V. Under normal circumstances, the output
power and electric current are approximately the values specified on the label.
Noise level specified on the label is the value measured in the Noise Measurement Room at the factory.
The water-proof level specified on the label is outdoor IPX4. The IXP4 test was conducted to the outside of
the air conditioner under the following conditions: the air conditioner is physically installed; the front cover of
the unit is outside the wall, the space between the wall and the front cover and front cover is firmly sealed.
1
GENERAL INFORMATION
Before Starting
In order to enable efficient and trouble-free operation of your air
conditioner, connect the power plug of your air conditioner through
an exclusive circuit, having a time delay fuse, to the correct power
supply describe on the rating plate (230 V, 50 Hz).
RCA INST MANUAL

2
Ventilation Control
When the slide level is set at the Left (position of
Close), the ventilation door will close. Then the
indoor air can only be circulated and adjusted. Set
the slide lever to the position of Open at the right,
and the ventilation door will open and the air, fog and
odour can be discharged out of the room.
Function Control switch
Offl Stop all operation
Fan Fan only operation.
Med Cool Cooling operation at medium speed.
Turbo Cool Cooling operation at high speed.
Lo Cool Cooling operation at high speed.

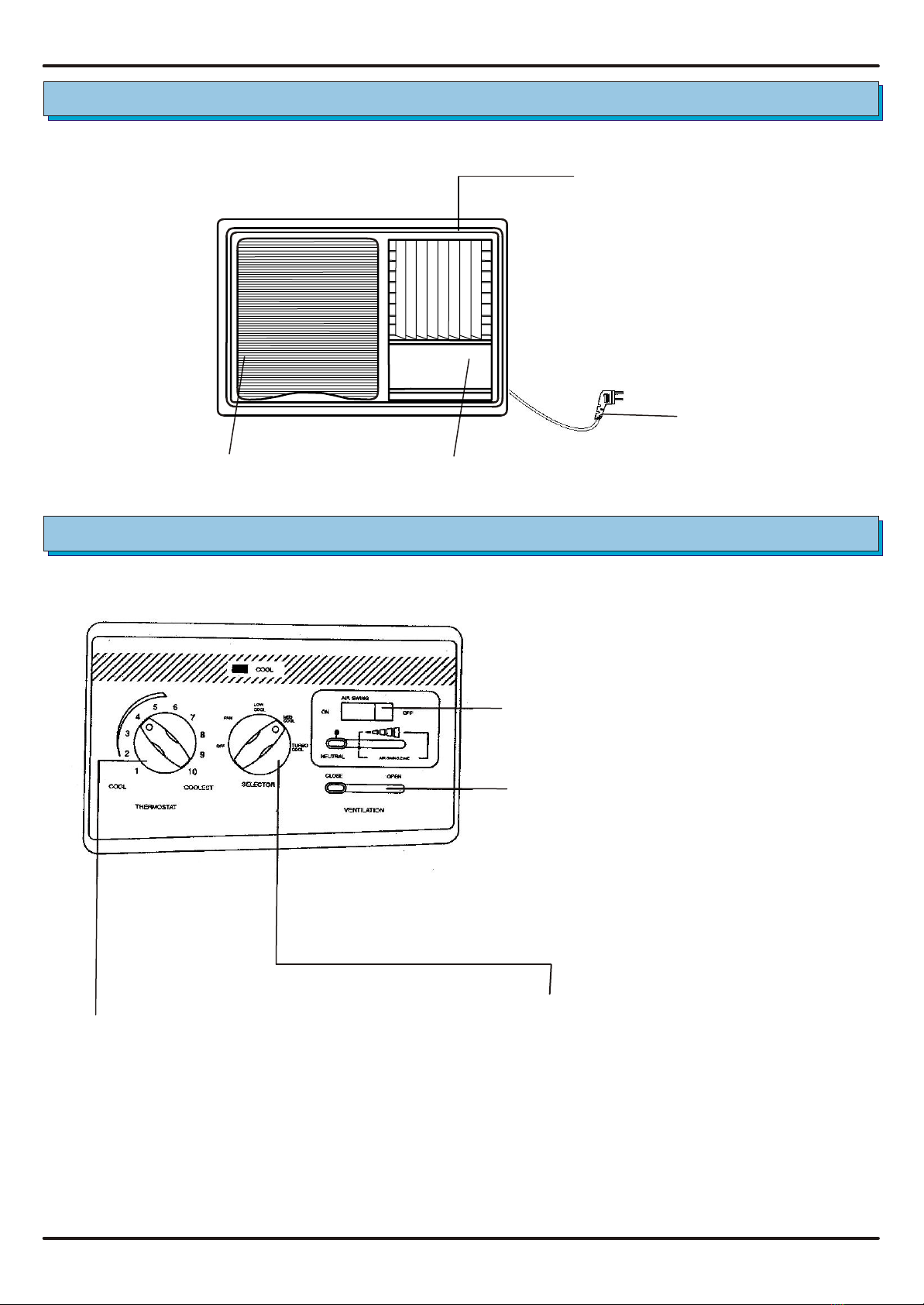

CONTROL PANEL
NAME AND FUNCTION OF COMPONENTS
Air Outlet Grille
Power Cord Plug
Intake Grille Control Panel (Inside the Cover)
Auto Swing Switch
Thermostat
When you adjust the thermostat to the desired
position, it will automatically control the
temperature of indoor air. The temperature of
the indoor air will become lower with each turn
clockwise.
RCA INST MANUAL

Set the function control switch to “Off”.
Insert the power plug, and turn on the power of the unit.
Turn the temperature control switch to position to “10” (the coolest)
and make preparations for other operations.
3
Turbo Cool
Turn the function control switch to “TURBO Cool” then the unit automatically
conducts the high cool operation, so that the room temperature is reduced rapidly
and at the same time the room is being dehumidified and dust is being filtered.
Low Cool
Turn the function selector switch to “Low Cool” and the unit automatically
conducts calm cooling operation and eliminate dust from the room.
Thermostat Control
The thermostat is set by means of the THERMOSTAT control. When the room
temperature is higher than the thermostat setting, the compressor is
automatically switched on to provide a cooling effect. When the room
temperature is lower than the thermostat setting, the compressor is
automatically switched off to stop cooling.
It can be seen therefore, that the thermostat serves to keep the room
temperature constant by causing the compressor to start and stop
1. When you wish to lower the temperature, turn the THERMOSTAT
knob clockwise in the direction of the higher numbers on the dial.
2. When you wish to increase the temperature, turn the THERMOSTAT
knob counterclockwise in the direction of lower numbers on the dial.
PREPARATIONS FOR OPERATION
COOLING OPERATIONCOOLING OPERATION
Turn the Knob
anticlockwise
SELECTOR
Turbo
Cool
Low
Cool
Med
Cool
Fan
Off
SELECTOR
Turbo
Cool
Low
Cool
Med
Cool
Fan
Off
RCA INST MANUAL

4
Air Flow Adjustment
With this air conditioner, three air directions can be
obtained as shown in the figures below. When the
air flow direction is set, adjust to the desire sweep
angle.
Air Circulation
An adequate flow of air is very important for comfort. When the
SELECTOR knob is set at “FAN” position, the fan only is adjusted so
that the air is filtered and circulate without cooling effect.
If desired, it is possible to expel room air.
Air circulation only without cooling effect may also be achieved with
the THERMOSTAT knob turned counterclockwise to “1” position and
with the SELECTOR at “MED COOL” or “LOW COOL”
Adjust sweep angle.
When the selector lever is moved to the right or left,
the sweep angle increases or decreases. Adjust
the sweep angle within AIR SWING ZONE range.
AIR CIRCULATION
AIRFLOW DIRECTION ADJUSTMENT
Note:
When the select lever is returned to the “NEUTRAL”
the vertical louvres do not normal operate. If the
select lever is returned to the “NEUTRAL” in error,
readjust the sweep angle and refering to “Adjusting
Air Flow Direction and Sweep Angle”.
SELECTOR
Turbo
Cool
Low
Cool
Med
Cool
Fan
Off
Note: Setting the vertical louvre at high room humidity
1. Set the AIR SWING switch to ON.
2. Or, to use the AIR SWING switch to OFF,
set the switch to OFF when the vertical
louvre moves to the centre.
Air Conditioner
Room
Right Side
Air Conditioner
Room
Central
Air Conditioner
Room
Left Side
RCA INST MANUAL

5
1. Move the select lever fully left to the NEUTRAL”.
2. Position the vertical louvre approximate at the centre
and move the select lever fully to the right end of the
AIR SWING ZONE.
3. Set the AIR SWING switch to “ON”. The vertical
louvres start rotating with the maximum sweep angle.
Note: if the SELECTOR knob is set to “OFF”, set to
other position.
4. The sweep angle can be adjusted within the AIR
SWING ZONE range. When the select lever is
returned to the left, the sweep angle decreases.
Adjust sweep angle according to preference.
Note: If the select lever is returned to the “NEUTRAL”
in error, the vertical louvres do not function
properly. In this event, carry out the procedure
from the beginning.
1. Move the select lever fully left to the NEUTRAL”.
2. Lightly move the vertical louvres to the left until they
stop and move the select lever fully to the right end of
the AIR SWING ZONE
3. Set the AIR SWING switch to “ON”. The vertical
louvres start rotating with the maximum sweep angle.
Note: if the SELECTOR knob is set to “OFF”, set to
other position.
4. The sweep angle can be adjusted within the AIR
SWING ZONE range. When the select lever is
returned to the left, the sweep angle decreases.
Adjust sweep angle according to preference.
Note: If the select lever is returned to the “NEUTRAL”
in error, the vertical louvres do not function
properly. In this event, carry out the procedure
from the beginning.
1
ON OFF
AIR SWING
AIR SWING ZONE
Stop at the centre
ON OFF
AIR SWING
AIR SWING ZONE
To direct air flow to the centre
ON OFF
AIR SWING
AIR SWING ZONE
To direct air flow to the left side
Move to the left
ON OFF
AIR SWING ZONE
AIR SWING
3
RCA INST MANUAL

6
1
ON OFF
AIR SWING
AIR SWING ZONE
Move to the right
ON OFF
AIR SWING
AIR SWING ZONE
To direct air flow to the right side
Vertical louvre
3
1. Move the select lever fully left to the NEUTRAL”.
2. Lightly move the vertical louvres to the right until they
stop and move the select lever fully to the right end of
the AIR SWING ZONE
3. Set the AIR SWING switch to “ON”. The vertical
louvres start rotating with the maximum sweep angle.
Note: if the SELECTOR knob is set to “OFF”, set to
other position.
4. The sweep angle can be adjusted within the AIR
SWING ZONE range. When the select lever is
returned to the left, the sweep angle decreases.
Adjust sweep angle according to preference.
Note: If the select lever is returned to the “NEUTRAL”
in error, the vertical louvres do not function
properly. In this event, carry out the procedure
from the beginning.
RCA INST MANUAL

7

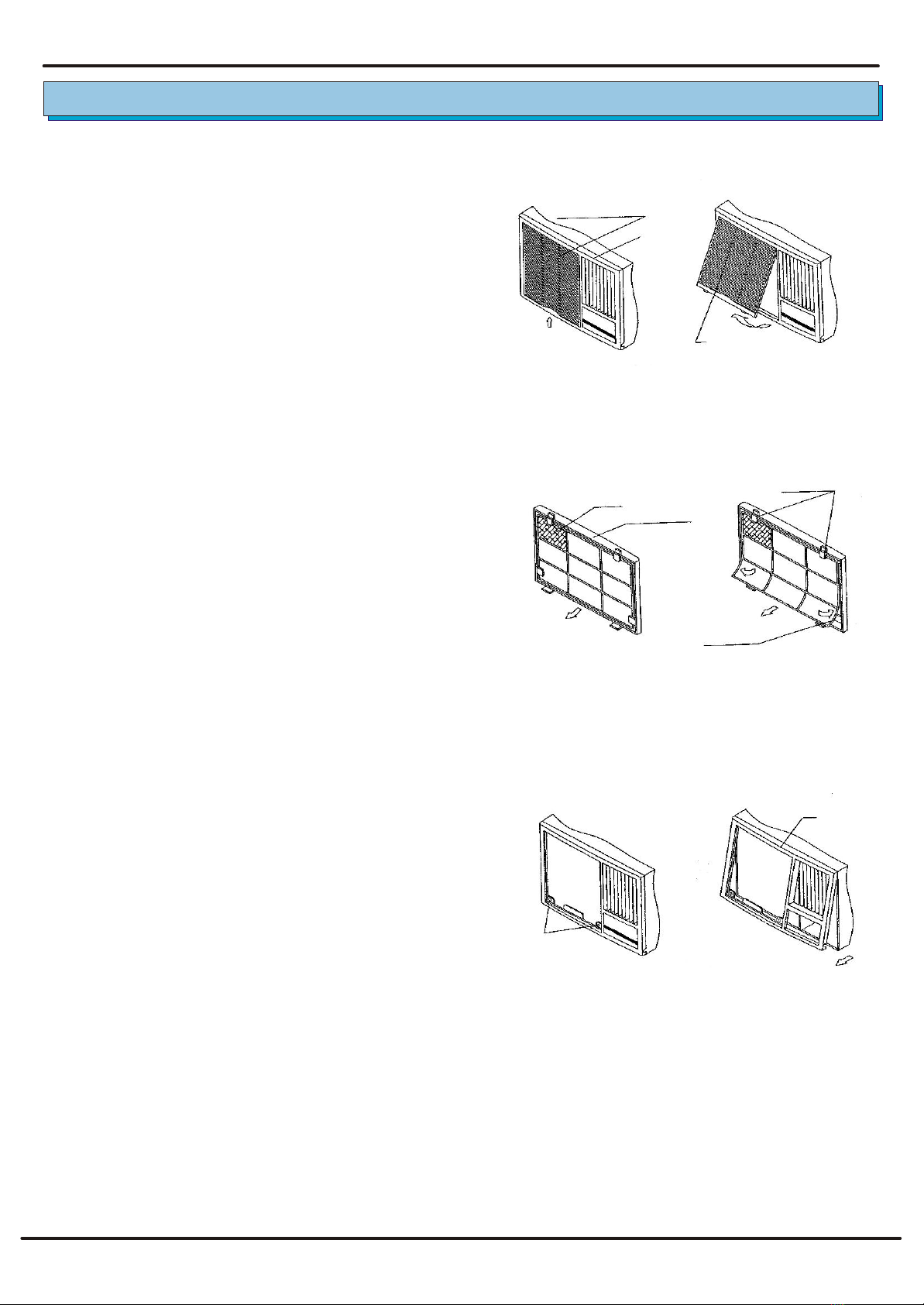

Room Air Filter.
A filter is provided on the rear of the removable
panel. Since the function of this filter is to filter dust
and dirt in the air, please clean it regularly before it
become clogged with dust. Wash the filter with
clean water. If it is very dirty, rinse it in a synthetic
detergent before washing in clean water. Allow the
filter to dry thoroughly in the shade after washing.
Remove the filter in the following manner.
Using the clip position, push the bottom of the
removable panel up with you hand, pull it towards
you, and the removable panel will be easily
removed (See Fig.1, Fig.2).
The filter is attached to the rear side of the
removable panel. Pull the low edge of the filter
forward in order to remove the filter from the
removable panel (See Fig.3). To replace the filter,
insert the top edge of the filter under the hooks at
the top of the removable panel, then press into the
two lower hooks to fix into place (See Fig.4). When
you want to refit the removable panel, insert it by
pushing the upper edge of the removable panel
against the upper part of the front panel.
OPERATION, MAINTENANCE AND CARE
How to Remove Front Panel.
Remove the front panel in the following manner.
The front panel is attached to the cabinet with snap
clip at the top and screws at the bottom. Remove
the removable panel first and you will see two
screws at the left and the right of the bottom side.
Take them off (See Fig.5). Hold up the front panel
with your hands to remove it completely (See Fig.6).
When refitting the front panel, insert the two clips on
the upper part of the panel into two slots at the top
side of the cabinet. Press the front panel at its
bottom side and fix it with screws. This completes
refitting of the front panel.
Removable panel
Front panel
UP
Fig.1 Fig.2
Removable panel
Removable panel
Filter
Upper hooks
Lower hooks
Fig.3 Fig.4
Screws
Fig.5 Fig.6
Front Panel
RCA INST MANUAL

8
The air conditioner must operate in the supply circuit with standard power supply (voltage 230V and frequency 50Hz)
and only the fuse with designated capacity is allowed for use. Metal wires are forbidden to replace it. The fuse is that in
the power supply circuit should be rated 15A.
The drain outlet is set in the back at the bottom left of the body. Please select a correct draining method in accordance
with the installation manual. Please turn off the air-conditioner, turn off the power and inform the service center
immediately in the following cases.
When abnormal circumstances occur in the air-conditioner,
the switch does not operate as usual,
the power plug and the lead are overheating during the unit’s operation,
if the outer covering of the wire is damaged,
if foreign objects enter into the air-conditioner,
If the water suddenly splashed on the air condioner.

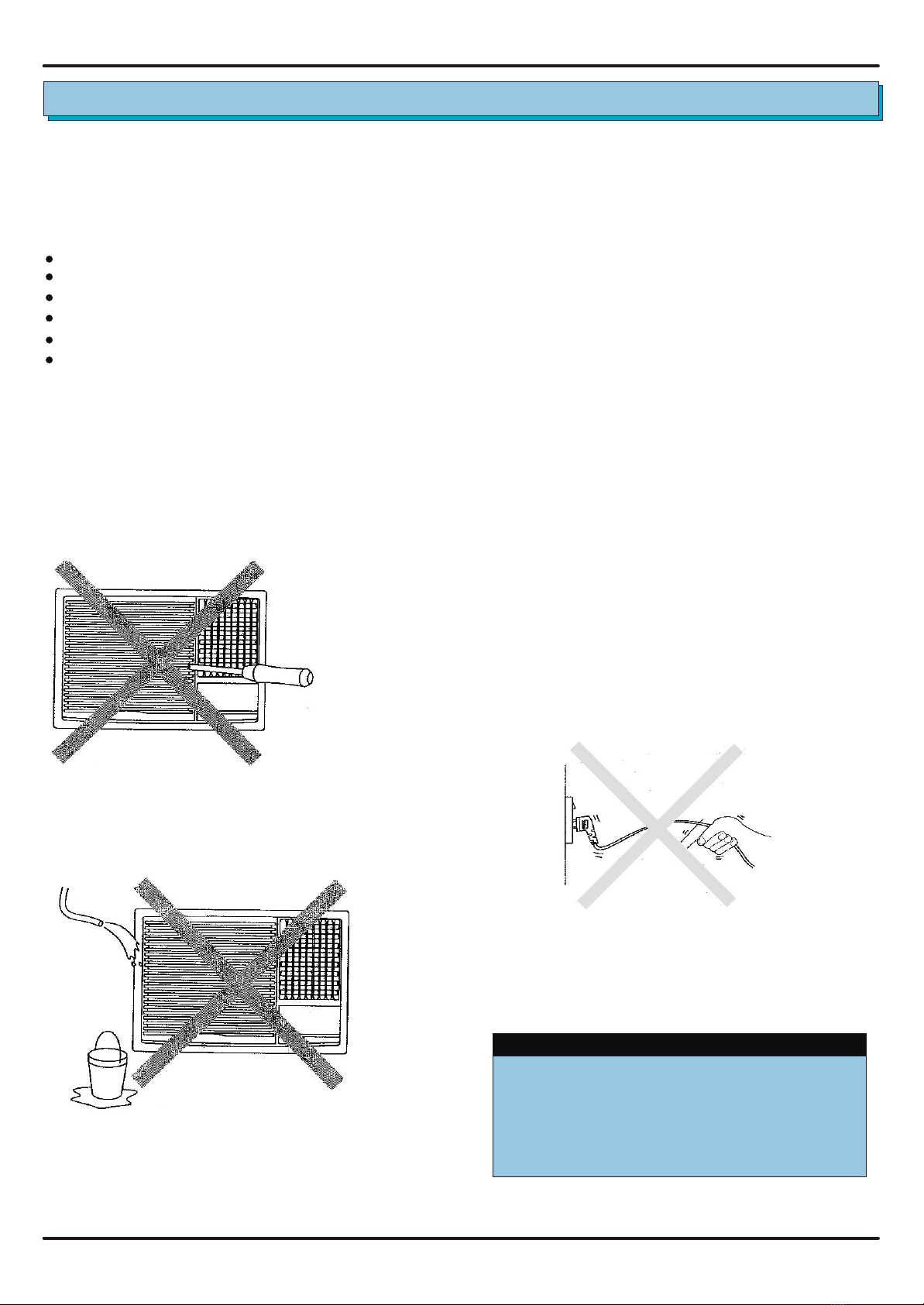

No slim poles or other similar objects should be stuck into air inlet or
outlet grill when the air conditioner is in operation.
When cleaning the air conditioner, do not sprinkle water on
the unit.
When turn off the air conditioner, do not directly pull out the power
plug, use the power switch.
If the supply cord is damaged must contact the
manufacturer or his authorized service claimant for
repair, as special purpose tools are required.
PRECAUTIONS
SPECIAL NOTE
Do not restart the unit until the unit has stopped
for three minutes (due to turning off the unit or
power cut.)If not the compressor will be easily
burnt out.
RCA INST MANUAL

9
Before calling for service, please check the followings which may correct the failure, saving time and money as well.
The air conditioner does not operate
Is the power cord connected to the power source?
Is the circuit breaker or fuse open or broken?
- Close the circuit breaker again or replace the fuse.
Is the power cut off?
- Turn on a lamp to check ifthere is power cut off
No cool air or reduced cooling performance
Is the indicator set correctly?
Is the indicated set temperature higher than the room temperature?
- Reset the indicated set temperature.
Does the sun shine directly into the room?
- Shade the sunlight with window curtain, etc.
Is the door or window open?
- Close the room’s doorway and window.
Are there any obstacles blocking the ventilation of the air inlet or outlet of the air conditioner?
- Remove the obstacles.
Is the extracting fan in the room continuously?
Is the air filter blocked?
- Replace the filter.
Correct installation mat reduce vibration and noise.
This unit produces lower noise, but incorrect installation (especially when the unit is directly installed on the glass
window) may result in larger vibration noise. Therefore, we recommend that the installation of this unit be conducted by
the special air conditioner installation team, in accordance with the installation manual we provide with the product, to
conduct the installation of this unit.
temperature
operating
PRIOR TO CALLING FOR SERVICE
RCA INST MANUAL

TECHNICAL ENQUIRIES SERVICE / WARRANTY
1800 1800 04 1300 553 000
MELBOURNE
745 Springvale Road
Mulgrave VIC 3170
TEL: [phone] FAX: [phone]
SYDNEY
CNR Marion St & Airport Ave
(P.O. Box. VQ)Banktown
Airport NSW 2200
TEL: [phone] FAX: [phone]
BRISBANE
Unit 9, 123 Muriel Ave
Moorooka QLD 4105
TEL: [phone] FAX: [phone]
ADELAIDE
Offices on the parkSuite 27, 8
Greenhill Road
Wayville SA 5034
TEL: [phone] FAX: [phone]
PERTH
Suite 23, 350 Cambridge St
Wembley WA 6014
TEL: [phone] FAX: [phone]
NEWCASTLE
Suite 3, 19 Darby Street
Newcastle NSW 2300
TEL: [phone] FAX: [phone]
NEW ZEALAND
517A Rosebank Road
Avondale, Auckland NZ TEL: [phone] FAX: [phone]
www.airwell.com.au
NZ Tech Support Freecall
TEL: [phone]
WITH A CONCERN FOR A CONSTANT IMPROVEMENT, OUR PRODUCTS CAN BE MODIFIED WITHOUT NOTICE. PHOTOS NON CONTRACTUAL. © Copyright 2003
RCA INST MANUAL
