Airwell AWAU-YHD009-H11 User manual

HHD009/012/018/024
Indoor Units
Outdoor Units
AWSI-HHD009-N11
AWAU-YHD009-H11
AWSI-HHD012-N11
AWAU-YHD012-H11
AWSI-HHD018-N11
AWAU-YHD018-H11
AWSI-HHD024-N11
AWAU-YHD024-H11
REFRIGERANT
R410A
HEAT PUMP
SM HHD 1-A.1 GB
AUG-2017
Version:1

LIST OF EFFECTIVE PAGES
SM HHD 1-A.1 GB A
LIST OF EFFECTIVE PAGES
Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page). All pages in the following list represent
effected/ non effected pages divided by chapters.
Dates of issue for original and changed pages are:
Original ....... 01 ........ 01-Aug-2017
Total number of pages in this publication is 70 consisting of the following:
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Page
No.
Revision
No. #
* Zero in this column indicates an original page.

TABLE OF CONTENTS
SM HHD 1-A.1 G i
Table of Contents
1. INTRODUCTION............................................................................................................................. 1-1
2. PRODUCT DATA SHEET............................................................................................................... 2-1
3. RATING CONDITIONS ................................................................................................................... 3-1
4. OUTLINE DIMENSION ................................................................................................................... 4-1
5. PERFORMANCE DATA ................................................................................................................. 5-1
6. PRESSURE CURVES..................................................................................................................... 6-1
7. SOUND LEVEL CHARACTERISTICS ........................................................................................... 7-1
8. ELECTRICAL DATA....................................................................................................................... 8-1
9. WIRING DIAGRAM......................................................................................................................... 9-1
10. REFRIGERATION DIAGRAMS...................................................................................................... 10-1
11. TUBING CONNECTIONS............................................................................................................... 11-1
12. CONTROL SYSTEM....................................................................................................................... 12-1
13. TROUBLESHOOTING.................................................................................................................... 13-1
14. CHARACTERISTICS OF SENSOR................................................................................................ 14-1
15. EXPLODED VIEW & SPARE PART LIST...................................................................................... 15-1

INTRODUCTION
SM HHD 1-A.1 GB 1-1
1. INTRODUCTION
1.1 General
HHD series is a monosplit DCI inverter air conditioner. This high-wall mounted type
indoor are mainly designed for residential buildings.
The ODU YHD product is a DC inverter outdoor with high technology. By using DC
compressor sine wave torque control technology, this product provides more
comfort and economical operating.
The whole series includes 4 models 09/12/18/24 in cooling capacity.
1.2 Main Features
The unit benefits from the most advanced technological innovations, namely:
DC inverter technology.
R410A models
Microprocessor control and indoor LED display
High SEER/SCOP , A++/A+ level with Average climate.
Torque control for compressor running in lower Freqency but with low vibration
and little sound.
Max allowing tubing distance of 25m(Model HHD018/024).
Up to 10 m vertical high between indoor and outdoor units
Cooling operation at outdoor temperature down to -15ºC.
Heating operation at outdoor temperature down to -15ºC.
Easy installation and service.
Sleep mode from remote control to save energy
ON/OFF timer and clock display
Vertical auto swing with motorized flap (any position stop)
Intelligent Deicing
Memory from power failure
Rapid cooling/heating
I-Feel function
Cold air prevention in heating
Clean function (Blow dry)
Self diagnosic (Error indications) for ease of maintenance

INTRODUCTION
1-2 SM HHD 1-A.1 GB
1.3 Indoor Unit
The indoor unit is wall mounted, and can be easily fitted to many types of residential
locations. It includes:
LED display
Variable speed with PG motor
Motorized flap
High efficiency filtration to ensure a best Air Quality : Advanced filtering combine
mechanical, Photo-catalytic + Bi-anti bacterial and observe bad gaseous and
smokes.
1.4 Control
The microprocessor indoor controller, and an infrared remote control, supplied as
standard, provide complete operating function and programming.
Remote control RC 8A：
Compact and economically design, it offers excellent user comfort. Combining modern
design with high technology, the RC8A remote control offers powerful functions of real
considering of user comfort and energy saving of air-conditioner .
For detail of functions, please refer to Appendix 1

INTRODUCTION
SM HHD 1-A.1 GB 1-3
1.5 Outdoor Unit
The outdoor units can be installed as floor or wall mounted units by using a wall
supporting bracket. The metal sheets are protected by anti- corrosion paint work
allowing long life resistance. All outdoor units are pre-charged. For further information
please refer to the Product Data Sheet, Chapter 2.
It includes :
Compressor mounted in a soundproofed compartment :
Axial fan driven by DC motor.
Outdoor coil with hydrophilic louver fins for RC units.
Outlet air fan grill.
Interconnecting wiring terminal block.
1.6 Tubing Connections
Flare type interconnecting tubing to be produced on site.
For further details please refer to the Installation Manual.
1.7 Inbox Documentation
Each unit is supplied with its own installation, operation and remote control manuals.

INTRODUCTION
1-4 SM HHD 1-A.1 GB
1.8 Matching Table
OUTDOOR UNITS
INDOOR UNITS
AWSI-HHD009-N11
AWSI-HHD012-N11
AWSI-HHD018-N11
AWSI-HHD024-N11
AWAU-YHD009-H11
V
AWAU-YHD012-H11
V
AWAU-YHD018-H11
V
AWAU-YHD024-H11
V

PRODUCT DATA SHEET
SM HHD 1-A.1 GB 2-1
2. PRODUCT DATA SHEET
Model: AWSI-HHD009-N11 / AWAU-YHD009-H11
Model Indoor Unit
AWSI-HHD009-N11
Model Outdoor Unit
AWAU-YHD009-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Warm
Cold
Capacity (1)
kW
2,65(0,45-3,23)
2.8(0.45-4.1)
Pdesign
kW
2,65
2.60
2.60
2.60
SEER /SCOP (2)
W/W
6,1
4
4.6
3.2
Energy efficiency class
A++
A+
A++
B
Annual energy consumption
kWh
153
910
792
1707
Tbiv
oC
N/A
-7
2
-15
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10
Rated power input (Maximum power input)
kW
1,55
Rated current (Maximum current)
A
6,9
INDOOR
Fan type & quantity
Cross flow fan x1
Fan speeds
H/M/L/VL
RPM
1350/1100/900/700
1350/1140/980/820
Air flow (3)
H/M/L/VL
m3/hr
280/370/520/600
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
55
Sound pressure level(5)
H/M/L/VL
dB(A)
24/30/38/41
Moisture removal
l/hr
0,80
Condensate drain tube I.D
mm
16
Dimensions
WxHxD
mm
770×283×201
Weight
kg
8
Package dimensions
WxHxD
mm
847×276×345
Packaged weight
kg
9,5
Stacking height
units
8
OUTDOOR
Refrigerant control
EEV
Compressor type, model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
900
Air flow
H/L
m3/hr
1600
Sound power level(4)
H/L
dB(A)
62
Sound pressure level(5)
H/L
dB(A)
51
Dimensions
WxHxD
mm
776×540×320
Weight
kg
28
Package dimensions
WxHxD
mm
851×595×363
Packaged weight
kg
31
Stacking height
Units
4
Refrigerant type
R410A
Refrigerant charge
(standard connecting tubing length)
kg(5m)
0,7
Additional charge per 1 meter
gr / 1m
5m<L<15m 15g/m
Connections between
units
Liquid line
In.(mm)
1/4’’(6,35mm)
Suction line
In.(mm)
3/8’’(9,53mm)
Max,tubing length
m.
15
Max,height difference
m.
10
Operation control type
Remote control
Heating elements
kW
NA
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

PRODUCT DATA SHEET
2-2 SM HHD 1-A.1 GB
Model: AWSI-HHD012-N11 / AWAU-YHD012-H11
Model Indoor Unit
AWSI-HHD012-N11
Model Outdoor Unit
AWAU-YHD012-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Warm
Cold
Capacity (1)
kW
3,54(0,6-3,96)
3,8(0,6-5,13)
Pdesign
kW
3,54
2,70
3,20
2,70
SEER /SCOP (2)
W/W
6,1
4,0
4,6
3,2
Energy efficiency class
A++
A+
A++
B
Annual energy consumption
kWh
204
945
974
1772
Tbiv
oC
N/A
-7
2
-15
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
Outdoor
Rated power input (Maximum power input)
kW
1,65
Rated current (Maximum current)
A
7,3
INDOOR
Fan type & quantity
Cross flow fan x1
Fan speeds
H/M/L/VL
RPM
1350/1150/950/750
1350/1190/1020/850
Air flow (3)
H/M/L/VL
m3/hr
300/410/560/680
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
56
Sound pressure level(5)
H/M/L/VL
dB(A)
25/31/39/42
Moisture removal
l/hr
1,40
Condensate drain tube I.D
mm
16
Dimensions
WxHxD
mm
770×283×201
Weight
kg
9
Package dimensions
WxHxD
mm
847×276×345
Packaged weight
kg
10,5
Stacking height
units
8
OUTDOOR
Refrigerant control
EEV
Compressor type, model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
900
Air flow
H/L
m3/hr
1600
Sound power level(4)
H/L
dB(A)
63
Sound pressure level(5)
H/L
dB(A)
53
Dimensions
WxHxD
mm
776×540×320
Weight
kg
29
Package dimensions
WxHxD
mm
851×595×363
Packaged weight
kg
32
Stacking height
Units
4
Refrigerant type
R410A
Refrigerant charge
(standard connecting tubing length)
kg(5m)
0,85
Additional charge per 1 meter
gr / 1m
5m<L<15m 15g/m
Connections between
units
Liquid line
In,(mm)
1/4’’(6,35mm)
Suction line
In,(mm)
3/8’’(9,53mm)
Max,tubing length
m,
20
Max,height difference
m,
10
Operation control type
Remote control
Heating elements
kW
NA
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

PRODUCT DATA SHEET
SM HHD 1-A.1 GB 2-3
Model: AWSI-HHD018-N11 / AWAU-YHD018-H11
Model Indoor Unit
AWSI-HHD018-N11
Model Outdoor Unit
AWAU-YHD018-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Warm
Cold
Capacity (1)
kW
5,3(1,2-6,2)
5.6(1.1-6.0)
Pdesign
kW
5,3
4.80
5.20
4.80
SEER /SCOP (2)
W/W
6,1
4.0
4.6
3.2
Energy efficiency class
A++
A+
A++
B
Annual energy consumption
kWh
305
1680
1583
3150
Tbiv
oC
N/A
-7
2
-15
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
Outdoor
Rated power input (Maximum power input)
kW
2,65
Rated current (Maximum current)
A
11,8
INDOOR
Fan type & quantity
Cross flow fan x1
Fan speeds
H/M/L/VL
RPM
1350/1100/950/800
1400/1200/1050/900
Air flow (3)
H/M/L/VL
m3/hr
460/560/680/800
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
60
Sound pressure level(5)
H/M/L/VL
dB(A)
32/37/40/45
Moisture removal
l/hr
1,80
Condensate drain tube I.D
mm
16
Dimensions
WxHxD
mm
865×305×215
Weight
kg
12
Package dimensions
WxHxD
mm
948×310×383
Packaged weight
kg
15
Stacking height
units
8
OUTDOOR
Refrigerant control
Capillary
Compressor type, model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
630
Air flow
H/L
m3/hr
3200
Sound power level(4)
H/L
dB(A)
65
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
955×700×396
Weight
kg
46
Package dimensions
WxHxD
mm
1029×750×458
Packaged weight
kg
50,5
Stacking height
Units
3
Refrigerant type
R410A
Refrigerant charge
(standard connecting tubing length)
kg(5m)
R410a / 1,3
Additional charge per 1 meter
gr / 1m
5m<L<25m 15g/m
Connections between
units
Liquid line
In,(mm)
1/4’’(6,35mm)
Suction line
In,(mm)
1/2’’(12,7mm)
Max,tubing length
m,
25
Max,height difference
m,
10
Operation control type
Remote control
Heating elements
kW
NA
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

PRODUCT DATA SHEET
2-4 SM HHD 1-A.1 GB
Model: AWSI-HHD024-N11 / AWAU-YHD024-H11
Model Indoor Unit
AWSI-HHD024-N11
Model Outdoor Unit
AWAU-YHD024-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Warm
Cold
Capacity (1)
kW
6,5(2,53-6,9)
7,0(2,53-7,6)
Pdesign
kW
6,5
5,80
5,80
7,20
SEER /SCOP (2)
W/W
6,1
4,0
4,8
3,2
Energy efficiency class
A++
A+
A++
B
Annual energy consumption
kWh
373
2030
1692
4725
Tbiv
oC
N/A
-7
2
-15
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
Outdoor
Rated power input (Maximum power input)
kW
2,80
Rated current (Maximum current)
A
12,5
INDOOR
Fan type & quantity
Cross flow fan x1
Fan speeds
H/M/L/VL
RPM
1350/1150/1000/850
1400/1200/1000/900
Air flow (3)
H/M/L/VL
m3/hr
550/700/800/1000
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
63
Sound pressure level(5)
H/M/L/VL
dB(A)
34/42/47/51
Moisture removal
l/hr
2,00
Condensate drain tube I,D
mm
16
Dimensions
WxHxD
mm
1007×315×219
Weight
kg
14
Package dimensions
WxHxD
mm
1076×328×398
Packaged weight
kg
17
Stacking height
units
7
OUTDOOR
Refrigerant control
Capillary
Compressor type, model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
4000
Sound power level(4)
H/L
dB(A)
68
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
980×790×427
Weight
kg
55,5
Package dimensions
WxHxD
mm
1083×855×488
Packaged weight
kg
60,5
Stacking height
Units
3
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing
length)
kg(5m)
1,8
Additional charge per 1 meter
gr / 1m
5m<L<25m 15g/m
Connections between
units
Liquid line
In.(mm)
1/4"(9,53mm)
Suction line
In.(mm)
5/8"(15,88mm)
Max,tubing length
m.
25
Max,height difference
m.
10
Operation control type
Remote control
Heating elements
kW
NA
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) SEER / SCOP calculation accordance with EN14825.

RATING CONDITIONS
SM HHD 1-A.1 GB 3-1
3. RATING CONDITIONS
Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
Cooling:
Indoor: 27oC DB 19oC WB
Outdoor: 35oC DB
Heating:
Indoor: 20oC DB
Outdoor: 7oC DB 6oC WB
3.1 Operating Limits
R410A
Indoor
Outdoor
Cooling
Upper limit
32oC DB 23oC WB
43oC DB
Lower limit
21oC DB 15oC WB
-15oC DB
Heating
Upper limit
27oC DB
24oC DB 18oC WB
Lower limit
10oC DB
-15oC DB -16oC WB
Voltage
1-PH 50Hz 198 –264 V

OUTLINE DIMENSION
SM HHD 1-A.1 GB 4-1
4. OUTLINE DIMENSION
4.1 Indoor: HHD009,HHD012,HHD018,HHD024
Models
W
H
D
HHD009/012
770
283
201
HHD018
867
305
215
HHD024
1008
319
221

OUTLINE DIMENSION
4-2 SM HHD 1-A.1 GB

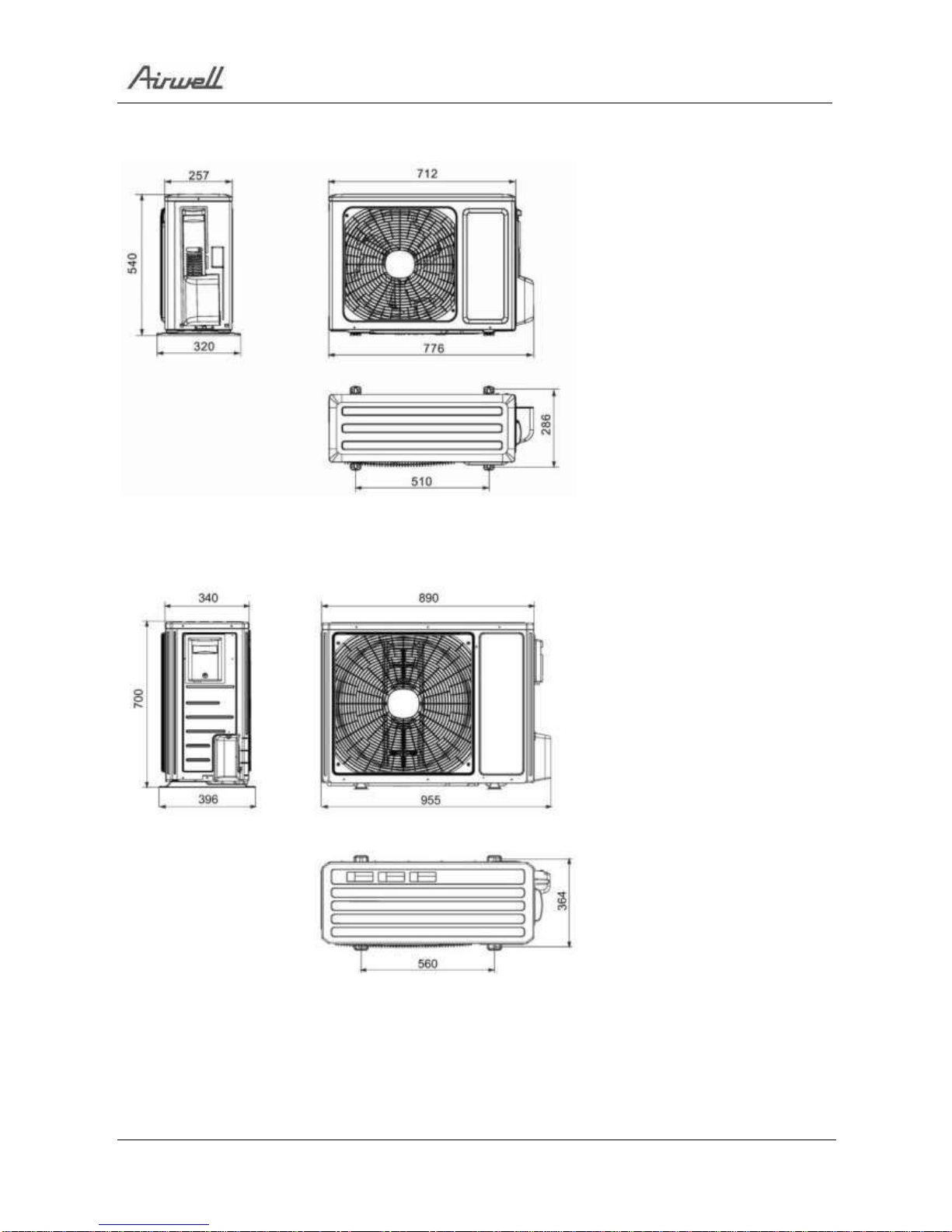

4.2 Outdoor: YHD009, YHD012
4.3 Outdoor: YHD018

OUTLINE DIMENSION
SM HHD 1-A.1 GB 4-3
4.4 Outdoor: YHD024

PERFORMANCE DATA
SM HHD 1-A.1 GB 5-1
5. PERFORMANCE DATA
5.1 Model HHD009 + YHD009 ; HHD012 + YHD012

PERFORMANE DATA
5-2 SM HHD 1-A.1 GB
5.2 Model HHD018 + YHD018 ; HHD018 + YHD018

PRESSURE CURVES
SM HHD 1-A.1 GB 6-1
6. PRESSURE CURVES
TBD

SOUND LEVEL CHARACTERISTICS
SM HHD 1-A.1 GB 7-1
7. SOUND LEVEL CHARACTERISTICS
7.1 Sound Pressure Level

SOUND LEVEL CHARACTERISTICS
7-2
7.2 Soud Pressure Level Spectrum (Measured as Figure 1)
TBD
