Airwell PNX009 User manual

Multi Split Trio Quattro Z & E DCI
Indoor Units Outdoor Units
PNX009
YAZ3 24 DCI
YAZ4 30 DCI
PNX012
PNX018
CK009
CK012
CK018
SX009
SX012
SX018
DLF009
DLF012
DLF018
XLF009
XLF012
DLS018
PRIME009
PRIME012
PRIME018
HAD009
HAD012
JANUARY – 2012
REFRIGERANT
R410A HEAT PUMP
SM YAZDCI 1-A.1 GB

A
LIST OF EFFECTIVE PAGES
SM YAZDCI 1-A.1 GB
LIST OF EFFECTIVE PAGES
Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page). All pages in the following list represent
effected/ non effected pages divided by chapters.
Dates of issue for original and changed pages are:
Original ....... 0 ........ JANUARY 2010
Total number of pages in this publication is 130 consisting of the following:
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Title ....................... 1
A ........................... 1
i............................. 1
1-1 - 1-3 ................ 1
2-1 - 2-12 .............. 1
3-1 - 3-1 ................ 1
4-1 - 4-7 ................ 1
5-1 - 5-18 .............. 1
6-1 - 6-9 ................ 1
7-1 - 7-1 ................ 1
8-1 - 8-1 ................ 1
9-1 - 9-1 ................ 1
10-1-10-1 .............. 1
11-1-11-31............. 1
12-1-12-10 ............ 1
13-1-13-4 .............. 1
Appendix -A ...........1
●Zero in this column indicates an original page.
*Due to constant improvements please note that the data on this service manual can be modified
with out notice.
**Photos are not contractual

i
TABLE OF CONTENTS
SM YAZDCI 1-A.1 GB
Table of Contents
1. INTRODUCTION ...................................................................................................1-1
2. PRODUCT DATA SHEET ......................................................................................2-1
3. RATING CONDITIONS..........................................................................................3-1
4. OUTLINE DIMENSIONS .......................................................................................4-1
5. PERFORMANCE DATA ........................................................................................5-1
6. PRESSURE CURVES ...........................................................................................6-1
7. ELECTRICAL DATA..............................................................................................7-1
8. WIRING DIAGRAMS & ELECTRICAL CONNECTIONS ......................................8-1
9. REFRIGERATION DIAGRAMS.............................................................................9-1
10. TUBING CONNECTIONS......................................................................................10-1
11. CONTROL SYSTEM .............................................................................................11-1
12. TROUBLESHOOTING ..........................................................................................12-1
13. EXPLODED VIEWS AND SPARE PARTS LISTS.................................................13-1
14. APPENDIX A .........................................................................................................14-1

1-1
INTRODUCTION
SM YAZDCI 1-A.1 GB
1. INTRODUCTION
1.1 General
The Trio/Quattro Z DCI Multi series is a full line multi-tubing system with 3 to 4 connected indoor
units. The multi-split inverter is a high level technology product for residential and commercial
application offering comfort, low noise operation and energy saving.
1.2 Main Features
1.2.1 High Technology
 Sine wave form in both OFAN and Compressor drives.
 DC-BL-SL (Sensor less) Inverter Compressor drive.
 DC-BL Inverter OFAN drive in the controller.
 DSP Power (Digital Signal Processing) – High speed calculation for accurate Sine wave form
vector control.
 Smart PFC control.
 Fuzzy Logic Control
1.2.2 System Features
 R410A
 High COP (“A” class energy rating)
 Low noise levels
 IAQ (Indoor Air Quality) features (LEX series)
 Lego concept - Products line of wall mounted, floor/ceiling, cassette, ducted with capacity
models of 2.5, 3.5 and 5.0 kW.
 Networking connectivity.
 Pre-charged system.
 Dry contact inputs:
o STBY
o Night (in cool mode only)
o Power Shedding
o Forced Mode operation
 Dry contact output – Alarm.
 Ready for Base heater connection and logic.
 Cooling operation at outdoor temperature down to -100C.
 Heating operation at outdoor temperature down to -150C.
 HMI Display Board (Human-Machine Interface) – 3x7-segment display shows both indoor
and outdoor diagnostics and setting up features.
 Monitoring softwear (PC port).
 EEV (Electronic Expansion Valve) for each indoor unit.
1.3 Tubing Connections
Flare type interconnecting tubing to be produced on site.
For further details please refer to APPENDIX A on this manual, and to the relevant indoor service
Manual.
1.4 Inbox Documentation
Each indoor unit is supplied with its own installation and operation manuals.

1-2
INTRODUCTION
SM YAZDCI 1-A.1 GB

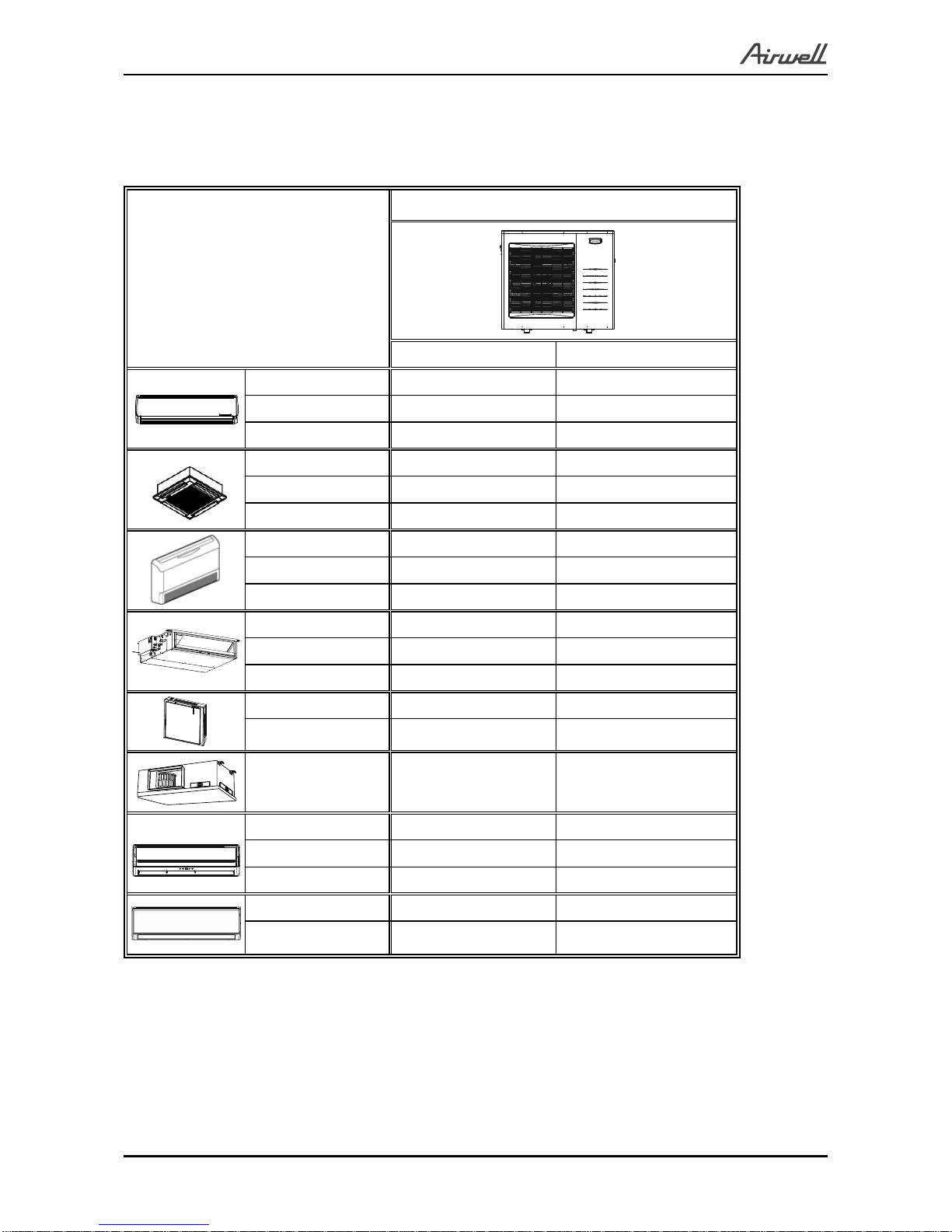

1.5 Matching Table
R410A
INDOOR UNITS
OUTDOOR UNITS
Trio YAZ3 24 DCI Quattro YAZ4 30 DCI
PNX009 √√
PNX012 √√
PNX018 √√
CK009 √√
CK012 √√
CK018 √√
SX009 √√
SX012 √√
SX018 √√
DLF009 √√
DLF012 √√
DLF018 √√
XLF009 √√
XLF018 √√
DLS018 √√
PRIME009 √√
PRIME012 √√
PRIME018 √√
HAD009 √√
HAD012 √√

1-3
INTRODUCTION
SM YAZDCI 1-A.1 GB
1.6 Indoor Unit combinations
Trio Quattro
Unit A Unit B Unit D Code Sum Unit A Unit B Unit C Unit D Code Sum
009 009 009 3009 009 009 009 4
009 009 012 3.5 009 009 009 012 4.5
009 009 018 4009 009 012 012 5
009 012 012 4009 009 009 018 5
012 012 012 4.5 009 009 012 018 5.5
009 012 018 4.5 009 012 012 012 5.5
012 012 018 5009 012 012 018 6
012 012 012 012 6
Nominal Indoor Units Combination

2-1
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2. PRODUCT DATA SHEET
2.1 Outdoor Trio YAZ3 24 DCI Specifications.
Model Indoor Unit
Model Outdoor Unit DCI Trio YAZ3 24 R410A
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Capacity (4)(5) Btu/hr 25080 (4440~30710) 31390 (3240~37530)
kW 7.35 (1.3~9.0) 9.2 (0.95~11.0)
Power input (4) kW 2.24 (0.5~3.0) 2.31 (0.5~3.0)
EER (Cooling) or COP(Heating) (4) W/W 3.28 3.98
Energy efficiency class A A
Power supply
V 220-240
Ph 1
Hz 50
Rated current A 10.0 10.3
Power factor 0.97 0.97
Prated (IDU) W See DCI Single
Prated (IDU+ODU) W 3200
Starting current A 10
Circuit breaker rating A 25
INDOOR
See DCI Single
OUTDOOR
Refrigerant control Electronic expansion valve
Compressor type,model Twin Rotary DC Inverter MELCO TNB220FLBM
Fan type & quantity Propeller x 1
Fan speeds H RPM 850
Air flow H m3/hr 3600
Sound power level H dB(A) 69
Sound pressure level (3) H dB(A) 57
Dimensions WxHxD mm 950x864x413
Net Weight kg 69
Package dimensions WxHxD mm 1070 X940 X510
Packaged weight kg 75
Units per pallet Units 4
Stacking height units 2 levels
Refrigerant type R410A
Standard charge kg 3.2
Additional charge No need
TUBING
Connection
method between
the indoor and
outdoor units
Liquid line In.(mm) 3x 1/4"(6.35)
Suction line In.(mm) 2x 3/8"(9.53) + 1x 1/2"(12.7)
Max tubing length for single
IOD to ODU m Max.25m
Height difference between
indoor units m Max.15m
Height difference between
indoor & outdoor m Max.15m
Max total tubing length m Max.50m
Operation control type
Heating elements (Option) kW
Others
(1)Airflow in ducted units;at nominal external static pressure.
(2)Sound power in ducted units is measured at air discharge.
(3)Sound pressure level measured at 1-meter distance from unit.
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).
(5)Nominal capacity is measured with the combination of 4x PNX009 DCI (Quattro) or 3x PNX009 DCI (Trio)
and 5m tubing each unit.
Maximum capacity is measured with the combination of PNX009 DCI + 2x PNX0012 DCI + PNX0018 DCI
(Quattro) or 2x PNX012 DCI + PNX018 DCI (Trio) and 5m tubing each unit.
Minimum capacity is measured with PNX009 DCI (Quattro/Trio) and 5m tubing.

2-2
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.2 Outdoor QUATTRO YAZ4 30 DCI Specifications.
Model Indoor Unit
Model Outdoor Unit DCI Quattro YAZ4 30 R410A
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Capacity (4)(5) Btu/hr 27,300 (4,780~31,390) 33,440 (3,240~37,530)
kW 8.0 (1.4-9.2) 0.95-11.0))9.8
Power input (4) kW 0.5-3.0))2.38 0.4-3.0))2.36
EER (Cooling) or COP(Heating) (4) W/W 3.36 4.15
Energy efficiency class A A
Power supply
V 220-240
Ph 1
Hz 50
Rated current A 10.6 10.5
Power factor 0.97 0.97
Prated (IDU) W See DCI Single
Prated (IDU+ODU) W 3200
Starting current A 11
Circuit breaker rating A 25
INDOOR
See DCI Single
OUTDOOR
Refrigerant control Electronic expansion valve
Compressor type,model Twin Rotary DC Inverter MELCO TNB220FLBM
Fan type & quantity Propeller x 1
Fan speeds H RPM 850
Air flow H m3/hr 3600
Sound power level H dB(A) 69
Sound pressure level (3) H dB(A) 57
Dimensions WxHxD mm 950x864x413
Net Weight kg 70
Package dimensions WxHxD mm 1070x940x510
Packaged weight kg 76
Units per pallet Units 4
Stacking height units 2 levels
Refrigerant type R410A
Standard charge kg 3.4
Additional charge No need
TUBING
Connection
method between
the indoor and
outdoor units
Liquid line In.(mm) 4x1/4"(6.35)
Suction line In.(mm) 3x3/8"(9.53) + 1x 1/2"(12.7)
Max tubing length for
single IOD to ODU m Max.25m
Height difference
between indoor units m Max.15m
Height difference
between indoor &
outdoor
m Max.15m
Max total tubing length m Max.70m
Operation control type
Heating elements (Option) kW
Others
(1)Airflow in ducted units;at nominal external static pressure.
(2)Sound power in ducted units is measured at air discharge.w
(3)Sound pressure level measured at 1-meter distance from unit.
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units).
(5)Nominal capacity is measured with the combination of 4x PNX009 DCI (Quattro) or 3x PNX009 DCI (Trio)
and 5m tubing each unit.
Maximum capacity is measured with the combination of PNX009 DCI + 2x PNX012 DCI + PNX018 DCI
(Quattro) or 2x PNX012 DCI + PNX018 DCI (Trio) and 5m tubing each unit.
Minimum capacity is measured with PNX009 DCI (Quattro/Trio) and 5m tubing.

2-3
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3 Indoor Units Data
2.3.1 PNX009 DCI Specifications
Model Indoor Unit PNX009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1050/900/800
Air flow(1) H/M/L m3/hr 530/430/330
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 51/ - /39
Sound pressure level(3) H/M/L dB(A) 39/ - /26
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 810x285x210
Net Weight kg 11.5
Package dimensions WxHxD mm 870x356x282
Packaged weight kg 14
Units per pallet units 28
Stacking height units 7 levels
2.3.2 PNX012 DCI Specifications
Model Indoor Unit PNX012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1100/950/800
Air flow(1) H/M/L m3/hr 550/450/350
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 52/ - /39
Sound pressure level(3) H/M/L dB(A) 40/ - /26
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 810x285x210
Net Weight kg 11.5
Package dimensions WxHxD mm 870x356x282
Packaged weight kg 14
Units per pallet units 28
Stacking height units 7 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-4
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.3 PNX018 DCI Specifications
Model Indoor Unit PNX018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1200/1050/900
Air flow(1) H/M/L m3/hr 850/700/550
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 55/51/47
Sound pressure level(3) H/M/L dB(A) 43/39/34
Moisture removal l/hr 2
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 1060x295x221
Net Weight kg 15
Package dimensions WxHxD mm 1125x360x295
Packaged weight kg 18
Units per pallet units 16
Stacking height units 8 levels
2.3.4 CK009 DCI Specifications
Model Indoor Unit CK012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 550/500/450 600/520/450
Air flow(1) H/M/L m3/hr 420/370/320 470/390/320
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 49 49
Sound pressure level(3) H/M/L dB(A) 32/30/28 34/31/28
Moisture removal l/hr 0.7
Condenstate drain tube I.D mm 20
Dimensions WxHxD mm 575X575X219(625X625X40/725X725X40)
Net Weight kg 12.9(2.2/2.7)
Package dimensions WxHxD mm 681X681X297(700X700X103/800X800X103)
Packaged weight kg 16.2(3.4/4.2)
Units per pallet units 12
Stacking height units 6 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-5
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.5 CK012 DCI Specifications
Model Indoor Unit CK 012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 600/520/450 650/550/450
Air flow(1) H/M/L m3/hr 470/390/320 510/420//320
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 51 51
Sound pressure level(3) H/M/L dB(A) 34/31/28 36/32/28
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 20
Dimensions WxHxD mm 575X575X219(625X625X40/725X725X40)
Net Weight kg 12.9(2.2/2.7)
Package dimensions WxHxD mm 681X681X297(700X700X103/800X800X103)
Packaged weight kg 16.2(3.4/4.2)
Units per pallet units 12
Stacking height units 6 levels
2.3.6 CK018 DCI Specifications
Model Indoor Unit CK018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-230V/1 Ph/50 Hz
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 680/620/550 680/620/550
Air flow(1) H/M/L m3/hr 620/560/500 620/560/500
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54 54
Sound pressure level(3) H/M/L dB(A) 36/33/30 36/33/30
Moisture removal l/hr 2.0
Condenstate drain tube I.D mm 20
Dimensions WxHxD mm 575X575X270(625X625X40/725X725X40)
Net Weight kg 15.2(2.2/2.7)
Package dimensions WxHxD mm 681X681X348(700X700X103/800X800X103)
Packaged weight kg 18.7(3.4/4.2)
Units per pallet units 12
Stacking height units 6 levels
NOTE
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.
:

2-6
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.7 SX009 DCI Specifications
Model Indoor Unit SX009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 760/670/500
Air flow(1) H/M/L m3/hr 400/350/300
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54/49/41
Sound pressure level(3) H/M/L dB(A) 42/37/29
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 820x630x190
Net Weight kg 21
Package dimensions WxHxD mm 920x726x273
Package weight kg 25
Units per pallet units 14units per pallet
Units stacking units 7 levels
2.3.8 SX012 DCI Specifications
Model Indoor Unit SX012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 830/760/500
Air flow(1) H/M/L m3/hr 450/400/300
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56/53/41
Sound pressure level(3) H/M/L dB(A) 45/41/30
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 820x630x190
Net Weight kg 22
Package dimensions WxHxD mm 920x726x273
Package weight kg 26
Units per pallet units 14units per pallet
Units stacking units 7 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-7
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.9 SX018 DCI Specifications
Model Indoor Unit SX018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 1050/950/700
Air flow(1) H/M/L m3/hr 870/750/600
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 65/60/53
Sound pressure level(3) H/M/L dB(A) 51/48/40
Moisture removal l/hr 2
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 1200x630x190
Net Weight kg 30
Package dimensions WxHxD mm 1300x726x273
Package weight  kg 35
Units per pallet units 7units per pallet
Units stacking units 7 levels
2.3.10 DLF009 DCI Specifications
Model Indoor Unit DLF009 DCI
Installation Method of Pipe DUCTED
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 920/810/740
Air flow(1) H/M/L m3/hr 620/560/490
External static pressure Min -Max Pa 0-30
Sound power level(2) H/M/L dB(A) 50/47/44
Sound pressure level(3) H/M/L dB(A) 29/26/23
Moisture removal l/hr 0.5
Condenstate drain tube I.D mm 19
Dimensions WxHxD mm 750x630x200
Net Weight kg 20
Package dimensions WxHxD mm 885x695x226
Package weight kg 23
Units per pallet units 14units per pallet
Units stacking units 7 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-8
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.11 DLF012 DCI Specifications
Model Indoor Unit DLF012 DCI
Installation Method of Pipe DUCTED
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 980/860/730
Air flow(1) H/M/L m3/hr 650/580/490
External static pressure Min-Max Pa 0-30
Sound power level(2) H/M/L dB(A) 53/49/45
Sound pressure level(3) H/M/L dB(A) 31/27/24
Moisture removal l/hr 1.0
Condenstate drain tube I.D mm 19
Dimensions WxHxD mm 750x630x200
Net Weight kg 20
Package dimensions WxHxD mm 885x695x226
Package weight kg 23
Units per pallet units 14units per pallet
Units stacking units 7 levels
2.3.12 DLF018 DCI Specifications
Model Indoor Unit DLF018 DCI
Installation Method of Pipe DUCTED
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centifugal x 2
Fan speeds H/M/L RPM 1100/980/860
Air flow(1) H/M/L m3/hr 710/600/540
External static pressure Min-Max Pa 0-40
Sound power level(2) H/M/L dB(A) 54/51/48
Sound pressure level(3) H/M/L dB(A) 35/32/29
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 19
Dimensions WxHxD mm 750x630x200
Net Weight kg 21
Package dimensions WxHxD mm 885x695x226
Package weight kg 24
Units per pallet units 14units per pallet
Units stacking units 7 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-9
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.13 XLF009 DCI Specifications
Model Indoor Unit XLF009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Helicoid x 1
Fan speeds H/M/L RPM 520/490/450
Air flow(1) H/M/L m3/hr 390/370/330
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 55
Sound pressure level(3) H/M/L dB(A) 38/35/32
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 570x570x160
Net Weight kg 13.5
Package dimensions WxHxD mm 700x700x255
Packaged weight kg 15.5
Units per pallet units 16
Stacking height units 8levels
2.3.14 XLF012 DCI Specifications
Model Indoor Unit XLF012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Helicoid x 1
Fan speeds H/M/L RPM 540/510/450
Air flow(1) H/M/L m3/hr 400/370/310
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56
Sound pressure level(3) H/M/L dB(A) 39/36/33
Moisture removal l/hr 1.6
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 570x570x160
Net Weight kg 14
Package dimensions WxHxD mm 700x700x255
Packaged weight kg 16
Units per pallet units 16
Stacking height units 8evels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-10
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.15 DLS018 DCI Specifications
Model Indoor Unit DLS018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 630/530/425
Air flow(1) H/M/L m3/hr 1170/875/730
External static pressure Min Pa 25
Sound power level(2) H/M/L dB(A) 55/53/50
Sound pressure level(3) H/M/L dB(A) 42/37/34
Moisture removal l/hr 1.0
Condenstate drain tube I.D mm 22
Dimensions WxHxD mm 770x690x260
Net Weight kg 29
Package dimensions WxHxD mm 959x854x315
Packaged weight kg 31
Units per pallet units 6
Stacking height units 6
2.3.16 PRIME009 DCI Specifications
Model Indoor Unit PRIME009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1200/1050/850
Air flow(1) H/M/L m3/hr 420/350/270
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54/50/47
Sound pressure level(3) H/M/L dB(A) 39/35/32
Moisture removal l/hr 1
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 680x250x185
Net Weight kg 7
Package dimensions WxHxD mm 740x320x265
Packaged weight kg 10
Units per pallet units 36 units per pallet
Stacking height units 9 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

2-11
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.17 PRIME012 DCI Specifications
Model Indoor Unit PRIME012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1200/1000/850
Air flow(1) H/M/L m3/hr 550/450/350
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56/50/46
Sound pressure level(3) H/M/L dB(A) 39/33/29
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 840x250x185
Net Weight kg 8
Package dimensions WxHxD mm 930x320x265
Packaged weight kg 11
Units per pallet units 36 units per pallet
Stacking height units 9 levels
2.3.18 PRIME018 DCI Specifications
Model Indoor Unit PRIME018 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1230/1100/900
Air flow(1) H/M/L m3/hr 720/620/480
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56/54/47
Sound pressure level(3) H/M/L dB(A) 44/41/34
Moisture removal l/hr 2
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 900x295x205
Net Weight kg 11
Package dimensions WxHxD mm 960x360x270
Packaged weight kg 14
Units per pallet units 24 units per pallet
Stacking height units 8 levels
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.
.

2-12
PRODUCT DATA SHEET
SM YAZDCI 1-A.1 GB
2.3.19 HAD009 DCI Specifications
Model Indoor Unit HAD009 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1150/1000/800
Air flow(1) H/M/L m3/hr 420/350/270
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 54
Sound pressure level(3) H/M/L dB(A) 40/35/29
Moisture removal l/hr 1.0
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 680 x250 X188
Net Weight kg 7
Package dimensions WxHxD mm 740x310x248
Packaged weight kg 10
Units per pallet units 32
Stacking height units 8
2.3.20 HAD012 DCI Specifications
Model Indoor Unit HAD012 DCI
Installation Method of Pipe Flared
Power supply V/Ph/Hz 220-240/1/50
INDOOR
Fan type & quantity Crossflow x 1
Fan speeds H/M/L RPM 1150/950/750
Air flow(1) H/M/L m3/hr 550/450/350
External static pressure Min Pa 0
Sound power level(2) H/M/L dB(A) 56
Sound pressure level(3) H/M/L dB(A) 40/34/28
Moisture removal l/hr 1.5
Condenstate drain tube I.D mm 16
Dimensions WxHxD mm 840x250x188
Net Weight kg 8
Package dimensions WxHxD mm 900x310x248
Packaged weight kg 11
Units per pallet units 32
Stacking height units 8
NOTE:
(1)Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.
(2)Airflow in ducted units; at nominal external static pressure.
(3)Sound power in ducted units is measured at air discharge.
(4)Sound pressure level measured at 1 meter distance from unit.

3-1
RATING CONDITIONS
SM YAZDCI 1-A.1 GB
3. RATING CONDITIONS
Standard conditions in accordance with ISO 5151, ISO 13253 (for ducted units)
and EN 14511.
Cooling:
Indoor: 27oC DB 19oC WB
Outdoor: 35 oC DB
Heating:
Indoor: 20oC DB
Outdoor: 7oC DB 6oC WB
3.1 Operating Limits
Indoor Outdoor
Cooling Upper limit 32oC DB 23oC WB 46oC DB
Lower limit 21oC DB 15oC WB -10oC DB
Heating Upper limit 27oC DB 24oC DB 18oC WB
Lower limit 10oC DB -15oC DB -16oC WB
Voltage
1PH 198 – 264 V
3PH N/A

4-1
OUTLINE DIMENSIONS
SM YAZDCI 1-A.1 GB
4. OUTLINE DIMENSIONS
4.1 Indoor Unit: PNX009 / PNX012 DCI
4.2 Indoor Unit: PNX018 DCI
1060 221
295
AIR INTAKE
AIR INTAKE
AIR OUTLET
210
285
811
CEELING
8.0
83.0
167.5
100.0 MIN
83.0
8.0
18.5
30.0 MOUTING PLATE OUTLINE
MOUNTING TEMPLATE
TO BE USED FOR LOCATION
OF INDOOR UNIT ON THE WALL
167.5
810.0 INDOOR UNIT OUTLINE
42.0
TUBING WALL OPENING
(FOR REAR ROUTING)
70.0
93.0
TUBING WALL OPENING
(FOR REAR LEFT ROUTING)
93.0
70.0
100.5
285.0
42.0
100.5
