Owner’s Manual
BMX Bicycles
Please read and fully understand this manual
before operation.
Save this manual for future reference.
This manual contains important safety, assembly, operation and
maintenance information.
HBMX EN 040617 m0061
EN

Owner’s Manual Index
Introduction
• Owner’s Bicycle Identication Record............................................................................3
• Fitting the Rider to the Bicycle..........................................................................................3
• Warning and Safety Information......................................................................................4
• Freewheel Brakes...................................................................................................................4
• The Owner’s Responsibility................................................................................................4
• Rules of the Road...................................................................................................................5
Components
• Part Assembly View...............................................................................................................6
• Parts Assembly List................................................................................................................7
Assembly
• Introduction.............................................................................................................................8
• Tools Needed...........................................................................................................................8
• Assemble the Front Wheel to the Fork...........................................................................9
• Handlebar and Stem Installation - No Gyro Brakes .............................................. 10-11
• Gyro Brake and Stem Setup - Rear Brake ................................................................. 12-13
• Gyro Brake Setup - Front Brake Cable Install .......................................................... 14-15
• Testing Stem and Handlebar Tightness........................................................................16
• Seat Installation (various models)............................................................................... 17-18
• Testing Seat Clamp and Post Clamp Tightness..........................................................18
• Pedal Installation...................................................................................................................19
• Front and Rear Reector Installation.............................................................................19
• Pegs Installation (if equipped).........................................................................................20
• Bell (if equipped)...................................................................................................................20
Maintenance and Service
• Repair and Service................................................................................................................21
• Torque Chart...........................................................................................................................21
• Coaster Brake..........................................................................................................................22
• Chain Adjustment.................................................................................................................23
• Inspection of the Bearings ................................................................................................23
• Rim Brake System: Setup and Adjustment.............................................................. 24-27
• Brake Pad replacement.......................................................................................................27
• Tires ........................................................................................................................................28
• Lubrication / Lubrication Table........................................................................................29
Warranty
• Limited Warranty...................................................................................................................30

3
Introduction
3
1
2

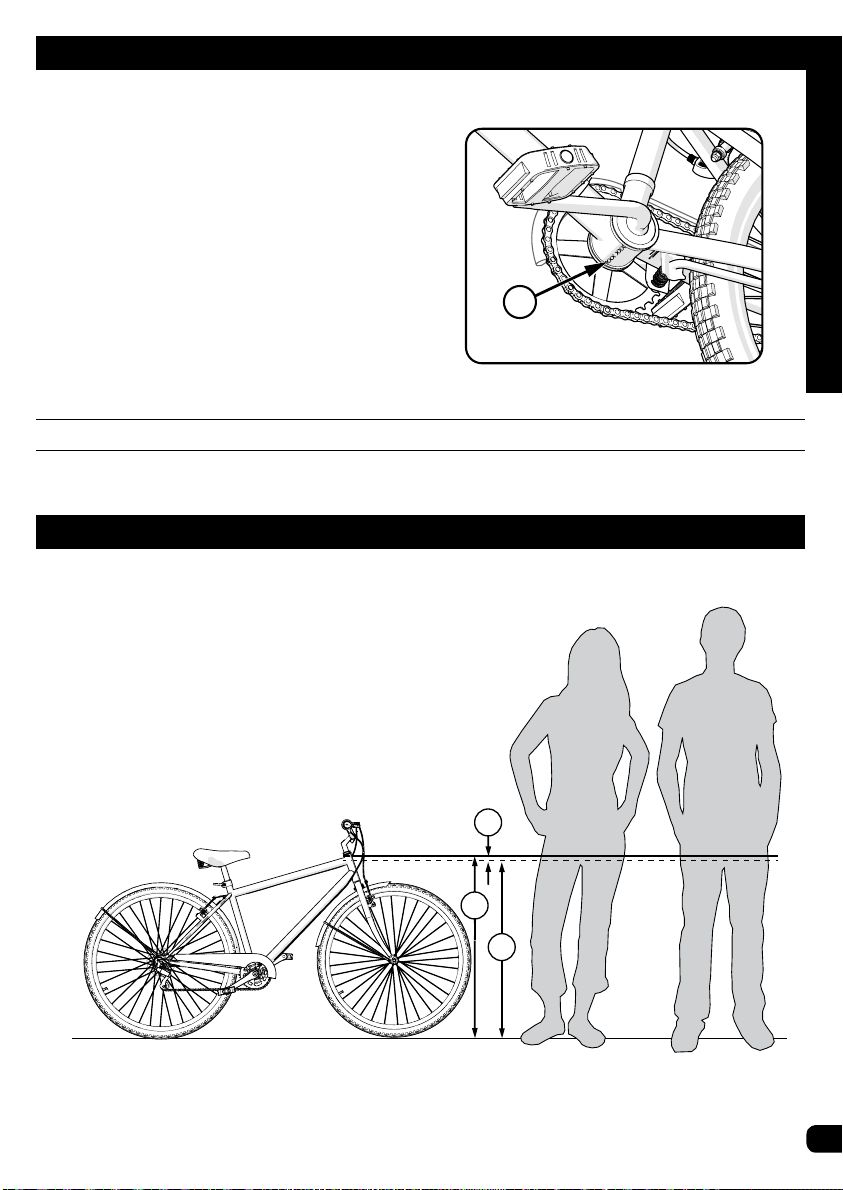

Owner’s Bicycle Identication Record
NOTE: This information is only available on the bicycle itself. It is not available from Huy.
Each Huy bicycle has a Recovery Code
stamped into the frame. The Recovery Code
can be found on the bottom of the crank
housing as shown.
Write this number below to keep it for future
reference.
If the bicycle is stolen, give this number and
a description of the bicycle to the police.
This will help them nd the bicycle.
1
Recovery Code:
Purchase Date:
Model Name:
To determine the correct size of bicycle for the rider:
• Straddle the assembled bicycle with feet shoulder width
apart and at on the ground.
• There must be at least 1 inch (2.5 cm) of clearance 
between the highest part of the top tube and the
crotch of the rider with tires properly inated.
• The minimum leg-length for the rider is the highest
part of the top tube plus one inch .
Fitting the Rider to the Bicycle

4
Warning and Safety Information
The Owner’s Responsibility
WARNING: This bicycle is made to be ridden by one rider at a time for general
transportation and recreational use. It is not made to withstand the abuse of stunting and
jumping.
If the bicycle was purchased unassembled, it is the owner’s responsibility to follow all
assembly and adjustment instructions exactly as written in this manual, and any “Special
Instructions” supplied and to make sure all fasteners and components are securely tight-
ened.
NOTE: Periodically check that all fasteners and components are securely tightened.
If the bicycle was purchased assembled, it is the owner’s responsibility, before riding the
bicycle for the rst time, to make sure the bicycle has been assembled and adjusted ex-
actly as written in this manual, and any“Special Instructions” supplied and to make sure all
fasteners and components are securely tightened.
NOTE: If product is assembled, please proceed to the following sections:
• Testing Seat Clamp and Post Clamp Tightness
• Testing Stem and Handlebar Tightness
Introduction
Meanings of Warnings:
This symbol is important. See the word “CAUTION” or “WARNING” which follows it.
The word “CAUTION”is before mechanical instructions. If you do not obey these instruc-
tions, mechanical damage or failure of a part of the bicycle can occur.
The word “WARNING” is before personal safety instructions. If you do not obey these in-
structions, injury to the rider or to others can occur.
• CHOKING HAZARD. Small Parts. Not for children under 3 years.
• Adult assembly is required.
• Continuous adult supervision is required.
• Do not add a motor to the product.
• Do not tow or push the product.
• Do not modify the product.
• Replace worn or broken parts immediately with original equipment.
• If anything does not operate properly, discontinue use.
WARNING - FREEWHEEL RIM BRAKES:
• Some models do NOT have a foot (pedal) brake.
• Ensure your child understands and can operate the hand brakes.
• Always use both hand brakes when stopping the bike.
• When stopping, apply front and rear brakes evenly.
• An unstable condition can occur if the front brake is used too hard resulting in injury to
the rider or others.

5
Rules of the Road
WARNING: Failure of the rider to obey the following “Rules of the Road” can result
in injury to the rider or to others.
• Obey all traffic regulations, signs, and signals.
• Always wear a bicycle helmet that meets safety standards, as well as local safety standards.
• Ride on the correct side of the road, in a single le, and in a straight line.
• If possible, avoid riding at night, dusk, dawn and any other time of poor visibility.
• If you must ride at night or at time of poor visibility:
• Purchase, install, and use a headlight and taillight.
• Headlights are required by all states for nighttime riding and taillights are required in
some states.
• Battery-powered lights or ashing safety lights are also recommended.
• Reectors: For your own safety, do not ride the bicycle if the reectors are incorrectly
installed, damaged, or missing. Make sure the front and rear reectors are vertical. Do not
allow the visibility of the reectors to be blocked by clothing or other articles. Dirty reec-
tors do not work well. Clean the reectors, as necessary, with soap and a damp cloth.
• Make yourself more visible to motorists.
• Wear light-colored or reective clothing, such as a reective vest and reective bands
for your arms and legs.
• Use reective tape on your helmet.
• Do not let anything cover the reectors.
• Use extra caution in wet weather:
• Ride slowly on damp surfaces because the tires will slide more easily.
• Allow increased braking distance in wet weather.
• Avoid these hazards to prevent loss of control or damage to your wheels:
• Be aware of drain grates, soft road edges, gravel or sand, pot holes or ruts, wet leaves, or
uneven paving.
• Cross railroad tracks at a right angle to prevent the loss of control.
• Avoid unsafe actions while riding.
• Do not carry any passengers.
• Do not carry any items or attach anything to your bicycle that could hinder your vision,
hearing, or control.
• Do not ride with both hands o the handlebar.
• Do not add a motor to the product.
• Do not tow or push the product.
• Do not modify the product.
• Replace worn or broken parts immediately with original equipment.
• If anything does not operate properly, discontinue use.
Bikes under 20”not intended for use on roads.

6
Components
15
18
3 4
9
7
14 10
12
13
33
34
15
16
17
2
24 25 26 27 28 29 30
32
31
3 4
6 8
23
19
11
20
21
22
22
21
Components
Part Assembly View
NOTE: All features, components and accessories are not included on all models.

7
Components
No. Description No. Description
1 Frame 19 Seat Post 2Front Wheel Assembly 20 Rear Reector
3 Tire (x2) 21 Seat Post Hardware 4 Tube (x2) 22 Seat 5Rear Wheel Assembly 23 Rear Brake 6Fork 24 Front Brake 7 Crank and Spindle Set 25 Head Set Bearings 8 Lower Brake Cable Coupler (various models) 26 Gyro Head Set 9 Chain 27 Front Reector
10 Chain Guard 28 Handlebars 11 Handlebar Stem 29 Upper Brake Cable Coupler (various models) 12 Right Pedal 30 Right Brake Lever
13 Left Pedal 31 Left Brake Lever
14 Kick Stand 32 Grips (x2) 15 Wheel Retainer (x2) 33 Rear Axle Nut (x2) 16 Front Axle Nut (x2) 34 Rear Pegs (various models)
17 Front Pegs (various models) 35 Bell (not shown - if equipped)
18 Seat Post Clamp
Parts Assembly List

8
Assembly
Assembly
Introduction to Assembly
Tools Needed (not included)
Small Adjustable Wrench
(Jaws must open at least 9/16 inch.)
Open-end Wrenches
Flat-blade Screwdriver Phillips Screwdriver
Slip-Joint Pliers Metric Allen Wrenches
This Owner’s Manual is made for several dierent bicycles:
• Some illustrations may vary slightly from the actual product.
• Follow instructions completely.
• If the bicycle has any parts that are not described in this manual, look for separate “Special
Instructions” that are supplied with the bicycle.
• Models may have dierent accessory items such as bags, baskets, reectors, cup holders,
racks, etc.
• All features, components and accessories are not included on all models.
• Use the Index page to locate specic sections of this manual.
• Please read through this entire manual before beginning assembly or maintenance.
• If you are not condent with assembling this unit, refer to a local bike shop.
WARNING: Keep small parts away from children during assembly.
NOTE: All of the directions (right, left, front, rear, etc.) in this manual are as seen by the rider
while seated on the bicycle.
Do not dispose of the carton and packaging until you complete the assembly of the bicycle.
This can prevent accidentally discarding parts of the bicycle.

9
Assembly

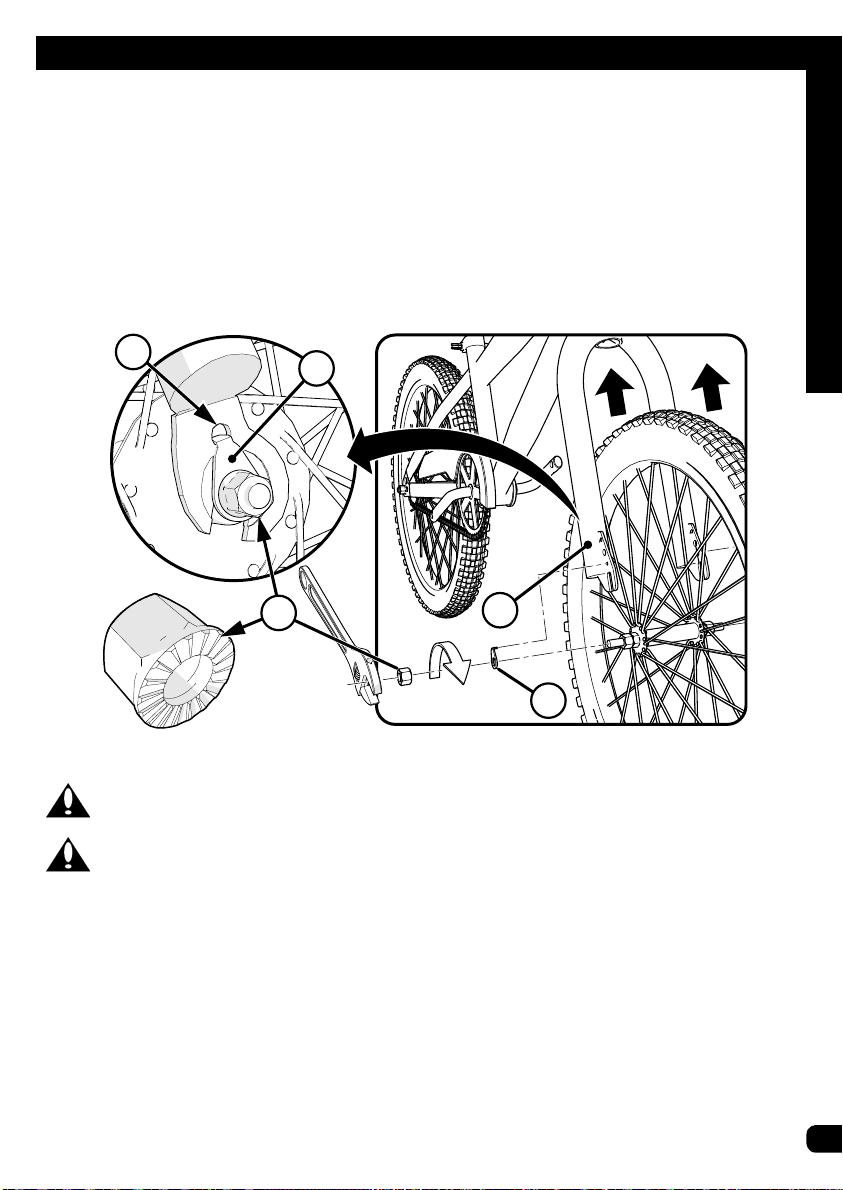

Installing the Front Wheel
NOTE: See Brake Section to loosen and Re-attach front Brakes (if equipped).
1. If the Axle Nuts Aare already attached to the front wheel axle, begin by remov-
ing them with an open end wrench or adjustable wrench.
2. Set the wheel into the front fork B.
3. Install wheel retainers Cmaking sure the tabs are in the fork Dtab holes.
4. Attach the front wheel with the Axle Nuts.
5. Put the wheel in the center of the fork and tighten Axle Nuts securely. See torque
table for recommended torque.
D
C
B
A
C
NOTE: Ensure wheel spins freely without contacting fork or fender.
WARNING: Do not use Nuts Awithout serrations to attach the front wheel.
WARNING: Failure to obey these steps can allow the front wheel to loosen
while riding. This can cause injury to the rider or to others.

10

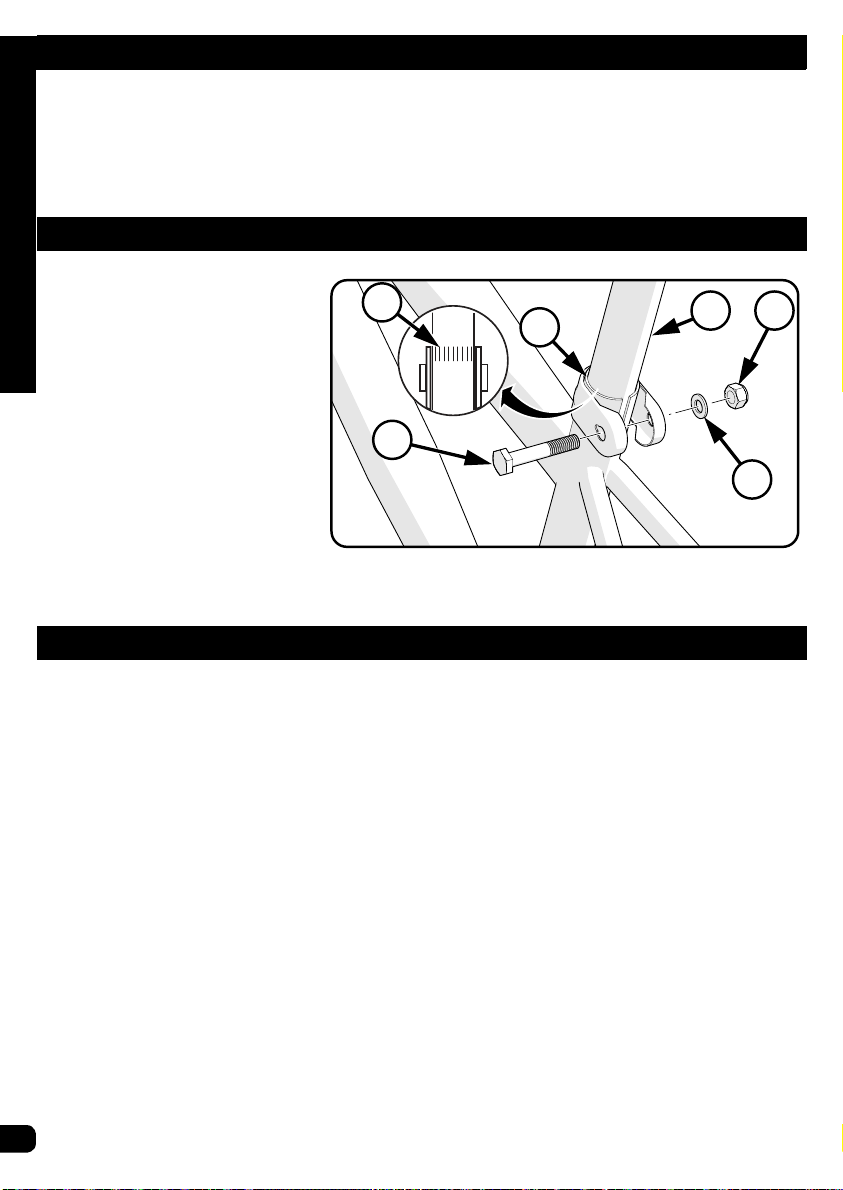

Handlebar and Stem Installation - No Gyro Brake
NOTE: Check which Stem style your bike has and use one of the following installation
guides.
WARNING: To prevent steering system damage and possible loss of control, the
“MIN-IN” (minimum insertion) mark Aon the stem must be below the top of the Locknut
B.
QUILL TYPE STEM:
NOTE: Remove plastic Cap Dfrom the
end of the Stem.
1. Insert the Stem into the fork.
2. Point the Stem towards the front of
the bike.
3. With the Stem aligned with the
front tire, tighten the Stem Bolt C
securely. See Torque Chart for rec-
ommended torque.
4. Proceed to Handlebar Installation
on next page
THREADLESS TYPE STEMS:
NOTE: Threadless stems are pre-installed.
• Proceed to Handlebar Installation on
next page.
A
A
B
D
B
C
WARNINGS:
• Do not over tighten the stem bolt C. Over tightening the stem bolt can damage the
steering system and cause loss of control.
Assembly

11
Handlebar Installation - continued
Four Bolt Clamp Top Mount:
1. Adjust the Handlebar into a comfortable
riding position.
2. Tighten Clamp Screws Aevenly accord-
ing to pattern.
NOTE: Do not over tighten. See Torque Chart
for recommended torque.
3 1
2 4
A
Four Bolt Clamp, Front Mount:
1. Adjust the Handlebar into a comfortable
riding position.
2. Tighten Clamp Screws A.
3. Check tightness of side Stem Bolts B.
NOTE: Do not over tighten. See Torque Chart
for recommended torque.
3 1
2 4
C
A
B
Two Bolt Stem:
1. Adjust the Handlebar into a comfortable
riding position.
2. Tighten Clamp Screws A.
NOTE: Do not over tighten. See Torque Chart
for recommended torque.
A
WARNING: If the Handlebar Clamp in not tight enough, the handlebar can slip in the
stem. This can cause damage to the handlebar or stem, and can cause loss of control.
Assembly

12
Gyro Stem and Brake Setup
• Make sure Rear Brake Cable Sheath Ais
fully inserted into the adjustment Housing
at the Caliper and Hand Lever B.
• Ensure Housing Nut and Housing (B, C) are
adjusted all the way in towards the Hand
Lever.
• Rotate Housing BGroove away from Cable
Groove Dand tighten Housing Nut C.
ABD
C
continued >>
Stem and Handlebar Setup - Gyro Brake
Note: The Handlebar Stem Clamp may be pre-installed from the factory.
3 1
2 4
B
CA
• Carefully unpack Handlebar Aand Brake
Cables.
• Install the Handlebar using Clamp Band
Clamp Screws C.
• Rotate Handlebar into a comfortable riding
position.
• Tighten Clamp Screws Csecurely. See
Torque Chart for recommended torque.
Assembly

13
Assembly
Gyro Stem and Brake Setup - continued
A
AB
C
E
D
• Squeeze the two sides of the Gyro Plates Atogether and insert the Cable End Binto
the Gyro Plate Slot C.
• Repeat for other side.
A
B
C
WARNING: Ensure Gyro Handlebar/Stem/Wheel system can rotate 360 degrees
without binding any Cables and that the Gyro mechanism works smoothly.
• Install the two Cable Adjusters Ainto the
Gyro Plate Bmaking sure the Shorter
Cable Cis on the same side as the Brake
Lever D.
• Turn the Cable Adjusters and Nuts Eall
the way into the Gyro Plate - hand tight.
continued >>

14
Assembly
Gyro Brake Setup - Front Brake Cable Install
• Pull the Front Brake Cable Aup through
the Stem Nut Bso that it is routed as
shown.
• Ensure the Brake Cable does not touch
the Tire C.
A
A
C
B
1
• Insert Cable Barrel (2-1) into Brake Lever.
• Insert Brake Cable (3-1) into Groove as
shown.
• Ensure Housing Nut and Housing (4-3, 4-1)
are adjusted all the way in towards the
Hand Lever.
• Rotate Housing (4-1) Groove away from
Cable Groove (4-2) and tighten Housing
Nut (4-3).
2-1
2
2-1
3
3-1 44-2
4-3
4-1
continued >>

15
Assembly
Gyro Brake Setup - Front Brake Cable Install - continued
A
WARNING: Ensure Gyro Handlebar/Stem/Wheel system can rotate 360 degrees
without binding any Cables and that the Gyro mechanism works smoothly.
• Rotate Brake Levers Ainto
a comfortable riding position
and tighten securely.

16
Assembly
Testing Stem and Handlebar Tightness
To test the tightness of the stem:
• Straddle the front wheel between your legs.
• Try to turn the front wheel by turning the handlebar.
• If the handlebar and stem turn without turning the front
wheel, realign the stem with the wheel and tighten the
stem bolt(s) tighter than before (about 1/2 revolution only
at a time).
• Do this test again, until the handlebar and stem do not
turn without turning the front wheel.
To test the tightness of the handlebar clamp:
• Hold the bicycle stationary and try to move the ends of
the handlebar forward and backward.
CAUTION: Do not exceed 100 lbs (45 kg) push force.
• If the handlebar moves, loosen the bolt(s) of the
handlebar clamp.
• Put the handlebar in the correct position and tighten
the bolt(s) of the handlebar clamp tighter than before.
• If the handlebar clamp has more than one bolt, tighten
the bolts equally.
• Do this test again, until the handlebar does not move in
the handlebar clamp.

17
Assembly
WARNING: To prevent the Seat Acoming loose and possible loss of control, the
“MIN-IN” (minimum insertion) mark Bon the Seat Post must be below the top of the Seat
Tube C.
SEAT AND SEAT POST SETUP:
1. If needed, loosen Nuts on Seat
Clamp Dand rotate Seat into rid-
ing position.
2. Ensure the Seat Post Eis fully
through the TOP Seat Clamp D.
3. Tighten the Seat Clamp so the Seat
does not move on the seat post.
4. If the Seat Clamp has a Nut on each
side, tighten both nuts equally.
5. Point the Seat forward and put the
Seat Post Einto the Seat Tube C
and proceed to next step.
TIGHTEN THE QUICK RELEASE LEVER:
NOTE: The words “open”and “close”are on opposite sides of the quick release lever.
CAUTION: Operate the Quick Release Lever F
by hand only. Do not use a hammer or any other tool to
tighten the quick release lever.
1. Move the Quick Release Lever Fto the “open” posi-
tion so the word“open”is pointing away from the Seat
Post Clamp G.
WARNING: You must use strong force to move
the quick release lever to the “close”position. If you can
easily move the lever to the “close”position, the clamping
force is too light. If the clamping force of the Quick Release
Lever is too light, the seat post can loosen while riding.
This can cause injury to the rider or to others.
2. Open and close the Quick Release Lever with one hand while you turn the Adjusting Nut
Hwith the other hand.
3. Tighten or loosen the adjusting nut by hand, so that you rst feel resistance to the quick
release lever when it perpendicular to the bicycle frame.
4. Push the Quick Release Lever to the “close” position.
5. When in the “close” position, make sure the Quick Release Lever lays against the Seat
Seat Installation
g A
D
A
E
B
C
B
g B
G
C
H
E
F

18
Assembly
Seat Installation - continued
Post Clamp G.
6. The tightening torque of the Quick Release Lever should be tight enough so that the
seat does not move during normal operation.
Seat Bolt Mount (various models)
Some models have a Bolt I,
Washer Jand Nut Kinstead
of a Quick Release Lever.
• If needed, loosen the nut
enough to insert the Seat
Post E.
• Point the seat forward and
insert Seat Post to the Mini-
mum Insertion marks B.
• Tighten Nut securely so it
supports the rider without
moving.
B
J
CKE
I
g C
Testing Seat Clamp and Post Clamp Tightness
To test the tightness of the seat clamp and the post clamp:
• Try to turn the seat side-to-side and to move the front of the seat up and down.
• If the seat moves in the Seat Clamp:
• Loosen the Seat Clamp Nut.
• Put the seat in the correct position and tighten the Seat Clamp tighter than before.
• Do this test again, until the seat does not move in the Seat Clamp.
• If the Seat Post moves in the Seat Tube Clamp:
• Loosen the Seat Clamp Lever.
• Put the Seat Post in the correct position and tighten the Seat Clamp Nut tighter than
before.
• If necessary, tighten or loosen Hand Nut so that Quick Release tightens securely.
• Do this test again, until the Seat Post does not move in the Seat Tube Clamp.

19
Assembly
Reector Installation (as equipped)
Reector Installation:
1. Position FRONT Reector Aso it points
straight forward.
2. Tighten Clamp Screw.
3. Position Seat Post Reector (if equipped)
Bso it points straight backwards.
4. Tighten Clamp Screw.
NOTE: Do not over-tighten. This will damage
the Clamp.
BA

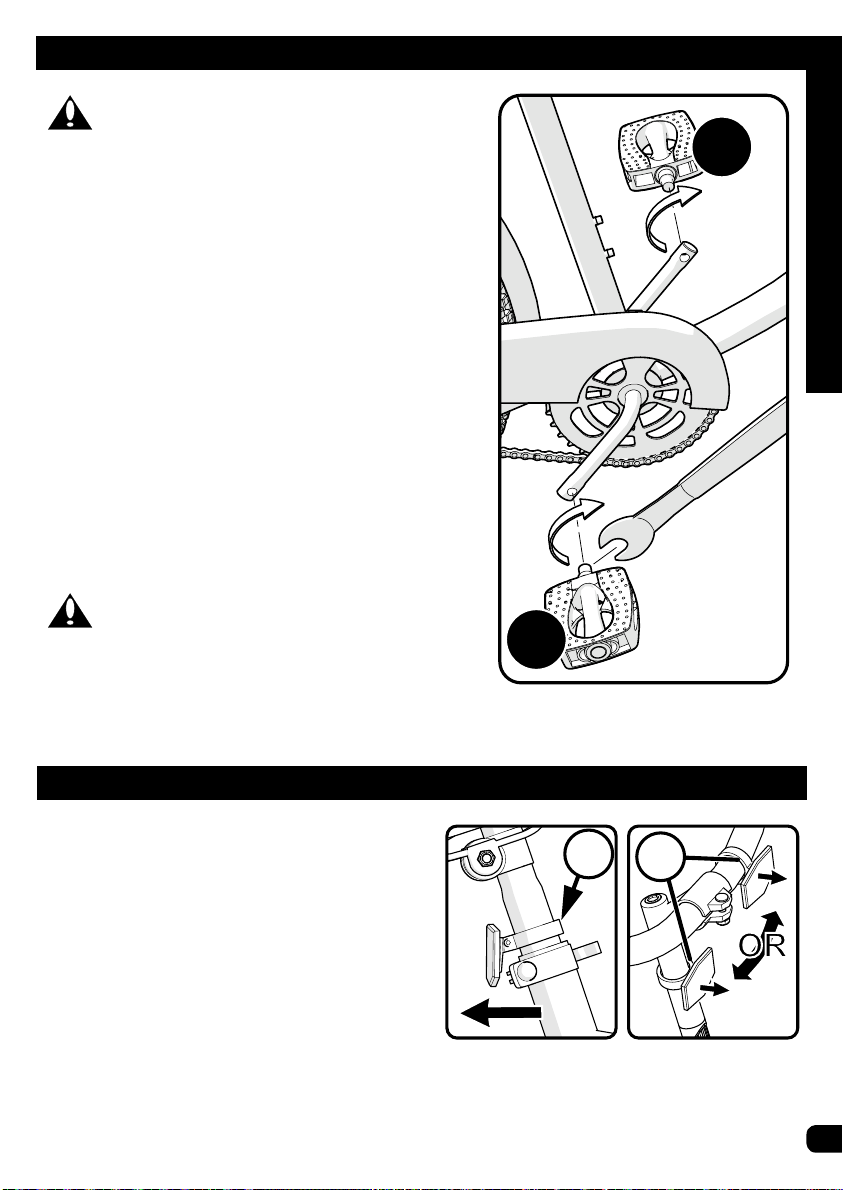

Pedal Installation
CAUTION: There is a RIGHT pedal marked R
and a LEFT pedal marked L.
NOTE: A Pedal Wrench is preferred for attaching Ped-
als. A thin open-end
wrench can also be used.
• The pedal marked Rhas right-hand threads.
Tighten it in a clockwise direction.
• The pedal marked Lhas left-hand threads.
Tighten it in a counterclockwise direction (anti-
clockwise).
• Turn the right pedal marked Rinto the right side
of the crank arm, and the left pedal marked Linto
the left side of the crank arm.
Tighten the pedals:
• Make sure the threads of each pedal are fully into
the crank arm.
WARNING: Ensure pedals are secure in
crank arms so they will not loosen. Periodically check
tightness.
L
R
Seat Installation - continued
Post Clamp G.
6. The tightening torque of the Quick Release Lever should be tight enough so that the
seat does not move during normal operation.
Seat Bolt Mount (various models)
Some models have a Bolt I,
Washer Jand Nut Kinstead
of a Quick Release Lever.
• If needed, loosen the nut
enough to insert the Seat
Post E.
• Point the seat forward and
insert Seat Post to the Mini-
mum Insertion marks B.
• Tighten Nut securely so it
supports the rider without
moving.
B
J
CKE
I
g C
Testing Seat Clamp and Post Clamp Tightness
To test the tightness of the seat clamp and the post clamp:
• Try to turn the seat side-to-side and to move the front of the seat up and down.
• If the seat moves in the Seat Clamp:
• Loosen the Seat Clamp Nut.
• Put the seat in the correct position and tighten the Seat Clamp tighter than before.
• Do this test again, until the seat does not move in the Seat Clamp.
• If the Seat Post moves in the Seat Tube Clamp:
• Loosen the Seat Clamp Lever.
• Put the Seat Post in the correct position and tighten the Seat Clamp Nut tighter than
before.
• If necessary, tighten or loosen Hand Nut so that Quick Release tightens securely.
• Do this test again, until the Seat Post does not move in the Seat Tube Clamp.

20
Pegs Installation - Threaded (if equipped)
Assembly
A
B
NOTES
• Front and rear pegs may be dierent sizes.
• The pegs are optional. You may choose not to install them on the axles. Pegs can be
installed on the front, rear or on one side.
• The same procedure is used to install pegs on both the front and rear axles. Front wheel
axle is shown.
Threaded pegs:
• No additional tools are necessary
to install the pegs.
• Put a peg Aon each end of the
axle.
• Make sure the peg is fully seated
against the frame or fork. Tighten
the peg securely.
• Pegs will go over the axle nuts B.
WARNINGS:
• Do not ride beyond your capa-
bilities.
• Pegs should be installed by an adult.
• Check before each ride.
• Ensure there is no damage to frame, fork or wheels during install and use.
• Ensure chain is properly adjusted after install.
• Ensure wheels are properly aligned after install.
• If damaged, stop use and replace.
• Failure to obey these steps can allow the front wheel to loosen while riding. This can
cause injury to the rider or others.
Handlebar Bell (various models)
Installation:
1. Remove screws from Bell.
2. Position Bell on handlebar within easy reach,
with hands on the handlebar grips.
3. Install screws and tighten.
NOTE: Bell may attach with 1 or 2 screws.
