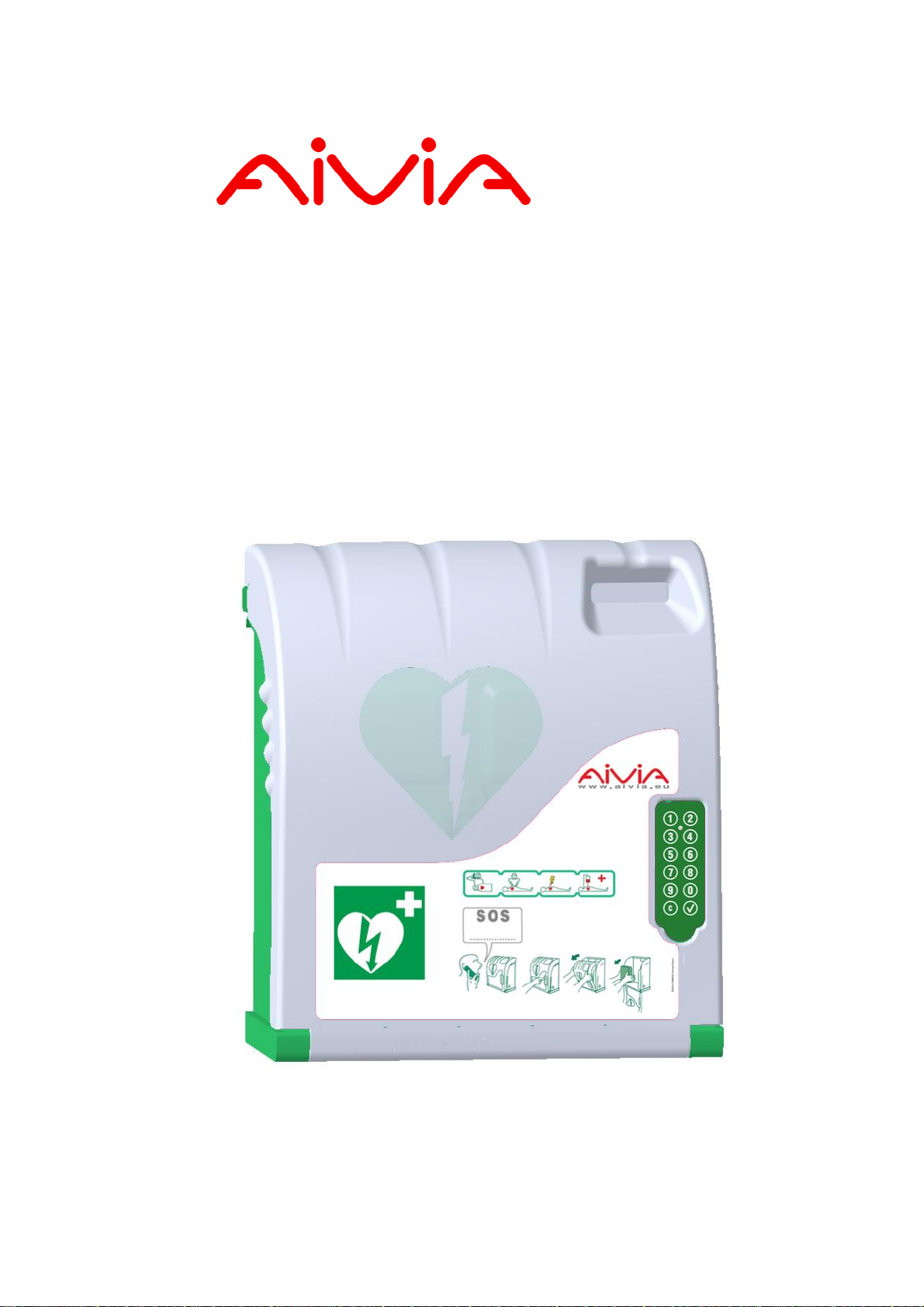

A-MIP 210 Installation and user guide

2
General Information
Environmental information
• When returning the AIVIA, you should only use the
original packaging.
• Do not dispose of the AIVIA or its packaging with nor-
mal household waste. Use the collection system in place
in your area. The use of collection systems will help pre-
serve the environment and your health.
•The AIVIA can contain batteries in compliance with EU
Directives 2006/66/CE and 2008/103/CE. These cannot
be disposed of with normal household waste. Please use
the system for collecting used batteries in place in your
area. The proper disposal of used batteries preserves
the environment and your health.
Warranty
Do not disassemble the various elements that constitute
the AIVIA.
Do not insert any objects into any openings.
Only qualified personnel may carry out repairs on the
AIVIA.
Failure to comply with this will void any warranty.
Any operation or assembly procedures expressly
prohibited or not recommended by this manual, will also
void the warranty.
Maintenance
CAUTION
THE AIVIA CONTAINS BATTERIES.
THERE IS A RISK OF EXPLOSION IF THE
BATTERIES SUPPLIED FOR USE BY THE AIVIA ARE
REPLACED BY INCORRECT BATTERIES.
ONLY AN AUTHORIZED OPERATOR CAN CARRY
OUT MAINTENANCE OPERATIONS, INCLUDING
REPLACING THE BATTERIES.
Safety
• To avoid risk of fire or electric shock, the AIVIA should
not be exposed to any naked flame.
• Leave a space of at least 13 cm around the AIVIA to
assure proper ventilation.
• Keep the AIVIA away from radiators or any other heat
source. Do not place the AIVIA near any devices that
generate heat. Do not place anything under the AIVIA.
• To avoid damage, do not insert objects into any of the
openings in the AIVIA.
• Never install the AIVIA in direct exposure to sunlight.
• Do not expose the AIVIA to any moisture when the
door is open.
Important
Read this manual before installation and use of the
Aivia. Read this section carefully and follow the
instructions.
The warranty does not cover damage caused by failure
to follow these instructions.
AIVIA PROTECTION are wall mounted protection units
that serve to house and shelter AEDs. The AIVIA
PROTECTION does not ensure control of the AED, it is
the sole responsibility of the DISTRIBUTOR to inform
their own SUB-DISTRIBUTORS and USERS of their
obligation to verify the presence and operating status of
the AED by carrying out regular on site checkups.
Depending on the options chosen, the AIVIA
PROTECTION can trigger a visual and sound alarm.
The alarm is intended as a warning signal in case of any
malfunction, but no data log of malfunctions is recorded.
In no event can the presence and operating status of
AEDs in an AIVIA PROTECTION be controlled from a
distance. The AIVIA should in no case be a substitute for
the checks and inspections recommended by the
manufacturer of the defibrillator.
Installation must be carried out by a qualified operator or
authorized by the Aivia’s manufacturer
Never install an AIVIA in direct exposure to sunlight.
The unheated AIVIA must be installed in a temperate
environment, in accordance with the manufacturer’s
specifications for the defibrillator.
The heated AIVIA must be installed in an environment
that respects the operating temperatures of the AIVIA.
You must monitor and follow up alerts related to
temperature.
The characteristics of the AIVIA are subject to changes
without notice.
The manufacturer of the AIVIA reserves the right to
change products at any time, including unlimited
modifications to previously delivered products.
The AIVIA brand is a registered trademark.
• The fixations must be adapted to the type of surface on
which the AIVIA is fixed.
• The manufacturer cannot be held liable for improper
installation or in the case of accident or injury during its
installation.

3
Installation
Important 4
Aivia presentation 4
Identification plate 4
Initial opening 4
Aivia installation 5
Connecting the power supply to the Aivia 6
Installing the AED 7
Setting up the Aivia 7
Door opening codes 7
Alert temperatures 7
Heating/Fan activation temperatures 8
Close the AIVIA door 8
Pictograms 8
Summary
Use 10
Night mode operation 10
Heating option operation 10
Alert operation 10
Using the Aivia 10
After using the defibrillator 10
Aivia maintenance 10
In case of malfunction 11
Specifications
Mechanical characteristics 14
Technical characteristics 14
Compliance 14
Electrical Installation 13

4
Installation

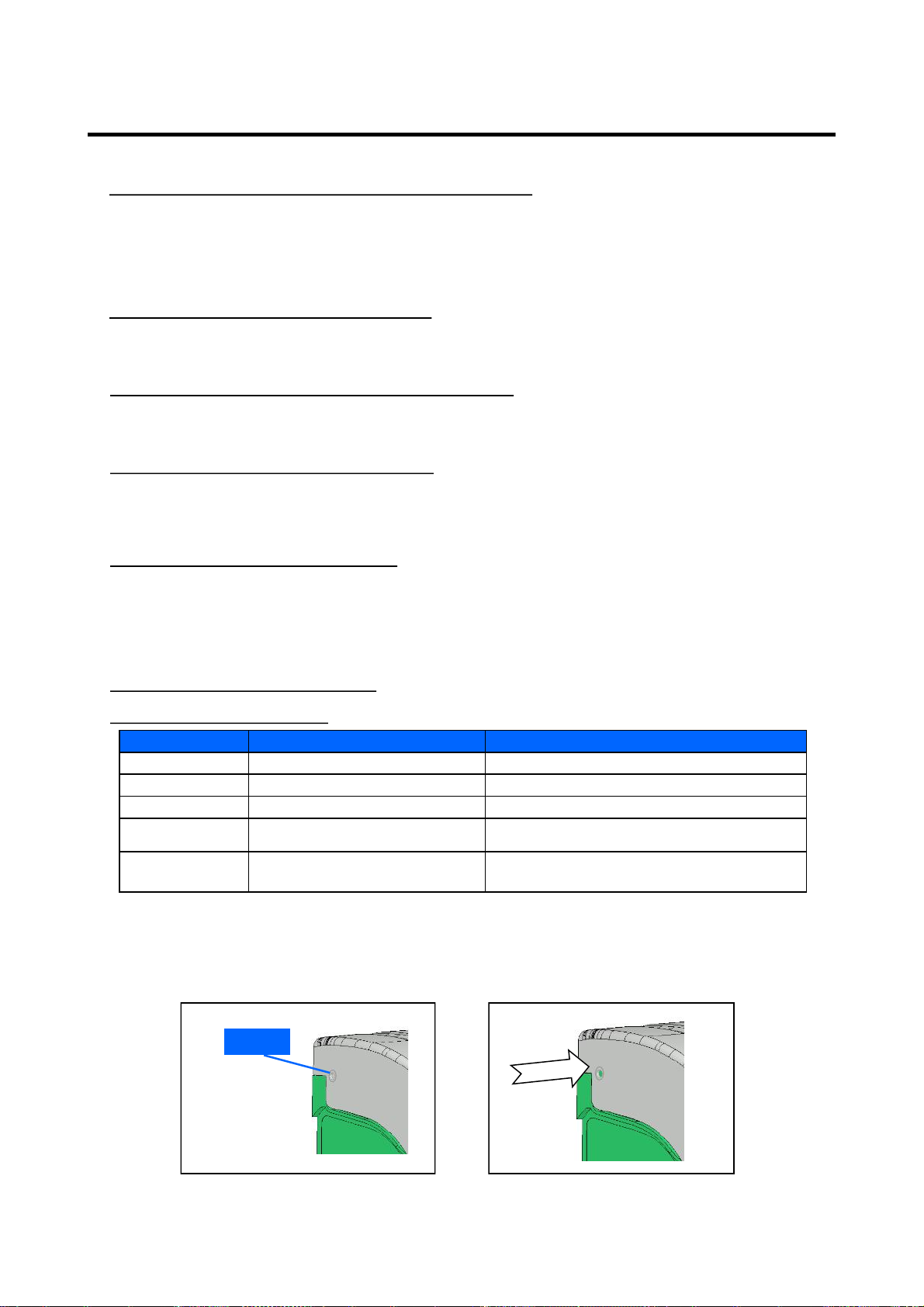

Identification plate
• The identification plate is located inside the Aivia
• In the event you need to reach customer services or
your distributor, please make sure you have your Aivia
reference and serial number available.
First opening
• To open the Aivia door before it is fixed on the wall,
use a small screwdriver.
• Slip the screwdriver between the door and the chassis
of the Aivia.
• Pull up the screwdriver, taking care to not leave marks
on the Aivia.
• Repeat on the other side of the Aivia.
Serial number
Reference Options
Important
Read this manual with carefully before setting up and
using the Aivia.
Never install Aivia Aivia in direct exposure to sun-
light. You risk exposing the defibrillator to excessive
temperatures.
Aivia presentation
1Electronic compartment.
2Light sensor.
3Seals support
4Heating film *.
5Night and alert indicators.
6Door
7Identification plate. * Option
1
2
4
3
6
5
7
9
8
8Fixation holes.
9AED holding sandow .
10
10 Connector reserved for the AIVIA maintenance
Connecting a cable to this connector can damage the AIVIA

5
Installation
Aivia installation
Never install an Aivia in direct exposure to sunlight.
You risk exposing the defibrillator to excessive
temperatures.
• Installation must be carried out by a qualified operator
who adheres to the Bornavie charter or authorized by
the Aivia manufacturer
• If the Aivia is installed in a public street or place with
public access, install a fixed ground plate (abutment) or
column.
• Fixations must be suitable for the type of surface which
the Aivia is attached to.
• Aivia working zone must be kept free as specified
above.
• The exact dimensions of the Aivia are provided at the
end of this document in the Specifications section.
• Make sure that every cable has been taken through the
cable passage before affixing the Aivia to the wall.
• Let a free space of 140 cm (55,11 in) in front of the
supporting wall to allow for easy opening of the Aivia
• To mark fixations and cable passageway, use the
drilling template provided with the packaging.
• Put the template against the wall, with the arrow facing
upwards and towards you.
Fixation holes
24V DC Cables
passage
Useful area for Aivia working space
215 mm
190 mm220 mm 220 mm
150 mm
1300 mm
 8,5 mm
0,33 in
8,66 in 8,66 in7,48 in
5,90 in
8,46 in
51,18 in
1400 mm
Useful area for Aivia working space
55,11 in

6
Installation
• Fixing must be adapted to the type of support the Aivia
is being fixed on.
• Aivia fixing must be able to carry a minimal load of
20 kg.(44lb).
• Fixing example:
•
Washer plus screw head thickness must not exceed
8mm.(0,31 in)
Slide all the required cables through the hole before
fixing the Aivia to the wall.
Affix the Aivia using the 3 fixation holes.
12
3
4
1Supporting wall.
2Pin/Nylon plug.
3Fixing screw, M6 minimum, M8 maximum.
4Washer  14mm (0,55 in) maximum.
Connect the power supply to the Aivia
• The Aivia must be powered using 24V DC, see the
«Power supply » section
• Slide the power supply cables through the cable
passage.
• Connect the cables on the connector block respecting
the polarity.
1Cable passage
2Power supply cables (24V)
2
1
2
1
1+24V DC Red cable.
20V Black cable.
1
1Board power supply connector
• Plug the connector block onto the board.
• Check the power supply to the Aivia by verifying that
the white indicators are illuminated.

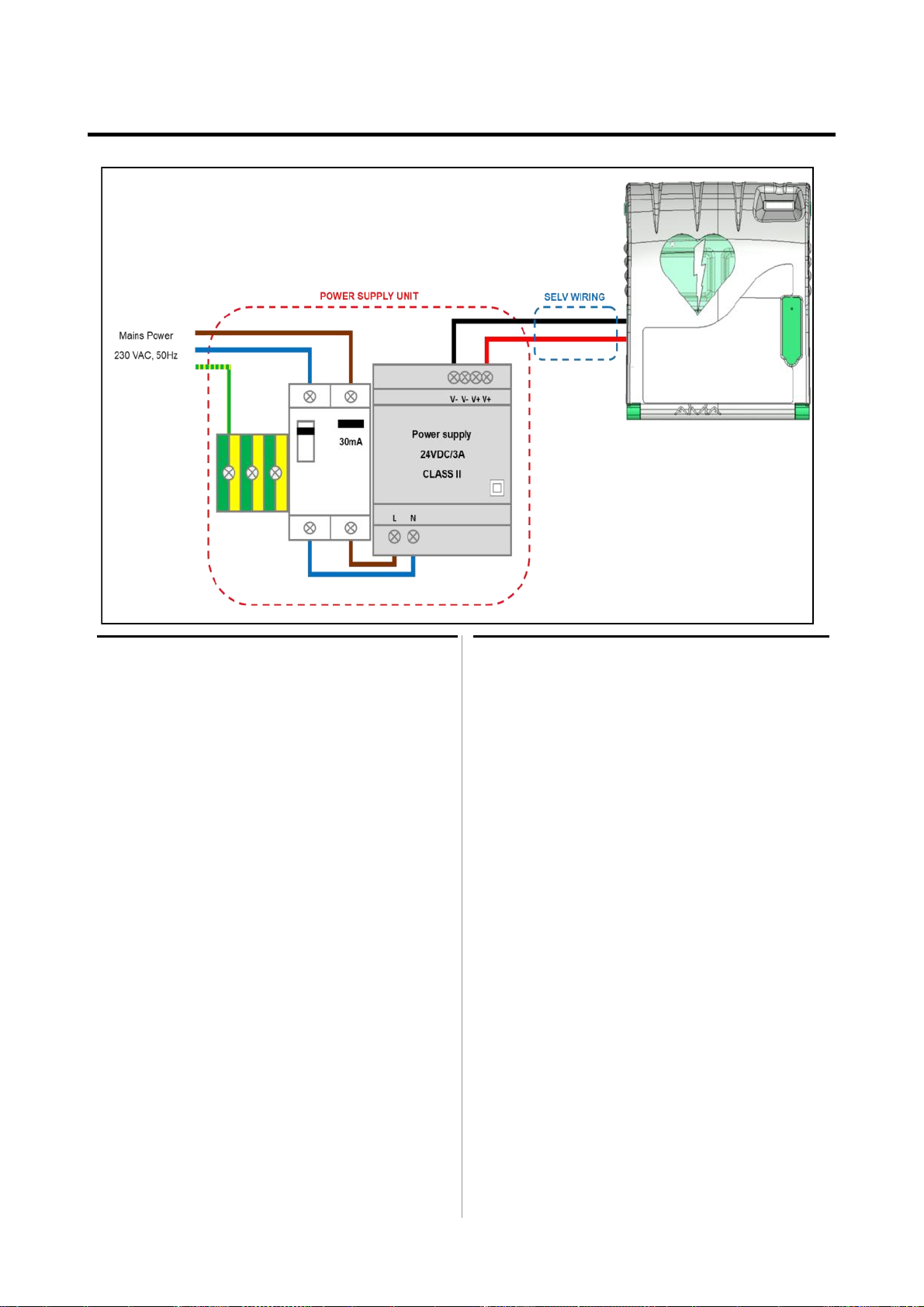

Connect power to the Aivia
The Aivia must be supplied with 24VDC power, ensure
compliance with the "Electrical Installation" section
•Unscrew the fixing screw with a Philips screwdriver
and pull out the hatch from the top
1
2
1Access door mounting screws.
2Electronics access door

7
Installation
Installing the AED

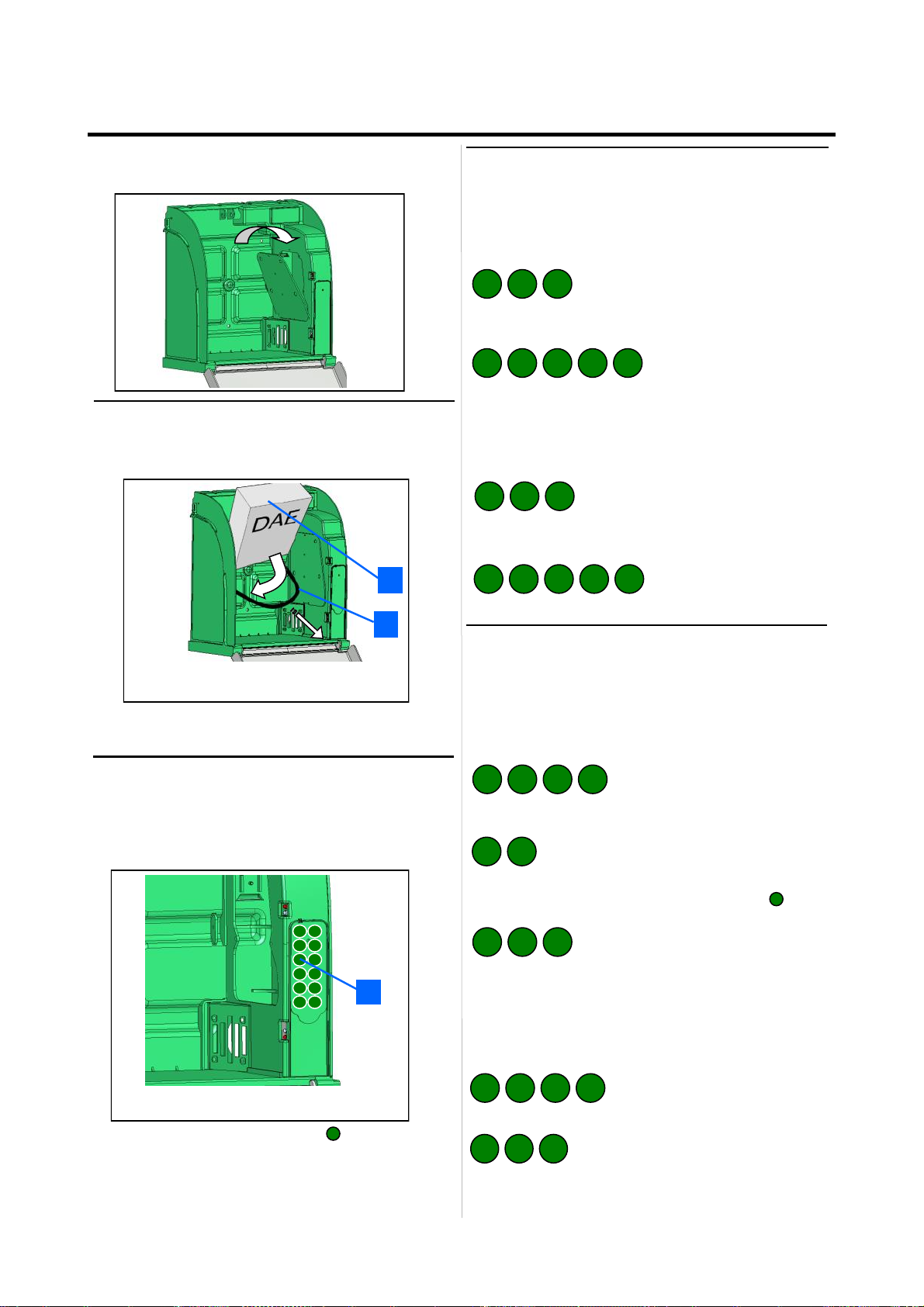

• Pull the holding strap and insert the AED behind the
strap
• The strap allows for a simple extraction of the AED
while ensuring the AED is securely held.
2
1
1AED to be inserted vertically.
2AED holding strap
Setting up the Aivia
The Aivia is setup in maintenance mode. In order to do
so, power up the Aivia with the door open, or type the
maintenance code on the Keyboard.
• All the entries are validated by the key .
A high pitched beep validates the entry whereas a low
pitched beep signals an invalid entry.
1Aivia keyboard

12
34
56
78
90
C1
1A

Alert temperatures
• Low temperature alert entry (Heating option) :
If this threshold is reached, The aivia will flash 4 times to
indicate a temperature alert.
Type the menu code 101, then validate :
Enter the low temperature alert threshold ( e.g. 5°C)
You can enter a negative temperature using the key
• High temperature alert entry (Heating
option) :
If this threshold is matched, The aivia will blink 4 times to
indicate a temperature alert.
Type the menu code 102, then validate :
Enter the high temperature alert threshold( e.g. 30°C)
C
10 
5
C2
30
1
20 1
40
3333
30
2222
Door opening codes
• Modifiying the user code :
The user code allows the opening, it is by default set on
0000.
Type the menu code 03, then validate :
Type the new user code on 4 digits, then validate ( e.g.
2222) :
• Modifying the maintenance code :
The maintenance code allows the opening, and once
opened, the Aivia set up. The default value is 1111.
Type the menu code 04, then validate :
Type the new maintenance code on 4 digits, then
validate ( e.g. 3333) :
• Put back the hatch, inserting the lower part first.
• Screw the hatch fixing screw using a philips screwdri-
ver.

8
Installation
Heating/Fan activation temperatures
• Entering the heating temperature (Heating option)
Heating will be triggered once this threshold is matched.
It will stay activated as long as the temperature has not
become warmer than the threshold.
Type the menu code 103, then validate :
Enter the heating threshold ( e.g. 10°C)
You can enter a negative temperature using the key
• Entering the fan activation temperature (Heating
option):
Fan activation will be triggered once this threshold is
matched.
It will stay activated as long as the temperature has not
got colder than the threshold.
C
10
C2
30 1
Type the menu code 104, then validate :
Enter the fan activation threshold ( e.g. 35°C)
35
40 1
Pictograms
• The signs on the door of AIVIA inform you of what to
do in case of emergency.
• You must mark the emergency number to call in the
SOS pictogram if one is not already noted there.

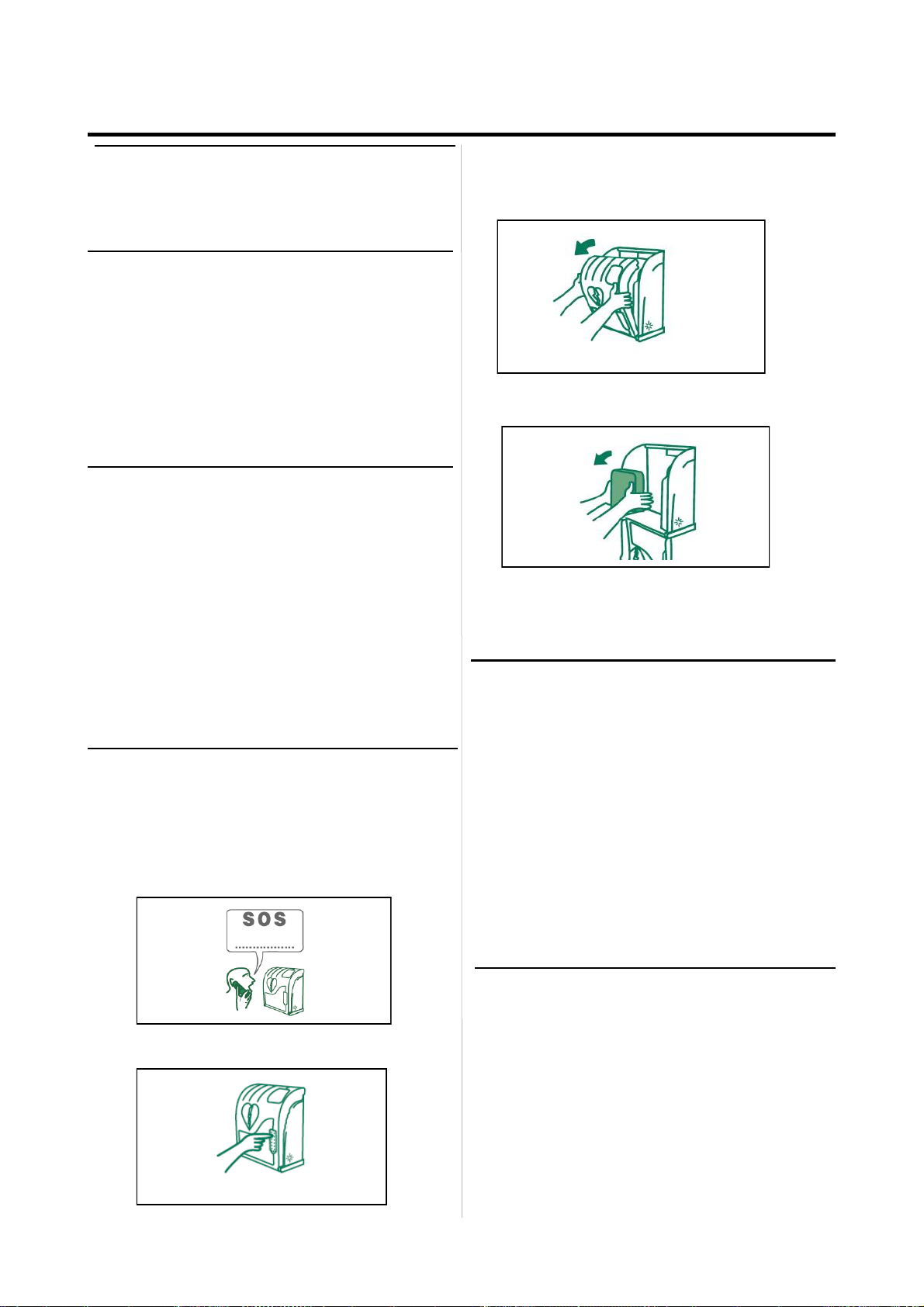

Close the AIVIA door
• Completely close the Aivia door. Be sure to pull the door
base toward you before shutting the door

9
Notes

10
Use
Night mode operation
• The Aivia is equipped with a light detector. In low
ambient light, blinking white lights help identify the
location of the Aivia.
• Open the Aivia door by pulling it.
Visual alert is given by the blinking ot the red indicators.
• Take the AED out.
• Go to the victim.
• Switch on the AED.
• Follow the AED’s instructions.
Heating option operation
• The heating option allows to maintain the AED
operating temperature within working temperatures. In
extreme cold temperatures, it is worthwhile checking that
the alert temperature is not signaled by the flashing of the
red indicators.
• The fan allows the heat to be extracted from the Aivia.
In hot weather, it is worthwhile checking that the alert
temperature is not signaled by the flashing of the red
indicators
Using the Aivia
If you witness an incident needing an AED.
• Contact emergency services.
Speak using a clear and loud voice, describe the situation
without forgetting to precise the incident location. The
user code will allow you to unlock the aivia.
Aivia maintenance
• Wash the Aivia surfaces using a wet cloth. Wipe the
Aivia with a clean & dry cloth. Do not use washing or
chemical products, they could damage it.
• Do not rub the Aivia with any hard object, you might
damage it permanently or streak it.
• Do not use a high pressure cleaner.
Alert operation
Door opening alert:
• When the door is opened the visual alert is given by
the flashing of the red indicators. Not in maintenance
mode.
• If your Aivia is equipped with the siren option, and
the User or Maintenance code are not enter, the siren
will be activated for 3 minutes.
Temperature alerts:
• The temperature alert, signaled by 4 repeated
flashings of the red indicators door close is triggered
when the temperature gets below the minimum
temperature defined, or over the maximum
temperature defined.
After using the defibrillator
• Do not place the defibrillator back inside the AIVIA be-
fore reactivating it.
• Follow the instructions in the defibrillator’s manual to
reset it for use.
• The manufacturer may be able to help reactivate the
defibrillator. Please feel free to contact them.
• After reactivating the defibrillator, replace it inside the
AIVIA using the instructions in the section "Setting up the
defibrillator."
• Type the user code to unlock the Aivia.

11
In case of malfunction
• White indicators do not light up when the aivia is switched on.
1. Check the wiring polarity.
2. Check the power supply cable connection.
3. Check the voltage (24V) at the connector block.
4. Check the insertion of the connector block.
5. Contact your distributor
• White indicators do not blink in night operation.
1. Check the aivia power supply.
2. Contact your distributor
• Red indicators do not blink when the door is being opened.
1. Check the aivia power supply.
2. Contact your distributor
• Siren does not works when the door is opened.
1. Check for the siren option on the Avia identification plate.
2. Check the aivia power supply.
3. Contact your distributor
• I do not know my maintenance/user code.
1. Shut down the Aivia power supply.
2. Open the Aivia.
3. Switch on the Aivia, the white indicators will be illuminated.
4. Set the User/Maintenance code, as described in the « Setting up the Aivia » section.
5. Close the Aivia.
• Red indicators blink in a repeated way.
• Aivia motorization doesn’t work.
Withdraw the cap off the aivia door, and push back the door blocking axle with a stem .
Number of blinkings Cause Solution
1Failing memory Contact your distributor
2Parameters lost Set-up the Aivia again
3Temperature sensor breakdown Contact your distributor
4Alert temperature reached Check the AED is working correctly, if needed, contact your
distributor.
Continuous Aivia has been opened Check AED operates correctly, and presence of all the accesso-
ries, if needed, contact your distributor.
Cap

12
Notes

13
Electrical Installation
SELV Wiring :
• U1000R2V Type. 2 Isolated and gained conductors,
1,5mm² gauge, 10 meters maximum length.
• For the 24V wiring use a red or brown cable.
• For the 0V wiring use a black or grey cable.
Power Supply Unit
Must be located outside the Aivia, never installed
inside the Aivia.
•The power supply block must include:
• A 10A/30mA residual current device, serving both
to protect and disconnect the hardware.
• A SELV or equivalent 24VDC +-2% / 3A Class II,
with limited power output, and IEC 60950-1
conform.
• The cable connecting the residual current device
and the power supply must be a section of 1,5 mm²
•The mains connection must include the primary phase,
neutral, and earth.
•The maximum full load secondary voltage drop must
not exceed 2%, or 23.5V at the Aivia terminal.
•The power block must be dust and water proof, and
ventilated**.
•Wires must be held against themselves by a collar
at the nearest of the holding terminals. The power
block wiring must conform to standards in force in
the country of use.
* Recommended power supply: PYRESCOM C_AL/HDR100-24CA.
** Natural or forced convection depending on the environnment and
thermal characteristics at maximum load.

14
Specifications
Mechanical characteristics
• Weight
• X2A210-XX000:2,9 Kg (6.39 lb).
• X2A210-XX100 (siren option): 3,1 Kg.(6.83 lb)
• X2A210-XX001 (heating option): 3 Kg..(6.61 lb)
• X2A210-XX101 (siren & heating option): 3,3 Kg.
(7.27 lb)
• Composition:
• Door: Polycarbonate.
• Chassis: ABS.
• Square: ABS.
• Hatch: ABS.
Technical characteristics
• Power supply:
24 VDC +-2% / 3A, SELV source to limited power,
complies with IEC 60950-1.
• Current consumption:
• X2A210-XX000:
Minimum: 55 mA.
Maximum: 200 mA.
• X2A210-XX100 (siren option):
Minimum: 55 mA.
Maximum: 500 mA.
Sound level: 90-105 dB / 1 meter.
• X2A210-XX001(heating option):
Minimum: 55 mA.
Maximum: 2000 mA.
• X2A210-XX101 (siren and heating option):
Minimum: 55 mA.
Maximum: 2400 mA.
Sound level: 90-105 dB / 1 meter.
• Operating temperatures and humidity :
Minimum: -20ºC.(-4°F)
Maximum: 55ºC. (131°F) without battery option
40°C (104°F) with battery option
Relative humidity: 95% without condensation.
• Temperature alerts:
Low temperature alert: 5°C (41°F).
High temperature alert: 40ºC (104°F)
• Heating option:
(References: X2A220-XX001 or X2A220-XX101)
Heating thresold : 10°C (50°F) by default.
Fan thresold: 30°C (86°F) by default.
• Maximum weight capacity: 5Kg (11 lb).
• Maximum altitude: 2000 m.
Compliance
X2A210-XX***:
EN 55022:2006
EN 55024: 1998/ A1 : 2001/ A2 : 2003
EN 60950-1 : 2006

15
Notes

16
www.aivia.eu
[email protected]
2019-02-21
*A-MIP210-EN-206*
