Instruction for Use
1
Instruction for Use -
Installing the IC0164F-3074-K Flange Trim Kit
on DWC183074T-R2 Dual Warming Cabinets.

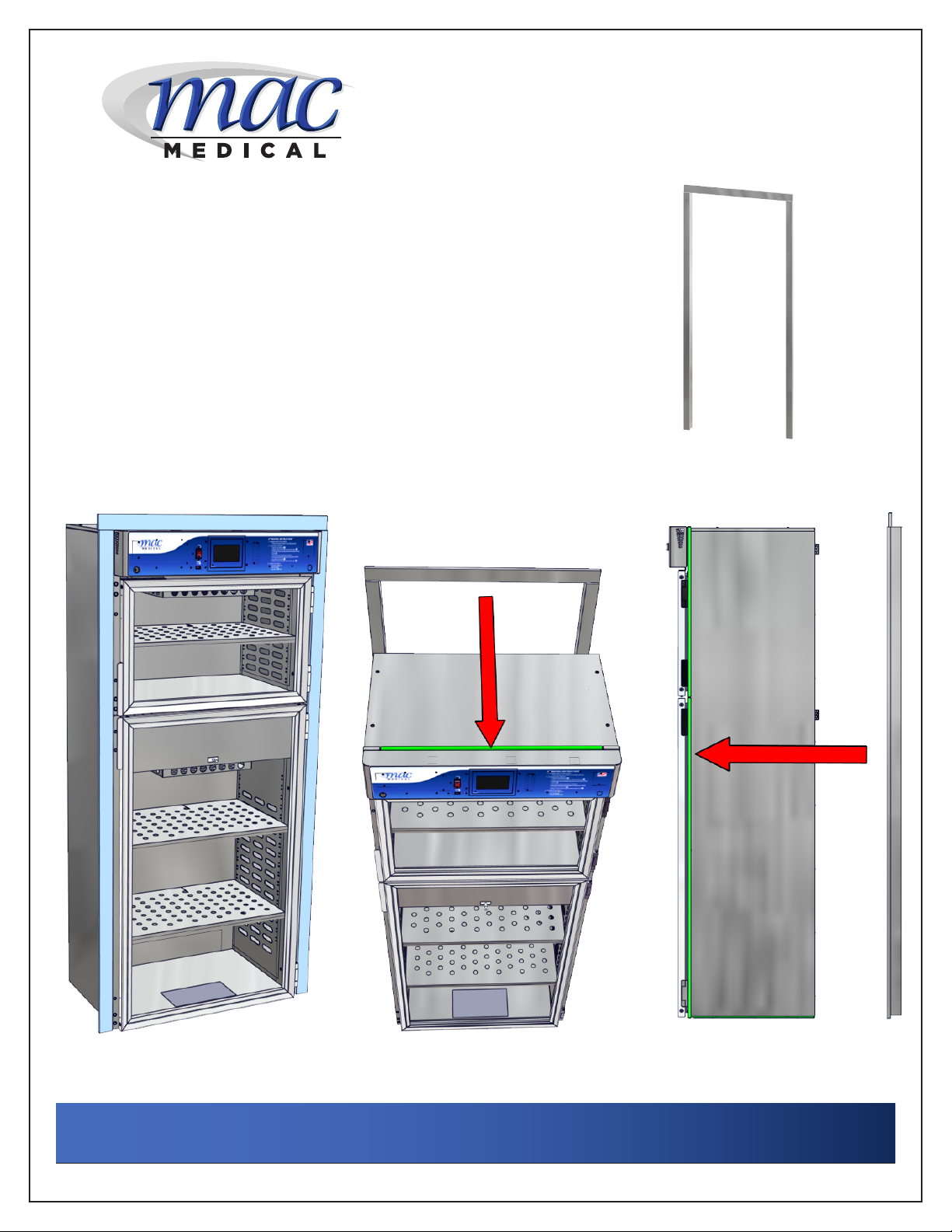

The IC0164F-3074-K Flange Trim Kit (Fig. 1) is used to provide trim for recessed
Dual Warming Cabinets (Model DWC183074T-R2). The kit comes as a single
welded unit of three anges. When installed, the anges of this kit extend to the
bottom of the cabinet (Fig. 2 - shown in light blue for clarity).
1. To t onto the Dual Warming Cabinet, from the back of the
warming cabinet, slide the Flange Trim kit to the cabinet’s front
edge. The front edge of the anges should be placed over the
top and side edges of the cabinet (Fig. 3 & Fig. 4- shown in green).
It should t snug and ush with the front of the cabinet
2. The cabinet is ready to be moved into its assigned recessed
space.
Fig. 1: IC0164F-3074-K Flange Trim Kit
Fig. 2: Flange Trim Kit on Cabinet
Fig. 3: Slide Flange Kit over top front edge
Fig. 4: Fit Kit over side front edge
Printed in USA
Publication No. IFU-108 Rev B
July 2017
Information regarding this product is
subject to change without prior
notice.
To place an order, phone customer service at 618-476-3550
or 877-828-9975 or email [email protected]

Instruction for Use
2
Instruction for Use -
Installing the IC0164F-3074-K Flange Trim Kit
on DWC183074T-R2 Dual Warming Cabinets.
3. Plug in the cabinet to the outlet located within the wall recess.
4. Place the cabinet into its wall recess (Fig. 5 - Fig. 6). The Flange Trim should seat ush on the wall face (Fig.
5- red arrows).
Fig. 5: Slide cabinet with trim into enclosure Fig. 6: Cross section of cabinet in enclosure
