Aivia 200 User manual

A-MIP 200 V1.06
200
A-MIP 200 Installation and Operating Manual

2
A-MIP 200 V1.06
General Information
Safety
• To avoid risk of fire or electric shock, the AIVIA should
not be placed near any naked flame.
• Leave a space of at least 13 cm around the AIVIA to
assure proper ventilation.
• Keep the AIVIA away from radiators or any other heat
source.
• Do not place the AIVIA near any devices that generate
heat. Do not place anything under the AIVIA.
• To avoid damage, do not insert objects into any of the
openings in the AIVIA.
• Never install the AIVIA in direct exposure to sunlight.
• Do not expose the AIVIA to any moisture when the
door is open.
• The mountings must be adapted to the type of support
on which the AIVIA is fixed.
• The manufacturer cannot be held liable for improper
mounting or in the case of accident or injury during its
mounting.
Important
Read this manual before installation and use of the
Aivia. Read this section carefully and follow the
instructions.
The warranty does not cover damage caused by failure
to follow these instructions.
Never install an AIVIA in direct exposure to sunlight.
The unheated AIVIA must be installed in a temperate
environment, in accordance with the manufacturer’s
specifications for the defibrillator.
The heated AIVIA must be installed in an environment
that respects the operating temperatures of the AIVIA.
You must monitor and follow up alerts related to
temperature. Environmental information
• When returning the AIVIA, you should only use the
original packaging.
• Do not dispose of the AIVIA or its packaging with nor-
mal household waste. Use the collection system in place
in your area. The use of collection systems will help pre-
serve the environment and your health.
•The AIVIA can contain batteries in compliance with EU
Directives 2006/66/CE and 2008/103/CE. These cannot
be disposed of with normal household waste. Please use
the system for collecting used batteries in place in your
area. The proper disposal of used batteries preserves
the environment and your health.
General Notice
The characteristics of the AIVIA are subject to change
without notice.
The manufacturer of the AIVIA reserves the right to
change products at any time, including unconstrained
modifications to previously delivered products.
The AIVIA commercial brand is a registered trademark.
Warranty
Do not disassemble the various elements constituting
the AIVIA.
Do not push objects into openings.
Only qualified personnel may carry out repairs on the
AIVIA.
Failure to comply with this will void any warranty.
Any operation expressly prohibited, or assembly
procedures not recommended by this manual, will also
void the warranty.
Maintenance
CAUTION
THE AIVIA CAN CONTAIN BATTERIES.
THERE IS A RISK OF EXPLOSION IF BATTERIES
CONTAINED USED BY THE AIVIA ARE REPLACED
BY INCORRECT BATTERIES.
ONLY A QUALIFIED OPERATOR IS AUTHORIZED TO
REPLACE THE BATTERIES.
Compliance
EN 55022:2006
EN 55024: 1998/ A1 : 2001/ A2 : 2003

3

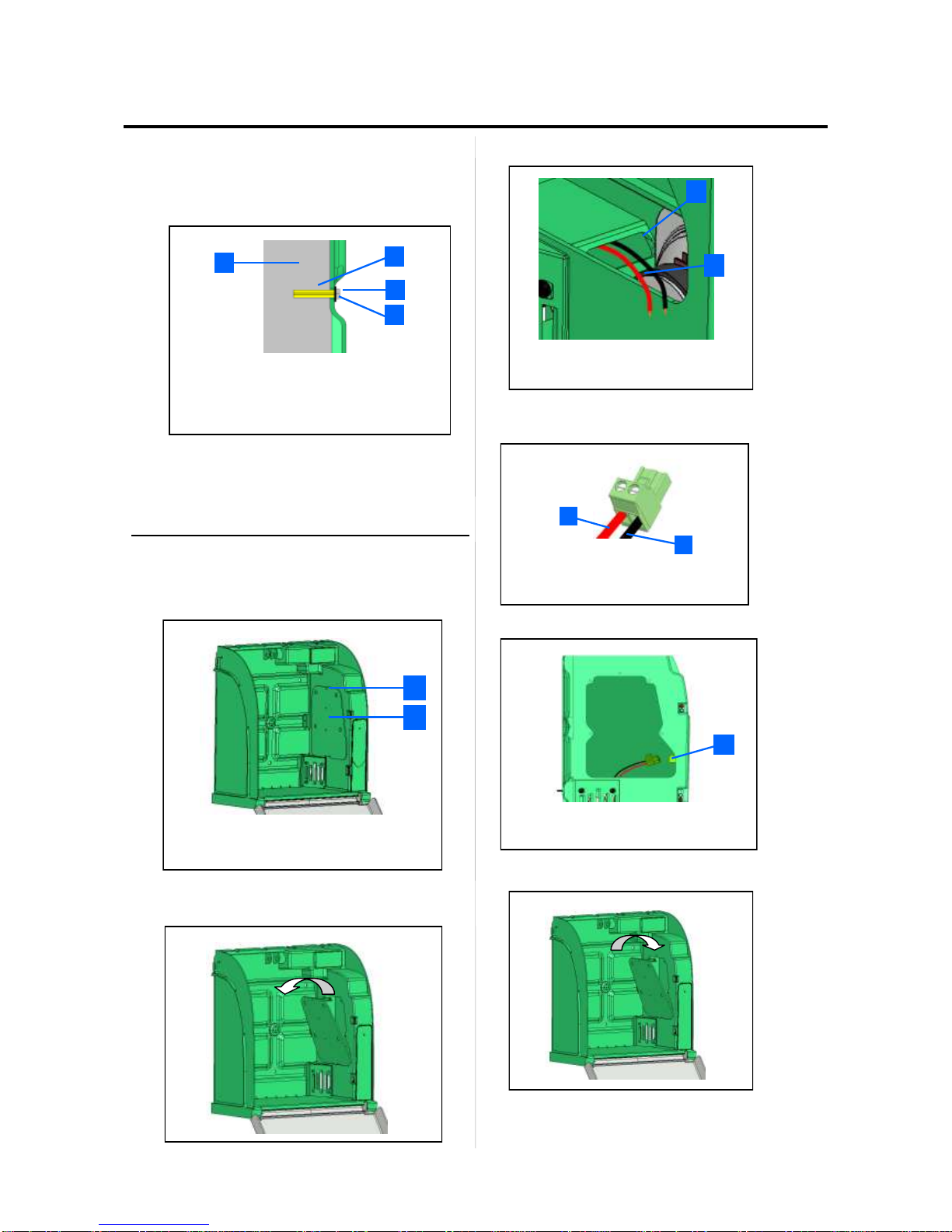

A-MIP 200 V1.06
Installation
Important 4
Aivia presentation 4
Identification Label 4
Initial opening 4
Aivia Mounting 5
Connect power to the Aivia 6
Setting up the defibrillator 7
Installing seals 7
Pictograms 7
Contents
Use
Night mode operation 8
Heating option operation 8
Alarm operation 8
Using the Aivia 8
After using the defibrillator 8
Aivia Maintenance 8
Troubleshooting 9
Specifications

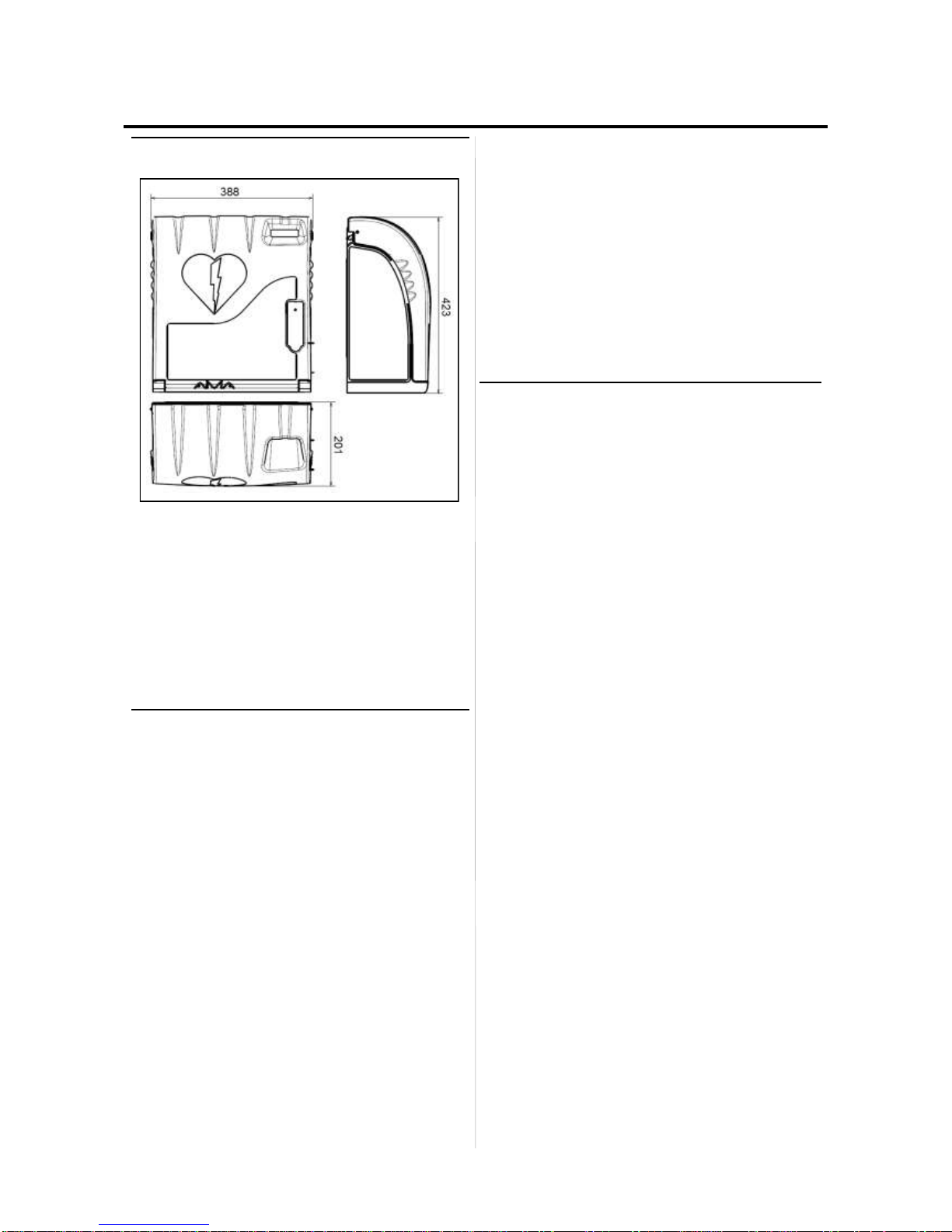

Mechanical properties 11
Electrical properties 11
Compliance 11
Electrical Installation 10
Power supply unit 10

4
A-MIP 200 V1.06
Installation
Identification Label
• The identification label is mounted inside the Aivia.
• For all communications with Customer Service or your
representative, please have the Aivia reference number
and serial number available.
Initial opening
•To open the Aivia door before wall mounting, use a
small screwdriver.
•Slide the screwdriver between the door and the Aivia
frame.
•Lift up the screwdriver, taking care not to mark the
components.
. Do this on both sides of the Aivia.
Serial Number
Reference Options
Important
Read this manual with caution before setting up and
using the Aivia.
Never install Aivia under direct sunlight exposure.
You risk exposing the defibrillator to excessive tem-
peratures.

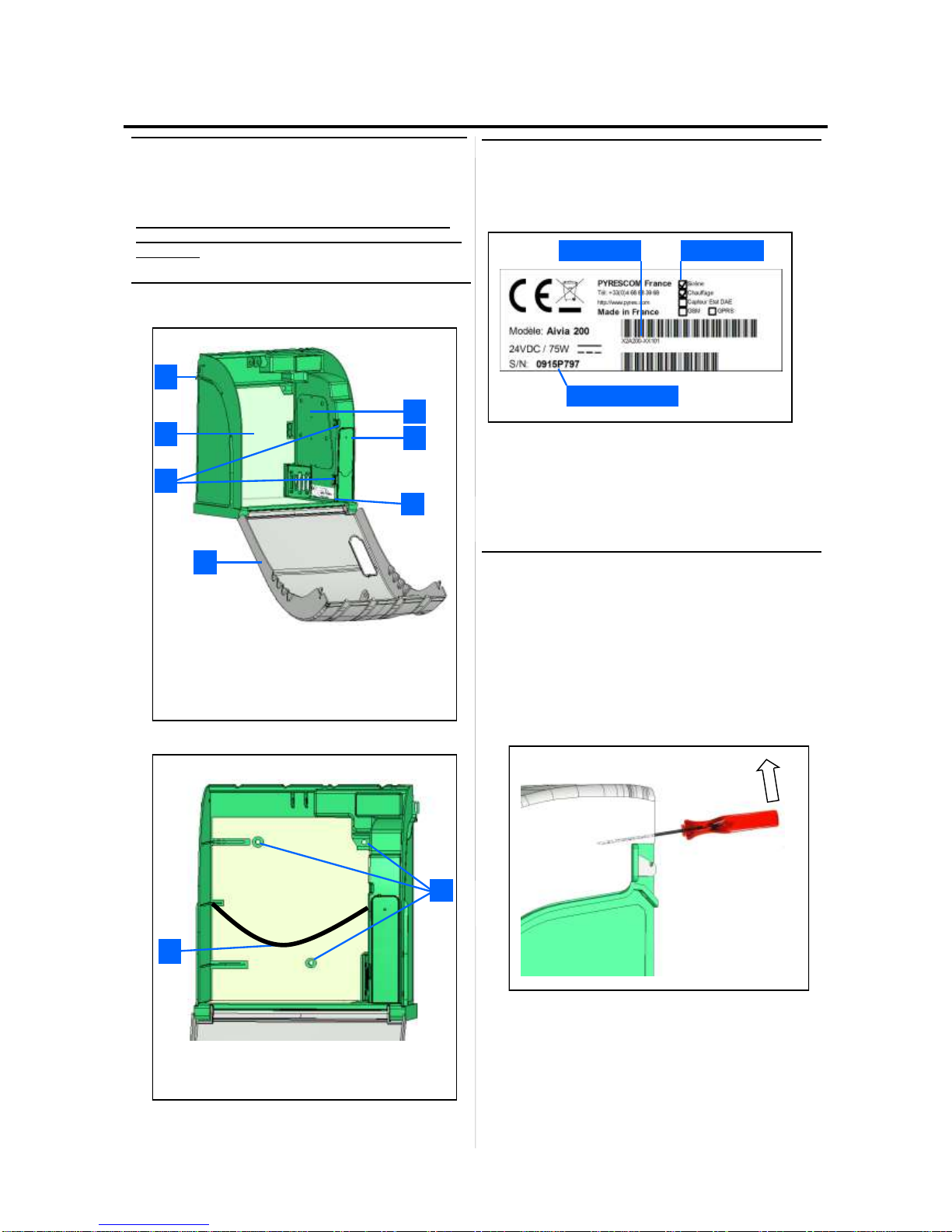

Aivia presentation
1 Electronic compartment.
2 Light sensor.
3 Seals passageway
4 Heating film *.
5 Night and alert indicators.
6 Door
7 Identification plate. * Option
1
2
4
3
6
5
7
9
8
8 Fixing holes.
9 AED holding sandow .

5
A-MIP 200 V1.06
Installation

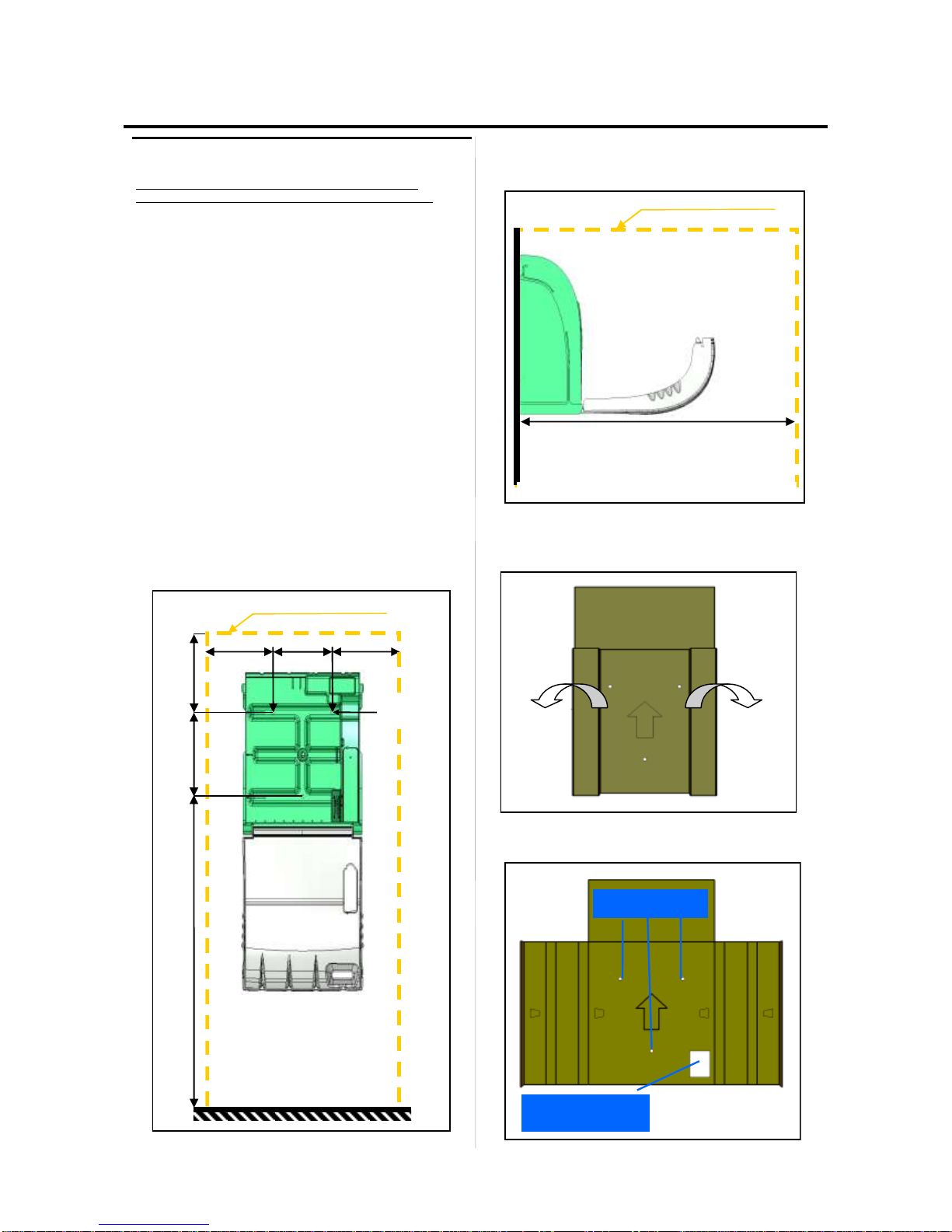

Aivia Mounting
DonotinstallAiviaexposed todirectsunlight.The
defibrillatormaybeexposedtoextremetemperatures.
• Aivia installation must be performed by persons with the
required professional expertise, adhering to the
Bornavie Charter.
• If the Aivia is installed in a public area or passageway,
provide a floor area (abutment) or a column, to conform
with the Decree of January 15, 2007, "Technical
requirements for free passageway" Article Nº6-D.
• Mounting must be suitable for the type of substrate
which the Aivia is attached to.
• Leave a free area for installing the Aivia as specified in
the sketches below.
• The exact dimensions of the Aivia are provided at the
end of this document in the Specifications section.
• Make sure that every cable has been taken thru the
cable passage before affixing the Aivia to the wall.
215 mm
190mm220mm 220mm
150 mm1300 mm
8,5 mm
• Leave a 140 cm clear space in front of the Aivia wall
mounting to allow door to open freely.
• Use the drilling template supplied with packaging to
mark the mounting holes and cable entry on the wall.
• Place the drilling template on the wall, arrow facing you
and pointing up.
1400 mm
Useful zone for Aivia implementation
Fixing holes
24V DC Cables
passage
Area required for Aivia mounting

6
A-MIP 200 V1.06
Installation
• Use suitable mounting method for the type of
substrate on which Aivia is installed.
• Mounting must be able to support a minimum load of
20 Kg.
• Mounting example:
• The screw head washer set must not exceed 8mm
thick.
Use the 3 mounting holes to mount the Aivia.
Connect power to the Aivia
The Aivia must be supplied with 24VDC power,
ensure compliance with the "Electrical Installation"
section
•Unscrew the door mounting screw with a star
screwdriver and tip the door from above.
• Pass power wiring through the wiring pass through
• Connect cables to the supply terminals, respecting
proper polarity.
• Connect the terminal to the power connector.
Ensure that the Aivia is under power by checking that
the red warning lights are blinking.
Replace the access door by insert the lower edge
first.
•Insert mounting screws using a start screwdriver.
1 2
3
4
1 Supporting wall.
2 Pin/Nylon plug.
3 Fixing screw, M6 minimum, M8 maximum.
4 Shim 14mm maximum.
1
2
1
2
2
1
1
2
2
1
1
2
1
Access door mounting screws.
Electronics access door
1 Power connection
Seal openings.
Power supply*
+24VDC Red Wire.
0V Black Wire

7
A-MIP 200 V1.06
Installation

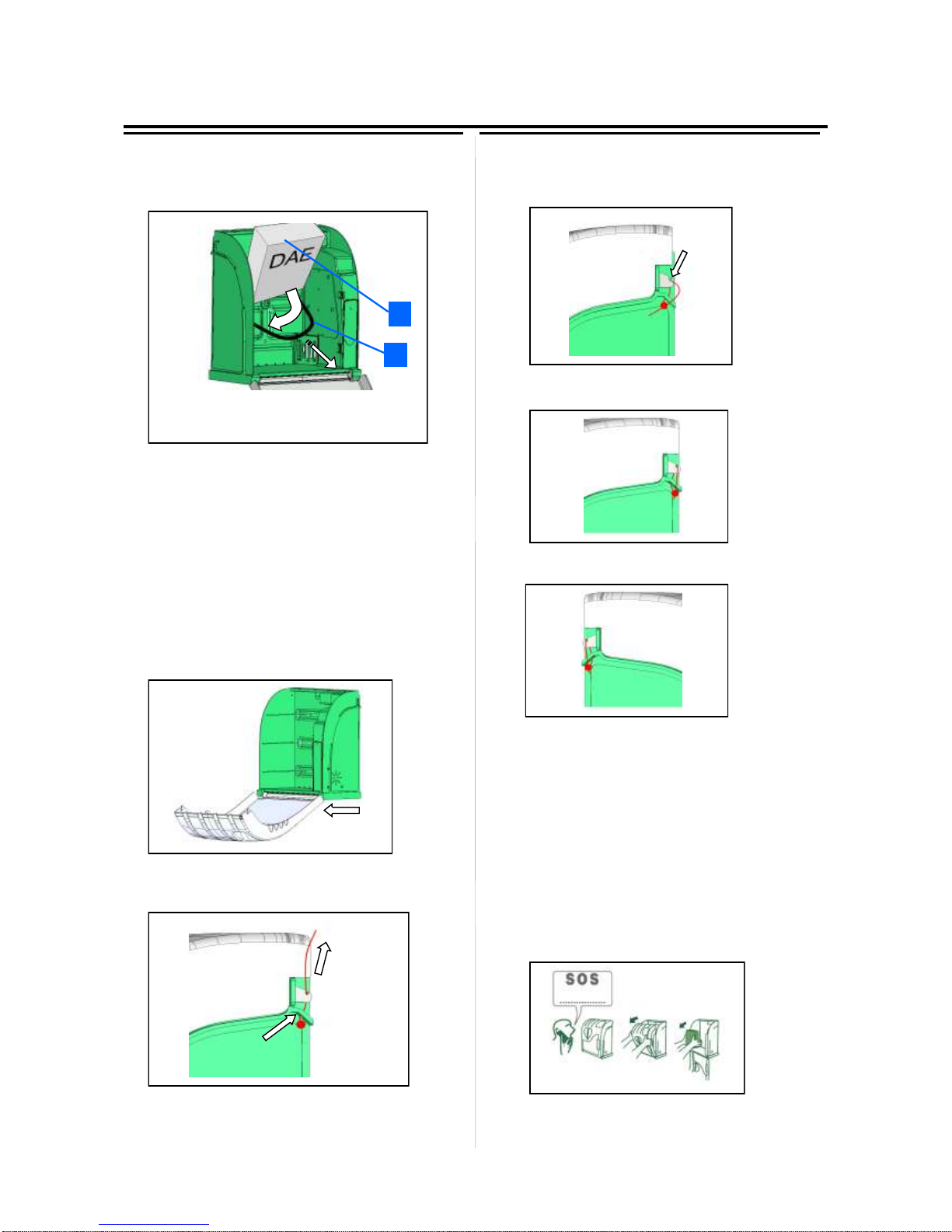

Setting up the defibrillator
Pull on the defibrillator holding tensioner and slide the
defibrillator to the bottom of the Aivia.
The tensioner allows the defibrillator to be easily
removed in an emergency while ensuring that it is held
properly.
• Tighten the wire correctly, taking care not to break it.
Make sure that the wire cannot be removed from the slot
without being broken.
• Crimp the seal body with pliers and snip off the excess
wire.
You must install seals on both sides of the Aivia.
•Regularly inspect seal condition
•If the Aivia seals have been opened, make sure that
all items of the defibrillator are present and working
properly.
In case of any doubt, contact your defibrillator distributor.
Pictograms
The signs on the door of AIVIA inform you of what to do
in an emergency.
You must mark the emergency number to call in the
SOS pictogram if one is not already noted there.
• Ensure that these instructions remain legible and in
plain view.
2
1
1
2 Defibrillator slides in vertically.
Holding tensioner.
Installing seals
• The Aivia is shipped with two seal kits
• Seals give evidence of door opening
• Regularly inspect seal condition
Seal installation
• Completely close the Aivia door Be sure to pull the
door foot toward you before to swing the door
Slide the full length of the seal wire through the Aivia
frame hole.
• Fold the wire over the door slot
• Thread the wire through the seal body.

8
A-MIP 200 V1.06
Use
Night mode operation
The Aivia is equipped with a light detector. In low
ambient light, blinking white lights help identify the
location of the Aivia.
• Take hold of the defibrillator
• Go to the victim
• Activate the defibrillator
• Follow the defibrillator instructions
Heating option operation
The heater allows the defibrillator operating temperature
to be held within certain limits. In extreme cold, ensure
that the temperature warning lights are not blinking red.
Ventilation allows hot air within the Aivia to escape. In
hot weather, ensure that the temperature warning lights
are not blinking red.
Using the Aivia
If you are a witness of an incident requiring use of a
defibrillator.
Call emergency services.
Speak in a strong, clear voice, describe the situation and
specify the location of the incident.
Open the Aivia door by pulling the top.
The visual warning will be given by blinking red lights.
If your Aivia is equipped with an audible alarm, it will
sound for about 3 minutes.
Aivia Maintenance
Clean the surfaces of the Aivia using a soft damp cloth.
Wipe the Aivia with a soft, clean and dry cloth. Do not use
chemical products or cleaners, which may damage the
Aivia.
Do not rub the Aivia with a hard object, which may scratch
or permanently damage the surfaces.
Do not use any high pressure cleaner.
Regularly inspect seal condition
If the Aivia seals have been opened, make sure that all
items of the defibrillator are present and working properly.
In case of any doubt, contact your defibrillator distributor.
Alarm operation
Door opening alarm:
•When the door is opened, blinking red lights give a
visual warning.
•If your Aivia is equipped with an audible alarm
(Reference: X2A200-XX100 or X2A200-XX101) it will
sound for about 3 minutes.
•Close the door to stop the alarm.
Temperature alarm:
•The temperature alarm, indicated by a continuously
blinking red light when the door is closed, is
triggered below 5º or above 40º.
After using the defibrillator
• Do not place the defibrillator back inside the AIVIA be-
fore reactivating it.
• Follow the instructions in the defibrillator’s manual to
reset it for use.
• The manufacturer may be able to help reactivate the
defibrillator. Please feel free to contact them.
• After reactivating the defibrillator, replace it inside the
AIVIA using the instructions in the section "Setting up the
defibrillator."
• Replace the seal using the instructions in the section
"Installing a seal".

9
A-MIP 200 V1.06
Troubleshooting
•When power is applied red lights do not blink.
1. Check wiring polarity.
2. Check power supply connection.
3. Check voltage (24VDC) at the terminals.
4. Check proper insertion into terminals
5. Contact supplier.
•White lights do not blink in night operation.
1. Check power to Aivia.
2. Contact supplier.
•Red lights do not blink when the door is opened.
1. Check power to Aivia.
2. Contact supplier.
•Siren does not sound when door is opened.
1. Check the Siren option on the identification label.
2. Check power to Aivia.
3. Contact supplier.

10
A-MIP 200 V1.06
Electrical installation
Power Supply Block
Must be located outside the Aivia, never installed
inside the Aivia.
•The power supply block must include:
A 10A/30mA residual current circuit breaker.
A 24VDC/75W CLASS II (TT System) power
supply*.
The power supply must be from a power limited source.
The mains connection must include the primary phase,
neutral, and earth.
The maximum full load secondary voltage drop must
not exceed 2%, or 23.5V at the Aivia terminal.
The power block must be dust and water proof, and
ventilated**.
•The power block wiring must conform to
standards on force in the country of use.
* Recommended power supply: PYRESCOM C_AL/DR75-24.
** Natural or forced convection depending on the environnment and
thermal characteristics at maximum load.
TBT CABLE:
Type U1000R2V. 2 insulated jacketed conductors,
1.5mm² area, 10 metres maximum length.
Use red or maroon colour cable for the +24V line.
Use black or gray colour cable for the 0V line.
230 VAC/50Hz
POWERSUPPLYBLOCK
Power Pupply
24VDC/75W
CLASSE I
TBT CABLE
www.aivia.eu/doc/A-DPM.html
MainsPower

11
A-MIP 200 V1.06
Specifications
Mechanical properties
• Weight
X2A200-XX000: 2.7 Kg.
X2A200-XX100 (siren option): 3 Kg.
X2A200-XX100 (heating option): 2.9 Kg.
X2A200-XX100 (heating & siren option): 3.2 Kg.
•Materials:
Door: Polycarbonate.
Frame: ABS.
Bracket: ABS.
• Trappe : ABS.
Electrical properties
• Power supply:
24 VDC, 75 Watts, power limited source.
• Aivia operating temperatures:
Minimum: -20ºC.
Maximum: 55ºC.
• Temperature alarms:
Low temperature alarm: 5ºC.
High temperature alarm: 40ºC.
• Heating option:
(References: X2A200-XX001 or X2A200-XX101)
Heating setpoint: 13ºC.
Ventilation setpoint: 27ºC.
•Electrical consumption:
• X2A200-XX000:
Minimum: 0.9 mA.
Maximum: 80 mA.
Compliance
EN 55022:2006
EN 55024: 1998/ A1 : 2001/ A2 : 2003
Dimensions in mm
• X2A200-XX100 (siren option):
Minimum: 0.9 mA.
Maximum: 500 mA.
Sound level: 103 dB /1 metre.
•X2A200-XX001 (heating option):
Minimum: 0.9 mA. Maximum: 2000 mA.
•X2A200-XX101 (heating & siren option):
Minimum: 0.9 mA.
Maximum: 2400 mA.
Sound level: 103 dB /1 metre.

12
A-MIP 200 V1.06
www.aivia.eu
