S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

CT-FX7019

• TYPE: YL

STEREO CAR CASSETTE RECEIVER

• BASIC TAPE MECHANISM: CDS-522AV

S/M Code No. 09–997–401–2T4

ELECTRICAL PARTS LIST-1/4

NOTE: The characters in the suffix column indicate the part usage.

01LS ...................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 634 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 704 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 703 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 701 87-010-314-080 0E C-CAP,S 22P-50V A...................

C 702 87-010-315-080 0E C-CAP,S 27P-50 CH A...................

C 751 87-010-178-080 0E CHIP CAP 1000P A...................

C 753 87-010-178-080 0E CHIP CAP 1000P A...................

C 754 87-010-197-080 0E CAP, CHIP 0.01 DM A...................

C 752 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

D 702 87-027-262-010 0E LEDE,TLR-124(RED) A...................

D 754 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 757 87-020-331-080 0E CHIP-DIODE,DAN202K ....................

D 755 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 752 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 758 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 762 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

IC 701 87-A21-194-010 2P C-IC,UPD178016AGC-527-3B9 A...................

L 631 87-003-149-080 0E COIL,47UH A...................

Q 703 87-A30-287-040 0E C-TR,DTC114TKA A...................

SW 703 87-036-109-010 1A PUSH SWITCH A...................

SW 751 87-A91-152-010 1A SW,SL 1-1-2 SSSS212-11-A A...................

X 701 87-A70-175-010 1B VIB,XTAL 4.5MHZ AT-49 A...................

C 202 87-010-178-080 0E CHIP CAP 1000P A...................

C 201 87-010-178-080 0E CHIP CAP 1000P A...................

C 211 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 212 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 228 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 226 87-010-555-040 0E CAP,E 100-10 GAS A...................

C 238 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 237 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 234 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 233 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 236 87-010-555-040 0E CAP,E 100-10 GAS A...................

C 235 87-010-555-040 0E CAP,E 100-10 GAS A...................

C 251 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 253 87-010-497-040 0E CAP,E 4.7-35 GAS A...................

C 254 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 255 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 252 87-A10-924-040 0E CAP,E 47-16 BP SME A...................

CNA 251 8Z-KT1-634-010 CONN ASSY,10P DECK-1 A...................

CNA 252 8Z-KT1-635-010 CONN ASSY,5P DECK-2 A...................

D 251 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 253 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 252 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

IC 202 87-A21-191-010 IC,KIA6225S A...................

IC 251 88-KT1-604-010 IC,TA7291P A...................

Q 253 87-A30-283-040 C-TR,DTA114YKA A...................

Q 256 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 252 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 254 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 255 87-A30-295-010 TR,KRA226M A...................

Q 251 87-A30-295-010 TR,KRA226M A...................

C 101 87-010-178-080 0E CHIP CAP 1000P A...................

C 102 87-010-186-080 0E CAP,CHIP 4700P A...................

C 104 87-010-197-080 0E CAP, CHIP 0.01 DM A...................

C 106 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 108 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 103 87-010-490-040 0E CAP, ELECT 0.1-50 A...................

C 105 87-010-495-040 0E CAP,E 2.2-50 GAS A...................

C 107 87-010-552-040 0E CAP,E 22-16 GAS A...................

C 109 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 114 87-010-178-080 0E CHIP CAP 1000P A...................

C 119 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 115 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 111 87-010-197-080 0E CAP, CHIP 0.01 DM A...................

C 116 87-010-197-080 0E CAP, CHIP 0.01 DM A...................

C 117 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 110 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 123 87-010-197-080 0E CAP, CHIP 0.01 DM A...................

C 121 87-010-213-080 0E C-CAP,S 0.015-50 B A...................

C 122 87-010-213-080 0E C-CAP,S 0.015-50 B A...................

C 131 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 132 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 133 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 143 87-010-182-080 0E C-CAP,S 2200P-50 B A...................

C 144 87-010-182-080 0E C-CAP,S 2200P-50 B A...................

C 146 87-010-197-080 0E CAP, CHIP 0.01 DM ....................

C 145 87-010-197-080 0E CAP, CHIP 0.01 DM ....................

C 148 87-010-494-040 0E CAP,E 1-50 GAS A...................

ELECTRICAL PARTS LIST-2/4

C 147 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 141 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 142 87-010-498-040 0E CAP,E 10-16 GAS A...................

D 101 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 102 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

D 131 87-070-334-080 0E ZENER,MTZJ10B A...................

J 101 8Z-KT1-614-010 1A ANT,AW-002 A...................

L 101 87-003-143-080 0E COIL 4.7 UH A...................

L 102 8Z-KT1-619-010 1A COIL,68MH K7-D A...................

Q 109 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 107 87-A30-288-040 0E C-TR,DTC114YKA A...................

Q 105 87-A30-289-040 0E C-TR,2SA1037AK(R) A...................

Q 102 89-324-122-080 0E TR,2SC2412K A...................

Q 101 89-324-122-080 0E TR,2SC2412K A...................

Q 103 89-324-122-080 0E TR,2SC2412K A...................

Q 104 89-324-122-080 0E TR,2SC2412K A...................

Q 106 89-324-122-080 0E TR,2SC2412K A...................

Q 131 87-A30-293-010 TR,KTC2804(Y) A...................

TU 101 8Z-KT1-631-010 2D TU UNIT, FAE347-A02 A...................

C 306 87-010-184-080 0E CHIP CAPACITOR 3300P(K) A...................

C 305 87-010-184-080 0E CHIP CAPACITOR 3300P(K) A...................

C 308 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 307 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 302 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 301 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 303 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 304 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 309 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 310 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 316 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 315 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 312 87-A11-177-080 0E C-CAP,S 0.15-16 K B A...................

C 314 87-A11-177-080 0E C-CAP,S 0.15-16 K B A...................

C 313 87-A11-177-080 0E C-CAP,S 0.15-16 K B A...................

C 311 87-A11-177-080 0E C-CAP,S 0.15-16 K B A...................

C 321 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 323 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 324 87-010-552-040 0E CAP,E 22-16 GAS A...................

C 322 87-010-555-040 0E CAP,E 100-10 GAS A...................

C 356 87-010-491-040 0E CAP,E 0.22-50 GAS A...................

C 355 87-010-491-040 0E CAP,E 0.22-50 GAS A...................

C 353 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 354 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 352 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 351 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 367 87-010-175-080 0E CAP 560P A...................

C 366 87-010-175-080 0E CAP 560P A...................

C 365 87-010-175-080 0E CAP 560P A...................

C 368 87-010-175-080 0E CAP 560P A...................

C 362 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 363 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 361 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 364 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 551 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 590 87-010-178-080 0E CHIP CAP 1000P A...................

D 551 87-020-331-080 0E CHIP-DIODE,DAN202K A...................

IC 301 8Z-KT1-622-010 2A C-IC,LC75374E A...................

Q 351 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 352 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 554 87-A30-281-040 0E C-TR,DTC363TK A...................

Q 552 87-A30-281-040 0E C-TR,DTC363TK A...................

Q 553 87-A30-281-040 0E C-TR,DTC363TK A...................

Q 551 87-A30-281-040 0E C-TR,DTC363TK A...................

Q 559 87-A30-282-040 C-TR,DTA114TKA A...................

Q 560 87-A30-287-040 0E C-TR,DTC114TKA A...................

C 504 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 506 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 502 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 507 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 501 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 503 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 505 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 508 87-010-322-080 0E C-CAP,S 100P-50 CH A...................

C 512 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 513 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 511 8Z-KT1-633-090 1B CAP,E 3300U-16 PW A...................

IC 501 87-A20-876-010 2M IC,HA13158 A...................

C 601 87-010-935-040 0E CAP,E 220-16 M VR A...................

C 611 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 612 87-016-459-040 0E CAP,E 470-10 SMG A...................

C 621 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 622 87-010-555-040 0E CAP,E 100-10 GAS A...................

C 633 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 631 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 635 87-010-553-040 0E CAP,E 47-16 GAS A...................

ELECTRICAL PARTS LIST-3/4

C 632 87-016-039-090 1B CAP,DL 0.022F-5.5 Z 70 FM A...................

C 641 87-010-198-080 0E CAP, CHIP 0.022 A...................

C 653 87-010-555-040 0E CAP,E 100-10 GAS A...................

C 652 87-A11-177-080 0E C-CAP,S 0.15-16 K B A...................

C 651 87-A11-177-080 0E C-CAP,S 0.15-16 K B A...................

C 671 87-010-553-040 0E CAP,E 47-16 GAS A...................

C 882 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 881 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 883 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

CNA 881 8Z-KT1-620-010 CONN ASSY,8P ISO-BLACK ....................

CNA 882 8Z-KT1-621-010 CONN ASSY,8P ISO-WHITE ....................

CON 881 8Z-KT1-611-010 1B CONN,16P CAM-B51 A...................

D 611 87-070-334-080 0E ZENER,MTZJ10B A...................

D 621 87-017-931-080 0E ZENER,MTZJ5.6B A...................

D 632 87-001-783-080 0E DIODE,1N4002 A...................

D 631 87-001-783-080 0E DIODE,1N4002 A...................

D 634 87-017-931-080 0E ZENER,MTZJ5.6B A...................

D 633 87-A40-002-080 0E ZENER,MTZJ5.1C A...................

D 635 87-A40-620-080 0E ZENER,MTZJ6.2A A...................

D 641 87-070-136-080 0E ZENER,MTZJ5.1B A...................

D 671 87-070-136-080 0E ZENER,MTZJ5.1B A...................

D 881 87-001-783-080 0E DIODE,1N4002 A...................

D 882 87-001-783-080 0E DIODE,1N4002 A...................

F 881 8Z-KT1-617-010 FUSE,10A 32V A...................

IC 641 88-KT1-606-080 1A IC,PST994D A...................

IC 651 88-KTD-604-010 IC,BA09T A...................

L 881 8Z-KT1-615-010 1C FLTR,AMORPHOUS -CHOKE A...................

PL 701 8Z-KT1-641-010 1A LAMP,T-3 A...................

Q 604 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 603 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 601 87-A30-290-010 TR,KTA1658(Y) A...................

Q 602 87-A30-290-010 TR,KTA1658(Y) A...................

Q 611 87-A30-291-010 TR,KTC4369(Y) A...................

Q 621 87-A30-292-010 0E TR,KTC3205(Y) A...................

Q 633 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 632 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 631 87-A30-292-010 0E TR,KTC3205(Y) A...................

Q 702 87-A30-287-040 0E C-TR,DTC114TKA A...................

Q 701 87-A30-294-040 C-TR,DTB123YK A...................

R 605 88-148-102-080 C-RES, 1K-1/2W J A...................

C 862 87-010-494-040 0E CAP,E 1-50 GAS A...................

C 861 87-010-494-040 0E CAP,E 1-50 GAS A...................

CON 851 8Z-KT1-613-010 1C CONN,16P CAM-C74 A...................

D 853 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 857 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 852 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 855 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 856 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 851 87-017-932-080 0E ZENER,MTJ6.2B A...................

D 860 87-017-932-080 0E ZENER,MTJ6.2B A...................

SW 702 87-036-220-080 1A C-SW,T A...................

C 381 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 453 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 452 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 451 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 454 87-010-498-040 0E CAP,E 10-16 GAS A...................

C 455 87-012-140-080 0E CAP 470P A...................

C 458 87-012-140-080 0E CAP 470P A...................

C 457 87-012-140-080 0E CAP 470P A...................

C 456 87-012-140-080 0E CAP 470P A...................

J 451 88-KTA-604-010 1C JACK,PIN 4P V-TYPE A...................

Q 381 89-324-122-080 0E TR,2SC2412K A...................

C 901 87-010-176-080 0E C-CAP,S 680P-50 SL A...................

C 903 87-010-194-080 0E CAP, CHIP 0.047 A...................

C 902 87-010-194-080 0E CAP, CHIP 0.047 A...................

C 901 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

C 921 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................

CON 901 8Z-KT1-612-010 1B CONN,16P CAM-C73 A...................

D 907 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................

D 906 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................

D 908 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................

D 909 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................

D 921 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................

IC 902 87-A90-951-010 1C RCR UNIT,SBX1971-52 A...................

IC 901 88-KT1-608-010 1H C-IC,LC75854W A...................

J 901 87-A60-249-010 1B JACK,MOJ-B32 A...................

LCD 901 8Z-KT1-608-010 2B LCD,ZKT-3 A...................

LED 909 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 906 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 907 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 903 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 908 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 905 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 904 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 902 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 901 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 919 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 917 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 911 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 918 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 913 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 910 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 915 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 912 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 914 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 916 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 920 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

LED 921 87-017-828-070 0E C-LED,SEL 1401C GRN A...................

PL 901 8Z-KT1-641-010 1A LAMP,T-3 A...................

PL 902 8Z-KT1-641-010 1A LAMP,T-3 A...................

SW 903 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 906 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 907 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 901 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 905 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 908 87-A91-159-010 0E SW,TACT SKHLAD A...................

SW 904 87-A91-159-010 0E SW,TACT SKHLAD A...................

SW 902 87-A91-159-010 0E SW,TACT SKHLAD A...................

SW 909 87-A91-159-010 0E SW,TACT SKHLAD A...................

SW 911 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 919 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 916 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 912 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 917 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 914 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 913 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 915 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 918 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 910 87-A91-159-010 0E SW,TACT SKHLAD A...................

SW 920 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

SW 921 87-A90-001-080 1A C-SW,TACT SKQMAL A...................

ELECTRICAL PARTS LIST-4/4

NOTE: The characters in the suffix column indicate the part usage.

01LS ...................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-KT1-002-010 CABI,REAR F-T A...................

8Z-KT1-021-010 CABI,BASE F-T A...................

8Z-KT1-022-010 CABI,TRIM F-T A...................

8Z-KT1-023-010 DOOR,CASS A...................

8Z-KT5-004-010 CABI,FRONT F -T5 A...................

8Z-KT8-001-010 WINDOW,LCD FX719 ....................

8Z-KT8-002-010 WINDOW,LCD FX7019 A...................

8Z-KT8-003-010 RING,OVAL RTF -T A...................

8Z-KT1-007-010 BTN,+/- -T A...................

8Z-KT1-008-010 BTN,SEL -T A...................

8Z-KT1-009-010 BTN,MUTE -T A...................

8Z-KT1-010-010 BTN,H-BASS -T A...................

8Z-KT1-011-010 BTN,U/D -T A...................

8Z-KT1-012-010 BTN,DRV -T A...................

8Z-KT1-016-010 BTN,OPEN F -T A...................

8Z-KT1-018-010 BTN,EJ F-T A...................

8Z-KT3-002-010 BTN,P.SET -T3 A...................

8Z-KT4-003-010 BTN,TWIN BAND -T A...................

8Z-KT5-003-010 BTN,TETRA DALD -T A...................

8Z-KT5-019-010 BTN,M.INF -T A...................

8Z-KT1-201-010 ARM,F-LOCK -T A...................

8Z-KT1-202-010 LEVER,F-OPEN -T A...................

8Z-KT1-203-010 GEAR,FLAP -T A...................

8Z-KT1-204-010 HLDR,F-HOOK L -T A...................

8Z-KT1-205-010 HLDR,F-HOOK R -T A...................

8Z-KT1-206-010 CASE,LCD LENS F -T A...................

8Z-KT1-207-010 LENS,LCD F -T A...................

8Z-KT1-208-010 LENS,BASE -T A...................

8Z-KT1-209-010 LENS,IR -T A...................

8Z-KT1-211-010 COVER, TOP -T A...................

8Z-KT1-212-010 COVER, BOTTOM -T A...................

8Z-KT1-215-010 HLDR,P-IC -T A...................

8Z-KT1-216-010 HLDR,DECK CDS522 A...................

8Z-KT1-219-010 HLDR,TR -T A...................

8Z-KT1-220-010 HLDR,JACK F -T A...................

8Z-KT1-222-010 ARM,SENSOR F -T A...................

8Z-KT1-225-010 HLDR,LCD F -T A...................

8Z-KT1-229-010 HLDR,DAMPER F ASS’Y-T A...................

8Z-KT1-230-010 HLDR,DFP ASS’Y-T A...................

8Z-KT1-235-010 COVER, CONN.BLIND -T ....................

8Z-KT1-236-010 0E CAP,LAMP BLU A...................

8Z-KT1-237-010 0E CAP,LAMP GRN A...................

8Z-KT1-241-010 SPR-C,DFP HOOK F -T A...................

8Z-KT1-242-010 SPR-C,OPEN BTN F -T A...................

8Z-KT1-243-010 SPR-T,FLAP -T A...................

8Z-KT1-244-010 SPR-T,DOOR Z A...................

8Z-KT1-248-010 SPR-T,SENSOR F -T A...................

8Z-KT1-250-010 1A OIL-DMPR,100 A...................

8Z-KT1-257-010 HLDR,ISO-WIRE -T ....................

8Z-KT1-260-010 SPR-T,F.LOCK-T A...................

8Z-KT4-201-010 COVER, CD BLIND -T A...................

8Z-KT5-020-010 HLDR,M.INF -T A...................

8Z-KT5-201-010 COVER, ISO BLIND -T A...................

87-251-073-410 0E SCREW,U+2.6-6 A...................

87-251-075-410 0E U+2.6-10 A...................

87-251-096-410 0E U+3-10 A...................

87-253-034-410 0E U+2-5 BLK A...................

87-B10-210-010 0E UT2+3.0-6.0 W/0 SLOT (BH TAP) A...................

88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK A...................

8Z-KT1-246-010 S-SCREW,2.0-2.5 -10 A...................

8Z-KT1-247-010 S-SCREW,GEAR2.0-1.8 -4.2 A...................

8Z-KT1-253-010 S-SCREW,PT 2*8 BH+ BLK A...................

8Z-KT1-254-010 S-SCREW,PT 2*5 BH+ BLK A...................

MECHANICAL PARTS LIST-1/1

ACCESSORIES / PACKAGE LIST-1/1

NOTE: The characters in the suffix column indicate the part usage.

01LS ...................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-KT7-901-010 IB,YU(3L) 729M/719 ....................

8Z-KT7-902-010 IB,INST,YU (3L)729M/719 ....................

8Z-KT7-903-010 IB,YL(3L) 7029M/7019 A...................

8Z-KT7-904-010 IB,INST,YL (3L)7029M/7019 A...................

8Z-KT7-905-010 IB,YH,Y(EA CK CH)729M/719 ....................

8Z-KT7-906-010 IB,INST,YH,Y (EA CK CH)729M/71 ....................

8Z-KT8-901-010 IB,YZ(9L) 719 ....................

8Z-KT8-902-010 IB,INST,YZ (6L)719 ....................

8Z-KT8-903-010 IB,INST,YZ (CZ-PO-H)719 ....................

86-KT1-237-010 HLDR,REAR MTG A...................

87-B10-141-010 0E NUT,5 TYPE-2 A...................

87-B10-144-010 0E W,5.2-10-0.5 A...................

87-B10-145-010 0E W-SPR,5.3-8.5-1.5 A...................

88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK A...................

8Z-KT1-030-010 CASE,DFP -T A...................

8Z-KT1-231-010 HLDR,HALF -T A...................

8Z-KT1-232-010 KEY,REMOVE -T A...................

* 87-B10-143-010 0E UT1+5-15 W/O SLOT A...................

* 88-KT1-247-010 S-SCREW,HEXAGON A...................

* 8Z-KT1-251-010 S-SCREW,5*6 TH+ TAPPING ST A...................

* 8Z-KT1-616-010 1F CONN ASSY,16P B52 A...................

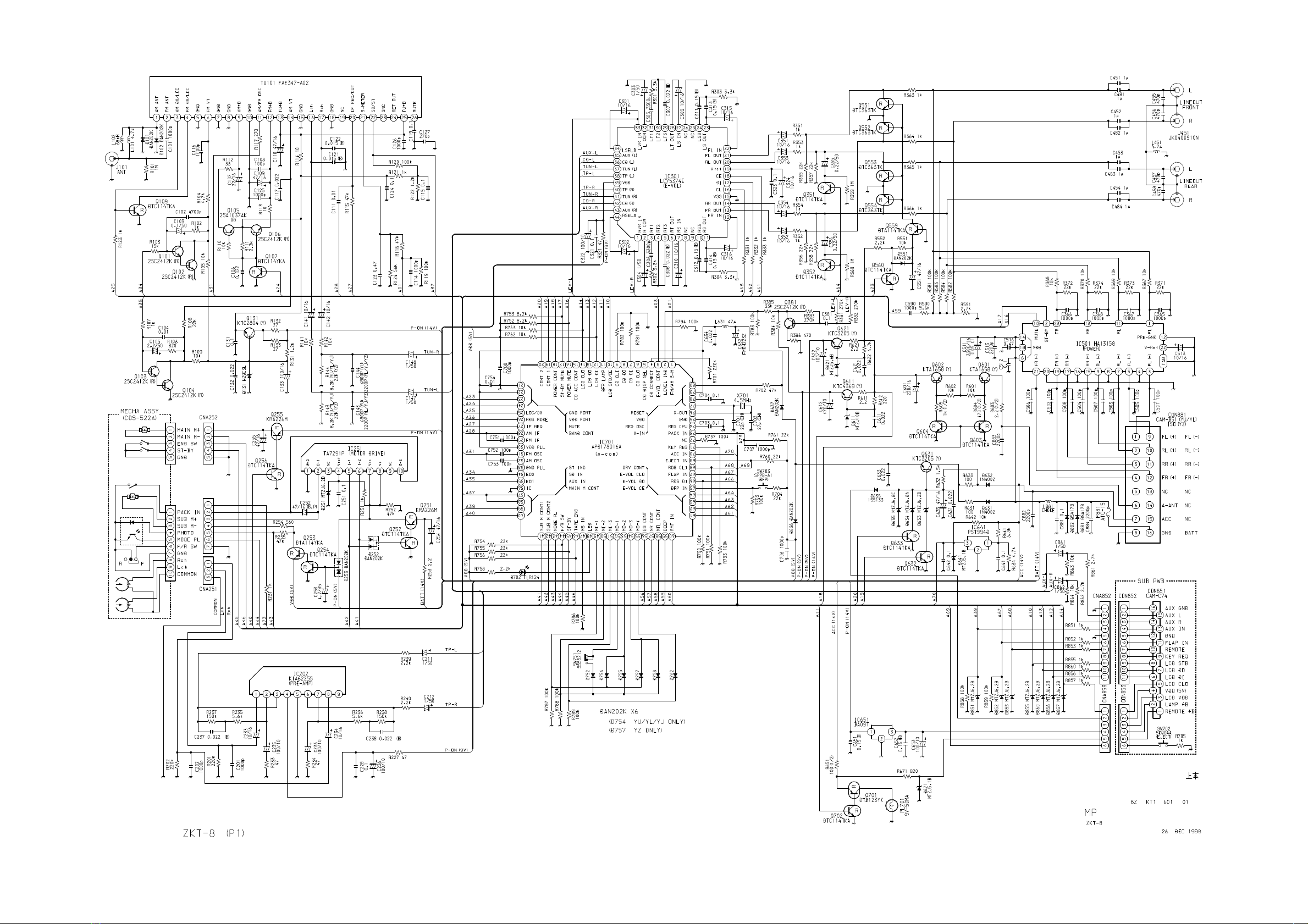

SCHEMATIC DIAGRAM _1<CT-FX719>

SCHEMATIC DIAGRAM _2<CT-FX719>

PrintedinSingapore

Tokyo Japan

9630472

Popular Car Receiver manuals by other brands

Linear Series

Linear Series LS5050 Operation and installation manual

Kenwood

Kenwood KRC-160 instruction manual

Sony

Sony XR-CA430X Service manual

T+A Elektroakustik

T+A Elektroakustik K1 CD-RECEIVER operating instructions

SoundMax

SoundMax SM-CDM1052 instruction manual

Xtrons

Xtrons HD107HD user manual

Mopar

Mopar RB3 manual

Clarion

Clarion ADDZEST DMZ615 owner's manual

Sony

Sony XAV-601BT Specifications

PIE

PIE GM12-POD/S Operation manual

Hyundai

Hyundai H-910H instruction manual

Sony

Sony XR-C6100 Service manual

Sony

Sony CDX-L600X - Fm/am Compact Disc Player Installation/connections

Motorola

Motorola VWA63 Service manual

Sound Storm

Sound Storm STM93R user manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Kenwood

Kenwood KDC-X303 quick start guide

Aiwa CT-FX7019 Specification sheet

Popular Car Receiver manuals by other brands
