Aiwa XP-V420 User manual

SERVICE MANUAL
DATA
BASIC CD MECHANISM : DA23LN
COMPACT DISC PLAYER
XP-V420
XP-V421
S/M Code No. 09-013-354-9N2
YJ1(S, LT),YHS1(S)
AHC1(S,LL)
AHRJ1(S,LT)
SIMPLE-2
Apartofcontentsisadequate.
Re-issuing is under request.

-2-
SPECIFICATIONS
420YJ1 420YHS1
421AHC1 421AHRJ1
•
Design and specifications are subject to change without
notice.
•
Design and specifications are subject to change without
notice.
•
Design and specifications are subject to change without
notice.
•
Design and specifications are subject to change without
notice.

-3-
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässäkäyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används påannat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgåudsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgåudsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

-4-
Precaution to replace Optical block
(SF-P200)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
PICK UP ASSY
SF-P200
:SOLDER
116 10 9

-5-
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION NO.
ELECTRICAL MAIN PARTS LIST-1/2
IC
87-A21-082-040 C-IC,BA6655AFV
8A-HCH-603-010 C-IC,MN101C439-AE
87-A21-446-010 C-IC,MN662782RPT1
87-A21-733-040 C-IC,MSM51V4400D-70TKFS9
87-A21-578-040 C-IC,AN8838NSB
87-A21-543-040 C-IC,NJU7012
87-A21-449-040 C-IC,AN8746SA
87-A21-085-040 C-IC,TA2120FN
TRANSISTOR
89-211-323-080 C-TR,2SB1132R
87-A30-332-040 C-TR,CPH3106
87-A30-333-040 C-TR,CPH3206
87-A30-429-040 C-TR,DTC123JKA
89-111-625-080 TR,2SA1162 (0.15W)
89-416-643-080 C-TR,2SD1664R
89-327-125-080 CHIP TR,2SC2712GR
87-026-239-080 TR,DTC114TK (0.2W)
87-026-680-080 C-TR,IMH4A
87-026-268-080 C-TR,RN2411
89-324-121-080 C-TR,2SC2412K
87-026-235-080 CHIP-TR,DTC114EK
DIODE
87-020-331-040 C-DIODE,DAN202K
87-A40-554-040 C-DIODE,RB491D
87-A40-789-040 C-DIODE,RB425D
87-A40-291-080 DIODE,1N4148 (CPT)
MAIN C.B
C101 87-010-060-040 CAP,E 100-16
C102 87-012-286-080 CAP, U 0.01-25
C103 87-012-286-080 CAP, U 0.01-25
C104 87-016-557-040 CAP,E 100-6.3 SF
C105 87-012-199-080 CAP 220P
C106 87-A10-505-040 CAP,E 220-6.3 105 SF
C107 87-A10-504-080 C-CAP,U 0.047-16 K B
C108 87-012-274-080 CHIP CAP,U 1000P-50B
C109 87-016-557-040 CAP,E 100-6.3 SF
C110 87-A10-353-080 C-CAP,U0.22-10KB
C111 87-A10-505-080 CAP,E 220-6.3 SF
C112 87-A10-249-080 C-CAP,U 1-10 ZF
C113 87-A10-260-080 C-CAP,U 0.1-16 K B
C301 87-A10-488-040 CAP,E 47-4 7L SR
C302 87-012-286-080 CAP, U 0.01-25
C303 87-010-759-080 C-CAP,U, 0.1-25F
C304 87-010-759-080 C-CAP,U, 0.1-25F
C305 87-012-286-080 CAP, U 0.01-25
C306 87-012-286-080 CAP, U 0.01-25
C307 87-012-286-080 CAP, U 0.01-25
C308 87-012-274-080 CHIP CAP,U 1000P-50B
C309 87-010-759-080 C-CAP,U, 0.1-25F
C311 87-012-274-080 CHIP CAP,U 1000P-50B
C401 87-016-557-040 CAP,E 100-6.3 SF
C402 87-A10-260-080 C-CAP,U 0.1-16 K B
C403 87-015-677-040 CAP,E 100-6.3 7L
C405 87-A10-260-080 C-CAP,U 0.1-16 K B
C406 87-A11-550-080 C-CAP,S 820P-50 K B
C407 87-010-787-080 CAP, U 0.022-25
C408 87-A10-353-080 C-CAP,U0.22-10KB
C409 87-A10-902-080 C-CAP,U 0.47-10 K B
C410 87-012-286-080 CAP, U 0.01-25
C411 87-A10-260-080 C-CAP,U 0.1-16 K B
C412 87-016-557-040 CAP,E 100-6.3 SF
C413 87-A10-260-080 C-CAP,U 0.1-16 K B
C414 87-012-188-080 C-CAP,U 47P-50 CH
C415 87-A10-260-080 C-CAP,U 0.1-16 K B
C417 87-012-188-080 C-CAP,U 47P-50 CH
C418 87-012-176-080 CAP 15P
C419 87-012-176-080 CAP 15P
C420 87-A10-260-080 C-CAP,U 0.1-16 K B
C421 87-A10-260-080 C-CAP,U 0.1-16 K B
C422 87-A10-260-080 C-CAP,U 0.1-16 K B
C451 87-A10-260-080 C-CAP,U 0.1-16 K B
C501 87-016-557-040 CAP,E 100-6.3 SF
C502 87-A10-260-080 C-CAP,U 0.1-16 K B
C504 87-A10-260-080 C-CAP,U 0.1-16 K B
C505 87-A11-228-080 C-CAP,U 0.027-25 K B
C506 87-012-199-080 CAP 220P
C507 87-012-193-080 C-CAP,U 82P-50 CH
C508 87-012-193-080 C-CAP,U 82P-50 CH
C509 87-A11-550-080 C-CAP,S 820P-50 K B
C510 87-016-557-040 CAP,E 100-6.3 SF
C511 87-A10-505-040 CAP,E 220-6.3 105 SF
C512 87-A10-488-040 CAP,E 47-4 7L SR
C513 87-A10-260-080 C-CAP,U 0.1-16 K B
C514 87-A11-228-080 C-CAP,U 0.027-25 K B
C515 87-A11-228-080 C-CAP,U 0.027-25 K B
C518 87-012-176-080 CAP 15P
C520 87-A10-488-040 CAP,E 47-4 7L SR
C521 87-012-274-080 CHIP CAP,U 1000P-50B
C522 87-A11-049-080 C-CAP,U 1-6.3 K B
C523 87-A11-049-080 C-CAP,U 1-6.3 K B
C524 87-012-172-080 CAPACITOR CHIP U 10P CH
C601 87-A12-158-040 CAP,E 100-4 M 7L SRA
C602 87-A10-249-080 C-CAP,U 1-10 ZF
C603 87-012-286-080 CAP, U 0.01-25
C604 87-A10-249-080 C-CAP,U 1-10 ZF
C605 87-010-759-080 C-CAP,U, 0.1-25F
C606 87-010-759-080 C-CAP,U, 0.1-25F
C607 87-012-286-080 CAP, U 0.01-25
C610 87-A10-249-080 C-CAP,U 1-10 ZF
C612 87-012-247-080 C-CAP,U 18P-50JUJ
C701 87-A12-158-040 CAP,E 100-4 M 7L SRA
C702 87-012-267-080 C-CAP,U 270P-50 B
C703 87-012-267-080 C-CAP,U 270P-50 B
C706 87-A10-260-080 C-CAP,U 0.1-16 K B
C707 87-A11-049-080 C-CAP,U 1-6.3 K B
C708 87-A11-049-080 C-CAP,U 1-6.3 K B
C709 87-A11-049-080 C-CAP,U 1-6.3 K B
C710 87-015-681-040 E/CAP 10-16
C711 87-A10-488-040 CAP,E 47-4 7L SR
C712 87-A10-353-080 C-CAP,U0.22-10KB
C713 87-A10-260-080 C-CAP,U 0.1-16 K B
C714 87-015-696-040 CAP,E 2.2-50 SRA
C715 87-015-681-040 E/CAP 10-16
C716 87-A10-260-080 C-CAP,U 0.1-16 K B
C717 87-A10-260-080 C-CAP,U 0.1-16 K B
C718 87-A10-505-040 CAP,E 220-6.3 105 SF
C719 87-A12-303-040 CAP,E 220-4 M 7L SRA
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C721 87-012-274-080 CHIP CAP,U 1000P-50B
C722 87-A10-260-080 C-CAP,U 0.1-16 K B
C723 87-012-286-080 CAP, U 0.01-25
CN501 87-A60-429-010 CONN,16P H TOC-A
CN603 87-009-411-010 CONN,6P ZH V
FB401 83-XM1-617-080 C-COIL,BK2125HM601
FB701 87-A50-623-080 C-COIL,BK2125HS102
FB702 87-A50-623-080 C-COIL,BK2125HS102
FB703 87-A50-623-080 C-COIL,BK2125HS102
FB704 87-A50-623-080 C-COIL,BK2125HS102
J151 87-A61-447-010 JACK,DC DJ26B BLK 6
J701 85-HC5-616-010 JACK,3.5 ST W/R GRN
L101 87-005-770-080 COIL,47UH 7607
L301 87-A50-367-080 C-COIL, 10UH LQG21F

-6-
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
•Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
ELECTRICAL MAIN PARTS LIST-2/2
L401 87-A50-711-080 C-COIL,47UH-LEMF3225
L402 87-A50-712-080 C-COIL,100UH-LEMF3225
L501 87-A50-367-080 C-COIL, 10UH LQG21F
L502 87-A50-367-080 C-COIL, 10UH LQG21F
L601 87-A50-524-080 COIL,470UH LHL06NB
LCD101 8A-HC7-602-010 LCD,AHC-7
R115 87-022-525-080 C-RES,S 20K-1/10W F
R116 87-022-355-080 C-RES,S10K-1/10W F
S301 87-A90-714-010 SW,SL 3-1-2 HSW2060-010010
S302 87-A91-742-010 SW,SL 4-1-3 HSW2061-010010
REF. NO PART NO. KANRI DESCRIPTION
NO. REF. NO PART NO. KANRI DESCRIPTION NO.
S303 87-A91-622-010 SW,MICRO PV1102
S304 87-036-349-010 SW,TACT SKHHAJ
S305 87-036-349-010 SW,TACT SKHHAJ
S306 87-036-349-010 SW,TACT SKHHAJ
S307 87-036-349-010 SW,TACT SKHHAJ
S308 87-036-349-010 SW,TACT SKHHAJ
S309 87-036-349-010 SW,TACT SKHHAJ
VR701 87-A90-462-010 VR,RTRY 30KCX2 H RK14J12A0
X401 81-592-641-010 VIB,CER 16.93MHZ

-7-
TRANSISTOR ILLUSTRATION-1/1
BE
C
E1B1C2
C1B2E2
BCE
2SA1162
2SC2412
2SC2712
CPH3106
CPH3206
DTC114EK
DTC114TK
DTC123JK
RN2411
IMH4A 2SB1132
2SD1664

-8-
FL (AHC-7) GRID ASSIGNMENT/ANODE CONNECTION-1/1
GRID ASSIGNMENT
ANODE CONNECTION

-9-

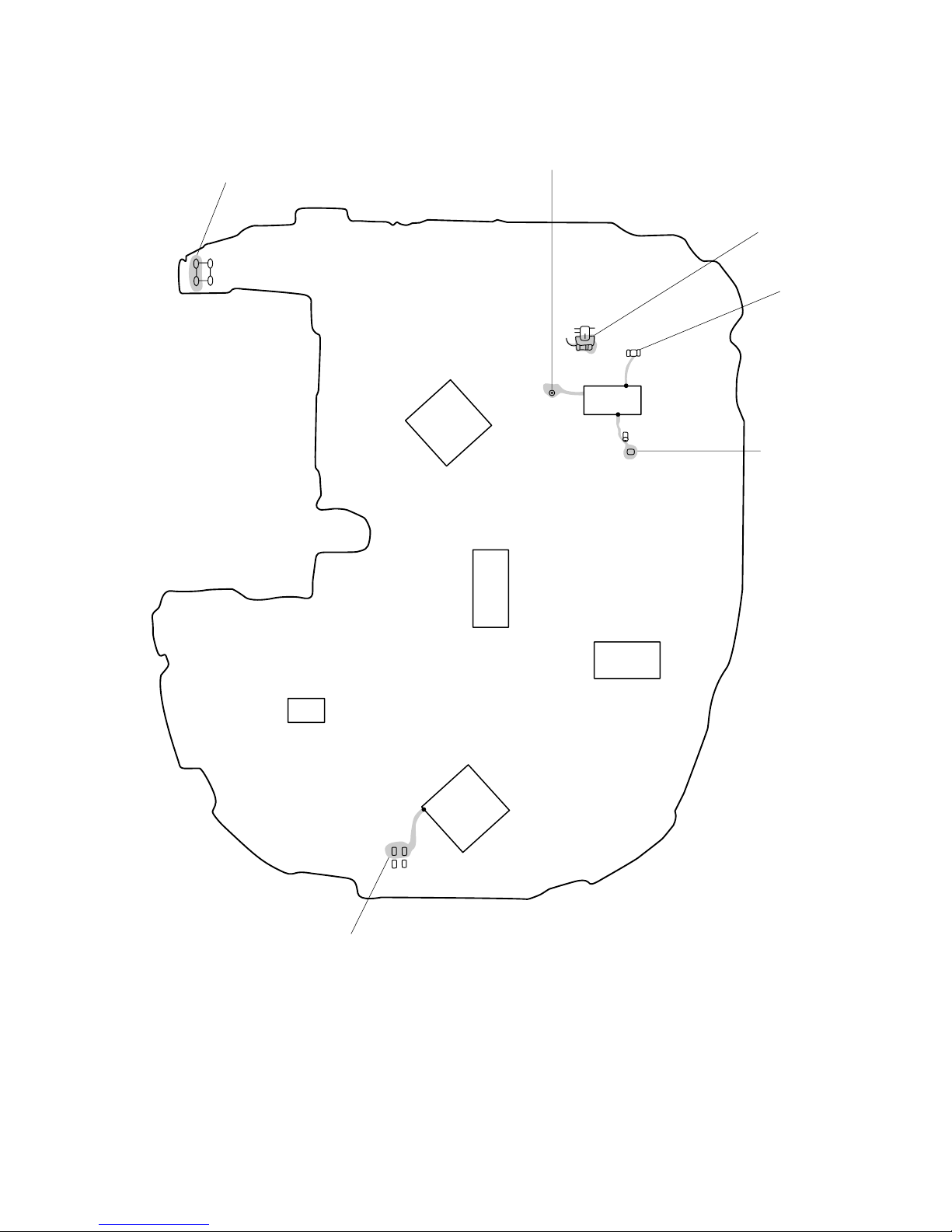

WIRING-1/2 (MAIN: COMPONENT SIDE)
J151
6.3
4
4
4
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16151413121110987654321
MAIN C.B (COMPONENT SIDE)
NOTE
1
1
2
16
15
6

-10-
WIRING-2/2 (MAIN: CONDUCTOR SIDE)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
MAIN C.B (CONDUCTOR SIDE)
6 5 4 3 2 1
M M
16 1
+
–
SW1
LIMIT
SW M2
SLED
MOTOR
M1
SPINDLE
MOTOR
CD OPTICAL PICKUP
ASSY
DA23LH
BATTERY DC 3V
ON
OFF
S303
OPEN
J701
PHONES/LINE OUT
LCD101
TRACK/TIME
VR701
VOL
DC 5~6V
J151
VR701
D701
D702
1
C712
C716 C717
R706
12
13 24
1
1
6
20
S308
PLAY/
PAUSE
S309
STOP/OFF
CHARGE
S306
S307
S304
SKIP/SEARCH
DSL S305
PLAYMODE OFF RESUME HOLD
RESUME/HOLD OFF ON
EASS
1
20 21
40
60
61
41
80 1
20 21
40
60
61
41
80
1
1
15
16
1617
32 2
1
14 15
28
NOTE
CXXX
RXXX
QXXX C
BE
R320
R451
C451
Q601
C604
C603
R338
R339
R323
R309
R307
R306
R336
C304
C311
C308
R308
R301
R321
C602
Q504
R605
R604
R602
R327R326
R519
R512
R513
R515
R511
R510
C516
C518
C524
C521
R522
C507
C513
R504
R105
R102
R315
R115
R116
R114
R104
R154
R153
R103
R107
R106
C108
FB402
Q151
R415
R414
R413
C417
C422
C420
C414
C411 C410
R403 R401
C409
C408 C103
C405
C407
C423
R404
R405
R409
1
3
45
EEEE
Q510
Q154
CN601
S302
S301
CN501
R101
C113
D101
1
1011
20

-11-
SCHEMATIC DIAGRAM-1/1 (MAIN)
4.7
4.7
6.3
6.3
D701
D702
3.9
3.9
270
270
VOL
6.3
0.1
C516
0.1
6.3
C511
220/6.3
C423
0.22
FB402
100/6.3
220
560
120
6.3
6.3
DAN202K
SFPB52
D101
6.3
TEST MODE
PHONES/
LINE OUT

-12-
TEST MODE-1/3
S303
OPEN/CLOSE SW
SHORT LAND
IC502
IC501
IC701
IC301
TEST MODE SHORT LAND
VC
TE
FE
RF
IC401
IC451
IC601
61
720

-13-
The servo circuit of this model is designed to be adjustment-free and the adjustment value and disc distinction (CD-DA, CD-R and CD-RW) etc. is
adjusted by the IC. Therefore the adjustment is performed at each TOC reading. The adjustment conditions in the IC of each servo can be monitored
in this test mode.
1. How To Start The Mode
Starting method of the test mode differ depending upon the type of disc being used. This is because the adjustment values of each
servo also differ depending upon the type of disc.
When using the CD-DA or CD-R
1) Short-circuit TEST LAND and OPEN/CLOSE SW land.
2) Insert the AC plug to the power outlet and install the CD-DA or CD-R disc.
3) Press the PLAY and STOP buttons in this sequence and read the TOC.
When using the CD-RW
1) Short-circuit the TEST LAND and OPEN/CLOSE SW land.
2) Insert the AC plug to the power outlet and install the CD-RW disc.
3) Press the PLAY, STOP and DSL buttons in this sequence and read the TOC. The LCD should display “CD-r” at this point.
Note 1: If the TOC cannot be read, “ERR” has appeared on the LCD. The following step 2 and 3 can be verified even if the “TOC” cannot be
read.
Note 2: By repeatedly pressing the DISPLAY/ENTER button all the LCDs light up and the “TOC” display is repeated.
Note 3: By repeatedly pressing the DSL button the LCD “CD-r” and “CD-d” are repeated.
When the LCD displays “CD-d” ™CD-DA, CD-R is selected.
When the LCD displays “CD-r” ™CD-RW is selected.
Note 4: The test mode is canceled by disconnecting the AC plug and remove the soldering of short land.
2. DISC distinction (confirmation of the FE waveform)
This mode enables you to perform a confirmation of the disc distinction.
Confirmation method
Press the DSL button and select “CD-d” or “CD-r” (Refer to Note 3).
1) Install the disc.
2) Press the MODE button.

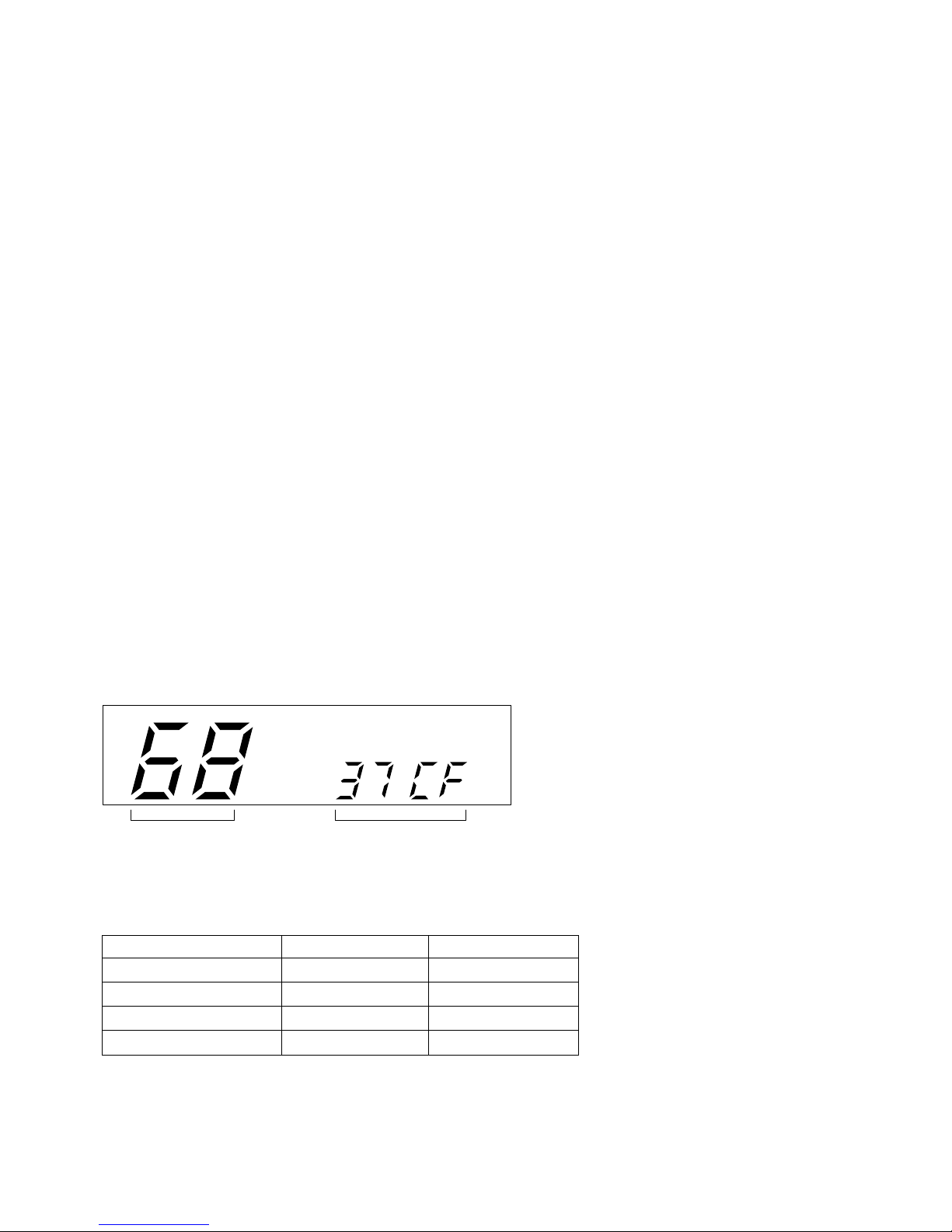

The LCD will change as follows:
Example: Test disc: TCD-782, DISC type select: CD-d Judgment value: 68, Measurement value: 37 CF
* All numerical values are displayed in HEX.
What disc the IC has selected can be understood according to the judgment value.
The decision standard of IC is as follows.
The state of the FE waveform can be also understood from this judgment.
Judgment value Measurement value
0 < Judgment value< 10
10 < Judgment value< 32
32 < Judgment value< C8
C8 < Judgment value
LCD displays “CD-d”
No disc
CD-RW
CD-DA and CD-R
LCD displays “CD-r”
No disc
No disc
CD-RW
CD-DA and CD-R
TEST MODE-2/3

-14-
3. Confirmation of Sled movement
By pressing the F.SKIP or B.SKIP button continuously during the TEST MODE, it is possible to transfer the pick-up to either the outer
side or inner side.
4. Confirmation of the RF level
Test point: RF and VC (Vref)
Test disc: TCD-782
Confirm that the RF waveform is as shown below.
VOLT/DIV: 200mV
TIME/DIV: 0.5us
5. Confirmation of Tracking balance
Test point: TE and VC (Vref)
Test disc: TCD-782
Press the DSL button while playing the test disc and confirm the TE waveform is as shown below.
VOLT/DIV: 200mV
TIME/DIV: 2ms
6. Confirmation of each servo
It is possible to confirm the adjustment value of each servo by repeatedly pressing the MODE button while the disc is playing.
The switchover sequence is as stated below.
Confirmation mode off ™Focus Bias (FB) ™Tracking Balance (TB) ™Tracking Gain (TG) ™Tracking Error Offset (TEO) ™
Focus Gain (FG) ™Focus Error Offset (FEO) ™Confirmation mode off
Example: Tracking Error Offset (TEO) Adjustment value: 03
* Adjustment value is displayed in HEX.
0.8Vp-p or more
A
B
VC A:B=1:1
Tracking Error Offset (TEO) display Adjustment value
TEST MODE-3/3

-15-
WAVE FORM-1/1
1IC501 Pin 7VOLT/DIV: 0.5V
TIME/DIV: 1µS
2IC501 Pin ∞VOLT/DIV: 0.2V
TIME/DIV: 50µS
3IC501 Pin )VOLT/DIV: 0.1V
TIME/DIV: 2mS
4IC401 Pin VOLT/DIV: 1V
TIME/DIV: 50mS
f=16.93MHz
78
71
5IC401 Pin VOLT/DIV: 2V
TIME/DIV: 5µS
f=44.1kHz
6IC401 Pin ™VOLT/DIV: 1V
TIME/DIV: 5µS

-16-
IC BLOCK DIAGRAM-1/2
IC, BA6655AFV
IC, AN8838NSB
power off
Ref.vol
Regulator
ST PULSE
Switching
driver
Vref2
Ref.vol
Vref1
BST
Starter
Starter
Normal
Power
switch 2
Power
switch 1
DET
DET DET
OP
OP

-17-
IC, AN8746SA
IC BLOCK DIAGRAM-2/2
IC, TA2120FN
IC, MSM51V4400
MEMORY
CELLS
WORD
DRIVERS
ROW
DE-
CODERS
ON CHIP
VBB GENERATOR
ROW
ADDRESS
BUFFERS
INTERNAL
ADDRESS
COUNTER
COLUMN
ADDRESS
BUFFERS
REFRESH
CONTROL CLOCK SENSE AMPLIFIERS
COLUMN
DECODERS
I/O
SELECTOR
WRITE
CLOCK
GENERATOR
INPUT
BUFFERS
OUTPUT
BUFFERS
TIMING
GENERATOR
TIMING
GENERATOR
A0~A9
RAS
CAS
VCC
VSS
OE
WE
D0~D3
1010
10
4
4
4
4
4
4
4
10

-18-
1
2, 3
4
5
6, 7
8
9
10-16
17-19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Pin No. Pin Name I/O Description
IC DESCRIPTION-1/2 (MN662782RPT1)-1/2
DVDD3
D0, 1
NWE
NRAS
D2, 3
NCAS0
A10
A8-A0
A1-A3
DVSS2
DVDD2
SPOUT
TRVM
TRVP
TRM
TRP
FOM
FOP
FBAL
TBAL
VREF
FE
TE
RFENV
OFT
NRFDET
BDO
LDON
ARF
IREF
ADPVCC
DSLF
DSLF2
PLLF
VCOF
AVDD2
AVSS2
OUTL
AVSS1
OUTR
I
I/O
O
O
I/O
O
O
O
O
I
I
O
O
O
O
O
O
O
O
O
I
I
I
I
I
I
I
O
I
I
I
O
O
O
O
I
I
O
I
O
Power supply for DRAM interface. (pin No. 2 to 19).
DRAM data input/output signal 0, 1.
DRAM write enable signal.
DRAM RAS control signal.
DRAM data input/output signal 2, 3.
DRAM CAS control signal 0.
DRAM CAS control signal 1. (when both 1 M and 4 MDRAM are used).
DRAM address signal 10. (when 16 MDRAM is used) (Not connected)
DRAM address signal 8-0.
DRAM address signal 1-3.
Ground for digital circuit.
Power supply for digital circuit.
Spindle motor drive signal output. (absolute value output).
Traverse drive output. (positive polarity output).
Traverse drive output. (negative polarity output).
Tracking drive output. (positive polarity output).
Tracking drive output. (negative polarity output).
Focus drive output. (positive polarity output).
Focus drive output. (negative polarity output).
Focus balance adjustment output.
Tracking balance adjustment output.
DA output block reference voltage. (FBAL, TBAL, DSLF2).
Focus error signal input. (analog input).
Tracking error signal input. (analog input).
RF envelope signal input. (analog input).
Off-track signal input. H: Off-track.
RF detection signal input. L: Detection.
Drop-out signal input. H: Drop-out.
Laser ON signal output. H: ON.
RF signal input.
Reference current input terminal.
AD reference voltage input. (analog input).
Loop filter terminal for DSL.
For DSL unbalance current correction.
Loop filter terminal for PLL.
Loop filter terminal for jitter free VCO.
Power supply for analog circuit. (for DSL, PLL, VCOF, AD, DA).
Ground for analog circuit. (for DSL, PLL, VCOF, AD, DA).
Lch audio output.
Ground for analog circuit. (for audio output block).
Rch audio output.

-19-
Pin No. Pin Name I/O Description
51
52
53, 54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
AVDD1
FSEL
TMOD1, 2
FLAG
CLVS/IPFLAG
EXT0/ISRDATA
EXT1/ILRCK
EXT2/IBCLK
TX
MCLK
MDATA
MLD
BLKCK
SQCK/BCLK
SUBQ/LRCK
DMUTE/SRDATA
STAT
NRST
SPPOL
PMCK
SMCK
SUBC/SSYNC
SBCK/64FS
NCLDCK
NTEST
X1
X2
DVDD1
DVSS1
I
I
I
O
O
I/O
I/O
I/O
O
I
I
I
O
I/O
O
I/O
O
I
O
O
O
O
I
O
I
I
O
I
I
Power supply for analog circuit (for audio output block).
Noise filter ON/OFF switching input. L: ON. H: OFF.
Terminal mode select input terminal 1, 2. Normal: L.
Flag signal output. (Not connected)
Command selection.•Spindle servo phase sync signal output. H: CLV. L: Rough servo.
•Interpolation flag signal output.H: Interpolation. (Not connected)
Command selection. •Extended input/output port 0.
•SRDATA input. (Not connected)
Command selection. •Extended input/output port 1.
•LRCK input. H: Lch audio data. L: Rch audio data. (Not connected)
Command selection. •Extended input/output port 2.
•BCLK input. (Not connected)
Digital audio interface output signal.
Microprocessor command clock signal input. (Latches data at raising edge.)
Microprocessor command data signal input.
Microprocessor command load signal input. L: Load.
Sub-code block clock signal. fBLKCK=75 Hz (during normal playback)/SYNC signal
for CDTEXT (DQSY) fDQSY=300 Hz (during normal playback).
Command selection. •External clock input for sub-code Q register.
•Bit clock output for SRDATA.
Command selection. •Sub-code Q data output.
•L, R identification signal output. H: Lch audio data. L: Rch audio data.
Command selection. •Muting input. H: Mute.
•Serial data output.
Status signal. (CRC, RESY, CLVS, NTTSTOP, SQOK, FLAG6, SENSE, NFLOCK,
NTLOCK, BSSEL, SUBQ data, CDTEXT data, anti-shock read-out data)
Reset input. L: Reset.
Spindle motor drive signal output (polarity output).
88.2 KHz clock signal output.
4.2336 MHz clock signal output.
Command selection. •Sub-code serial output.
•Sector SYNC output. (Not connected)
Command selection. •Clock input for sub-code serial output.
•64 FS output. (Not connected)
Sub-code frame clock signal output. (fCLDCK=7.35 KHz) (Not connected)
Test terminal: Normally H.
Crystal oscillator circuit input terminal. f=16.9344 MHz.
Crystal oscillator circuit output terminal. f=16.9344 MHz.
Power supply for digital circuit.
Ground for digital circuit.
IC DESCRIPTION-1/2 (MN662782RPT1)-2/2

-20-
1-4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Pin No. Pin Name I/O Description
IC DESCRIPTION-2/2 (MN101C439-AE)-1/2
COM3-0
VLC3
VLC2
VLC1
VDD
OSC2
OSC1
VSS
XI
XO
MMOD
VREF-
K-FUNC
K-P/S
ACIN
VDIN
K-RMC
SWDO
SWEASS
SWR/H
VREF+
SWIL
PC
CD-RW
______________
CD-RW
SUBQ
SQCK
BEEP
RST
NRST
STAT
MLD
MDATA
MCLK
BLKCK
RSENSOR
AHC-4/5
—
_____________
PU-ON
________________
EASSON
DSL2
O
—
—
—
—
O
I
—
I
O
I
—
I
I
I
I
I
I
I
I
—
I
O
O
O
I
O
O
—
O
I
O
O
O
I
I
I
—
O
O
O
LCD common.
—
—
—
LCD power supply.
Microprocessor main clock oscillator output. (Not connected)
Microprocessor main clock oscillator input.
Ground.
Sub-clock oscillator input.
Sub-clock oscillator output. (Not connected)
Processor mode is not used. Connected to VSS.
VSS.
Function key input.
PLAY, STOP KEY input.
AC adapter detection.
Battery voltage detection.
Wired remote control input.
Digital out ON/OFF input. L= ON.
Select input of EASS mode. Refer to A/D value table.
Resume/hold switch input.
VCC.
Limit switch input.
Power off output of CD servo driver. L= Power off.
CD-RW playback gain-up select output. H= Gain-up.
CD-RW playback gain-up select output. L= Gain-up.
H/A power-down output.
Gain-up select output by EASS. During EASS ON= L.
Buzzer output of headphones.
Microprocessor reset input.
DSP reset output.
STAT input of DSP.
MLD output of DSP.
MDATA output of DSP.
MCLK output of DSP.
BLKCK input of DSP.
Wireless remote control sensor signal input.
Select input of AHC-4 or AHC-5. AHC-4=H. AHC-5=L.
Not used.
Power down output of H/A.
Select output of gain-up by EASS. During EASS ON= L.
DSL2 control output of headphones. DSL2= H. DSL1/OFF= L.
