Aiwa XP-SP920AU User manual
SERVICE MANUAL
DATA
COMPACT DISC PLAYER BASIC CD MECHANISM : DA23LH
XP-SP920
XP-SP921
AU, ALH
AU
S/M Code No. 09-013-443-3R1
• This Service Manual is the “Revision Publishing” and replace
“Simple Manual” of XP-SP920/921<AU>, (S/M Code No. 09-011-443-3T1)
and XP-SP920<ALH>, (S/M Code No. 09-013-443-3T2).
REVISION
•This Service Manual does not include “TEST MODE”. This item will be
issued in the next supplement.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 8-times oversampling digital filter + 1-bit DAC
Frequency response 20 - 20,000 Hz (47 kohms)
Output PHONES / LINE OUT jack (stereo mini-jack)
Maximum output 12 mW + 12 mW (16 ohms at 1 kHz)
500 mV (47 kohms at 1 kHz)
Power supply DC 3 V using two size AA (LR6) alkaline batteries
DC 2.4 V using two commercially available rechargeable batteries
AC house current using the supplied AC adaptor
Dimensions 134 (W) x 30 (H) x 140 (D) mm
(excluding projecting parts and controls)
(53/8x 13/16 x 55/8in.)
Weight Approx. 277 g (9.7 oz.) excluding batteries
AC adaptor AC-D603 <AU>
Rated input: AC 120 V, 60 Hz
AC adaptor AC-D603HR <ALH>
Rated input: AC 115/230 V, switchable, 50/60 Hz
• Design and specifications are subject to change without
notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
1 8B-HC3-904-010 IB,LH(3L)S<ALH>
1 8B-HC3-901-010 IB,U(3L)S<AU>
2 87-B30-282-010 AC ADAPTOR,AC-D603UNC<AU>
2 87-B30-285-110 AC ADAPTOR,AC-D603HRNC<ALH>
3 87-B30-481-010 HEADPHONE,HP-M034 S
4 87-A91-017-010 PLUG, CONVERSION JT-0476<ALH>
5 8B-HC3-952-010 CASE,CARRING (SP921)<921AU>
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.

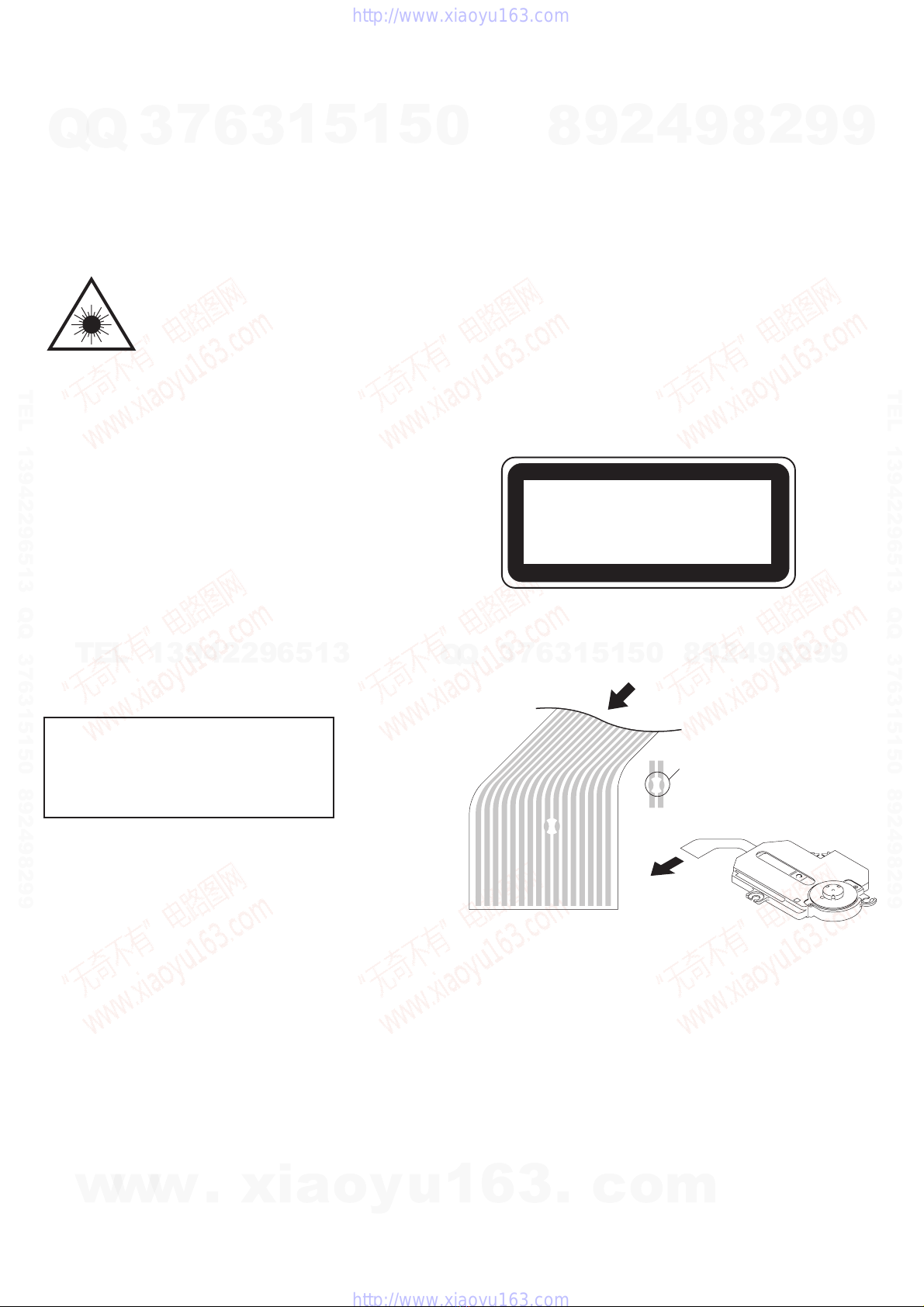

Precaution to replace Optical block
(SF-P200)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK UP ASSY
:SOLDER
116 10 9
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –
ELECTRICAL MAIN PARTS LIST
IC
87-A21-448-040 C-IC,BH6554FV
8B-HC3-610-010 C-IC,MN101C439AL
87-A21-874-010 C-IC,MN35530
87-A21-140-010 C-IC,MSM51V17400D
87-A21-873-040 C-IC,AN8399SA
87-A21-449-040 C-IC,AN8746SA
87-A21-085-040 C-IC,TA2120FN
TRANSISTOR
87-A30-429-040 C-TR,DTC123JKA
87-A30-075-080 C-TR,2SA1235F
89-211-323-080 C-TR,2SB1132R
89-416-643-080 C-TR,2SD1664R
87-A30-076-080 C-TR,2SC3052F
89-113-695-680 C-TR,2SA1369(G/H)
87-A30-332-040 C-TR,CPH3106
87-A30-278-040 C-FET,2SK2980
87-A30-287-040 C-TR,DTC114TKA
87-A30-282-040 C-TR,DTA114TKA
87-A30-377-040 C-TR,2SB815B7
DIODE
87-A40-270-080 C-DIODE,MC2838
87-017-520-080 C-DIODE,SFPB52
87-A40-590-040 C-DIODE,HRW0202A

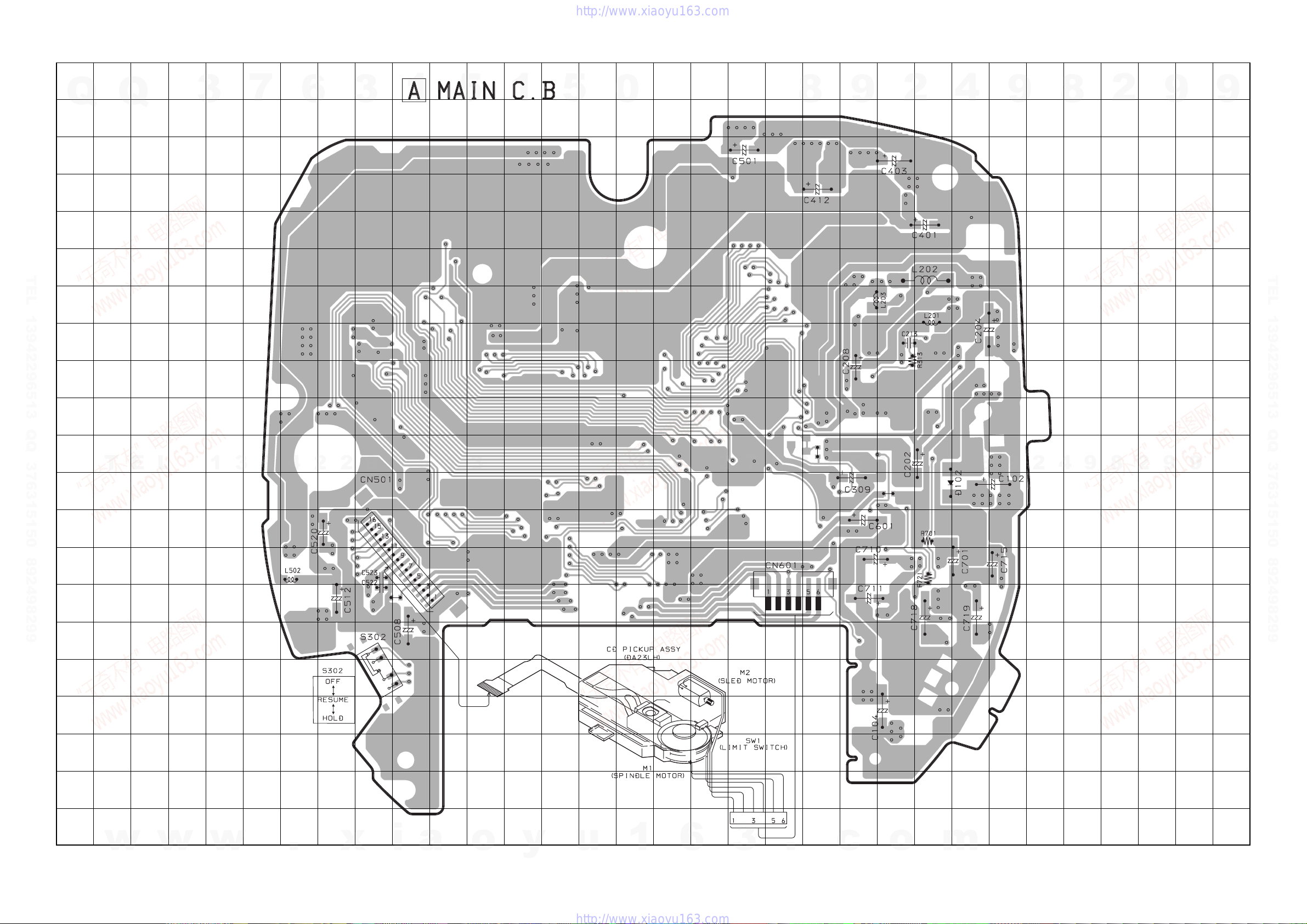

MAIN C.B
C101 87-012-286-080 C-CAP,U 0.01-25 K B
C102 87-A11-031-080 C-CAP,E 100-16 M WX
C103 87-012-286-080 C-CAP,U 0.01-25 K B
C104 87-A11-031-080 C-CAP,E 100-16 M WX
C106 87-012-286-080 C-CAP,U 0.01-25 K B
C201 87-010-831-080 C-CAP,U,0.1-16F
C202 87-A11-974-080 C-CAP,E 22-16 M 5.5L MV
C203 87-010-831-080 C-CAP,U,0.1-16F
C204 87-016-430-080 C-CAP,E 100-6.3 M 5.5L WX
C206 87-010-831-080 C-CAP,U,0.1-16F
C207 87-A10-505-040 CAP,E 220-6.3 105 SF
C208 87-016-422-080 C-CAP,E 22-6.3 M WX
C209 87-A10-260-080 C-CAP,U 0.1-16 K B
C210 87-A10-047-080 C-CAP,U 1-10 Z F
C211 87-010-787-080 C-CAP,U 0.022-25 K B
C212 87-012-266-080 C-CAP,U 220P-50 B
C213 87-A11-062-080 C-CAP,S 2.2-16 Z F
C214 87-010-831-080 C-CAP,U,0.1-16F
C215 87-A10-047-080 C-CAP,U 1-10 Z F
C302 87-010-831-080 C-CAP,U,0.1-16F
C303 87-010-787-080 C-CAP,U 0.022-25 K B
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-012-286-080 C-CAP,U 0.01-25 K B
C306 87-012-274-080 CHIP CAP,U 1000P-50B
C307 87-012-286-080 C-CAP,U 0.01-25 K B
C308 87-012-274-080 CHIP CAP,U 1000P-50B
C309 87-016-429-080 C-CAP,E 100-4 M WX
C310 87-012-274-080 CHIP CAP,U 1000P-50B
C312 87-012-282-080 C-CAP,U 4700P-50 K B
C401 87-016-429-080 C-CAP,E 100-4 M WX
C402 87-010-831-080 C-CAP,U,0.1-16F
C403 87-016-431-080 C-CAP,E 220-4 M WX
C405 87-A10-260-080 C-CAP,U 0.1-16 K B
C406 87-012-271-080 C-CAP,U 560P-50 K B
C407 87-010-787-080 C-CAP,U 0.022-25 K B
C408 87-A10-260-080 C-CAP,U 0.1-16 K B
C409 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C410 87-012-286-080 C-CAP,U 0.01-25 K B
C411 87-010-831-080 C-CAP,U,0.1-16F
C412 87-016-429-080 C-CAP,E 100-4 M WX
C413 87-010-831-080 C-CAP,U,0.1-16F
C415 87-010-831-080 C-CAP,U,0.1-16F
C418 87-012-184-080 C-CAP,U 33P-50 CH
C419 87-012-184-080 C-CAP,U 33P-50 CH
C421 87-010-831-080 C-CAP,U,0.1-16F
C422 87-010-831-080 C-CAP,U,0.1-16F
C423 87-010-831-080 C-CAP,U,0.1-16F
C451 87-010-831-080 C-CAP,U,0.1-16F
C501 87-016-429-080 C-CAP,E 100-4 M WX
C502 87-010-831-080 C-CAP,U,0.1-16F
C503 87-010-787-080 C-CAP,U 0.022-25 K B
C504 87-010-787-080 C-CAP,U 0.022-25 K B
C505 87-012-276-080 C-CAP,U 1500P-50 K B
C506 87-012-198-080 C-CAP,U 180P-50 J CH
C507 87-012-273-080 C-CAP,U 820P-50 B
C508 87-016-429-080 C-CAP,E 100-4 M WX
C509 87-012-281-080 C-CAP,U 3900P-50 B
C510 87-012-283-080 C-CAP,U 5600P-50 B
C511 87-A11-228-080 C-CAP,U 0.027-25 K B
C512 87-016-429-080 C-CAP,E 100-4 M WX
C513 87-A11-228-080 C-CAP,U 0.027-25 K B
C514 87-A10-828-080 C-CAP,U 0.33-6.3 K B
C515 87-A10-260-080 C-CAP,U 0.1-16 K B
C516 87-012-180-080 C-CAP,U 22P-50 CH
C517 87-012-180-080 C-CAP,U 22P-50 CH
C520 87-016-426-080 C-CAP,E 47-4 M WX
C521 87-012-274-080 CHIP CAP,U 1000P-50B
C522 87-A10-047-080 C-CAP,U 1-10 Z F
C523 87-A10-047-080 C-CAP,U 1-10 Z F
C601 87-016-429-080 C-CAP,E 100-4 M WX
C602 87-012-286-080 C-CAP,U 0.01-25 K B
C603 87-012-286-080 C-CAP,U 0.01-25 K B
C701 87-016-429-080 C-CAP,E 100-4 M WX
C702 87-012-276-080 C-CAP,U 1500P-50 K B
C703 87-012-276-080 C-CAP,U 1500P-50 K B
C704 87-012-274-080 CHIP CAP,U 1000P-50B
C705 87-012-274-080 CHIP CAP,U 1000P-50B
C706 87-010-831-080 C-CAP,U,0.1-16F
C707 87-A10-047-080 C-CAP,U 1-10 Z F
C708 87-A10-047-080 C-CAP,U 1-10 Z F
C709 87-A10-047-080 C-CAP,U 1-10 Z F
C710 87-016-426-080 C-CAP,E 47-4 M WX
C711 87-016-429-080 C-CAP,E 100-4 M WX
C715 87-016-421-080 C-CAP,E 10-16 M WX
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-010-831-080 C-CAP,U,0.1-16F
C718 87-016-431-080 C-CAP,E 220-4 M WX
C719 87-016-431-080 C-CAP,E 220-4 M WX
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C721 87-012-274-080 CHIP CAP,U 1000P-50B
C722 87-012-286-080 C-CAP,U 0.01-25 K B
C723 87-012-286-080 C-CAP,U 0.01-25 K B
C724 87-012-286-080 C-CAP,U 0.01-25 K B
CN301 87-A61-241-080 C-CONN,26P H 52437-2691
CN501 87-009-214-080 C-CONN,16P 52207
CN601 87-099-522-080 C-CONN,6P V ZH-SM3
J101 87-A61-340-010 JACK,DC<920>
J101 87-A61-447-010 JACK,DC DJ26B BLK6<921>
J701 87-A61-339-010 JACK,3.5 GRN ST W/O SW<920>
J701 87-A61-446-010 JACK,3.5 GRN ST W/REM<921>
L201 87-A50-355-080 C-COIL,330UH LQH3C
L202 87-A50-330-080 C-COIL,100UH-D75C
L203 87-A50-355-080 C-COIL,330UH LQH3C
L302 87-A50-367-080 C-COIL, 10UH LQG21F
L401 87-A50-367-080 C-COIL, 10UH LQG21F
L402 87-A50-012-080 C-COIL,100UH LQH3C
L501 87-A50-012-080 C-COIL,100UH LQH3C
L502 87-A50-367-080 C-COIL, 10UH LQG21F
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 5 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
BE
C
2SA1235F
2SB815B7
2SC3052F
CPH3106
DTA114TKA
DTC114TKA
DTC123JKA
CBE
2SA1369(G/H)
2SB1132R
2SD1664R
S
G
D
2SK2980
R206 87-022-243-080 CHIP RES,U 15K-1/16W F
R209 87-022-239-080 C-RES U 10K-1/16WF
R501 87-022-223-080 CHIP RES 2.2K 1/16W F
R502 87-022-223-080 CHIP RES 2.2K 1/16W F
R503 87-022-223-080 CHIP RES 2.2K 1/16W F
R504 87-022-223-080 CHIP RES 2.2K 1/16W F
R505 87-022-239-080 C-RES U 10K-1/16WF
R506 87-022-239-080 C-RES U 10K-1/16WF
S101 87-A92-085-010 SW,MICRO ESE11SV1
S302 87-A91-457-280 C-SW,SL 1-1-3 SS-350-A13B-C-T
X401 87-A70-315-080 C-VIB,CER 16.93MHZ CSACWMX03-T

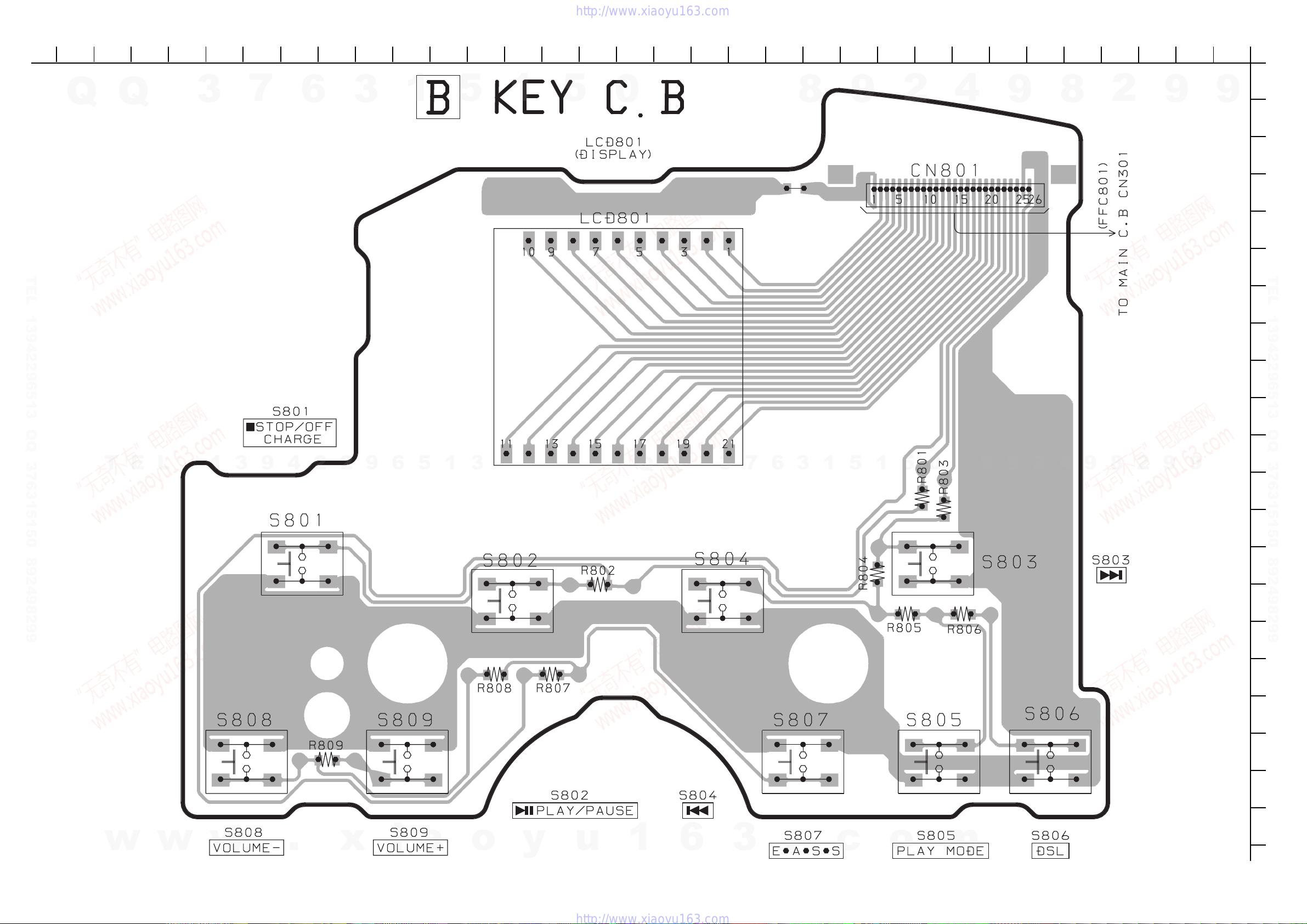

KEY C.B
CN801 87-A61-241-080 C-CONN,26P H 52437-2691
FFC801 8B-HC3-605-010 FF-CABLE,26P 0.5 50MM
LCD801 8A-HC3-605-010 LCD,AHC-3
S801 87-A90-232-080 C-SW,TACT SKQRAA
S802 87-A90-232-080 C-SW,TACT SKQRAA
S803 87-A90-232-080 C-SW,TACT SKQRAA
S804 87-A90-232-080 C-SW,TACT SKQRAA
S805 87-A90-232-080 C-SW,TACT SKQRAA
S806 87-A90-232-080 C-SW,TACT SKQRAA
S807 87-A90-232-080 C-SW,TACT SKQRAA
S808 87-A90-232-080 C-SW,TACT SKQRAA
S809 87-A90-232-080 C-SW,TACT SKQRAA
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING 1 (MAIN) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
7
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING 1 (MAIN) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
8
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 2 (KEY)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 10 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 13 –
1 COM03 O LCD common output.
2 COM02 O LCD common output.
3 COM01 O LCD common output.
4 COM00 O LCD common output.
5 VLC3 – LCD drive voltage setting terminal.
6 VLC2 – LCD drive voltage setting terminal.
7 VLC1 – LCD drive voltage setting terminal.
8 VDD – LCD power.
9OSC2 O Micon main clock oscillator output. (Not used)
10 OSC1 O Micon main clock oscillator output.
11 VSS – GND.
12 XI I Sub-clock oscillator. (Connected to GND)
13 XO O Sub-clock oscillator. (Not used)
14 MMOD I Processor mode unused. (Connected to GND)
15 VREF- – Connected to GND.
16 K-FUNC I "FUNCTION" key input. Refer to A/D TABLE-1.
17 K-P/S I "PLAY" and "STOP" key input. Refer to A/D TABLE-2.
18 ACIN I AC adaptor detection.
19 VDIN I Main clock (8 MHz).
20 K-RMC I Wired remote control input. Refer to A/D TABLE-2.
21 SWDO I Digital out "ON/OFF" input. ON at "L". (Connected to GND)
22 SWEASS I EASS mode selection input. Refer to A/D TABLE-1.
23 SWR/H I Resume/Hold switch input.
24 VREF+ – Connected to VDD.
25 MDATA O DSP MDATA output.
26 STAT I DSP STAT input.
27 MCLK O DSP MCLK output.
28 MLD O DSP MLD output.
29 SUBQ O Power down output for H/A.
30 SQCK O Selection output for EASS gain control. EASS at "L".
31 BEEP O Buzzer output for headphone.
32 RST I Micro computer reset input.
33 NRST O DSP reset output.
34 SWIL I Limited switch input.
35 PC O Power off output for CD server driver. Power off at "L".
36 CDRW O CD RW play gain level selection output. Gain set at "H".
37 NC – Not connected.
38 BLKCK I DSP BLKCK input.
39 RSENSOR I Wireless remote control sensor signal input. (Not used)
40 EASS – Not used.
41 SP-2/3 – Not used.
Pin No. Pin Name I/O Description
IC DESCRIPTION
IC, MN101C439AL
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 14 –
42 PU-ON O H/A power down output.
43 EASSON O EASS gain up selection output. EASS ON at = "L".
44 DSL2 O Headphone DSL2 control output. DSL2 at "H". DSL1/OFF at "L".
45 DSL1 O Headphone DSL ON control output. DSL ON at "H".
46 MUTE O Audio mute output.
47 STANDBY O Headphone standby output. Standby at "L". Power ON at "H".
48 LCDRDO O Wired LCD remote control output. (Not used)
49 P-OFF O Power IC power off output. Power OFF at "L".
50 DSCHRG O Discharge output.
51 CHRG O Charge output.
52 EECE – Not used.
53 EECLK – Not used.
54 EEDAT – Not used.
55 TX-ON – Not used.
56 SWCL I Cover open/close detection switch input.
57 EL-ON O EL back light control output. (Not used)
58 SPCON O Spindle PWM control output. (Not used)
59 CAR-LED O CAR-KIT model button LED light output. (Not used)
60 E-MODE I Shaft damage mode (No shaft damage mode found at "H"). (Not used)
61 TEST I Enter test mode at "L".
62 NC – Not connected.
63 ~ 79 SEG17 ~ SEG01 O LCD segment output.
80 SEG00 O LCD segment output. (Not used)
Pin No. Pin Name I/O Description
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 15 –
HEX K-FUNC (PIN 16) SWEASS (PIN 22) SWR/H (PIN 23) K-P/S (PIN 17)
E8 ~ FF OFF EASS ON RESUME OFF
CB ~ E8 NOT USED OFF OFF PLAY
AD ~ CA DSL OFF OFF PLAY
90 ~ AC MODE OFF OFF PLAY
71 ~ 8F ENTER 0FF HOLD/RESUME PLAY
53 ~ 70 B.S OFF HOLD/RESUME STOP
35 ~ 52 F.S OFF HOLD/RESUME STOP
17 ~ 34 NOT USED OFF OFF STOP
1 ~ 16 OFF OFF OFF OFF
A/D TABLE - 1
IC, MN101C439AL
HEX K-RMC (PIN 20)
E8 ~ FF OFF
BB ~ E8 NOT USED
89 ~ BA DSL
5F ~ 88 PLAY
42 ~ 5E MODE
2E ~ 41 STOP
1F ~ 2D B.S
OB ~ 1E F.S
00 ~ 0A OFF
A/D TABLE - 2
IC, MN101C439AL
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 16 –
1 DVDD3 – Power supply for DRAM interface.
2 D0 I/O Input/Output data 0 for DRAM.
3 D1 I/O Input/Output data 1 for DRAM.
4 NWE O Output write enable signal for DRAM.
5 NRAS O Output RAS control signal for DRAM.
6 D2 I/O Input/Output data 2 for DRAM.
7 D3 I/O Input/Output data 3 for DRAM.
8 NCAS0 O Output CAS control signal 0 for DRAM.
9 A10 O Output address signal 10.
10 ~ 14 A8 ~ A4 O Output address signal 8 ~ 4.
15 A9 O Output address signal 9.
16 ~ 19 A0 ~ A3 O Output address signal 0 ~ 3.
20 DVSS2 – Ground for digital circuit.
21 DVDD2 – Power supply for digital circuit.
22 SPOUT O PWM output of spindle.
23 TRVP O PWM output of positive traverse signal.
24 TRVM O PWM output of negative traverse signal.
25 TRP O PWM output of positive tracking signal.
26 TRM O PWM output of negative tracking signal.
27 FOP O PWM output of positive focus signal.
28 FOM O PWM output of negative focus signal.
29 FBAL O Output for focus balance adjustment.
30 TBAL O Output for tracking balance adjustment.
31 CSEL – Reference voltage for DA output (TRVP, TRP, FOM, FOP, FBAL, TBAL, DSLF2).
32 FE I Focus error signal input (analog input).
33 TE I Tracking error signal input ( analog input).
34 RFENV I RF envelope signal input (analog input).
35 OFT I Off track signal input. "H" : Off track.
36 NRFDET I RF detection signal input. "L" : Detect.
37 BDO I Drop out signal input. "H" : Drop out.
38 LDON O Laser ON signal output. "H" : ON. (Not used)
39 ARF I RF signal input.
40 IREF I Reference current input terminal.
41 ADPVCC – Reference voltage level for PWM output drive.
42 DSLF O Loop filter terminal for DSL.
43 DRF I DSL input.
44 PLLF O Loop filter terminal for PLL.
45 VCOF O Loop filter terminal for pitch controller and jitter free VCO.
46 AVDD2 – Power supply for analog circuit (DSL, PLL, VCOF, AD, DA).
47 AVSS2 – Ground for analog circuit (DSL, PLL, VCOF, AD, DA).
48 OUTL O Output Lch audio.
Description
Pin No. Pin Name I/O
IC, MN35530
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 17 –
49 AVSS1 – Ground for analog circuit. (For audio output)
50 OUTR O Output Rch audio.
51 AVDD1 – Power supply for analog circuit. (For audio output)
52 FSEL I Input noise filter ON / OFF switching. "L" : ON. "H" : OFF. (Connected to DVDD)
53 TMOD1 I Terminal mode switching input 1. (Connected to GND)
54 TMOD2 I Terminal mode switching input 2. (Connected to GND)
55 FLAG O Flag signal output. (Not used)
56 CLVS/IPFLAG – Not used.
57 ~ 59 EXT 0 ~ EXT 2 I/O Expansion input / output port 0 ~ 2. (Not used)
60 TX O Digital audio interface output signal. (Not used)
61 MCLK I Microcomputer command clock signal input (latch data at rising edge).
62 MDATA I Microcomputer command data signal input.
63 MLD I Microcomputer command load signal input. "L" : Load.
64 BLKCK I Input sub code block clock signal (fBLKCK = 75kHz) / Input SYNC signal for
CDTEXT (fDQSY = 300kHz).
65 SQCK/BCLK I Input clock for sub code Q register.
66 SUBQ/LRCK O Output sub code Q data.
67 DMUTE/SRDATA I Input mute. "H" : Mute. (Connected to GND)
68 STAT O Output status signal (CRC, RESY, CLVS, NTTSTOP, SQOK, FLAG6, SENSE, NFLOCK,
NTLOCK, BSSEL, SUBQDATA, CDTEXT DATA, ANT-SHOCK READ OUT DATA).
69 NRST I Input reset. "L" : Reset.
70 SPPOL O PWM output of spindle signal drive.
71 PMCK O 88.2kHz clock signal output. (Not used)
72 SMCK O 4.2336MHz clock signal output.
73 SUBC/SSYNC O Output sub code serial. (Not used)
74 SBCK/64FS I Input clock for subcode serial. (Not used)
75 NCLDCK O Sub code frame clock signal output ( fCLDCK = 7.35kHz). (Not used)
76 NTEST – Test terminal. (Connected to DVDD)
77 X1 I Crystal oscillator circuit input terminal (f = 16.93MHz).
78 X2 O Crystal oscillator circuit output terminal (f = 16.93MHz).
79 DVDD1 – Power supply for digital circuit.
80 DVSS1 – Ground for digital circuit.
Description
Pin No. Pin Name I/O
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 18 –

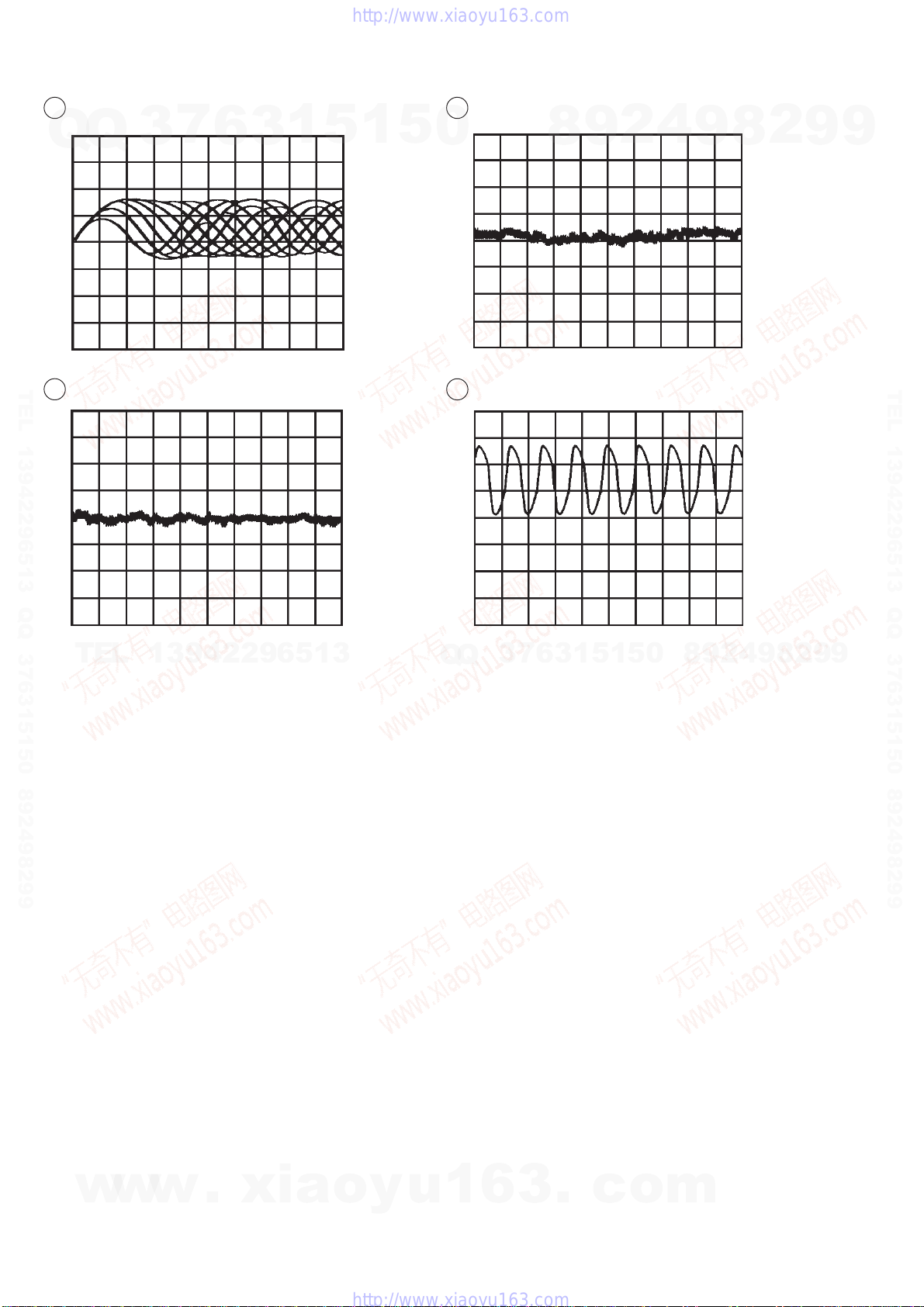

WAVEFORM
IC501 PIN 9 (ARF) OR TP2 (RF)
0.5 V/div
0.5 µs/div
IC501 PIN 21 (TEOUT) OR TP3 (TE)
0.2 V/div
1 ms/div
1
2
IC501 PIN 23 (FEOUT) OR TP1 (FE)
0.1 V/div
5 ms/div
IC301 PIN 10 (OSC1)
1 V/div
0.1 µs/div
3
4
MODE : EASS OFF
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 19 –

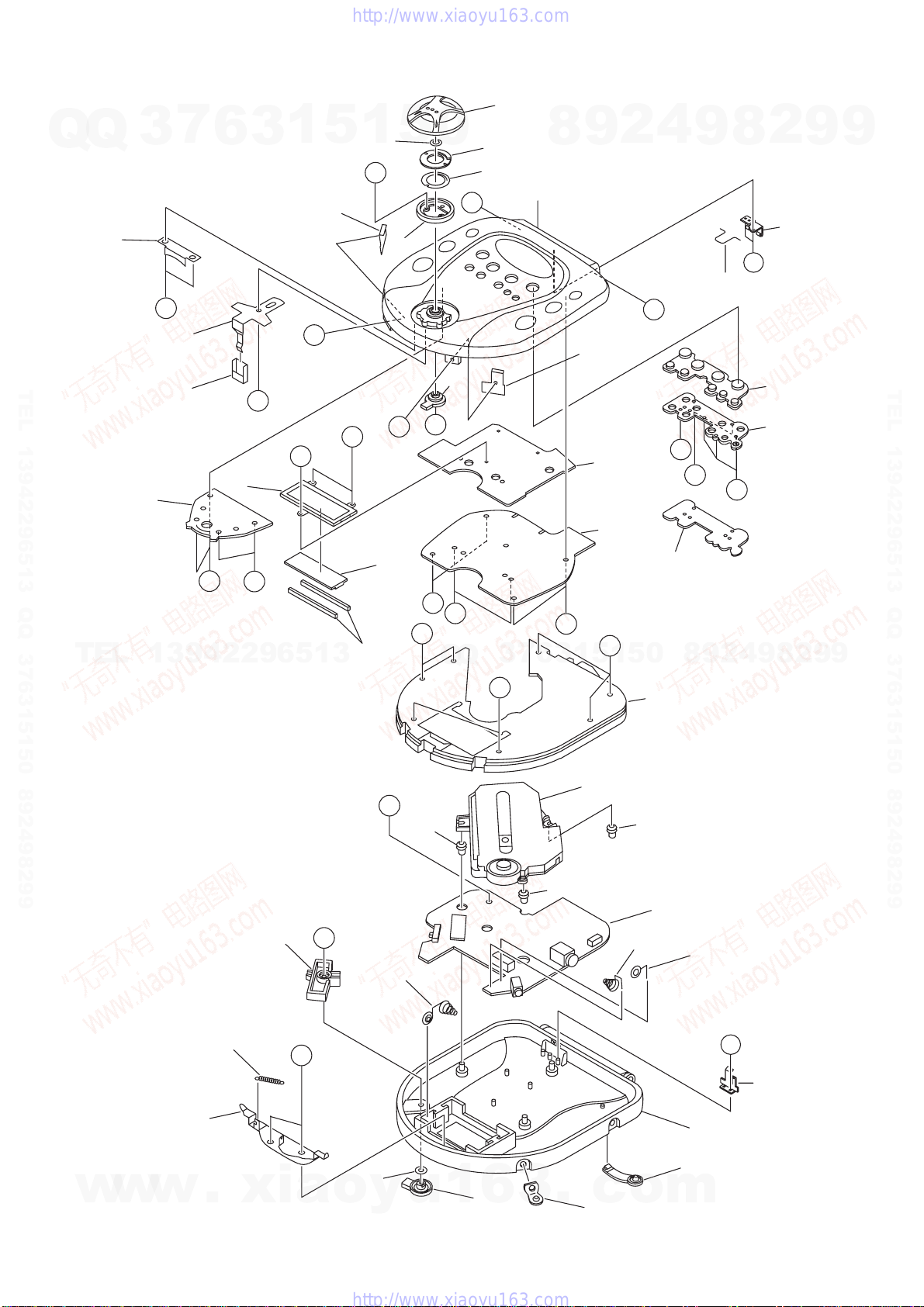

MECHANICAL EXPLODED VIEW 1 / 1
8
16
2
1
3
5
4
6
A
H
H
PLATE
SUPPORT L
PLATE
SUPPORT R
9
10
11
C
D
B
BE
C
CC
C
C
C
C
C
CC
C
CC
13
14
7
SH,HLDR BTN
F
F
F
PWB
PWB
18
LCD801
17
15
19
DA23LH
21
21
21
E
28 29
27
22
25
26
23 24 32
31
20
30
G
12
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
–20 –
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8B-HC3-014-010 LID ASSY,CD 920<920>
1 8B-HC3-015-010 LID ASSY,CD 921<921>
2 8B-HC3-009-010 KNOB,RTRY LOCK
3 8A-HC3-203-010 RING,KNOB RBR
4 8Z-HC3-207-010 PLATE,RTRY A
5 8Z-HC3-208-010 PLATE,RTRY B
6 8B-HC3-008-010 RING,KNOB RTRY
7 8B-HC3-201-010 HLDR,BTN
8 8B-HC3-011-010 BTN,CONT RBR
9 8Z-HC3-228-010 HLDR,LEVER LOCK
10 8B-HC3-202-010 LEVER,LOCK
11 8Z-HC3-016-010 COVER, LEVER LOCK
12 8A-HC3-213-010 JOINT,RTRY LOCK
13 8B-HC3-206-010 SPR,LID CD (SP)
14 8B-HC3-013-010 PLATE,LID CD B
15 8B-HC3-020-010 PLATE,LID CD C
16 8B-HC3-012-010 PLATE,LID CD A
17 8B-HC3-205-010 PLATE,LCD
18 8A-HC3-215-010 JOINT,LCD AHC-3-A
19 8B-HC3-016-010 CABI ASSY,CENTER
20 8B-HC3-003-010 CABI,BOTTOM
21 8Z-HC1-225-010 DMPR,MECHA(SP)
22 8A-HC3-204-010 JOINT,RTRY HOLD
23 87-HC3-211-010 RING,KNOB RBR
24 8B-HC3-010-010 KNOB,RTRY HOLD
25 8B-HC3-207-010 SPR-E,LOCK
26 8Z-HC3-216-010 HLDR ASSY,LOCK
27 8B-HC3-210-010 BAT-CONTACT,(+)(-)
28 8B-HC3-209-010 BAT-CONTACT,(-)
29 8B-HC3-208-010 BAT-CONTACT,(+)
30 8B-HC3-203-010 PLATE,BOTTOM
31 8B-HC3-019-010 CAP, DC RBR
32 8B-HC3-018-010 CAP, HP RBR
A 87-067-736-010 S-SCREW,+1.4-2 BLK NLOCK
B 87-067-359-010 S-SCREW+1.4-2.5 CR BLK
C 87-067-732-010 VT2+1.4-3 CR BLK HL
D 87-067-963-010 S-SCREW,HINGE +1.7-2.5 SWCH
E 88-HSA-227-010 S-SCREW,1.7-4 HL BLK
F 87-067-869-010 V+1.7-8 SWCH IZN BLK HL
G 87-067-384-010 VT2 1.4-3.5 SWCH HL
H 86-HSB-226-010 S-SCREW,LID
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
COLOR NAME TABLE
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
This manual suits for next models
2
Table of contents
Other Aiwa CD Player manuals
