SERVICE MANUAL
DATA
COMPACT DISC PLAYER
XP-R207 AU
S/M Code No. 09-00B-426-3S1
SUPPLEMENT
•This Service Manual contains information about the difference between
XP-R207 (AU) and XP-R210 (AHA). If requiring other information, see
Service Manual of XP-R210 (AHA), (S/M Code No. 09-006-426-3R3).
BASIC CD MECHANISM: DA23LN

SPECIFICATIONS
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 4-times oversampling digital
filter + 1-bit DAC
Frequency response 20 – 20,000 Hz (47 k ohms)
Output PHONES/LINE OUT jack
(stereo mini-jack)
Frequency range AM: 530/531 kHz – 1,710/1,602 kHz
(10 kHz/9 kHz steps)
FM: 87.5 – 108 MHz
Maximum output 12 mW + 12 mW
(16 ohms at 1 kHz)
500 mV (47 k ohms at 1 kHz)
Power supply DC 3 V using two size AA(LR6)
alkaline batteries DC 2.4 V using two commercially
available (Ni-Cd 1.2 V 700 mAh)
rechargeable batteries
AC house current using the
supplied AC adaptor
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
Maximum outside dimensions
128 (W) x 31.2 (H) x 129.5 (D) mm
(excluding projecting parts and controls)
(5 1/8x 11/4x 51/8in.)
Weight Approx. 225 g (7.9 oz.)
excluding batteries
AC Adaptor
AC-D603U Rated input: AC 120 V, 60 Hz
• Design and specifications are subject to change without
notice.
– 2 –
1 8A-HC1-941-010 IB,U(E) C 207
1 8A-HC1-942-010 IB,U(S) C 207
1 8A-HC1-943-010 IB,U(F) C 207
2 87-B30-124-110 HEADPHONE,HP-M028
3 87-B30-282-010 AC ADAPTOR,AC-D603UNC

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT

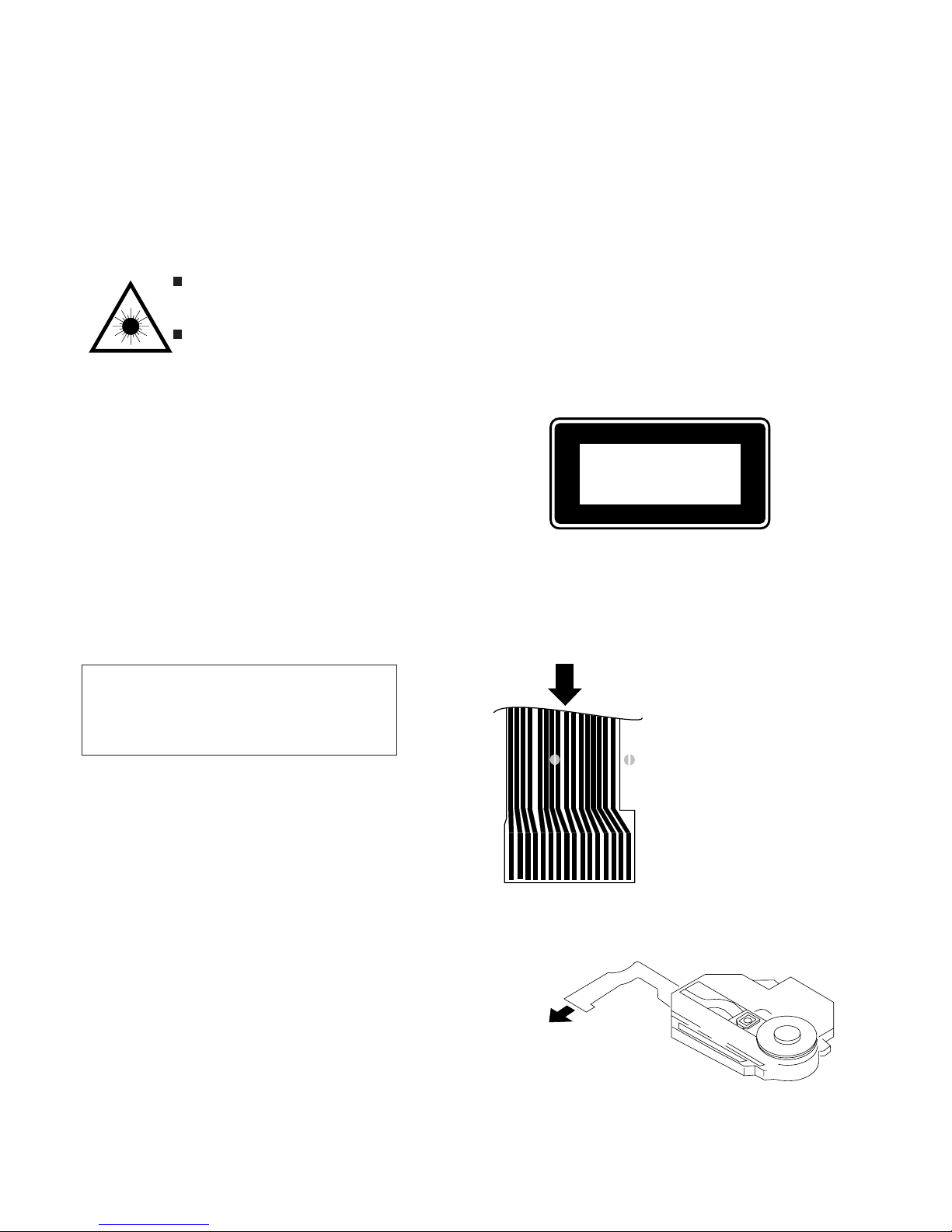

Precaution to replace Optical block
(SF-P200L)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
PICK UP ASSY
: SOLDER
910 15161
–3 –

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–4 –
ELECTRICAL MAIN PARTS LIST
IC
87-A21-082-040 C-IC,BA6655AFV
8A-HC1-606-010 C-IC,MN101C439-AF
87-A21-446-010 C-IC,MN662782RPT1
87-A21-561-040 C-IC,MSM51V17400D-SJ
87-A21-578-040 C-IC,AN8838NSB
87-A21-543-040 C-IC,NJU7012
87-A21-521-040 C-IC,BH6517FS
87-A21-085-040 C-IC,TA2120FN
87-A21-558-040 C-IC,LA1827V-TLM
87-A20-904-080 IC, TK11823MTL
87-A21-559-040 C-IC,LC72121V-D-TLM
8A-HC1-604-010 C-IC,UPD789405-AGK-A12-9EU
87-A21-030-040 C-IC,S-93C46AMFN
TRANSISTOR
87-A30-429-040 C-TR,DTC 123 JKA
87-A30-075-080 C-TR,2SA1235F
89-211-323-080 C-TR,2SB1132R
89-416-643-080 C-TR,2SD1664R
87-A30-076-080 C-TR,2SC3052F
89-113-695-680 C-TR,2SA1369G/H
87-A30-332-040 C-TR,CPH3106
87-A30-333-040 C-TR,CPH3206
87-A30-378-040 C-TR,UMG4N
87-A30-435-040 C-TR,DTC144EKA
87-A30-246-040 C-TR,2SA1037AK
87-A30-336-040 C-TR,UMH4N
87-A30-282-040 TR,DTA114TKA
87-A30-287-040 TR,DTC114TKA
87-A30-377-040 C-TR,2SB815B7
89-324-121-080 C-TR,2SC2412K
87-A30-427-040 C-TR,DTC114EKA
87-A30-328-040 C-TR,IMX9
87-026-210-080 CHIP-TR,DTC144EK
89-113-625-080 TR,2SA1362GR
87-A30-466-040 TR,DTA144TKA
89-324-123-080 C-TR,2SC2412K S
89-327-143-080 TR,2SC2714 (0.1W)
89-503-025-080 CHIP FET,2SK302 GR
DIODE
87-A40-614-040 C-DIODE,SFPB-72
87-A40-469-080 C-DIODE,HSM2838CTR
87-A40-592-040 C-ZENER,HZM11NB2
87-A40-469-040 C-DIODE,HSM2838CTR
87-A40-590-040 C-DIODE,HRW0202A
87-020-331-080 CHIP-DIODE,DAN202K
87-017-520-080 C-DIODE,SFPB52

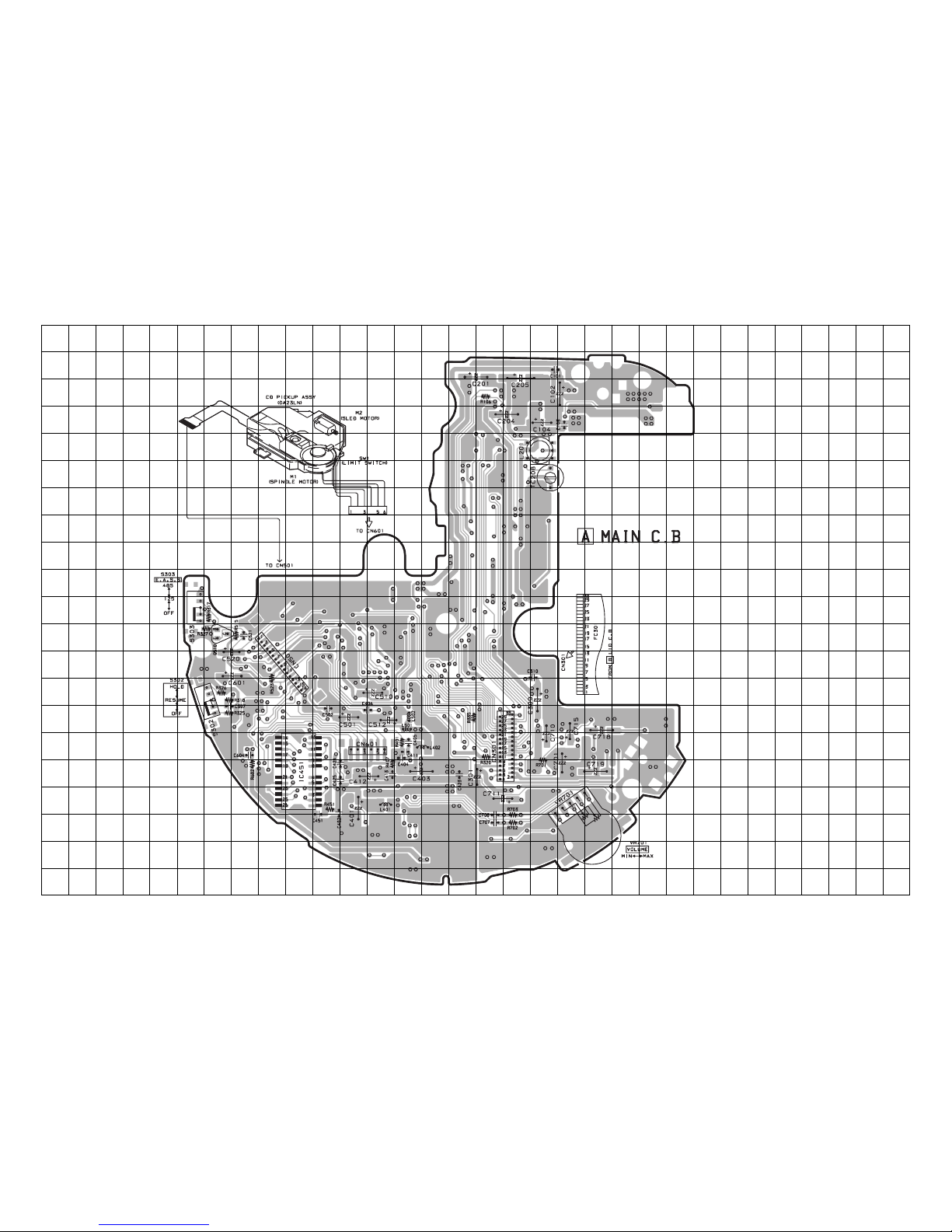

MAIN C.B
C101 87-012-286-080 CAP, U 0.01-25
C102 87-A11-031-080 C-CAP,E 100-16 M WX
C103 87-012-286-080 CAP, U 0.01-25
C104 87-016-367-080 C-CAP,E 47-6.3
C201 87-016-431-080 C-CAP,E 220-4 5.5N
C202 87-012-274-080 CHIP CAP,U 1000P-50B
C203 87-012-286-080 CAP, U 0.01-25
C204 87-016-430-080 C-CAP,E 100-6.3 5.5N
C205 83-HC3-635-080 C-CAP,E 220-6.3 WF
C206 87-A12-159-080 C-CAP, 10-6.3 K B GRM42-6
C207 87-010-831-080 C-CAP,U,0.1-16F
C208 87-010-831-080 C-CAP,U,0.1-16F
C209 87-012-172-080 CAPACITOR CHIP U 10P CH
C210 87-012-195-080 C-CAP,U 100P-50CH
C211 87-A10-047-080 C-CAP,U 1-10 Z F
C212 87-012-188-080 C-CAP,U 47P-50 CH
C213 87-A10-047-080 C-CAP,U 1-10 Z F
C214 87-010-831-080 C-CAP,U,0.1-16F
C215 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C216 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C217 87-010-831-080 C-CAP,U,0.1-16F
C301 87-016-426-080 C-CAP,E 47-4 5.5N
C302 87-012-286-080 C-CAP,U 0.01-25 K B
C303 87-012-286-080 C-CAP,U 0.01-25 K B
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-012-286-080 C-CAP,U 0.01-25 K B
C306 87-012-286-080 C-CAP,U 0.01-25 K B
C307 87-012-286-080 CAP, U 0.01-25
C309 87-016-430-080 C-CAP,E 100-6.3 5.5N
C310 87-012-286-080 CAP, U 0.01-25
C311 87-012-274-080 CHIP CAP,U 1000P-50B
C401 87-016-430-080 C-CAP,E 100-6.3 5.5N
C402 87-010-831-080 C-CAP,U,0.1-16F
C403 87-016-085-080 CAP,E 1000-6.3PF
C404 87-010-831-080 C-CAP,U,0.1-16F
C405 87-A10-260-080 C-CAP,U 0.1-16 K B
C406 87-012-273-080 C-CAP,U 820P-50 B
C407 87-010-787-080 CAP, U 0.022-25
C408 87-A10-260-080 C-CAP,U 0.1-16 K B
C409 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C410 87-012-286-080 CAP, U 0.01-25
C411 87-010-831-080 C-CAP,U,0.1-16F
C412 87-016-429-080 C-CAP,E 100-4 5.5N
C413 87-010-831-080 C-CAP,U,0.1-16F
C415 87-010-831-080 C-CAP,U,0.1-16F
C420 87-010-831-080 C-CAP,U,0.1-16F
C422 87-010-831-080 C-CAP,U,0.1-16F
C423 87-010-831-080 C-CAP,U,0.1-16F
C424 87-012-195-080 C-CAP,U 100P-50 J CH
C425 87-012-195-080 C-CAP,U 100P-50 J CH
C451 87-010-831-080 C-CAP,U,0.1-16F
C502 87-010-831-080 C-CAP,U,0.1-16F
C504 87-010-831-080 C-CAP,U 0.1-16F
C505 87-A11-228-080 C-CAP,U 0.027-25 K B
C506 87-012-199-080 CAP 220P
C507 87-012-193-080 C-CAP,U 82P-50 CH
C508 87-012-193-080 C-CAP,U 82P-50 CH
C509 87-012-193-080 C-CAP,U 82P-50 CH
C510 87-016-429-080 C-CAP,E 100-4 M WX
C511 87-010-831-080 C-CAP,U 0.1-16F
C512 87-016-426-080 C-CAP,E 47-4 5.5N
C513 87-010-831-080 C-CAP,U 0.1-16F
C514 87-A11-228-080 C-CAP,U 0.027-25 K B
C515 87-A11-228-080 C-CAP,U 0.027-25 K B
C516 87-A10-260-080 C-CAP,U 0.1-16 K B
C518 87-012-176-080 CAP 15P
C520 87-016-426-080 C-CAP,E 47-4 5.5N
C521 87-012-274-080 CHIP CAP,U 1000P-50B
C522 87-A10-047-080 C-CAP,U 1-10 Z F
C523 87-A10-047-080 C-CAP,U 1-10 Z F
C524 87-012-172-080 CAPACITOR CHIP U 10P CH
C601 87-016-429-080 C-CAP,E 100-4 5.5N
C602 87-012-286-080 CAP, U 0.01-25
C603 87-010-831-080 C-CAP,U,0.1-16F
C604 87-010-831-080 C-CAP,U,0.1-16F
C609 87-010-831-080 C-CAP,U,0.1-16F
C610 87-A10-047-080 C-CAP,U 1-10 Z F
C611 87-A10-047-080 C-CAP,U 1-10 Z F
C612 87-010-831-080 C-CAP,U,0.1-16F
C701 87-016-429-080 C-CAP,E 100-4 5.5N
C702 87-012-274-080 CHIP CAP,U 1000P-50B
C703 87-012-274-080 CHIP CAP,U 1000P-50B
C706 87-010-831-080 C-CAP,U,0.1-16F
C707 87-A10-047-080 C-CAP,U 1-10 Z F
C708 87-A10-047-080 C-CAP,U 1-10 Z F

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
–5 –
C709 87-A10-047-080 C-CAP,U 1-10 Z F
C710 87-016-421-080 C-CAP,E 10-16 5.5N
C711 87-016-429-080 C-CAP,E 100-4 5.5N
C712 87-A10-353-080 C-CAP,U0.22-10KB
C713 87-010-831-080 C-CAP,U,0.1-16F
C714 87-A11-062-080 C-CAP,S 2.2-16 Z F
C715 87-016-421-080 C-CAP,E 10-16 5.5N
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-010-831-080 C-CAP,U,0.1-16F
C718 87-016-431-080 C-CAP,E 220-4 5.5N
C719 87-016-431-080 C-CAP,E 220-4 5.5N
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C721 87-012-274-080 CHIP CAP,U 1000P-50B
CN301 87-A60-792-080 C-CONN,30P V 30FLT-SM1TB
CN501 87-009-214-080 CONN,16P 52207-1690
CN601 87-099-522-080 CONN,6P ZH-SM3 V W
FB701 83-XM1-617-080 C-COIL,BK2125HM601
FB702 83-XM1-617-080 C-COIL,BK2125HM601
FB703 83-XM1-617-080 C-COIL,BK2125HM601
FB704 83-XM1-617-080 C-COIL,BK2125HM601
J101 87-A61-447-010 JACK,DC DJ26B BLK 6
J701 87-A61-446-010 JACK,3.5 ST W/REN
L201 88-HC4-615-040 C-COIL,39UH 7006-2M
L301 87-A50-367-080 C-COIL, 10UH LQG21F
L302 87-A50-367-080 C-COIL, 10UH LQG21F
L401 87-A50-556-080 C-COIL, 47UH K LQH3C
L402 87-A50-440-080 C-COIL, 100UH K LQH3C34
L501 87-A50-367-080 C-COIL, 10UH LQG21F
L502 87-A50-367-080 C-COIL, 10UH LQG21F
L601 87-A50-367-080 C-COIL,10UH LQG21F
L610 87-005-843-080 C-COIL,470UH K LQH3C
R222 87-022-246-080 C-RES,U 20K-1/16W F
R224 87-022-239-080 C-RES U 10K-1/16WF
S101 87-A91-622-010 SW,MICRO PV1102
S302 87-A90-494-080 C-SW,SL 1-1-3 SSSS81
S303 87-A90-494-080 C-SW,SL 1-1-3 SSSS81
TC208 87-A91-185-080 C-TRIMMER,CER 30P TZC03
VR701 87-A91-145-080 C-VR,RTRY 30KCX2 H RK14J12R
X301 87-A70-255-080 C-VIB,4.19MHZ CSTRC0419MG03
X401 87-A70-201-080 C-VIB,CER 16.93MHZ CSTCV-MXJ0C

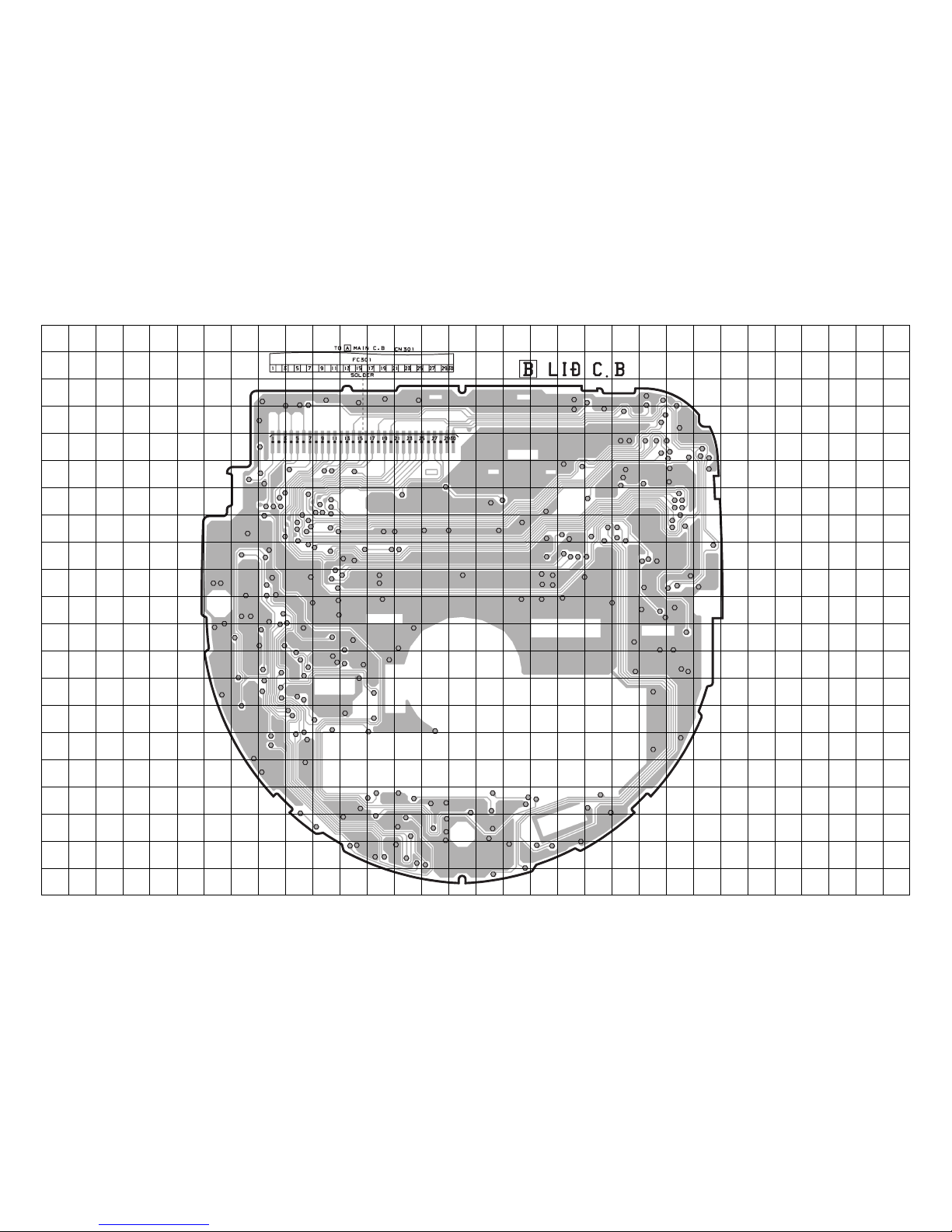

LID C.B
ANT801 8Z-HC1-610-010 ANT,BAR-ANTENNA
BPF801 87-008-406-080 BPF GFMB1
C800 87-012-195-080 C-CAP,U 100P-50CH
C801 87-012-286-080 C-CAP,U 0.01-25
C802 87-012-176-080 CAP 15P
C804 87-012-335-080 C-CAP,U 270P-50 SL
C805 87-012-199-080 CAP 220P
C806 87-010-831-080 C-CAP,U,0.1-16F
C807 87-012-286-080 C-CAP,U,0.01-25 K B
C808 87-012-274-080 C-CAP,U 1000P-50 K B
C809 87-012-176-080 CAP 15P
C810 87-012-176-080 C-CAP,U 15P-50J CH
C811 87-012-184-080 C-CAP,U 33P-50 CH
C812 87-012-176-080 CAP 15P
C813 87-012-186-080 C-CAP,U 39P-50 CH
C814 87-012-274-080 CHIP CAP,U 1000P-50B
C815 87-012-162-080 C-CAP,U 1P-50 CK
C816 87-012-286-080 CAP, U 0.01-25
C817 87-012-274-080 C-CAP,U 1000P-50 K B
C818 87-012-286-080 CAP, U 0.01-25
C819 87-012-286-080 CAP, U 0.01-25
C821 87-012-286-080 CAP, U 0.01-25
C822 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C823 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C824 87-012-278-080 C-CAP,U 2200P-50 B
C825 87-A10-025-080 C-CAP,U 0.22-16Z F
C826 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C827 87-A11-061-080 C-CAP,S 2.2-10 K B
C828 87-012-286-080 CAP, U 0.01-25
C829 87-012-274-080 CHIP CAP,U 1000P-50B
C831 87-012-274-080 CHIP CAP,U 1000P-50B
C833 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C834 87-012-274-080 CHIP CAP,U 1000P-50B
C836 87-012-286-080 CAP, U 0.01-25
C838 87-010-829-080 CAP, U 0.047-16
C841 87-012-286-080 CAP, U 0.01-25
C842 87-012-273-080 C-CAP,U 820P-50 B
C843 87-012-286-080 CAP, U 0.01-25
C844 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C845 87-012-274-080 CHIP CAP,U 1000P-50B
C846 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C847 87-012-286-080 CAP, U 0.01-25
C848 87-012-286-080 CAP, U 0.01-25
C849 87-A10-047-080 C-CAP,U 1-10 Z F
C850 87-A10-047-080 C-CAP,U 1-10 Z F
C851 87-012-282-080 CAP, U 4700P-50
C852 87-012-282-080 CAP, U 4700P-50
C853 87-012-170-080 C-CAP,U 8P-50 CH
C854 87-012-167-080 C-CAP,U 5P-50 CH
C855 87-012-337-080 C-CAP,U 56P-50 CH
C856 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C857 87-012-286-080 CAP, U 0.01-25
C858 87-A11-061-080 C-CAP,S 2.2-10 K B
C859 87-012-286-080 CAP, U 0.01-25
C861 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C862 87-A11-061-080 C-CAP,S 2.2-10 K B
C899 87-012-286-080 C-CAP,S 2.2-10 K B
C901 87-012-274-080 CHIP CAP,U 1000P-50B
C903 87-012-286-080 CAP, U 0.01-25
C904 87-012-274-080 CHIP CAP,U 1000P-50B
C905 87-012-274-080 CHIP CAP,U 1000P-50B
C906 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C907 87-012-176-080 CAP 15P
C908 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C909 87-012-286-080 CAP, U 0.01-25
C910 87-012-286-080 CAP, U 0.01-25
C911 87-012-286-080 CAP, U 0.01-25
C912 87-012-188-080 C-CAP,U 47P-50 CH
C913 87-012-286-080 CAP, U 0.01-25
C914 87-A11-158-080 C-CAP,TN 4.7-16 M A F93
C915 87-012-275-080 C-CAP,U,1000P-50 K B GRM
C916 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C918 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C935 87-012-274-080 CHIP CAP,U 1000P-50B
C936 87-012-274-080 CHIP CAP,U 1000P-50B
C937 87-012-274-080 CHIP CAP,U 1000P-50B
C941 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C942 87-012-286-080 CAP, U 0.01-25
C943 87-012-286-080 CAP, U 0.01-25
C944 87-012-286-080 CAP, U 0.01-25
C945 87-012-286-080 CAP, U 0.01-25
C946 87-012-286-080 CAP, U 0.01-25
C947 87-A11-246-080 C-CAP,S 4.7-6.3 M B
C948 87-012-286-080 CAP, U 0.01-25
CF801 87-A91-352-080 C-FLTR,SFECV 10.7MS2-A
CF802 87-A91-352-080 C-FLTR,SFECV 10.7MS2-A
CF803 87-A90-456-080 C-FLTR,PFWCC 450J3
CF804 8Z-HC1-612-080 C-FLTR,CDACV 10.7MG83-A
D802 87-A40-517-040 C-VARI-CAP,SVC208
D803 87-A40-517-040 C-VARI-CAP,SVC208
D804 87-A40-462-040 C-VARI-CAP,SVC347(S)
IFT803 87-005-788-080 C-IFT,AM (450K)
L801 8A-HC1-614-010 COIL,FM OSC3-AHC1
L802 8A-HC1-612-010 COIL,FM RF-AHC1
L804 87-003-247-080 C-COIL,100UH
L805 87-A50-037-080 C-COIL,D-D 5CDLU
L807 87-A50-536-080 C-COIL,10UH K LQH3C24

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
L808 87-A50-536-080 C-COIL,10UH K LQH3C24
L901 87-A50-536-080 C-COIL,10UH K LQH3C24
L902 87-A50-536-080 C-COIL,10UH K LQH3C24
LCD901 8A-HC1-610-010 LCD,AHC-1
LED902 87-A91-327-040 C-LED,SEC1703C GRN
LED903 87-A91-328-040 C-LED,SEC1803C ORN
LED904 87-A91-326-040 C-LED,SEC1603C RED
SW901 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW902 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW903 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW904 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW905 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW906 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW907 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW908 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW909 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW910 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW911 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW920 87-036-379-180 C-SW,SL1-1-2 SS350
TC801 87-011-249-080 C-TRIMMER,CER 30P 4.5X3.2 ECRK
X801 87-A70-259-010 VIB,XTAL 4.5MHZ CSA-309
X901 87-A70-255-080 C-VIB,4.19MHZ CSTRC0419MG03
88
A

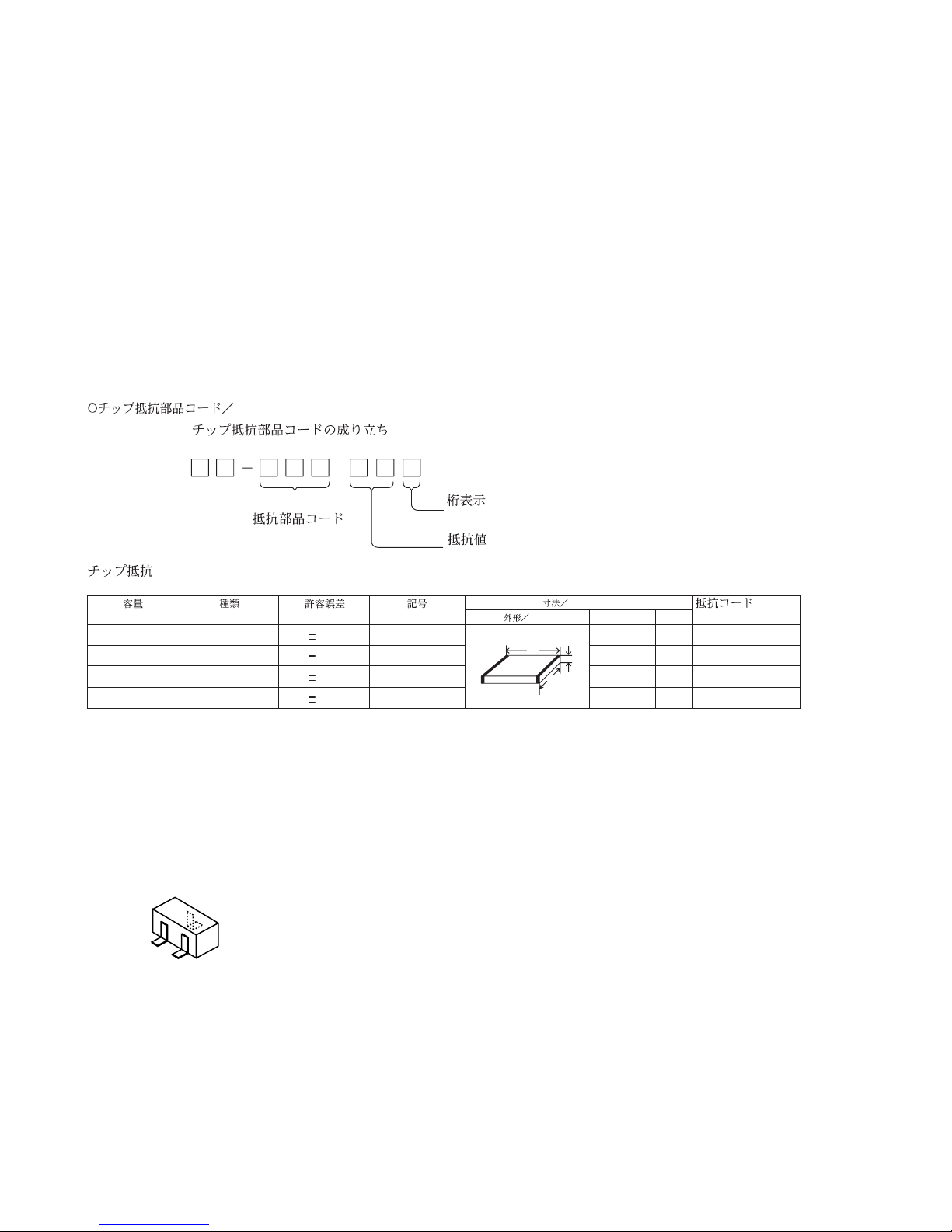

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
DTA114TKA
DTA144TKA
DTC114EKA
B
C
E
–6 –
DTC114TKA
DTC123JKA
DTC144EKA

WIRING  1 ( MAIN )<1 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
 7 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

WIRING  1 ( MAIN )<2 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 8 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

SCHEMATIC DIAGRAM – 1 (MAIN)
– 9 –

WIRING  2 ( LID )<1 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
 10 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

WIRING  2 ( LID )<2 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 11 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 12 –

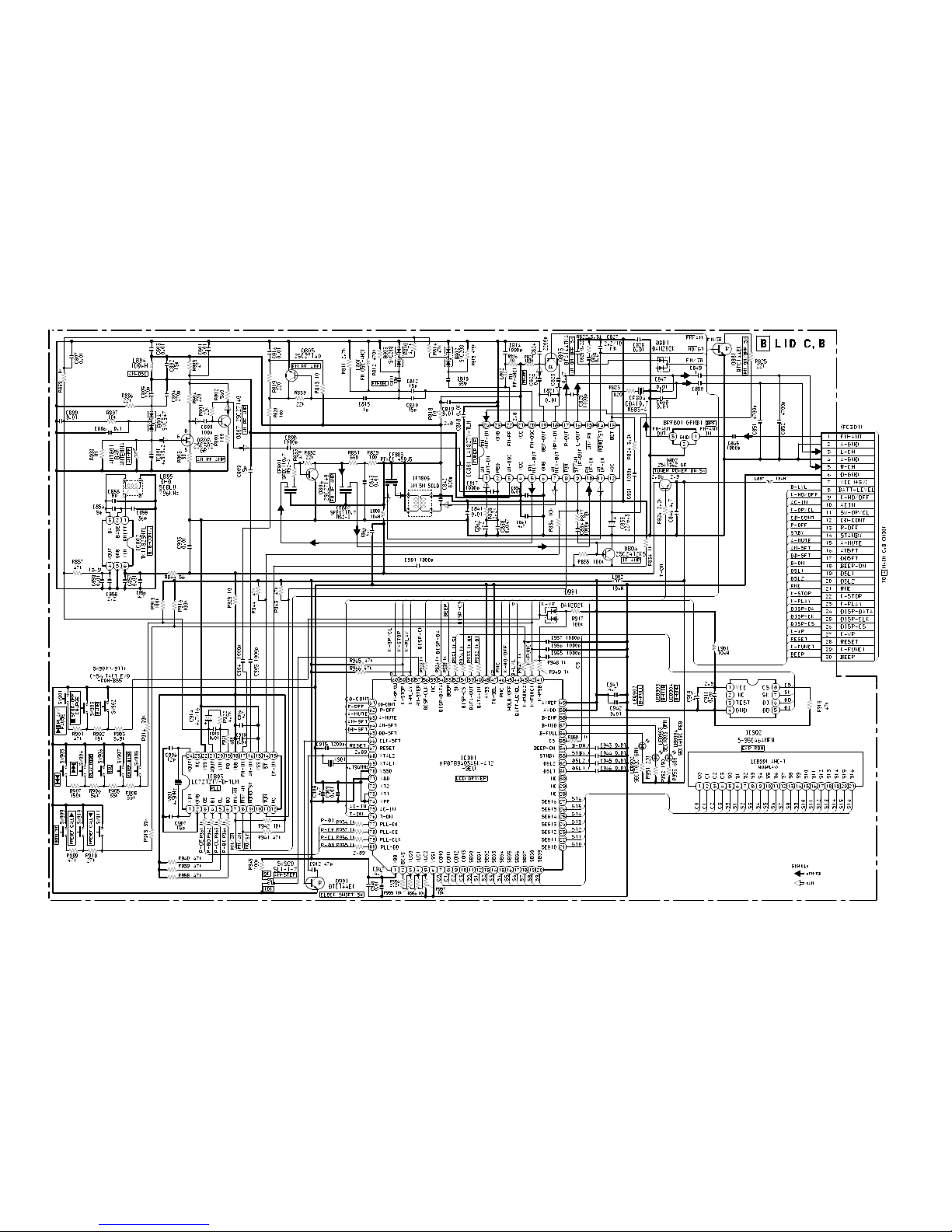

SCHEMATIC DIAGRAM – 2 (LID)

MECHANICAL EXPLODED VIEW 1 / 1
–13 –
AA
B
B
2
1
3
5
6
78
LCD
9
PWB
PWB
11
13
14
10
12
4
15
17
16
18
19
24
25
23
22
21
DA23LN
20
LID,BATT
27
26

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL PARTS LIST 1 / 1
–14 –
1 8A-HC1-006-010 PANEL,DISPLAY
2 8A-HC1-005-110 PANEL,LID CD
3 8A-HC1-019-010 WINDOW,DISPLAY 207
4 8A-HC1-001-210 LID,CD
5 8A-HC1-215-010 SPR-T,OPEN (HK)
6 8A-HC1-218-010 SHAFT,LID(300) HK
7 8Z-HC1-610-010 ANT,BAR-ANTENNA
8 8A-HC1-210-010 PLATE,LCD (HK)
9 8A-HC1-219-010 JOINT,LCD AHC-1
10 8A-HC1-009-010 HLDR,LID CD
11 8A-HC1-015-010 LENS,LED
12 8A-HC1-008-110 KEY,PLAY
13 8A-HC1-014-010 KEY,BAND
14 8A-HC7-018-210 LEVER,OPEN
15 8A-HC1-002-110 CABI,CENTER
16 8A-HC1-211-110 LEVER,OPEN (HK)
17 8A-HC1-010-010 KNOB,SL OPEN
18 8A-HC1-216-110 SPR-T,KNOB (HK)
19 8A-HC1-212-010 HLDR,OPEN (HK)
20 8Z-HC1-225-010 DMPR,MECHA(SP)
21 8A-HC1-214-010 BAT-CONTACT,(-) (HK)
22 8A-HC1-213-010 BAT-CONTACT,(+) (HK)
23 8A-HC1-217-010 BAT-CONTACT,(+)(-)
24 8A-HC1-013-010 KNOB,SL EASS
25 8A-HC1-011-010 KNOB,SL HOLD
26 8A-HC1-012-010 CABI ASSY,BOTTOM
27 8A-HC1-016-010 FOOT,DIA 10
A 87-067-384-010 SCREWVT1.4-3.5HL
B 87-067-869-010 V+1.7-8 HL BLK
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green

CD MECHANISM EXPLODED VIEW 1 / 1
–15 –
CD MECHANISM PARTS LIST 1 / 1
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
2
4
5
9
3
1
87
10
D
D
A
C
B
6
1 S0-A41-A20-604 PICKUP ASSY LASER P200L
2 S0-M10-A10-800 MOTOR SPINDLE ASSY
3 S0-M10-A10-900 MOTOR SLED ASSY
4 S2-311-A12-200 CHASSIS
5 S2-511-A23-200 GEAR MIDDLE
6 S2-511-A23-100 GEAR,SCREW
7 S2-511-A23-400 GEAR,RACK
8 S2-511-A07-901 SPINDLE SCREW
9 S4-S13-A00-200 SW,LEAF
10 S2-451-A18-100 HOLDER GEAR
A SS-EXE-A04-000 SCR PAN PCS 1.4-2.2
B SS-GXE-A00-301 SPECIAL SCREW M1.7-6.0
C SS-EXE-A14-100 SPECIAL SCREW
D SS-GXE-A00-202 SPECIAL SCREW M1.7-4.0

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9820572 0251431
