Aiwa CSD-EX180 User manual

S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
CSD-EX180
• TYPE: HC
S/M Code No. 09–996–409–6T4
COMPACT DISC STEREO
RADIO CASSETTE RECORDER

ELECTRICAL MAIN PARTS LIST - 1/5
NOTE: The characters in the suffix column indicate the part usage.
HC .....................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 305 87-010-213-080 C-CAP,S 0.015-50 B ABCD................
C 309 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 308 87-010-371-080 CAP, ELECT 470-6.3V ...D................
C 304 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 302 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 301 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 303 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 307 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 306 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 319 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 312 87-010-213-080 C-CAP,S 0.015-50 B ABCD................
C 318 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 317 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 313 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 316 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 315 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 314 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 310 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 311 87-010-546-080 CAP, ELECT 0.33-50V ABCD................
C 327 87-010-184-080 CHIP CAPACITOR 3300P(K) ...D................
C 324 87-010-184-080 CHIP CAPACITOR 3300P(K) ...D................
C 321 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 326 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 325 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 329 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 322 87-010-402-080 CAP, ELECT 2.2-50V ABCD................
C 320 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 337 87-010-178-080 CHIP CAP 1000P ...D................
C 331 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 330 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 333 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 332 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 338 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 336 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 339 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 334 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 335 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 341 87-010-178-080 CHIP CAP 1000P ...D................
C 348 87-010-235-080 CAP,E 470-16 SME ABCD................
C 346 87-010-235-080 CAP,E 470-16 SME ABCD................
C 344 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 342 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 345 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 347 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 343 87-010-385-080 CAP, ELECT 220-25V ...D................
C 340 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 355 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 351 87-010-401-080 CAP, ELECT 1-50V ABCD................
CN 320 87-049-469-010 CONN,4P V ABCD................
CN 330 87-009-031-010 CONNECTOR, 3P ABCD................
D 301 87-A40-466-080 ZENER,MTZJ2.7A ABCD................
IC 302 87-A20-946-040 C-IC,MM1434XF ABCD................
IC 301 87-A21-111-040 C-IC,M62495FP ABCD................
IC 303 87-A21-193-010 IC,TA8227P ABCD................
J 301 87-009-216-010 JACK, DIA 3.5 ABCD................
Q 302 89-318-154-080 TR,2SC1815 (0.4W) ABCD................
Q 301 89-318-154-080 TR,2SC1815 (0.4W) ABCD................
R 339 87-022-480-080 RES,NF 2.2-1/4W J ...D................
R 338 87-022-480-080 RES,NF 2.2-1/4W J ...D................
S 301 87-A90-815-010 SW,PUSH 2-2-6 SPUN19-S-501 ABCD................
C 209 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 204 87-010-221-080 CAP, ELECT 470-10V ABCD................
C 206 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 205 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 203 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 210 87-010-198-080 CAP, CHIP 0.022 ABCD................
C 212 87-010-198-080 CAP, CHIP 0.022 ABCD................
C 213 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 211 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 220 87-016-495-090 CAP,E 3300-25 SMG ABCD................
C 233 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 232 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 234 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 231 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 230 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 261 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 264 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 265 87-010-236-080 CAP,E 1000-10 SME ABCD................
C 262 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 263 87-010-385-080 CAP, ELECT 220-25V ABCD................
CN 210 87-049-919-010 CONN,3P EH V WHT ABCD................
CN 220 87-049-469-010 CONN,4P V ABCD................
CN 270 87-009-361-010 CONN,5P BTMK P-1R ABC.................
CN 280 87-009-031-010 CONNECTOR, 3P ...D................
CN 280 87-009-370-010 CONN 5P BTMK ABCD................
D 204 87-017-148-080 ZENER,HZS6A1L ABC.................

ELECTRICAL MAIN PARTS LIST - 2/5
D 201 87-017-162-080 ZENER,HZS7C3L ABC.................
D 204 87-A40-234-080 ZENER,MTZJ5.6A ...D................
D 201 87-A40-648-080 ZENER,MTZJ8.2A ...D................
D 213 87-070-136-080 ZENER,MTZJ5.1B ABCD................
D 225 87-027-399-080 ZENER,HZ7A3L (200MA) AB..................
D 225 87-027-607-080 ZENER,HZ7B3L ..C.................
D 221 87-070-345-080 DIODE,IN4148 ABCD................
D 220 87-070-345-080 DIODE,IN4148 ABCD................
D 225 87-A40-509-080 ZENER,MTZJ6.8C ...D................
D 261 87-017-139-010 ZENER,HZS15-2 ABC.................
D 261 87-A40-249-080 ZENER,MTZJ 15A ...D................
IC 260 87-070-416-010 IC,NJU7201 L55 ABCD................
Q 207 89-113-184-080 TR,2SA1318T ABCD................
Q 204 89-113-184-080 TR,2SA1318T ABCD................
Q 202 89-213-702-010 TR,2SB1370 (1.8W) ABCD................
Q 205 89-318-154-080 TR,2SC1815 (0.4W) ABCD................
Q 206 89-318-154-080 TR,2SC1815 (0.4W) ABCD................
Q 203 89-318-154-080 TR,2SC1815 (0.4W) ABCD................
Q 210 89-112-965-080 TR,2SA1296 (0.75W) ABCD................
Q 223 87-026-291-080 TR,DTC124XS ABCD................
Q 222 87-026-463-080 TR,2SA933S (0.3W) ABCD................
Q 225 89-318-154-080 TR,2SC1815 (0.4W) ABCD................
Q 260 89-320-011-080 TR,2SC2001 (15W) ABCD................
Q 270 89-112-965-080 TR,2SA1296 (0.75W) ABCD................
R 290 87-029-124-090 RESISTOR, FUSE 1/4W 2.2 ABCD................
C 401 87-010-178-080 CHIP CAP 1000P ABCD................
C 405 87-010-221-080 CAP, ELECT 470-10V ABC.................
C 407 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 402 87-012-157-080 C-CAP,S 330P-50 CH ABCD................
C 403 87-012-157-080 C-CAP,S 330P-50 CH ABCD................
C 419 87-010-177-080 C-CAP,S 820P-50 SL ABCD................
C 411 87-010-177-080 C-CAP,S 820P-50 SL ABCD................
C 412 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 415 87-010-379-080 CAP, ELECT 22-16V ABC.................
C 417 87-010-384-080 CAP, ELECT 100-25V ABCD................
C 418 87-010-402-080 CAP, ELECT 2.2-50V ABCD................
C 410 87-010-402-080 CAP, ELECT 2.2-50V ABCD................
C 416 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 415 87-010-406-080 CAP, ELECT 22-50 ...D................
C 413 87-012-158-080 C-CAP,S 390P-50 CH ABCD................
C 425 87-010-177-080 C-CAP,S 820P-50 SL ABCD................
C 426 87-010-186-080 CAP,CHIP 4700P ABCD................
C 424 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 428 87-010-260-080 CAP, ELECT 47-25V ABCD................
C 422 87-010-379-080 CAP, ELECT 22-16V ABC.................
C 423 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 427 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 422 87-010-406-080 CAP, ELECT 22-50 ...D................
C 429 87-012-153-080 C-CAP,S 120P-50 CH ABCD................
C 420 87-012-158-080 C-CAP,S 390P-50 CH ABCD................
C 433 87-010-177-080 C-CAP,S 820P-50 SL ABCD................
C 434 87-010-186-080 CAP,CHIP 4700P ABCD................
C 437 87-010-213-080 C-CAP,S 0.015-50 B ABCD................
C 430 87-010-213-080 C-CAP,S 0.015-50 B ABCD................
C 435 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 438 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 431 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 436 87-012-153-080 C-CAP,S 120P-50 CH ABCD................
C 445 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 442 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 490 87-010-322-080 C-CAP,S 100P-50 CH ...D................
C 491 87-010-322-080 C-CAP,S 100P-50 CH ...D................
CN 410 87-049-469-010 CONN,4P V ABCD................
CN 420 87-009-030-010 CONNECTOR 2P PH M _ ABCD................
D 403 87-070-345-080 DIODE,IN4148 ABCD................
D 402 87-070-345-080 DIODE,IN4148 ABCD................
D 410 87-070-345-080 DIODE,IN4148 ABCD................
D 411 87-070-345-080 DIODE,IN4148 ABCD................
D 422 87-020-465-080 DIODE,1SS133 (110MA) ...D................
D 423 87-020-465-080 DIODE,1SS133 (110MA) ...D................
D 424 87-020-465-080 DIODE,1SS133 (110MA) ...D................
D 490 87-070-345-080 DIODE,IN4148 ABCD................
D 493 87-070-345-080 DIODE,IN4148 ABCD................
D 492 87-070-345-080 DIODE,IN4148 ABCD................
D 491 87-070-345-080 DIODE,IN4148 ABCD................
IC 420 87-A21-145-040 C-IC,BA4560F-E2 ABCD................
IC 430 87-A21-145-040 C-IC,BA4560F-E2 ABCD................
L 401 87-007-342-010 COIL,OSC 85K BIAS ABCD................
Q 408 87-026-462-080 TR,2SC1740 S(RS 0.3W) ABCD................
Q 407 87-026-463-080 TR,2SA933S (0.3W) ABCD................
Q 406 87-026-463-080 TR,2SA933S (0.3W) ABCD................
Q 409 89-110-155-080 TR,2SA1015(0.4W) ABCD................
Q 401 89-318-155-080 TR,2SC1815 (0.4W) ABCD................
Q 403 89-318-155-080 TR,2SC1815 (0.4W) ABCD................
Q 402 89-318-155-080 TR,2SC1815 (0.4W) ABCD................
Q 411 89-110-155-080 TR,2SA1015(0.4W) ABCD................
Q 410 89-318-155-080 TR,2SC1815 (0.4W) ABCD................
Q 420 87-026-496-080 FET,2SJ103GR ABCD................
Q 421 87-026-496-080 FET,2SJ103GR ABCD................
Q 432 89-110-155-080 TR,2SA1015(0.4W) ABCD................
Q 433 89-110-155-080 TR,2SA1015(0.4W) ABCD................
Q 431 89-328-786-080 TR,2SC2878B ABCD................

ELECTRICAL MAIN PARTS LIST - 3/5
Q 430 89-328-786-080 TR,2SC2878B ABCD................
S 410 87-A91-173-010 SW,SL 2-2-3 SK23E01G04 ABCD................
C 604 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 605 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 601 87-010-313-080 CAP, CHIP 18P ABCD................
C 602 87-010-313-080 CAP, CHIP 18P ABCD................
C 612 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 611 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 641 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 686 87-010-317-080 C-CAP,S 39P-50 CH ABCD................
C 686 87-010-319-080 C-CAP,S 56P-50 CH ABCD................
C 681 87-010-405-080 CAP, ELECT 10-50V ...D................
C 690 87-010-312-080 C-CAP,S 15P-50 CH ABCD................
CN 610 87-A60-057-010 CONN,11P V 9604S-11C ABCD................
CN 630 87-009-030-010 CONNECTOR 2P PH M _ ABCD................
CN 640 87-009-756-010 CONN,15P PH H ...D................
CN 670 87-A60-058-010 CONN,10P V 9604S-10C ABCD................
D 605 87-070-345-080 DIODE,IN4148 ABCD................
D 603 87-070-345-080 DIODE,IN4148 ABCD................
D 604 87-070-345-080 DIODE,IN4148 ABCD................
D 602 87-070-345-080 DIODE,IN4148 ABCD................
IC 601 8Z-CDB-651-010 C-IC,LC865516A-5L84 ABCD................
L 601 87-003-097-080 COIL,1UH ...D................
L 605 87-003-097-080 COIL,1UH ...D................
L 602 87-003-143-080 COIL 4.7 UH ...D................
L 632 87-003-143-080 COIL 4.7 UH ...D................
L 650 87-003-143-080 COIL 4.7 UH ...D................
L 668 87-003-143-080 COIL 4.7 UH ...D................
Q 602 87-026-291-080 TR,DTC124XS ABCD................
Q 604 87-026-291-080 TR,DTC124XS ABCD................
Q 603 87-026-463-080 TR,2SA933S (0.3W) ABCD................
Q 690 87-026-447-080 TR,2SC1740S R ABCD................
X 601 87-030-273-010 VIB,XTAL 32.768K5PPM ABCD................
X 602 87-030-376-080 VIB,CER CSA5.76MG200 ABCD................
CN 620 87-099-753-010 CONN,11P H 9604 ABCD................
CN 680 87-A60-077-010 CONN,10P H 9604S-10F ABCD................
D 601 87-A91-172-010 LED, SA36-11HWA-11.0MM RED ABCD................
D 611 87-A40-622-010 LED,L-34HDSL RED ABCD................
D 614 87-A40-622-010 LED,L-34HDSL RED ABCD................
D 613 87-A40-623-010 LED,L-34GDSL GRN ABCD................
D 612 87-A40-623-010 LED,L-34GDSL GRN ABCD................
Q 614 87-026-211-080 TR,DTA144EK ABCD................
Q 612 87-026-235-080 CHIP-TR,DTC114EK ABCD................
Q 613 87-026-235-080 CHIP-TR,DTC114EK ABCD................
Q 611 87-026-235-080 CHIP-TR,DTC114EK ABCD................
S 603 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 602 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 601 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 605 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 604 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 611 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 620 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
S 621 87-A90-164-080 SW,TACT SKQAB(N) ABCD................
C 501 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 504 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 509 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 503 87-010-221-080 CAP, ELECT 470-10V ABCD................
C 502 87-010-221-080 CAP, ELECT 470-10V ABCD................
C 508 87-010-236-080 CAP,E 1000-10 SME ABCD................
C 512 87-010-178-080 CHIP CAP 1000P ABCD................
C 510 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 511 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 516 87-010-545-080 CAP, ELECT 0.22-50V ABCD................
C 515 87-012-157-080 C-CAP,S 330P-50 CH ABCD................
C 525 87-010-176-080 C-CAP,S 680P-50 SL ABCD................
C 527 87-010-186-080 CAP,CHIP 4700P ABCD................
C 529 87-010-545-080 CAP, ELECT 0.22-50V ABCD................
C 528 87-012-156-080 C-CAP,S 220P-50 CH ABCD................
C 535 87-010-145-080 C-CAP,S 1P-50 CH ...D................
C 533 87-010-184-080 CHIP CAPACITOR 3300P(K) ABCD................
C 536 87-010-312-080 C-CAP,S 15P-50 CH ABCD................
C 536 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 531 87-010-374-080 CAP, ELECT 47-10V ABCD................
C 539 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 530 87-012-140-080 CAP 470P ABCD................
C 545 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 549 87-010-198-080 CAP, CHIP 0.022 ...D................
C 548 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 547 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 546 87-010-374-080 CAP, ELECT 47-10V ABCD................
C 543 87-010-401-080 CAP, ELECT 1-50V ABCD................
C 541 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 543 87-010-544-080 CAP, ELECT 0.1-50V ABC.................
C 556 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 552 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 558 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
C 553 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 554 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 559 87-010-315-080 C-CAP,S 27P-50 CH ABCD................
C 550 87-010-374-080 CAP, ELECT 47-10V ABCD................
C 555 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 568 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................

ELECTRICAL MAIN PARTS LIST - 4/5
C 560 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 565 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 569 87-010-404-080 CAP, ELECT 4.7-50V ABCD................
C 563 87-012-156-080 C-CAP,S 220P-50 CH ABCD................
C 564 87-018-121-080 CAP, CER 150P-50V ABCD................
C 567 87-018-127-080 CAP, CER 470P-50V ABC.................
C 574 87-010-178-080 CHIP CAP 1000P ABCD................
C 572 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 573 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 571 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 579 87-010-263-080 CAP, ELECT 100-10V ABCD................
C 570 87-018-131-080 CAP, CER 1000P-50V ...D................
C 578 87-018-209-080 CAP, CER 0.1-50V ABCD................
C 588 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 582 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 589 87-010-322-080 C-CAP,S 100P-50 CH ...D................
C 587 87-010-322-080 C-CAP,S 100P-50 CH ...D................
C 585 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 583 87-010-405-080 CAP, ELECT 10-50V ABCD................
C 580 87-012-153-080 C-CAP,S 120P-50 CH ABC.................
C 584 87-012-156-080 C-CAP,S 220P-50 CH ABCD................
C 586 87-012-156-080 C-CAP,S 220P-50 CH ABCD................
C 581 87-018-119-080 CAP, CER 100P-50V ABC.................
C 587 87-018-119-080 CAP, CER 100P-50V ABC.................
C 589 87-018-119-080 CAP, CER 100P-50V ABC.................
C 594 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 593 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD................
C 590 87-010-322-080 C-CAP,S 100P-50 CH ...D................
C 591 87-010-322-080 C-CAP,S 100P-50 CH ...D................
C 592 87-010-322-080 C-CAP,S 100P-50 CH ...D................
C 592 87-018-119-080 CAP, CER 100P-50V ABC.................
C 590 87-018-119-080 CAP, CER 100P-50V ABC.................
C 591 87-018-119-080 CAP, CER 100P-50V ABC.................
CN 520 87-A60-424-010 CONN,16P V TOC-B ABCD................
CN 540 87-009-034-010 CONN,6P PH V ...D................
D 503 87-020-465-080 DIODE,1SS133 (110MA) ...D................
D 504 87-070-345-080 DIODE,IN4148 ABCD................
D 501 87-070-345-080 DIODE,IN4148 ABCD................
D 502 87-070-345-080 DIODE,IN4148 ABCD................
D 505 87-070-345-080 DIODE,IN4148 ABCD................
D 511 87-070-345-080 DIODE,IN4148 ABCD................
D 510 87-070-345-080 DIODE,IN4148 ABCD................
IC 501 87-A20-446-010 C-IC,LA9241ML ABCD................
IC 502 87-A20-459-010 C-IC,LC78622ED ABCD................
IC 503 87-A20-856-010 IC,BA6898S ABCD................
L 501 87-003-102-080 COIL, 10UH ABCD................
L 502 87-003-152-080 COIL, 100UH ...D................
L 505 87-003-152-080 COIL, 100UH ...D................
L 504 87-005-847-080 COIL,2.2UH(CECS) ABCD................
L 505 87-008-372-010 FILTER, EMI BL OIRNI ABC.................
L 502 87-008-372-010 FILTER, EMI BL OIRNI ABC.................
Q 502 87-026-291-080 TR,DTC124XS ABCD................
Q 504 87-026-463-080 TR,2SA933S (0.3W) ABCD................
Q 501 89-112-965-080 TR,2SA1296 (0.75W) ABCD................
Q 503 89-113-184-080 TR,2SA1318T ABCD................
SFR 501 87-024-276-080 SFR,100K DIA6 V TP ABCD................
X 501 81-592-641-080 CERALOCK 16.93MHZ ABCD................
C 904 87-A11-132-080 CAP,TC U 0.01-50 K B ABCD................
C 901 87-A11-132-080 CAP,TC U 0.01-50 K B ABCD................
C 903 87-A11-132-080 CAP,TC U 0.01-50 K B ABCD................
C 902 87-A11-132-080 CAP,TC U 0.01-50 K B ABCD................
CN 910 87-049-919-010 CONN,3P EH V WHT ABC.................
D 902 87-A40-465-090 DIODE,FR202 ABCD................
D 901 87-A40-465-090 DIODE,FR202 ABCD................
D 903 87-A40-465-090 DIODE,FR202 ABCD................
D 904 87-A40-465-090 DIODE,FR202 ABCD................
PR 901 87-A90-092-080 PROTECTOR,2.5A 491 ABCD................
C 5 87-010-151-080 C-CAP,S 7P-50 CH ...D................
C 8 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 9 87-010-311-080 CAP 12P ..C.................
C 2 87-010-316-080 C-CAP,S 33P-50 CH ..CD................
C 3 87-010-317-080 C-CAP,S 39P-50 CH AB..................
C 6 87-010-378-080 CAP, ELECT 10-16V ABCD................
C 7 87-018-208-080 CAP 0.047-50F ABCD................
C 13 87-010-148-080 CAP, CHIP S 75P SL ABCD................
C 11 87-010-154-080 CAP CHIP 10P AB.D................
C 18 87-010-198-080 CAP, CHIP 0.022 ABCD................
C 14 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 19 87-010-544-080 CAP, ELECT 0.1-50V ABCD................
C 17 87-016-669-080 C-CAP,S 0.1-25 K B ABCD................
C 29 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 28 87-010-194-080 CAP, CHIP 0.047 ABCD................
C 20 87-010-400-080 CAP, ELECT 0.47-50V ABCD................
C 21 87-010-403-080 CAP, ELECT 3.3-50V ABCD................
C 26 87-016-460-080 C-CAP,S 0.22-16 B ABCD................
C 27 87-016-460-080 C-CAP,S 0.22-16 B ABCD................
C 30 87-010-248-080 CAP, ELECT 220-10V ABCD................
C 35 87-010-314-080 C-CAP,S 22P-50V ABCD................
C 38 87-010-318-080 C-CAP,S 47P-50 CH ABCD................
C 38 87-010-321-080 CHIP CAPACITOR,82P(J) ..C.................
C 31 87-010-379-080 CAP, ELECT 22-16V ABCD................
C 46 87-010-175-080 CAP 560P ....................

ELECTRICAL MAIN PARTS LIST - 5/5
C 44 87-012-155-080 C-CAP 180P-50CH ABCD................
C 44 87-012-156-080 C-CAP,S 220P-50 CH ..C.................
C 92 87-010-197-080 CAP, CHIP 0.01 DM ABCD................
CF 3 82-785-747-080 CF,MS2 GHY,R ABC.................
CF 2 82-785-747-080 CF,MS2 GHY,R ABC.................
CF 3 87-008-261-010 FILTER, SFE10.7MA5-A ...D................
CF 2 87-008-261-010 FILTER, SFE10.7MA5-A ...D................
CF 1 87-A90-128-010 FLTR,AM IF CFAL-455 ABCD................
D 2 87-020-465-080 DIODE,1SS133 (110MA) ABCD................
D 4 87-020-465-080 DIODE,1SS133 (110MA) ABCD................
D 1 87-020-465-080 DIODE,1SS133 (110MA) ABCD................
D 3 87-A40-226-080 VARI-CAP,SVC251SPA ABCD................
IC 1 87-A20-955-010 IC,LA1828 ABCD................
JR 2 87-010-178-080 CHIP CAP 1000P ABCD................
L 9 87-A50-334-010 COIL,FM DET (TOKO) ABCD................
L 8 87-A50-335-010 COIL,FM IFT (TOKO) ABCD................
L 7 87-A50-336-010 COIL,AM IFT (TOKO) ABCD................
L 5 87-A50-342-010 COIL,FM OSC D AB..................
L 5 87-A50-343-010 COIL,FM OSC EX ..CD................
L 4 87-A50-345-010 COIL,FM RF EX ABCD................
L 2 87-A50-346-010 COIL,FM BPF D AB..................
L 2 87-A50-347-010 COIL,FM BPF EX ..CD................
L 3 87-A50-348-010 COIL,BAR ANT LW/MW (COI) ..C.................
L 3 87-A50-349-010 COIL,BAR ANT AMW (COI) ....................
L 3 87-A50-350-010 COIL,BAR ANT AMN (COI) AB.D................
L 3 87-A50-448-010 COIL,BAR ANT MW HE(COI) ....................
L 3 87-A50-464-010 COIL,BAR ANT MW HE 71T:17T ....................
L 10 87-003-102-080 COIL, 10UH ABCD................
L 16 87-A50-337-010 COIL,AM OSC (TOKO) ABCD................
L 16 87-A50-339-010 COIL,LW OSC (TOKO) ..C.................
L 17 87-A50-340-010 COIL,SW OSC (TOKO) ....................
L 11 87-A50-341-010 COIL,SW ANT (TOKO) ....................
L 16 87-A50-463-010 COIL,AM OSC HE(TOKO) ....................
L 41 87-003-143-080 COIL 4.7 UH ....................
Q 3 87-026-215-080 TR,DTC114YS ABCD................
Q 2 87-026-572-080 TR,DTA114TS ABCD................
Q 4 89-109-521-080 TR,2SA952 (0.6W) ..C.................
Q 1 89-319-233-080 TR,2SC1923 (0.1W) ABCD................
S 1 87-A91-174-010 SW,SL 2-4-2 SK42H01G06 AB.D................
S 1 87-A91-175-010 SW,SL 2-4-3 SK43D01G06 ..C.................
TC 6 87-011-220-080 TRIMMER CAP 20P VTC ..C.................
TC 5 87-011-221-080 CAP, TRIMMER 30P ..C.................
VC 1 87-A91-315-010 TUN-CAP,40P-140P D(TWD) AB..................
VC 1 87-A91-316-010 TUN-CAP,20P-160P U(TWD) ....................
VC 1 87-A91-317-010 TUN-CAP,20P-335P H(TWD) ....................
VC 1 87-A91-318-010 TUN-CAP,20P-140P E(TWD) ..CD................

MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
HC .....................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
84-CD8-083-010 BADGE,AIWA 30.5-5.2 2.5LEAD ABCD................
88-CH6-019-010 PANEL,CD ..CD................
8Z-CD8-001-010 CABI,FRONT ...D................
8Z-CD8-002-010 CABI,REAR ...D................
8Z-CD8-003-010 LID,CD ...D................
8Z-CD8-004-010 LID,CASS ...D................
8Z-CD8-005-010 CHAS,CD ABCD................
8Z-CD8-006-010 PANEL,CONT ..CD................
8Z-CD8-007-010 HLDR,CASS A..D................
8Z-CD8-008-010 LID,BATT A..D................
8Z-CD8-009-010 ARM,MAIN HANDL A..D................
8Z-CD8-010-010 COVER, HANDLE A..D................
8Z-CD8-012-010 WINDOW,DIAL ...D................
8Z-CD8-013-010 WINDOW,CD ..CD................
8Z-CD8-014-010 WINDOW,CASS DOOR ABCD................
8Z-CD8-016-010 POINTER,TUNER ABCD................
8Z-CD8-041-010 CABI,FRONT D A...................
8Z-CD8-042-010 CABI,REAR D A...................
8Z-CD8-043-010 LID,CD D A...................
8Z-CD8-044-010 LID,CASS D A...................
8Z-CD8-045-010 PANEL,CONT D A...................
8Z-CD8-046-010 WINDOW,LED D AB..................
8Z-CD8-047-010 WINDOW,DIAL D A...................
8Z-CD8-048-010 WINDOW,CD D AB..................
8Z-CD8-052-010 WINDOW,DIAL EZ ....................
8Z-CD8-053-010 CABI,REAR EZ ....................
8Z-CD8-059-010 WINDOW,DIAL LH ....................
8Z-CD8-060-010 CABI,REAR HE ....................
8Z-CD8-061-010 WINDOW,DIAL HE ....................
8Z-CD8-064-010 WINDOW,LED EX ..CD................
8Z-CD8-065-010 CABI,FRONT D (L) .B..................
8Z-CD8-066-010 CABI,REAR D (L) .B..................
8Z-CD8-067-010 LID,CD D (L) .B..................
8Z-CD8-068-010 LID,CASS D (L) .B..................
8Z-CD8-069-010 PANEL,CONT D (L) .B..................
8Z-CD8-070-010 HLDR,CASS D (L) .B..................
8Z-CD8-071-010 LID,BATT (L) .B..................
8Z-CD8-072-010 ARM,MAIN HANDL (L) .B..................
8Z-CD8-073-010 COVER, HANDL (L) .B..................
8Z-CD8-074-010 WINDOW,DIAL (L) .B..................
8Z-CD8-081-010 GRILLE,SPKR L (L) .B..................
8Z-CD8-082-010 GRILLE,SPKR R (L) .B..................
8Z-CD8-090-010 CABI,FRONT EZ (LB) ..C.................
8Z-CD8-091-010 CABI,REAR EZ (LB) ..C.................
8Z-CD8-092-010 LID,CD EZ (LB) ..C.................
8Z-CD8-093-010 LID,CASS EZ (LB) ..C.................
8Z-CD8-094-010 HLDR,CASS (LB) ..C.................
8Z-CD8-095-010 LID,BATT (LB) ..C.................
8Z-CD8-096-010 ARM,MAIN HANDL (LB) ..C.................
8Z-CD8-097-010 COVER, HANDLE (LB) ..C.................
8Z-CD8-098-010 WINDOW,DIAL EZ (LB) ..C.................
8Z-CD8-105-010 GRILLE,SPKR L (LB) ..C.................
8Z-CD8-106-010 GRILLE,SPKR R (LB) ..C.................
8Z-CD8-117-010 CABI,FRONT ASSY ....................
8Z-CD8-017-010 KEY,CASS SET PAUSE ABCD................
8Z-CD8-018-010 KEY,CASS SET STOP ABCD................
8Z-CD8-019-010 KEY,CASS SET F F ABCD................
8Z-CD8-020-010 KEY,CASS SET REW ABCD................
8Z-CD8-021-010 KEY,CASS SET PLAY ABCD................
8Z-CD8-022-010 KEY,CASS SET REC ABCD................
8Z-CD8-023-010 KEY,Q SOUND A.CD................
8Z-CD8-024-010 KEY,REPEAT ABCD................
8Z-CD8-025-010 KEY,CD PLAY ABCD................
8Z-CD8-026-010 KEY,CD SKIP ABCD................
8Z-CD8-027-010 KEY,SET TAPE ..CD................
8Z-CD8-028-010 KEY,SET TUNER ..CD................
8Z-CD8-029-010 KEY,SET CD ..CD................
8Z-CD8-030-010 KEY,VOL UP A..D................
8Z-CD8-031-010 KEY,VOL DOWN A..D................
8Z-CD8-032-010 KNOB,RTRY TUNING A..D................
8Z-CD8-033-010 KNOB,SL BAND A..D................
8Z-CD8-034-010 KNOB,SL BEAT A..D................
8Z-CD8-035-010 KEY,EQ A..D................
8Z-CD8-049-010 KEY,SET TAPE D AB..................
8Z-CD8-050-010 KEY,SET TUNE D AB..................
8Z-CD8-051-010 KEY,SET CD D AB..................
8Z-CD8-075-010 KEY,VOL UP (L) .B..................
8Z-CD8-076-010 KEY,VOL DOWN (L) .B..................
8Z-CD8-077-010 KNOB,RTRY TU (L) .B..................
8Z-CD8-078-010 KNOB,SL BAND (L) .B..................
8Z-CD8-079-010 KNOB,SL BEAT (L) .B..................
8Z-CD8-080-010 KEY,EQ (L) .B..................
8Z-CD8-099-010 KEY,VOL UP (LB) ..C.................
8Z-CD8-100-010 KEY,VOL DOWN (LB) ..C.................
8Z-CD8-101-010 KNOB,RTRY TU (LB) ..C.................
8Z-CD8-102-010 KNOB,SL BAND (LB) ..C.................

MECHANICAL PARTS LIST - 2/2
8Z-CD8-103-010 KNOB,SL BEAT (LB) ..C.................
8Z-CD8-104-010 KEY,EQ (LB) ..C.................
8Z-CD8-038-010 PLATE,VOL SEL A.C.................
82-CD8-212-010 SPR-T,CAM CD ABCD................
84-CD5-215-010 GEAR ABCD................
84-CD5-216-010 BRACKET ABCD................
84-CT5-209-010 PLATE,MAGNET ABCD................
87-036-368-010 MAGNET ABCD................
87-A90-147-010 COVER,AC SEL SW ...D................
87-CD7-206-010 DOOR,CD LOCKER ABCD................
87-CD7-207-010 HLDR,LOCKER ABCD................
88-CD8-207-010 SPR-T,LID CD AB..................
88-CD8-209-010 SPR-C,BATT ABCD................
88-CD8-222-010 SPR-P,DAMP CD ABCD................
88-CD9-207-010 COVER, AC SOCKET ABCD................
88-CD9-210-010 BASE,CHUCK ABCD................
88-CD9-211-010 RING,CHUCK ABCD................
88-CT6-206-010 CUSHION,CD ABCD................
8Z-CD8-201-010 HLDR,DOOR CD ABCD................
8Z-CD8-202-010 GEAR,PVC ABCD................
8Z-CD8-203-010 HLDR,PVC ABCD................
8Z-CD8-205-010 HLDR,KEY FUNCTION ABCD................
8Z-CD8-206-010 HLDR,LED ABCD................
8Z-CD8-207-010 W, TUNING ABCD................
8Z-CD8-208-010 HLDR,SPKR ABCD................
8Z-CD8-209-010 HLDR,HANDLE L ABCD................
8Z-CD8-210-010 HLDR,HANDLE R ABCD................
8Z-CD8-211-010 SPR-T,LID CASS ABCD................
8Z-CD8-212-010 SPR-C,KEY VOL ABCD................
8Z-CD8-215-010 HLDR,BAR ANT ABCD................
8Z-CD8-216-010 GEAR,TU ABCD................
8Z-CD8-218-010 HLDR,KNOB BAND ..CD................
8Z-CD8-222-010 SPR-T,LID CD ..CD................
8Z-CSA-202-010 HLDR,PCB ABCD................
87-251-091-410 U+3-3 ABCD................
87-261-032-410 V+2-3 GLD ABCD................
87-261-096-410 SCREW,V+3-10 GLD ABCD................
87-651-035-410 VT1 2-6 GLD ABCD................
87-661-096-410 SCREW,VFT1+3-10 ABCD................
87-741-074-410 UT2+2.6-8 ABCD................
87-741-096-410 UT2+3-10 ABCD................
87-741-102-410 UT2+3-20 ABCD................
87-745-094-410 UT2+3-6 ABCD................
87-751-034-410 SCREW VT2+2-5 ABCD................
87-B10-102-010 UT2+3-15 W/O ABCD................
81-590-677-010 SWITCH LEAF ABCD................
87-043-116-010 ANT,WHIP ABCD................
87-A60-178-010 JACK,AC E W/SW ..CD................
87-A60-179-010 JACK,AC D W/SW AB..................
87-A90-146-010 SW,SL 1-1-2 ...D................
8Z-CD8-617-010 PT,D AB..................
8Z-CD8-619-010 PT,E ..C.................
8Z-CD8-621-010 FF-CABLE, 16P 1.0 130MM CD-RF ABC.................
8Z-CD8-622-010 FF-CABLE, 10P 1.25 280MM FRONT ABC.................
8Z-CD8-623-010 FF-CABLE, 11P 1.25 200MM FRONT ABCD................
8Z-CD8-624-010 CONN ASSY,3P BATT ABCD................
8Z-CD8-625-010 CONN ASSY,4P SPKR ABCD................
8Z-CD8-626-010 CONN ASSY,4P TAPE ABCD................
8Z-CD8-627-010 CONN ASSY,4P HEAD ABCD................
8Z-CD8-629-010 CONN ASSY,2P CD-DOOR ABCD................
8Z-CD8-630-010 WIRE ASSY,210 26 FM-ANT ABCD................
8Z-CD8-631-010 CONN ASSY,2P REC-SW ABCD................
8Z-CD8-638-010 FF-CABLE, 16P 1.0 150MM CD-RF ...D................
8Z-CD8-639-010 FF-CABLE, 10P 1.25 300MM FRONT ...D................
8Z-CD8-640-010 CONN ASSY,3P BATT-ACINLET ...D................
CNA 510 8Z-CD8-628-010 CONN ASSY,6P CD-MOTOR ABCD................
CNA 540 8Z-CD8-632-010 CONN ASSY,3P CD ABCD................
CNA 640 8Z-CD8-633-010 CONN ASSY,15P MICOM ABCD................
SP 2 88-CD8-622-010 SPKR,F 77 7OHM 3W ABCD................
SP 1 88-CD8-622-010 SPKR,F 77 7OHM 3W ABCD................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
HC .....................XX.....................................D................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-CD8-901-010 IB,D(J)B AB..................
8Z-CD8-901-110 IB,D(J)B ....................
8Z-CD8-906-010 IB,LH(ESP)B ....................
8Z-CD8-907-010 IB,H(ECA)B ....................
8Z-CD8-908-010 IB,EZ(9L)B ....................
8Z-CD8-909-010 IB,K(E)B ..C.................
8Z-CD8-927-010 IB,H(E)I-KIT ....................
8Z-CD8-937-010 IB,H(EC-K)B ...D................
87-099-789-010 PLUG,ADPTR IR44 ....................
87-099-811-010 PLUG,ADPTR CONV(K) ..C.................
87-A80-033-010 AC CORD SET,D BLK AB..................
87-A80-081-010 AC CORD SET ASSY,EZ BLK ..C.................
87-A80-089-010 AC CORD SET,HC ...D................
87-A80-119-010 AC CORD SET ASSY,AZ ....................

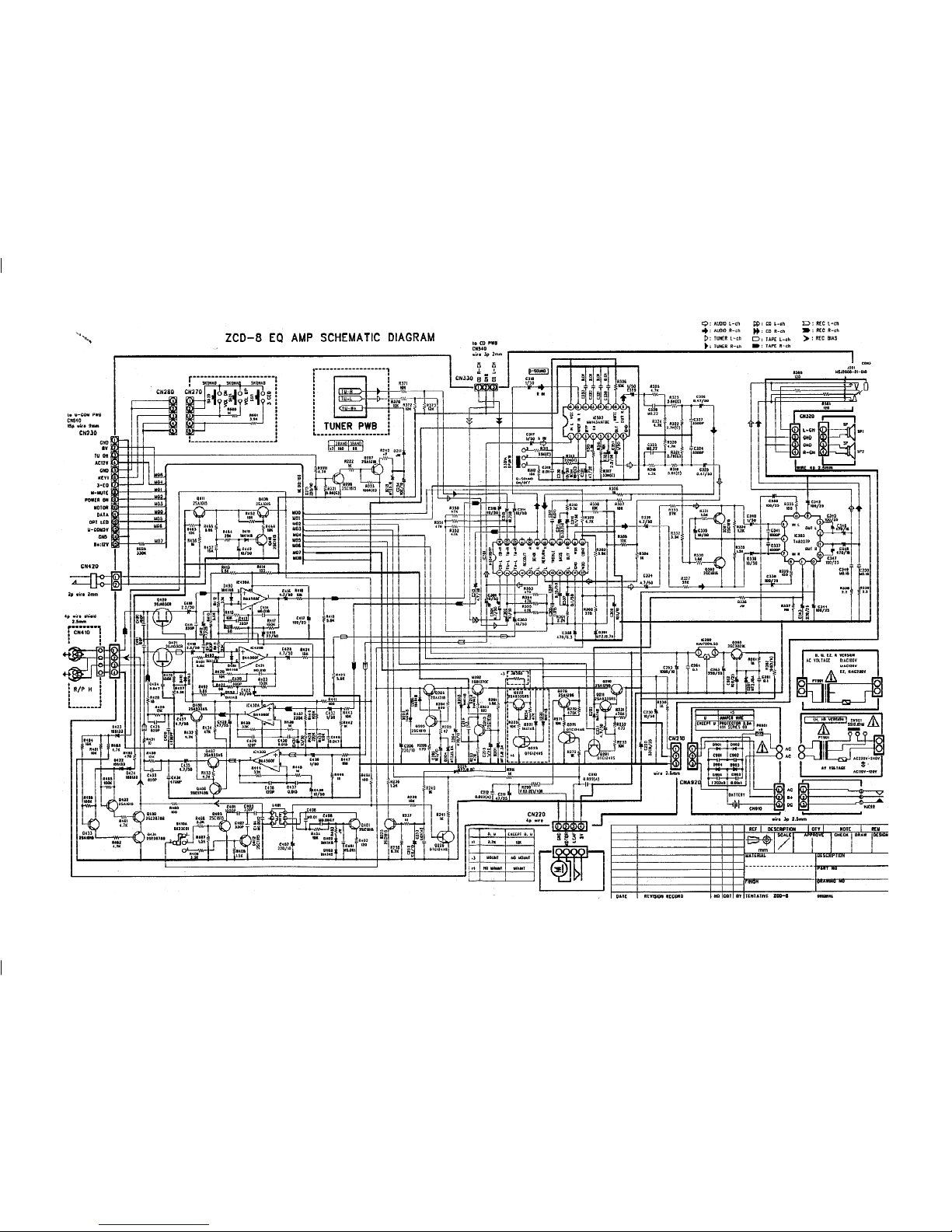

SCHEMATIC DIAGRAM _1 (MAIN)

SCHEMATIC DIAGRAM _2 (CD)

SCHEMATIC DIAGRAM _3 (FRONT)

SCHEMATIC DIAGRAM _4 (TUNER)

PrintedinSingapore
Tokyo Japan
4
9420208
