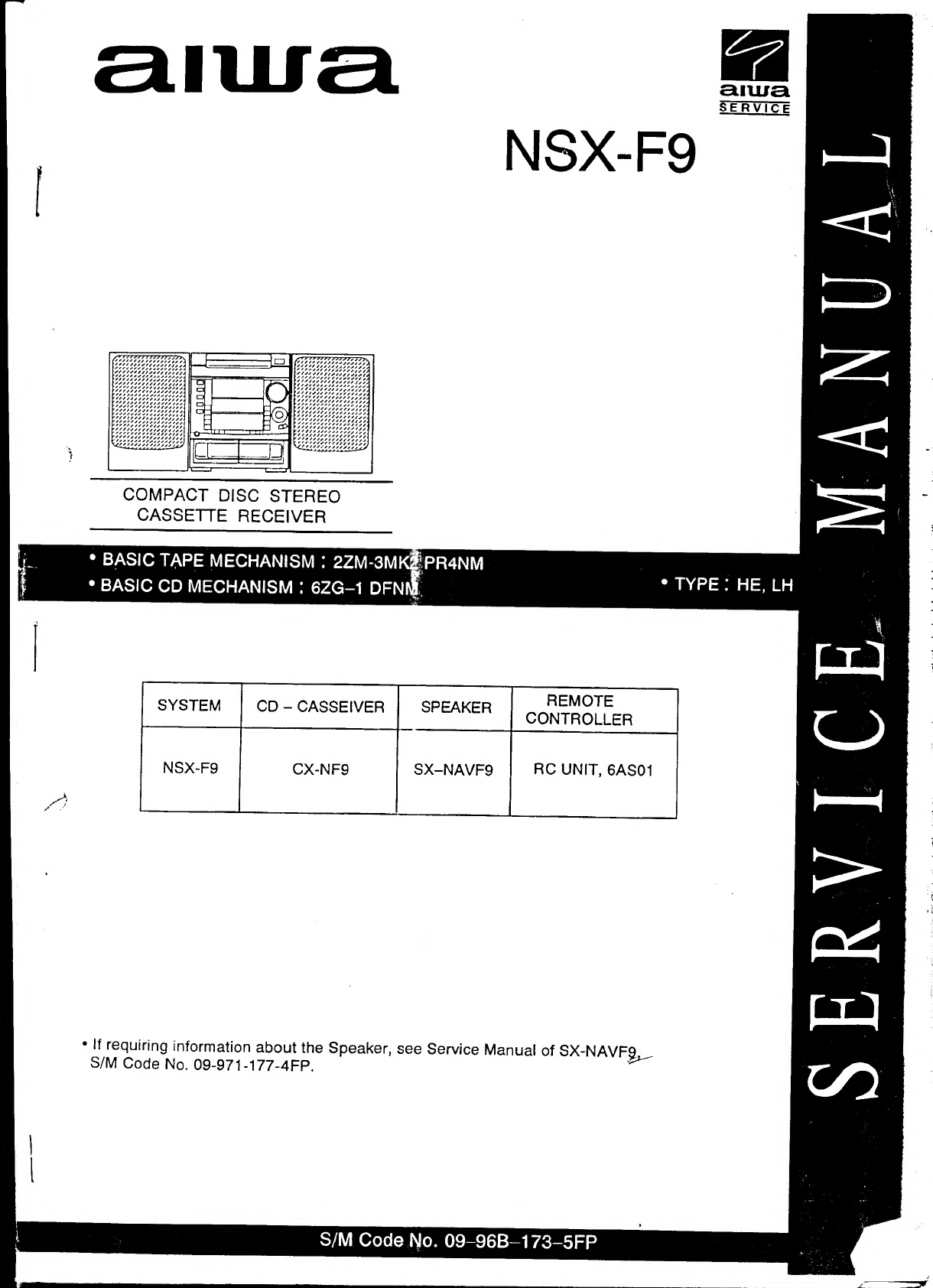

Aiwa NSX-F9 User manual

M
NSX-F9
• BASIC TAPE MECHANISM : 2ZM-3MI^PR4NM
• BASIC CD MECHANISM : 6ZG-1 DFNf
• TYPE ; HE, LH
SYSTEM CD - CASSEIVER SPEAKER
_ CONTROLLER
NSX-F9 CX-NF9 SX-NAVF9 RC UNIT, 6AS01
• If requiring information about the Speaker, see Service Manual of SX-NAVF9
S/M Code No. 09-971-177-4FP.
w
oo
S/M Code No. 09-96B-173-5FP

TABLE OF CONTENTS
SPECIFICATIONS.-.
DISASSEMBLY INSTRUCTION.4-6
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING.7
PRECAUTION TO REPLACE OPTICAL BLOCK.7
ELECTRICAL MAIN PARTS LIST.8-13
TRANSISTOR ILLUSTRATION.14
FL GRID ASSIGNMENT & ANODE CONNECTION .15,16

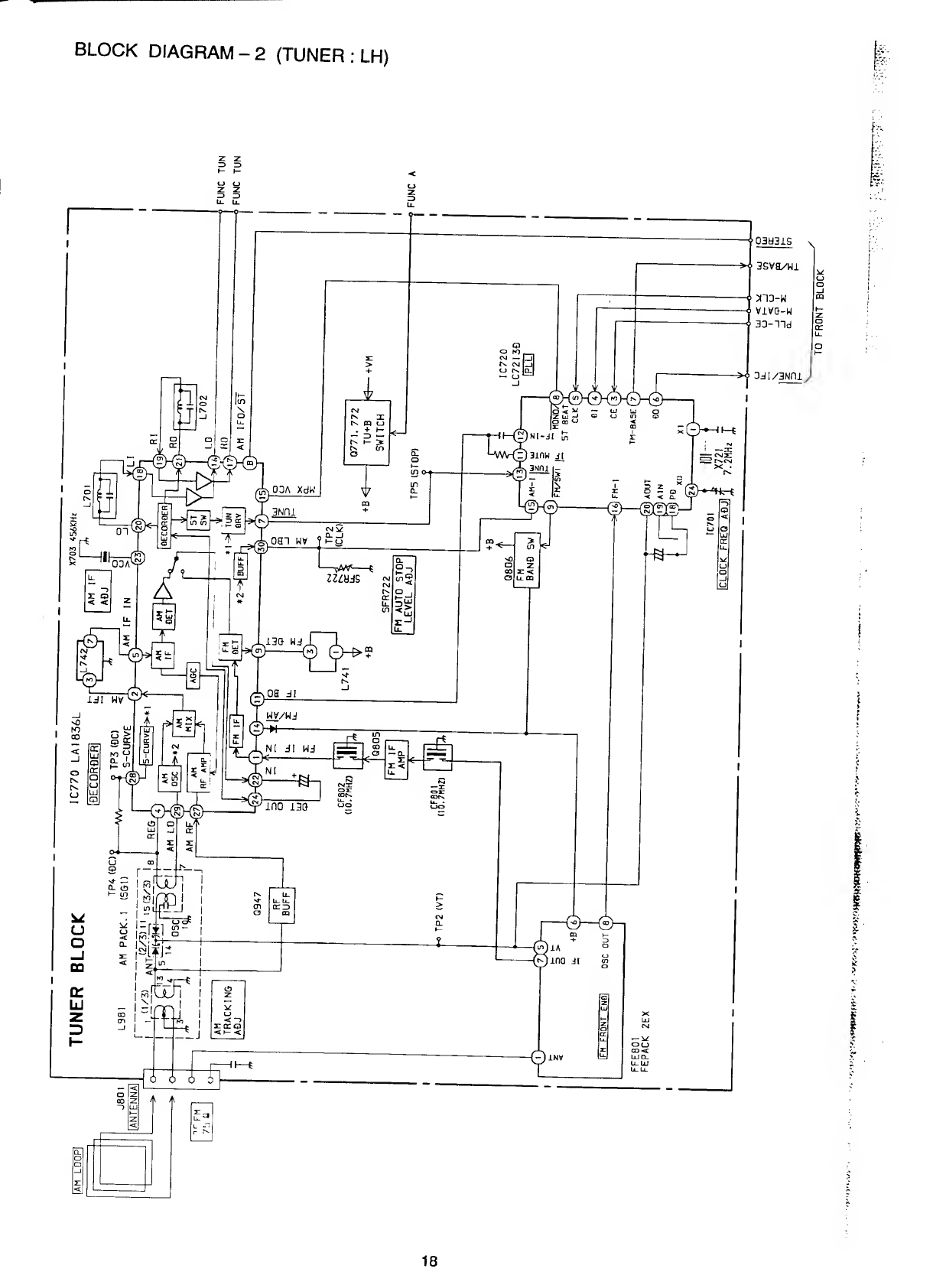

BLOCK DIAGRAM - 1 (TUNER ; HE).17
BLOCK DIAGRAM -2 (TUNER : LH).18
BLOCK DIAGRAM - 3 (MAIN / FRONT).19- 20

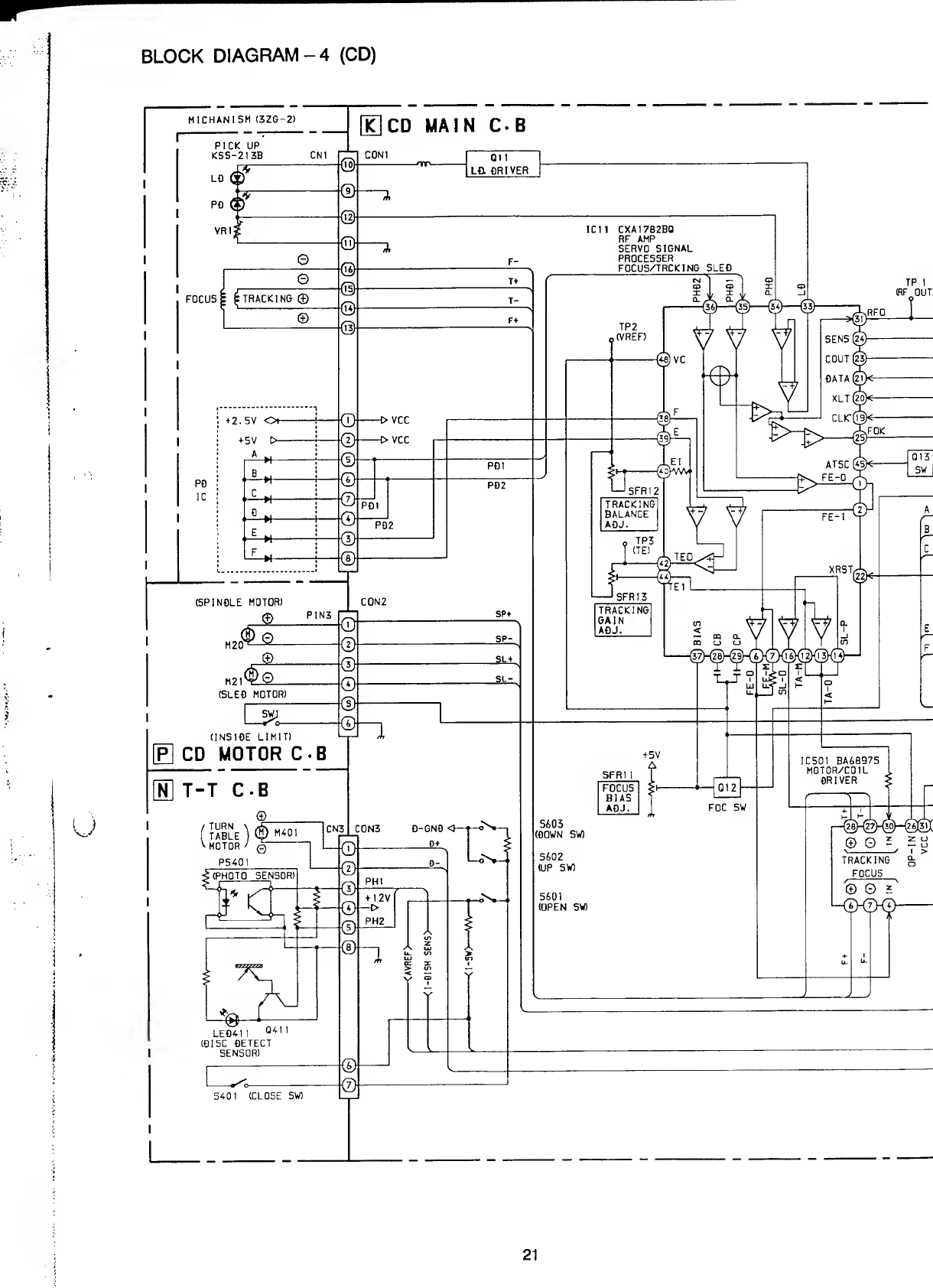

BLOCK DIAGRAM - 4 (CD).21,22
WIRING-1 (MAIN: HE).23,24
SCHEMATIC DIAGRAM - 1 (MAIN : HE).25 - 27
1C BLOCK DIAGRAM - 1.28-30
WIRING - 2 (MAIN : LH).29, 30
SCHEMATIC DIAGRAM-2 (MAIN ; LH).31-33
SCHEMATIC DIAGRAM-3 (FRONT).34-36
WIRING-3 (FRONT).37, 38
WIRING-4 (CD) .39, 40
SCHEMATIC DIAGRAM-4 (CD).41,42
WIRING -5 (DECK ).43
WIRING-6 (PT).44
1C BLOCK DIAGRAM - 2.45 - 49
1C DESCRIPTION.30 - 55
PRACTICAL SERVICE FIGURE.56
ADJUSTMENT-1 <TUNER/DECK>.57,58
ADJUSTMENT - 2 . 5 9 - 61
TEST MODE.53
TROUBLESHOOTING.53
TAPE MECHANISM EXPLODED VIEW 1 /1.64, 65
TAPE MECHANISM PARTS LIST 1 / 1. 66
SPRING APPLICATION POSITION.67
CD MECHANISM EXPLODED VIEW 1/2.68
CD MECHANISM PARTS LIST 1 / 2.69
CD MECHANISM EXPLODED VIEW 2/2.70
CD MECHANISM PARTS LIST 2/2.70
MECHANICAL EXPLODED VIEW 1/1 .71,72
MECHANICAL PARTS LIST 1 /1 .73
ACCESSORIES / PACKAGE LIST....73
REFERENCE NAME LIST.74
2

SPECIFICATIONS
<FM Tuner section>
Tuning range
Usable sensitivity(IHF)
Antenna terminals
87.5 MHz to 108 MHz
13.2 dBf
75 ohms (unbalanced)
<MW Tuner section>
Tuning range
Usable sensitivity
Antenna
531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
350 uV/m
Loop antenna
<SW Tuner section> (HE)
Tuning range
Antenna
5.900 MHz to 17.900 MHz
Wire antenna
Rated 160W + 160W
(6 ohms,T.H.D.1%,1 kHz))
Reference: 200 W + 200 W
(6 ohms, T.H.D.10%,1 kHz)
•(without connecting to the SURROUND SPEAKERS)
Total harmonic distortion 0.1% (20 W, 1 kHz, 6 ohms, DIN
AUDIO)
Inputs VIDEO/AUX : 150 mV(adjustable)
MIC 1,MIC 2: ImV(IOkohms)
Outputs LINE OUT: 200mV
SUPER WOOFER: 3.1 V
SPEAKERS: accept speakers of
6 ohms or more
SURROUND SPEAKERS:
accept speakers of 16 ohms or
more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Amplifier section>
Power output
<Compact disc player section>
Laser
Semiconductor laser {X =780 nm)
D-A converter
1 bit dual
Signal-to-noise ratio
83 dB (1 kHz, 0 dB)
Harmonic distortion
0.05 % (1 kHz, 0 dB)
Wow and flutter
Unmeasurable
<Speaker system SX-NAVF9>
Cabinet type
3 way, bass reflex
(magnetic shielded type)
Speakers
Woofer:
160 mm cone type
Tweeter:
80 mm cone type
Super tweeter:
20 mm ceramic type
Impedance
6 ohms
Output sound pressure level
87 dB/W/m
Dimensions (W x H x D)
260 X 353 X 330mm
Weight
<General>
5.9 kg
Power requirements
120 V / 220 - 230 V / 240 V AC,
switchable 50/60 Hz
Power consumption
210 W
Dimensions of main unit
(W X H X D)
300 X357.5 X 374 mm
Weight of main unit
13 kg
• Design and specifications are subject to change without
notice.
<Cassette deck section>
4 tracks, 2 channels stereo
CRo^ tape: 50 Hz-16000 Hz
Normal tape: 50 Hz -15000 Hz
60 dB (Dolby B NR ON, CrO^ tape
peak level)
AC bias
Deck 1 : playback head x 1
Deck 2 : Recording/Playback/
erase head x 1
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
“DOLBY" and the double-D symbol □□ are trademarks of Dolby
Laboratories Licensing Corporation.
The word "BBE"and the “BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
Track format
Frequency response
Singnal-to noise ratio
Recording system
Heads
3

CD DIASSEMBLY INSTRUCTIONS
L \Lv^7v:r<D^Wi'^
1) TRAY
stopper SHAFT SLED
2) GEAR MAIN CAM?r ( "a" <^^3
[fi]) H0L, figure l<DJ:dlf-CD;'*=Srit-^±tf
o
3) SHAFT SLED =J:l£<o
4) CD;'i^&T»fTPICK
5) CD;‘i5:figure SHAFT
SLED?r^*)#lt^o
1. How to replace PICK UP.
1) Open the TRAY.
Push the stopper to arrow direction and release
half of the SHAFT SLED.
2) Turn GEAR MAIN CAM to the counterclock¬
wise (arrow “a” ) direction, and lift up CD
mechanism, (figure 1)
3) Remove SHAFT SLED.
4) CD mechanism in down position, replace PICK
UP.
5) Lift up CD mechanism (figure 1), and Reas¬
semble the SHAFT SLED.
Figure 1
2.5 t-7‘ (figure 2)
1) CD^cDFFC2:$:t^TL^
2 ) 5 mfiyy r-r tr;/?
(PANEL TRAY < ■ C'L^
2 . How to remove 5CD CHANGER BLOCK (figure 2)
1) Remove the two FFC of the CD circuit board, and
remove the five SCREWS.
2) Lift 5 CD CHANGER BLOCK from behind, and
remove it.
(SCD CHANGER BLOCK can be removed even
if PANEL TRAY are not removed.)
4

3 TRAY (D^M •
( 1 )
1) CHAS MECHA TSfC^PLATE GEARO
(figure 3)
(tray L-^ •) i )
2) 'mAY^t-r>{4Eix*?l^mto
3 ) FFC fiOCHAS MECH
{2^m) LTTRAY^r^l-'ro
(figure 4)
3. The disassemble and reassemble the TRAY
(1) Disassembling procedure.
1) Push the PLATE GEAR'S Bossat the bottom
part of CHAS MECHA strongly to the outside
(arrdw “b” direction), (figure 3)
(Confirm that TRAY appears a little in the
front.)
2) Draw TRAY to the open position.
3) Remove FFC, and push the two LEVERS at
both side of the CHAS MECH to remove
TRAY, (figure 4)

I
( 2 )
1 ) LEVER TRAY figure 5 CD
2 ) TRAY i'CHAS MECHACOlz-Jt-tl^o X
3) ^^i-eTRAY
HL. TRAY$r®mf-e^fLAti-So
(figure 6)
(2) Reassembling procedure.
1) Confirm that LEVER TRAY is at the most
right position in order for the CD Mechanism
to be in the down position, (figure 5)
2) Push in the TRAY along the rail of the CHAS
MECHA.
3) After TRAY is half closed and FFC is put in,
it can enter by force until the end of
TRAY closed, (figure 6)
(figure?)
1) LEVERTT^: “C"
TURN TABLE SCD^&a^iitro (figure 7)
TRAY5CD ^ TURN TABLE 5CD
(figure 8)
* ffi-^iitr^COTURN TABLE 5CD<7?CD#-^
(1~5) (figure?)
4 . How to reassemble the TURN TABLE, (figure ?)
1) Push LEVER TT in the direction of "C", and put
in the TURN TABLE 5CD. (figure ?)
After reassembly, one of the TURN TABLE
DISC TRAY (can be either one of the five
disc trays) must be aligned with TURN TABLE
5CD. (figure 8)
That is, having no gap difference between the
turn TABLE 5CD and the TRAY 5CD.
* When reassembling the TURN TABLE 5CD, it is
acceptable facing any CD numbe r (l'^5).
LEVER TRAY
Figure 5
Figure 6
LEVER Hi
Figure 7
tray 5CD
turn table 5CD
Figure 8

PROTECTION OF EYES FROM LASER BEAM DURING SERVCING
Ihis set eofloys laser. Therefore, be sure to follow carefully the
■ strucSonsfeelosr wtien servicing.
WARNING!!
WHEN SERVICING. DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
HECESSIIRYTOCONRRM LASER BEAM EMISSION.
BE SURETOOBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC¬
TIVE LEre C»J THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exprosure to beam.
Advarsel: Usynlig laserstiling ved Sbning,
n&r sikkerhedsafbrydere er ude af funktion.
Undgd udsaettelse for strSling.
VAROITUS!
Laiteen Kaytlaminen muulla kuin tassa kayttoohjeessa
mainitulla tavalla saataa altistaa kayt-tajan
turvallisuusluokan 1 ylittavalle nakymattomalle
lasersateiyile.
VARNING!
Om apparaten anvands pA annat satt an vad som
specificetas i denna bruksanvising, kan anvandaren
utsattas ter osynling laserstrSIning, som overskrider
gransen ter laseridass 1.
CAUTION
Use of coriMs or affetments or performance of proce¬
dures other than Base specified herin may result in
hazardous radiationnpr^ure.
ATTENTION
L’utillisation de coranandes, leglages ou procedures
autres queceux spddfies peut entrainer une dangereuse
exposition aux racKaions.
ADVARSa
Usynlig laseistAling ved Abning.n&rsikkerhedsafbrydereer
ude af funkfion. Und|& udsaettelse for str&ling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precautiosn to replace Optical block
(KSS-213B)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground bocly and workbench, and use the
clothes do not touch the diode.
1) After thwe connection, remove solder
shotwn m figure below.
PICK - I F Assy P.CB.
7

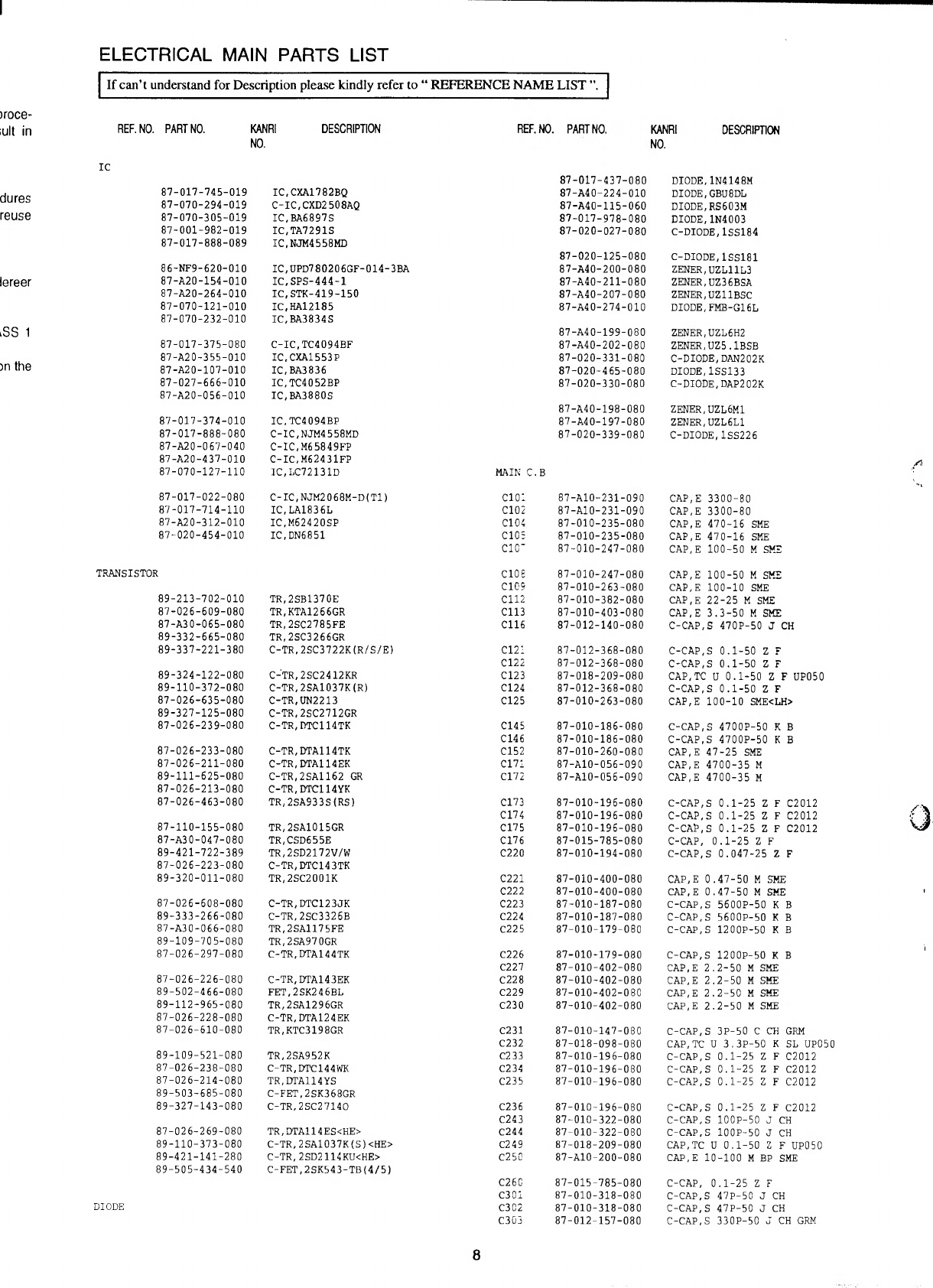

ELECTRICAL MAIN PARTS LIST
If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST
)roce-
:ult in
dures
reuse
lereer
iSS 1
)n the
REF. NO. PART NO.
KANRI DESCRIPTION
REF. NO. PART NO.
KANRI DESCRIPTION
IC
NO.
NO.
87-017-437-080 DI0DE,1N4148M
87-017-745-019 IC,CXA1782BQ
87-A40-224-010 DIODE,GBU8DL
87-070-294-019 C-IC,CXD2508AQ
87-A40-115-060 DIODE,RS603M
87-070-305-019 IC,BA6897S
87-017-978-080
DIODE,1N4003
87-001-982-019 IC,TA7291S
87-020-027-080
C-DI0DE,1SS184
87-017-888-089
IC,NJM4558MD
87-020-125-080
C-DIODE,lSS181
86-NF9-620-010 IC,UPD780206GF-014-3BA
87-A40-200-080
ZENER,UZL11L3
87-A20-154-010 IC,SPS-444-l
87-A40-211-080
ZENER,UZ36BSA
87-A20-264-010 IC,STK-419-150
87-A40-207-080
ZENER,UZ11BSC
87-070-121-010 IC,HA12185
87-A40-274-010
DIODE,FMB-G16L
87-070-232-010 IC,BA3834S
87-A40-199-080
ZENER,UZL6H2
87-017-375-080 C-IC,TC4094BF
87-A40-202-080
ZENER,UZ5.1BSB
87-A20-355-010
IC,CXA1553P
87-020-331-080
C-DIODE,DAN202K
87-A20-107-010 IC,BA3836
87-020-465-080
DIODE,1SS133
87-027-666-010 IC,TC4052BP
87-020-330-080
C-DIODE,DAP202K
87-A20-056-010 IC,BA3880S
87-A40-198-080
ZENER,UZL6M1
87-017-374-010 IC,TC4094BP
87-A40-197-080
ZENER,UZL6L1
87-017-888-080 C-IC,NJM4558MD
87-020-339-080 C-DIODE,1SS226
87-A20-067-040
C-IC,M65849FP
87-A20-437-010
C-IC,M62431FP
87-070-127-110 IC,LC72131D MAIN C.B
87-017-022-080 C-IC,NJM2068M-D(T1)
ClOl
87-A10-231-090
CAP,E 3300-80
87-017-714-110 IC,LA1836L
C102
87-A10-231-090
CAP,E 3300-80
87-A20-312-010 IC,M62420SP
C104
87-010-235-080
CAP,E 470-16 SHE
87-020-454-010 IC,DN6851
C1C5
87-010-235-080
CAP,E 470-16 SME
CIO'
87-010-247-080
CAP,E 100-50 M SME
TRANSISTOR
cloe
87-010-247-080
CAP,E 100-50 M SME
C1C5
87-010-263-080
CAP.E 100-10 SME
89-213-702-010 TR,2SB1370E C112
87-010-382-080
CAP,E 22-25 M SME
87-026-609-080 TR,KTA1266GR C113
87-010-403-080
CAP,E 3.3-50 M SME
87-A30-065-080 TR,2SC2785FE
C116
87-012-140-080
C-CAP,S 470P-50 J CH
89-332-665-080
TR,2SC3266GR
89-337-221-380 C-TR,2SC3722K(R/S/E)
C121
87-012-368-080
C-CAP,S 0.1-50 Z F
C122
87-012-368-080
C-CAP,S 0.1-50 Z F
89-324-122-080 C-TR,2SC2412KR
C123
87-018-209-080
CAP,TC U 0.1-50 Z F UP050
89-110-372-080 C-TR,2SA1037K(R)
C124
87-012-368-080
C-CAP,S 0.1-50 Z F
87-026-635-080 C-TR,UN2213
C125
87-010-263-080
CAP,E 100-10 SME<LH>
89-327-125-080
C-TR,2SC2712GR
87-026-239-080 C-TR,DTC114TK
C145
87-010-186-080
C-CAP,S 4700P-50 K B
C146
87-010-186-080
C-CAP,S 4700P-50 K B
87-026-233-080 C-TR,DTA114TK C152
87-010-260-080
CAP,E 47-25 SME
87-026-211-080 C-TR,DTA114EK
C171
87-A10-056-090
CAP.E 4700-35 M
89-111-625-080 C-TR,2SA1162 GR C172
87-A10-056-090
CAP.E 4700-35 M
87-026-213-080 C-TR,DTC114YK
87-026-463-080 TR,2SA933S(RS)
C173
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C174
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
87-110-155-080 TR,2SA1015GR
C175
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
87-A30-047-080 TR,CSD655E
C176
87-015-785-080
C-CAP, 0.1-25 Z F
89-421-722-389 TR,2SD2172V/W C220
87-010-194-080
C-CAP,S 0.047-25 Z F
87-026-223-080
C-TR,DTC143TK
89-320-011-080 TR,2SC2001K
C221
87-010-400-080
CAP.E 0.47-50 M SHE
C222
87-010-400-080
CAP.E 0.47-50 M SME
87-026-608-080 C-TR,DTC123JK
C223
87-010-187-080
C-CAP,S 5600P-50 K B
89-333-266-080 C-TR,2SC3326B
C224
87-010-187-080
C-CAP,S 5600P-50 K B
87-A30-066-080 TR,2SA1175FE
C225
87-010-179-080 C-CAP,S 1200P-50 K B
89-109-705-080
TR,2SA970GR
87-026-297-080 C-TR,DTA144TK
C226
87-010-179-080
C-CAP,S 1200P-50 K B
C227
87-010-402-080
CAP.E 2.2-50 M SME
87-026-226-080 C-TR,DTA143EK
C228
87-010-402-080 CAP.E 2.2-50 M SME
89-502-466-080 FET,2SK246BL
C229
87-010-402-080
CAP.E 2.2-50 M SME
89-112-965-080 TR,2SA1296GR
C230
87-010-402-080 CAP.E 2.2-50 M SME
87-026-228-080 C-TR,DTA124EK
87-026-610-080
TR,KTC3198GR
C231
87-010-147-080 C-CAP,S 3P-50 C CH GRM
C232
87-018-098-080 CAP.TC U 3.3P-50 K SL UP050
89-109-521-080
TR,2SA952K
C233
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
87-026-238-080
C-TR,DTC144WK C234
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
87-026-214-080
TR,DTA114YS C235
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
89-503-685-080
C-FET,2SK368GR
89-327-143-080
C-TR,2SC27140 C236
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C243
87-010-322-080 C-CAP,S lOOP-50 J CH
87-026-269-080 TR,DTA114ES<HE>
C244
87-010-322-080
C-CAP,S lOOP-50 J CH
89-110-373-080 C-TR,2SA1037K(S)<HE>
C249
87-018-209-080
CAP.TC U 0.1-50 Z F UP050
89-421-141-280 C-TR,2SD2114KU<HE> C250
87-A10-200-080
CAP.E 10-100 M BP SME
89-505-434-540
C-FET,2SK543-TB(4/5)
C26C
87-015-785-080
C-CAP, 0.1-25 Z F
C3G1
87-010-318-080
C-CAP,S 47P-50 J CH
DIODE
C3C2
87-010-318-080
C-CAP,S 47P-50 J CH
C303
87-012-157-080 C-CAP,S 330P-50 J CH GRM
8

I
REF. NO. PART NO.
KANRI
DESCRIPTION REF. NO. PART NO. KANRI
DESCRIPTION
NO.
NO.
C304
87-012-157-080
C-CAP,S 330P-50 J CH GRM
C547
87-015-632-080 C-CAP,0.015-50 K B<HE>
C305 87-012-145-080 C-CAP,S 270P-50 J CH C548
87-015-883-080
C-CAP, 0.022-50 K B<LH>
C306 87-012-145-080 C-CAP,S 270P-50 J CH C548
87-015-632-080 C-CAP,0.015-50 K B<HE>
C307
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C553 87-015-627-080 C-CAP,lOOOP-50 K B
C311
87-010-198-080 C-CAP,S 0.022-25 K B
C554
87-015-627-080
C-CAP,lOOOP-50 K B
C312
87-010-198-080
C-CAP,S 0.022-25 K B
C557
87-010-178-080
C-CAP,S lOOOP-50 K B
C313
87-010-181-080
C-CAP,S 1800P-50 K B
C558 87-010-178-080
C-CAP,S lOOOP-50 K B
C314 87-010-181-080
C-CAP,S 1800P-50 K B
C597 87-010-404-080
CAP,E 4.7-50 M SME
C315
87-010-179-080
C-CAP,S 1200P-50 K B C598 87-010-404-080
CAP,E 4.7-50 M SME
C316
87-010-179-080
C-CAP,S 1200P-50 K B C601
87-010-178-080
C-CAP,S lOOOP-50 K B
C317
87-016-492-080
C-CAP,S 0.33-16 Z F C602 87-010-178-080
C-CAP,S lOOOP-50 K B
C318 87-016-492-080 C-CAP,S 0.33-16 Z F
C603
87-010-405-080
CAP,E 10-50 M SME
C319 87-016-491-080 C-CAP,S 0.22-16 Z F C2021
C604
87-010-405-080
CAP,E 10-50 M SME
C320 87-016-491-080 C-CAP,S 0.22-16 Z F C2021
C605
87-010-260-080
CAP,E 47-25 SME
C321
87-010-196-080
C-CAP,S 0.1-25 Z F C2012 C606 87-010-101-080
CAP,E 220-16 SME
C322 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C607
87-010-188-080
C-CAP,S 6800P-50 K B
‘
C324 87-010-260-080 CAP,E 47-25 SHE C608 87-010-188-080
C-CAP,S 6800P-50 K B
C325 87-010-370-080
CAP,E 330-6.3 M SME
C609 87-018-127-080
CAP,TC U 470P-50 K B UP050
C326 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C610
87-018-127-C80 CAP,TC U 470P-50 K B UP050
C330
87-010-405-080
CAP,E 10-50 M SME
C611
87-010-197-080 C-CAP,S 0.01-25 K B
C332 87-015-785-080 C-CAP, 0.1-25 Z F C612 87-010-197-CS0
C-CAP,S 0.01-25 K B
-
■ J
C335 87-016-462-080
C-CAP,S 1-16 Z F C613
87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C336 87-016-462-080 C-CAP,S 1-16 Z F
C614
87-010-195-030 C-CAP,S 0.068-25 Z F C2012
C337 87-01C-196-080 C-CAP,S 0.1-25 Z F C2012 C615
87-010-404-030 CAP,E 4.7-50 M SME
C338 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C616
87-010-404-030 CAP,E 4.7-50 M SME
C339 87-01C-196-080 C-CAP, S 0.1-25 Z F C2.012
C617
87-010-404-030 CAP,E 4.7-50 M SME
C
C340 87-015-785-080 C-CAP, 0.1-25 Z F C618 87-010-404-080
CAP,E 4.7-50 M SME
C351 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C641
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C352
87-012-154-080 C-CAP,S 150P-50 J CH GRM
C642
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C451
87-012-140-080
C-CAP,S 470P-50 J CH C701
87-010-381-080 CAP,E 330-16 SME
~
C452
87-012-140-080
C-CAP,S 470P-50 J CH C702
87-010-404-080
CAP,E 4.7-50 M SME
-
C453 87-010-178-080 C-CAP,S lOOOP-50 K B C703 87-010-197-080
C-CAP,S 0.01-25 K B
’
C456 87-010-260-080
CAP,E 47-25 SME C704
87-010-197-080
C-CAP,S 0.01-25 K B
C457
87-010-197-080 C-CAP,S 0.01-25 K B
C711
87-010-263-C80 CAP,E 100-10 SME
C458 87-010-183-080 C-CAP,S 2700P-50 K B
C712
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C459 87-010-183-080
C-CAP,S 2700P-50 K B C722
87-010-312-080
C-CAP,S 15P-50 J CH
C460 87-010-183-080 C-CAP,S 2700P-50 K B C723 87-010-178-080
C-CAP,S lOOOP-50 K B
C470 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C725
87-010-178-080 C-CAP,S lOOOP-50 K B
C501 87-010-179-080 C-CAP,S 1200P-50 K B
C727
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C502 87-010-179-080 C-CAP,S 1200P-50 K B C728
87-010-248-080 CAP,E 220-10 SME
C503 87-012-155-080 C-CAP,S 180P-50 J CH GRM C735
87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C504
87-012-155-080
C-CAP,S 180P-50 J CH GRM
C770
87-010-405-080 CAP,E 10-50 M SME
C515 87-010-545-080 CAP,E 0.22-50 M SME C771
87-010-405-080 CAP,E 10-50 M SME
C516 87-010-545-080
CAP,E 0.22-50 M SME
C772
87-010-194-080 C-CAP,S 0.047-25 Z F
C519 87-015-785-080 C-CAP, 0.1-25 Z F
C773
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
Ik
r
C521
87-010-197-080
C-CAP,S 0.01-25 K B
C774
87-010-263-080 CAP,E 100-10 SME
C522
87-010-318-080
C-CAP,S 47P-50 J CH
C775
87-010-405-080 CAP,E 10-50 M SME
C523 87-010-197-080 C-CAP,S 0.01-25 K B
C776
87-010-197-080 C-CAP,S 0.01-25 K B<LH>
-
.
C525 87-010-184-080 C-CAP,S 3300P-50 K B C777
87-010-400-080 CAP,E 0.47-50 M SME
C526 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C778
87-010-401-080 CAP,E 1-50 M SME
D-
C527
87-010-401-080 CAP,E 1-50 M SME
C779
87-010-401-080 CAP,E 1-50 M SME
C528
87-010-401-080
CAP,E 1-50 M SME
C780
87-010-197-080 C-CAP,S 0.01-25 K B
<
C529 87-010-384-080
CAP,E 100-25 M SME
C781
87-010-405-080
CAP,E 10-50 M SME
j?
C530 87-010-197-080 C-CAP,S 0.01-25 K B
C782
87-010-405-080 CAP,E 10-50 M SME
J
C531 87-010-183-080 C-CAP,S 2700P-50 K B C785
87-010-197-080 C-CAP,S 0.01-25 K B
n
C532
87-010-194-080
C-CAP,S 0.047-25 Z F
C786
87-010-197-080
C-CAP,S 0.01-25 K B
D
C533 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C787
87-010-184-080
C-CAP,S 3300P-50 K B
C534
87-010-263-080 CAP,E 100-10 SME C788
87-010-184-080 C-CAP,S 3300P-50 K B
C535 87-010-401-080
CAP,E 1-50 M SME
C789
87-010-179-080 C-CAP,S 1200P-50 K B
I
C536 87-010-401-080
CAP,E 1-50 M SME
C790
87-010-179-080 C-CAP,S 1200P-50 K B
C537 87-010-545-080 CAP,E 0.22-50 M SME
C791
87-010-401-080 CAP,E 1-50 M SME
C538 87-012-142-080 C-CAP,S 0,33-16 Z F
C792
87-010-180-080 C-CAP,S 1500P-50 K B
C540 87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C793
87-010-189-080 C-CAP,S 8200P-50 K B
C541 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C794
87-010-408-080 CAP,E 47-50 SME
C542
87-010-405-080
CAP,E 10-50 M SME
C795
87-010-194-080
C-CAP,S 0.047-25 Z F
C543 87-010-546-080 CAP,E 0.33-50 SME C796
87-010-403-080
CAP,E 3.3-50 M SME
C544
87-010-546-080
CAP,E 0.33-50 SME
C799
87-010-178-080 C-CAP,S lOOOP-50 K B
C545 87-010-400-080
CAP,E 0.47-50 M SME
C802
87-010-197-080 C-CAP,S 0.01-25 K B
C546 87-010-400-080 CAP,E 0.47-50 M SME C814
87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C547
87-015-883-080 C-CAP, 0.022-50 K B<LH>
C819
87-010-197-080 C-CAP,S 0.01-25 K B
9

PI Cr'TDir^ * I
ref.no. paring. kanri description
NO.
C820
87-010-408-080
CAP,E 47-50 SHE
C821
87-010-197-080
C-CAP,S 0.01-25 K B
C823
87-010-197-080
C-CAP,S 0.01-25 K B
C828
87-010-197-080
C-CAP,S 0.01-25 K B
C829
87-010-197-080
C-CAP,S 0.01-25 K B
C830
87-015-819-080
C-CAP,0.01-50 K B
C835
87-010-197-080
C-CAP,S 0.01-25 K B
C901
87-010-197-080
C-CAP,S 0.01-25 K B
C902
87-015-785-080
C-CAP, 0.1-25 Z F
C903
87-018-119-080
CAP,TC U lOOP-50 K B UP050
C941
87-010-314-080
C-CAP,S 22P-50 J CH<HE>
C943
87-010-197-080
C-CAP,S 0.01-25 K B<HE>
C944
87-014-051-080
CAP,PP 560P-100 J<HE>
C945
87-010-197-080
C-CAP,S 0.01-25 K B<HE>
C946
87-010-401-080
CAP,E 1-50 M SHE
C950
87-014-073-080
CAP,PP 4700P-100 J<HE>
C992
87-010-197-080
C-CAP,S 0.01-25 K B<HE>
C953
87-010-197-080
C-CAP,S 0.01-25 K B<HE>
C954
87-010-400-080
CAP,E 0.47-50 M SME<HE>
C956
87-010-263-080
CAP.E 100-10 SMS<HE>
C960
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C961
87-010-152-080
C-CAP,S 8P-50 D CH<LH>
C937
87-018-134-080
CAP,TC U 0.01-16 N Y UP050
C990
87-010-197-080
C-CAP,S 0.01-25 K B
C993
87-018-134-080
CAP,TC U 0.01-16 N Y UP050
C995
87-010-197-080
C-CAP,S 0.01-25 K B
C999
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
CF301
87-008-261-010
FLTR,CFSFE10.7MA5
CF302
87-008-261-010
FLTR,CFSFE10.7MA5
FFE801
A8-6ZA-190-030
6ZA-1 YFEUNM
FR121
87-029-060-010
RES,FUSE 33-1/4W J
FR122
87-029-060-010
RES,FUSE 33-1/4W J
J252
87-099-678-010
JACK,6.3 BLK ST W/SW
J253
87-099-474-010
JACK,PIN 3P BLK W/SW
J254
87-A60-238-010
TERMINAL, SP 4P (KSC)
J652
87-099-625-010
JACK,PIN 4P BLK W/0 SW
J801
87-A60-202-010
TERMINAL,ANT 4P HSP-154V-02
LlOl
87-003-383-010
COIL,lUH K
L102
87-003-383-010
COIL.IUH K
L403
87-A50-049-010
COIL,TRAP 85K(COI)
L404
87-A50-049-010
COIL,TRAP 85K(COI)
L451
87-007-342-010
COIL,OSC 85KHZ BIAS
L7C1
87-A50-027-010
COIL,l POLE MPX(TOK)
L702
87-A50-027-010
COIL.l POLE MPX(TOK)
L741
87-A50-015-010
COIL,FM DET (TOK)
L742
87-A90-051-010
FLTR, CFAZ-450 (TOK)<LH>
L742
87-A90-052-010
FLTR, CFMT-450A(TOK)<HE>
L743
87-005-564-080
C-COIL,2125 2.20H K MLF2012
L770
87-003-102-080
COIL,10UH K LAL02
L832
87-005-847-080
COIL,2.2UH K CECS
L941
87-A50-022-010
COIL,ANT SW (COD 7.96MHZ<HE>
L942
87-A50-021-010
COIL.OSC SW (COD 15MHZ<HE>
L943
87-005-372-080
COIL,lMH K LAL03<HE>
L944
87-003-131-080
COIL,10MH J EL0607<HE>
L981
86-NF4-665-010
COIL,AM PACK l(TOK)<LH>
L981
86-NF4-666-010
COIL, AM PACK 3(TOK)<HE>
PR113
87-026-681-080
PROTECTOR,5A 491SERIES 60V
PR114
87-026-681-080
PROTECTOR,5A 491SERIES 60V
RYlOl
87-045-389-010
RELAY,12V OSA-SS-212DM5
RY102
87-045-382-010
RELAY,12V OUAZ-SH-112L
SFR301
87-024-355-080
SFR,33K H EVN DJAA03
SFR302
87-024-355-080
SFR,33K H EVN DJAA03
SFR303
87-024-355-080
SFR,33K H EVN DJAA03
SFR304
87-024-355-080
SFR,33K H EVN DJAA03
SFR305
87-024-356-080
SFR,47K H EVN DJAA03
SFR306
87-024-356-080
SFR,47K H EVN DJAA03
SFR451
87-024-356-080
SFR,47K H EVN DJAA03
SFR4 52
87-024-356-080
SFR,47K H EVN DJAA03
SFR722
87-024-352-080
SFR,4.7K H EVN DJ.AA03
TC7C1
87-011-253-080
TRIMMER,CER 30P 4.0X4.5 ECRLA
REF. NO.
PARING.
KANRI DESCRIPTION
NO.
TC941
87-011-220-080
TRIMMER,CER 20P 6.15X5.9 VCT51<HE>
TC942
87-011-221-080
TRIMMER,CER 30P 6.15X5.9 VCT51<HE>
TH241
87-A90-157-080
C-THMS,4.7K<HE>
VR651
87-A90-153-010
VR,RTRY 50KBX2 V
WlOl
86-NF9-651-010
F-CABLE,7P 2.5 (NF9)
X703
84-508-618-010
VIB.CER CSB 456 F15
X721
86-NF2-651-010
VIB.XTAL 4.500MHZ CSA-309
X722
87-030-354-010
VIB.CER 450.0KHZ BFO C<HE>
FRONT C.B
C201
87-010-196-060
C-CAP,S 0.1-25 Z F C2012
C202
87-012-156-080
C-CAP,S 220P-50 J CK GRM
C203
87-010-263-040
CAP,E 100-10 M SME
C204
87-010-494-040
CAP,E 1-50 5L SRE
C205
87-010-494-040
CAP,E 1-50 5L SRE
C206
87-010-550-040
CAP,E 100-6.3 5L SRE
C207
87-010-550-040
CAP,E 100-6.3 5L SRE
C208
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C209
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C210
87-010-314-080
C-CAP,S 22P-50 J CH
C211
87-010-154-080
C-CAP,S lOP-50 D CH
C212
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C213
87-010-178-080
C-CAP,S lOOOP-50 K E
C214
87-010-112-040
CAP,E 100-16 SME
C215
87-010-322-080
C-CAP,S lOOP-50 J CK
C216
87-010-560-040
CAP,E 10-50 M 5L MA
C351
87-010-497-040
CAP,E 4.7-35 5L SRE
C352
87-010-497-040
CAP,E 4.7-35 5L SRE
C353
87-010-981-040
CAP,E 22-35 M 5L SRE
C381
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C382
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C383
87-010-196-080
C-CAP,S 0.1-25 Z F C2212
C384
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C385
87-010-322-080
C-CAP,S lOOP-50 J CK
C386
87-010-400-040
CAP,E 0.47-50 SME
C387
87-010-400-040
CAP.E 0.47-50 SME
C389
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C401
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C402
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C601
87-010-405-040
CAP.E 10-50 M SME
C602
87-010-176-080
C-CAP,S 680P-50 J SL
C603
87-010-186-080
C-CAP,S 4700P-50 K B
C604
87-010-322-080
C-CAP,S lOOP-50 J CH
C605
87-010-321-080
C-CAP,S 82P-50 J CH
C606
87-010-401-040
CAP.E 1-50 M SME
C607
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C608
87-010-322-080
C-CAP,S lDOP-50 J CH
C609
87-010-491-040
CAP.E 0.22-50 5L SRE
C610
87-010-177-080
C-CAP,S 820P-50 J SL
C611
87-010-406-040
CAP.E 22-50 M SME
C612
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C614
87-A10-189-040
CAP.E 220-10 M
C615
87-010-498-040
CAP.E 10-16 M 5L SRE
C619
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C620
87-010-197-080
C-CAP,S 0.01-25 K B
C622
87-010-194-080
C-CAP,S 0.047-25 Z F
C650
87-010-319-080
C-CAP,S 56P-50 J CH
C651
87-010-319-080
C-CAP,S 56P-50 J CH
C652
87-010-404-040
CAP.E 4.7-50 SME
C654
87-010-178-080
C-CAP,S lOOOP-50 K B
C655
87-010-196-080
C-CAP,S 0.1-25 Z F C2:i2
C656
87-010-196-080
C-CAP,S 0.1-25 Z F C2212
C657
87-010-263-040
CAP.E 100-10 M SME
C658
87-010-196-080
C-CAP,S 0.1-25 Z F C2;i2
C659
87-01C-184-080
C-CAP,S 3300P-50 K B
C660
87-010-426-080
C-CAP,S 0.012-25 K B
C663
87-010-263-040
CAP.E 100-10 M SME
C664
87-012-141-080
C-CAP,S 0.22-16 Z F
C667
87-018-130-080
CAP.TC U 820P-50 K B CPOOC
10

REF.no. part no. KANRI DESCRIPTX)N
NO.
C668
87-010-180-080
C-CAP,S 1500P-50 K B
C669
87-010-404-040
CAP,E 4.7-50 SME
C670 87-010-404-040
CAP,E 4.7-50 SME
C671
87-010-188-080
C-CAP,S 6800P-50 K B
C672 87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C701 87-010-421-040
CAP.E 4.7-50 M 5L SRE
C702
87-010-112-040
CAP,E 100-16 SME
C705
87-010-493-040
CAP.E 0.47-50 M 5L SRE
C706
87-010-196-080
C-CAP,S 0.1-25 Z F C2012
C707 87-010-196-080
C-CAP,S 0.1-25 Z F C2D12
C708
87-010-400-040
CAP,E 0.47-50 SKE
C709
87-010-192-080
C-CAP,S 0.022-50 Z F C2012
C710
87-010-400-040
CAP,E 0.47-50 SME
C711 87-010-190-080
C-CAP,S 0.01-50 Z F C2012
C712 87-010-196-080
C-CAP,S 0.1-25 Z F C2D12
C713
87-010-185-080
C-CAP,S 3900P-50 K B
C714
87-010-194-080
C-CAP,S 0.047-25 Z F
C715 87-010-181-080
C-CAP,S 1800P-50 -. E
C716 37-010-192-080
C-CAP,S 0.022-50 Z F Z2012
C717
37-010-176-080
C-CAP,S 680P-5C Z SL
C718
37-010-188-080
C-CAP,S 6800P-5C ■ E
C719 87-012-145-080
C-CAP,S 270P-50 Z CH
C720
37-010-183-080
C-CAP,S 2700P-5C ■ . E
C721 87-010-402-040
CAP.E 2.2-50 SKE
C722 57-010-495-040
CAP.E 2.2-50 5L SEE
C723 3--010-378-040
CAP.E 10-16 M SKI
C724 37-010-192-080
C-CAP,S 0.022-5C Z F C2012
C725
37-010-493-040
CAP.E 0.47-50 K :1 S?.E
C726
8''-D10-190-080
C-CAP.S 0.01-50 : F 12012
C727
87-010-196-080
C-CAP,S 0.1-25 Z F c;D12
C728 87-010-185-080
C-CAP.S 3900P-50 K B
C729
87-010-194-080
C-CAP.S 0.047-25 Z F
C730
57-010-181-080
C-CAP.S 1800P-5C .F E
C731 3’-010-192-080
C-CAP.S 0.022-5C Z F C2012
C732 87-010-176-080
C-CAP,S 680P-50 Z SL
C733
87-010-188-080
C-CAP.S 6800P-50 K B
C734 87-012-145-080
C-CAP.S 270P-50 Z CH
C735 87-010-183-080
C-CAP.S 2700P-5C X E
C751 87-010-322-080
C-CAP.S lOOP-50 Z CK
C752 87-010-322-080
C-CAP.S 100P-50 Z CK
C753
87-010-493-049
CAP.E 0.47-50 M SL S?S
C754 8:’-010-493-049
CAP.E 0.47-50 K SL SF.E
C801 87-010-197-080
C-CAP.S 0.01-25 X B
C802
87-010-178-080
C-CAP.S 1000P-5C K E
C803 87-010-196-080
C-CAP.S 0.1-25 Z F C2012
C804 87-010-196-080
C-CAP.S 0.1-25 Z ? C2012
C805
87-010-805-080
C-CAP.S 1-16 Z F
C806 87-010-805-080
C-CAP.S 1-16 Z F
C807 87-010-561-040
CAP.E 100-16 M 5L SF.E
C808
87-A10-189-040
CAP.E 220-10 M
C809 87-010-491-040
CAP.E 0.22-50 5L SRE
C810
87-010-491-040
CAP.E 0.22-50 5L SRE
C811 87-010-495-040
CAP.E 2.2-50 5L SRE
C813 87-010-560-040
CAP.E 10-50 M 5L M.A
C814
87-010-405-040 CAP.E 10-50 M SKE
C815 87-010-322-080
C-CAP.S lOOP-50 J CE
C816 87-010-322-080
C-CAP.S lOOP-50 J CE
C817
87-012-142-080
C-CAP.S 0.33-16 Z F
FB601 87-008-372-080
FLTR.EMIBLOl RNi
FFC102 87-A80-054-010
FF-CABLE.4P 1.25 ZOMX
FFC1C4 87-A80-052-010
FF-CABLE,14P 1.25 ZSLMM
FFC106 88-921-081-110
FF-CABLE.21P 1.25
FFC3:i 87-A80-053-010
FF-CABLE,8P 1.25 30CKM
FFC5C1 83-915-161-110
FF-CABLE.15P 1.25
FL3ei 86-NF9-653-010
FL.BJ539GK
FL3G2 83-NF9-616-010
FL.BJ504GK
J60i 8T-A60-284-010
JACK.3.5MO (MSC’
J621 a“-A60-284-010
JACK.3.5MO (MSC'
L201 8''-A50-158-010
COIL.CLOCK 4.19K;-;Z !?CF9)
L65C
8"-005-738-080
COIL.47UH J SP02
REF.no. part no. KANRI DESCRIPTION
NO.
LED401
87-070-281-080
LED,SLZ-736A-25H-S-T1 P-GRN
LED402
87-070-281-080 LED.SLZ-736A-25H-S-T1 P-GRN
LED403
87-070-281-080
LED,SLZ-736A-25H-S-T1 P-GRN
LED404
87-070-281-080 LED,SLZ-736A-25H-S-T1 P-GRN
LED405
87-070-281-080
LED,SLZ-736A-25H-S-T1 P-GRN
LED406 87-070-281-080
LED.SLZ-736A-25H-S-T1 P-GRN
LED407 87-017-979-010
LED.SEL2413E GRN
LED408 87-017-979-010
LED,SEL2413E GRN
LED409
87-017-979-010 LED.SEL2413E GRN
LED410 87-017-979-010
LED.SEL2413E GRN
LED411 87-017-979-010
LED.SEL2413E GRN
LED412
87-017-979-010 LED,SEL2413E GRN
LED413 87-017-979-010
LED.SEL2413E GRN
LED414 87-017-979-010
LED,SEL2413E GRN
LED420 87-A40-259-080
LED,SLR-342VCT31 RED
LED421 87-A40-259-080
LED,SLR-342VCT31 RED
LED422 87-A40-259-080
LED,SLR-342VCT31 RED
LED423 87-A40-259-0SD
LED.SLR-342VCT31 RED
LED425 87-070-2"3-0:0 LED.SLZ-738A-24S PGRN
LED426
87-070-2‘3-020 LED,SLZ-738A-24S PGRN
LED427 87-070-25;-0:0 LED.SLZ-936C-30-S RED
LED428 87-o70-2:-;-o:o
LED.SLZ-936C-30-S RED
LED429
87-070-2"3-C:0 LED,SLZ-738A-24S PGRN
LED430 87-070-2‘5-0:0 LED.SLZ-738A-24S PGRN
S301 87-A90-095-0S0
SW.TACT EVQ11G04M
S302 87-A90-G55-C30
SW.TACT EVQ11G04M
S303 87-A90-C55-C30
SW.TACT EVQ11G04M
S304
87-A90-O95-0e0
SW.TACT EVQ11G04M
S305
87-A90-G55-030
SW.TACT EVQ11G04M
S306 87-A90-C95-CS0
SW.TACT EVQ11G04M
S307 87-A90-095-080
SW.TACT EVQ11G04M
S308
87-A90-055-030 SW.TACT EVQ11G04M
S309
87-A90-C95-C30
SW.TACT EVQ11G04M
S310 87-A90-C55-C30
SW.TACT EVQ11G04M
S311 87-A90-055-030
SW.TACT EVQ11G04M
S312 87-A90-095-OSO
SW.TACT EVQ11G04M
S313 87-A90-095-0S0
SW.TACT EVQ11G04M
S314 87-A90-C55-C50
SW.TACT EVQ11G04M
S315
87-A90-C55-030
SW.TACT EVQ11G04M
S316
87-A90-0S5-CS0
SW.TACT EVQ11G04M
S317 87-A90-095-080
SW.TACT EVQ11G04M
S318 87-A90-053-030
SW.TACT EVQ11G04M
S319 87-A90-055-0SO
SW.TACT EVQ11G04M
S320 87-A90-C;5-C30
SW.TACT EVQ11G04M
S321 87-A90-C95-0S0
SW.TACT EVQ11G04M
S326 87-A90-095-080
SW.TACT EVQ11G04M
S327
87-A90-095-080
SW.TACT EVQ11G04K
S328 87-A90-0S5-030
SW.TACT EVQ11G04M
S329
87-A90-095-080
SW.TACT EVQ11G04M
S330 87-A90-055-080
SW.TACT EVQ11G04M
S331
87-A90-095-080 SW.TACT EVQ11G04M
S332 87-A90-C95-030
SW.TACT EVQ11G04M
S333 87-A90-095-080
SW.TACT EVQ11G04M
S334 87-A90-095-080 SW.TACT EVQ11G04M
S335 87-A90-095-0e0
SW.TACT EVQ11G04M
S336 87-A90-095-OBO
SW.TACT EVQ11G04M
S338 87-A90-095-080
SW.TACT EVQ11G04M
S339 87-A9O-095-OeO SW.TACT EVQ11G04M
SW251 87-A90-392-010 SW.RTRY EC16B24304-20 NON
VR601 86-NFA-627-010
VR.RTRY 10K15AX1 1 V XV0121PVN
CD SW C.B
LED451 87-017-979-G10 LED.SEL2413E GRN
LED452 87-017-9"9-C:0 LED.SEL2413E
GRN
LED453 87-017-9"9-::0 LED,SEL2413E
GRN
LED454 87-017-9':9-C10 LED.SEL2413E
GRN
LED455 87-017-9"9-C10 LED.SEL2413E
GRN
LED456 87-017-9"9-:10
LED.SEL2413E
GRN
LED457
87-017-9~9-:i0
LED,SEL2413E GRN
11

ref.no. part no. kanri description
NO.
ref.no. part no. kanri description
NO.
LED458
LED459
LED460
5451
5452
87-017-979-010
87-017-979-010
87-017-979-010
87-A90-095-080
87-A90-095-080
5453
5454
5455
5456
5457
87-A90-095-080
87-A90-095-080
87-A90-095-080
87-A90-095-080
87-A90-095-080
VR C.B
SW252
87-A90-340-010
AC2 C.B
PRIOI
pr:02
87-026-682-080
87-026-682-080
PT C.B
82-304-743-010
F1C9
87-035-368-010
FllO
87-035-368-010
FC131
87-033-213-080
FCi:2
87-033-213-080
FC1j3
87-033-213-080
FC104
87-033-213-080
PTOOl
86-NF9-630-010
PTOOl
86-NF9-631-010
SWlOl
87-A90-165-010
CD M.AIN C
.B
86-ZG1-605-019
86-ZG1-608-019
Cll
87-010-182-089
C12
87-016-081-089
C13
87-016-081-089
C14
87-016-081-089
CIS
87-010-404-049
C16
87-016-081-089
Cl"
67-010-197-089
CIS
87-010-402-049
C19
87-010-382-049
C20
87-010-213-089
C21
87-010-197-089
C22
87-010-263-049
C23
87-010-197-089
C24
87-016-369-089
C25
87-010-197-089
C26
87-016-369-089
C27
87-010-197-089
C28
87-010-146-029
C29
87-010-154-089
C30
87-010-263-049
C31
87-010-178-089
C32
87-010-198-089
C33
87-016-081-089
C34
87-010-197-089
C35
87-010-263-049
C36
87-015-677-049
C37
87-010-197-089
C38
87-010-260-089
C35
87-010-196-089
C91
87-010-263-049
cio:
87-010-596-089
C102
87-010-188-089
CIO 3
87-018-133-089
LED,SEL2413E GRN
LED,SEL2413E GRN
LED,SEL2413E GRN
SW.TACT EVQ11G04M
SW.TACT EVQ11G04M
SW.TACT EVQ11G04M
SW.TACT EVQ11G04M
SW.TACT EVQ11G04M
SW.TACT EVQ11G04M
SW.TACT EVQ11G04M
SW.RTRY EC16B24204-15
PROTECTOR.lOA 491SERIES 60V
PROTECTOR.lOA 491SERIES 60V
TERMINAL.IP
FUSE.4A.250V T
FUSE. 4A. 250V T
FUSE CLAMP. PFISOOO
FUSE CLAMP,PFISOOO
FUSE CLAMP,PFISOOO
FUSE CLAMP,PFISOOO
PT,6NF-9H<HE>
PT,6NF-9LH<LH>
SW.SL 1-2-3 SWS2301
CABLE,FFC 16P
CABLE,FFC 8P
C-CAP,S 2200P-50 B
C-CAP,S 0.1-16 RK
C-CAP,S 0.1-16 RK
C-CAP,S 0.1-16 RK
CAP.E 4.7-50 SME
C-CAP,S 0.1-16 RK
C-CAP,S 0.01-25 B
CAP.E 2.2-50 SME
CAP.E 22-25 SKE
C-CAP,S 0.015-25 B
C-CAP,S 0.01-25 B
CAP.E 100-10 SME
C-CAP,S 0.01-25 B
C-CAP,S 0.033-25 B K
C-CAP,S 0.01-25 B
C-CAP,S 0.033-25 B K
C-CAP,S 0.01-25 B
C-CAP,S 2P-50 C CH GRM
C-CAP,S lOP-50 D CH
CAP.E 100-10 SME
C-CAP,S lOOOP-50 B
C-CAP,S 0.022-25 B
C-CAP,S 0.1-16 RK
C-CAP,S 0.01-25 B
CAP.E 100-10 SME
CAP.E 100-6.3 7L
C-CAP,S 0.01-25 B
CAP.E 47-25 SMS
C-CAP,S 0.1-25 F
CAP.E 100-10 SKE
C-CAP,S 0.047-16 RK
C-CAP,S 6800P-50 B
CAP,TC-U 4700P-16 NX
C104
87-012-156-089
ClOB
87-010-404-049
C106
87-010-263-049
C107
87-010-197-089
C108
87-016-526-089
C109
87-010-197-089
C112
87-010-318-089
C113
87-010-263-089
C114
87-010-197-089
C115
87-010-318-089
C116
87-010-318-089
C117
87-010-197-089
C122
87-010-186-089
C123
87-010-382-049
C201
87-010-318-089
C202
87-010-318-089
C203
87-010-321-089
C204
87-010-321-089
C205
87-110-321-089
C206
87-:i0-321-089
C207
87-112-153-089
C208
87-112-153-089
C209
87-112-153-089
C210
87-112-153-089
C211
87-110-403-049
C212
87-110-403-089
C213
87-110-186-089
C214
87-110-186-089
C231
87-116-251-049
C232
87-010-263-089
C301
87-C10-196-089
C302
87-C10-260-089
C401
87-110-403-089
C402
87-110-403-049
C501
87-C16-459-049
C502
87-010-197-089
C503
87-010-263-049
C504
87-C10-196-089
C505
87-C10-196-089
C506
87-010-196-089
C507
87-010-196-089
C508
87-016-459-049
C509
87-010-196-089
C510
87-010-196-089
C601
87-010-196-089
C602
87-016-251-049
C603
87-010-196-089
C701
87-010-322-089
C702
87-010-318-089
C703
87-010-318-089
C705
87-010-178-089
C706
87-010-178-089
C901
87-010-260-049
C902
87-010-196-089
Lll
87-003-102-089
LED901
87-A4D-123-019
M601
87-045-305-019
R36
87-022-365-089
R37
87-022-363-089
R38
87-022-363-089
R39
87-022-363-089
R40
87-022-363-089
R41
87-022-365-089
SFRll
87-024-175-089
SFR12
87-024-173-089
SFR13
87-024-176-089
SW601
87-Q:-6-109-019
SW602
87-036-109-019
SW603
87-036-109-019
W604
88-9C6-261-110
C-CAP,S 220P-50 CH
CAP.E 4.7-50 SME
CAP.E 100-10 SME
C-CAP,S 0.01-25 B
C-CAP,S 0.47-16 BK
C-CAP,S 0.01-25 B
C-CAP,S 47P-50 CH
CAP.E 100-10 SME 5X11
C-CAP,S 0.01-25 B
C-CAP,S 47P-50 CH
C-CAP,S 47P-50 CH
C-CAP,S 0.01-25 B
C-CAP,S 4700P-50 B
CAP.E 22-25 SME
C-CAP,S 47P-50 CH
C-CAP,S 47P-50 CH
C-CAP,S 82P-50 CH
C-CAP,S 82P-50 CH
C-CAP,S 82P-50 CH
C-CAP,S 82P-50 CH
C-CAP,S 120P-50 CH
C-CAP,S 120P-50 CK
C-CAP,S 120P-50 CK
C-CAP,S 120P-50 CK
CAP.E 3.3-50 SME
CAP.E 3.3-50 SME
C-CAP,S 4700P-50 5
C-CAP,S 4700P-50 B
CAP.E 220-16 SMG
CAP.E 100-10 SME 5X11
C-CAP,S 0.1-25 F
CAP.E 47-25 SME
CAP.E 3.3-50 SME
CAP.E 3.3-50 SME
CAP.E 470-10 SMG
C-CAP,S 0.01-25 B
CAP.E 100-10 SME
C-CAP,S 0.1-25 F
C-CAP,S 0.1-25 F
C-CAP,S 0.1-25 F
C-CAP,S 0.1-25 F
CAP.E 470-10 SMG
C-CAP,S 0.1-25 F
C-CAP,S 0.1-25 F
C-CAP,S 0.1-25 F
CAP.E 220-16 SMG
C-CAP,S 0.1-25 F
C-CAP,S lOOP-50 CH
C-CAP,S 47P-50 CH
C-CAP,S 47P-50 CH
C-CAP,S lOOOP-50 B
C-CAP,S lOOOP-50 B
CAP.E 47-25 SME
C-CAP,S 0.1-25 F
COIL.IOUH K LAL02
LED,SLZ-8128A-01-B
MOTOR,RF-500TB
C-RES,S lOOK-l/lOW F
C-RES,S 68K-1/10W F
C-RES,S 68K-1/10W F
C-RES,S 68K-1/10W F
C-RES,S 68K-1/10W F
C-RES,S lOOK-l/lOW F
SFR,47K DIA6V
SFR,22K HRH0638C
SFR.IOOK DIA6V
SW.PUSH SPPB 61
SW.PUSH SPPB 61
SW.PUSH SPPB 61
FF-CABLE 6P 1.25 260MM
12

REF. NO.
PARING.
KANRI DESCRIPTION
REF. NO. PARING.
KANRI
DESCRIPTION
NO.
NO.
XlOl 87-030-402-089
VIB,XTAL 16.9344MHZ DECK C.B
C0N502
82-ZM1-625-019 RBN,
,CORD,4P-55
LED C.B
SFRl 87-024-581-089
SFR,
,3.3K DIA 6H
SOLI
82-ZM1-618-010
SOL
ASSY, 27
LED701
87-017-733-080
LED,SEL1250SM
SOL2 82-ZM1-618-010
SOL ASSY, 27
LED702
87-017-350-080
LED,SEL1550CM
SWl 87-036-378-010 SW,
PUSH 1-1-1
SH2
LED703
87-017-733-080
LED,SEL1250SM
SW2
87-036-378-010 sw,
PUSH 1-1-1
SH2
SW3 87-036-378-010 SW, PUSH 1-1-1
SH2
T-T C.B
SW4 87-036-378-010 sw, PUSH 1-1-1 SH2
SW5
87-036-378-010 sw.
PUSH 1-1-1
SH2
C411 87-018-214-089
CAP.TC 0 0.1-50
SW6 87-036-378-019 sw. PUSH 1-1-1 SH2
LED411 87-070-288-019 LED,GL380
M401 87-A90-036-019
MOT ASSY,RF-300CA-11 SW8 87-036-378-019
sw. PUSH 1-1-1 SH2
PS401 87-A90-156-019
SNSR,SG-240
W502 87-099-756-019 CONN, 15P 9604 S F
0411 87-A30-031-019
P-TR,PT380F
S-ftMOl
87-036-109-019
SW.PUSH SPPB61 HEAD-1 C-
3
CD MOTOR C.B HEAD-2 C.B
rwi 87-036-340-019
SW.LEAF LSA-1121 CON351 56-NF5-618-110
CONN ASSY,8P RPB
M20 87-045-358-019
MOT,RF-310TA 43
M21 87-045-356-019
MOT,RF-310TA 30
K/CHIP RESISTOR PART CODE
Chip Resistor Part Coding
8 ^^
□ □□ □□□
A
jgingiio^pa-F
Resistor Code
Figure
Value of resistor
Chip resistor
fm
■ ^te/Dimensions (mm)
:A
Wattage Type Tolerance
Symbol
?V^/Fonn
L W t
Resistor Code ; A
1/16W
1608
±5%
CJ
1.6 0.8 0.45
108
1/lOW
2125 ±5% CJ 2
1.25 0.45 118
1/8W
3216 ±5% CJ
r
3.2
1.6
0.55
128
13

FL, BJ504GK
grid assignment
3G
_L_
graphic equalizer
Clocoir.im I oo°S°S
ODt o c=> o o
f POP 1 i : i
r JAZZ ) i : i f M3i
ICLASSICl i j I f un
<=> o O O O J
o o cr> o o j
o CD o O o i
O o
CD CD a
CD O o o CD
O O o O O
o o O CD C
2G
_1_
Hbk
[]«0_"^sfj
o O O O O O
O O O O O O
CD CD CD CD CD O _
<=> CDCD CD 1=>-Cd\\cD CD O
CDCDCDC3CDCZ>\\CZ)C3 C
<=> CDOCDCD CdWcDO O O O
1G
_J_
o o o o o
1 o o o o o
^ O O o CD o
O CD
CD
O
CD CD O CD O
CD CD
CD
O \CD CD O CD O
o o
CD
CD
o'
O O CD O O
CD CD
CD
CD
o
\\ O O O O (
JK 15IC Hz M I
o o o o
^T-BASS
DSP SURROUND
@3
ED
[M4l
:{ [ D I S CO
:i I LIVE
•I [MOV I El
l-fl 1 HALL
SEGMENT flESlGNATIHM
. __^_ _ _ 52
o') (o\
,0 / B,„ , B20,.,7 [b20 ,30 Vko\o\ »'< ■
/c^/ _ /_ j I I \ \ 'P\
I'coTTicS'n'OBoo') ('obTaSj \ cd\
/ O/ / / r ” 1 — --—— \—• \ \
/b/' / 1 \ \ \°\
'o/ / / / ! ' \ V''
._b ' ! ' ''
'—--S-' 'S,l'ic3;i 'S*L'§’ 'S5iL§’ ''b)
(3G)
(2G)
(1G)
ANODE CONNECTION
3G
2G
IG i
K
3G
‘ 2G
I G
Pi
GRAPHIC
EQUALIZEF I ~
DSP
SURROUND
P21
B20
B20
B20
ROCK
DISCO i
LIVE'
P22
BI9
; B19
Bl 9
P2
POP
JAZZ
CLASSIC
P23
B18
j BIS
BIS
MOVIE
HALL 1
P24
B1 7
; B17
Bl 7
P3
1 (ROCK) 1
—
( (DISCO) ] '
P25
B16
1 BI6
BI6
P4
1 (POP) 1
—
1 (LIVE) ]
P26
BIS
1 BIS
BIS
PS
[ (JAZZ) ]
—
[-(MOVIE) 1
P27
B1 4
i BI4
B14
P6
((CLASSIC)]
—
t (HALL) 1 [
P28
B13
j BI3
Bl 3
P7
SI 0
sg
58 1 1
P29
B1 2
j B12
BI2
PS
Ml M3
Ml M3 1
M2 M4 i
P30
B1 1
BI I
B11
M2 M4
P31
BIO
BIO
BIO
P9
CD (Ml)
—
( ^ (M 1 ) i
P32
B9
B9
B9
PIO
CD (M2)
—
^ ) (M2) I
P33
B8
B8
BB
PI I
CD (M3)
B30
( ) (M5) i
P34
B7
B7
—
B7
PI2
CD (M4)
B2g
CD (M4)i
P35
B6
B6
B6
P13
SI 1
B28
SI j
P36
B5
B5
B5
PI 4
SI 2
B27
S2 i
P37
B4
B4
B4
P15
S13
B26
-1
5? :
= 38
B3
—
B3
B3
P16
SI 4
B25
- ■ : f
S4 :
= 39
B2 j
B2
DFj
Pif
SIS
B24
--- ■ , f
55 L
"40
Bl 1
Bl
Bl
PIS
BBE
B23
T-BASS i
ml
131
S7 i
^ ■ 1
ran
58

TUNER
BLOCK
1 3Nftl _
XdW _
^ £ ^0OgT_H»_
* “ X ''a®s
- -1®—<fci
m^!—
I _
u
1 !
kNI JI HJ !
TZ
u
LJ
n r ..8
in
o
X. *
11 II
o ®?) o ? *m 5r
£ S S^; { S
■ • ■ 3
O
)ir>o Ji u

TUNER
BLOCK
lai836l
BLOCK DIAGRAM - 2 (TUNER : LH)
18
TO
FRONT
BLOCK

BLOCK DIAGRAM-3 (MAIN/FRONT)
19
I

BLOCK DIAGRAM-4 (CD)
21
