Aiwa NSX-SZ50 User manual

SERVICE MANUAL
DATA
NSX–SZ50 RC–ZAS01
SYSTEM CD
CASSEIVER
REMOTE
CONTROLLER
CX–NSZ50
COMPACT DISC/
STEREO CASSETTE RECEIVER
BASIC TAPE MECHANISM : 2ZM-3MK2 PR4NM(HA)
BASIC TAPE MECHANISM : 6ZM-3 PR2NM(K/EZ)
BASIC CD MECHANISM : AZG-1 YZD8RDM(K)
BASIC CD MECHANISM : AZG-1 ZD8RDM(EZ/HA)
NSX-SZ50
NSX-SZ52
EZ,K,HA
EZ
S/M Code No. 09-004-424-6R4
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
NSX-SZ50 <EZ,K,HA> & NSX-SZ52<EZ> (S/M Code No. 09-002-424-6T2).
• If requiring information about the CD mechanism, see Service Manual of AZG-1,
(S/M Code No. 09-001-335-3N6).
SPEAKER
SX–WNSZ50
NSX–SZ52 CX–NSZ52 SX–WNSZ52 RC–ZAS01
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

2
Main unit CX-NSZ50, CX-NSZ52
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 16.8 dBf <EZ, K>
13.2 dBf <HA>
Antenna terminal 75 ohms (unbalanced)
AM (MW) tuner section
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
LW tuner section <EZ, K>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
Amplifier section
Mid-high frequency amplifier
Power output Rated: 20 W + 20 W (8 ohms,
T.H.D. 1 %, 1 kHz/DIN 45500)
Reference : 25 W + 25 W (8 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER:
40 W + 40 W<EZ>
Total harmonic distortion 0.1 % (10 W, 1 kHz, 8 ohms, DIN
AUDIO)
Low frequency amplifier
Power output Rated: 60 W + 60 W (6 ohms,
T.H.D. 1 %, 130 Hz/DIN 45500)
Reference : 75 W + 75 W (6 ohms,
T.H.D. 10 %, 130 Hz/DIN 45324)
DIN MUSIC POWER:
130 W + 130 W <EZ>
Total harmonic distortion 0.1 % (30W, 130 Hz, 6 ohms, DIN
AUDIO)
Inputs VIDEO/AUX: 500 mV
MIC: 1.0 mV (10 k ohms) <HA>
Outputs SPEAKERS HIGH FREQ:
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ:
accept speakers of 6 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16
ohms <EZ, K>
PHONES (stereo jack): accepts
headphones of 32 ohms or more
SPECIFICATIONS
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/playback head
x 1, erase head x 1
Compact disc player section
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
General
Power requirements 230 V AC, 50 Hz <EZ, K>
120 V/220-230 V/240 V AC
switchable, 50/60 Hz <HA>
Power consumption 150 W <EZ,K>
130 W <HA>
Power consumption in standby mode
If the power-economizing mode is
ECO OFF: 20 W
If the power-economizing mode is
ECO ON or ECO AUTO: 0.9 W
Dimensions of main unit 260 x 326 x 345 mm
(W xH xD)
Weight of main unit 9.0 kg
Speaker system SX-WNSZ50, SX-WNSZ52
Speaker system 3 way, Built-in subwoofer (magnetic
shielded type)
Speaker units Subwoofer: 160 mm cone type
Full range: 100 mm cone type
Super tweeter: 20 mm ceramic type
Impedance 6 ohms/8 ohms
Sensitvity 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 271 mm
Weight 4.8 kg
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8A-NF8-902-010 IB,LH(ESP)M<HA>
1 8A-NF8-905-010 IB,K(E)E<K>
1 8A-NF8-926-010 IB,EZ(9L)M<0EZ>
1 8A-NF8-936-010 IB,EZ(9L)M- RDS<2EZ>
2 8Z-NF8-702-010 RC UNIT,RC-ZAS01
• Design and specifications are subject to change without notice.
• The word “BBE” and the “BBE symbol” are trademarks of BBE
Sound, Inc.
• Under license from BBE Sound, Inc.
REF. NO PART NO. KANRI DESCRIPTION
NO.
3 87-006-225-010 ANT,LOOP ANT NC2
4 87-043-115-010 FEEDER-ANT,FM<HA>
4 87-A90-118-010 ANT,WIRE FM(Z)<0EZ,2EZ,K>
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

3

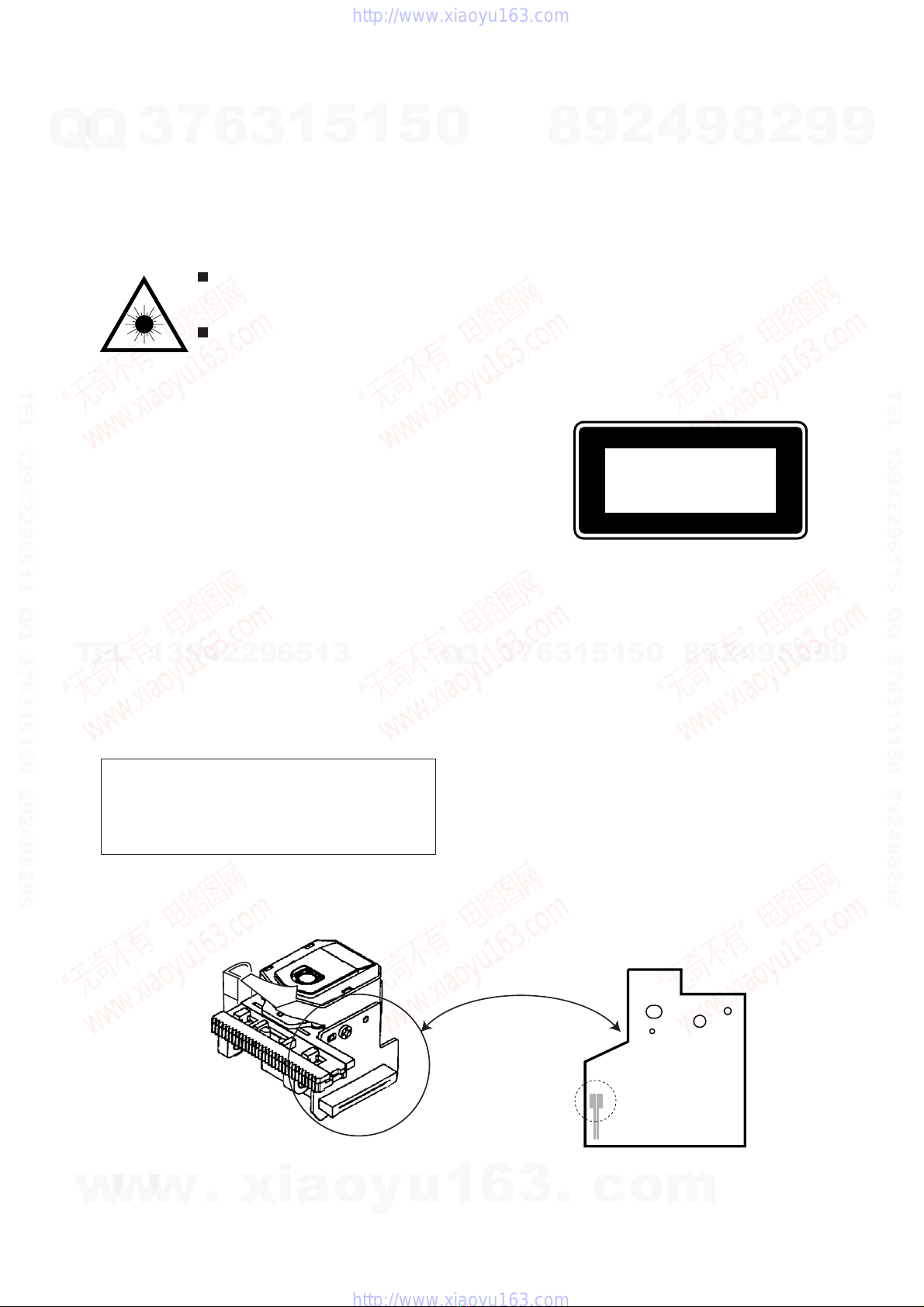

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgåudsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(KSM-880CAB)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
solder
PICK-UP Assy P.C.B
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

4
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor ( )
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
1 Turn on the AC main power.
2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
3 When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
1 Remove the AC power cord.
2 Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
3 Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
4 Contact the same end of the discharging resistor as step 3
to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
5 Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
MAIN C.B
D101
C101 C102
34
22
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

5
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
1Remove the AC power cord.
2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

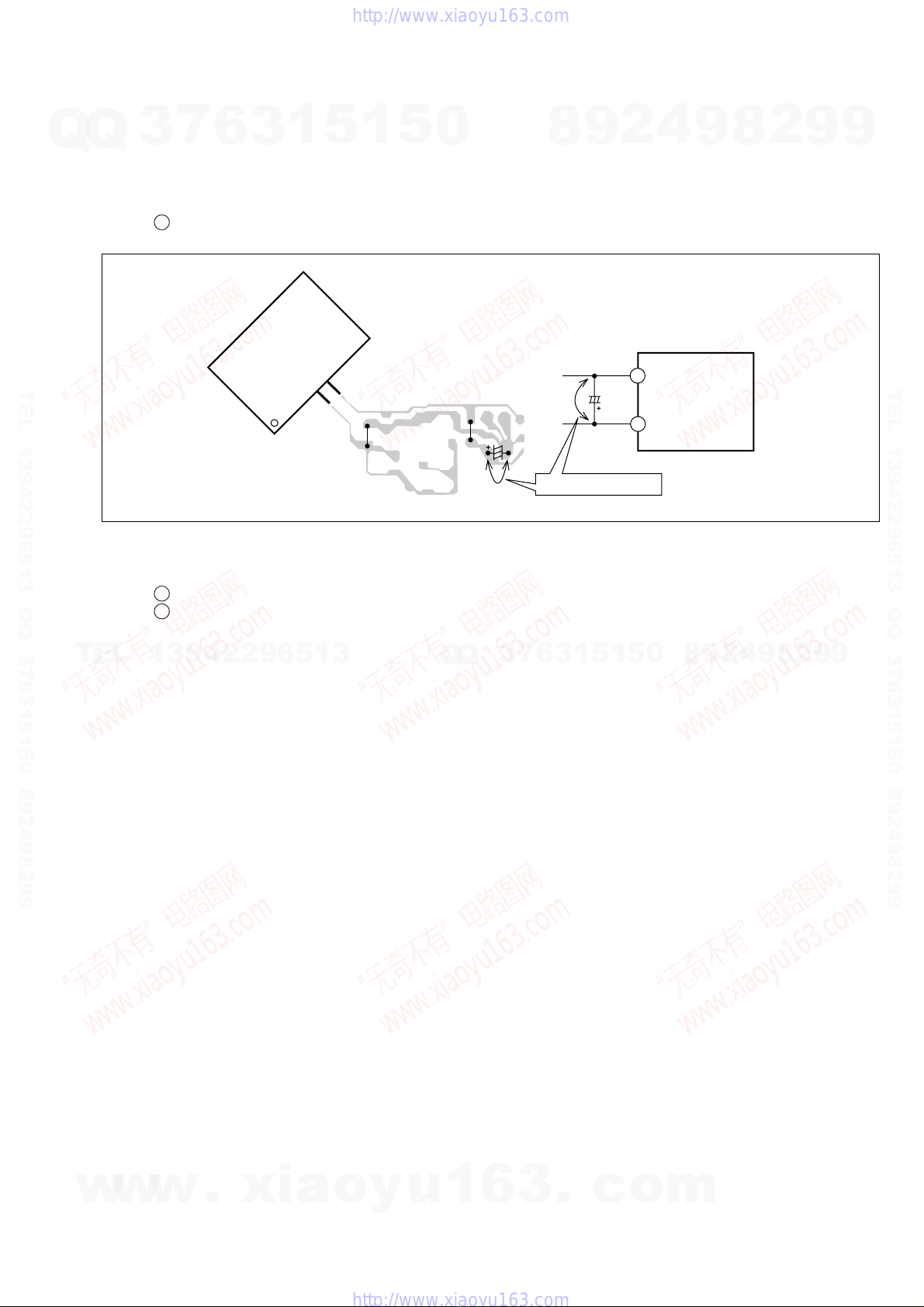

2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
18
15
C113
18
15
Short with tweezers.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-020-454-010 IC,DN6851
87-A21-417-010 IC,STK490-310
8A-NF8-625-030 C-IC,LC866548V-****<K>
8A-NF8-611-010 C-IC,LC866560W-5P19<2EZ>
8A-NF8-612-010 C-IC,LC866548V-5P03<0EZ,HA>
87-A21-396-010 IC,STK490-040
87-A21-629-010 IC,SPS-442-1-N<K>
87-A21-482-010 IC,RPM6938-H4<EXCEPT K>
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-577-040 C-IC,M61506FP<K>
87-A21-023-040 C-IC,BA3835F<EXCEPT K>
87-A21-401-040 C-IC,M61503FP
87-070-289-040 C-IC,BU2092F
87-A21-415-010 IC,LA1843
87-A20-440-040 C-IC,BU1920FS<2EZ>
87-070-127-110 IC,LC72131D
TRANSISTOR
87-026-451-080 TR,2SA933S<HA>
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-074-080 C-TR,RT1P 141C
87-A30-318-080 TR,CSA952K
87-A30-495-080 TR,2SA1981Y<K>
87-A30-091-080 FET,2SJ460
87-A30-329-080 TR,CD1585BC
87-A30-090-080 FET,2SK2541
87-A30-104-080 C-TR,RT1N 441C
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-073-080 C-TR,RT1N 141C<K>
89-333-317-880 TR,2SC3331(T/U)
87-A30-269-040 C-FET,2SJ461-T1
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
87-A30-086-070 C-TR,CSD1306E<K,0EZ,2EZ>
89-503-602-080 C-FET,2SK360E<K,0EZ,2EZ>
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-736-080 DIODE,1N4148M(SEM)
87-A40-547-090 DIODE,D5SBA20
87-A40-455-080 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-313-080 C-DIODE,MC2840
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-020-465-080 DIODE,1SS133<K>
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C0003 87-012-368-080 C-CAP,S 0.1-50 Z F
C0004 87-012-368-080 C-CAP,S 0.1-50 Z F
C0005 87-012-368-080 C-CAP,S 0.1-50 Z F
C0006 87-012-368-080 C-CAP,S 0.1-50 Z F
C0009 87-012-368-080 C-CAP,S 0.1-50 Z F
C0010 87-012-368-080 C-CAP,S 0.1-50 Z F
C0011 87-012-368-080 C-CAP,S 0.1-50 Z F
C0012 87-012-368-080 C-CAP,S 0.1-50 Z F
C0015 87-012-368-080 C-CAP,S 0.1-50 Z F
C0016 87-012-368-080 C-CAP,S 0.1-50 Z F
C0017 87-012-368-080 C-CAP,S 0.1-50 Z F
C0018 87-012-368-080 C-CAP,S 0.1-50 Z F
C0019 87-016-520-000 CAP,E 3300-65 M SMG
C0020 87-016-520-000 CAP,E 3300-65 M SMG
C0021 87-016-051-000 CAP,E 2200-35 M SMG
C0022 87-016-051-000 CAP,E 2200-35 M SMG
C0023 87-016-658-000 CAP,E 4700-35 M SMG
C0024 87-016-658-000 CAP,E 4700-35 M SMG
C0025 87-010-408-080 CAP,E 47-50 M 11L SME
C0026 87-010-247-080 CAP,E 100-50 M SME
C0030 87-010-430-080 CAP,E 100-63
C0031 87-010-263-080 CAP,E 100-10 M 11L SME
C0032 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0034 87-010-260-080 CAP,E 47-25 M 11L SME
C0035 87-010-380-080 CAP,E 47-16 M 11L SME
C0036 87-010-381-080 CAP,E 330-16 M SME
C0038 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0060 87-010-403-080 CAP,E 3.3-50 M 11L SME
C0061 87-010-260-080 CAP,E 47-25 M 11L SME
C0101 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0102 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0103 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0104 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0107 87-010-405-080 CAP,E 10-50 M 11L SME
C0108 87-010-405-080 CAP,E 10-50 M 11L SME
C0111 87-010-405-080 CAP,E 10-50 M 11L SME
C0112 87-010-405-080 CAP,E 10-50 M 11L SME
C0113 87-010-866-080 CAP,E 10-63 M VX
C0114 87-010-866-080 CAP,E 10-63 M VX
C0119 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0120 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0123 87-010-176-080 C-CAP,S 680P-50 J<K,0EZ,2EZ>
C0124 87-010-176-080 C-CAP,S 680P-50 J<K,0EZ,2EZ>
C0125 87-012-368-080 C-CAP,S 0.1-50 Z F
C0126 87-012-368-080 C-CAP,S 0.1-50 Z F
C0127 87-012-368-080 C-CAP,S 0.1-50 Z F
C0128 87-012-368-080 C-CAP,S 0.1-50 Z F
C0129 87-010-191-080 C-CAP,S 0.015-50 <K,0EZ,2EZ>
C0130 87-010-191-080 C-CAP,S 0.015-50 <K,0EZ,2EZ>
C0131 87-010-197-080 C-CAP,S 0.01-25 K<K,0EZ,2EZ>
C0132 87-010-197-080 C-CAP,S 0.01-25 K<K,0EZ,2EZ>
C0133 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C0140 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0141 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0203 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0204 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0205 87-012-140-080 C-CAP,S 470P-50 J CH
C0206 87-012-140-080 C-CAP,S 470P-50 J CH
C0209 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0210 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0211 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C0212 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C0213 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0214 87-010-402-080 CAP,E 2.2-50 M 11L SME
C0217 87-010-405-080 CAP,E 10-50 M 11L SME
C0218 87-010-405-080 CAP,E 10-50 M 11L SME
C0220 87-010-405-080 CAP,E 10-50 M 11L SME
C0223 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C0224 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C0228 87-010-405-080 CAP,E 10-50 M 11L SME
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

7
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C0229 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0230 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0231 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0232 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0233 87-010-190-080 C-CAP,S 0.01-50 Z<K,0EZ,2EZ>
C0234 87-010-190-080 C-CAP,S 0.01-50 Z<K,0EZ,2EZ>
C0237 87-010-322-080 C-CAP,S 100P-50 J<K,0EZ,2EZ>
C0238 87-010-322-080 C-CAP,S 100P-50 J<K,0EZ,2EZ>
C0239 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0270 87-010-197-080 C-CAP,S 0.01-25 K<K,0EZ,2EZ>
C0301 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0302 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0303 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0304 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0307 87-010-263-080 CAP,E 100-10 M 11L SME
C0308 87-010-263-080 CAP,E 100-10 M 11L SME
C0309 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C0310 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C0313 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C0314 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C0315 87-010-263-080 CAP,E 100-10 M 11L SME
C0317 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0318 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0326 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C0327 87-012-368-080 C-CAP,S 0.1-50 Z F
C0360 87-010-401-080 CAP,E 1-50 M 11L SME
C0365 87-010-197-080 C-CAP,S 0.01-25 K<K,0EZ,2EZ>
C0399 87-012-140-080 C-CAP,S 470P-50 J CH
C0401 87-010-544-080 CAP,E 0.1-50 M 11L SME
C0402 87-010-544-080 CAP,E 0.1-50 M 11L SME
C0403 87-010-321-080 C-CAP,S 82P-50 J CH
C0404 87-010-321-080 C-CAP,S 82P-50 J CH
C0405 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0406 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0407 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0408 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0409 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0410 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0411 87-010-405-080 CAP,E 10-50 M 11L SME
C0412 87-010-405-080 CAP,E 10-50 M 11L SME
C0452 87-010-382-080 CAP,E 22-25 M 11L SME
C0453 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0454 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0455 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C0456 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0458 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0459 87-010-175-080 C-CAP,S 560P-50 J SL
C0460 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0461 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C0462 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C0507 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0508 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0509 87-A10-300-080 CAP,M 0.027-50 J
C0510 87-A10-300-080 CAP,M 0.027-50 J
C0515 87-A10-300-080 CAP,M 0.027-50 J
C0516 87-A10-300-080 CAP,M 0.027-50 J
C0518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0519 87-010-401-080 CAP,E 1-50 M 11L SME
C0520 87-010-401-080 CAP,E 1-50 M 11L SME
C0521 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0522 87-010-546-080 CAP,E 0.33-50 M 11L SME
C0523 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0524 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0525 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0526 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0605 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C0606 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C0609 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C0610 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C0611 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0612 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0613 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0614 87-010-545-080 CAP,E 0.22-50 M 11L SME
C0615 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C0616 87-010-385-080 CAP,E 220-25 M SME
C0617 87-010-385-080 CAP,E 220-25 M SME
C0618 87-010-405-080 CAP,E 10-50 M 11L SME
C0620 87-010-263-080 CAP,E 100-10 M 11L SME
C0630 87-016-669-080 C-CAP,S 0.1-25 K B
C0631 87-010-185-080 C-CAP,S 3900P-50 K B
C0632 87-010-185-080 C-CAP,S 3900P-50 K B
C0633 87-016-369-080 C-CAP,S 0.033-25 K B GRM
C0634 87-016-369-080 C-CAP,S 0.033-25 K B GRM
C0661 87-012-157-080 C-CAP,S 330P-50 J<K,0EZ,2EZ>
C0661 87-010-178-080 C-CAP,S 1000P-50 K <HA>
C0662 87-012-157-080 C-CAP,S 330P-50 J<K,0EZ,2EZ>
C0662 87-010-178-080 C-CAP,S 1000P-50 K <HA>
C0669 87-010-180-080 C-CAP,S 1500P-50 <K,0EZ,2EZ>
C0670 87-010-180-080 C-CAP,S 1500P-50 <K,0EZ,2EZ>
C0671 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<HA>
C0672 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<HA>
C0673 87-010-182-080 C-CAP,S 2200P-50 K <HA>
C0677 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0771 87-010-263-080 CAP,E 100-10 M 11L SME
C0772 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0779 87-010-186-080 C-CAP,S 4700P-50 <K,0EZ,2EZ>
C0780 87-010-186-080 C-CAP,S 4700P-50 <K,0EZ,2EZ>
C0782 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0783 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0784 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0785 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0786 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0788 87-010-149-080 C-CAP,S 5P-50 C CH GRM
C0789 87-A11-532-080 C-CAP,S 0.022-50 <K,0EZ,2EZ>
C0789 87-A12-052-080 C-CAP,S 0.033-25 J B<HA>
C0790 87-A11-532-080 C-CAP,S 0.022-50 <K,0EZ,2EZ>
C0790 87-A12-052-080 C-CAP,S 0.033-25 J B<HA>
C0791 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0792 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0793 87-010-404-080 CAP,E 4.7-50 M 11L SME
C0795 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0796 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0797 87-010-405-080 CAP,E 10-50 M 11L SME
C0798 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0799 87-010-407-080 CAP,E 33-50 M 11L SME
C0800 87-012-369-080 C-CAP,S 0.047-50 Z F
C0801 87-010-403-080 CAP,E 3.3-50 M 11L SME
C0802 87-010-194-080 C-CAP,S 0.047-25 Z F
C0803 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C0804 87-010-263-080 CAP,E 100-10 M 11L SME
C0807 87-010-400-080 CAP,E 0.47-50 M 11L SME
C0808 87-010-401-080 CAP,E 1-50 M 11L SME
C0809 87-010-401-080 CAP,E 1-50 M 11L SME
C0810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0814 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0815 87-010-400-080 CAP,E 0.47-50 M 11L SME
C0816 87-010-400-080 CAP,E 0.47-50 M 11L SME
C0818 87-010-180-080 C-CAP,S 1500P-50 <K,0EZ,2EZ>
C0821 87-010-405-080 CAP,E 10-50 M 11L SME
C0823 87-012-349-080 C-CAP,S 1000P-50 <K,0EZ,2EZ>
C0823 87-010-177-080 C-CAP,S 820P-50 J C2012<HA>
C0824 87-010-405-080 CAP,E 10-50 M 11L SME
C0825 87-010-596-080 C-CAP,S 0.047-16 K R C2012
C0831 87-010-406-080 CAP,E 22-50 M <K,0EZ,2EZ>
C0842 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0844 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0850 87-010-260-080 CAP,E 47-25 M 11L SME
C0851 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0852 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0853 87-010-197-080 C-CAP,S 0.01-25 K B C2012
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

8
C0858 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0859 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0860 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0869 87-010-197-080 C-CAP,S 0.01-25 K B <2EZ>
C0870 87-018-131-080 CAP,TC U 1000P-50 K B <2EZ>
C0871 87-012-156-080 C-CAP,S 220P-50 J CH <2EZ>
C0872 87-012-156-080 C-CAP,S 220P-50 J CH <2EZ>
C0873 87-012-140-080 C-CAP,S 470P-50 J CH <2EZ>
C0874 87-010-405-080 CAP,E 10-50 M 11L SME<2EZ>
C0875 87-010-196-080 C-CAP,S 0.1-25 Z F <2EZ>
C0876 87-010-405-080 CAP,E 10-50 M 11L SME<2EZ>
C0877 87-010-197-080 C-CAP,S 0.01-25 K B <2EZ>
C0878 87-010-316-080 C-CAP,S 33P-50 J CH <2EZ>
C0879 87-010-314-080 C-CAP,S 22P-50 J CH <2EZ>
C0940 87-010-197-080 C-CAP,S 0.01-25 <K,0EZ,2EZ>
C0942 87-010-149-080 C-CAP,S 5P-50 C <K,0EZ,2EZ>
C0947 87-010-197-080 C-CAP,S 0.01-25 <K,0EZ,2EZ>
C0948 87-012-140-080 C-CAP,S 470P-50 <K,0EZ,2EZ>
C0952 87-010-197-080 C-CAP,S 0.01-25 <K,0EZ,2EZ>
C0957 87-010-311-080 C-CAP,S 12P-50 J<K,0EZ,2EZ>
C0958 87-010-197-080 C-CAP,S 0.01-25 <K,0EZ,2EZ>
C0959 87-010-196-080 C-CAP,S 0.1-25 Z<K,0EZ,2EZ>
C0960 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0961 87-010-152-080 C-CAP,S 8P-50 D CH GRM<HA>
C0962 87-010-401-080 CAP,E 1-50 M 11L<K,0EZ,2EZ>
C0963 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C0971 87-010-381-080 CAP,E 330-16 M SME
C0972 87-010-404-080 CAP,E 4.7-50 M 11L SME
C0973 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0974 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0979 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0981 87-010-260-080 CAP,E 47-25 M 11L SME
C0982 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0983 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0984 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0985 87-010-322-080 C-CAP,S 100P-50 J<K,0EZ,2EZ>
C0987 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0989 87-010-197-080 C-CAP,S 0.01-25 K<K,0EZ,2EZ>
C0991 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C0992 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C0993 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0995 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0997 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0998 87-010-260-080 CAP,E 47-25 M 11L SME
C0999 87-A11-132-080 CAP,TC U 0.01-50 K B
CF0831 87-008-423-010 FLTR,CF SFE10.7MS<K,0EZ,2EZ>
CF0831 87-008-261-010 FLTR,CF SFE10.7MA5<HA>
CF0832 82-785-747-010 CF,MS2 GHY,R<K,0EZ,2EZ>
CF0832 87-008-261-010 FLTR,CF SFE10.7MA5<HA>
CN0301 87-A60-620-010 CONN,3P V 2MM JMT
CN0351 87-A60-625-010 CONN,8P V 2MM JMT
CN0601 87-099-719-010 CONN,30P H BLK TYK-B(X)
CN0602 87-A60-131-010 CONN,6P V FE
CNA0001 8A-NF8-654-010 CONN ASSY,11P TID-A(480)
D0101 87-A40-269-080 C-DIODE,MC2836
D0116 87-A40-270-080 C-DIODE,MC2838
D0401 87-A40-736-080 DIODE,1N4148M(SEM)
FFC0602 88-906-251-110 FF-CABLE,6P 1.25
FFE0831 A8-6ZA-191-130 6ZA-1 FEENM<K,0EZ,2EZ>
FFE0831 A8-8ZA-190-030 8ZA-1 FEUNM<HA>
J0202 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J0203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J0204 87-A61-153-010 JACK,PIN 4P R/W <K,0EZ,2EZ>
J0205 87-A61-157-010 JACK,PIN 2P R/W/BL <HA>
J0602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J0831 87-A60-202-010 TERMINAL,ANT 4P <HA>
J0832 87-A60-403-010 TERMINAL,ANT PAL 2P<K,0EZ,2EZ>
L0101 87-003-383-010 COIL,1UH K
L0102 87-003-383-010 COIL,1UH K
L0201 87-003-383-010 COIL,1UH K
L0202 87-003-383-010 COIL,1UH K
L0451 87-007-342-010 COIL,OSC 85KHZ BIAS
L0801 87-A50-540-010 COIL,FM DET(TOK)
L0802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L0811 87-005-847-080 COIL,2.2UH K CECS
L0832 87-005-847-080 COIL,2.2UH K CECS
L0861 87-005-847-080 COIL,2.2UH K CECS<2EZ>
L0941 87-A50-020-010 COIL,ANT LW 252KHZ<K,0EZ,2EZ>
L0942 87-A50-019-010 COIL,OSC LW 856KHZ<K,0EZ,2EZ>
L0951 8A-NF8-668-010 COIL,AM PACK 2 <K,0EZ,2EZ>
L0951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<HA>
R0129 87-A00-257-080 RES,M/F 0.15-1W J
R0130 87-A00-257-080 RES,M/F 0.15-1W J
R0143 87-A00-439-050 RES,180-1/2W J RP<K,0EZ,2EZ>
R0143 87-A00-440-050 RES,220-1/2W J RP<HA>
R0144 87-A00-439-050 RES,180-1/2W J RP<K,0EZ,2EZ>
R0144 87-A00-440-050 RES,220-1/2W J RP<HA>
R0145 87-A00-439-050 RES,180-1/2W J RP<K,0EZ,2EZ>
R0145 87-A00-440-050 RES,220-1/2W J RP<HA>
R0146 87-A00-439-050 RES,180-1/2W J RP<K,0EZ,2EZ>
R0146 87-A00-440-050 RES,220-1/2W J RP<HA>
R0233 87-A00-258-080 RES,M/F 0.22-1W J
R0234 87-A00-258-080 RES,M/F 0.22-1W J
R0790 87-010-197-080 C-CAP,S 0.01-25 K B C2012
R0991 87-010-322-080 C-CAP,S 100P-50 J CH GRM
R0993 87-010-322-080 C-CAP,S 100P-50 J CH GRM
R0995 87-010-322-080 C-CAP,S 100P-50 J CH GRM
SFR0451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR0452 87-A90-432-080 SFR,30K H NVZ6TLTA
TC0942 87-011-253-080 TRIMMER,CER 30P <K,0EZ,2EZ>
X0861 87-A70-091-010 VIB,XTAL 4.332MHZ <2EZ>
X0991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C0201 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0202 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0203 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0204 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0205 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0206 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0207 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0208 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0209 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0210 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0211 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0251 87-010-405-040 CAP,E 10-50 M 11L SME
C0253 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0254 87-012-369-080 C-CAP,S 0.047-50 Z F
C0255 87-010-560-040 CAP,E 10-50 M 5L MA
C0256 87-010-405-040 CAP,E 10-50 M 11L SME
C0259 87-010-405-040 CAP,E 10-50 M 11L SME
C0264 87-A11-148-080 CAP,TC U 0.1-50 Z F<K>
C0273 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0274 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0301 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C0302 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0303 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<K>
C0312 87-010-498-040 CAP,E 10-16 M 5L SRE
C0314 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0315 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0316 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0321 87-012-393-080 C-CAP,S 0.22-16 K W5R CM/CB
C0322 87-010-400-040 CAP,E 0.47-50 M 11L SME
C0325 87-A10-189-040 CAP,E 220-10 M 5L
C0326 87-A10-189-040 CAP,E 220-10 M 5L
C0332 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0334 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C0335 87-012-140-080 C-CAP,S 470P-50 J CH
C0336 87-012-155-080 C-CAP,S 180P-50 J CH GRM
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

9
C0339 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C0340 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0341 87-010-194-080 C-CAP,S 0.047-25 Z F
C0351 87-010-382-040 CAP,E 22-25 M 11L SME
C0401 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C0451 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0452 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0453 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0454 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0455 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0458 87-010-320-080 C-CAP,S 68P-50 J CH GRM<K>
C0459 87-010-320-080 C-CAP,S 68P-50 J CH GRM<K>
C0502 87-010-186-080 C-CAP,S 4700P-50 K B <HA>
C0503 87-010-112-040 CAP,E 100-16 M 11L SME<HA>
C0504 87-010-405-040 CAP,E 10-50 M 11L SME<HA>
C0505 87-010-545-040 CAP,E 0.22-50 M 11L SME<HA>
C0506 87-010-320-080 C-CAP,S 68P-50 J CH GRM<HA>
C0507 87-010-544-040 CAP,E 0.1-50 M 11L SME<HA>
C0508 87-010-544-040 CAP,E 0.1-50 M 11L SME<HA>
C0510 87-010-322-080 C-CAP,S 100P-50 J CH <HA>
C0511 87-010-265-040 CAP,E 33-16 M 11L SME<HA>
C0512 87-010-178-080 C-CAP,S 1000P-50 K B <HA>
C0513 87-010-196-080 C-CAP,S 0.1-25 Z F <HA>
C0515 87-010-178-080 C-CAP,S 1000P-50 K B <HA>
C0602 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0603 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0604 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C0650 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C0699 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
CN0101 87-099-720-010 CONN,30P BLK TYK-B(P)
CN0102 87-099-015-010 CONN,13P V BLK 6216
CN0301 87-A60-140-010 CONN,15P V FE<HA>
CN0302 87-A60-136-010 CONN,11P V FE<K,0EZ,2EZ>
FB0301 87-008-372-080 FLTR,EMI BL01 RN1
FB0501 87-008-372-080 FLTR,EMI BL01 RN1<HA>
FFC0102 88-913-301-110 FF-CABLE,13P-1.25
FFC0302 88-911-101-110 FF-CABLE,11P 1.25<K,0EZ,2EZ>
FFC0302 88-915-101-110 FF-CABLE, 15P 1.25 100MM<HA>
FL0401 8A-NF8-601-010 FL,HNA-11MM30(ANF-8)
J0501 87-A61-242-010 JACK,6.3 BLK MONO W/SW <HA>
L0331 87-A50-408-010 COIL,OSC 5.76MHZ
LED0311 87-A40-589-040 LED,SLR-56VCT31 RED
LED0601 87-A40-803-010 LED,SELU1E10CXM-S LF38 BLUE
LED0602 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0603 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0604 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0606 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0607 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
LED0608 87-A40-619-080 LED,SLR-56PT-TE7-W GRN
S0401 87-A91-024-180 SW,TACT KSHG611BT
S0402 87-A91-024-180 SW,TACT KSHG611BT
S0403 87-A91-024-180 SW,TACT KSHG611BT
S0404 87-A91-024-180 SW,TACT KSHG611BT
S0405 87-A91-024-180 SW,TACT KSHG611BT
S0406 87-A91-024-180 SW,TACT KSHG611BT
S0407 87-A91-024-180 SW,TACT KSHG611BT
S0408 87-A91-024-180 SW,TACT KSHG611BT
S0409 87-A91-024-180 SW,TACT KSHG611BT
S0410 87-A91-024-180 SW,TACT KSHG611BT
S0411 87-A91-024-180 SW,TACT KSHG611BT
S0412 87-A91-024-180 SW,TACT KSHG611BT<2EZ,HA>
S0413 87-A91-024-180 SW,TACT KSHG611BT
S0414 87-A91-024-180 SW,TACT KSHG611BT
S0415 87-A91-024-180 SW,TACT KSHG611BT
S0416 87-A91-024-180 SW,TACT KSHG611BT
S0417 87-A91-024-180 SW,TACT KSHG611BT
S0418 87-A91-024-180 SW,TACT KSHG611BT
S0419 87-A91-024-180 SW,TACT KSHG611BT
S0420 87-A91-024-180 SW,TACT KSHG611BT<2EZ,HA>
S0421 87-A91-024-180 SW,TACT KSHG611BT<2EZ>
S0425 87-A91-024-180 SW,TACT KSHG611BT
S0426 87-A91-024-180 SW,TACT KSHG611BT
S0430 87-A91-024-180 SW,TACT KSHG611BT
S0431 87-A91-024-180 SW,TACT KSHG611BT
S0432 87-A91-024-180 SW,TACT KSHG611BT
S0433 87-A91-024-180 SW,TACT KSHG611BT
S0434 87-A91-024-180 SW,TACT KSHG611BT
S0435 87-A91-024-180 SW,TACT KSHG611BT
SW0252 87-A91-555-010 SW,RTRY EC12E24504
SW0253 87-A91-542-010 SW,RTRY EC12E12504
VR0501 86-NFA-607-010 VR,RTRY 10K15AX1 1 V <HA>
PT C.B
C0001 87-010-387-080 CAP,E 470-25 M SME
C0002 87-A11-148-080 CAP,TC U 0.1-50 <K,0EZ,2EZ>
C0031 87-010-403-040 CAP,E 3.3-50 M 11L SME
CN0001 87-A61-122-010 CONN,11P V TID-A
!PT0001 8A-NF8-605-010 PT,ANF-8 LH<HA>
!PT0001 8A-NF8-608-010 PT,ANF-8 EZ<K,0EZ,2EZ>
!PT0002 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<HA>
!PT0002 8A-NF8-662-010 PT,SUB ANF-8 (E)<K,0EZ,2EZ>
!RY0001 87-A91-339-010 RELAY,AC DC12V G5PA-2<HA>
!RY0002 87-A91-418-010 RELAY,AC12V G5PA<K,0EZ,2EZ>
!S0001 87-A90-165-010 SW,SL 1-2-3 SWS2301<HA>
!T0001 87-A60-317-010 TERMINAL, 1P MSC
!T0002 87-A60-317-010 TERMINAL, 1P MSC
!W0001 87-A80-092-010 AC CORD ASSY,E BLK<0EZ,2EZ>
!W0001 87-A80-105-010 AC CORD ASSY,AZ<HA>
!W0001 87-A80-143-010 AC CORD ASSY,E BLK<K>
DECK C.B
CON105 87-099-753-010 CONN,11P 9604 S F<K,0EZ,2EZ>
CON105 87-099-756-010 CONN,15P 9604 S F<HA>
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62<HA>
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ<HA>
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ<HA>
W1 82-ZM3-601-010 RBN,CORD,4P-75
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
CON301 87-NF6-615-010 CONN ASSY,3P PB
HEAD-2 C.B<HA>
85-ZM3-602-010 PWB,FLEX A<HA>
CON351 87-NF6-616-010 CONN ASSY,8P-RPB<HA>
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
TYPE MODEL NAME SUFFIX
<0EZ> CX-NSZ50 EZ
<K> CX-NSZ50 K
<HA> CX-NSZ50 HA
<2EZ> CX-NSZ52 EZ
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

10

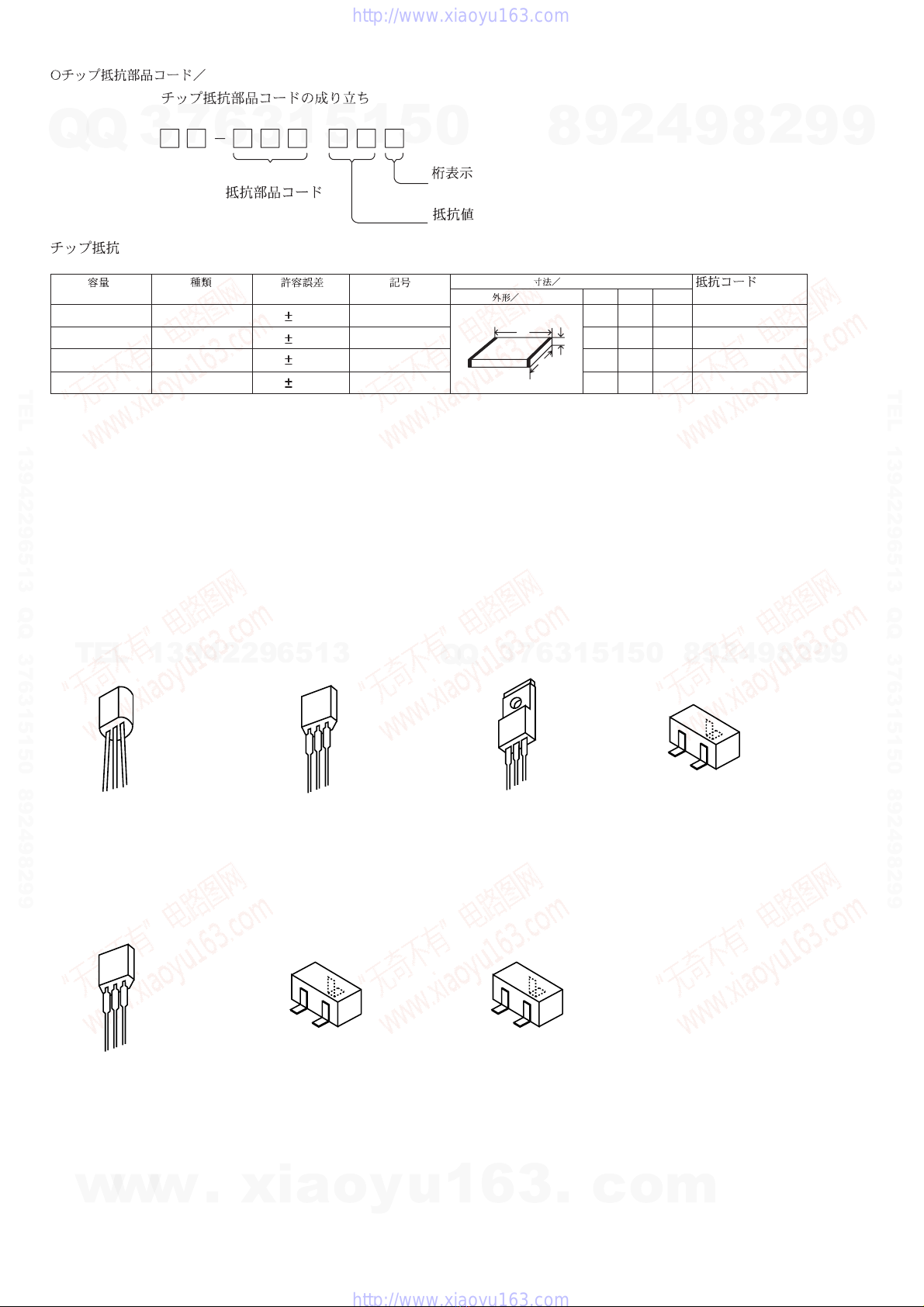

TRANSISTOR ILLUSTRATION
B
E
C
2SA1235
2SC2714
2SC3052
CMBT5401
CMBT5551
CSD1306
KRA107S
KRC102S
RT1N141C
RT1N441C
RT1P141C
D
G
S
2SK360
G
S
D
2SJ461
2SK2158
E C B
2SA1981
2SC3331
CD1585
CSA952
CSC4115
KTA1266
KTC3198
E C B
2SA933S
DTC114ES
KTC3199
S D G
2SJ460
2SK2541
B C E
2SB1370
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
