S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

NSX-A222

NSX-S333

• TYPE: U<A222>,

LH<S333>

COMPACT DISC STEREO SYSTEM

• BASIC TAPE MECHANISM:6ZM-3 PR1N

• BASIC CD MECHANISM: 4ZG-1 Z3RDLSHF, AZG-1 Z8RDLC

S/M Code No. 09–999–404–4T5

ELECTRICAL PARTS LIST-1/5

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

LH .....................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

82-NF7-210-110 GUIDE,FL (*) ABC.................

* 8Z-NF9-201-010 GUIDE,OPE 1W ABC.................

C 101 87-A11-140-080 CAP,TC U 0.047-50 K B ABC.................

C 153 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 151 87-A11-142-080 CAP,TC U 0.068-50 K B ABC.................

C 204 87-010-246-040 CAP,E 47-35 SME ABC.................

C 202 87-010-421-040 CAP,E 4.7-50 5L ABC.................

C 201 87-010-421-040 CAP,E 4.7-50 5L ABC.................

C 203 87-010-560-040 CAP,E 10-50 GAS ABC.................

C 205 87-018-205-080 CAP, CERA-SOL 0.022 ABC.................

C 213 87-015-695-040 E/CAP 1UF 50V TAPG ABC.................

C 218 87-018-125-080 CAP, CER 330P-50V ABC.................

C 217 87-018-125-080 CAP, CER 330P-50V ABC.................

C 219 87-018-131-080 CAP, CER 1000P-50V ABC.................

C 216 87-018-131-080 CAP, CER 1000P-50V ABC.................

C 212 87-018-205-080 CAP, CERA-SOL 0.022 ABC.................

C 210 87-A10-818-040 CAP,E 100-16 7LSRA SERIES AB..................

C 214 87-A11-155-080 CAP,TC U 0.01-16 Z F ABC.................

C 211 87-A11-242-040 CAP,E 220-10 M 5L SRM ABC.................

C 221 87-018-105-080 CAP,TC-U 12P-50 SL ABC.................

C 222 87-018-128-080 CAP, CERA-SOL SS 560P ABC.................

C 220 87-018-205-080 CAP, CERA-SOL 0.022 ABC.................

C 224 87-018-205-080 CAP, CERA-SOL 0.022 ABC.................

C 231 87-015-681-040 E/CAP 10-16 ABC.................

C 230 87-A11-140-080 CAP,TC U 0.047-50 K B ABC.................

C 232 87-A11-140-080 CAP,TC U 0.047-50 K B ABC.................

C 234 87-A11-140-080 CAP,TC U 0.047-50 K B ABC.................

C 245 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................

C 241 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................

C 242 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................

C 244 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................

C 243 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................

C 246 87-018-118-080 CAP,TC-U 82P-50 B ABC.................

C 251 87-018-117-080 CAP,TC-U 68P-50 SL ABC.................

C 252 87-018-131-080 CAP, CER 1000P-50V ABC.................

C 701 87-018-115-080 CAP, CER 47P-50V ABC.................

CN 701 87-099-013-010 CONN,11P 6216 V ABC.................

CON 102 87-A60-138-010 CONN,13P V FE AB..................

CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) ABC.................

D 201 87-A40-509-080 ZENER,MTZJ6.8C ABC.................

D 236 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

FL 301 8Z-NF9-610-010 FL,SVA-10MS12 ABC.................

IC 202 87-A21-218-010 IC,NJL64H380A ABC.................

IC 201 8Z-NF9-631-010 C-IC,M38B59MFH-E110FP AB..................

L 201 87-A50-434-010 COIL,CLK 4.19M(TOKO) ABC.................

LED 603 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................

Q 102 87-026-218-080 TR,DTC144ES (0.2W) ABC.................

Q 101 87-026-218-080 TR,DTC144ES (0.2W) ABC.................

Q 152 87-026-609-080 TR,KTA1266GR ABC.................

Q 151 87-026-610-080 TR,KTC3198GR ABC.................

Q 153 87-026-610-080 TR,KTC3198GR ABC.................

Q 206 87-026-215-080 TR,DTC114YS ABC.................

Q 205 87-026-610-080 TR,KTC3198GR ABC.................

Q 203 87-026-610-080 TR,KTC3198GR ABC.................

Q 202 87-A30-090-080 FET,2SK2541 ABC.................

Q 204 87-A30-090-080 FET,2SK2541 ABC.................

Q 201 87-A30-090-080 FET,2SK2541 ABC.................

Q 604 87-026-287-080 TR,DTC143ES ABC.................

Q 701 87-026-245-080 TR,DTC114ES ABC.................

Q 702 87-A30-240-080 TR,CSA1585BC ABC.................

Q 703 87-A30-318-080 TR,CSA952K ABC.................

Q 704 87-A30-318-080 TR,CSA952K ABC.................

S 201 87-A90-535-010 SW,RTRY EC16B24304 ABC.................

S 202 87-A90-791-010 SW,RTRY EC16B12204 ENCODER ABC.................

S 308 87-A90-164-080 SW,TACT SKQAB(N) ABC.................

FC 1 87-033-213-080 CLAMP, FUSE A...................

FC 2 87-033-213-080 CLAMP, FUSE A...................

T 1 87-A60-317-010 TERMINAL, 1P MSC A...................

T 2 87-A60-317-010 TERMINAL, 1P MSC A...................

C 304 87-010-178-080 CHIP CAP 1000P AB..................

C 301 87-010-178-080 CHIP CAP 1000P AB..................

C 303 87-010-178-080 CHIP CAP 1000P AB..................

C 302 87-010-178-080 CHIP CAP 1000P AB..................

C 305 87-010-198-080 CAP, CHIP 0.022 AB..................

C 308 87-010-263-080 CAP, ELECT 100-10V AB..................

C 307 87-010-263-080 CAP, ELECT 100-10V AB..................

C 313 87-010-187-080 CAP CHIP S5600P AB..................

C 314 87-010-187-080 CAP CHIP S5600P AB..................

C 315 87-010-263-080 CAP, ELECT 100-10V AB..................

C 318 87-010-546-080 CAP, ELECT 0.33-50V AB..................

C 317 87-010-546-080 CAP, ELECT 0.33-50V AB..................

C 312 87-010-598-080 C-CAP,S 0.068-16VRK AB..................

C 311 87-010-598-080 C-CAP,S 0.068-16VRK AB..................

C 327 87-012-368-080 C-CAP,S 0.1-50 F AB..................

C 360 87-010-401-080 CAP, ELECT 1-50V AB..................

ELECTRICAL PARTS LIST-2/5

C 399 87-012-140-080 CAP 470P AB..................

C 409 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 405 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 407 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 406 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 408 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 403 87-010-321-080 CHIP CAPACITOR,82P(J) AB..................

C 404 87-010-321-080 CHIP CAPACITOR,82P(J) AB..................

C 402 87-010-544-080 CAP, ELECT 0.1-50V AB..................

C 401 87-010-544-080 CAP, ELECT 0.1-50V AB..................

C 410 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 411 87-010-405-080 CAP, ELECT 10-50V AB..................

C 412 87-010-405-080 CAP, ELECT 10-50V AB..................

C 459 87-010-175-080 CAP 560P AB..................

C 458 87-010-178-080 CHIP CAP 1000P AB..................

C 454 87-010-183-080 C-CAP,S 2700P-50 B AB..................

C 453 87-010-183-080 C-CAP,S 2700P-50 B AB..................

C 455 87-010-183-080 C-CAP,S 2700P-50 B AB..................

C 456 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 451 87-010-198-080 CAP, CHIP 0.022 AB..................

C 452 87-010-382-080 CAP, ELECT 22-25V AB..................

C 462 87-012-158-080 C-CAP,S 390P-50 CH AB..................

C 461 87-012-158-080 C-CAP,S 390P-50 CH AB..................

CN 301 87-A60-620-010 CONN,3P V 2MM JMT AB..................

CN 351 87-A60-625-010 CONN,8P V 2MM JMT AB..................

D 401 87-020-465-080 DIODE,1SS133 (110MA) AB..................

IC 301 87-017-888-080 IC,NJM4558MD AB..................

IC 401 87-017-888-080 IC,NJM4558MD AB..................

L 451 87-007-342-010 COIL,OSC 85K BIAS AB..................

Q 304 87-A30-090-080 FET,2SK2541 AB..................

Q 303 87-A30-090-080 FET,2SK2541 AB..................

Q 308 87-A30-091-080 FET,2SJ460 AB..................

Q 307 87-A30-091-080 FET,2SJ460 AB..................

Q 301 87-A30-091-080 FET,2SJ460 AB..................

Q 302 87-A30-091-080 FET,2SJ460 AB..................

Q 305 87-A30-091-080 FET,2SJ460 AB..................

Q 306 87-A30-104-080 C-TR,RT1N 441C AB..................

Q 443 87-A30-075-080 C-TR,2SA1235F AB..................

Q 444 87-A30-075-080 C-TR,2SA1235F AB..................

Q 451 87-026-610-080 TR,KTC3198GR AB..................

Q 453 89-333-317-880 TR,2SC3331 (0.5W) AB..................

Q 454 89-333-317-880 TR,2SC3331 (0.5W) AB..................

R 392 87-012-349-080 C-CAP,S 1000P-50 CH AB..................

SFR 451 87-024-355-080 SFR,33K DIA6 H AB..................

SFR 452 87-024-355-080 SFR,33K DIA6 H AB..................

C 703 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 704 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 709 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 701 87-010-381-080 CAP, ELECT 330-16V AB..................

C 702 87-010-404-080 CAP, ELECT 4.7-50V AB..................

C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 714 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 713 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 711 87-010-260-080 CAP, ELECT 47-25V AB..................

C 725 87-010-178-080 CHIP CAP 1000P AB..................

C 723 87-010-178-080 CHIP CAP 1000P AB..................

C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 728 87-010-248-080 CAP, ELECT 220-10V AB..................

C 721 87-010-312-080 C-CAP,S 15P-50 CH AB..................

C 722 87-010-312-080 C-CAP,S 15P-50 CH AB..................

D 721 87-017-149-080 ZENER,HZS6A2L AB..................

IC 721 87-070-127-110 IC,LC72131 D AB..................

Q 711 87-A30-234-080 TR,CSC4115BC AB..................

R 721 87-010-314-080 C-CAP,S 22P-50V AB..................

R 723 87-010-314-080 C-CAP,S 22P-50V AB..................

R 725 87-010-314-080 C-CAP,S 22P-50V AB..................

X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 AB..................

C 758 87-010-149-080 C-CAP,S 5P-50 CH AB..................

C 755 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 756 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 757 87-010-318-080 C-CAP,S 47P-50 CH AB..................

C 759 87-012-156-080 C-CAP,S 220P-50 CH AB..................

C 763 87-010-194-080 CAP, CHIP 0.047 AB..................

C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 765 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 766 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 768 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 764 87-010-319-080 C-CAP,S 56P-50 CH AB..................

C 767 87-010-405-080 CAP, ELECT 10-50V AB..................

C 769 87-010-408-080 CAP, ELECT 47-50V AB..................

C 760 87-012-156-080 C-CAP,S 220P-50 CH AB..................

C 772 87-010-194-080 CAP, CHIP 0.047 AB..................

C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 774 87-010-263-080 CAP, ELECT 100-10V AB..................

C 777 87-010-400-080 CAP, ELECT 0.47-50V AB..................

C 779 87-010-401-080 CAP, ELECT 1-50V AB..................

C 778 87-010-401-080 CAP, ELECT 1-50V AB..................

C 775 87-010-404-080 CAP, ELECT 4.7-50V AB..................

C 771 87-010-407-080 CAP, ELECT 33-50V AB..................

C 770 87-015-821-080 C-CAP 0.047 AB..................

C 789 87-010-179-080 CAP,CHIP S B1200P AB..................

C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

ELECTRICAL PARTS LIST-3/5

C 784 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 786 87-010-400-080 CAP, ELECT 0.47-50V AB..................

C 785 87-010-400-080 CAP, ELECT 0.47-50V AB..................

C 782 87-010-405-080 CAP, ELECT 10-50V AB..................

C 781 87-010-405-080 CAP, ELECT 10-50V AB..................

C 783 87-015-819-080 CAPACITOR,0.01 AB..................

C 793 87-010-177-080 C-CAP,S 820P-50 SL AB..................

C 790 87-010-179-080 CAP,CHIP S B1200P AB..................

C 797 87-010-183-080 C-CAP,S 2700P-50 B AB..................

C 798 87-010-183-080 C-CAP,S 2700P-50 B AB..................

C 799 87-010-194-080 CAP, CHIP 0.047 AB..................

C 796 87-010-403-080 CAP, ELECT 3.3-50V AB..................

C 791 87-010-405-080 CAP, ELECT 10-50V AB..................

C 794 87-010-406-080 CAP, ELECT 22-50 AB..................

C 795 87-010-596-080 CAP, S 0.047-16 AB..................

D 773 87-020-465-080 DIODE,1SS133 (110MA) AB..................

IC 771 87-A20-913-010 IC,LA1837NL AB..................

L 771 87-A50-266-010 COIL,FM DET-2N(TOK) AB..................

L 772 87-A91-110-010 FLTR,PCFJZH-450 (TOK) AB..................

L 781 87-005-847-080 COIL,2.2UH(CECS) AB..................

C 812 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 814 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 823 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 822 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 821 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 820 87-010-408-080 CAP, ELECT 47-50V AB..................

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 961 87-010-152-080 C-CAP,S 8P-50 CH AB..................

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 981 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z AB..................

CF 801 87-008-261-010 FILTER, SFE10.7MA5-A AB..................

CF 802 87-008-261-010 FILTER, SFE10.7MA5-A AB..................

FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM AB..................

J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 AB..................

L 832 87-005-847-080 COIL,2.2UH(CECS) AB..................

L 981 8Z-ZA1-650-010 COIL,AM PACK4C (TOK) AB..................

Q 806 87-A30-072-080 C-TR,RT1P 144C AB..................

Q 805 89-327-143-080 TR,2SC2714 (0.1W) AB..................

C 1 87-012-369-080 C-CAP,S 0.047-50F AB..................

C 2 87-012-369-080 C-CAP,S 0.047-50F AB..................

C 7 87-016-495-000 CAP,E 3300-25 M SMG A...................

C 8 87-A10-011-090 CAP,E 2200-25 SMG A...................

C 9 87-A10-520-000 CAP,E 3300-35 M SMG .B..................

C 10 87-016-051-000 CAP,E 2200-35 M SMG .B..................

C 27 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 29 87-010-247-080 CAP, ELECT 100-50V AB..................

C 25 87-010-247-080 CAP, ELECT 100-50V AB..................

C 28 87-010-263-080 CAP, ELECT 100-10V AB..................

C 24 87-010-384-080 CAP, ELECT 100-25V AB..................

C 22 87-010-384-080 CAP, ELECT 100-25V AB..................

C 30 87-010-112-080 CAP, ELECT 100-16V AB..................

C 31 87-010-381-080 CAP, ELECT 330-16V AB..................

C 32 87-010-405-080 CAP, ELECT 10-50V AB..................

C 33 87-010-405-080 CAP, ELECT 10-50V AB..................

C 34 87-012-368-080 C-CAP,S 0.1-50 F AB..................

C 51 87-010-180-080 C-CER 1500P AB..................

C 50 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 61 87-010-374-080 CAP, ELECT 47-10V AB..................

C 62 87-010-403-080 CAP, ELECT 3.3-50V AB..................

D 7 87-A40-336-080 ZENER,MTZJ27D T-72 AB..................

D 6 87-A40-553-080 DIODE,1N4003 LES AB..................

D 4 87-A40-553-080 DIODE,1N4003 LES AB..................

D 19 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 17 87-A40-269-080 C-DIODE,MC2836 AB..................

D 15 87-A40-270-080 C-DIODE,MC2838 AB..................

D 10 87-A40-345-080 ZENER,MTZJ10C AB..................

D 11 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 13 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 14 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 12 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 20 87-017-931-080 ZENER,MTZJ5.6B AB..................

D 24 87-017-931-080 ZENER,MTZJ5.6B AB..................

D 22 87-A40-345-080 ZENER,MTZJ10C AB..................

D 21 87-A40-393-090 DIODE,1N5402GW(F20) AB..................

D 23 87-A40-393-090 DIODE,1N5402GW(F20) AB..................

D 30 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 61 87-A40-270-080 C-DIODE,MC2838 AB..................

Q 2 87-026-609-080 TR,KTA1266GR AB..................

Q 5 87-026-610-080 TR,KTC3198GR AB..................

Q 6 87-A30-076-080 C-TR,2SC3052F AB..................

Q 9 87-A30-234-080 TR,CSC4115BC AB..................

Q 3 89-213-702-010 TR,2SB1370 (1.8W) AB..................

Q 11 87-A30-076-080 C-TR,2SC3052F AB..................

Q 16 87-A30-186-010 FET,2SK3053 AB..................

Q 15 87-A30-186-010 FET,2SK3053 AB..................

Q 30 87-A30-074-080 C-TR,RT1P 141C AB..................

Q 66 87-A30-075-080 C-TR,2SA1235F AB..................

Q 64 87-A30-075-080 C-TR,2SA1235F AB..................

Q 67 87-A30-076-080 C-TR,2SC3052F AB..................

Q 65 87-A30-076-080 C-TR,2SC3052F AB..................

ELECTRICAL PARTS LIST-4/5

Q 63 87-A30-076-080 C-TR,2SC3052F AB..................

Q 80 87-A30-105-080 C-TR,RT1P 441C AB..................

R 20 87-A00-261-080 RES,M/F 0.56-1W J A...................

RY 1 87-A91-339-010 RELAY,AC DC12V G5PA-2 AB..................

W 1 85-NF5-628-010 F-CABLE 7P-2.5 AB..................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P AB..................

C 105 87-010-186-080 CAP,CHIP 4700P AB..................

C 106 87-010-186-080 CAP,CHIP 4700P AB..................

C 102 87-010-188-080 CAP,CHIP 6800P AB..................

C 101 87-010-188-080 CAP,CHIP 6800P AB..................

C 108 87-010-403-080 CAP, ELECT 3.3-50V AB..................

C 107 87-010-403-080 CAP, ELECT 3.3-50V AB..................

C 104 87-010-546-080 CAP, ELECT 0.33-50V AB..................

C 103 87-010-546-080 CAP, ELECT 0.33-50V AB..................

C 109 87-012-140-080 CAP 470P AB..................

C 112 87-010-260-080 CAP, ELECT 47-25V AB..................

C 111 87-010-260-080 CAP, ELECT 47-25V AB..................

C 118 87-010-401-080 CAP, ELECT 1-50V .B..................

C 117 87-010-401-080 CAP, ELECT 1-50V .B..................

C 117 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 118 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 110 87-012-140-080 CAP 470P AB..................

C 113 87-A10-946-080 C-CAP,S 220P-100 J CH AB..................

C 114 87-A10-946-080 C-CAP,S 220P-100 J CH AB..................

C 121 87-010-178-080 CHIP CAP 1000P .B..................

C 122 87-010-178-080 CHIP CAP 1000P .B..................

C 125 87-012-368-080 C-CAP,S 0.1-50 F AB..................

C 128 87-012-368-080 C-CAP,S 0.1-50 F AB..................

C 127 87-012-368-080 C-CAP,S 0.1-50 F AB..................

C 126 87-012-368-080 C-CAP,S 0.1-50 F AB..................

C 133 87-010-197-080 CAP, CHIP 0.01 DM AB..................

D 109 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 108 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 101 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 103 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 107 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 102 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 104 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 110 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 113 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 111 87-A40-270-080 C-DIODE,MC2838 AB..................

J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) AB..................

J 201 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC AB..................

J 205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN A...................

L 101 87-003-383-010 COIL,1UH-S AB..................

L 102 87-003-383-010 COIL,1UH-S AB..................

Q 104 87-A30-075-080 C-TR,2SA1235F AB..................

Q 103 87-A30-075-080 C-TR,2SA1235F AB..................

Q 105 87-A30-075-080 C-TR,2SA1235F AB..................

Q 106 87-A30-075-080 C-TR,2SA1235F AB..................

Q 108 87-A30-076-080 C-TR,2SC3052F AB..................

Q 107 87-A30-076-080 C-TR,2SC3052F AB..................

Q 109 87-A30-076-080 C-TR,2SC3052F AB..................

Q 110 87-A30-076-080 C-TR,2SC3052F AB..................

Q 112 87-A30-190-080 TR,CC5551 AB..................

Q 111 87-A30-190-080 TR,CC5551 AB..................

Q 119 87-A30-209-010 TR,2SD1889 AB..................

Q 126 87-A30-075-080 C-TR,2SA1235F AB..................

Q 128 87-A30-076-080 C-TR,2SC3052F AB..................

Q 129 87-A30-076-080 C-TR,2SC3052F AB..................

Q 123 87-A30-106-070 C-TR,CMBT5551 AB..................

Q 124 87-A30-106-070 C-TR,CMBT5551 AB..................

Q 121 87-A30-208-010 TR,2SB1340 AB..................

Q 122 87-A30-208-010 TR,2SB1340 AB..................

Q 120 87-A30-209-010 TR,2SD1889 AB..................

Q 131 87-A30-076-080 C-TR,2SC3052F AB..................

Q 130 87-A30-076-080 C-TR,2SC3052F AB..................

R 129 87-A00-258-080 RES,M/F 0.22-1W J AB..................

R 131 87-A00-258-080 RES,M/F 0.22-1W J AB..................

R 130 87-A00-258-080 RES,M/F 0.22-1W J AB..................

R 132 87-A00-258-080 RES,M/F 0.22-1W J AB..................

FC 101 87-033-147-010 FUSE CLAMP .BC.................

FC 102 87-033-147-010 FUSE CLAMP .BC.................

SW 101 87-A90-165-010 SW,SL 1-2-3 SWS2301 .BC.................

T 101 87-A60-317-010 TERMINAL, 1P MSC .BC.................

T 102 87-A60-317-010 TERMINAL, 1P MSC .BC.................

C 606 87-010-179-080 CAP,CHIP S B1200P AB..................

C 605 87-010-179-080 CAP,CHIP S B1200P AB..................

C 609 87-010-213-080 C-CAP,S 0.015-50 B AB..................

C 615 87-010-154-080 CAP CHIP 10P AB..................

C 610 87-010-213-080 C-CAP,S 0.015-50 B AB..................

C 616 87-010-260-080 CAP, ELECT 47-25V AB..................

C 617 87-010-260-080 CAP, ELECT 47-25V AB..................

C 614 87-010-545-080 CAP, ELECT 0.22-50V AB..................

C 613 87-010-545-080 CAP, ELECT 0.22-50V AB..................

C 612 87-010-545-080 CAP, ELECT 0.22-50V AB..................

C 611 87-010-545-080 CAP, ELECT 0.22-50V AB..................

C 677 87-010-197-080 CAP, CHIP 0.01 DM A...................

CN 602 87-A60-131-010 CONN,6P V FE AB..................

D 601 87-A40-466-080 ZENER,MTZJ2.7A AB..................

D 602 87-A40-466-080 ZENER,MTZJ2.7A AB..................

IC 601 87-A21-111-040 C-IC,M62495FP AB..................

ELECTRICAL PARTS LIST-5/5

J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN AB..................

C 294 87-A10-627-000 CAP,E 2200-50 M SMG AB..................

C 293 87-A10-627-000 CAP,E 2200-50 M SMG AB..................

D 293 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 292 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 291 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

D 294 87-A40-535-080 DIODE,1N5393-GOODARK AB..................

PR 293 87-A90-094-080 PROTECTOR,4A 491SERIES 60V .B..................

PR 292 87-A90-094-080 PROTECTOR,4A 491SERIES 60V .B..................

PR 291 87-A90-094-080 PROTECTOR,4A 491SERIES 60V .B..................

PR 294 87-A90-094-080 PROTECTOR,4A 491SERIES 60V .B..................

WH 299 87-A90-460-010 HLDR,WIRE 2.5-7P AB..................

MECHANICAL PARTS LIST-1/2

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

LH .....................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

82-NE6-067-010 BADGE,AIWA 30N ABC.................

8Z-NB8-011-210 PANEL,LEFT V-2 ..C.................

8Z-NF9-001-110 CABI,FR H ..C.................

8Z-NF9-002-010 PANEL,TRAY H ABC.................

8Z-NF9-003-010 BOX,CASS 1 1WAY ABC.................

8Z-NF9-004-010 BOX,CASS 2 ABC.................

8Z-NF9-021-110 CABI,REAR USTM ....................

8Z-NF9-022-110 CABI,REAR LHSTM ....................

8Z-NF9-023-110 CABI,REAR HRJSTM ....................

8Z-NF9-025-110 CABI,REAR EZSTM ....................

8Z-NF9-026-110 CABI,REAR VJSTM ....................

8Z-NF9-027-110 CABI,REAR STM ....................

8Z-NF9-028-110 CABI,REAR LHSTM S333 ....................

8Z-NF9-029-110 CABI,REAR EZSTE S333 ....................

8Z-NF9-030-110 CABI,REAR HRJSTM S333 ....................

8Z-NF9-031-110 CABI,FR U AB..................

8Z-NF9-032-010 BOX,CASS 1R ....................

8Z-NF9-036-110 CABI,FR EZ ....................

8Z-NF9-038-110 CABI,FR D ....................

8Z-NF9-043-010 PANEL,RIGHT S V-2 ..C.................

8Z-NF9-046-110 PANEL,LEFT V-2 B ....................

8Z-NF9-047-010 PANEL,RIGHT S V-2 B ....................

8Z-NF9-051-110 CABI,FR EZ B ....................

8Z-NF9-052-010 PANEL,TRAY EZ B ....................

8Z-NF9-053-010 BOX,CASS 1 1WAY B ....................

8Z-NF9-054-010 BOX,CASS 2 B ....................

8Z-NF9-064-110 CABI,FR H S333 ....................

8Z-NF9-067-110 CABI,REAR USTFD A...................

8Z-NF9-068-110 CABI,REAR EZSTE S223 ....................

8Z-NF9-069-110 CABI,REAR EZSTE ....................

8Z-NF9-070-110 CABI,REAR KSTE ....................

8Z-NF9-071-110 CABI,REAR USTC ....................

8Z-NF9-072-110 CABI,REAR LHSTC ....................

8Z-NF9-073-110 CABI,REAR LHSTC S333 ....................

8Z-NF9-074-110 CABI,REAR EZSTM S223 ....................

8Z-NF9-075-110 CABI,REAR LHJSCM S229 ....................

8Z-NF9-076-110 CABI,REAR LHSTFD ....................

8Z-NF9-077-110 CABI,REAR LHSTFD S333 .B..................

8Z-NF9-078-110 CABI,REAR HRSTM ....................

8Z-NF9-079-110 CABI,REAR EZBM S226 ....................

8Z-NF9-080-110 CABI,REAR LHSTP ....................

8Z-NF9-081-110 CABI,REAR LHSTP S333 ....................

8Z-NF9-083-110 CABI,REAR ST ....................

8Z-NF9-084-110 CABI,REAR EZSTM S333 ....................

8Z-NF9-085-110 CABI,REAR EZSTFD ....................

8Z-NF9-086-110 CABI,REAR LHSTL ....................

8Z-NF9-087-110 CABI,REAR HRJSCM ....................

8Z-NF9-088-010 CABI,REAR HRJSTM S336 ....................

8Z-NF9-089-010 CABI,REAR EZ W/O SPEC ....................

8Z-NF9-093-010 CABI,REAR GSTM S333 ....................

8Z-NF9-095-010 PANEL,TOP V-2 R ABC.................

8Z-NF9-096-010 PANEL,TOP V-2 B R ....................

8Z-NF9-105-010 PANEL,LEFT V-2 AB..................

8Z-NF9-106-010 PANEL,RIGHT V-2 AB..................

8Z-NF9-107-010 CABI,REAR UST5C1 ....................

8Z-NF9-108-010 CABI,REAR HCSC5NC ..C.................

8Z-NF9-109-010 CABI,REAR EZSTC1 ....................

8Z-NF9-112-010 CABI,REAR EZSTC1 S223 ....................

88-NF9-056-010 KNOB,RTRY MIC ..C.................

8Z-NF9-009-010 KNOB,RTRY VOL ABC.................

8Z-NF9-010-010 KNOB,RTRY JOG ABC.................

8Z-NF9-011-010 KEY,POWER ABC.................

8Z-NF9-012-010 KEY,FUN ABC.................

8Z-NF9-013-010 KEY,ASSY OPE 1W ABC.................

8Z-NF9-016-010 KEY,CD ABC.................

8Z-NF9-017-010 KEY,GEQ ABC.................

8Z-NF9-018-010 KEY,RDS ....................

8Z-NF9-033-010 KEY,ASSY OPE R ....................

8Z-NF9-056-010 KNOB,RTRY VOL B ....................

81-532-080-010 LABEL, CASS. COMPT ....................

86-NFZ-001-010 WINDOW,TOP ABC.................

8Z-NF9-005-010 WINDOW,CD ABC.................

8Z-NF9-006-010 WINDOW,DISP H ..C.................

8Z-NF9-007-010 WINDOW,CASS 1 ABC.................

8Z-NF9-008-010 WINDOW,CASS 2 ABC.................

8Z-NF9-037-010 WINDOW,DISP EZ ....................

8Z-NF9-039-010 WINDOW,DISP U A...................

8Z-NF9-041-010 WINDOW,DISP D ....................

8Z-NF9-048-010 WINDOW,DISP EZ S223 ....................

8Z-NF9-049-010 WINDOW,DISP EZ S226 ....................

8Z-NF9-050-010 WINDOW,DISP H S336 ....................

8Z-NF9-055-010 WINDOW,DISP EZ S333 ....................

8Z-NF9-062-010 WINDOW,DISP H S333 .B..................

8Z-NF9-063-010 WINDOW,DISP H S229 ....................

8Z-NF9-117-010 WINDOW,CASS 1C ....................

8Z-NF9-118-010 WINDOW,CASS 2C ....................

84-ZG1-245-210 CAP,OPTICAL ABC.................

82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABC.................

8Z-NF9-118-010 WINDOW,CASS 2C ....................

84-ZG1-245-210 CAP,OPTICAL ABC.................

82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABC.................

82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABC.................

82-NF5-229-010 PLATE,LOCK ABC.................

85-NF7-599-010 PVC W 3.2-8-0.3 ..C.................

86-NF9-224-010 SPR-C,LOCK ABC.................

87-NF4-216-010 HLDR,LOCK 1 ABC.................

87-NF4-217-110 HLDR,LOCK 2 ABC.................

87-NF4-221-010 HLDR,CABLE A.C.................

87-NF8-220-010 DMPR,150 ABC.................

88-NF5-208-010 HLDR,PWB-M N ABC.................

8Z-NB8-240-010 COVER, PL ABC.................

8Z-NF9-204-010 PLATE,MIC ..C.................

8Z-NF9-205-010 HLDR,PWB MAIN ..C.................

8Z-NF9-209-010 HLDR,RDS ....................

8Z-NF9-212-010 HLDR,HT-SINK AB..................

87-067-641-010 UTT2+3-8(W/O SLOT)BL ABC.................

87-067-689-010 TAPPING SCREW, BVTT+3-8 ABC.................

87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................

87-067-758-010 BVT2+3-12 W/O SLOT ....................

87-078-191-010 S-SCREW,IT+4-10 ABC.................

87-721-097-410 QT2+3-12 GLD ABC.................

87-723-096-410 QT2+3-10W/O SLOT BL ABC.................

87-NF4-224-010 S-SCREW,IT3B+3-8 CU ....................

87-003-317-010 F-BEAD,F0H2515-LG7 ....................

87-050-034-010 AC CORD ASSY,E ....................

87-050-079-010 AC-CORD ASSY,E .B..................

87-050-081-110 AC CORD ASSY,G ....................

87-050-098-010 AC CODE ASSY,D ....................

87-085-184-010 BUSHING, AC CORD (D) ....................

87-085-185-010 BUSHING, AC CORD (E) .BC.................

87-085-189-010 BUSHING, CORD (U) A...................

87-099-811-010 PLUG,ADPTR CONV(K) ....................

87-A80-006-010 AC CORD ASSY HS ....................

87-A80-083-010 AC CORD,HC BLK ..C.................

87-A80-105-010 AC CORD ASSY,AZ ....................

87-A80-110-010 AC CORD ASSY,U SPT-2W A...................

87-A80-143-010 AC CORD ASSY,E BLK ....................

88-906-251-110 FF-CABLE,6P 1.25 ABC.................

88-911-201-110 FF-CABLE,11P 1.25 ABC.................

88-913-221-110 FF-CABLE, 13P 1.25 220MM ABC.................

8Z-NF8-701-210 RC UNIT,RC-ZAS01 ....................

C 705 87-010-178-080 CHIP CAP 1000P ..C.................

F 101 87-035-139-010 FUSE, 2.5A T 250V ....................

F 101 87-035-219-010 FUSE, 500MA’T’ ....................

F 101 87-035-222-010 FUSE, 1AT ..C.................

F 101 87-035-224-010 FUSE, 1.6AT ....................

F 101 87-035-485-010 FUSE,2A 125V D UL ....................

F 101 87-A91-216-010 FUSE,2.5A 250V T 50T .B..................

F 101 87-A91-265-010 FUSE,2A 125V F 51NM A...................

PT 101 88-NF8-605-010 PT,8NF-8LH ....................

PT 101 88-NF9-605-010 PT,8NF9-D ....................

PT 101 88-NF9-608-010 PT,8NF9-EKZ ....................

PT 101 88-NF9-610-010 PT,8NF-9 HI-HR ....................

PT 101 88-NF9-611-010 PT,8NF-9 HI-LH ....................

PT 101 8Z-NF9-620-010 PT,ZNF-9 U ....................

PT 101 8Z-NF9-622-010 PT,ZNF-9 EZ-HI ....................

PT 101 8Z-NF9-623-010 PT,ZNF-9 HR ..C.................

PT 101 8Z-NF9-721-010 PT,ZNF-9 U5 A...................

PT 101 8Z-NF9-722-010 PT,ZNF-9 LH5-HI .B..................

82-NF7-210-110 GUIDE,FL (*) ABC.................

WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P ..C.................

WH 101 87-A90-460-010 HLDR,WIRE 2.5-7P ....................

W 101 83-NE2-618-110 F-CABEL,5P-2.5 ..C.................

WH 102 87-A90-459-010 HLDR,WIRE 2.5-5P ..C.................

W 101 85-NF5-628-010 F-CABLE 7P-2.5 ....................

WH 102 87-A90-460-010 HLDR,WIRE 2.5-7P ....................

87-067-703-010 TAPPING SCREW, BVT2+3-10 ..C.................

87-067-703-010 TAPPING SCREW, BVT2+3-10 ....................

W 1 85-NF5-628-010 F-CABLE 7P-2.5 AB..................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P AB..................

87-067-703-010 TAPPING SCREW, BVT2+3-10 AB..................

WH 299 87-A90-460-010 HLDR,WIRE 2.5-7P AB..................

MECHANICAL PARTS LIST-2/2

ACCESSORIES / PACKAGE LIST-1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

LH .....................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-NF9-901-110 IB,H(ECA)M ....................

8Z-NF9-902-010 IB,LH(ESP)M ....................

8Z-NF9-903-110 IB,U(ESF)M A...................

8Z-NF9-904-010 IB,G(E)M -333 ....................

8Z-NF9-905-010 IB,K(E)E ....................

8Z-NF9-906-010 IB,EZ(9L)E ....................

8Z-NF9-907-010 IB,V(ER)M ....................

8Z-NF9-911-010 IB,H(ECA)M -333 ....................

8Z-NF9-912-010 IB,LH(ESP)M -333 .B..................

8Z-NF9-913-010 IB,U(ESF)S ....................

8Z-NF9-914-010 IB,H(ECA)M -336 ....................

8Z-NF9-915-010 IB,LH(ESP)F -333 ....................

8Z-NF9-916-110 IB,EZ(9L)E -223 ....................

8Z-NF9-921-010 IB,H(ECA)D ....................

8Z-NF9-922-010 IB,LH(ESP)S ....................

8Z-NF9-923-010 IB,U(ESF)F ....................

8Z-NF9-924-010 IB,LH(ESP)D ....................

8Z-NF9-925-010 IB,LH(ESP)F ....................

8Z-NF9-927-010 IB,EZ(9L)M -333 ....................

8Z-NF9-928-010 IB,LH(ESP)K ....................

8Z-NF9-929-010 IB,LH(ESP)K -333 ....................

8Z-NF9-930-010 IB,H(ECA)K ....................

8Z-NF9-931-010 IB,H(ECA)K -333 ....................

8Z-NF9-932-010 IB,LH(ESP)S -333 ....................

8Z-NF9-936-110 IB,EZ(9L)M -223 ....................

8Z-NF9-937-010 IB,EZ(9L)M ....................

8Z-NF9-938-010 IB,EZ(9L)F ....................

8Z-NF9-939-010 IB,EZ(9L)F -223 ....................

87-006-268-010 AM-LOOP ANT NC (UN) AB..................

87-043-115-010 ANT,FEEDER FM AB..................

87-A90-030-010 ANT,LOOP AM-NC C ....................

87-A90-054-010 ANT,LOOP AM-CON C ....................

87-A90-064-010 FEEDER-ANT,FM(SHS) ....................

87-A90-118-010 ANT,WIRE FM (Z) ....................

87-A90-119-010 ANT,WIRE SW(5M) ....................

87-A91-017-010 PLUG,CONVERSION JT-0476 .B..................

8Z-NF8-701-210 RC UNIT,RC-ZAS01 ....................

8Z-NF8-702-010 RC UNIT,RC-ZAS01 ....................

8Z-NF9-701-210 RC UNIT,ZAS02 ....................

8Z-NF9-702-010 RC UNIT,ZAS02 AB..................

8Z-NF9-703-110 RC UNIT,ZAS17 ....................

ANT 0 87-006-269-010 AM LOOP ANT (UN) ....................

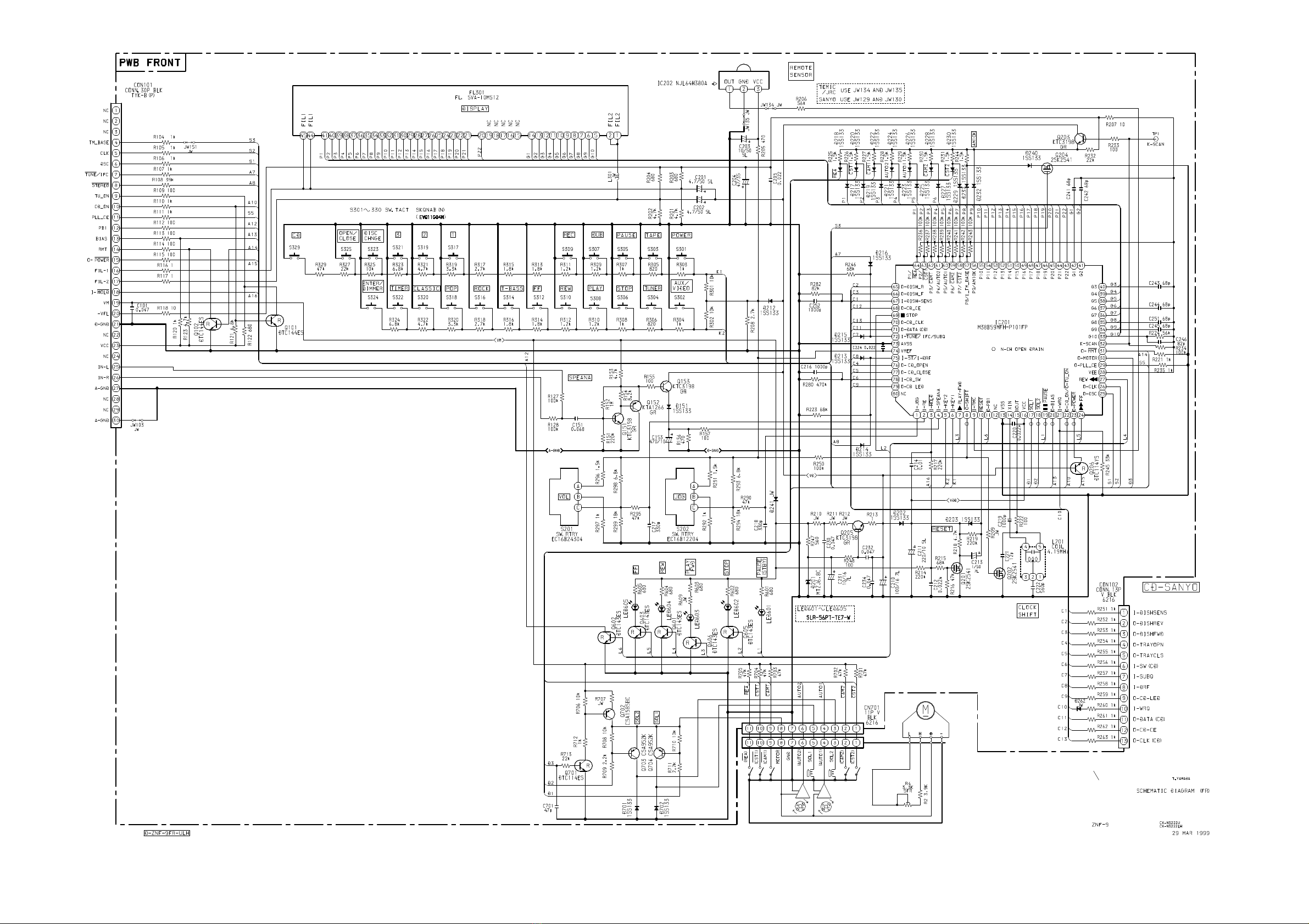

SCHEMATIC DIAGRAM _1 (MAIN 1/2)

Other manuals for NSX-A222

This manual suits for next models

Popular Stereo System manuals by other brands

Sony

Sony HCD-VX88 Service manual

Philips

Philips MCM398D/12 user manual

Sony

Sony CMT-SPZ90DB operating instructions

LG OM4560 owner's manual

JVC

JVC UX-G3 instructions

Odys

Odys ODYS - LOOP instruction manual

Panasonic

Panasonic SC-AK100 operating instructions

Sharp

Sharp CD-G10000V Operation manual

Bogen

Bogen NEARSCAPES 4.1 manual

Panasonic

Panasonic SCPM29 - MINI HES W/CD PLAYER operating instructions

Meyer

Meyer LD-3 operating instructions

THOMSON

THOMSON MIC302U manual

Philips

Philips MCM530 Service manual

Sony

Sony SS-CEP50 Service manual

Cetacea Sound

Cetacea Sound CVS-II user guide

Sony

Sony MHC-V21D Service manual

Denon

Denon UCD-250 Service manual

Exibel

Exibel BDX600-UK user manual

Aiwa NSX-A222 User manual

Popular Stereo System manuals by other brands
