ana

Compact

Disc

Stereo

System

DIGITAL

AUDIO

XR-M171

aise

LU

|

For

assistance

and

information

call

toll

free

1-800-BUY-AIWA

(United

States

and

Puerto

Rico)

8B-CLW-901-01

010110AYH-X6

OPERATING

INSTRUCTIONS

———

MANUAL

DE

INSTRUCCIONES

—____-—_————

MODE

D'EMPLOI

En

(English)

E

(Espanol)

F

(Francais)

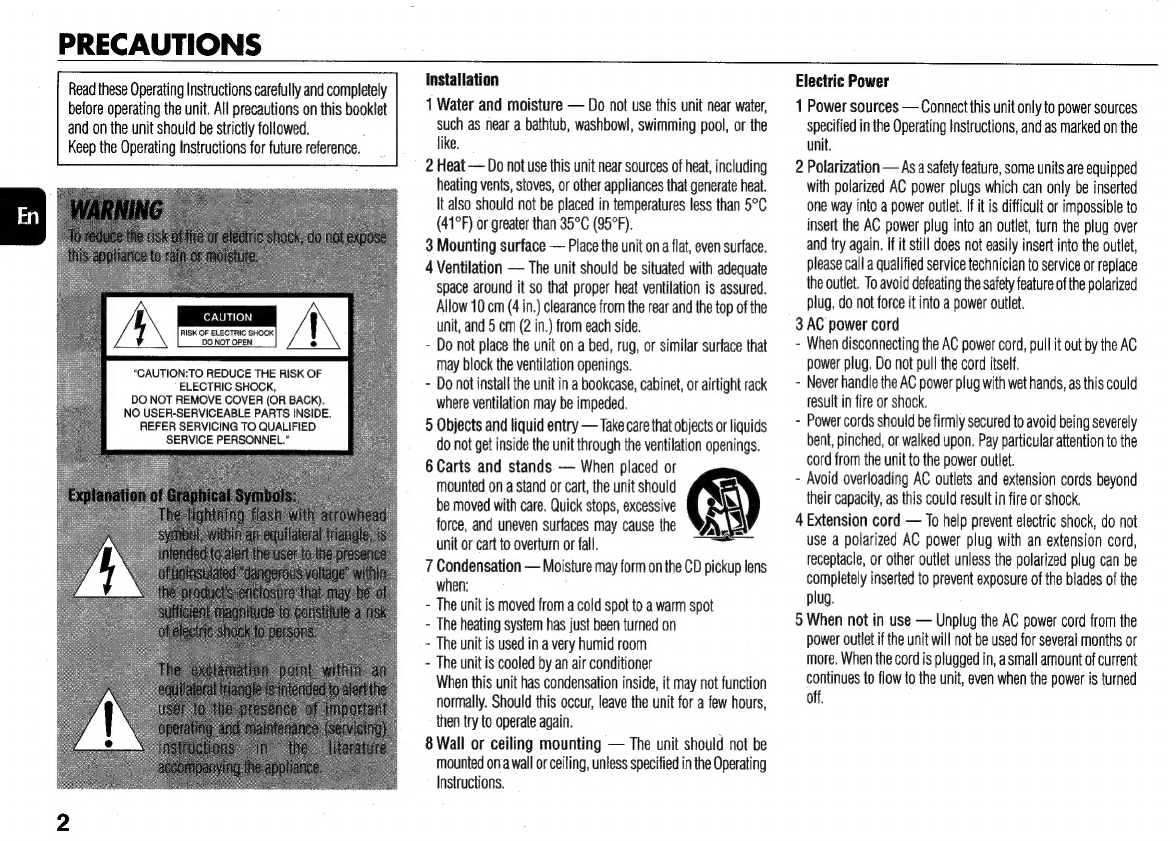

PRECAUTIONS

Read

these

Operating

Instructions

carefully

and

completely

before

operating

the

unit.

All

precautions

on

this

booklet

and

on

the

unit

should

be

strictly

followed.

Keep

the

Operating

Instructions

for

future

reference.

CAUTION

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

“CAUTION:TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL.”

Installation

1

Water

and

moisture

—

Do

not

use

this

unit

near

water,

such

as

near

a

bathtub,

washbowl,

swimming

pool,

or

the

like.

2

Heat

—

Do

not

use

this

unit

near

sources

of

heat,

including

heating

vents,

stoves,

or

other

appliances

that

generate

heat.

It

also

should

not

be

placed

in

temperatures

less

than

5°C

(41°F)

or

greater

than

35°C

(95°F).

3

Mounting

surface

—

Place

the

unit

on

a

flat,

even

surface.

4

Ventilation

—

The

unit

should

be

situated

with

adequate

space

around

it

so

that

proper

heat

ventilation

is

assured.

Allow

10

cm

(4

in.)

clearance

from

the

rear

and

the

top

of

the

unit,

and

5

cm

(2

in.)

from

each

side.

-

Do

not

place

the

unit

on

a

bed,

rug,

or

similar

surface

that

may

block

the

ventilation

openings.

-

Do

not

install

the

unit

in

a

bookcase,

cabinet,

or

airtight

rack

where

ventilation

may

be

impeded.

5

Objects

and

liquid

entry

—

Take

care

that

objects

or

liquids

do

not

get

inside

the

unit

through

the

ventilation

openings.

6

Carts

and

stands.

—

When

placed

or

mounted

on

a

stand

or

cart,

the

unit

should

be

moved

with

care.

Quick

stops,

excessive

force,

and

uneven

surfaces

may

cause

the

YA\2I

unit

or

cart

to

overturn

or

fall.

=.

7

Condensation

—

Moisture

may

form

on

the

CD

pickup

lens

when:

-

The

unit

is

moved

from

a

cold

spot

to

a

warm

spot

~

The

heating

system

has

just

been

turned

on

~

The

unit

is

used

in

a

very

humid

room

-

The

unit

is

cooled

by

an

air

conditioner

When

this unit

has

condensation

inside,

it

may

not

function

normally.

Should

this

occur,

leave

the

unit

for

a

few

hours,

then

try

to

operate

again.

8

Wall

or

ceiling

mounting

—

The

unit

should

not

be

mounted

orva

wall

or

ceiling,

unless

specified

in

the

Operating

Instructions.

Electric

Power

1 Power

sources

—

Connect

this

unit

only

to

power

sources

specified

in

the

Operating

Instructions,

and

as

marked

on

the

unit.

2

Polarization

—

As

a

safety

feature,

some

units

are

equipped

with

polarized

AC

power

plugs

which

can

only

be

inserted

one

way

into

a

power

outlet.

If

it

is

difficult

or

impossible

to

insert

the

AC

power

plug

into

an

outlet,

turn

the

plug

over

and

try

again.

If it

still

does

not

easily

insert

into

the

outlet,

please

call

a

qualified

service

technician

to

service

or

replace

the

outlet.

To

avoid

defeating

the

safety

feature

of

the

polarized

plug,

do

not

force

it

into

a

power

outlet.

3

AC

power

cord

-

When

disconnecting

the

AC

power

cord,

pull

it

out

by

the

AC

power

plug.

Do

not

pull

the

cord

itself.

-

Never

handle

the

AC

power

plug

with

wet

hands,

as

this

could

result

in

fire

or

shock.

-

Power

cords

should

be

firmly

secured

to

avoid

being

severely

bent,

pinched,

or

walked

upon.

Pay

particular

attention

to

the

cord

from

the

unit

to

the

power

outlet.

-

Avoid

overloading

AC

outlets

and

extension

cords

beyond

their

capacity,

as

this

could

result

in

fire

or

shock.

4

Extension

cord

—

To

help

prevent

electric

shock,

do

not

use

a

polarized

AC

power

plug

with

an

extension

cord,

receptacle,

or

other

outlet

unless

the

polarized

plug

can

be

completely

inserted

to

prevent

exposure

of

the

blades

of

the

plug.

5

When

not

in

use

—

Unplug

the

AC

power

cord

from

the

power

outlet

if

the

unit

will

not

be

used

for

several

months

or

more.

When

the

cord

is

plugged

in,

a

small

amount

of

current

continues

to

flow

to

the

unit,

even

when

the

power

is

turned

off.

Outdoor

Antenna

1

Power

lines

—

When

connecting

an

outdoor

antenna,

make

sure

it

is

located

away

from

power

lines.

2

Outdoor

antenna

grounding

—

Be

sure

the

antenna

system

is

properly

grounded

to

provide

protection

against

unexpected

voltage

surges

or

static

electricity

build-up.

Article

810

of

the

National

Electrical

Code,

ANSI/NFPA

70,

provides

information

on

proper

grounding

of

the

mast,

supporting

structure,

and

the

lead-in

wire

to

the

antenna

discharge

unit,

as

well

as

the

_

size

of

the

grounding

unit,

connection

to

grounding

terminals,

and

requirements

for

grounding

terminals

themselves.

Antenna

Grounding

According

to

the

National

Electrical

Code

ANTENNA

LEAD

IN

WIRE

ANTENNA

DISCHARGE

UNIT

(NEC

SECTION

810-20)

GROUNDING

CONDUCTORS

(NEC

SECTION

ELECTRIC

SERVICE

mage

ELECTRODE

SYSTEM

GROUND

CLAMPS

(NEC

ART

250

PART

H)

—_-NEC-NATIONAL

ELECTRICAL

CODE

Maintenance

Clean

the

unit

only

as

recommended

in

the

Operating

Instructions.

Damage

Requiring

Service

Have

the

units

serviced

by

a

qualified

service

technician

if:

-

The

AC

power

cord

or

plug.has

been

damaged

_~

Foreign

objects

or

liquid

have

gotten

inside

the

unit

-

The

unit

has

been

exposed

to

rain

or

water

-

The

unit

does

not

seem

to

operate

normally

-

The

unit

exhibits

a

marked

change

in

performance

-

The

unit

has

been

dropped,

or

the

cabinet

has

been

damaged

DO

NOT

ATTEMPT

TO

SERVICE

THE

UNIT

YOURSELF.

OWNER'S

RECORD

Record

the

model

number

and

serial

number

of

your

set

(found

at

the

rear

of

your

set)

below.

Refer

to

them

when

contacting

your

Aiwa

dealer.

Model

No.

Serial

No.

loner$iff

As

an

ENERGY

STAR®

Partner,

AIWA

has

determined

that

this

product

meets

the

ENERGY

STAR®

guidelines

for

energy

efficiency.

System

and

accessories

CX-LM171

Compact

disc

stereo

cassette

receiver

SX-LM171

Speakers

Remote

control

FM

antenna

AM

antenna

PREPARATIONS

Connection

Plug

in

the

AC

power

cord

fo

the

AC

power

outlet

after

all

other

connections

are

made.

1

Connect

the

speakers.

Connect

the

right

speaker

to

the

SPEAKERS

R

terminals

and

the

left

to

the

SPEAKERS

L

terminals.

The

speaker

cords

with

the

white

stripes

go

to

the

@

terminals.

2

Connect

the

supplied

antennas.

Connect

the

FM

antenna

to

the

FM

75

Q

terminals

and

the

AM

antenna

to

the

AM

LOOP

terminals.

FM

antenna

AM

antenna

3

Connect

the

AC

power

cord

to

an

AC

outlet.

When

the

AC

power

cord

is

connected

to an

AC

outlet

for

the

first

time,

DEMO

appears

on

the

display.

To

deactivate

the

DEMO,

press

DEMO/ECO.

Do

not

short-circuit

the

&

and

©

speaker

cord

leads.

¢Do

not

leave

objects

generating

magnetism

or

objects

affected

by

magnetism

near

the

speakers.

4

Remote

control

Detach

the

battery

compartment

lid

at

the

rear

of

the

remote

control

and

insert

two

R6

(size

AA)

batteries

with

correct

polarity.

R6(AA)

Replace

the

batteries

with

new

ones

when

the

operational

distance

between

the

remote

control

and

main

unit

becomes

shorter.

Remove

the

batteries

if

the

unit

is

not

going

to

be

used

for

an

extended

period

of

time.

The

remote

contro!

may

not

operate

if it

is

used

under

intense

sunlight,

etc.,

or

if

its

line

of

sight

is

obstructed.

PARTS

AND

CONTROLS

Main

unit:

rear

@

AMLOOP,

FM

75

©

terminals

Plug

in

the

supplied

AM

and

FM

antennas

here.

©

VIDEO/AUX

jacks

Accepts

analog

sound

signals

from

external

equipment.

Connect

using

an

optional

connecting

cable

with

RCA

phono

plugs

(red

plug

to

R

jack,

white

plug

to

L

jack).

Refer

also

to

the

operating

instructions

of

your

equipment.

To

switch

function

to

external

input,

press

AUX/VIDEO

to

select

the

VIDEO/AUX/TV

function.

Tip:

To

change

the

displayed

name

for

this

function,

turn

the

unit

on,

then

hold

down

AUX/VIDEO

and

press

POWER.

Repeat

the

procedure

to

select

one

of

“VIDEO”,

“AUX”

or

“TV”.

©

SUB

WOOFER®

jacks

Connect

an

optional

powered

sub

woofer

with

built-in

amplifier

to

the

jack.

©

SPEAKERS4

terminals

Connect

the

speaker

cord

of

the

supplied

front

speakers

here.

©

AC

power

cord

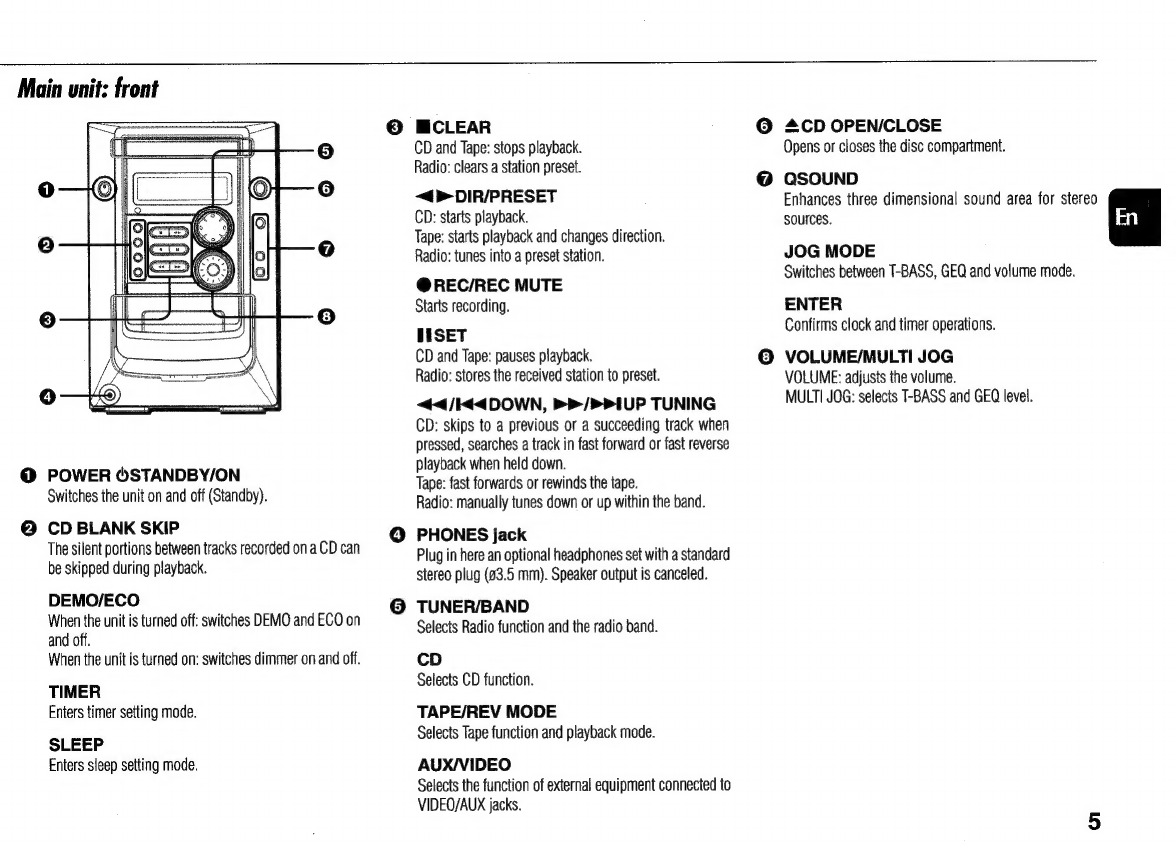

Main

unit:

front

<=

dl

P

6

o—@)|

|

j/O7

--©

Oe=

SS

yie

e

be

.

a

7)

of

0:

3)

8)

ere

a

CONST

eas

\

4)

@

POWER

OSTANDBY/ON

Switches

the

unit

on

and

off

(Standby).

@

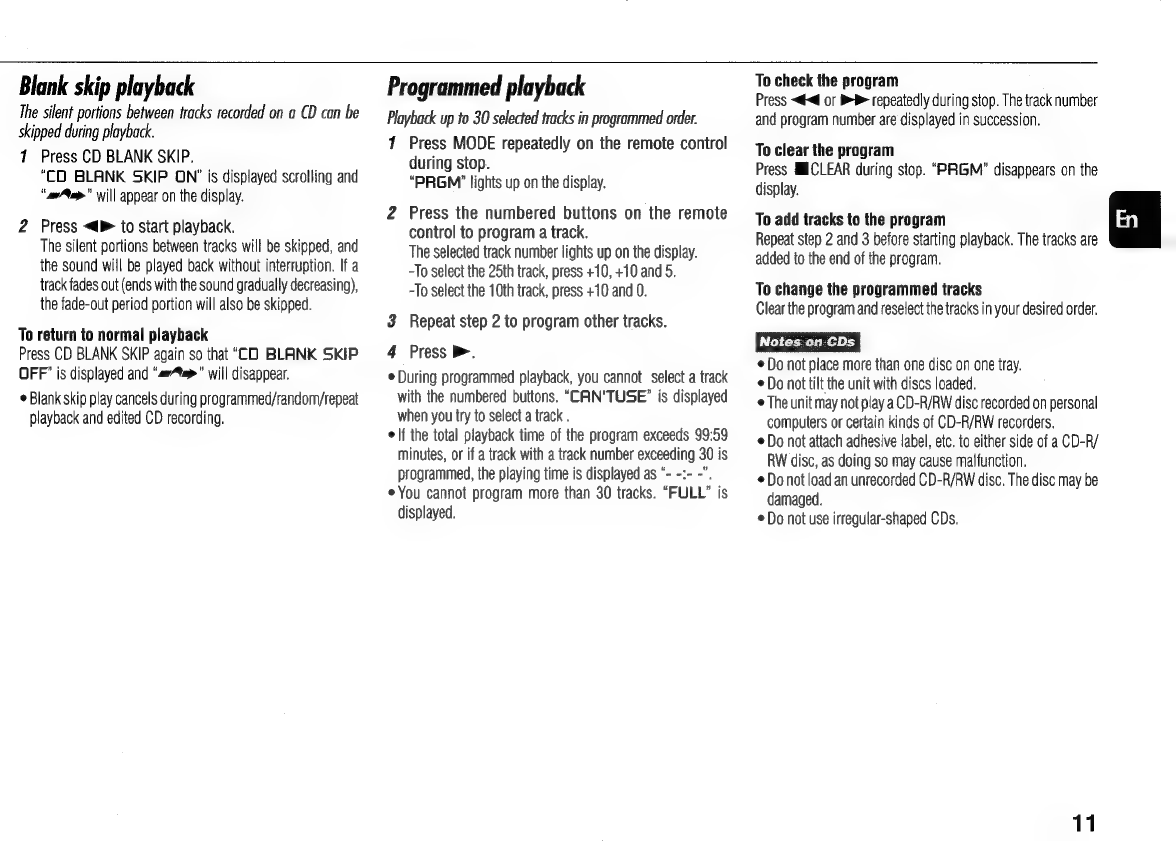

CD

BLANK

SKIP

The

silent

portions

between

tracks

recorded

ona

CD

can

be

skipped

during

playback.

DEMO/ECO

When

the

unit

is

turned

off:

switches

DEMO

and

ECO

on

and

off.

When

the

unit

is

turned

on:

switches

dimmer

on

and

off.

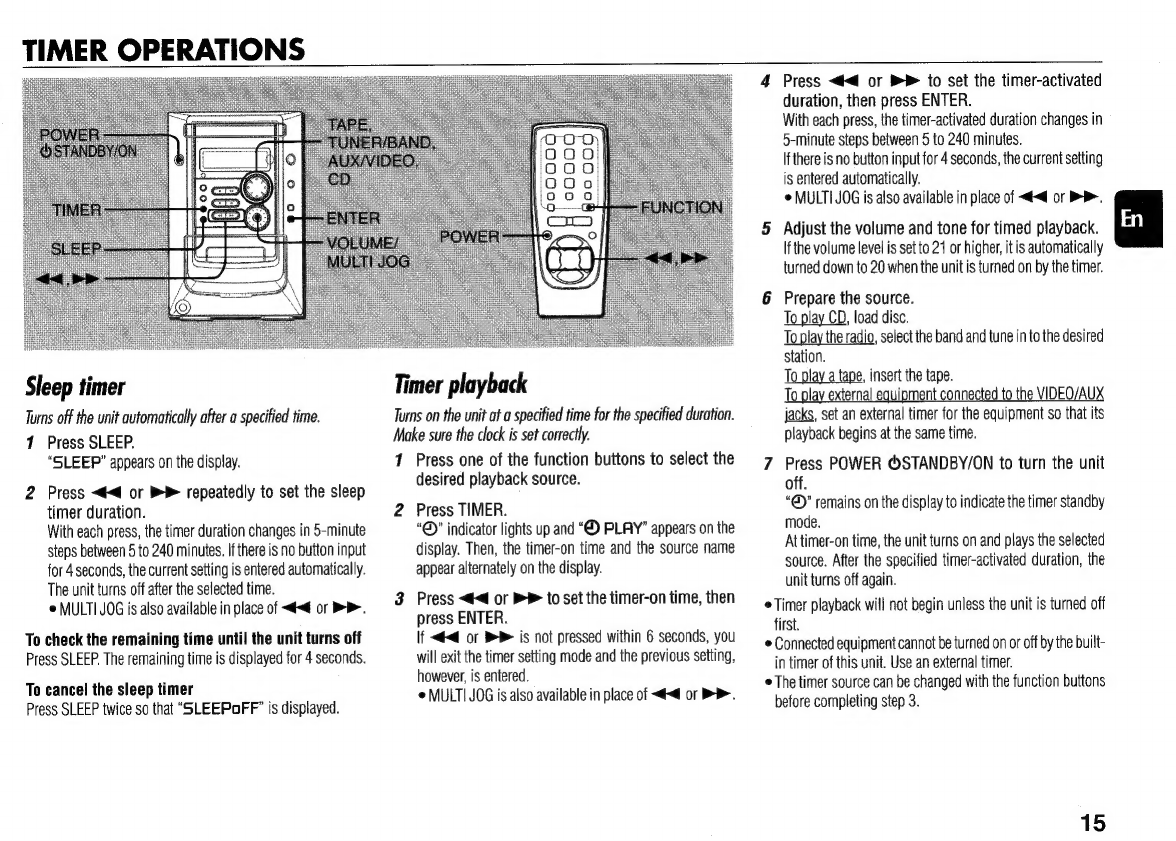

TIMER

Enters

timer

setting

mode.

SLEEP

Enters

sleep

setting

mode.

©

MCLEAR

CD

and

Tape:

stops

playback.

Radio:

clears

a

station

preset.

~<4>DIR/PRESET

CD:

starts

playback.

Tape:

starts

playback

and

changes

direction.

Radio:

tunes

into

a

preset

station.

@REC/REC

MUTE

Starts

recording.

IiSET

CD

and

Tape:

pauses

playback.

Radio:

stores

the

received

station

to

preset.

<<4/IX<DOWN,

&P/PPIUP

TUNING

CD:

skips

to

a

previous

or

a

succeeding

track

when

pressed,

searches

a

track

in

fast

forward

or

fast

reverse

playback

when

held

down.

Tape:

fast

forwards

or

rewinds

the

tape.

Radio:

manually

tunes

down

or

up

within

the

band.

©

PHONES

jack

Plug

in

here

an

optional

headphones

set

with

a

standard

stereo

plug

(23.5

mm).

Speaker

output

is

canceled.

@

TUNER/BAND

Selects

Radio

function

and

the

radio

band.

cD

Selects

CD

function.

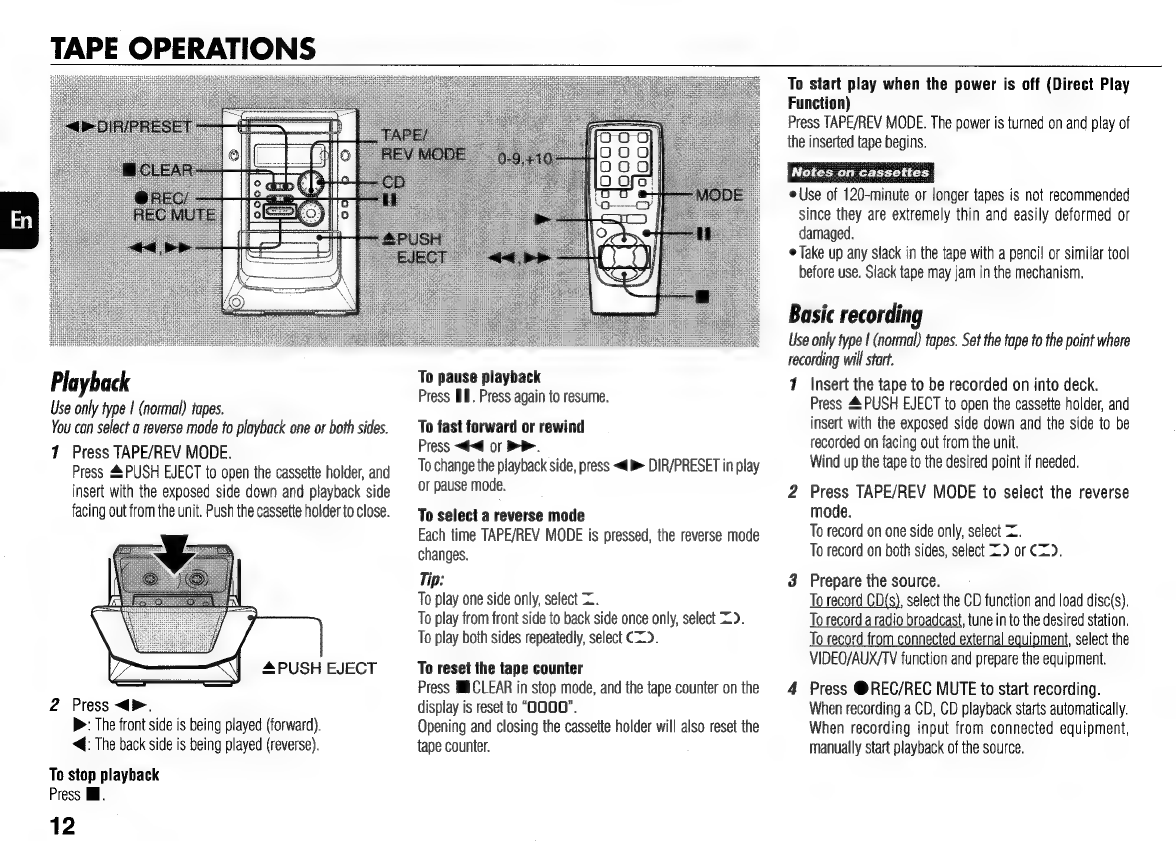

TAPE/REV

MODE

Selects

Tape

function

and

playback

mode.

AUX/VIDEO

Selects

the

function

of

external

equipment

connected

to

VIDEO/AUX

jacks.

@

CD

OPEN/CLOSE

Opens

or

closes

the

disc

compartment.

@

QSOUND

Enhances

three

dimensional

sound

area

for

stereo

SOUrceS.

En

JOG

MODE

Switches

between

T-BASS,

GEQ

and

volume

mode.

ENTER

Confirms

clock

and

timer

operations.

©

VOLUME/MULTI

JOG

VOLUME:

adjusts

the

volume,

MULTI

JOG:

selects

T-BASS

and

GEQ

level.

Remote

control

Buttons

with

same

or

similar

names

with

the

main

unit

basically

have

the

same

function.

@

0-9,

+10

CD:

selects

a

CD

track

of

the

specified

number.

Radio:

tunes

in

to

the

station

with

the

specified

preset

number.

©

DISPLAY

Displays

clock

time,

volume

mode

and

the

remaining

time

of

a

CD

when

pressed

during

playback.

BAND

Switches

the

radio

band.

EQ

Selects

a

sound

equalization

curve.

REPEAT

Enters

repeat

mode.

MODE

CD:

enters

random,

programmed,

edited

CD

recording

mode.

Radio:

switches

between

stereo

or

monaural

FM

reception.

FUNCTION

Switches

the

active

function

among

CD,

TAPE,

TUNER/

BAND

and

AUX/VIDEO.

©

POWER

©

VOL

(A,V)

©

IIPAUSE

»>PLAY

<<4/IX<DOWN,

>P/>P>1UP

TUNING

MSTOP

ADJUSTMENTS

BEFORE

OPERATIONS

DIMMER

mode

Press

DEMO/ECO

during

any

function

mode

(CD,

TAPE,

TUNER/BAND,

AUX/VIDEO).

The

display

is

dimmer

than

usual,

press

DEMO/ECO

again

to

restore

normal

display.

Power

Turning

the

unit

on

Press

POWER

®

STANDBY/ON

(POWER

on

the

remote

control).

Or

press

TAPE,

TUNER/BAND,

AUX/VIDEO

or

CD,

the

playback

will

start

automatically

if

a

disc

or

tape

is

inserted.

Turning

the

unit

off

Press

POWER

¢)STANDBY/ON

again.

The

unit

goes

into

standby.

Volume

Turn

VOLUME

(Press

VOL

AA,

on

the

remote

control).

Adjust

from

0

(minimum)

to

30

and

MAX

(maximum).

Tip:

Volume

level

setting

is

retained

during

power-off

standby.

If

the

unit

is

turned

off

with

the

volume

set

to

21

or

more,

it

is

automatically

turned

down

to

20

the

next

time

the

unit

is

turned

on.

DEMO

If

the

clock

has

not

been

set,

a

DEMO

appears

on

the

display

when

the

unit

is

turned

off.

To

deactivate

and

activate

the

DEMO

Press

DEMO/ECO

when

the

unit

is

turned

off.

ECO

mode

Setting

this

unit

to

power

economizing

mode

reduces

power

consumption.

Press

DEMO/ECO

repeatedly

(during

power

off)

until

“ECO

MODE”

is

displayed.

The

display

disappears

and

the

POWER

indicator

lights

up.

Reduces

power

consumption

with

the

following

operations,

etc.

ECO

ON

mode

(Only

when

the

clock

is

set)

-

The

unit

blacks

out

when

the

unit

is

turned

off.

Only

the

red

indicator

lights

up.

-

If

dimmer

mode

is

set

to

on,

the

unit

illumination

brightens

(for

4

seconds)

only

when

you

operate

the

unit.

-

When

the

unit

turns

on

with

the

timer

recording,

the

dimmer

mode

is

set

to

dimmest

and

the

volume

is

set

to

minimum.

SOUND

ADJUSTMENTS

Setting

the

clock

1

Press

DISPLAY

on

the

remote

control.

2

Press

<4

or

>

to

set

the

time.

Each

press

changes

the

time

in

1-minute

steps.

Holding

it

down

changes

the

time

in

10-minute

steps.

If

<4

or

BP

is

not

pressed

within

4

seconds,

setting

iS

canceled.

¢

MULTI

JOG

is

also

available

in

place

of

<<

or

D>.

3

Press

WESET.

The

time

display

stops

flashing

and

the

clock

starts

from

00

seconds.

To

display

the

time

Press

DISPLAY

on

the

remote

control.

The

time

will

be

displayed

for

4

seconds,

but

it

cannot

be

displayed

during

recording.

To

switch

to

the

24-hour

standard

Display

the

time

and

press

Il

within

4

seconds.

With

each

press,

the

clock

alternates

between

the

12-hour

standard

and

the

24-hour

standard.

Tip:

In

the

12-hour

standard,

“AM

12:00”

indicates

midnight

and

“PM

12:00”

noon.

If

the

clock

display

flashes

when

the

unit

is

turned

off

There

has

been

a

power

interruption.

Re-set

the

clock.

QSOUND

Enhances

three

dimensional

sound

area

for

stereo

sources.

Press

QSOUND

once,

current

QSOUND

mode

is

displayed.

Within

4

seconds,

press

QSOUND

again

to

change

the

mode.

©

At

higher

volumes,

turning

QSOUND

on

may

cause

sound

distortion.

In

this

case,

turn

the

volume

down.

Super

T-BASS

Emphasizes

low

frequencies

for

a

powerful

sound.

Press

JOG

MODE

once,

then

turn

VOLUME/MULTI

JOG

within

4

seconds

to

change

the

T-BASS

level.

©

When

the

sound

becomes

distorted

with

the

T-BASS

effect,

cancel

it.

Graphic

equalizer

Selects

a

sound

equalization

curve

to

match

the

music

type.

Press

JOG

MODE

twice,

then

turn

VOLUME/MULT!

JOG

within

4

seconds

to

select

one

of

the

three

equalization

curves.

-

ROCK:

Powerful

sound

emphasizing

treble

and

bass

-

POP:

More

presence

in

the

vocals

and

midrange

~

JAZZ:

Accented

lower

frequencies

for

jazz

type

music

To

select

with

remote

control

Press

EQ

repeatedly

until

the

desired

equalization

curve

is

displayed.

To

cancel

equalization

Press

JOG

MODE

twice,

then

turn

VOLUME/MULT!

JOG

within

4

seconds

to

select

“GEQ

OFF’.

Press

EQ

on

the

remote

control

repeatedly

until

“GEQ

OFF”

is

displayed.

RADIO

OPERATIONS

z

Manual

tuning

71

Press

TUNER/BAND

(BAND

on

the

remote

control)

repeatedly

to

select

a

band.

The

unit

switches

to

the

radio

from

any

other

function

and

alternates

between

FM

and

AM.

2

Press

<<

DOWN

or

PUP

to

tune

in

toa

station.

“TUNE?”

is

displayed

when

a

station

is

tuned

in.

“((@>1)}”

lights

up

for

FM

stereo

reception.

To

search

for

a

station

automatically

(Auto

Search)

Hold

down

<<

DOWN

or

bb

UP.

The

unit

searches

for

a

station

up

or

down

the

band

and

stops

at

reception.

To

stop

the

search

manually,

press

<@<d

DOWN

or

B>BUP.

¢

Auto

Search

may

not

stop

at

stations

with

weak

signals.

Preset

tuning

Preset

your

favorite

stations

and

tune

them

in

directly.

Presetting

stations

1

Press

TUNER/BAND

to

select

the

band.

2

Press

«DOWN

or

UP

to

tune

in

to

the

desired

station.

3

Press

BESET

to

store

the

station.

The

preset

number,

beginning

from

“I”,

appears

on

the

display.

4

Repeat

step

1

to

3

to

preset

other

stations.

You

cannot

store

more

than

a

total

of

32

preset

stations.

“FULL’

is

displayed.

Tuning

in

to

preset

stations

On

the

unit

1

Press

TUNER/BAND

to

select

the

band.

2

Press

<4bDIR/PRESET

repeatedly.

With

each

press,

the

station

with

the

succeeding

preset

number

is

tuned

in.

On

the

remote

control

7

Press

BAND

to

select

the

band.

2

Press

the

numbered

buttons

for

the

preset

number

of

your

desired

station.

-

To

select

preset

number

20,

press

+10,

+10

and

0.

-

To

select

preset

number

15,

press

+10

and

5.

To

clear

a

preset

station

1

Tune

in

to

the

station

by

preset

tuning.

2

Press

MEICLEAR.

“PUSH

SET’

is

displayed.

Press

BESET

within

4

seconds.

Preset

numbers

of

preset

stations

in

the

band

with

higher

numbers

decrease

by

one.

Adjustments

Antennas

Keep

antennas

away

from

metallic

objects,

electrical

equipment

and

cords.

FM

antenna:

Extend

fully

in

a

T-shape.

If

receiving

condition

is

poor,

connect

optional

outdoor

antenna

to

FM

75

Q

terminal.

AM

antenna:

Rotate

to

find

best

reception.

To

switch

to

monaural

FM

reception

Press

MODE

on

the

remote

control.

With

each

press,

“MONO”

and

“STEREO”

are

displayed

alternately

on

the

display.

Tip:

When

FM

stereo

reception

is

poor,

switching

to

monaural

reduces

noise.

To

switch

the

AM

tuning

interval

Hold

down

TUNER/BAND

and

press

POWER.

With

each

press,

the

AM

tuning

interval

alternates

between

9

kKHz/step

and

10

kHz/step.

Tip:

The

default

is

10

kHz/step.

Change

it

only

when

using

the

unit

in

a

9

kHz/step

area.

Switching

AM

tuning

interval

clears

all

the

preset

stations.

9

:

ne

el

This

unit

plays

back

finalized

CD-R/RW

discs

as

well

as

audio

CDs.

Playback

7

Press

CD

and

load

disc.

Press

&CD

OPEN/CLOSE

to

open

the

disc

compartment

and

load

a

disc with

the

labeled

side

up.

Close

the

compartment

with

4<CD

OPEN/CLOSE.

¢When

loading

an

8-cm

(3-inch)

disc,

place

it

on the

inner

circle

of

the

tray.

2

Press

<>.

Play

begins

with

the

first

track.

To

stop

playback

Press

Ml.

To

pause

playback

Press

Il.

Press

again

to

resume

playback.

10

Ooo O00

OO

ores

To

skip

to

the

beginning

of

the

current/preceding/

succeeding

track

Press

<¢<@

or

BP

repeatedly.

To

search

(playback

in

fast

forward

or

fast

reverse)

Hold

down

<4

or

BB».

Release

at the

desired

point.

To

select

a

track

with

the

remote

control

Press

the

numbered

buttons

to

select

a

track.

-

To

select

track

25,

press

+10,

+10

and

5.

~

To

select

track

10,

press

+10

and

0.

To

display

the

remaining

playback

time

of

the

CD

Press

DISPLAY

repeatedly

on

the

remote

control.

Press

again

to

return

to

the

elapsed

time

display.

Remaining

playback

time

cannot

be

displayed

during

random,

repeat

or

programmed

playback.

Random

/Repeat

playback

Random

playback

plays

all

the

tracks

on

the

disc

in

random

order.

Repeat

playback

plays

all

the

tracks

repeatedly

on

the

disc.

RANDOM

play

Press

MODE

on

the

remote

control

once,

“RANDOM”

lights

up

on

the

display.

To

cancel

random

play,

press

the

button

once

during

play

or

press

the

button

four

times

in

stop

mode.

REPEAT

play

Press

REPEAT

on

the

remote

control.

Each

time

REPEAT

is

pressed,

the

operation

can

be

selected

cyclically.

Tip:

To

repeat

the

entire

disc,

turn

on

“Ge”,

To

repeat

the

desired

track,

turn

on

“G+”,
